WEIAND
OIL PAN KIT – FABRICATED

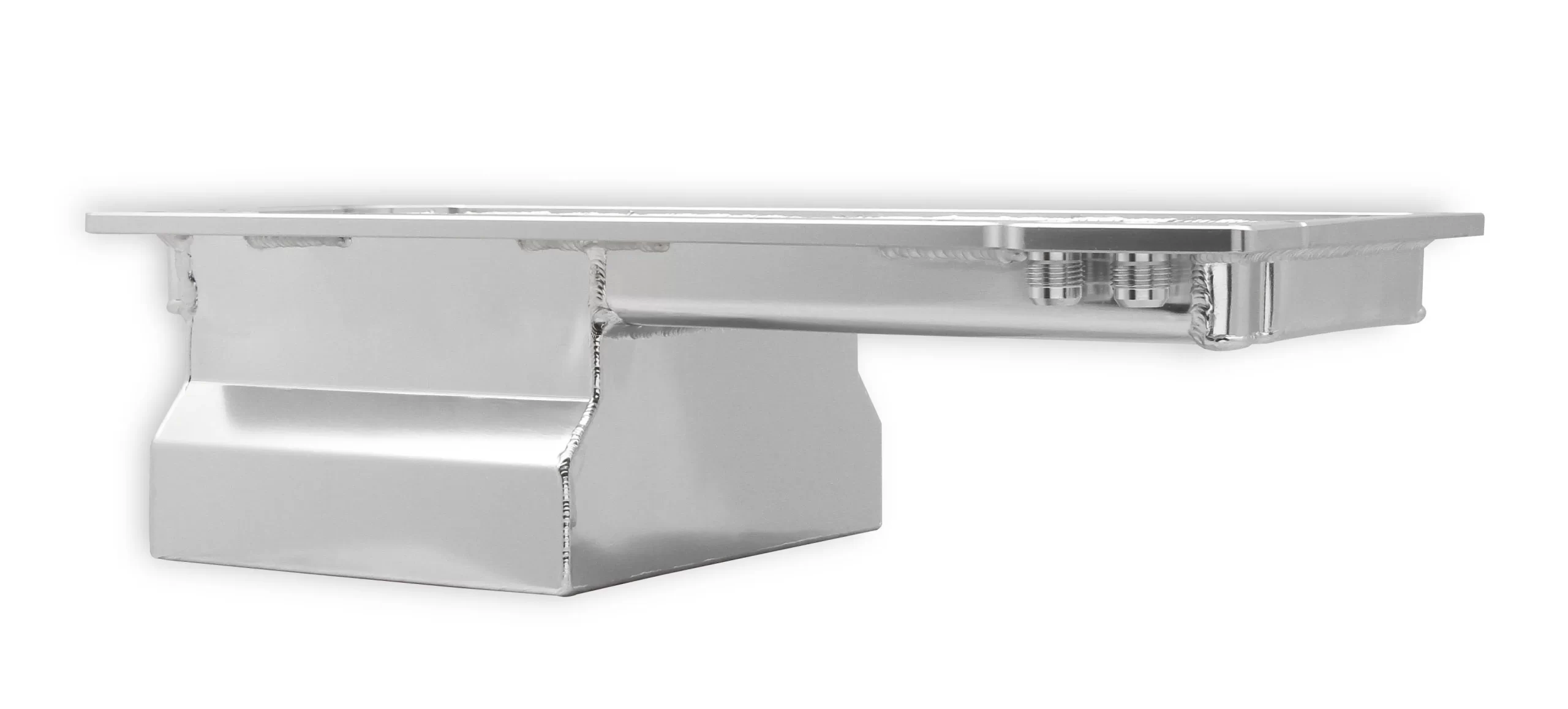

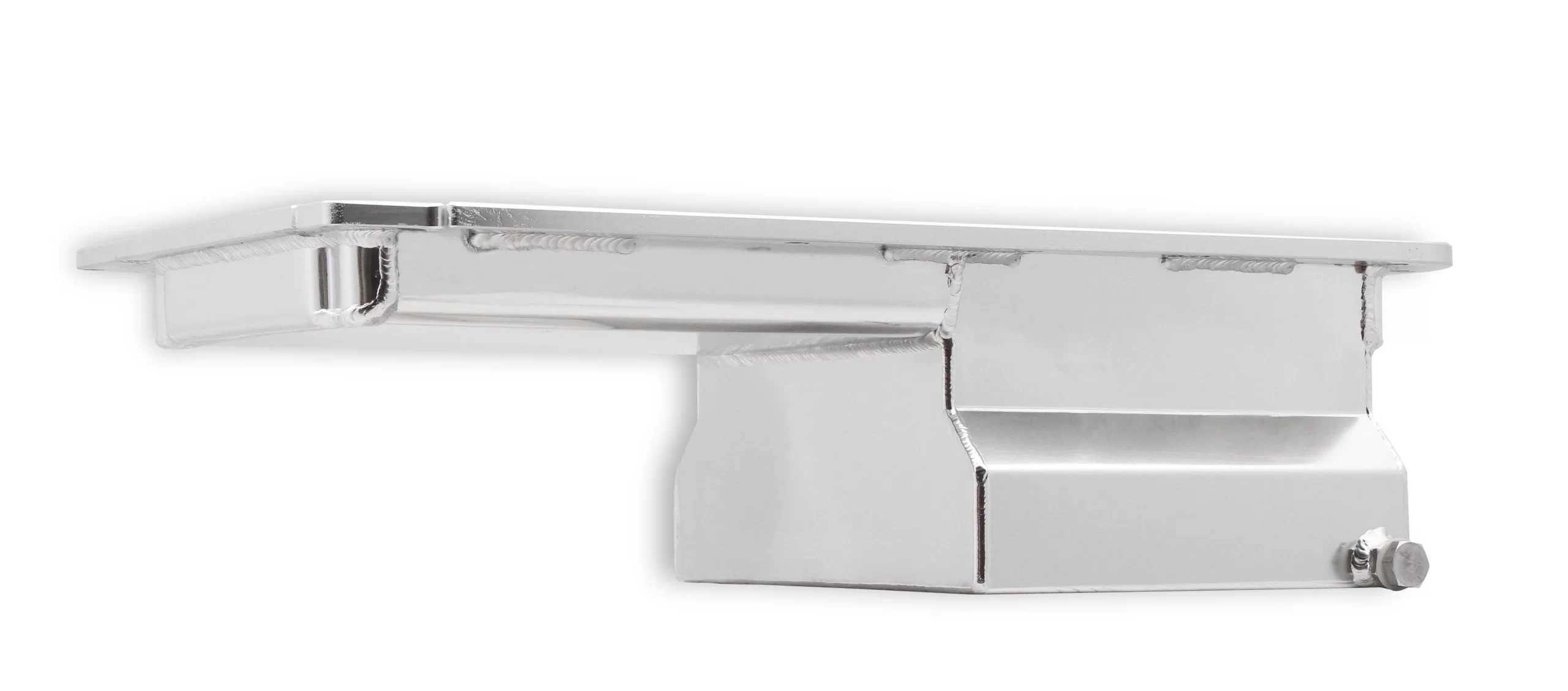

Aluminum Oil Pan kit (with 3/8″ flange) 7QT GM LS1/2/6 & LQ9 engines Silver Finish Front Sump
Part # 5044WND
Save time and aggravation with this money saving oil pan kit for GM LS Engines. Each kits comes with everything you need to get the job of changing out your oil pan!
Features:
- Increased 7QT oil capacity to keep your high performance engine systems fed properly

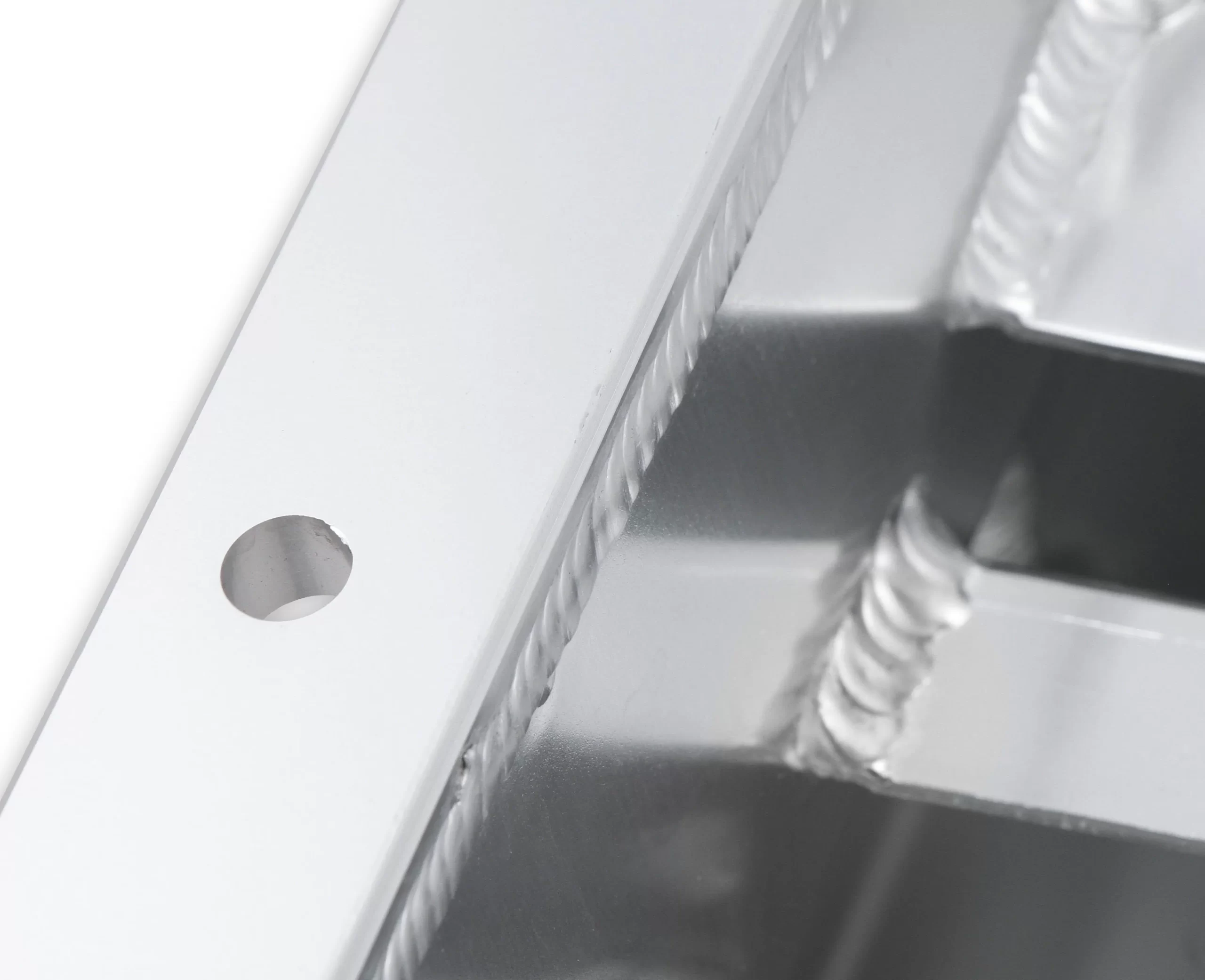

- Featured 3/8″ thick pan mounting flange for enhanced strength
- Pan Available in four finishes (Silver, Black, Gold Zinc, and Polished)

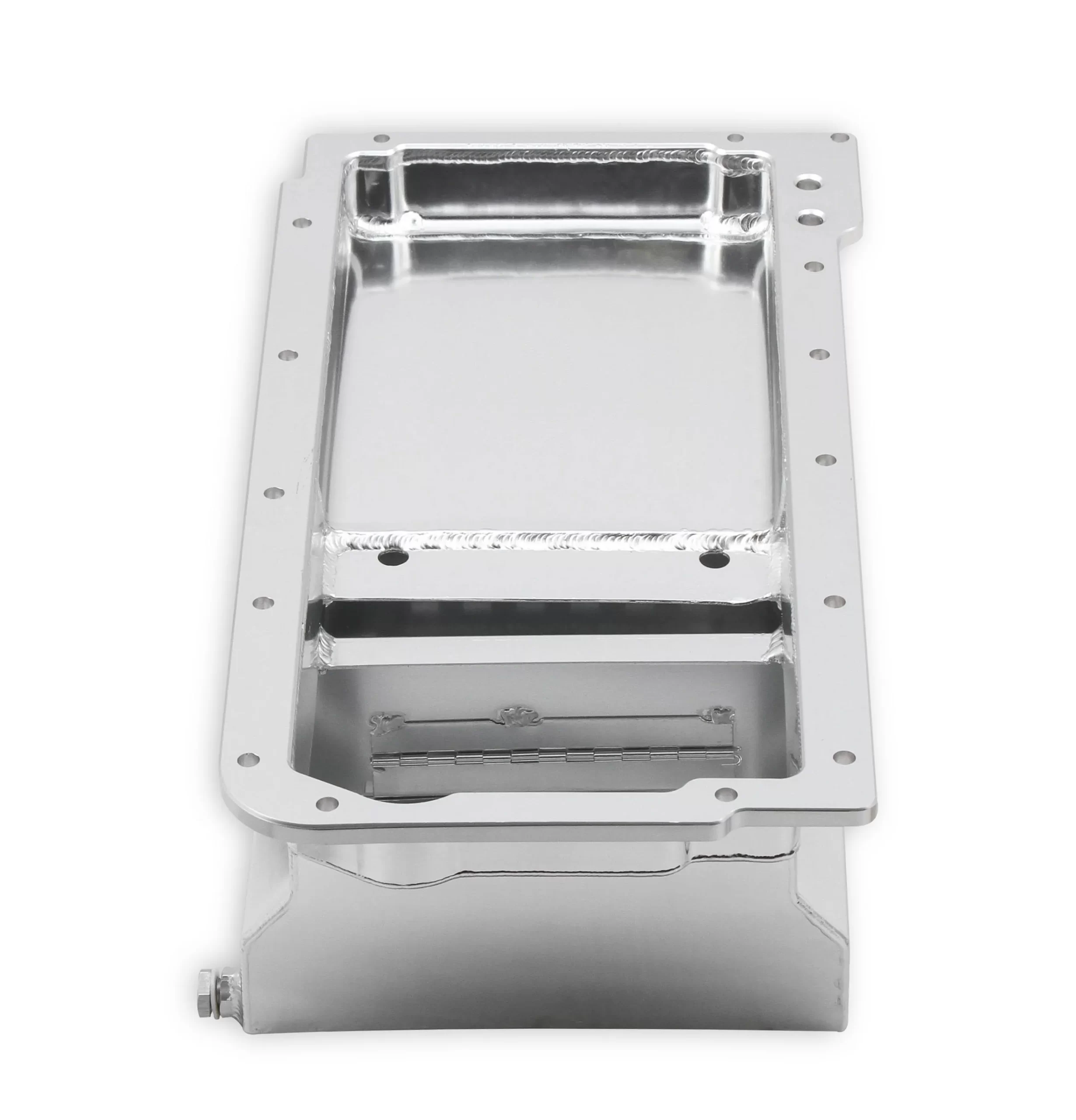

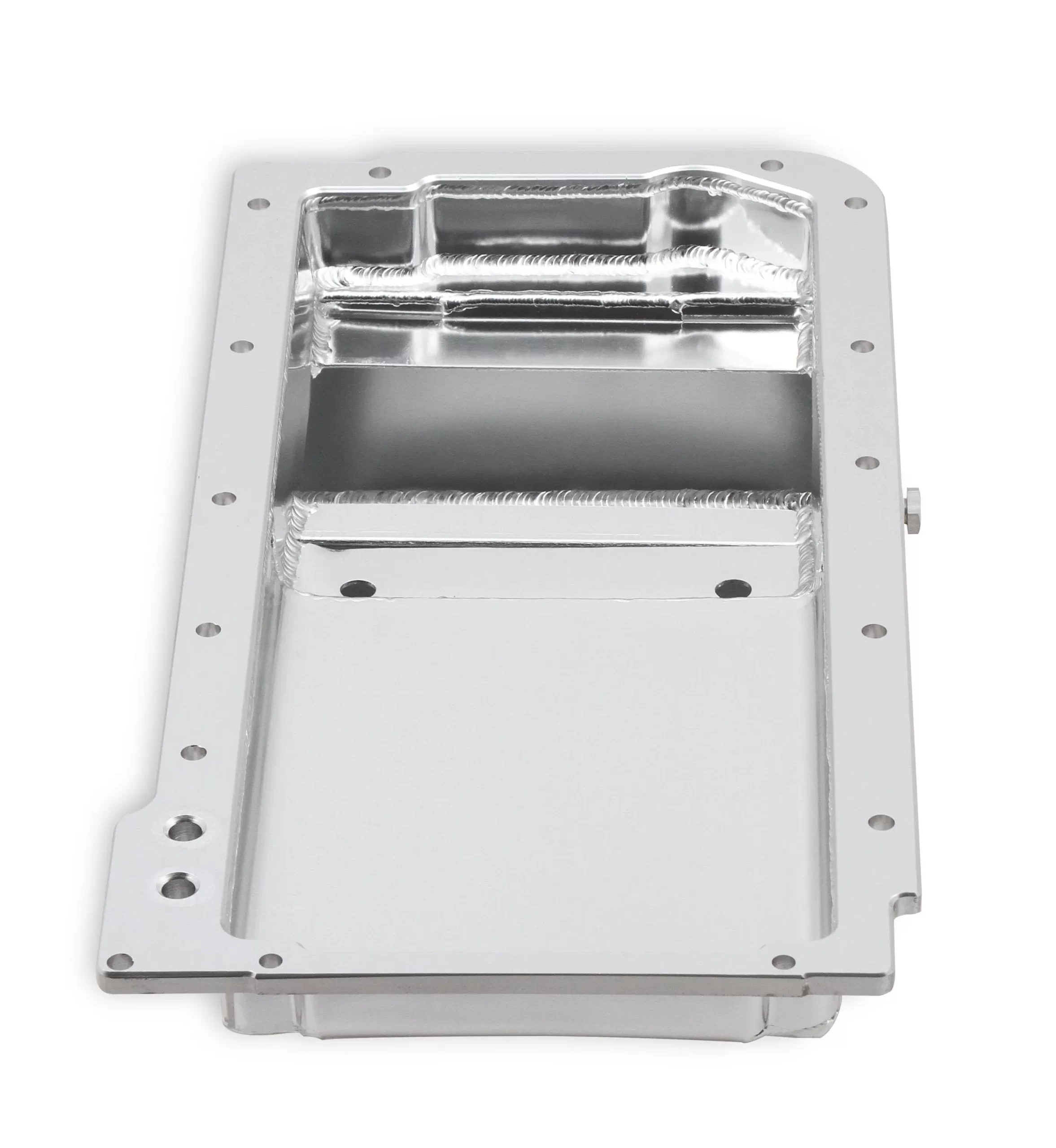

- Baffles keep oil from sloshing during hard acceleration resulting in oil starvation
- Front Sump design for GM LS1/2/6 and LQ9 engines

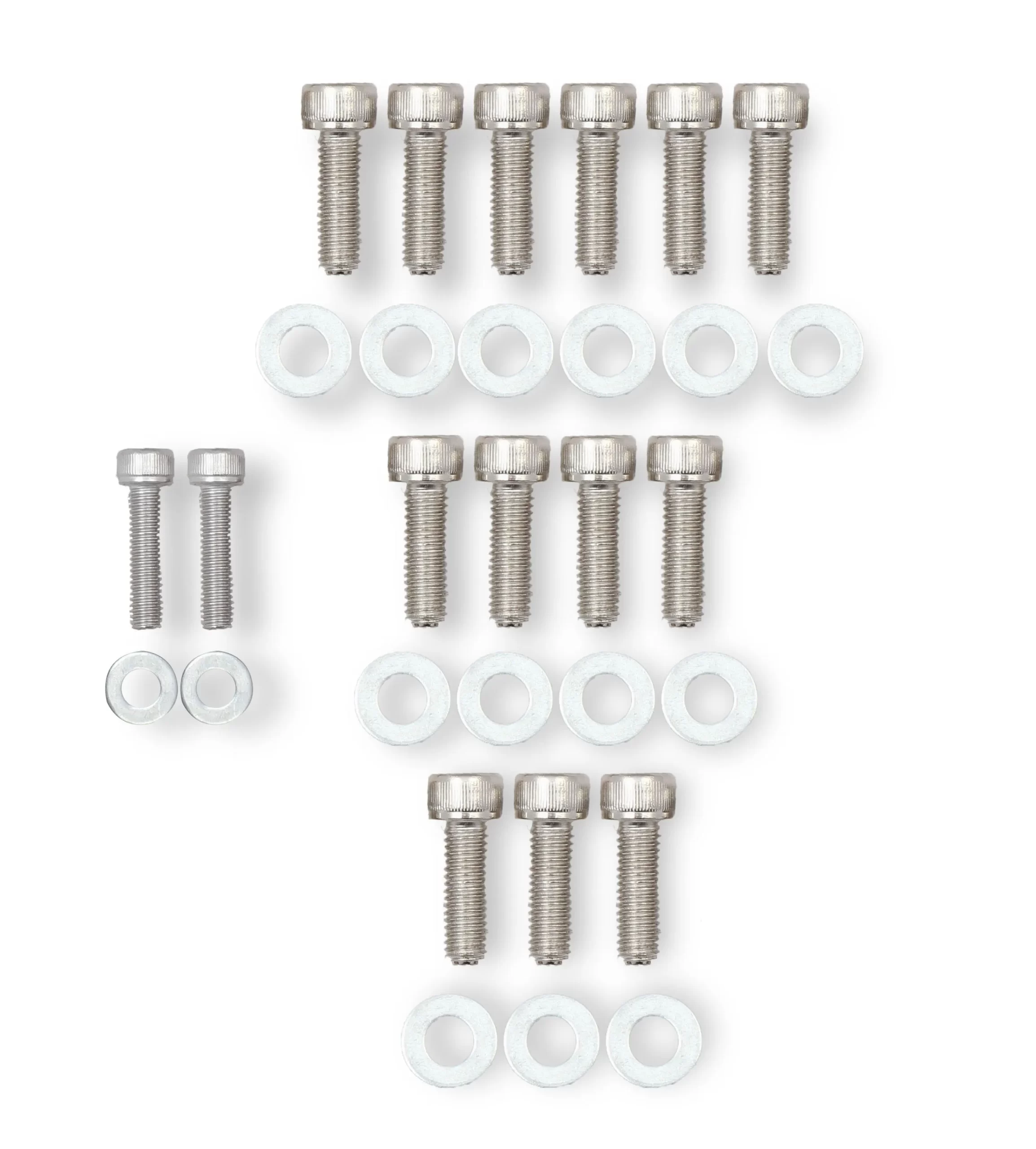

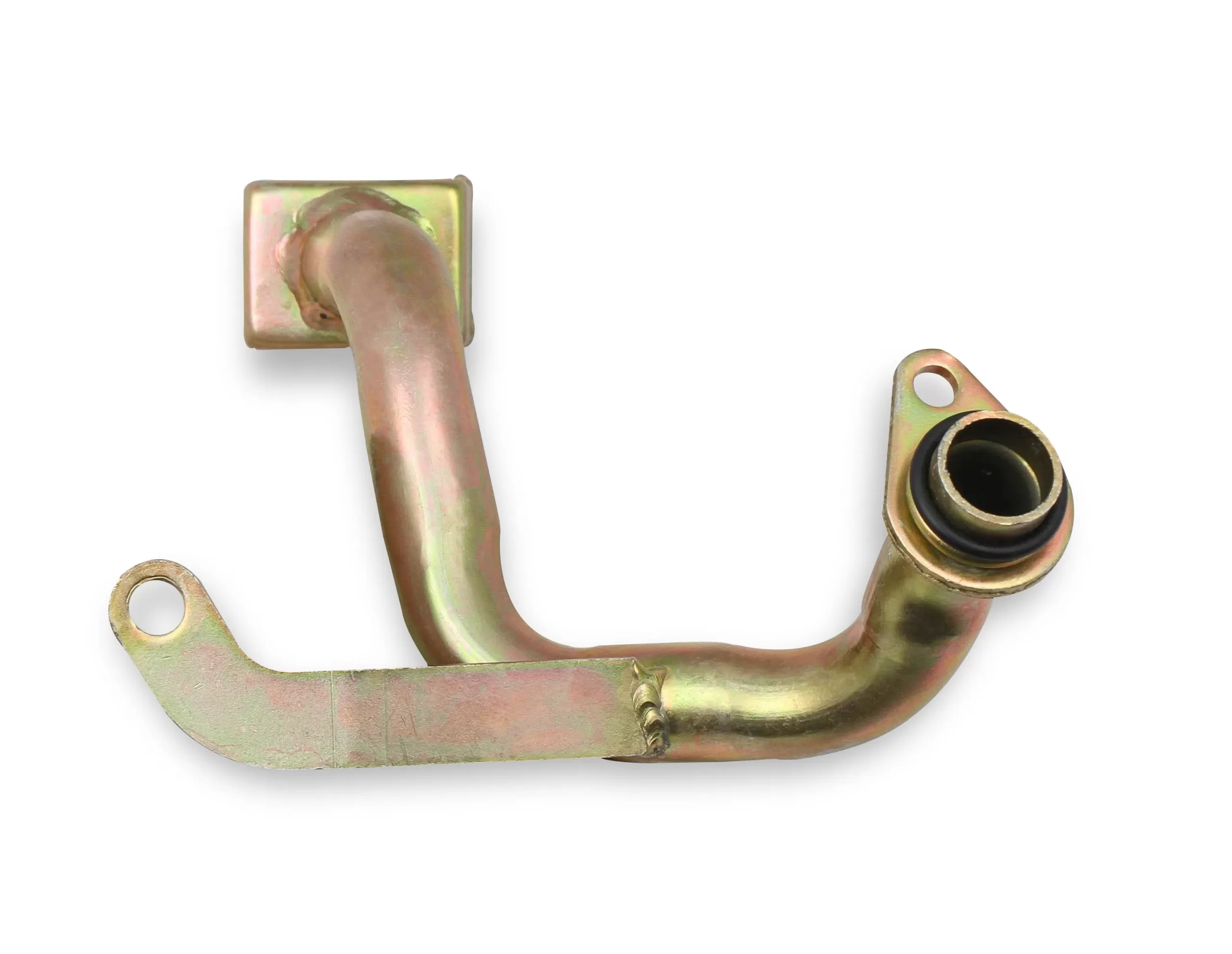

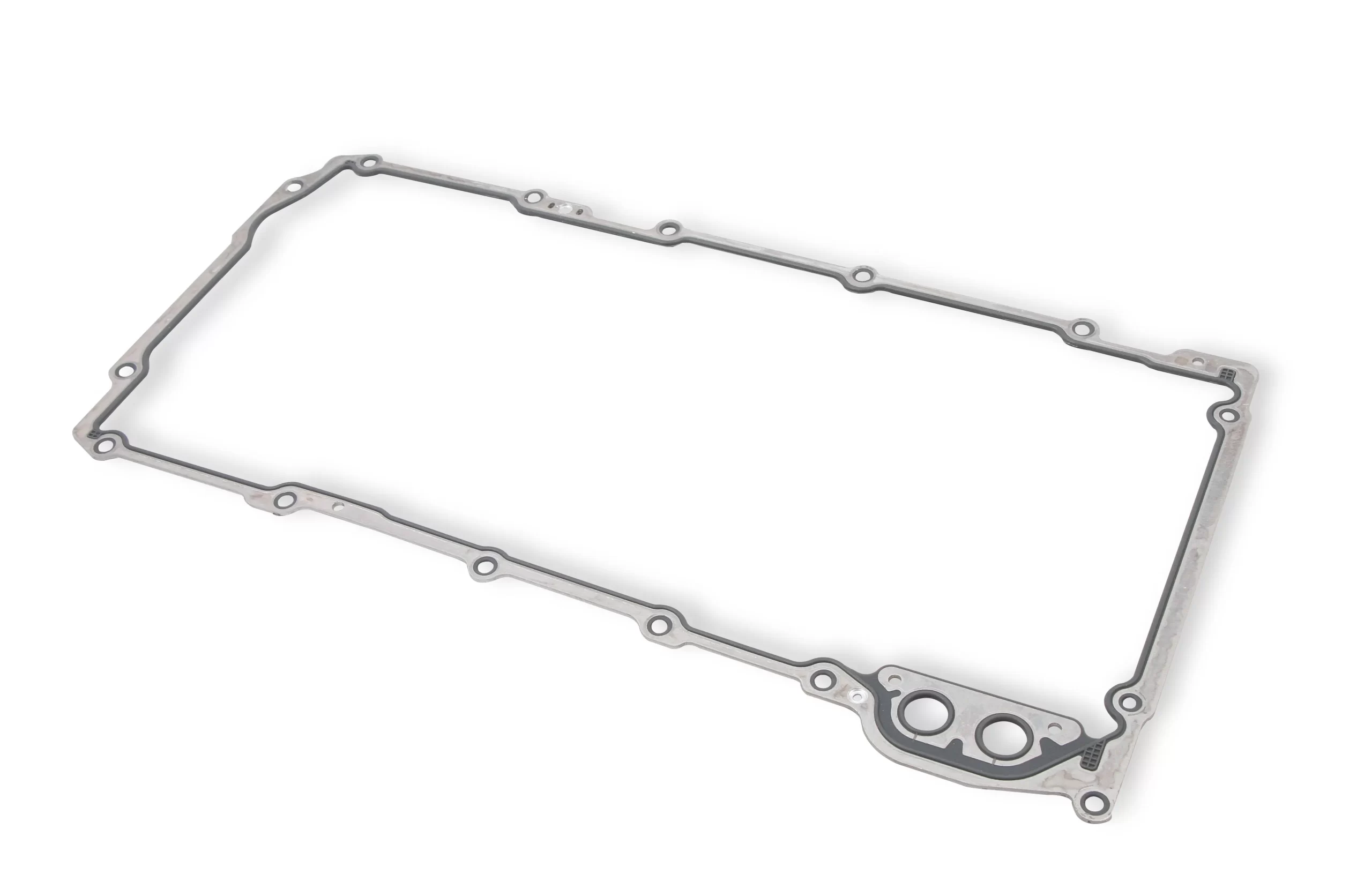

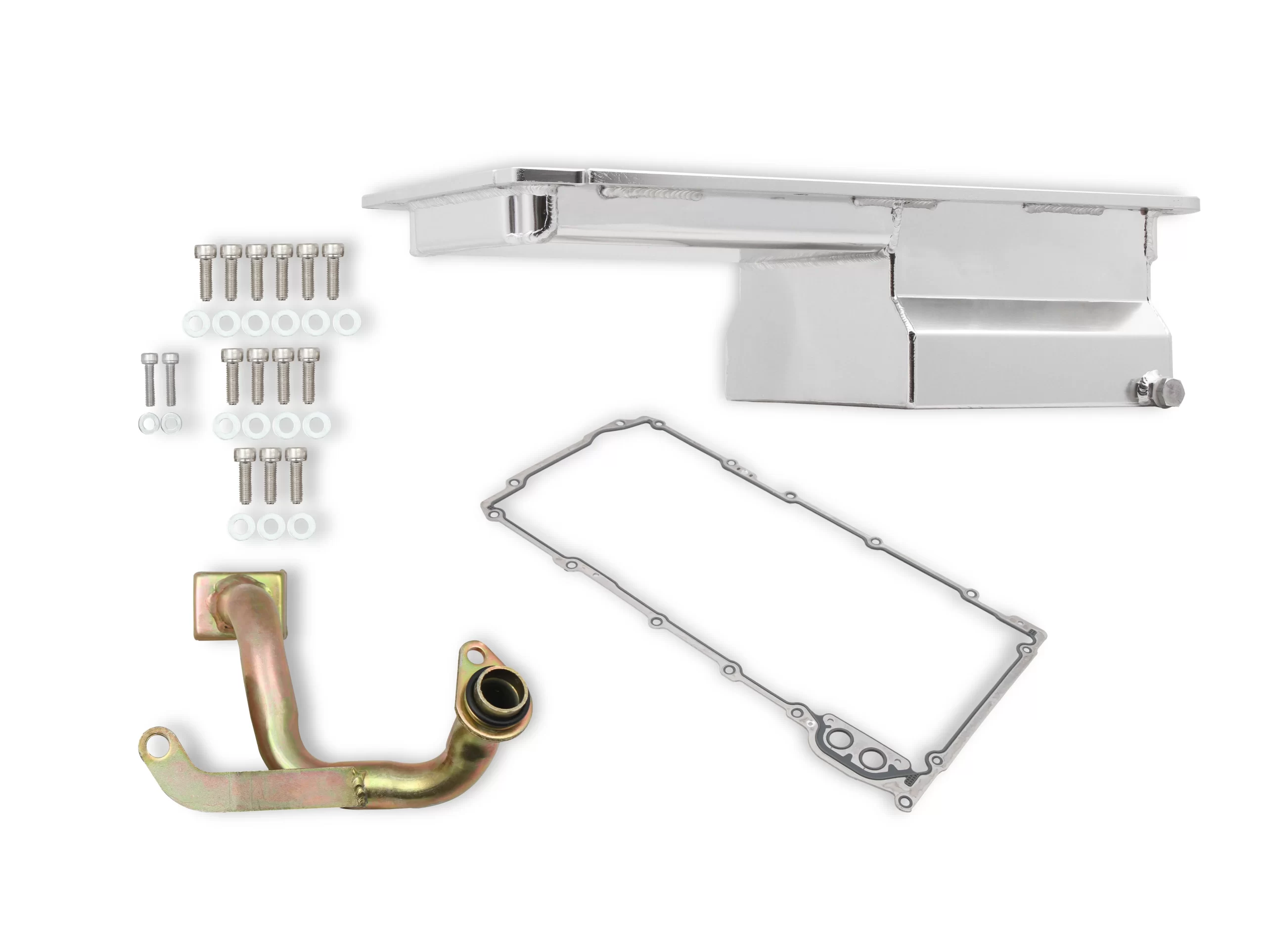

- Complete Kit includes oil pan, oil pan gasket, oil pan pickup tube, and oil pan mounting hardware
- Designed for use with remote oil filter system.
Application | GM LS Engines |
---|---|
Brand | Weiand |
Clearance Category | Engine |
Crank Scraper Included | No |
Dipstick Location | None |
Discount Percentage | 26-50% |
Emission Code | 5 |
Engine | GM Gen III/IV (LS) |
Finish | Silver |

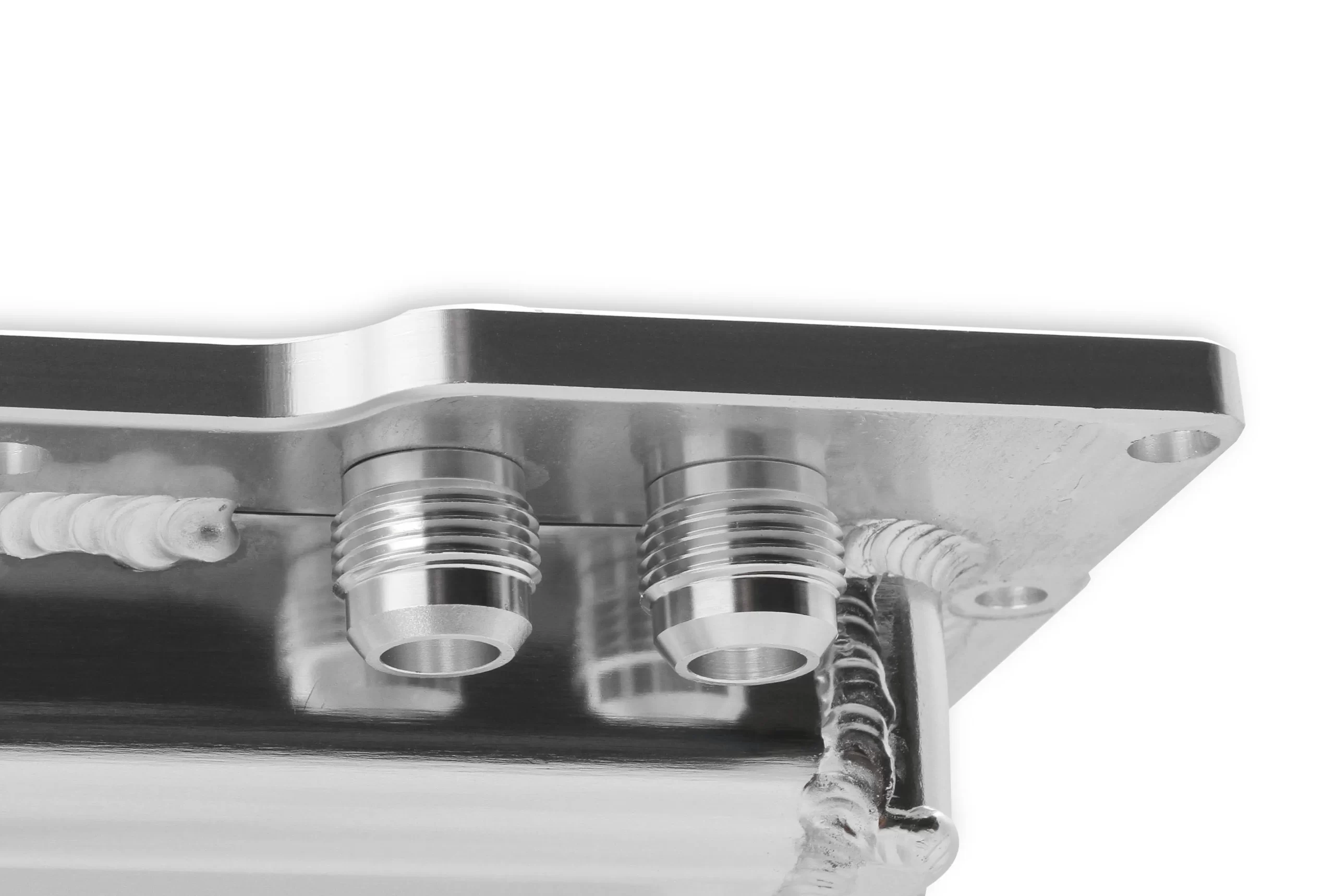

Fitting Size | Dual 10AN Fittings |
Material | Aluminum |
Oil Pan Capacity | 7.0 Quarts |
Oil Pan Depth | 6.375″ |
Oil Pan Sump Length | 8 3/8 |
Oil Pan Sump Width | 10 3/8 |
Oil Pan Type | Fabricated |
Oil Return Size | None |
Product Type | Oil Pan Kit |
Sale Category | Engine |
Sump Location | Front |
Turbo Oil Drainback | No |
Warranty | Limited 90 Day |
Windage Tray Included | No |
UPC | 090127042694 |
Part Number | 5044WND |
