WEIAND OIL PAN KIT – FABRICATED Aluminum Oil Pan kit (with 3/8″ flange) 7QT GM LS1/2/6 & LQ9 engines Black Finish Front Sump Part # 5042WND

Original price was: $394.00.Current price is: $353.95.

Availability: 22 in stock

-

WEIAND

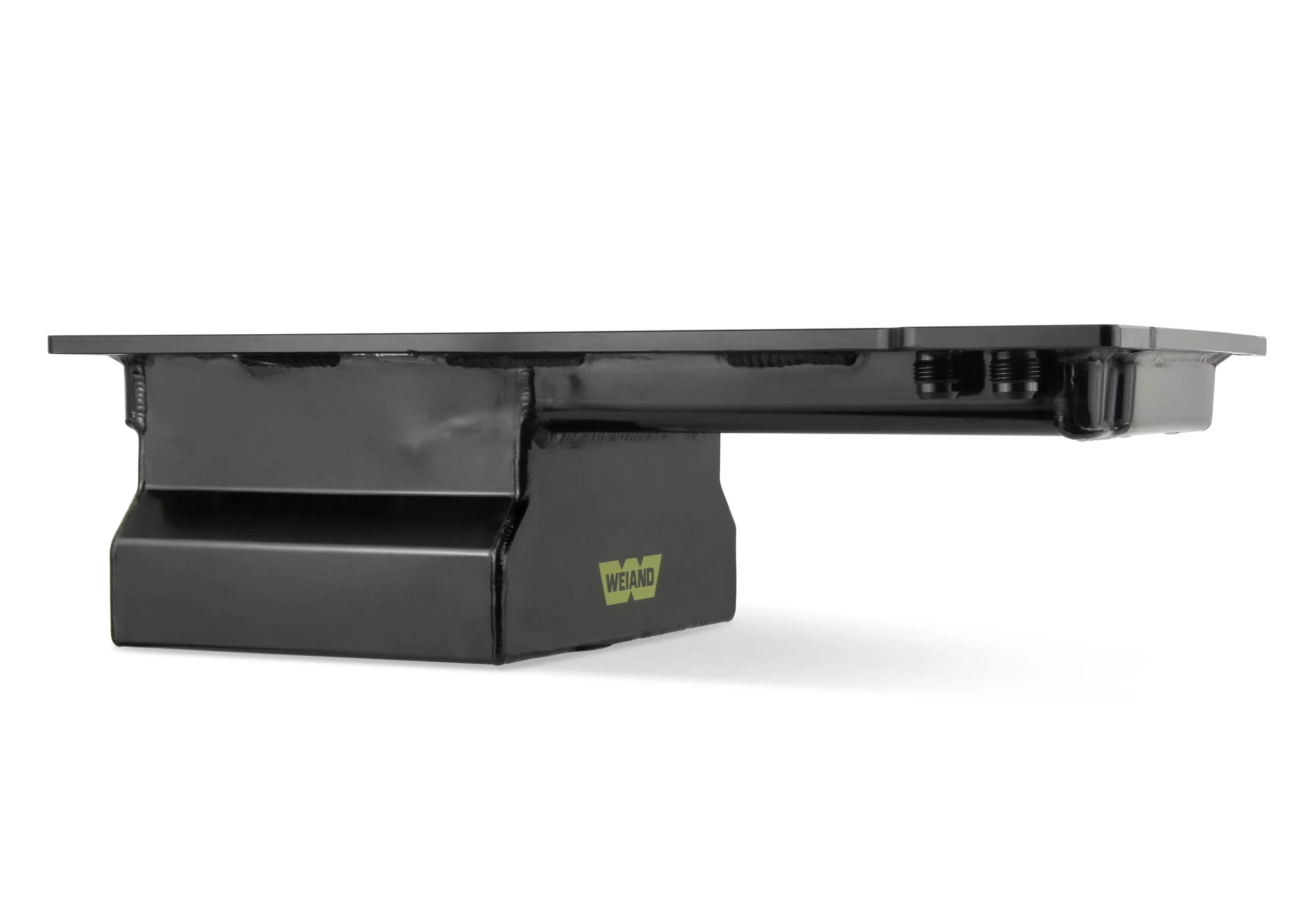

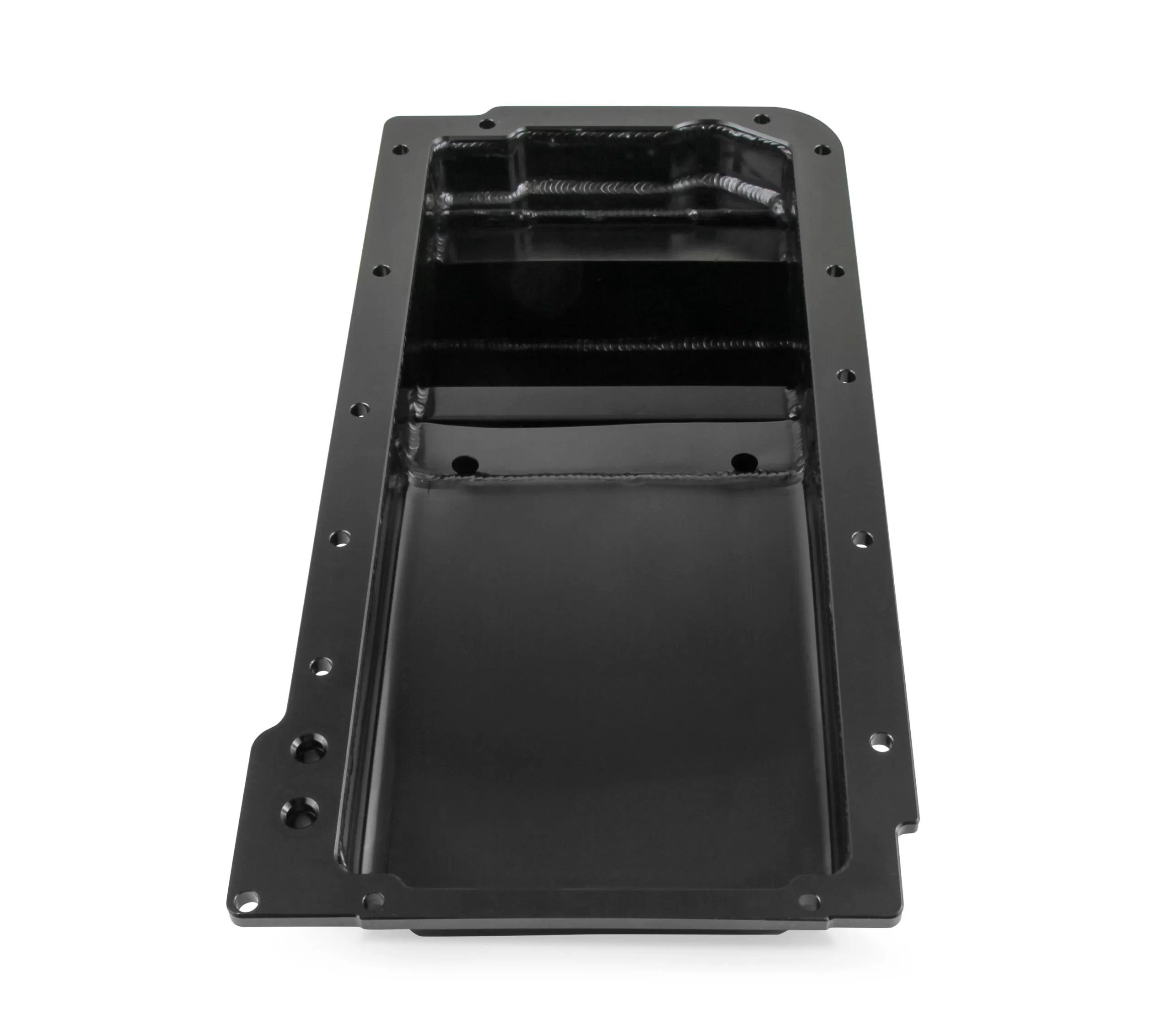

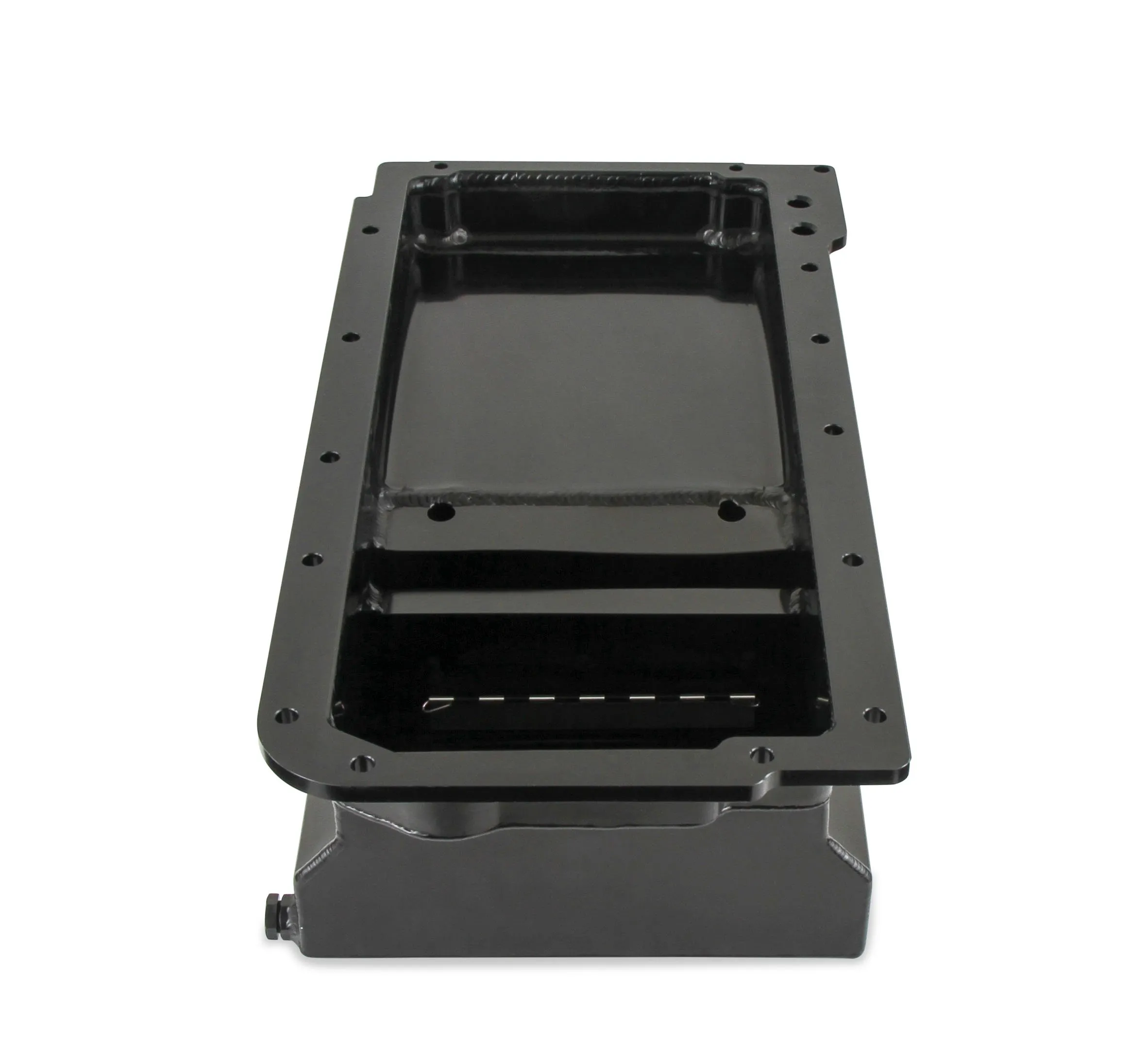

OIL PAN KIT – FABRICATED

Aluminum Oil Pan kit (with 3/8″ flange) 7QT GM LS1/2/6 & LQ9 engines Black Finish Front Sump

Part # 5042WND
Save Time and aggravation with this money saving oil pan kit for GM LS Engines. Each kits comes with everything you need to get the job of changing out your oil pan!

Features:

  • Increased 7QT oil capacity to keep your high performance engine systems fed properly
  • Featured 3/8″ thick pan mounting flange for enhanced strength
  • Pan Available in four finishes (Silver, Black, Gold Zinc, and Polished)

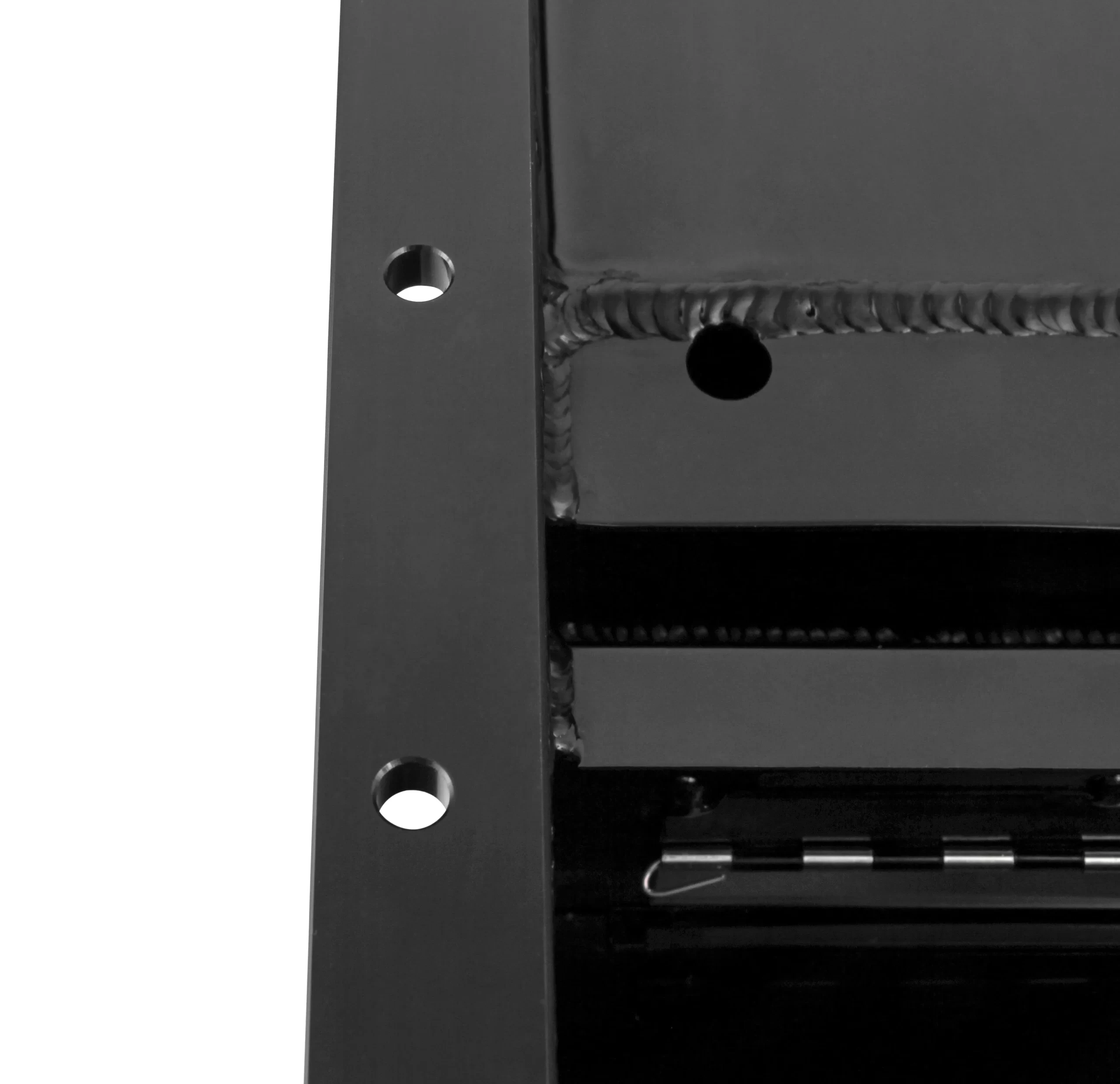

  • Baffles keep oil from sloshing during hard acceleration resulting in oil starvation
  • Front Sump design for GM LS1/2/6 and LQ9 engines

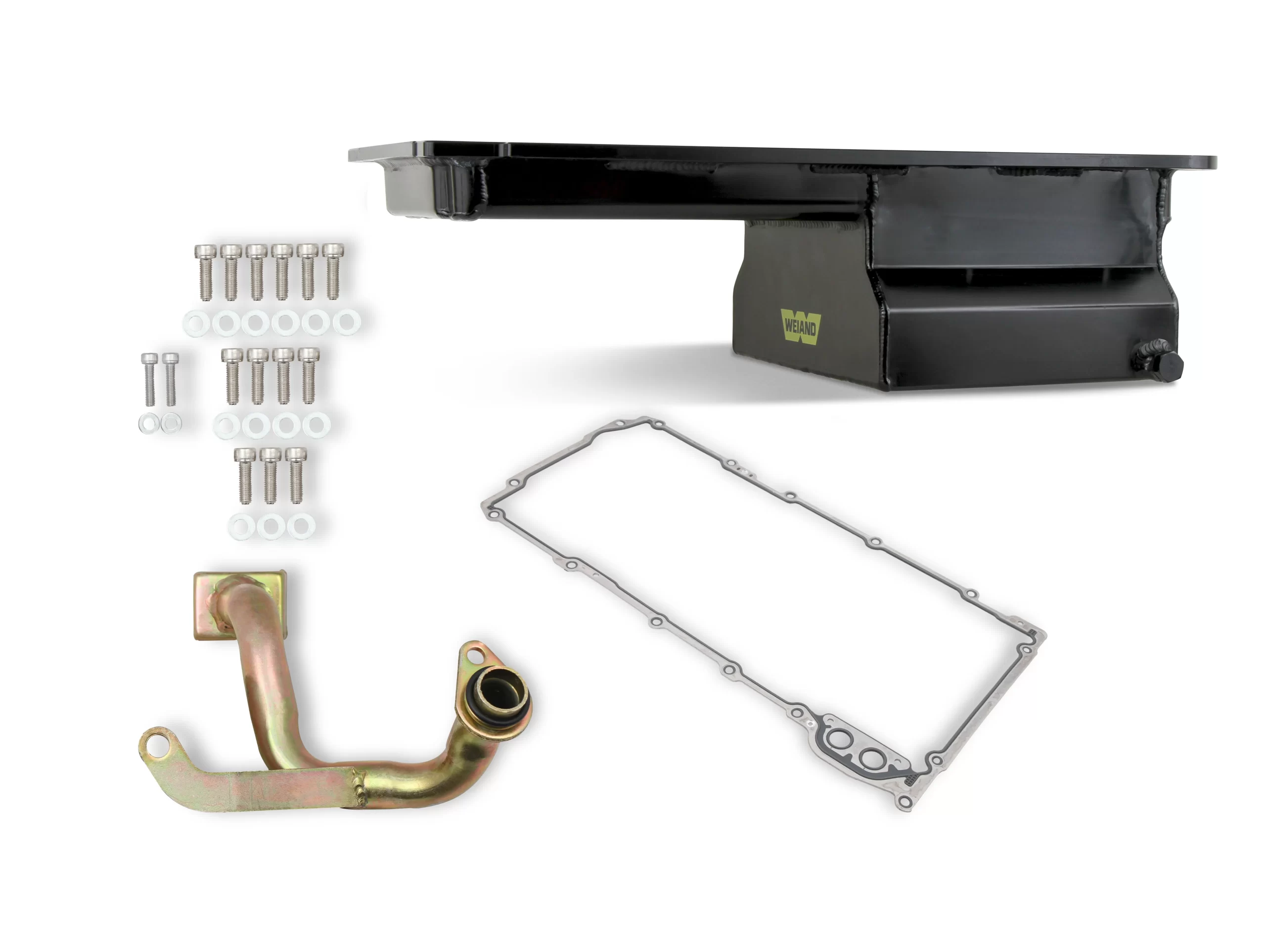

  • Complete Kit includes oil pan, oil pan gasket, oil pan pickup tube, and oil pan mounting hardware
  • Designed for use with remote oil filter system.
Application GM LS Engines
Brand Weiand
Crank Scraper Included No
Dipstick Location None
Emission Code 5
Engine GM Gen III/IV (LS)
Finish Black

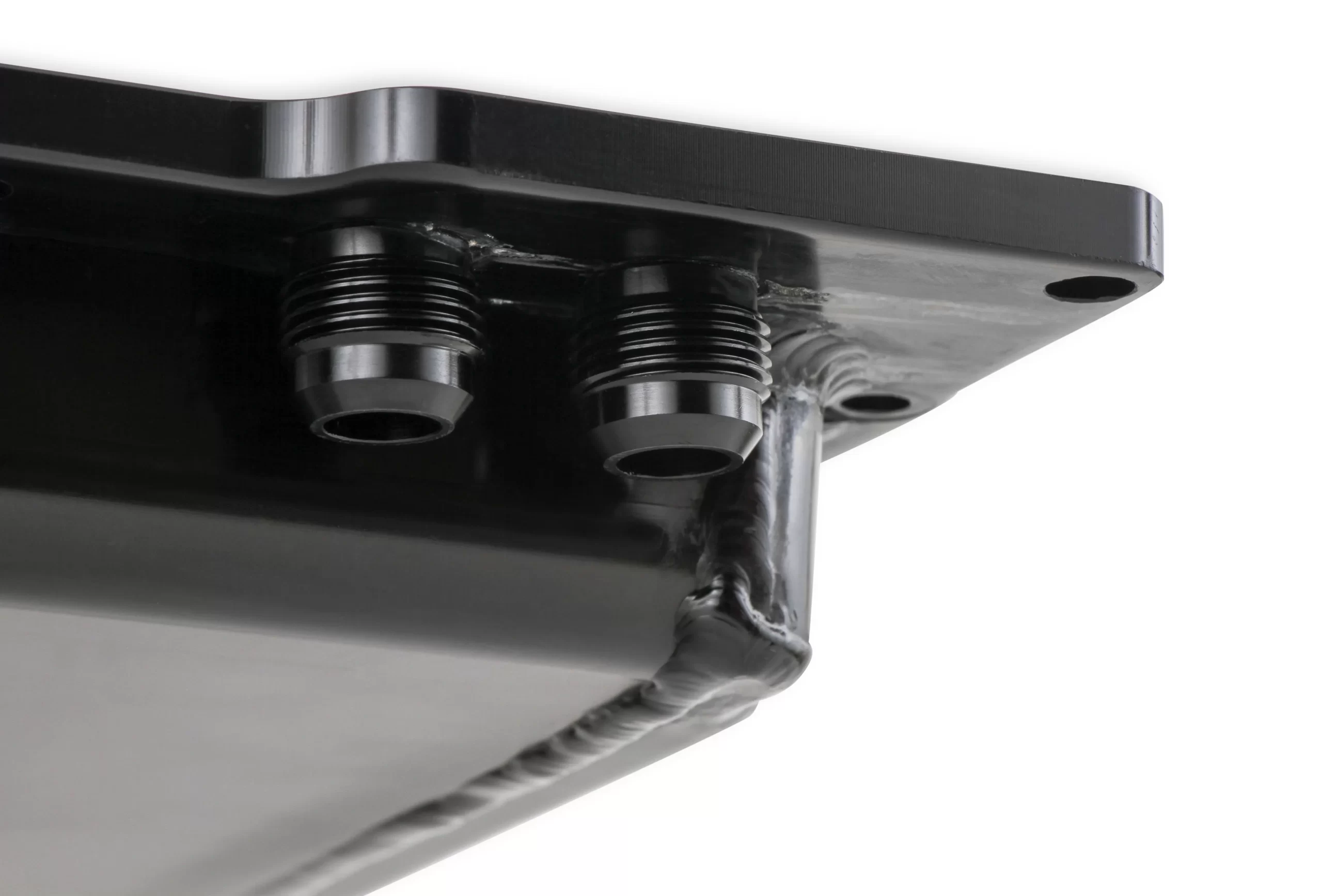

Fitting Size Dual 10AN Fittings
Material Aluminum
Oil Pan Capacity 7.0 Quarts
Oil Pan Depth 6.375″
Oil Pan Sump Length 8 3/8
Oil Pan Sump Width 10 3/8
Oil Pan Type Fabricated
Oil Return Size None
Product Type Oil Pan Kit
Sump Location Front
Turbo Oil Drainback No
Warranty Limited 90 Day
Windage Tray Included No
UPC 090127042670
Part Number 5042WND
Weight 10.1 lbs
Dimensions 24.2 × 9.1 × 14.1 in

Brand

Weiand

The Weiand Company was founded by Phil Weiand as a performance parts warehouse in the 1930s and sold a variety of speed parts. The first Weiand product, the "High Weiand" manifold was manufactured and marketed in 1937. It was the first aluminum intake on the market. In 1949 Weiand introduced a series of "tri-power" and four 2-barrel manifolds and immediately after WWII Weiand debuted a line of aluminum cylinder heads for flathead Ford engines. The famous "Drag Star" line of "log" manifolds for Hemi engines was introduced in 1952 and in 1957 Weiand developed complete blower drives for the GMC 6-71 supercharger. The first dual plane, 180º intake came from Weiand in 1965, known as the "Colt" and in 1968 Weiand introduced the "Hi-Ram Manifold" and its patented D-port technology. The popular "X-terminator" single plane manifold series was launched in 1972 and high performance aluminum water pumps were made by Weiand the following year. "X-CELerator", a series of performance single plane intakes was developed in 1974. The first models of the famous "Team G" series of 360º racing manifolds were introduced in 1978. A year later Weiand's "Action" series of high performance replacement manifolds debuted. Weiand became the first OE supplier of superchargers to Mercury Performance Marine in 1990, and over the next three years the "Stealth" series of high performance dual plane manifolds was designed, the "Pro-Street" supercharger was certified "emissions legal" by CARB and Weiand received the industry's first "E.O." for an intake manifold. Weiand developed the 8-71 supercharger for Small Block and Big Block Chevy in 1996 and Weiand released the first aluminum LS-1 intake manifold in 2002. In 2005 Weiand began designing manifolds on Computational Fluid Dynamics software to deliver perfectly designed runner lengths for maximum air/fuel delivery on its newest intakes known as the Warrior line. To make more power you have to get more air into your engine. Look to Weiand as your power source!
