QUICK TIME
QUICKTIME BELLHOUSING – CHEVY
Perfect fit for Big Block and Small Block Chevys with Muncie, Richmond, Saginaw, TKO, or TKX Transmissions – SFI 6.1W Certified
Part # RM-6022W

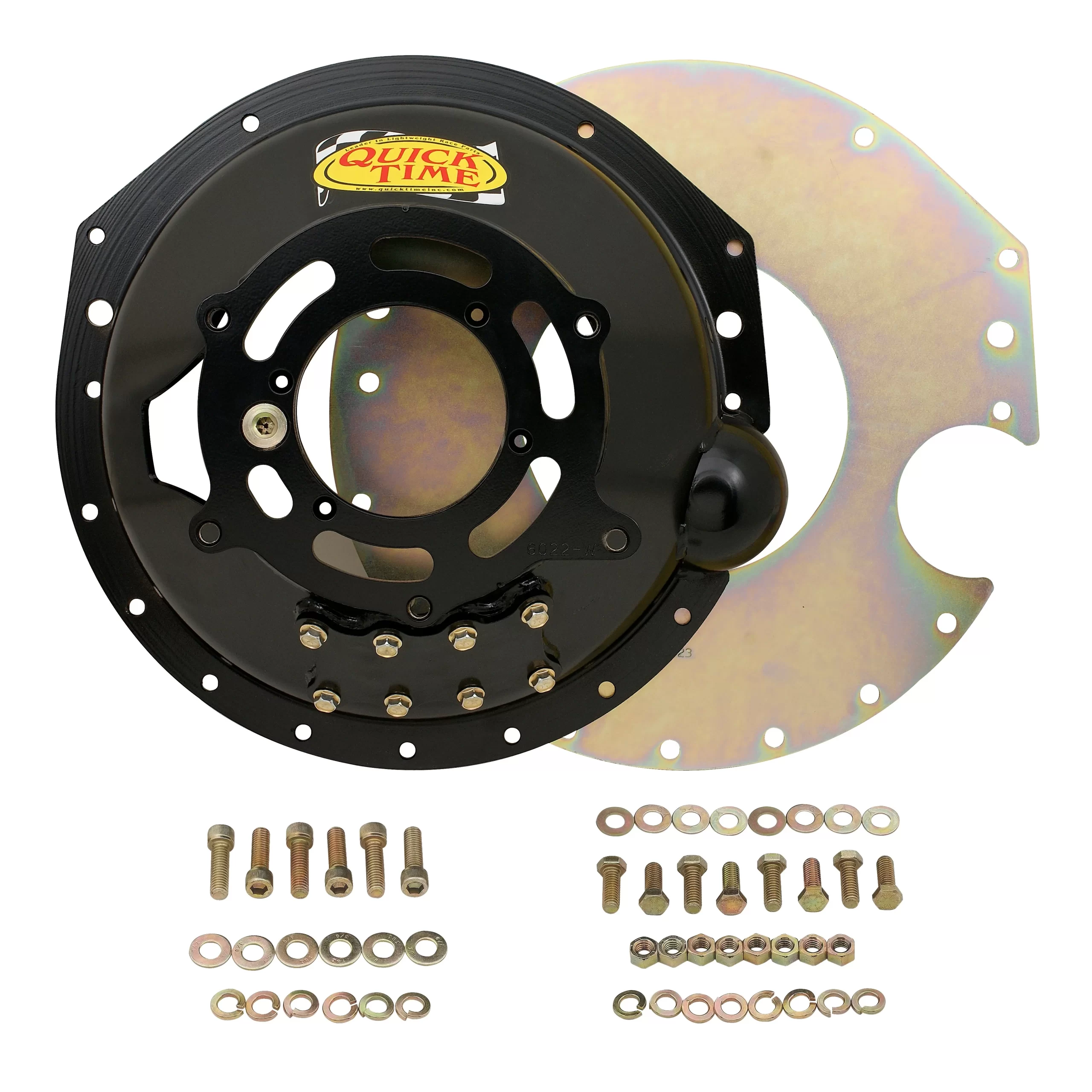

The Quick Time RM-6022W bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, Tremec TKO, and Tremec TKX transmissions. This bellhousing is S.F.I. 6.1W (window) certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile and contains an adjustable clutch window. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
- Adjustable clutch window with a 6.1W SFI Certification
| Brand | Quick Time |
|---|---|
| Certification | 6.1W SFI |
| Clutch Diameter | N/A |
| Clutch Operation | Mechanical or Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| GM Big Block | |
| Engine Make | Chevrolet |
| Engine Plate | RM-6023-C |
| Flywheel | 153 Tooth |
| 168 Tooth | |
| Height | 6.290 inch |
| Height (in) | 6.29 |
| Make | Chevrolet |
| Material | Steel |
| Patented | yes |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1W |
| Trans Bore | 4.687 |
| Trans. Bore Diameter | 4.687 inch |
| Transmission | Bert Racing |
| Brinn Racing | |
| Falcon | |
| Jerico | |
| Muncie | |
| Richmond | |
| Saginaw | |
| T10 | |
| T5 GM | |
| TKO 500/600 GM | |
| TKX GM | |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight (lb) | 23 |
| UPC | 084041027875 |
| Part Number | RM-6022W |
