QUICK TIME

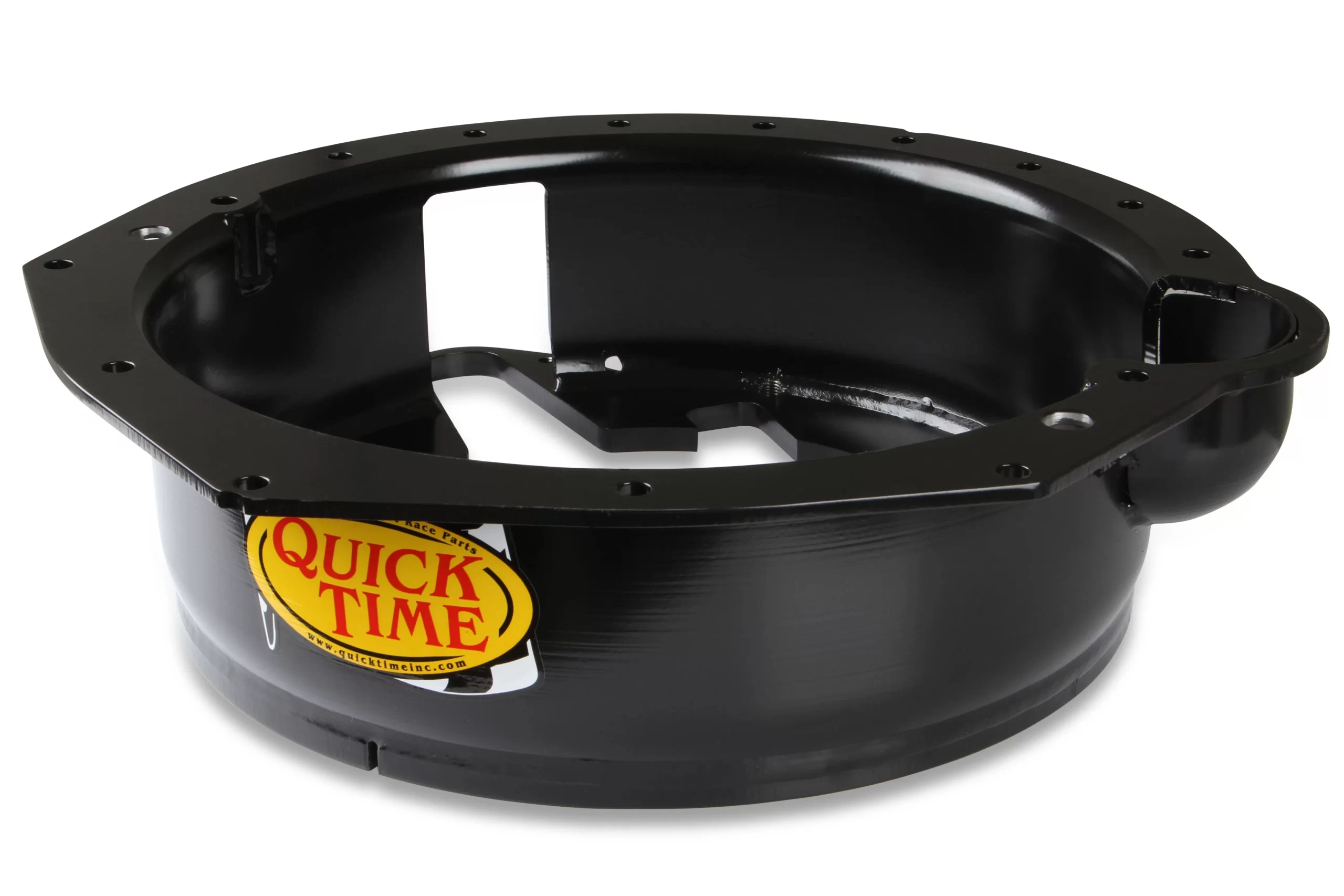

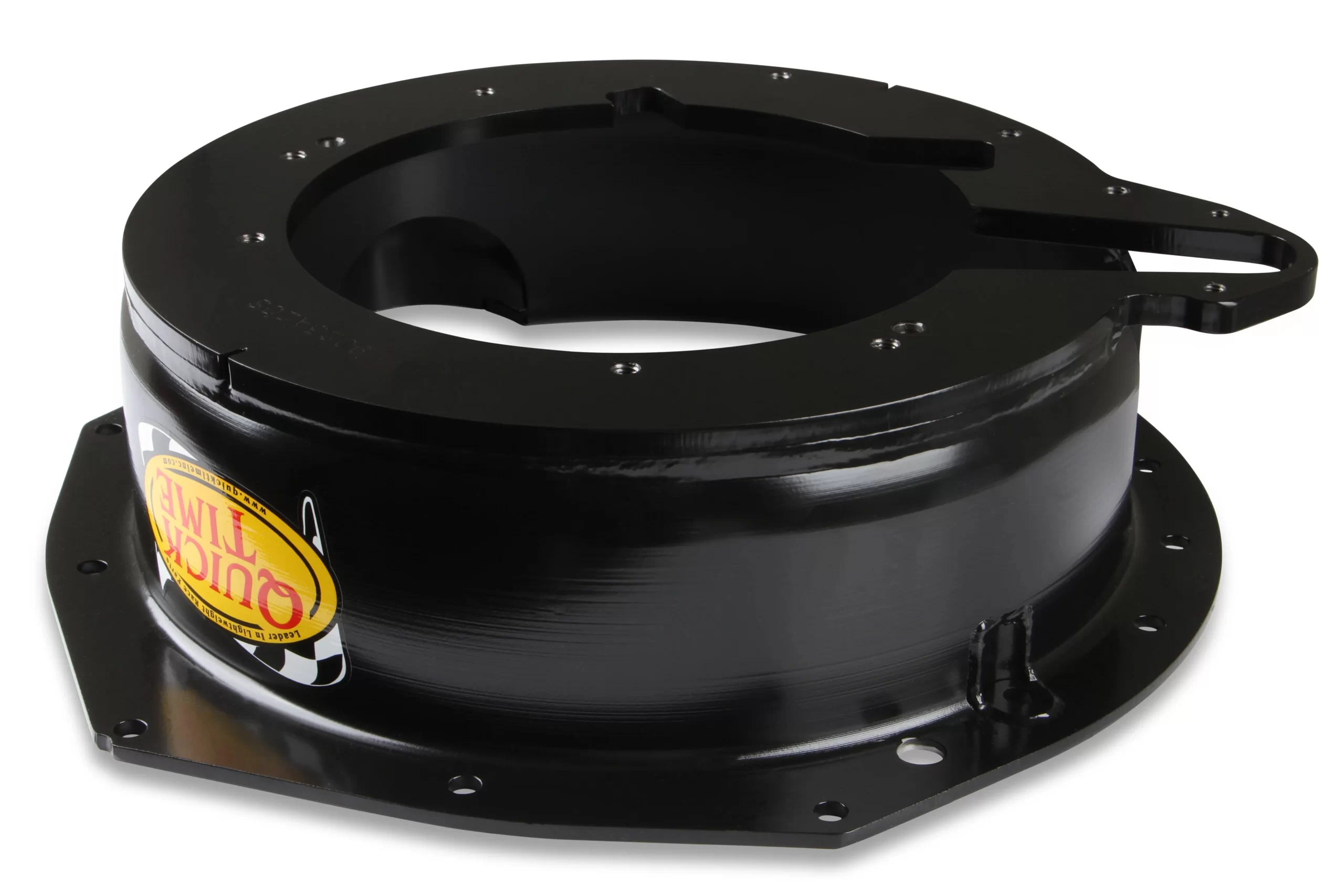

QUICKTIME BELLHOUSING – CHEVY LT1
Perfect fit for Chevy LT1s with T56 transmissions
Part # RM-9023
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Diameter | 11 inches |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevy LT1 |
| GM Gen III/IV (LS) | |
| Engine Make | Chevrolet |

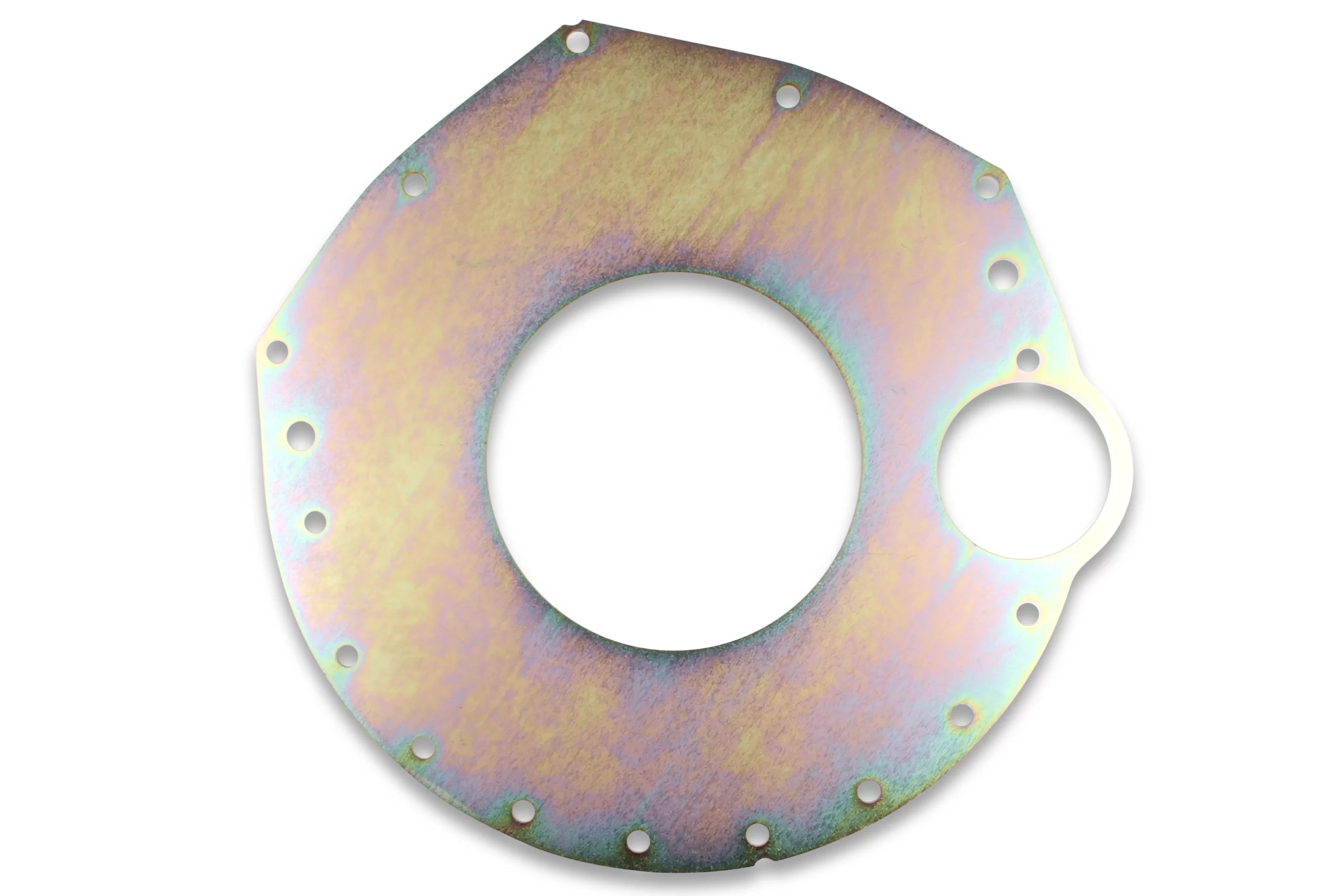

| Engine Plate | RM-6023-C |
| Flywheel | 153/168 Tooth |
| Height | 4.950 inch |
| Height (in) | 4.95 |

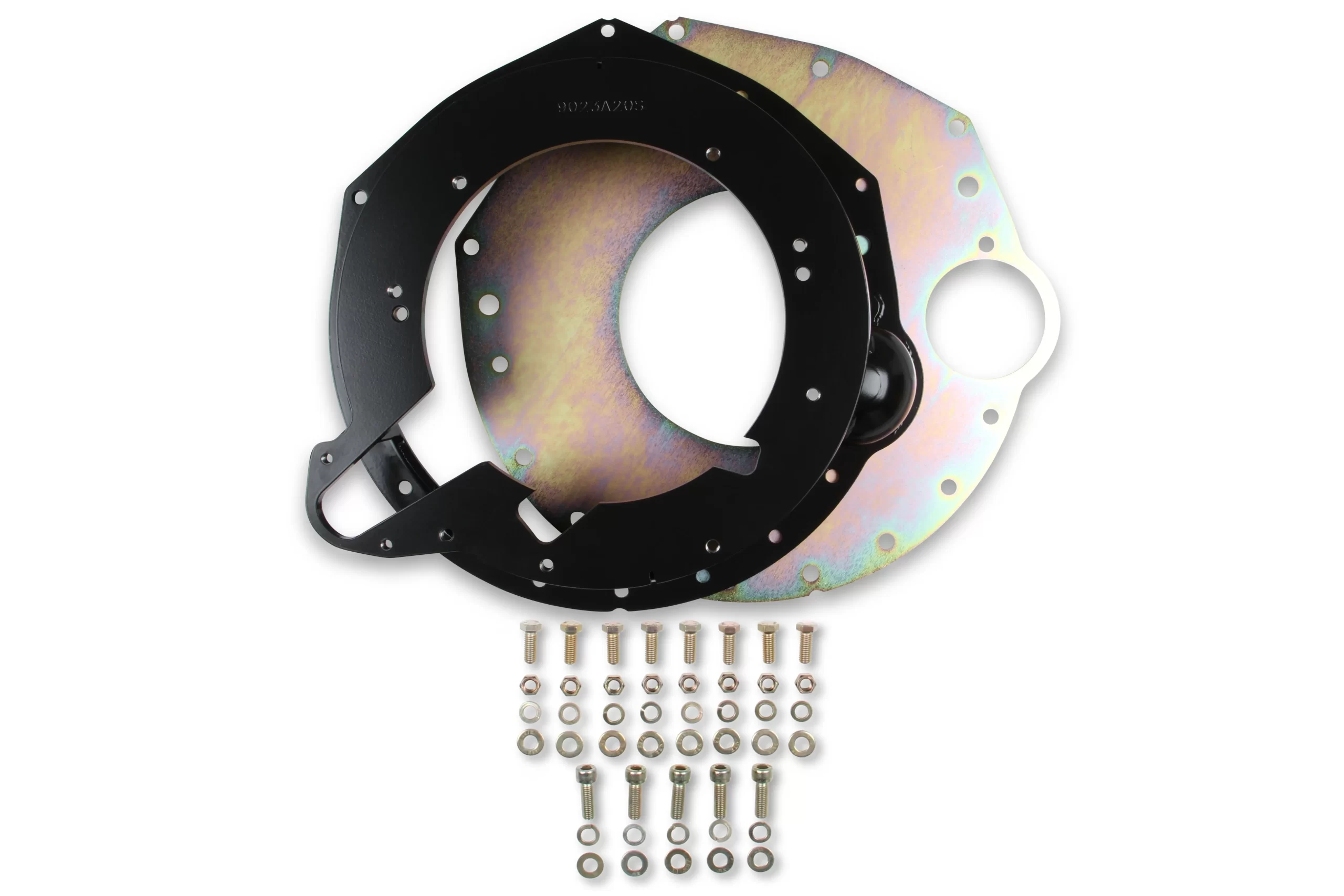

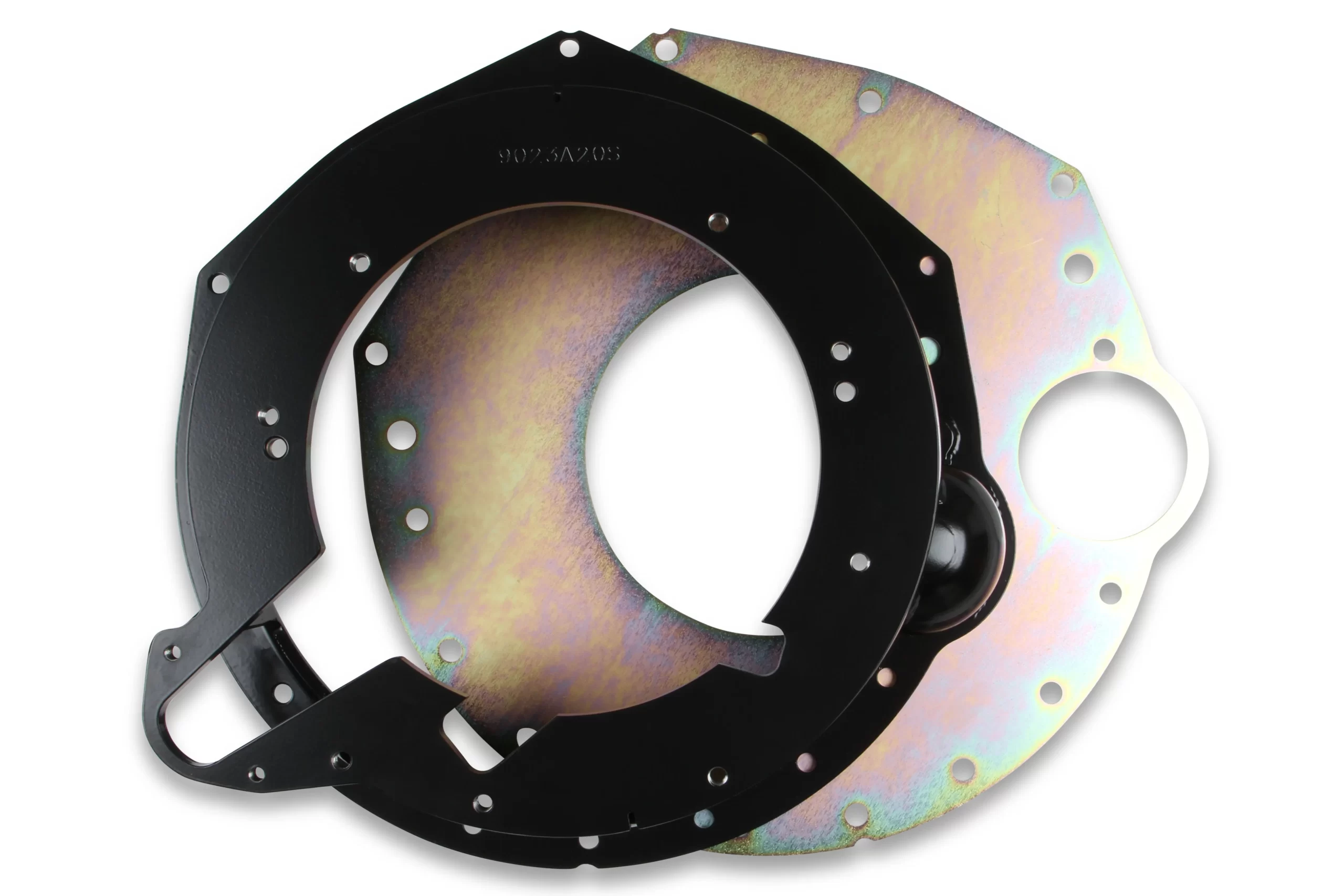

| Included Hardware | Full engine plate |
| Make | Chevrolet |
| Material | Steel |
| Patented | yes |
| Product Type | Bellhousing |
| SFI | 6.1 |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans Bore | N/A |
| Trans. Bore Diameter | N/A |
| Transmission | T56 GM |
| Transmission Type | Manual |
| Weight | 22# |
| Weight (lb) | 22 |
| UPC | 084041030318 |
| Part Number | RM-9023 |
