QUICK TIME
QUICKTIME BELLHOUSING – CHEVY LS
Fits Chevy LS Engines with Muncie, Jerico, T5, TKO 500/600, TXK – GM Transmissions Can Also be Used with Gen V LT1/LT4 Engines
Part # RM-6036

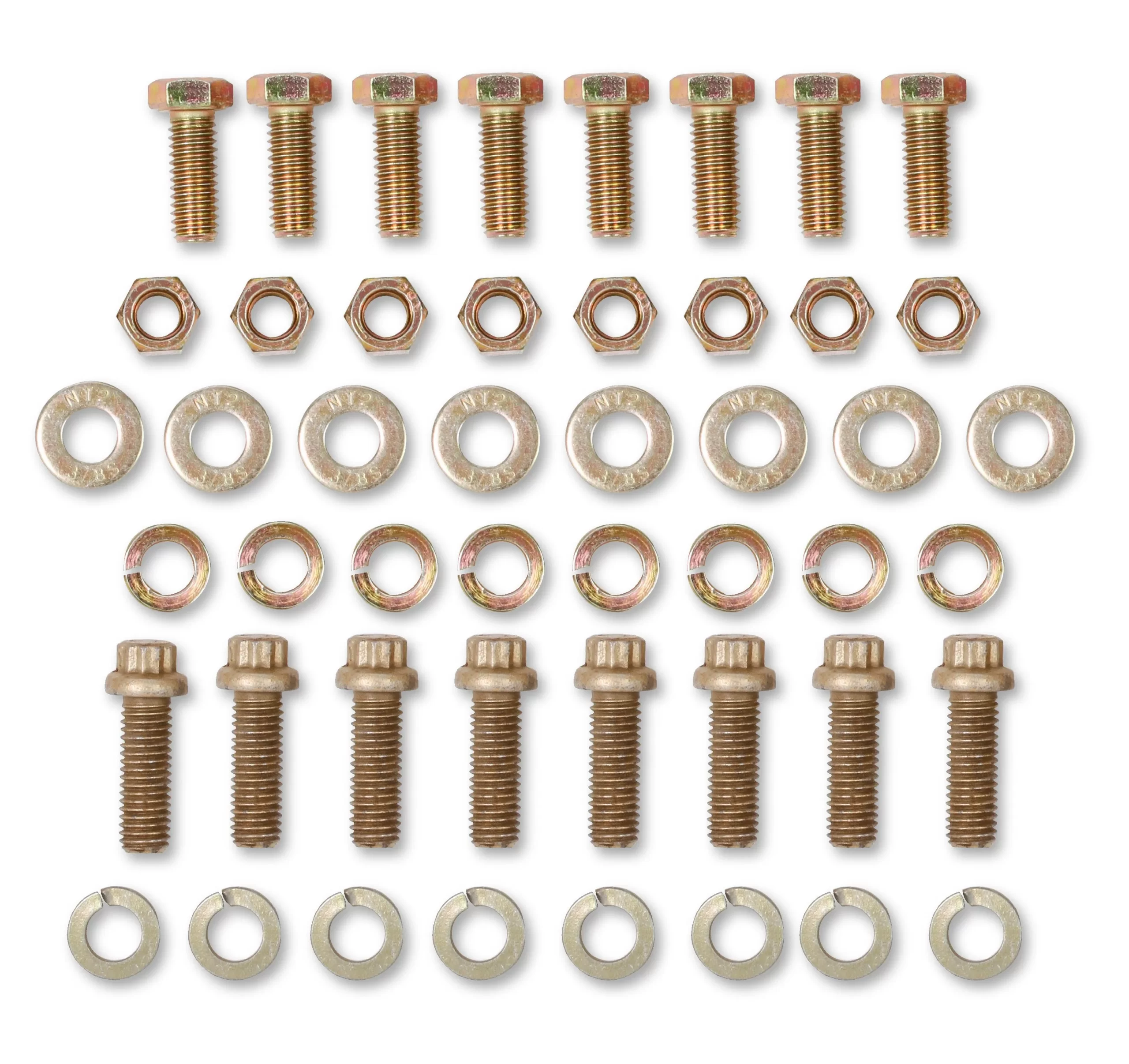

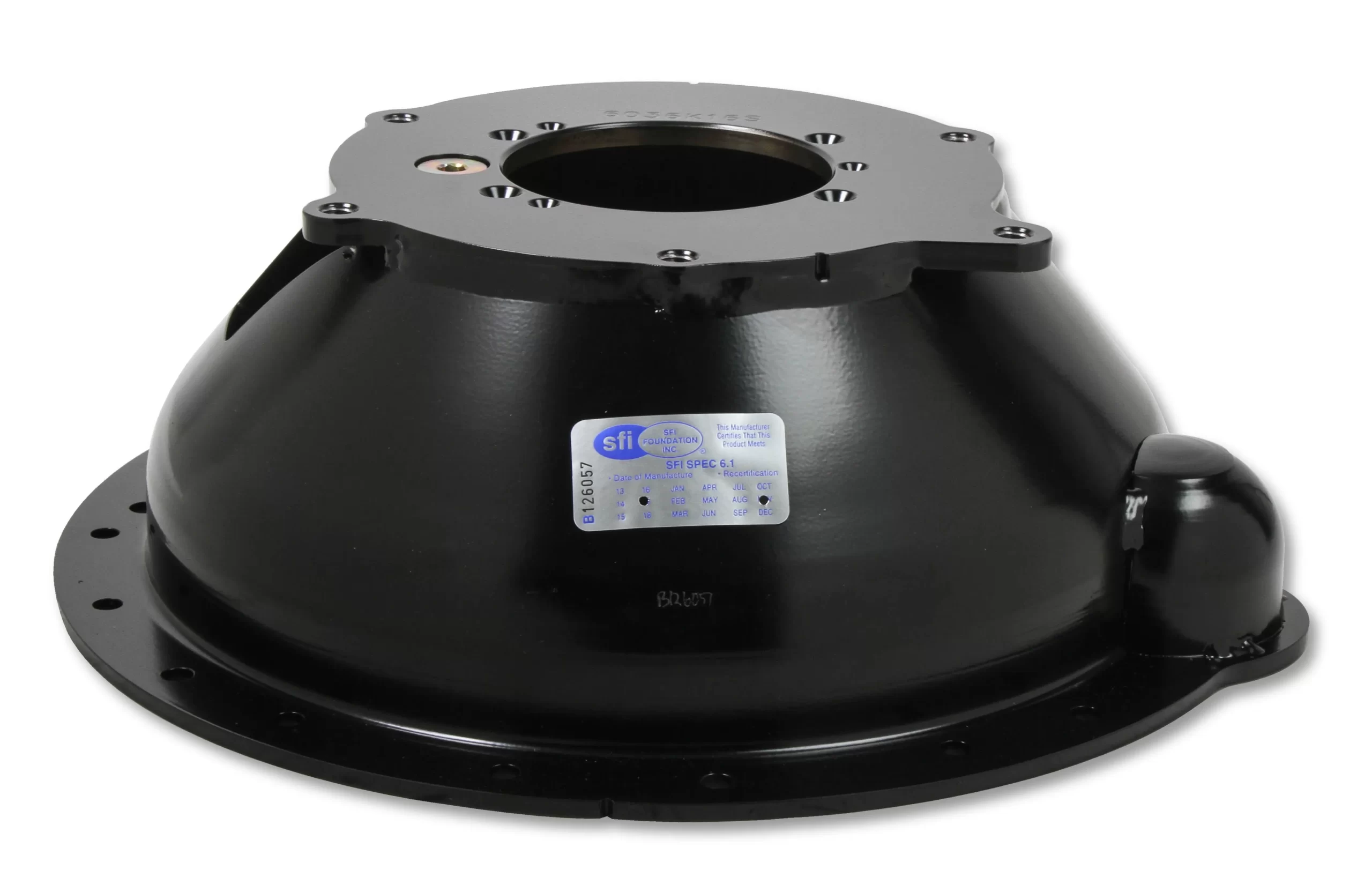

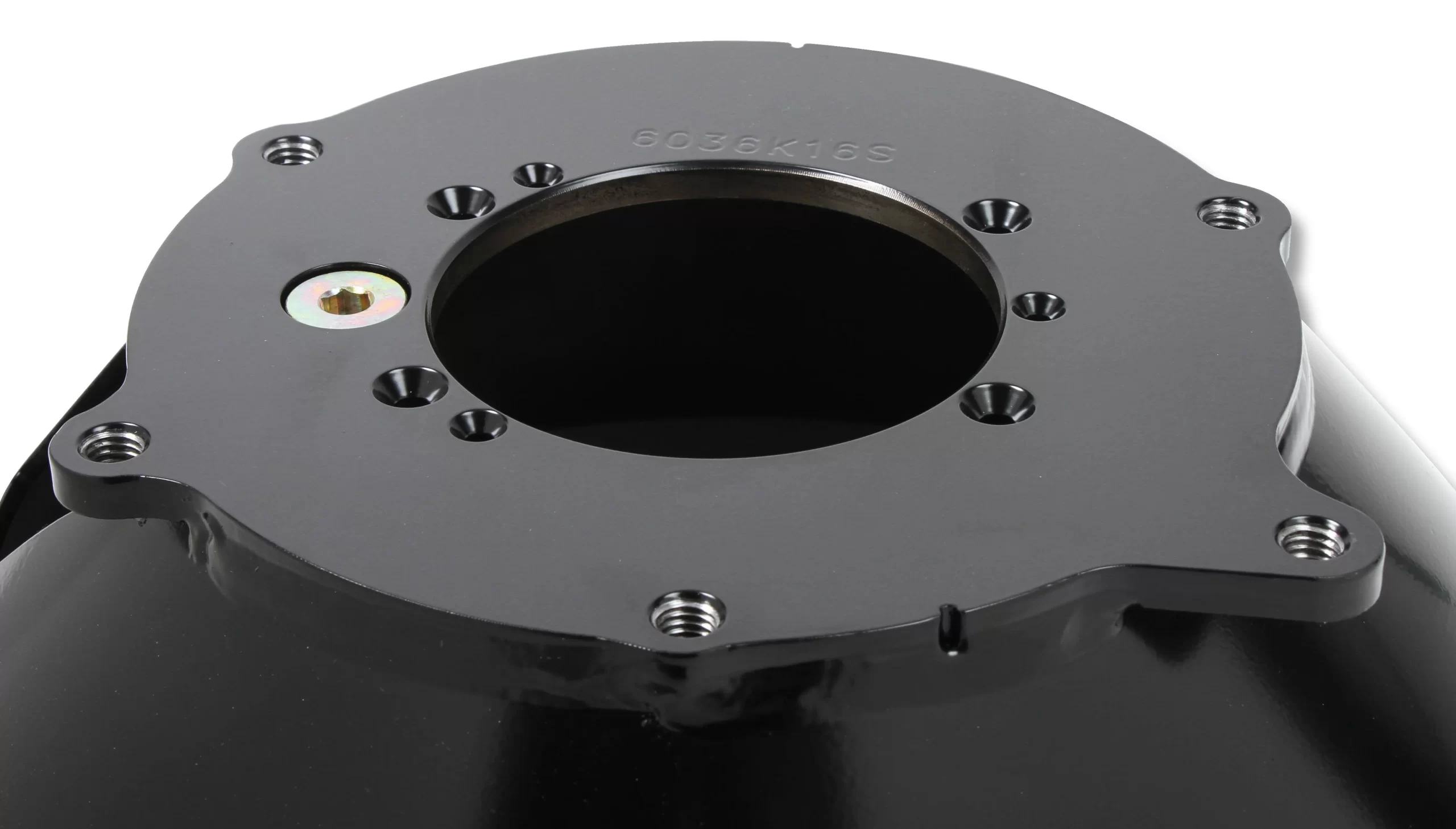

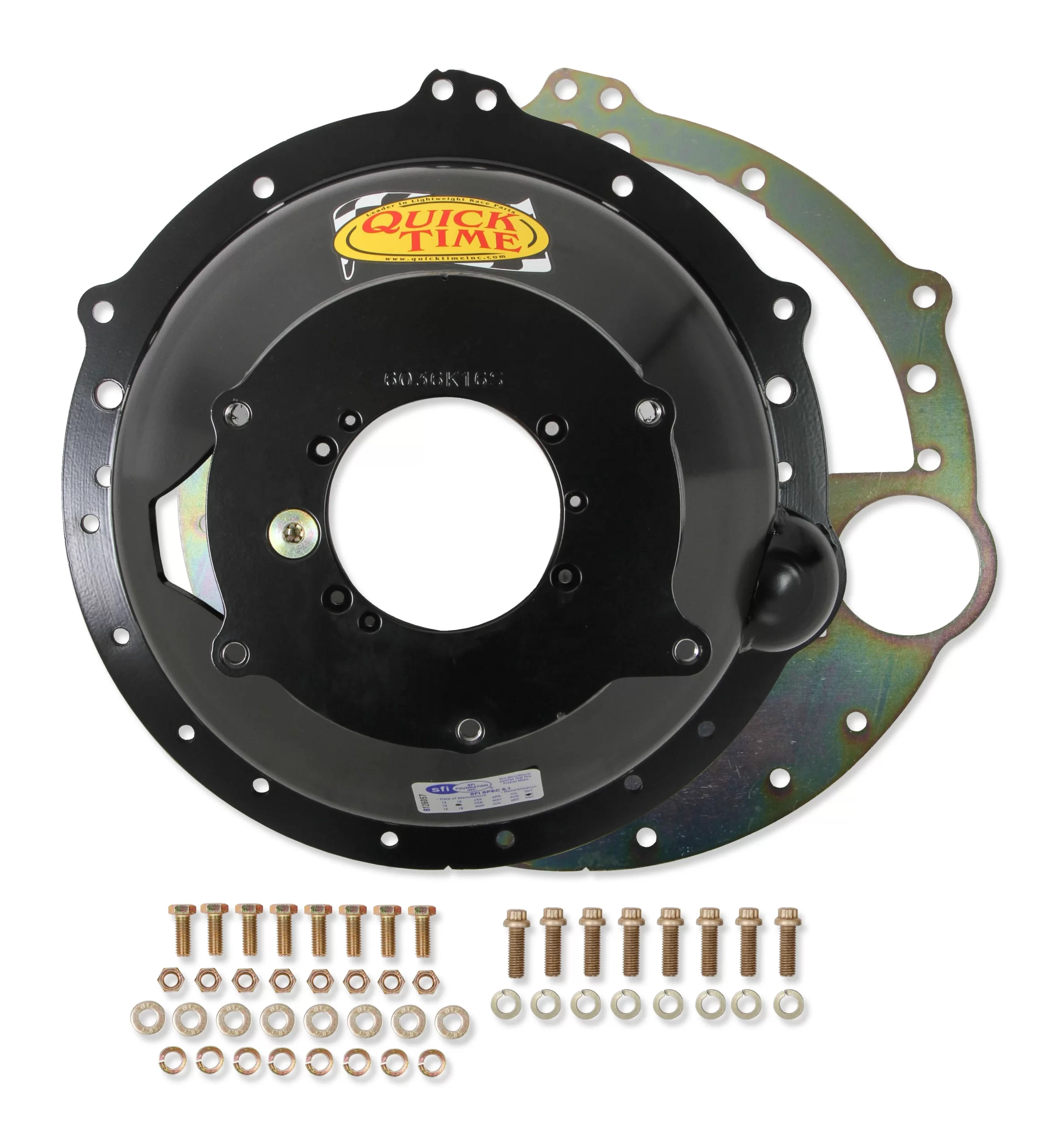

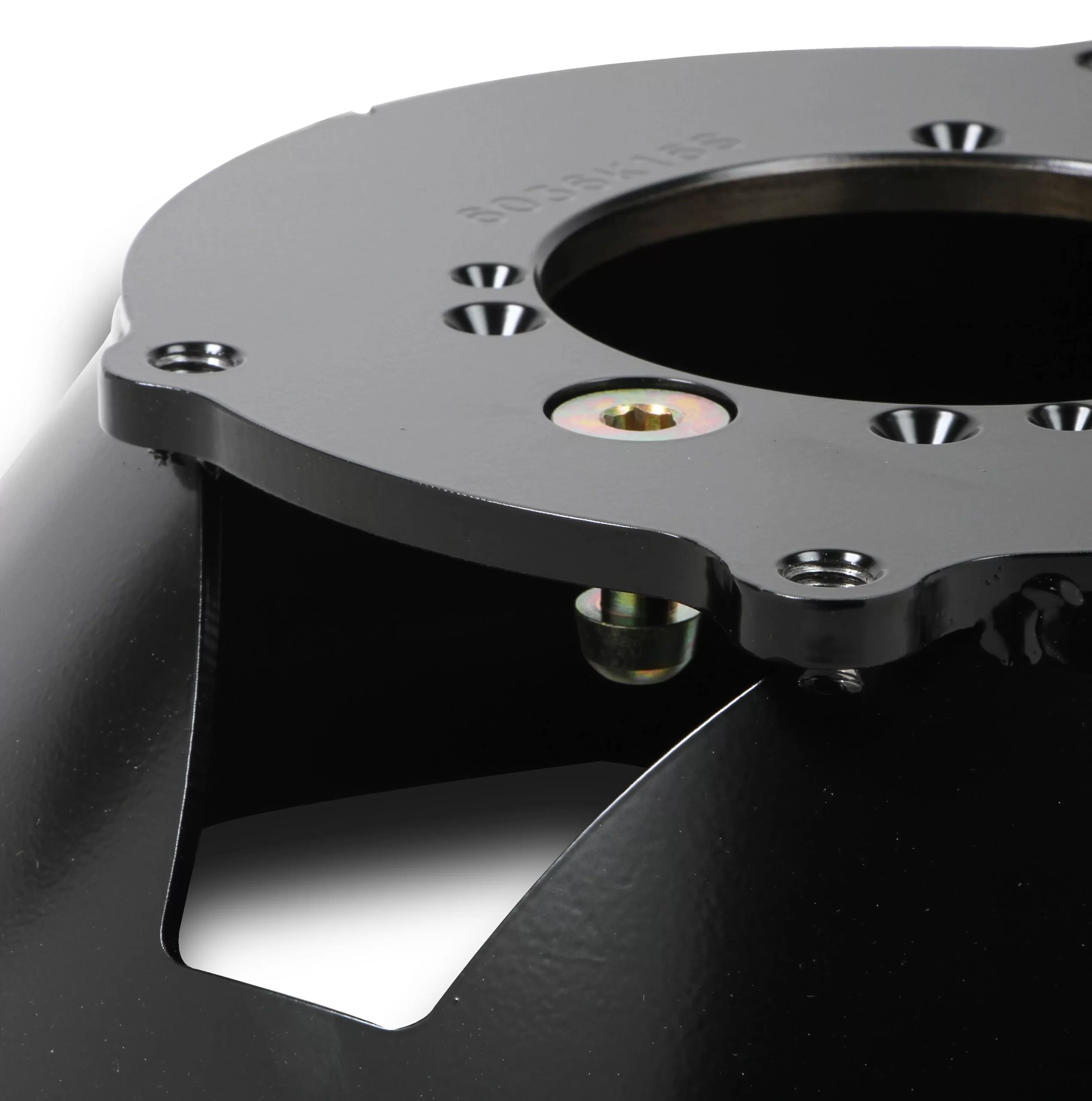

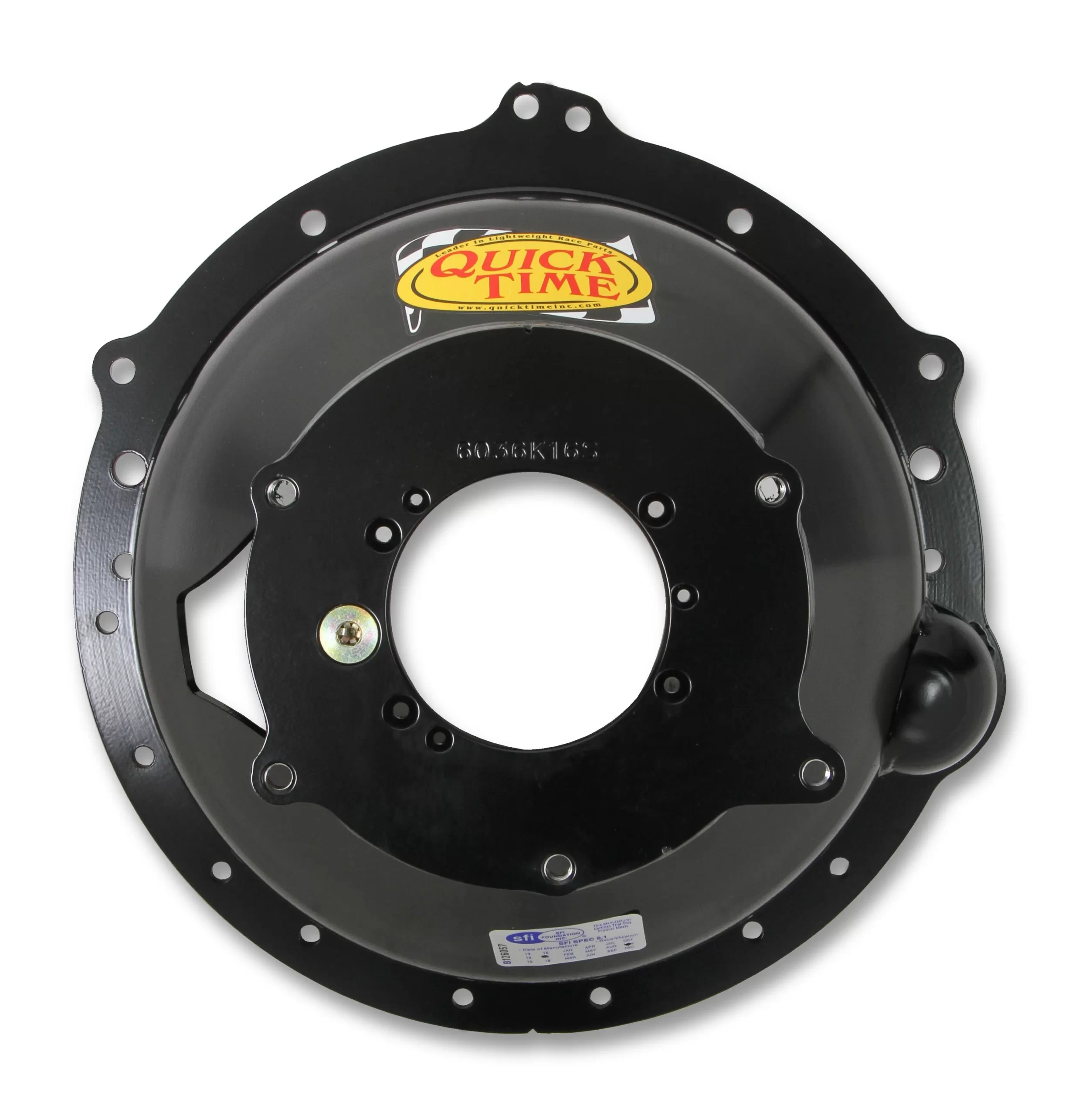

The Quick Time RM-6036 bellhousing connects GM LS engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner, T10, Tremec TKO, and TKX transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Diameter | N/A |
| Clutch Operation | Mechanical or Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevy LT1 |
| Chevy LT4 | |
| GM Gen III/IV (LS) | |
| Engine Make | Chevrolet |

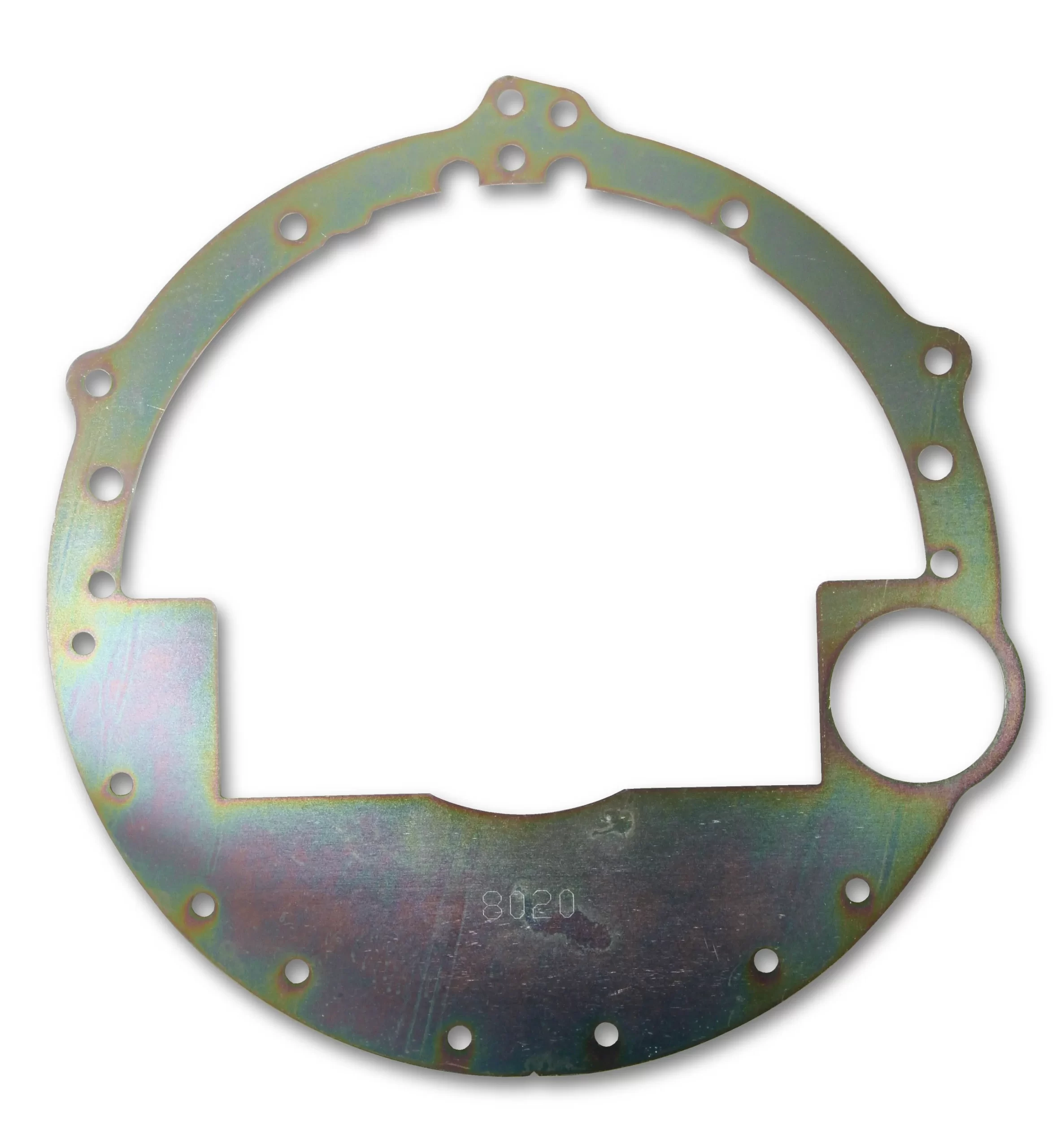

| Engine Plate | RM-6034-C |
| Finish | Semi-gloss |
| Flywheel | 153/168 Tooth |
| Height | 6.000 inch |
| Height (in) | 6 |
| Make | Chevrolet |
| Material | Steel |
| Patented | yes |
| Product Type | Bellhousing |
| Sale Category | Transmission and Drivetrain |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Starter | OE |
| Trans Bore | 4.688 |
| Trans. Bore Diameter | 4.687 inch |
| Transmission | Bert Racing |
| Brinn Racing | |
| Falcon | |
| Jerico | |
| Muncie | |
| Richmond | |
| Saginaw | |
| T10 | |
| T5 GM | |
| TKO 500/600 GM | |
| TKX GM | |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 22# |
| Weight (lb) | 22 |
| UPC | 084041029015 |
| Part Number | RM-6036 |
