QUICK TIME

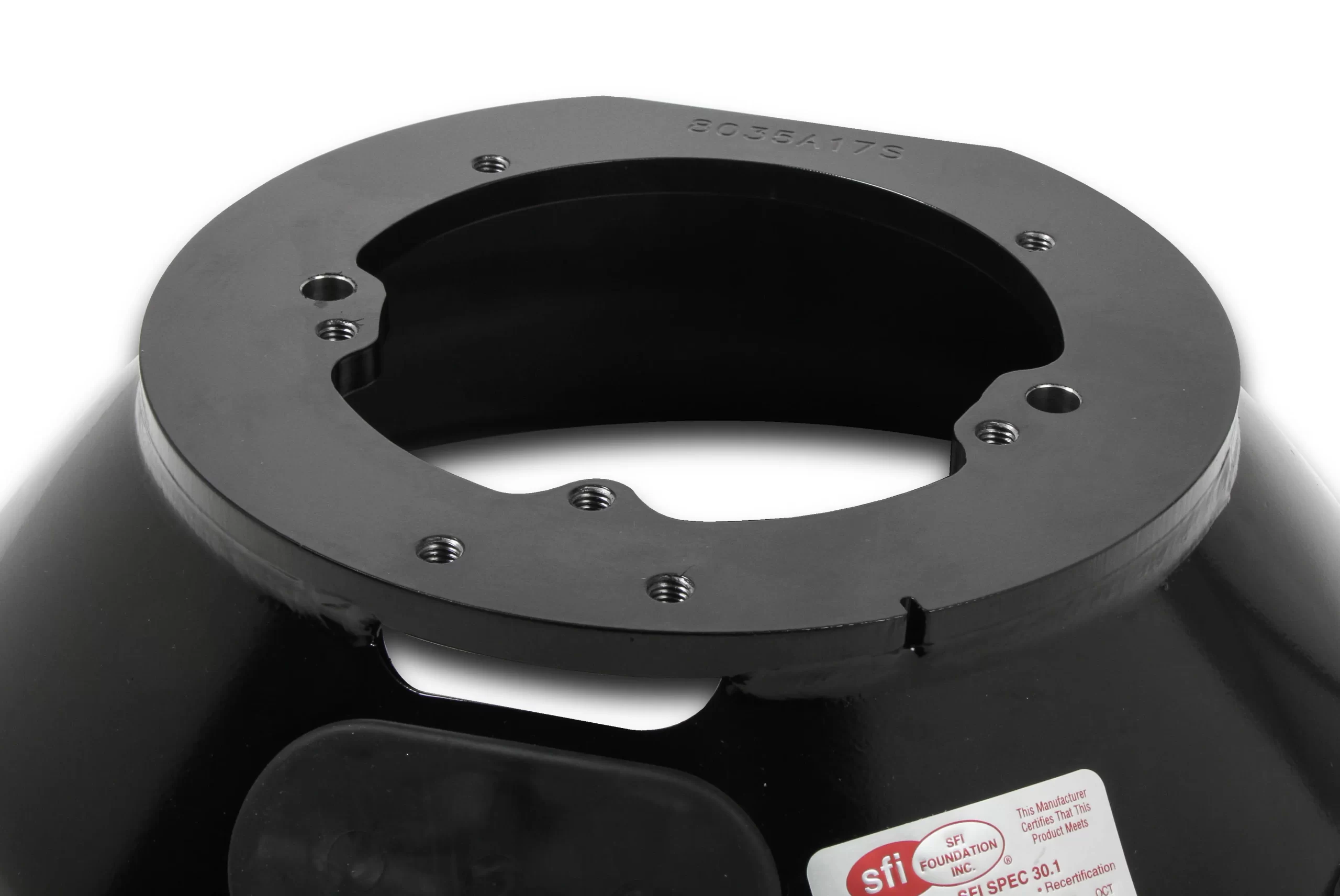

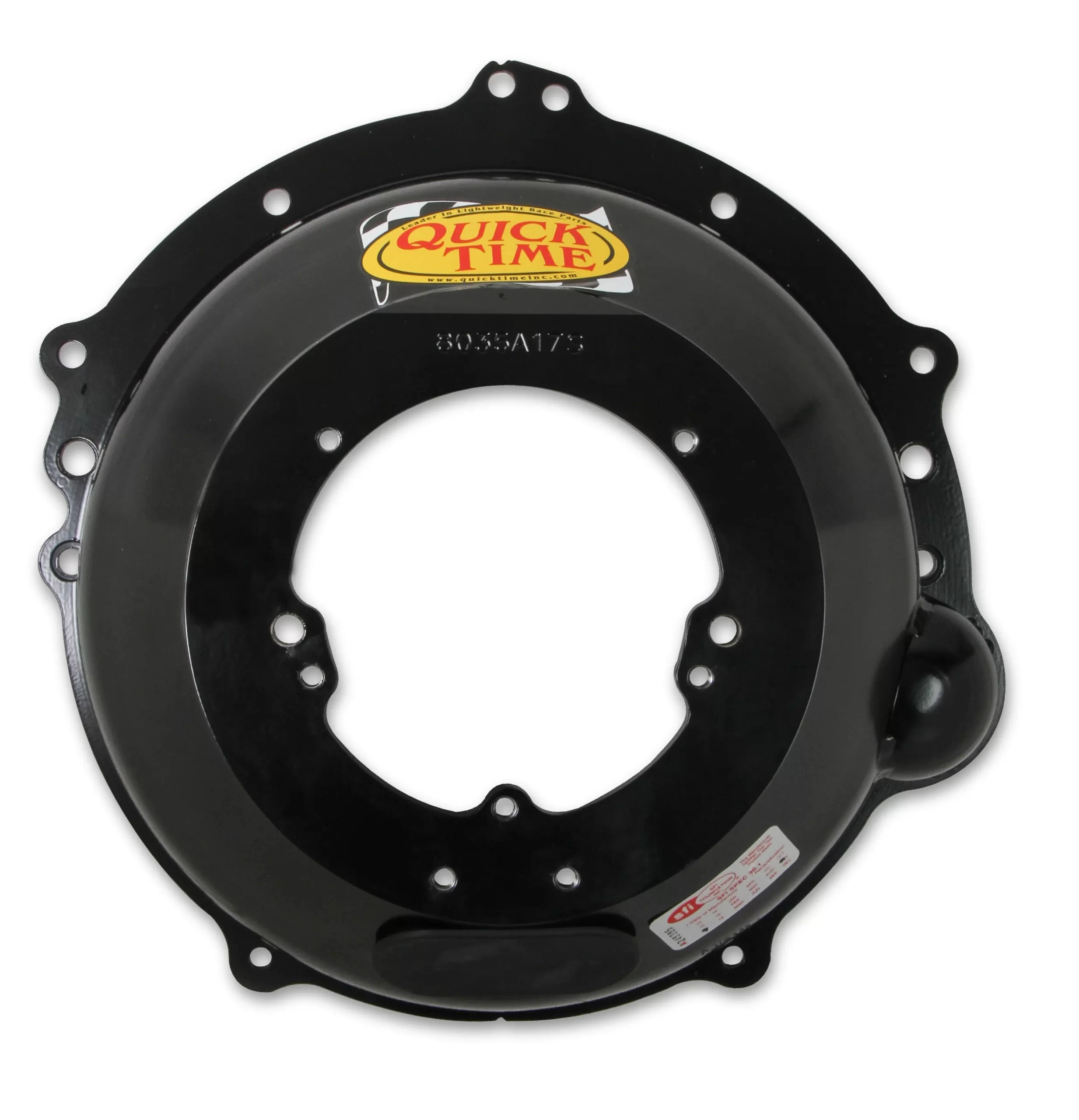

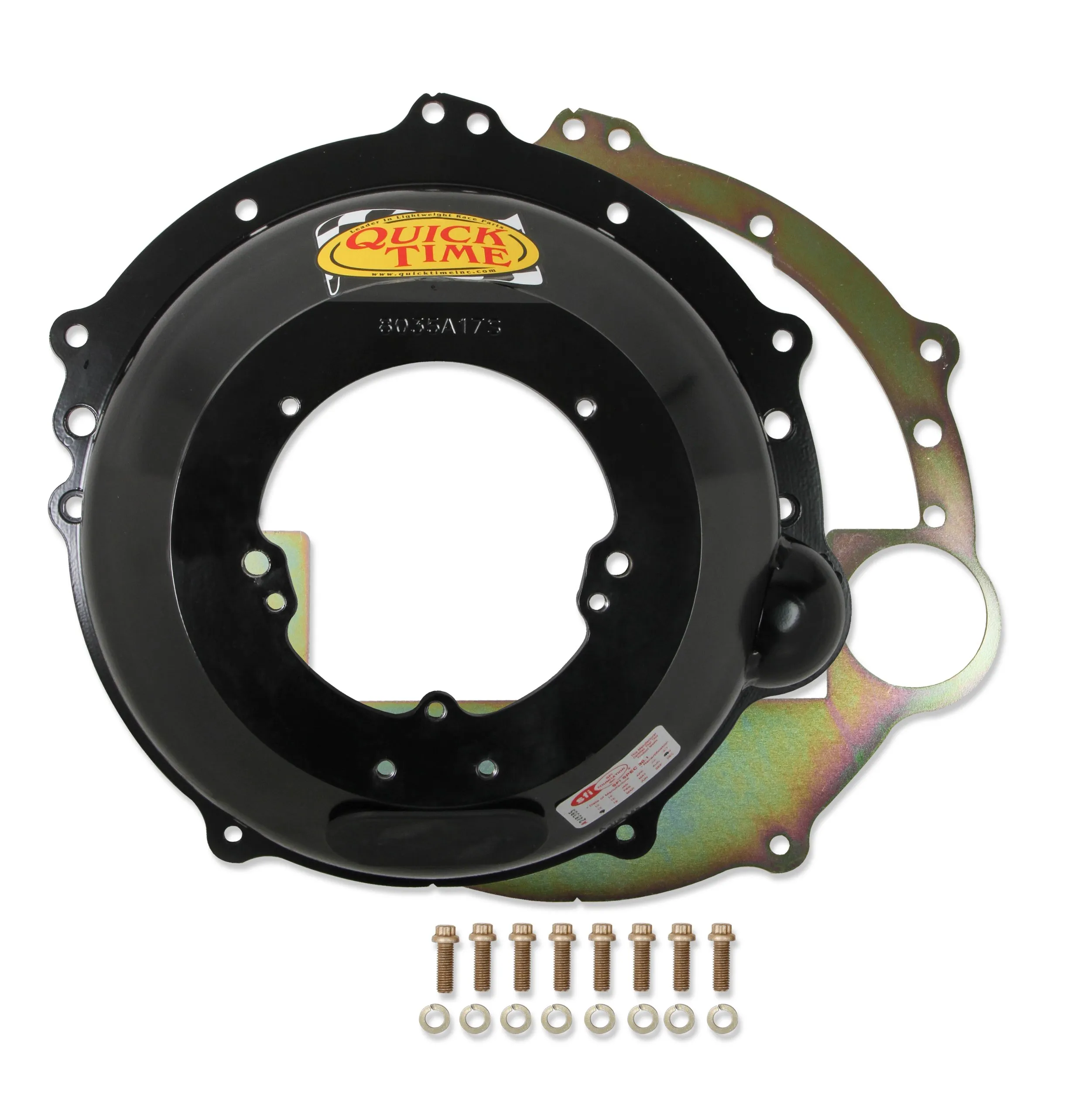

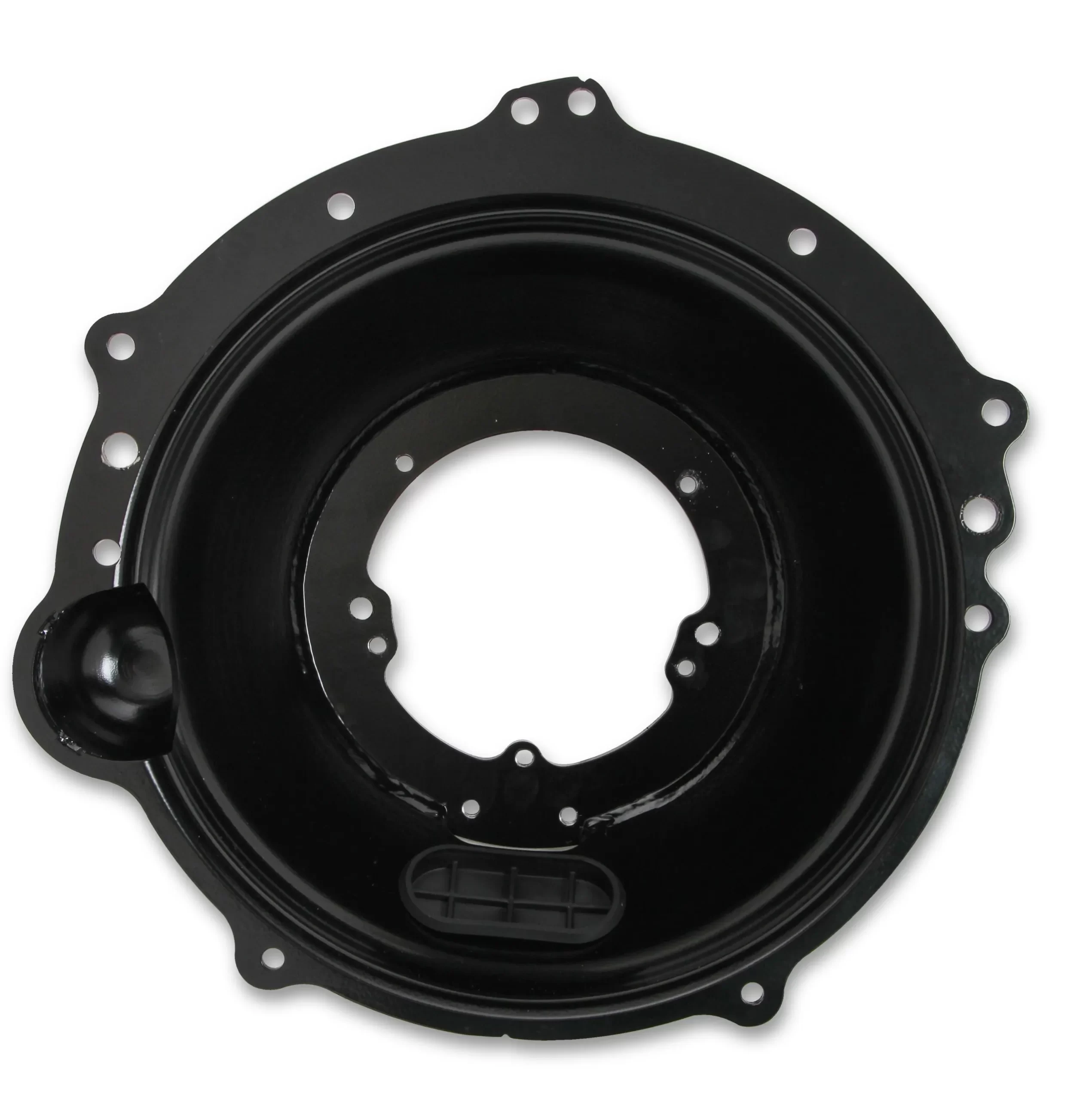

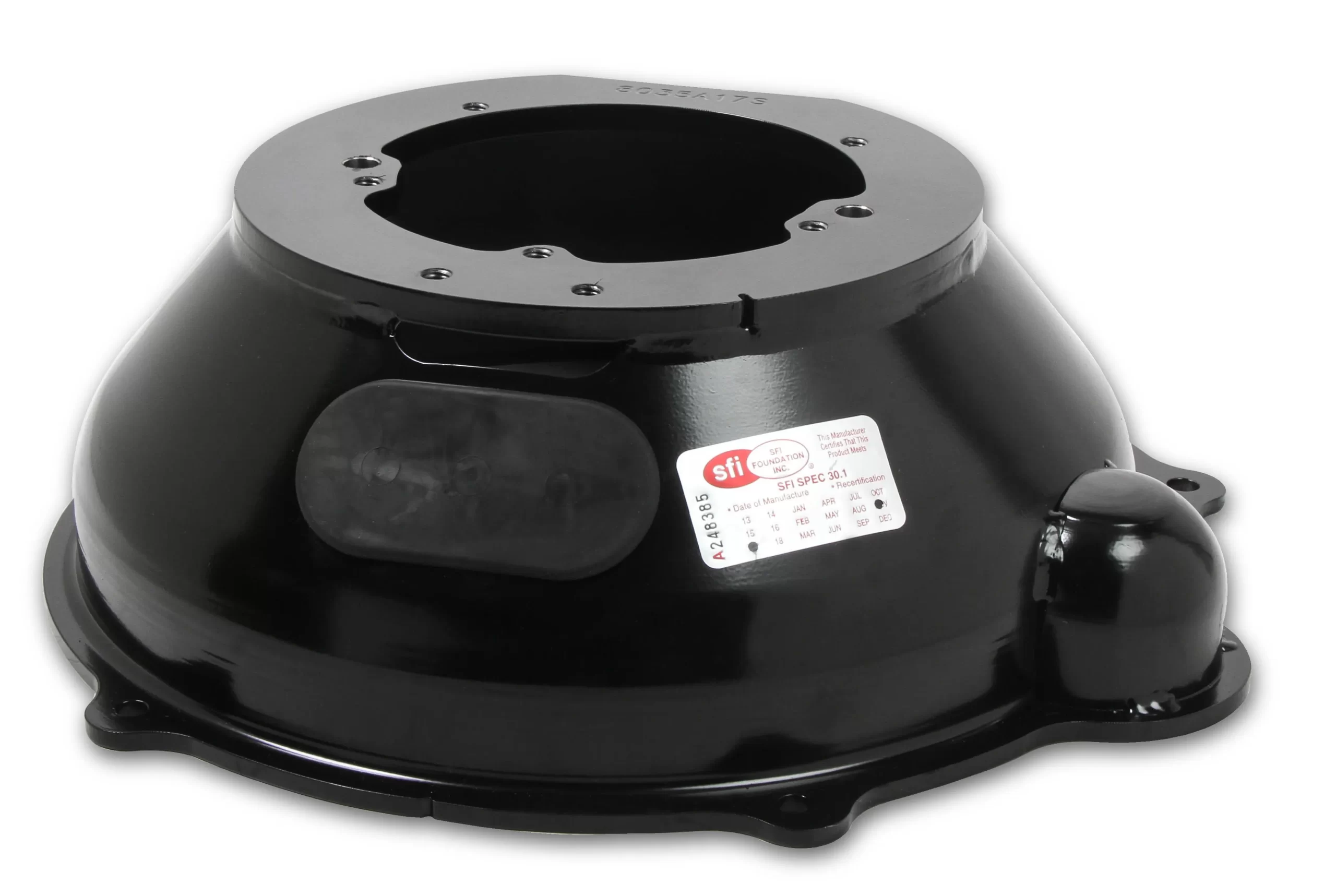

QUICKTIME BELLHOUSING – CHEVY LS
Fits Chevy LS engines with 1997-2004 C5 automatic transmissions and 2005-2013 C6 automatic transmissions, can also be used with late model LT1 and LT4 engines.
Part # RM-8035
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
| Brand | Quick Time |
|---|---|
| Certification | 30.1 SFI |
| Clutch Operation | Automatic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevy LT1 |
| Chevy LT4 | |
| GM Gen III/IV (LS) | |
| Engine Make | Chevrolet |

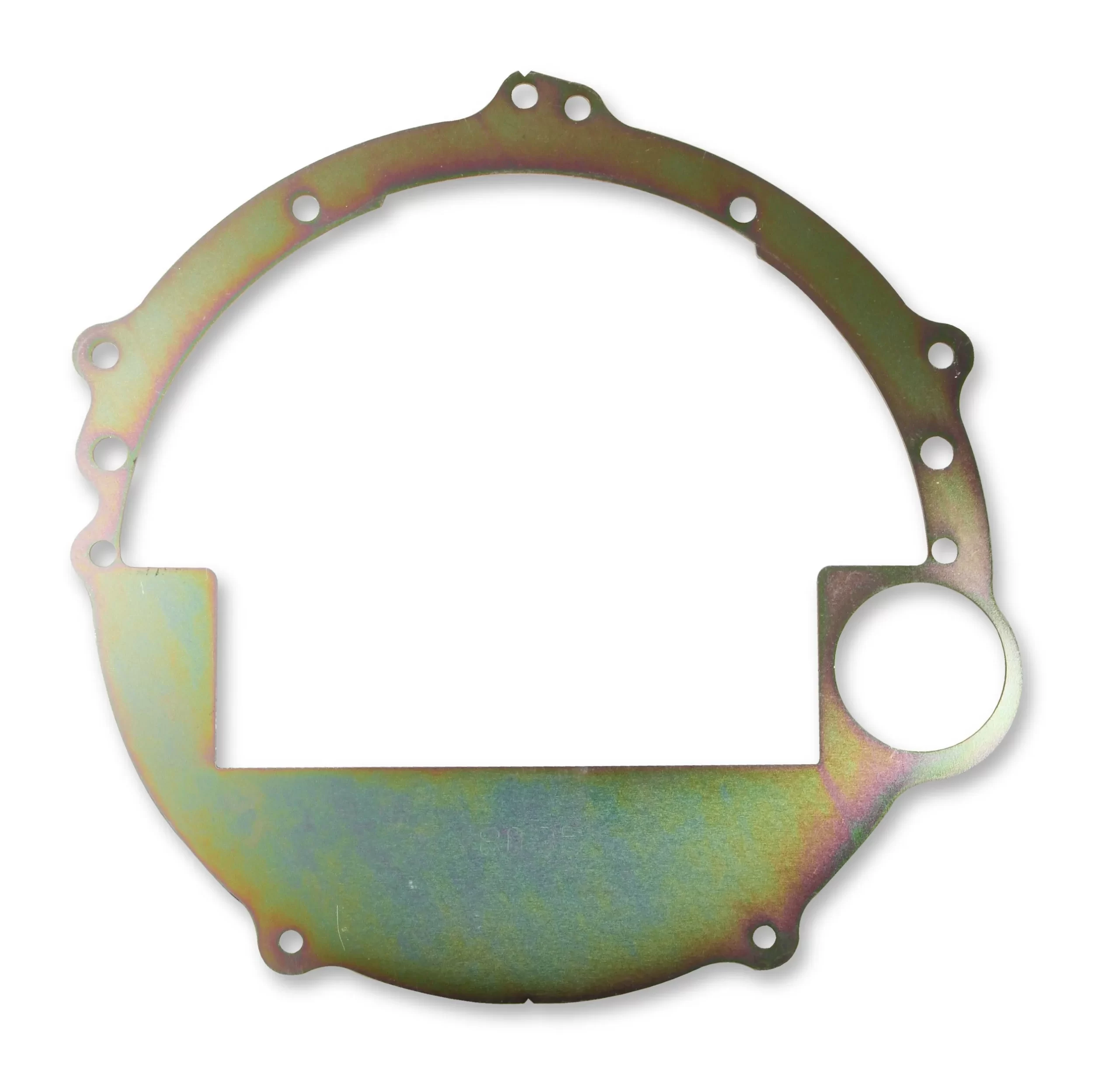

| Engine Plate | RM-8035-C |
| Flexplate | 153/168 Tooth |
| Height | 5.686 inch |
| Height (in) | 5.686 |

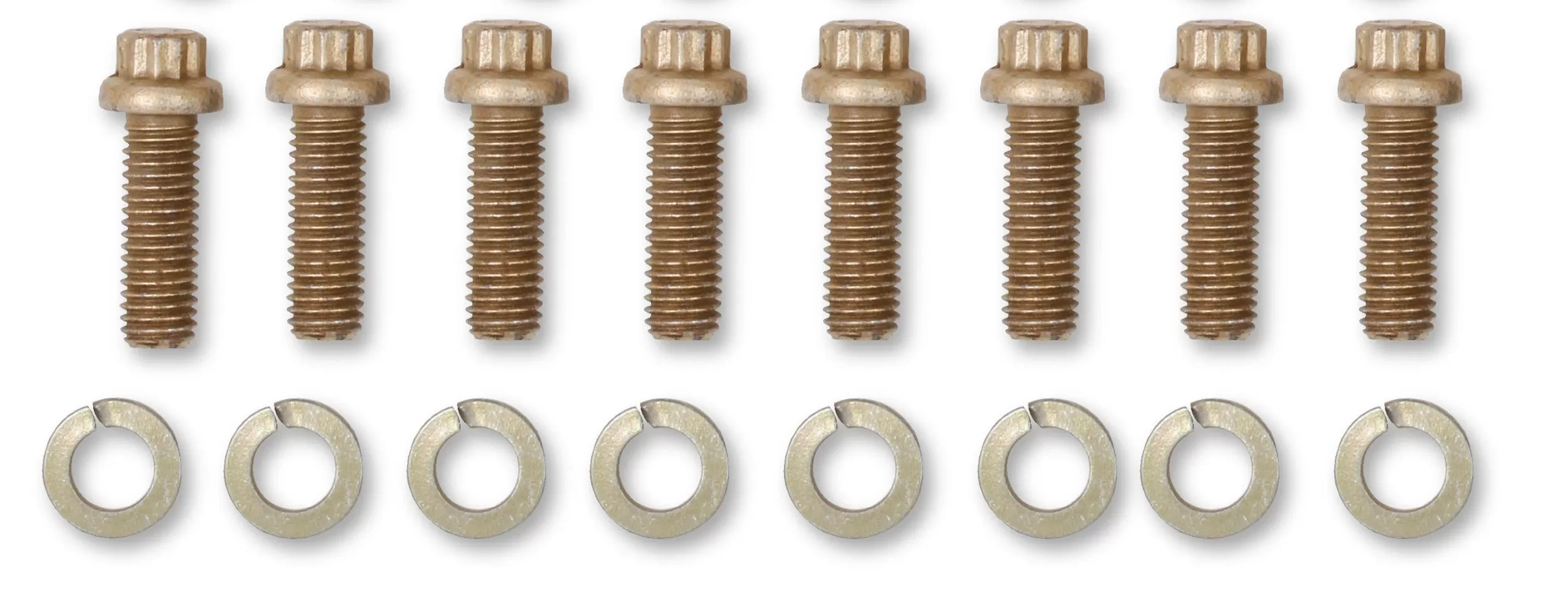

| Included Hardware | Full engine plate and grade 8 bolts. |
| Make | Chevrolet |
| Material | Steel |
| Patented | yes |
| Product Type | Bellhousing |
| SFI | 30.1 |
| SFI Approved | Yes |
| SFI Certification | 30.1 |
| Trans Bore | N/A |
| Trans. Bore Diameter | NA |
| Transmission | C5 Automatic 97-04 Corvette |
| C6 Automatic 05-13 Corvette | |
| Transmission Type | Automatic |
| Weight | 22# |
| Weight (lb) | 22 |
| UPC | 084041031360 |
| Part Number | RM-8035 |
