QUICK TIME

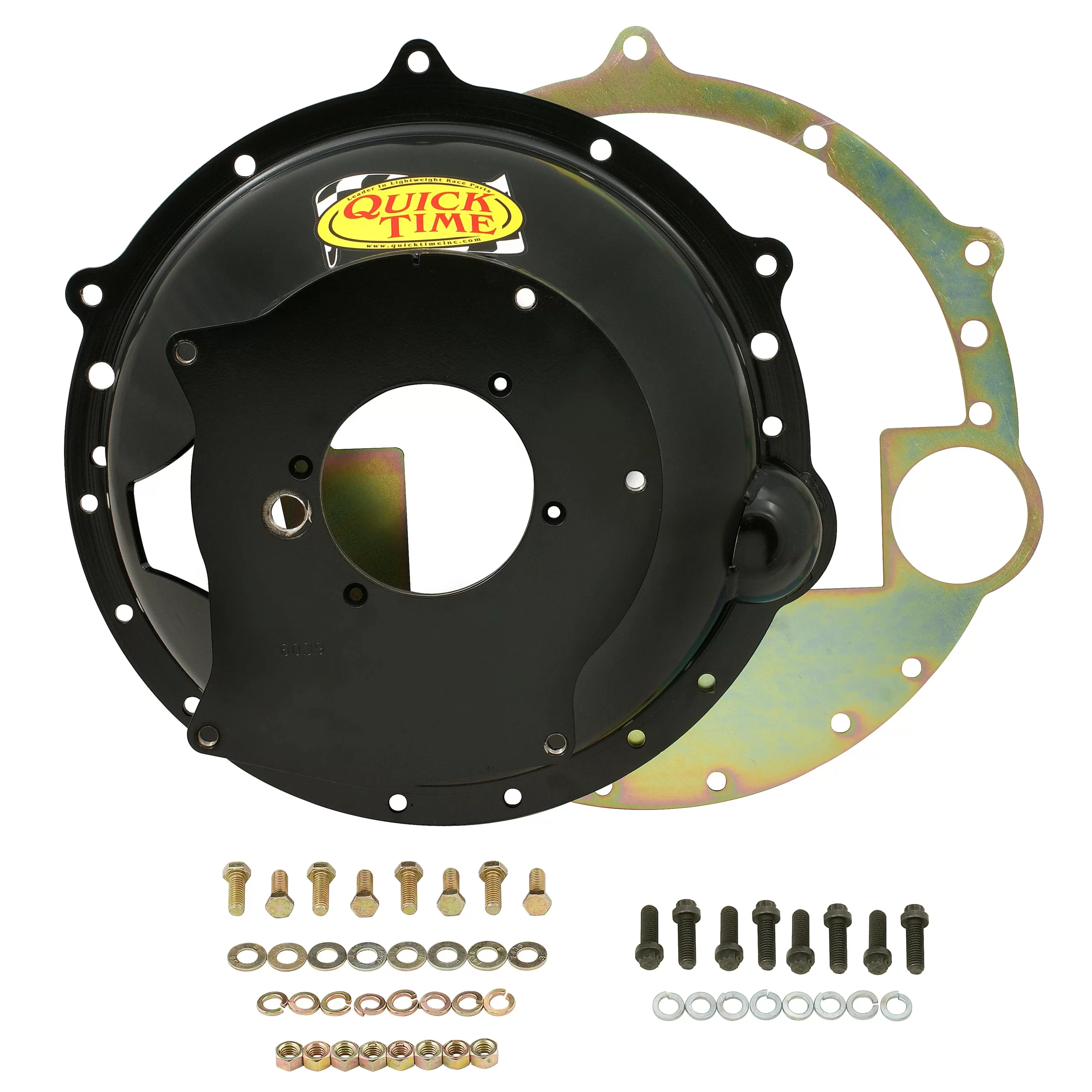

QUICKTIME BELLHOUSING – CHEVY LS
Chevy LS to late-model ZF 6-speed
Part # RM-6039
Perfect fit for Chevy LS engines with late-model Corvette ZF 6-speed transmissions. It can also be used with late model LT1 and LT4 engines Built from high-grade steel – Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Diameter | 11 inch |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | GM Gen III/IV (LS) |
| Engine Make | Chevrolet |
| Engine Plate | RM-6034-C |
| Flywheel | 153/168 Tooth |
| Height | 5.774 inch |
| Height (in) | 5.774 |
| Make | Chevrolet |
| Material | Steel |
| Patented | yes |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Starter | OE |
| Trans Bore | 4.56 |
| Trans. Bore Diameter | 4.56 inch |
| Transmission | ZF |
| Transmission Type | Manual |
| Weight | 22# |
| Weight (lb) | 22 |
| UPC | 084041029046 |
| Part Number | RM-6039 |
