QUICK TIME

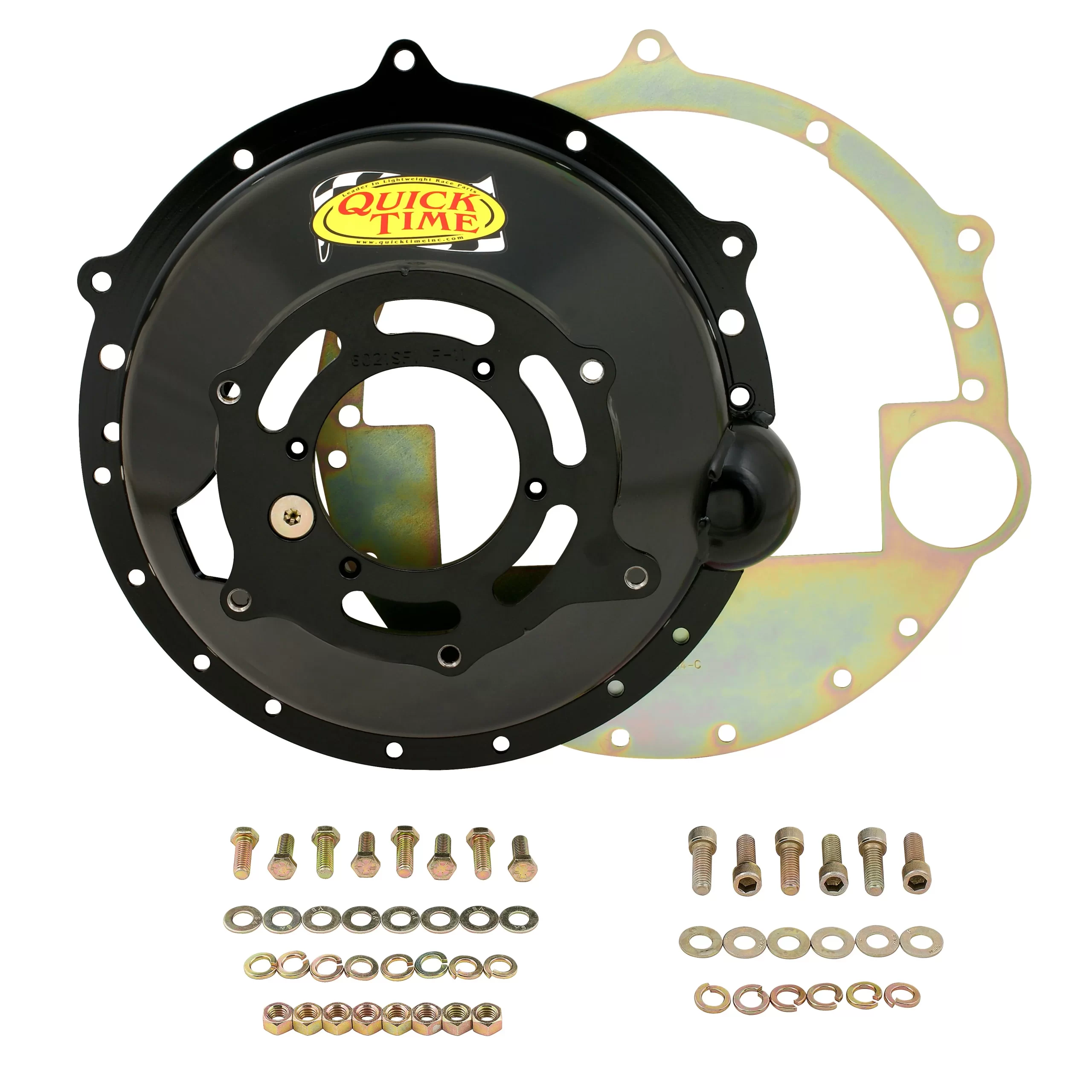

QUICKTIME BELLHOUSING – CHEVROLET
Perfect fit for Big Block and Small Block Chevys with Muncie/Jerico-Style Transmissions, SFI 6.1 Certified
Part # RM-6021SFI
This bellhousing is designed for circle track, strip, or street applications. The bellhousing will mate the SBC and BBC engines to Muncie, Richmond, Chevy TKO, BW-T10 for the 1964 to 1967 Nova, or other applications requiring a 7:00 clutch fork opening. Fits 168 tooth flywheel and 11 in clutch. It is 6.29 in deep. Built from high-grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. The transmission bore is 4.685 in. This bellhousing weighs 21 pounds. Pivot ball, block plate, and Grade 8 hardware included. S.F.I. 6.1 approved. Other applications available.
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Diameter | 11″ |
| Clutch Operation | Mechanical or Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| GM Big Block | |
| Engine Make | Chevrolet |
| Engine Plate | RM-6023-C |
| Flywheel | 153 Tooth |
| 168 Tooth | |
| Height | 6.290 inch |
| Height (in) | 6.29 |
| Make | Chevrolet |
| Material | Steel |
| Patented | yes |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans Bore | 4.687 |
| Trans. Bore Diameter | 4.687 inch |
| Transmission | Bert Racing |
| Brinn Racing | |
| Falcon | |
| Jerico | |
| Muncie | |
| Richmond | |
| Saginaw | |
| T10 | |
| T5 GM | |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 21# |
| Weight (lb) | 21 |
| UPC | 084041027851 |
| Part Number | RM-6021SFI |
