NOS PLATE WET NITROUS SYSTEM – FORD
2015-2017 Ford Mustang w/ 5.0L Coyote V8 Engine. Includes 10 lb Blue Bottle and 80mm Plate
Part # 02126NOS

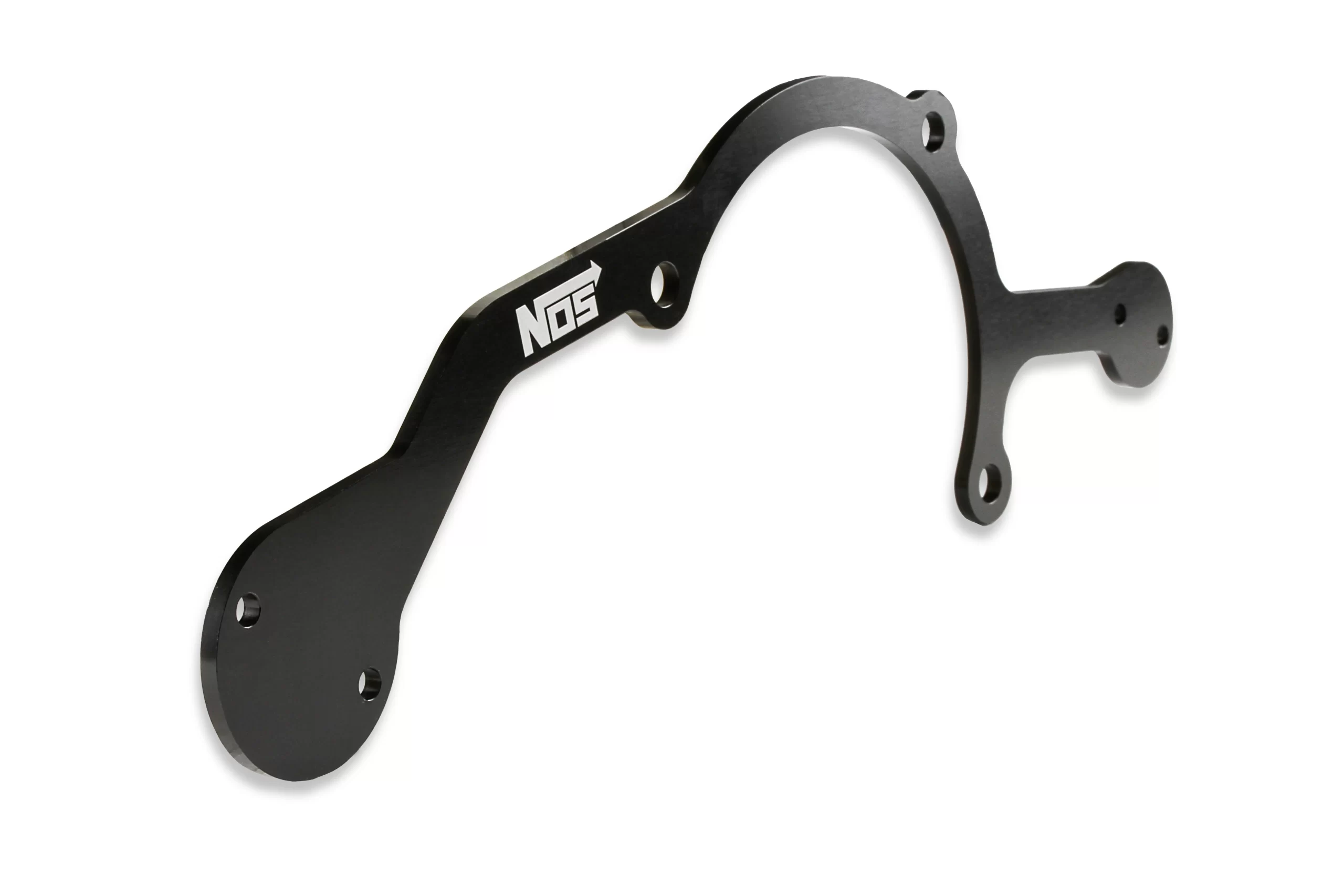

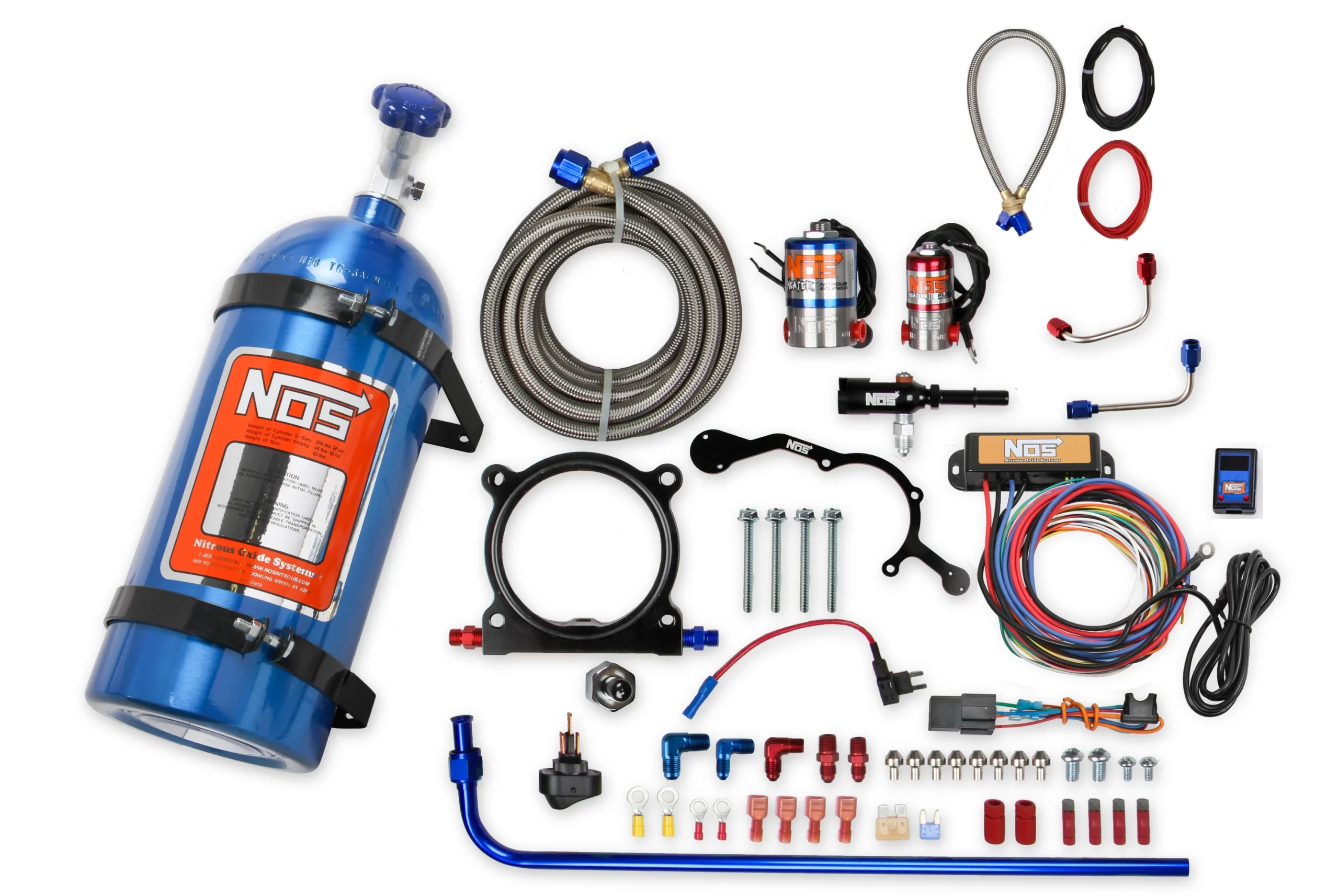

Our NOS systems include everything needed to install that extra power over the weekend. Along with all the nitrous and fuel related hardware, an NOS Mini 2-stage progressive controller is included for exceptionally smooth power delivery. The 80mm 1/2 inch thick nitrous plate is made from billet 6061-T6 aluminum then anodized black for great looks under the hood. NOS also includes a custom designed black anodized aluminum solenoid bracket with custom bent hard lines for that professional installation look.
Features:
- Fits 2015-2017 5.0L Coyote powered Ford Mustang
- Blue system provides a classic NOS appearance

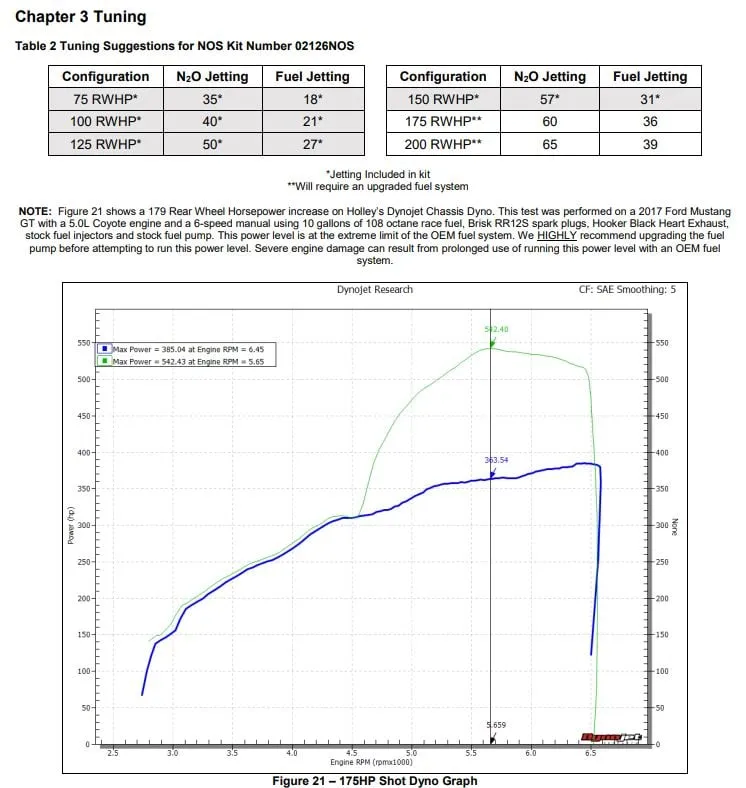

- Includes jetting for 75, 100, 125, & 150 RWHP (rear wheel horsepower)

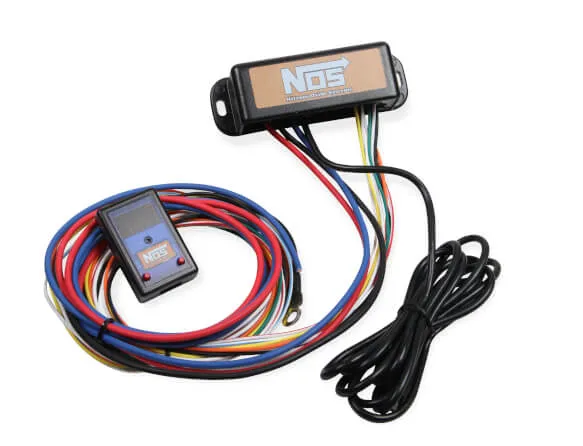

- Includes NOS Mini 2-Stage Progressive Controller
- This wet kit provides exceptionally smooth power delivery

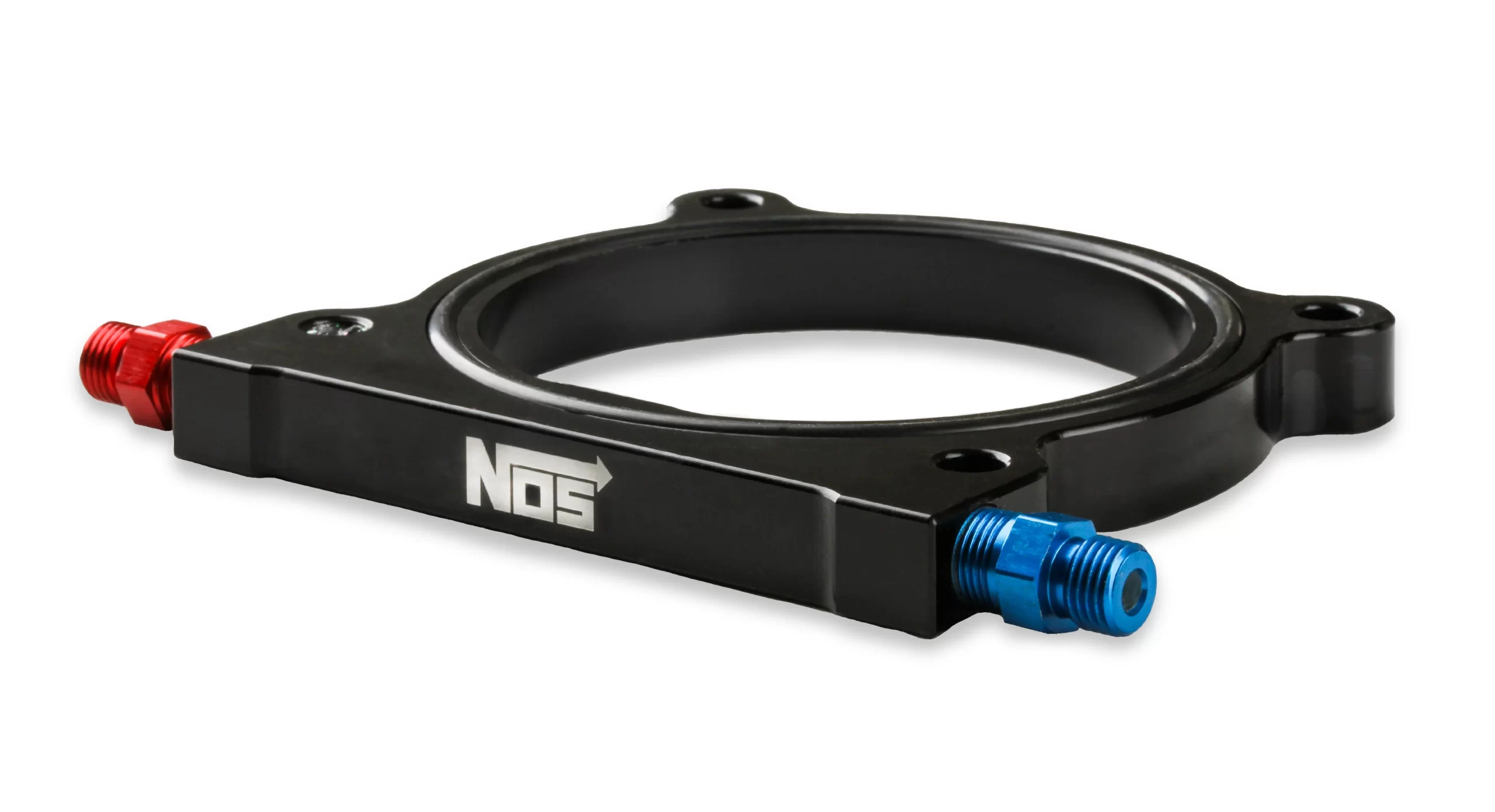

- Single 80mm ½ inch thick black anodized plate fits between throttle body and intake manifold
- Bottle is made from 6061-T6 Aluminum
- Supports up to 250 RWHP (jets purchased separately)
- Includes 10 lb. blue nitrous bottle with brackets
| Adjustable | Yes |
|---|---|
| Bottle Color | Blue |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |
| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Blue |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |

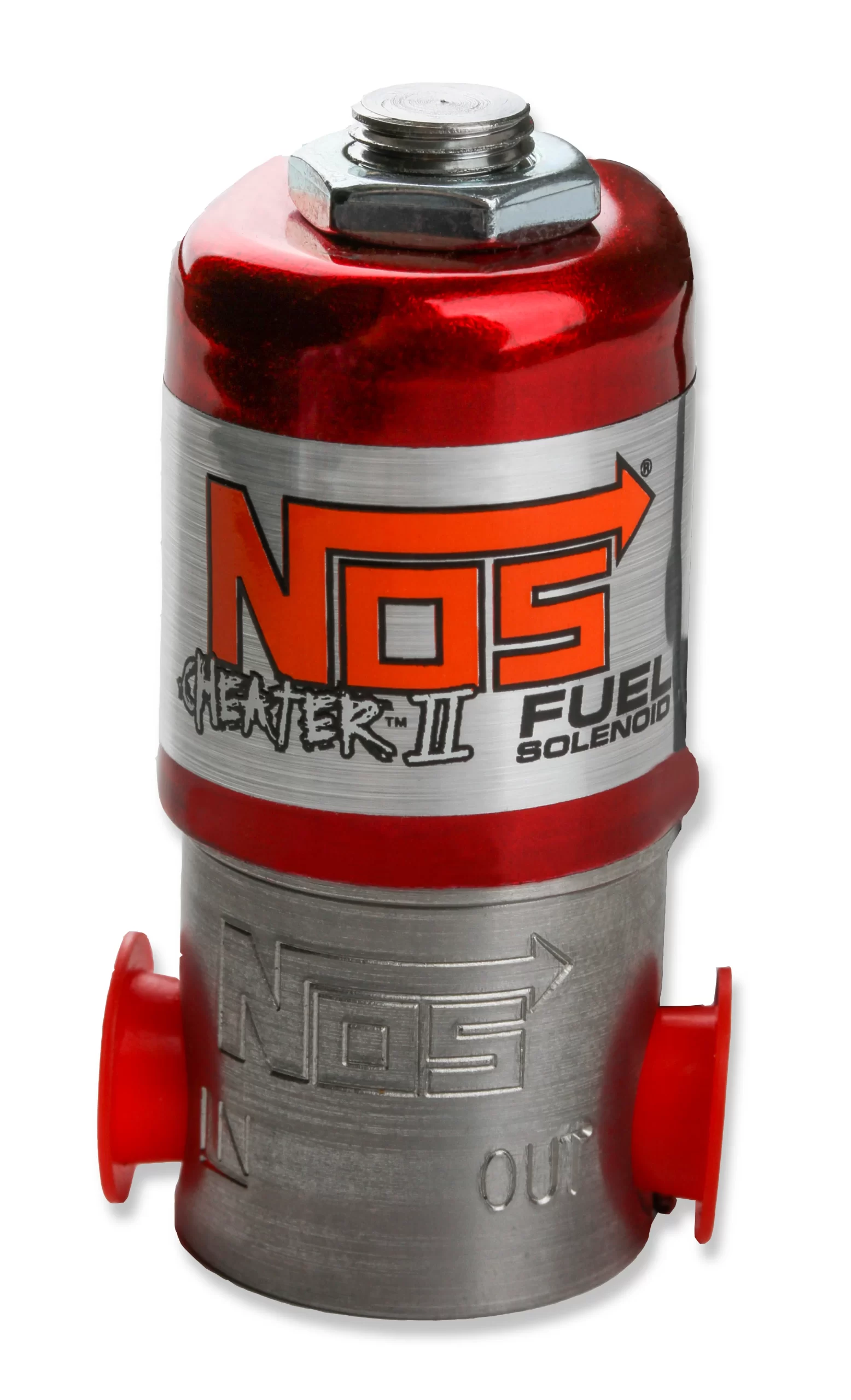

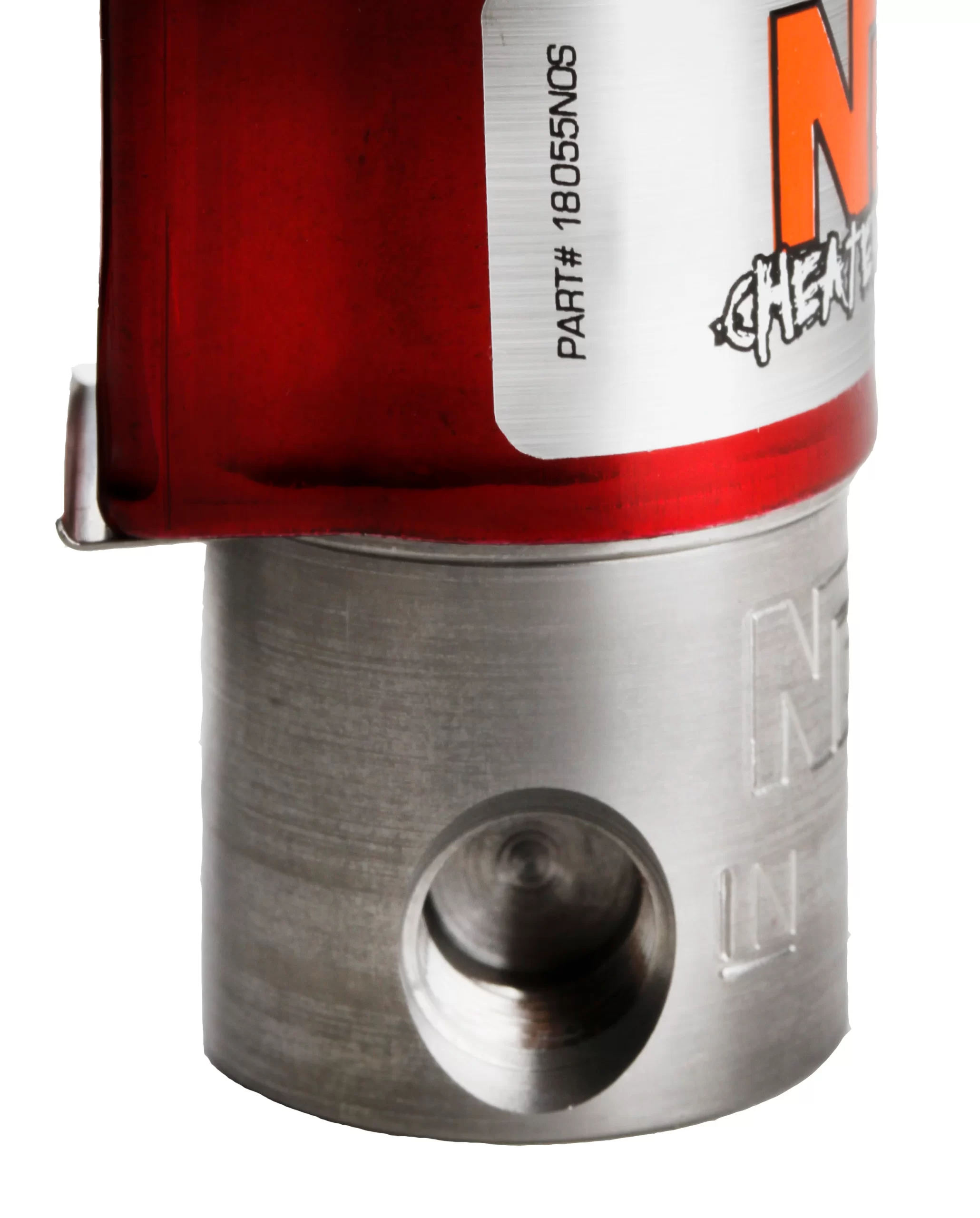

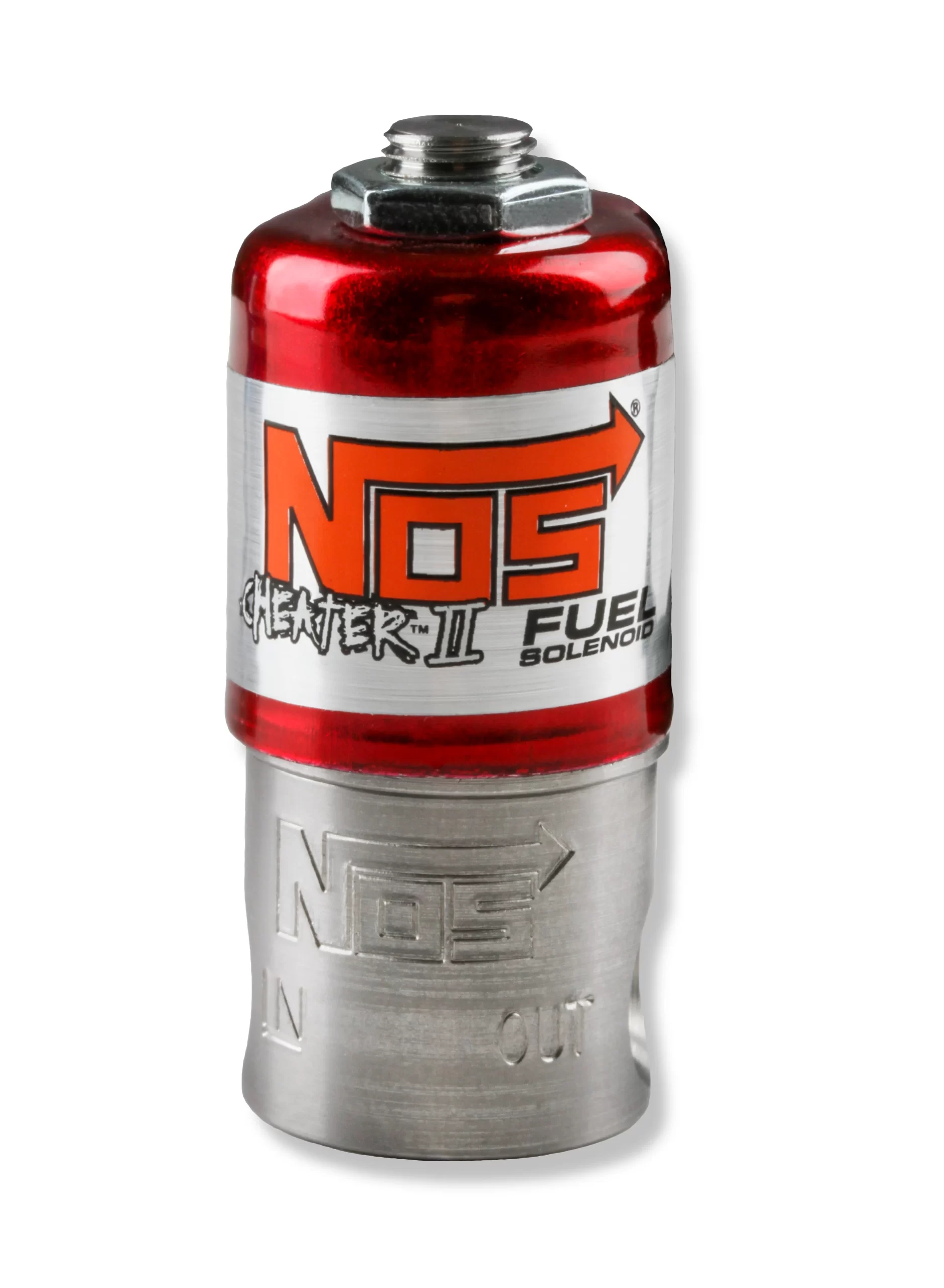

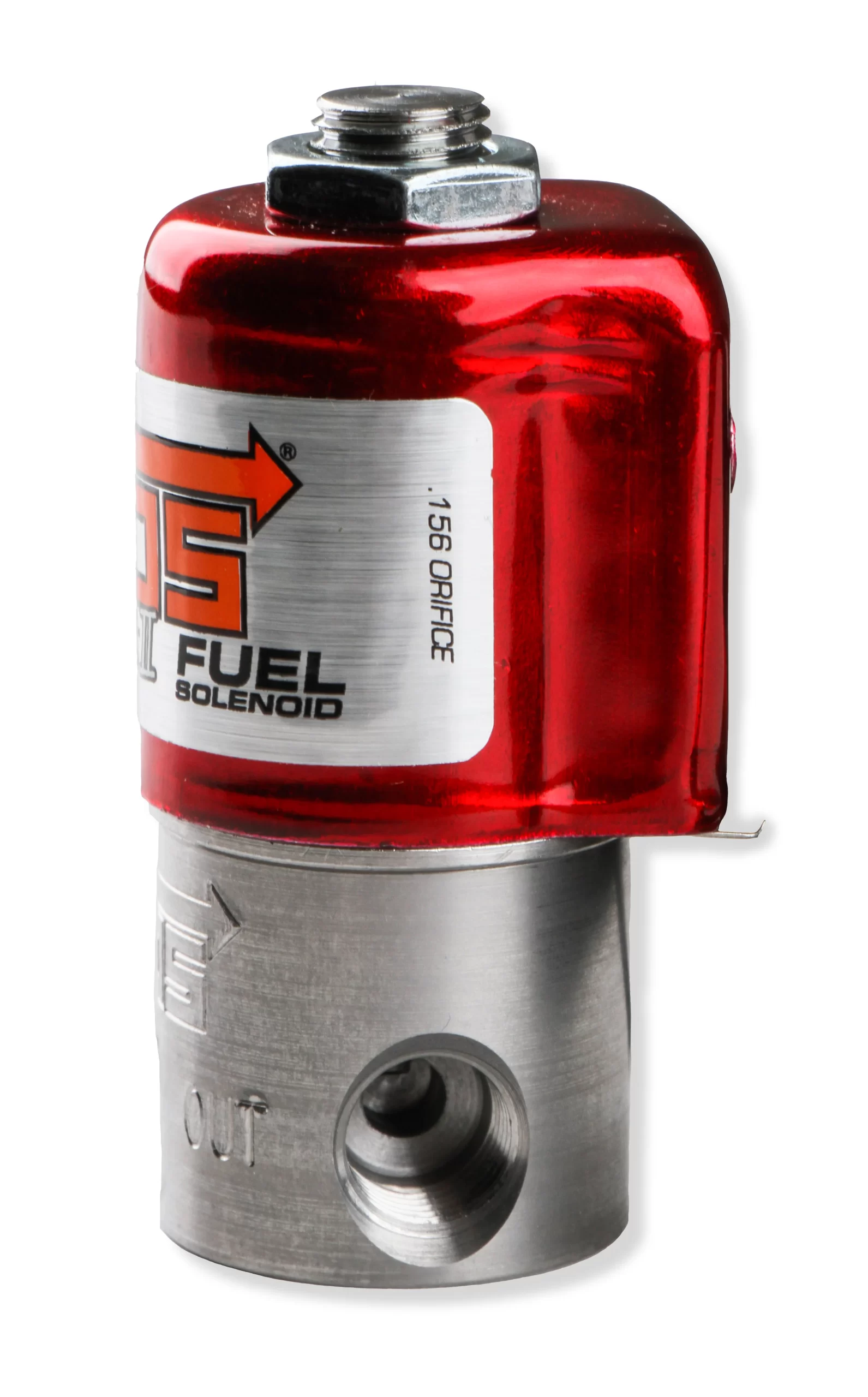

| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 75, 100, 125, 150 |
| Jet Sizes Included | 75, 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061-T6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |

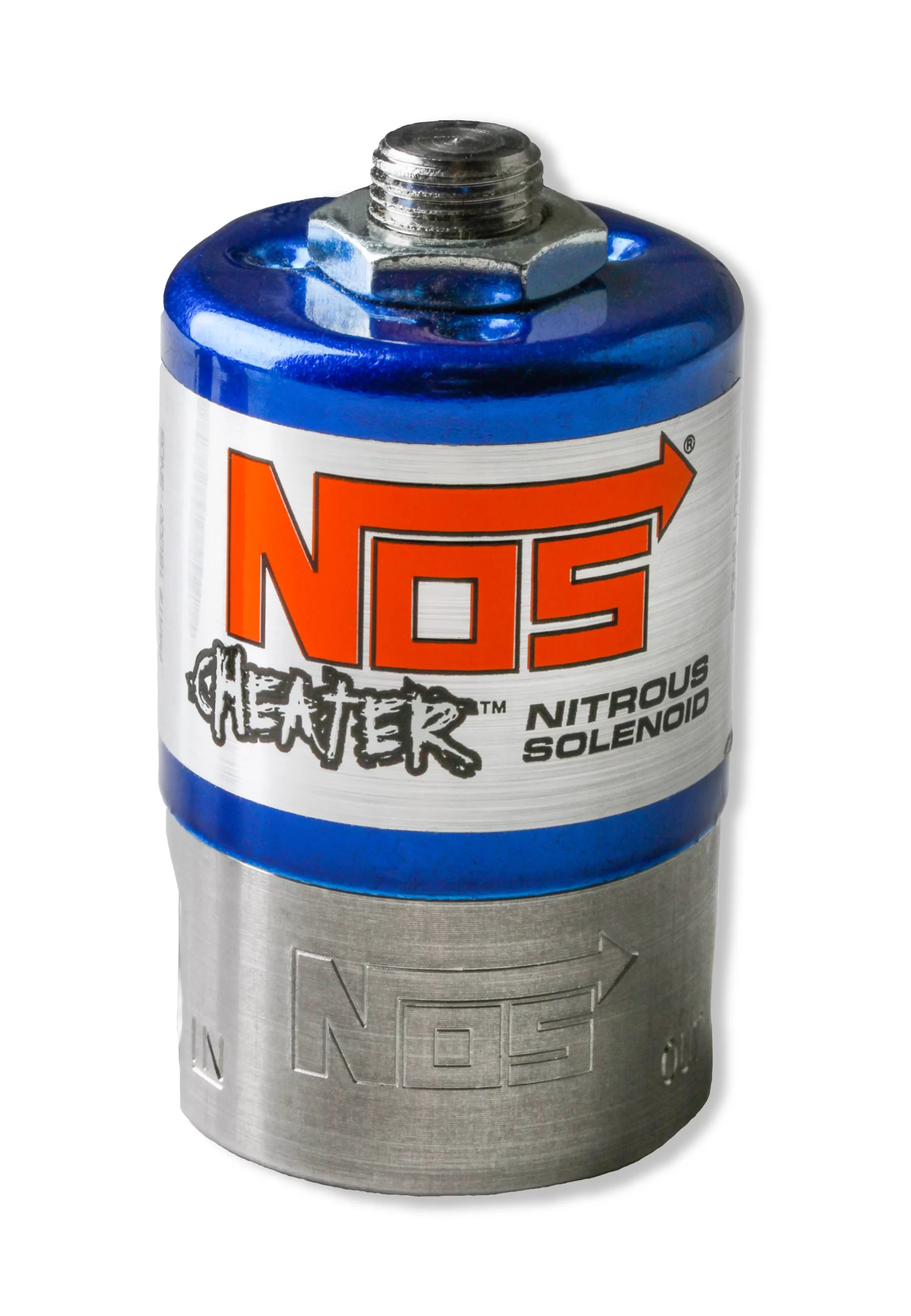

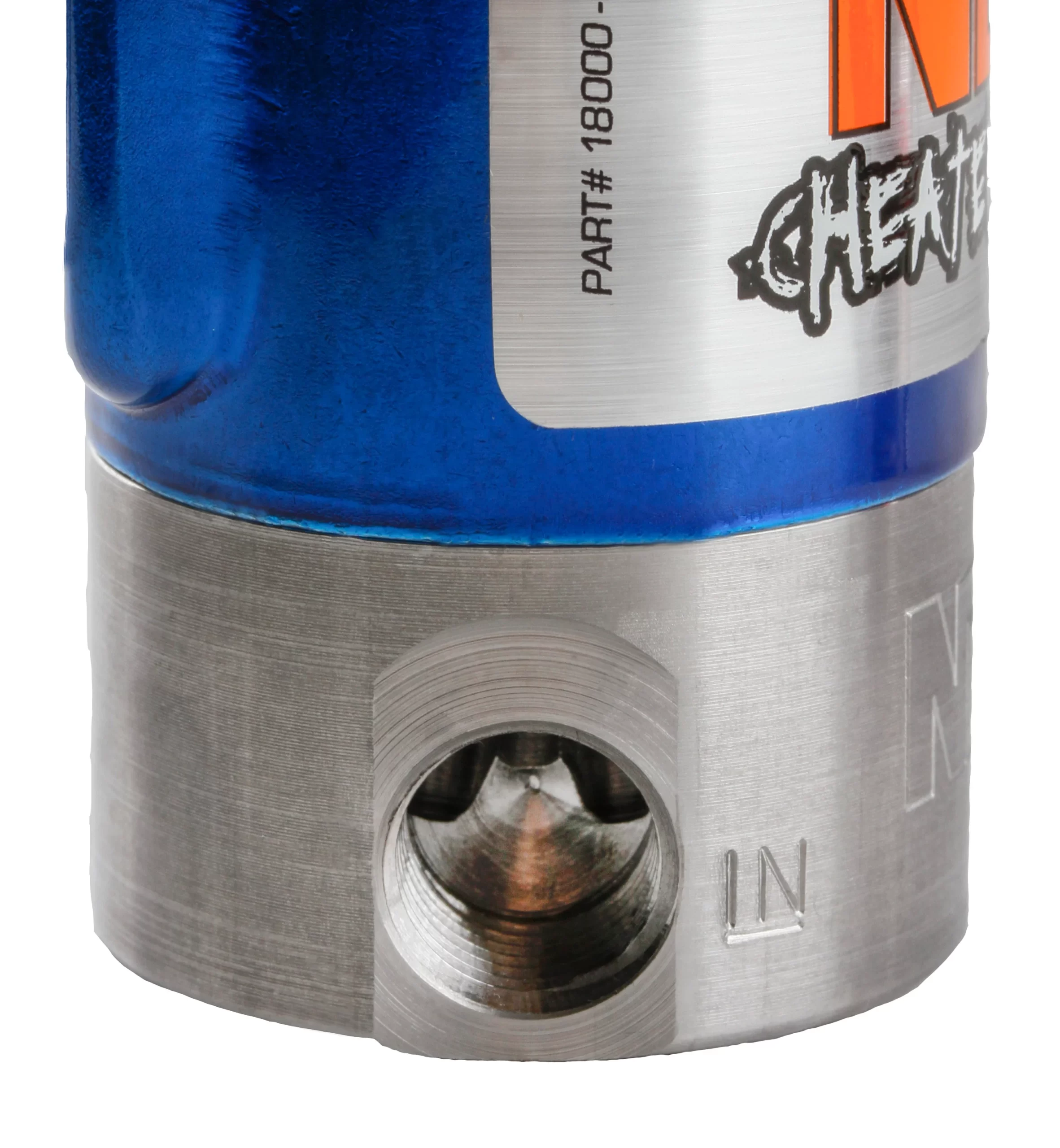

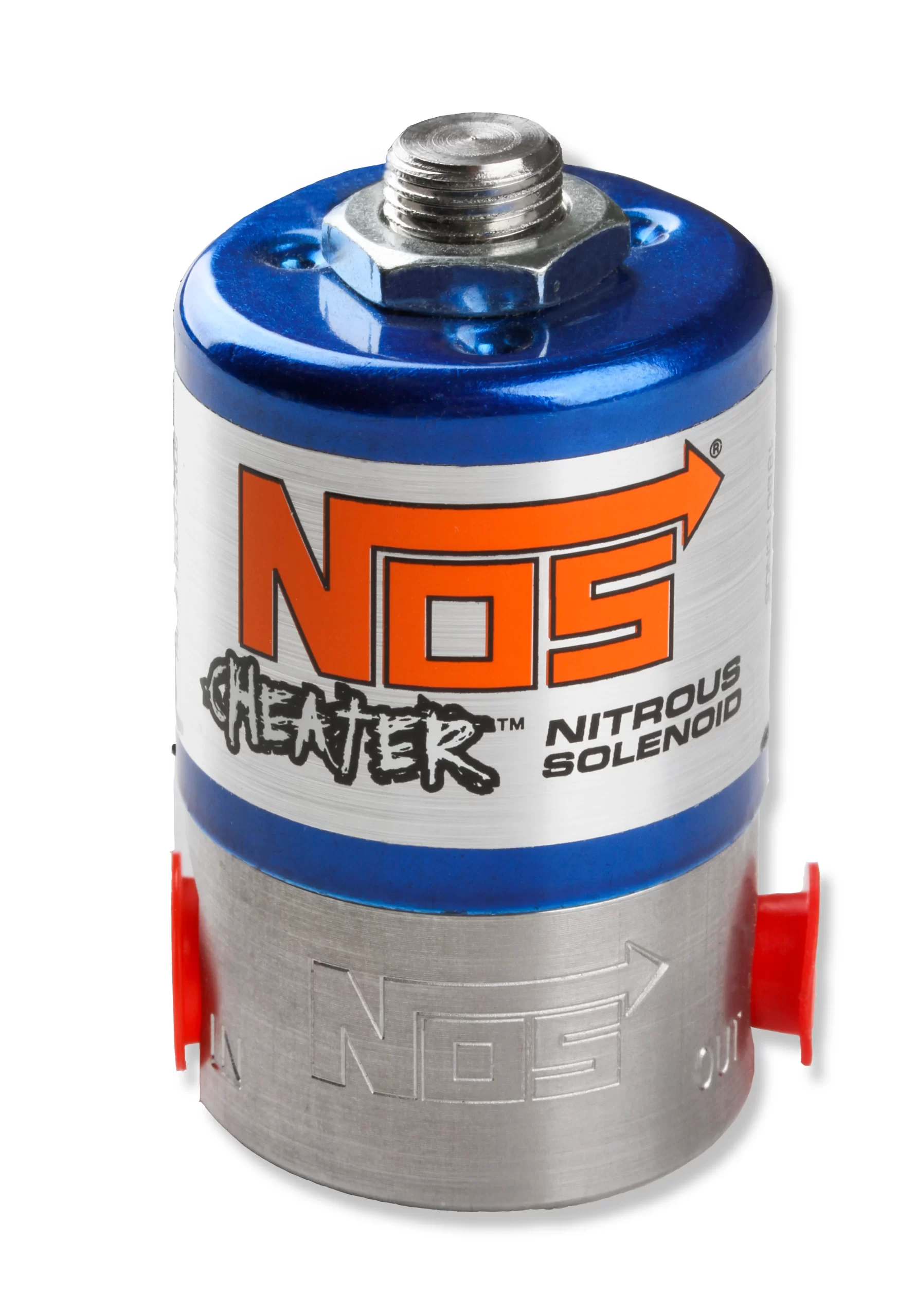

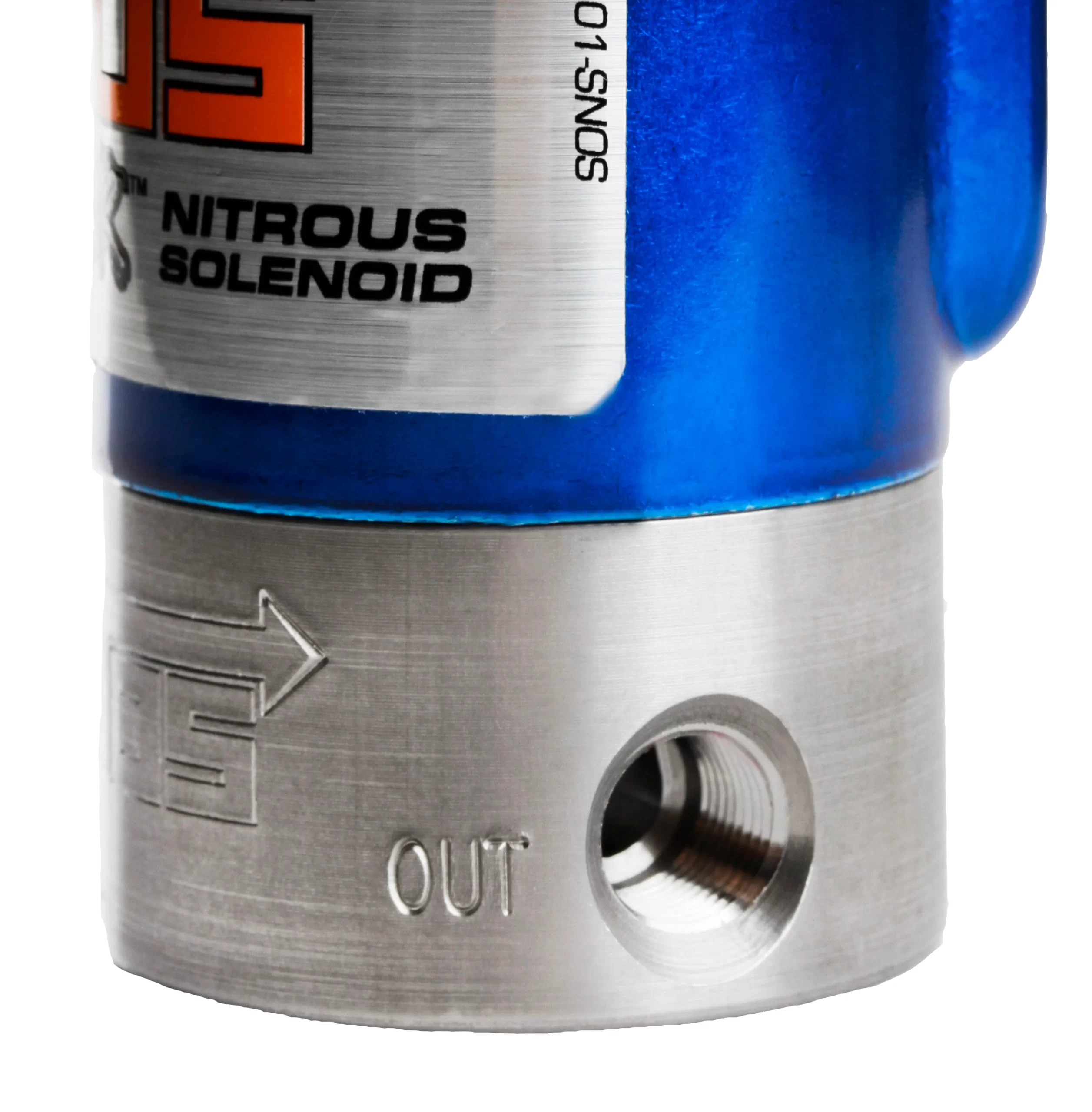

| Nitrous Solenoid | Cheater |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 80 mm |
| Plate Flange | Ford Coyote 80mm |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Blue/Red |
| Style | Wet |
| System Style | Wet |
| UPC | 090127055519 |
| Part Number | 02126NOS |
