NOS
NOS PLATE WET NITROUS SYSTEM – GM

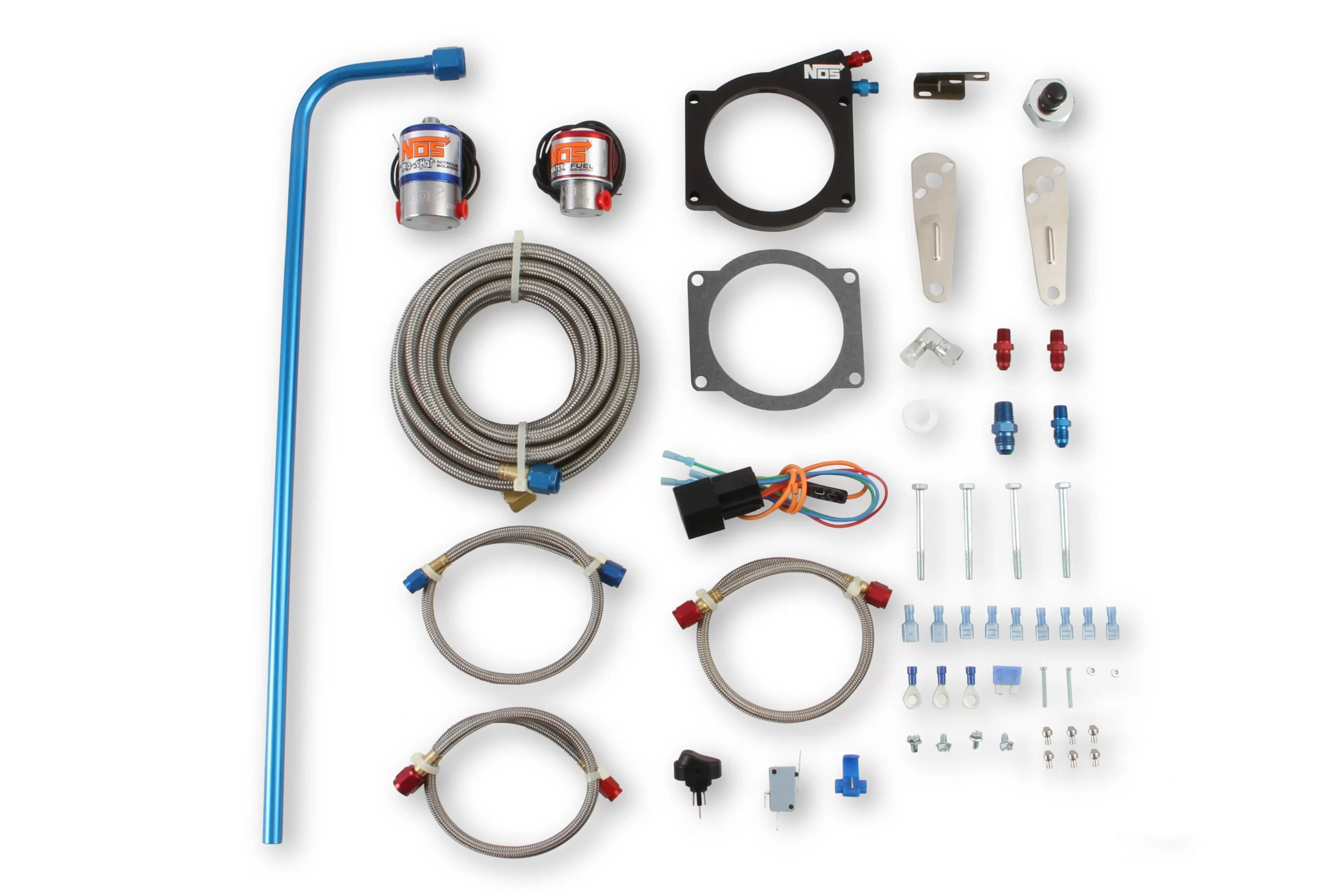

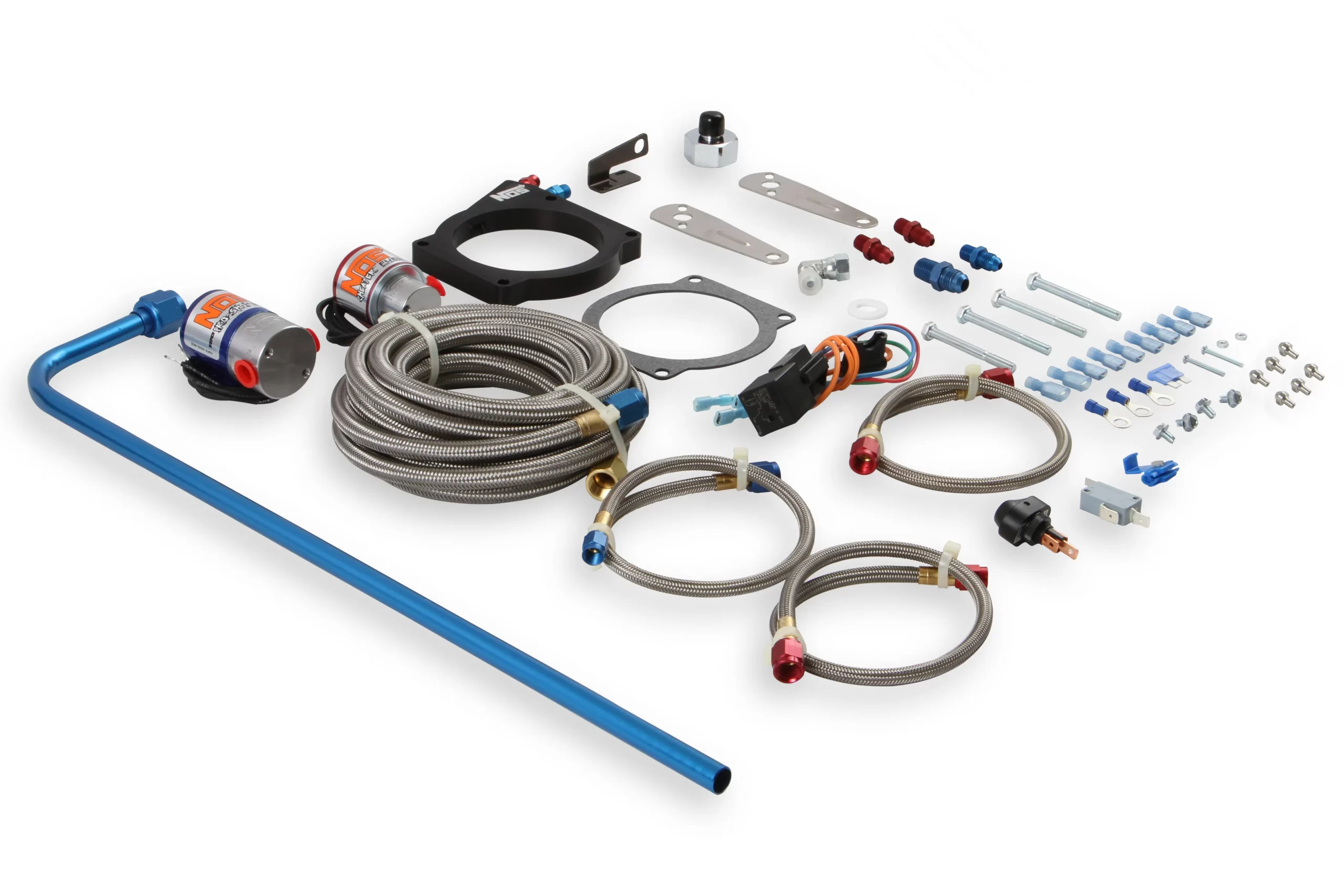

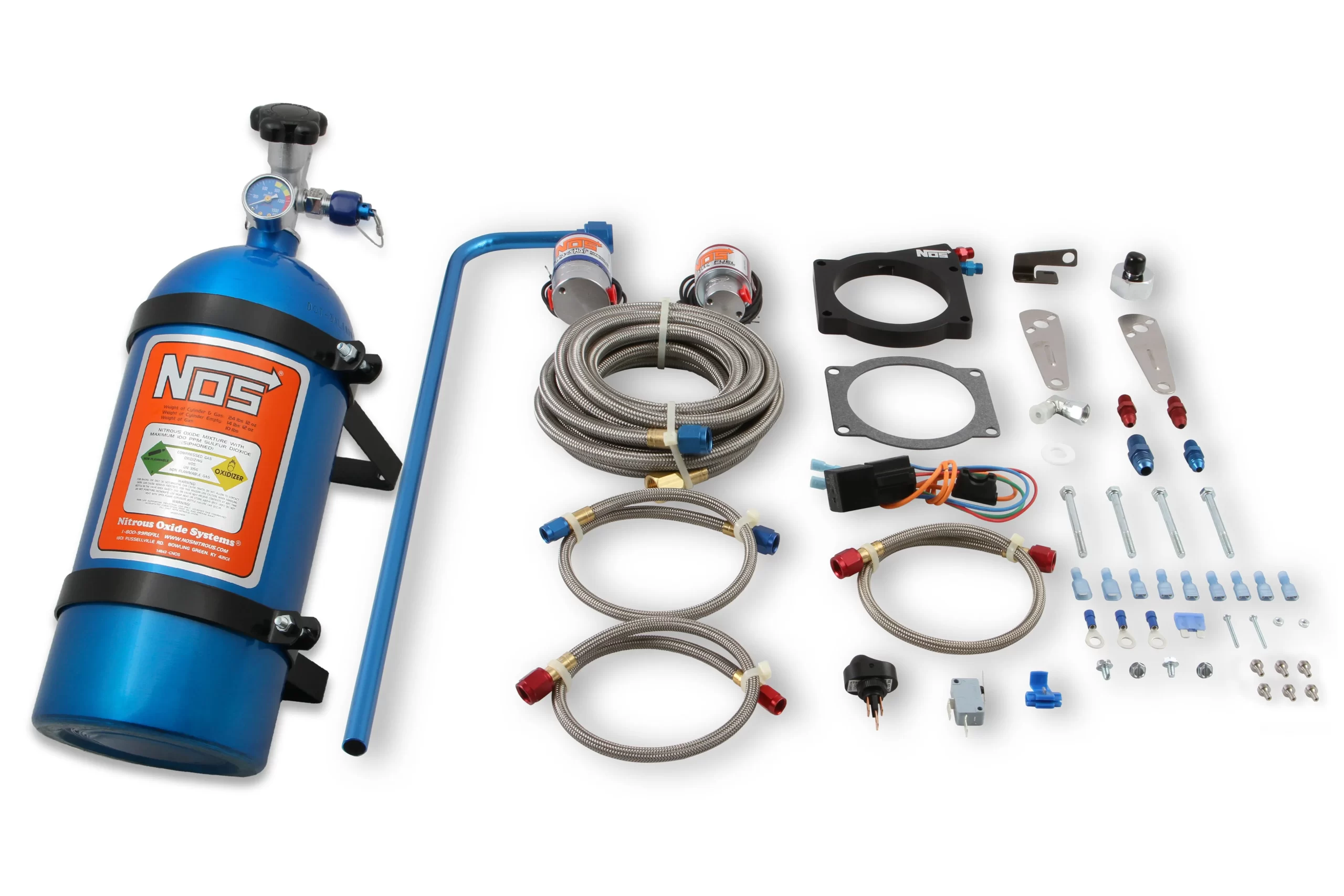

1997-2012 GM LS 90mm or 92mm 4-Bolt Throttle Body. Blue system is adjustable up to 200 HP. Includes 10lb bottle, 92mm plate, and all installation items
Part # 05169NOS
The NOS LS 90mm 4 Bolt Throttle Body plate system uses a billet plate with no spray bars. This system will fit a 90mm or 92mm throttle body and intake manifold. This unique design allows better atomization which prevents fuel puddles in your manifold and provides the best cylinder to cylinder distribution for maximum power. This is no ordinary low HP kit. The plate and solenoids supplied will easily support 200 HP.
Features:
- Fits 90mm or 92mm intake manifolds
- Adjustable to 200 HP
- Includes required hardware for most applications
- On demand power doesn”t affect daily driving characteristics
- Best “horsepower per dollar” modification available
- Drive By Wire applications require p/n 15972NOS
| Adjustable | Yes |
|---|---|
| Bottle Color | Blue |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |

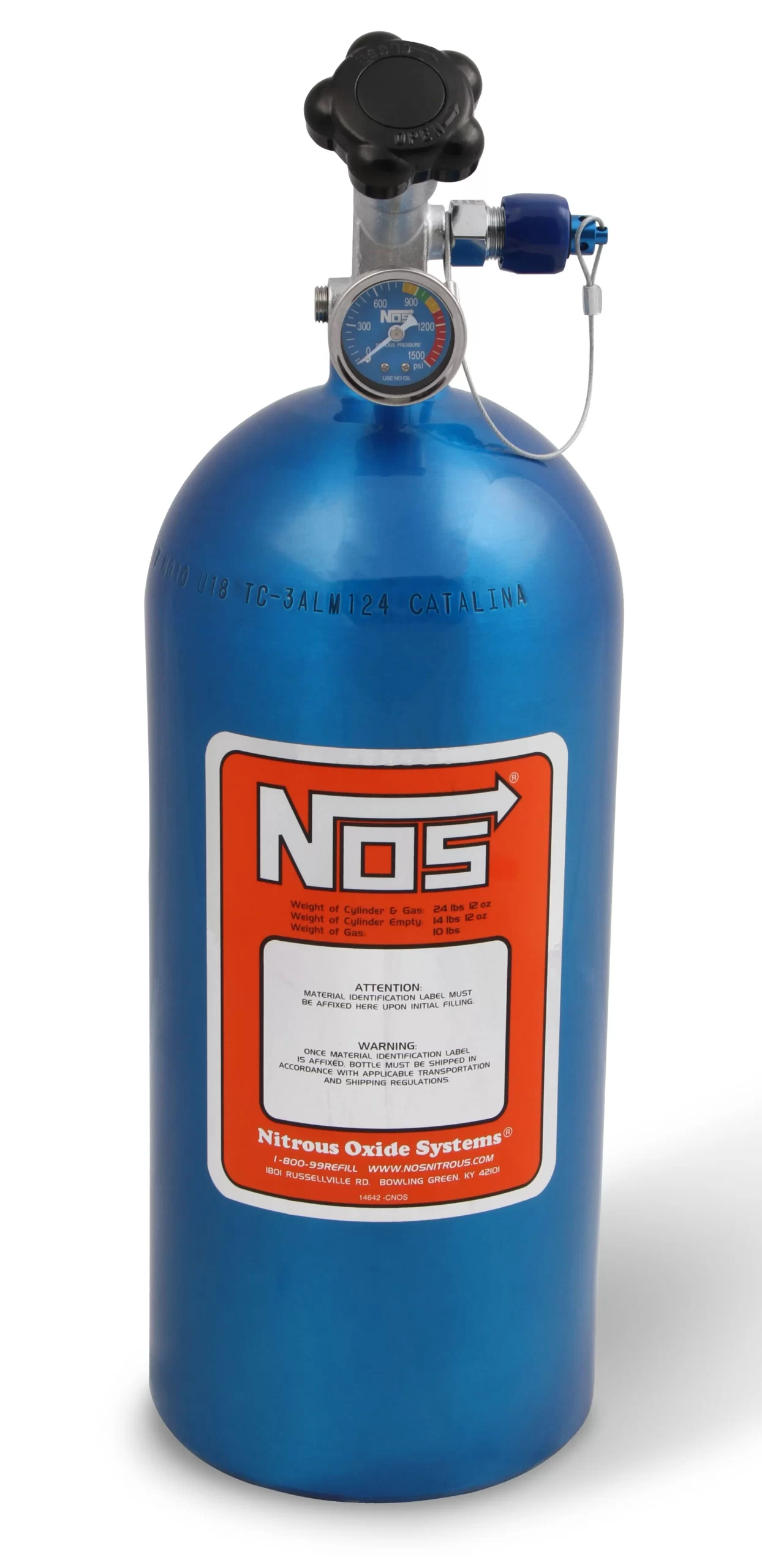

| Bottle Size | 10 lb |

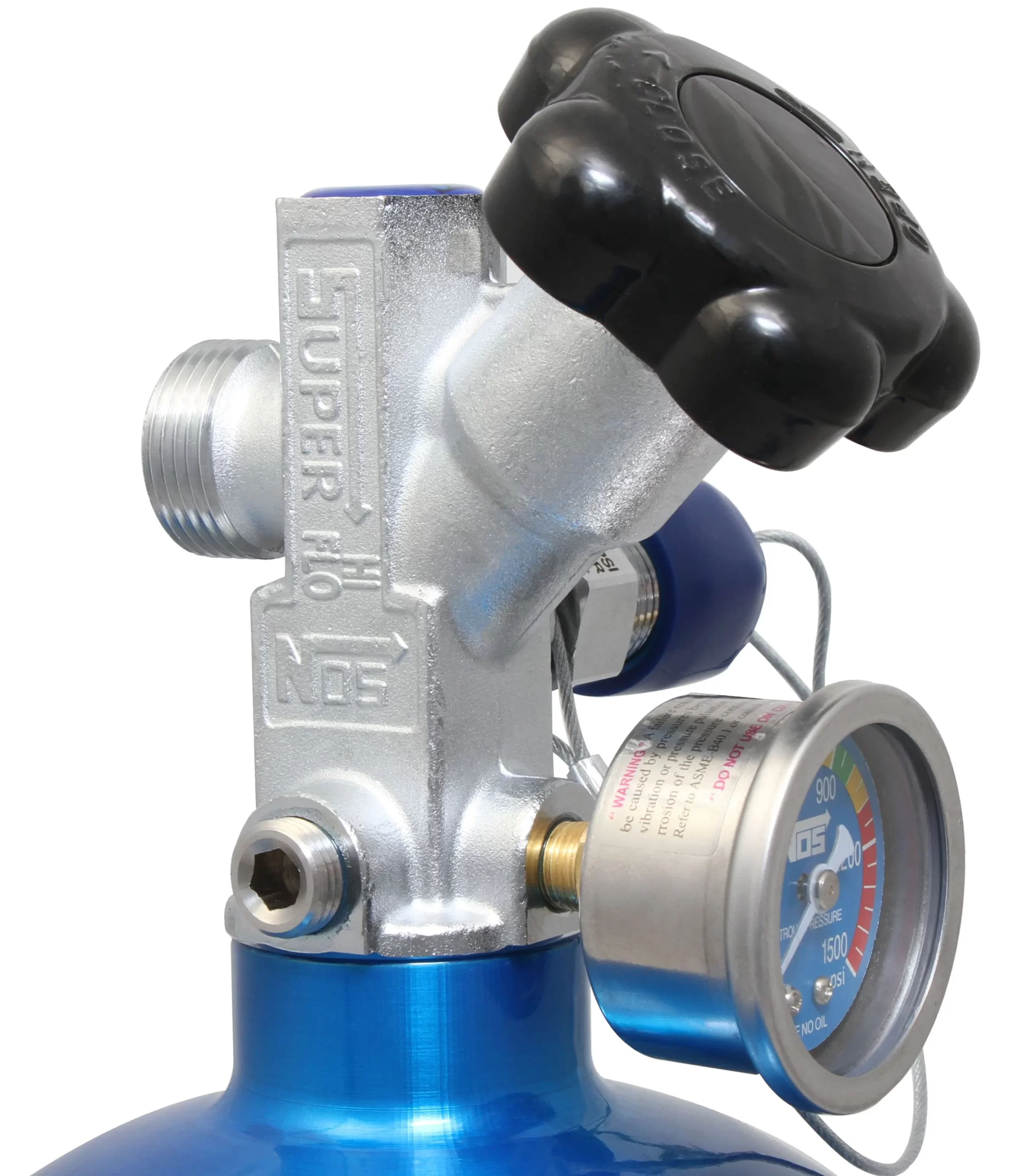

| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Blue |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |
| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061-T6 Aluminum |
| Max Horsepower | 200 |
| Nitrous Bottle Capacity | 10 lbs |
| Nitrous Solenoid | Super ProShot |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 90 mm |
| Plate Flange | GM 90mm LS 4 bolt |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Blue/Red |
| Style | Wet |
| System Style | Wet |
| UPC | 090127620809 |
| Part Number | 05169NOS |
Reviews
There are no reviews yet.
