NOS PLATE WET NITROUS SYSTEM – GM

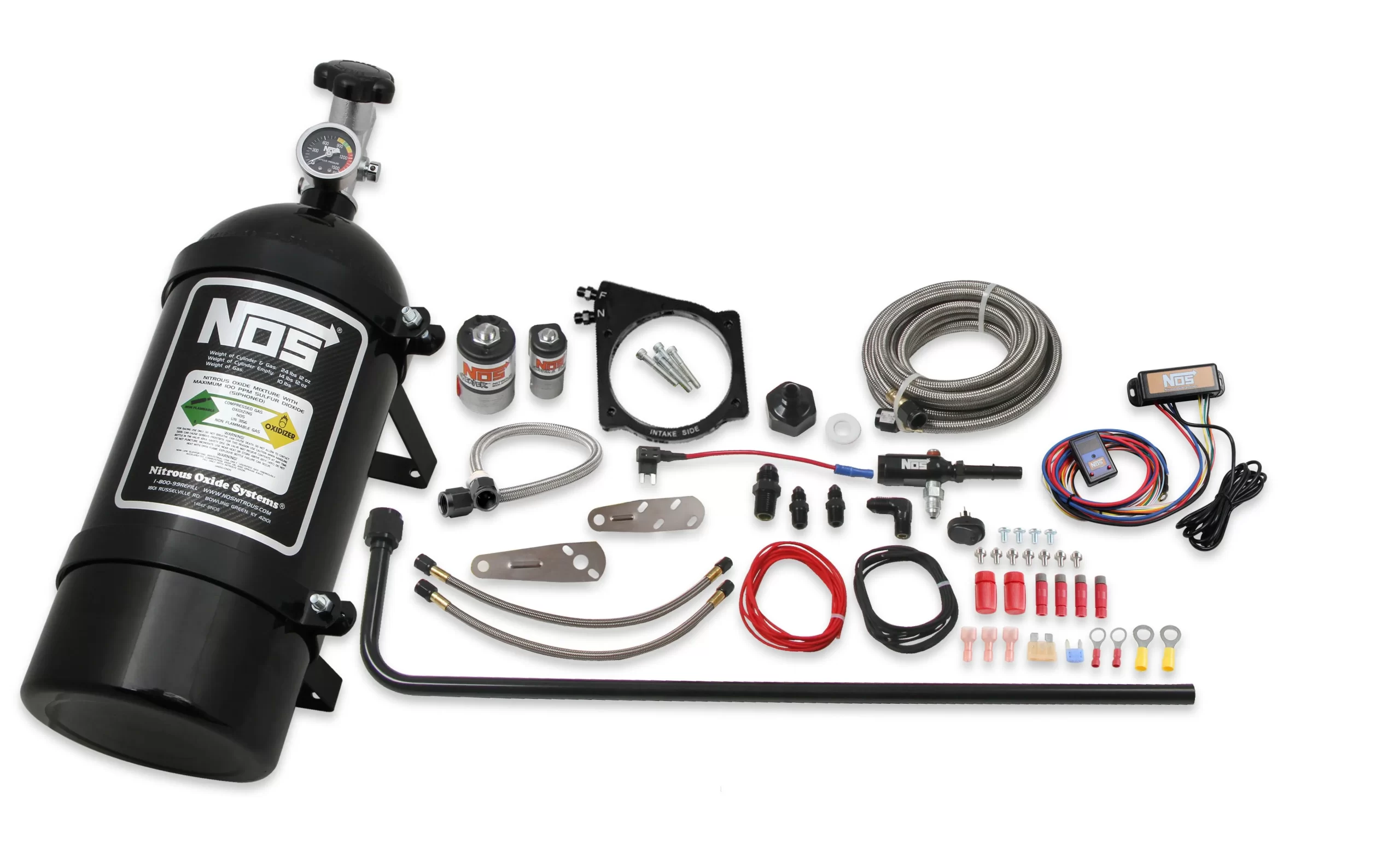

1997-2012 GM LS 102mm or 105mm 4-Bolt Drive-By-Wire Throttle Body. Black system is adjustable up to 250 HP. Includes 10lb bottle, 105mm plate, and all installation items
Part # 05173BNOS
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are “Wet” plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
Features:
- Fits GM LS engines with drive-by-wire style 102mm or 105mm throttle body
- Includes jetting for 100, 125, & 150 horsepower
- Ideal for use with the Holley Hi-Ram, Sniper EFI, or MSD Atomic LS Manifold
- This wet kit provides exceptionally smooth power delivery

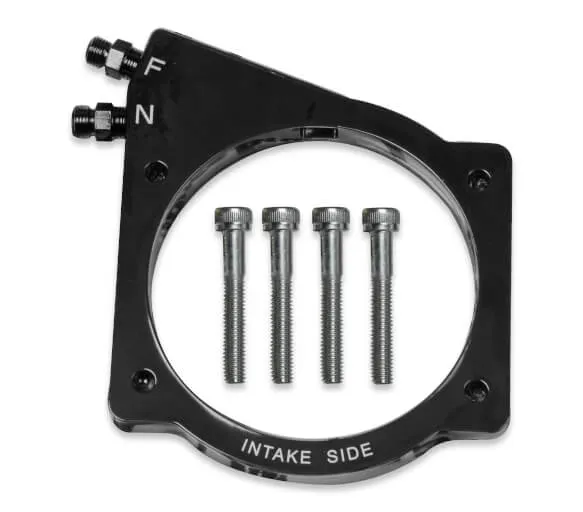

- Single 105mm ½ inch thick black plate between the throttle body and manifold
- Bottle is made from 6061-T6 Aluminum
- Supports up to 250 RWHP (jets purchased separately)
- Includes a 10 lb. black nitrous bottle with brackets
| Adjustable | Yes |
|---|---|
| Bottle Color | Black |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |

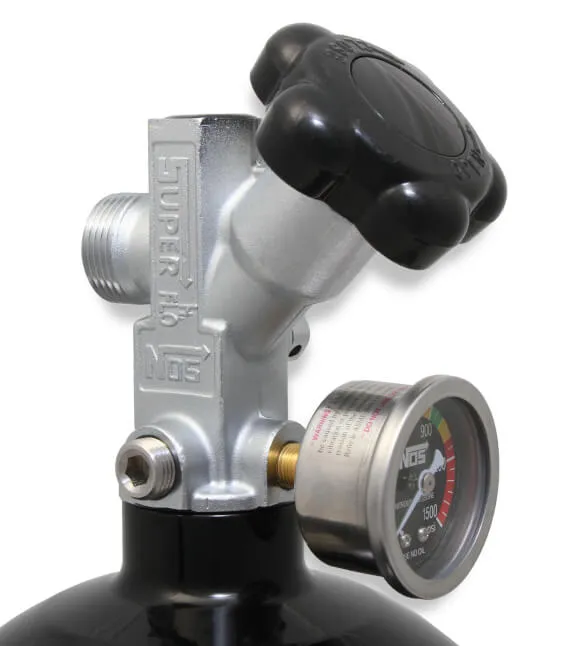

| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Black |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |

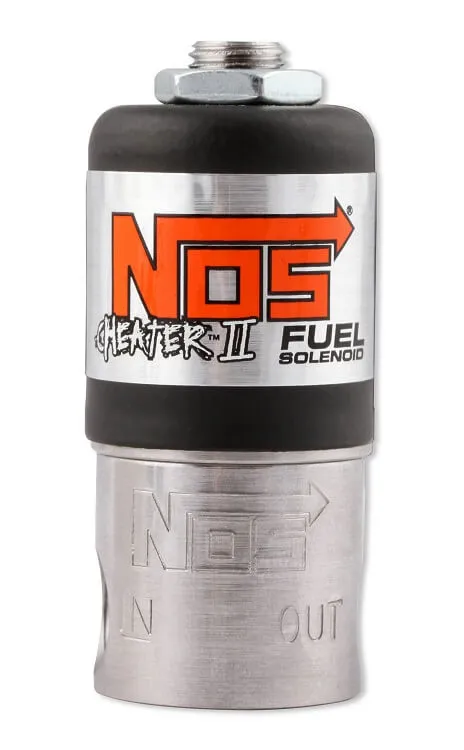

| Fuel Solenoid | Cheater |

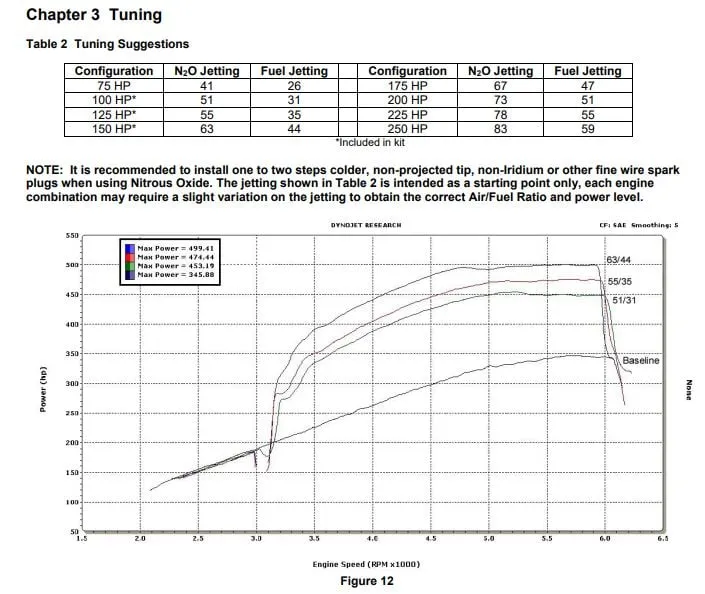

| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061-T6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |

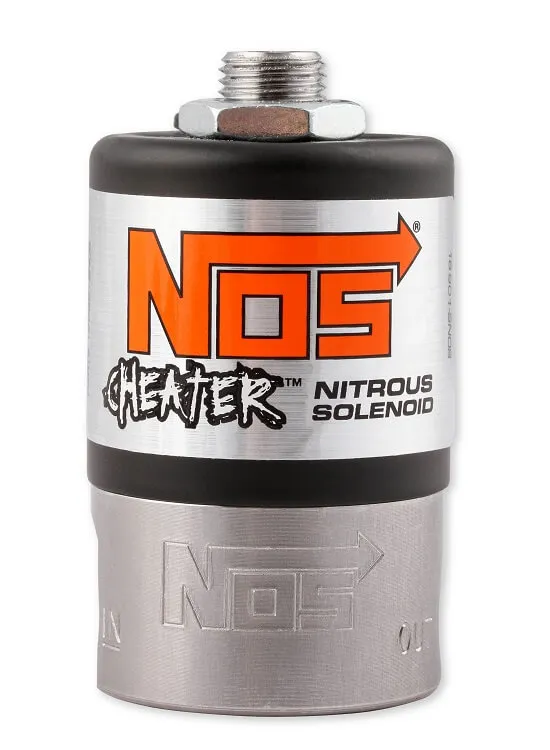

| Nitrous Solenoid | Cheater |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 105 mm |
| Plate Flange | GM 4-Bolt LS |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Black |
| Style | Wet |
| System Style | Wet |
| UPC | 090127044728 |
| Part Number | 05173BNOS |
