MSD
MSD WIDE BAND O2 FOR POWER GRID
This module provides valuable air/fuel ratio data to your MSD Power Grid, data logger or air/fuel ratio gauge.
Part # 7765

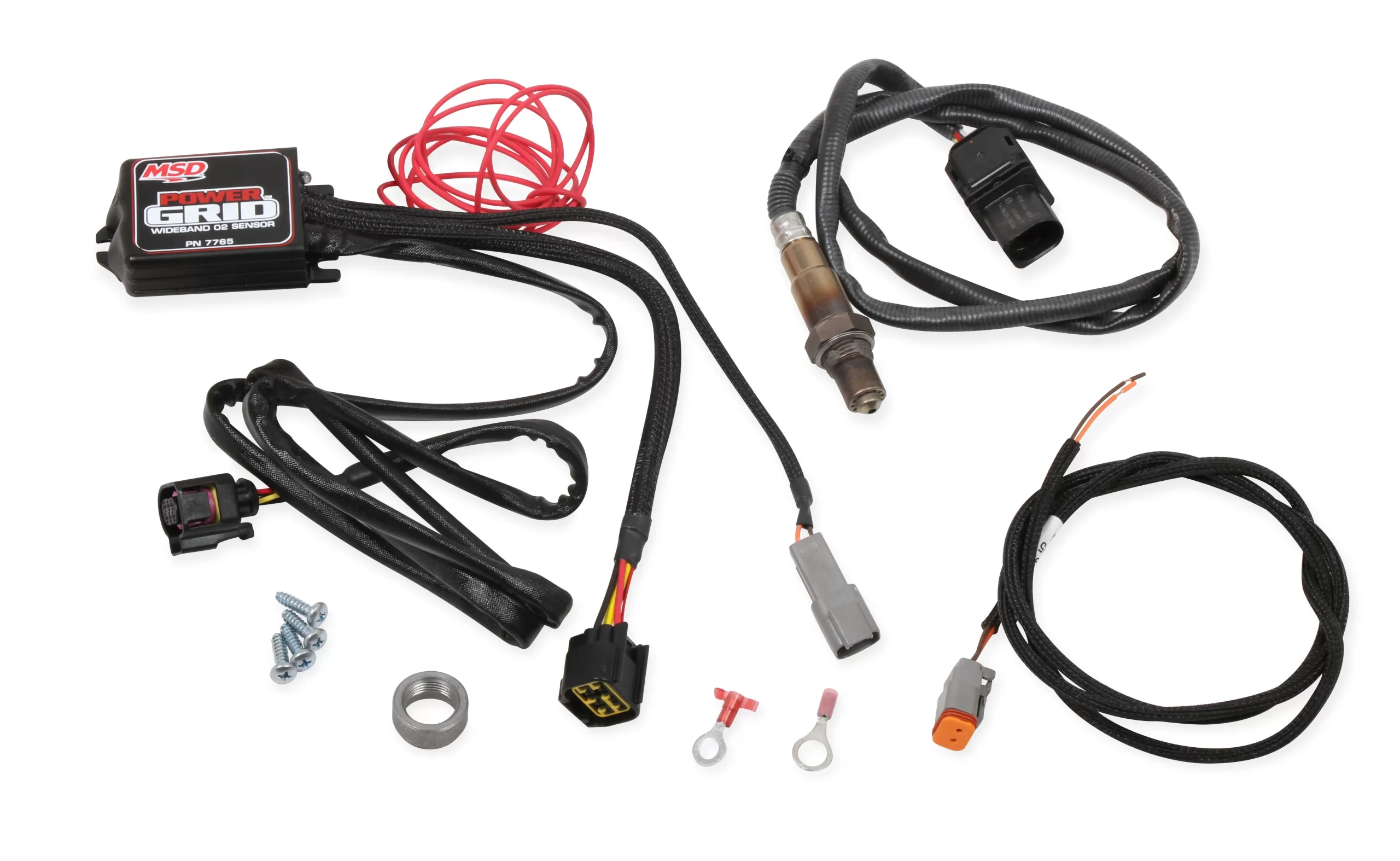

Add valuable data logging capability to your Power Grid with the addition of the plug-n-play Wide Band O2 Module. Aside from providing O2 data to your Grid, the module also provides a 0-5v output to drive an air/fuel ratio gauge or provide a signal to other data loggers. Multiple modules and sensors can be connected to a single Power Grid setup if desired. The completely sealed unit uses a Bosch 4.9 oxygen sensor, and is easy to set up and no free air calibration is required.
Features:
- Plug-n-play with MSD Power Grid
- Easy set-up! No free air calibration required
- Completely sealed unit for durability in race environments
- Bosch 4.9 oxygen sensor, PN 2267
- 0-5v output to run an air/fuel gauge or data logger
- Dual-color LED provides on board diagnostics
- Multiple modules can be used on a single Power Grid
- Data logs air-fuel ratio and heater voltage
- Fuel Calibration Options for gasoline, methanol, ethanol, E85, propane and diesel
- Custom Fuel Calibration option can be programmed by user
Brand | MSD |
---|---|
Emission Code | 5 |
Product Type | Power Grid |
Special Offers | Holley Days |
Warranty | Limited 1 Year Warranty |
UPC | 085132077656 |
Part Number | 7765 |
