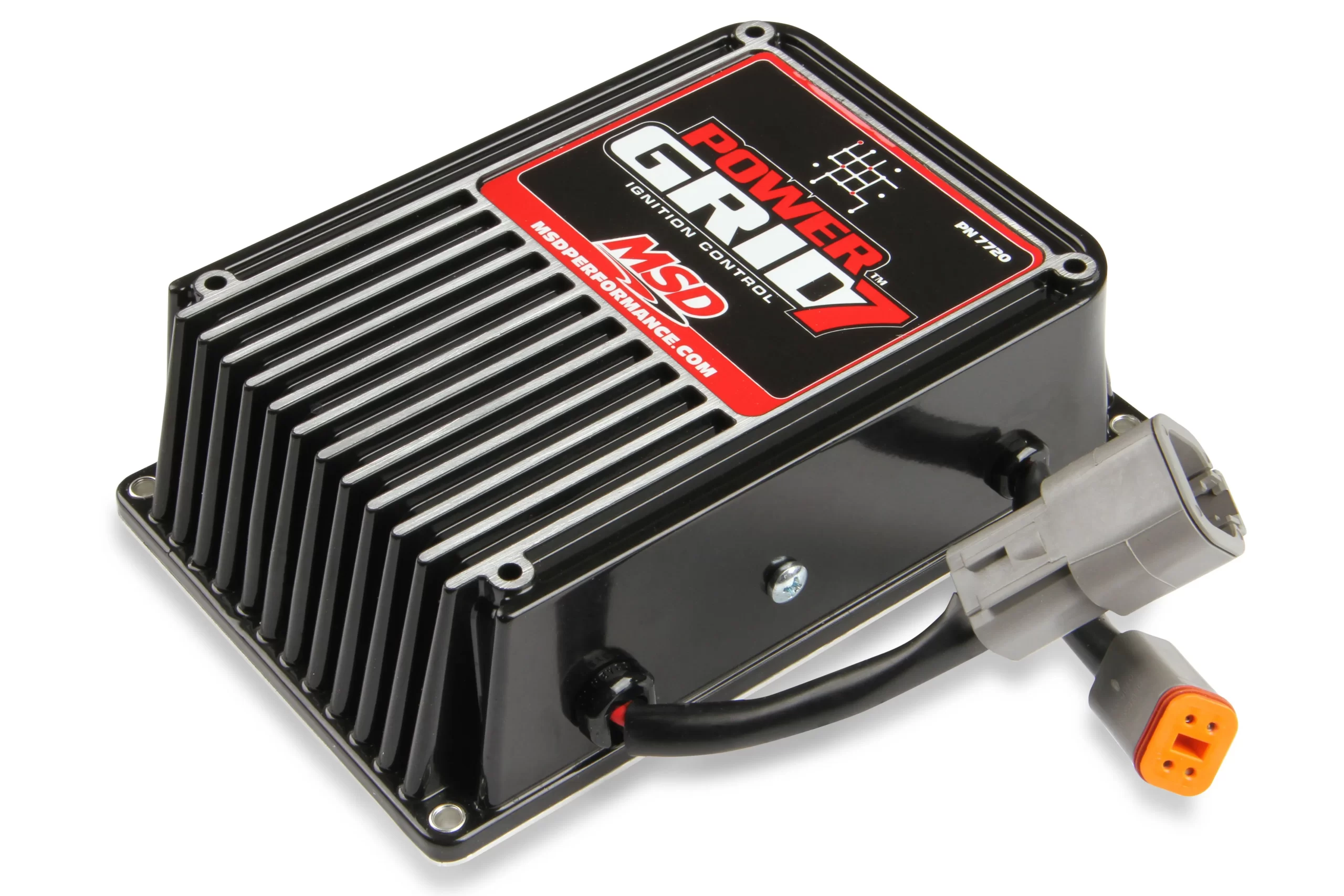

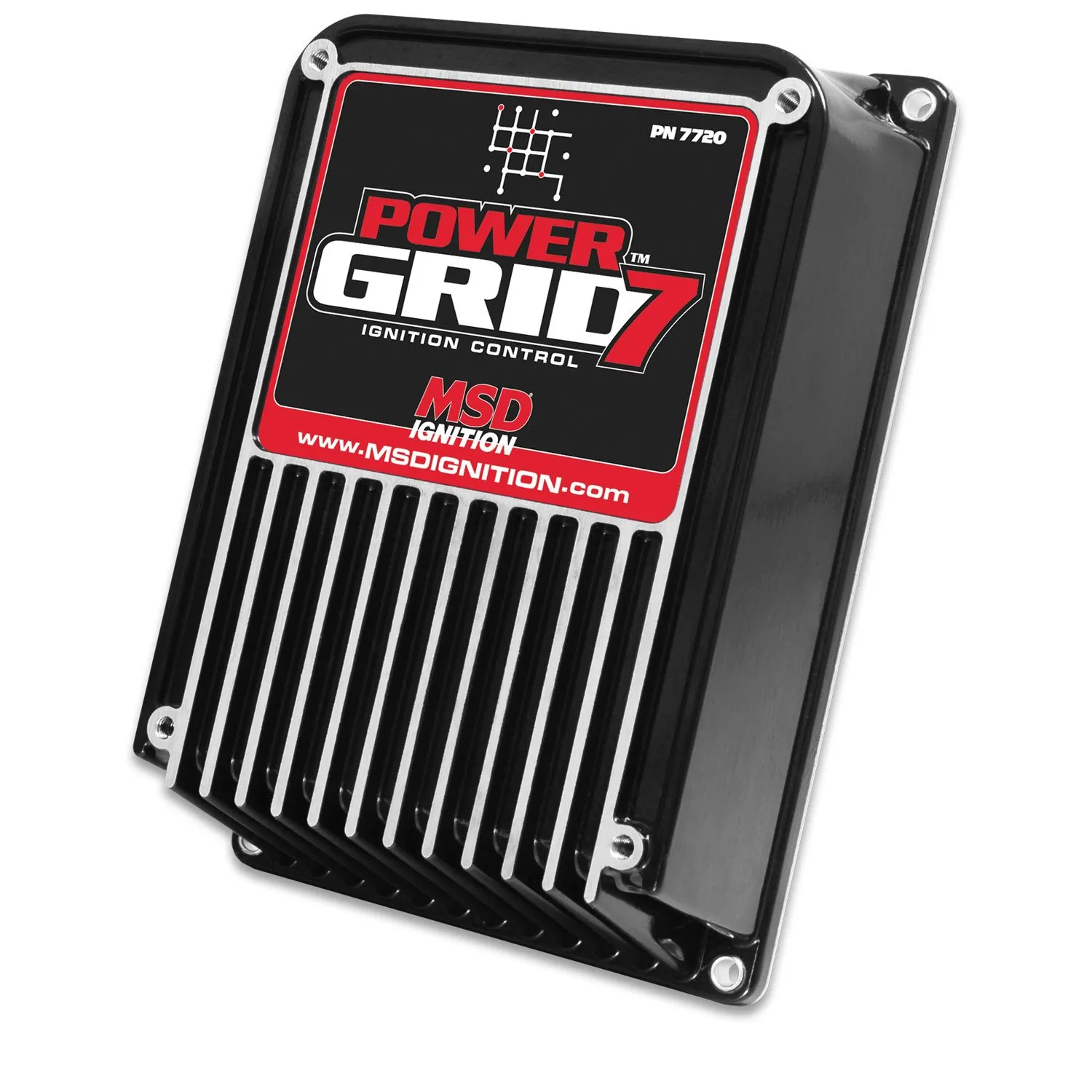

MSD POWER GRID 7 IGNITION CONTROL
Universal – Designed for Use With Power Grid Controller PN 7730 or 77303 Only
Part # 7720
The Power Grid Ignition Control has been specially designed to mount to the Power Grid System Controller box, PN 7730/77303. This Ignition output only controller packs higher output than the current programmable units! For use with Power Grid Controller only (PN 7730 or PN 77303).
Features:
- For use with Power Grid PN 7730 or PN 77303 only
- High output spark for Power Grid System
- Power Grid PN 7730/77303 mounts directly on top
| Brand | MSD |
|---|---|
| Current Draw | 1.3 Amp per 1,000 RPM |
| Emission Code | 4 |
| Primary Voltage | 545-570 Volts |
| Product Type | Power Grid Controller |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Secondary Voltage | 50,000 Volts |
| Spark Energy | 200-220 mJ per spark |
| Special Offers | |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 2.9 lbs., 7.5″L x 5″W x 2.25″H |
| UPC | 085132077205 |
| Part Number | 7720 |
