MSD

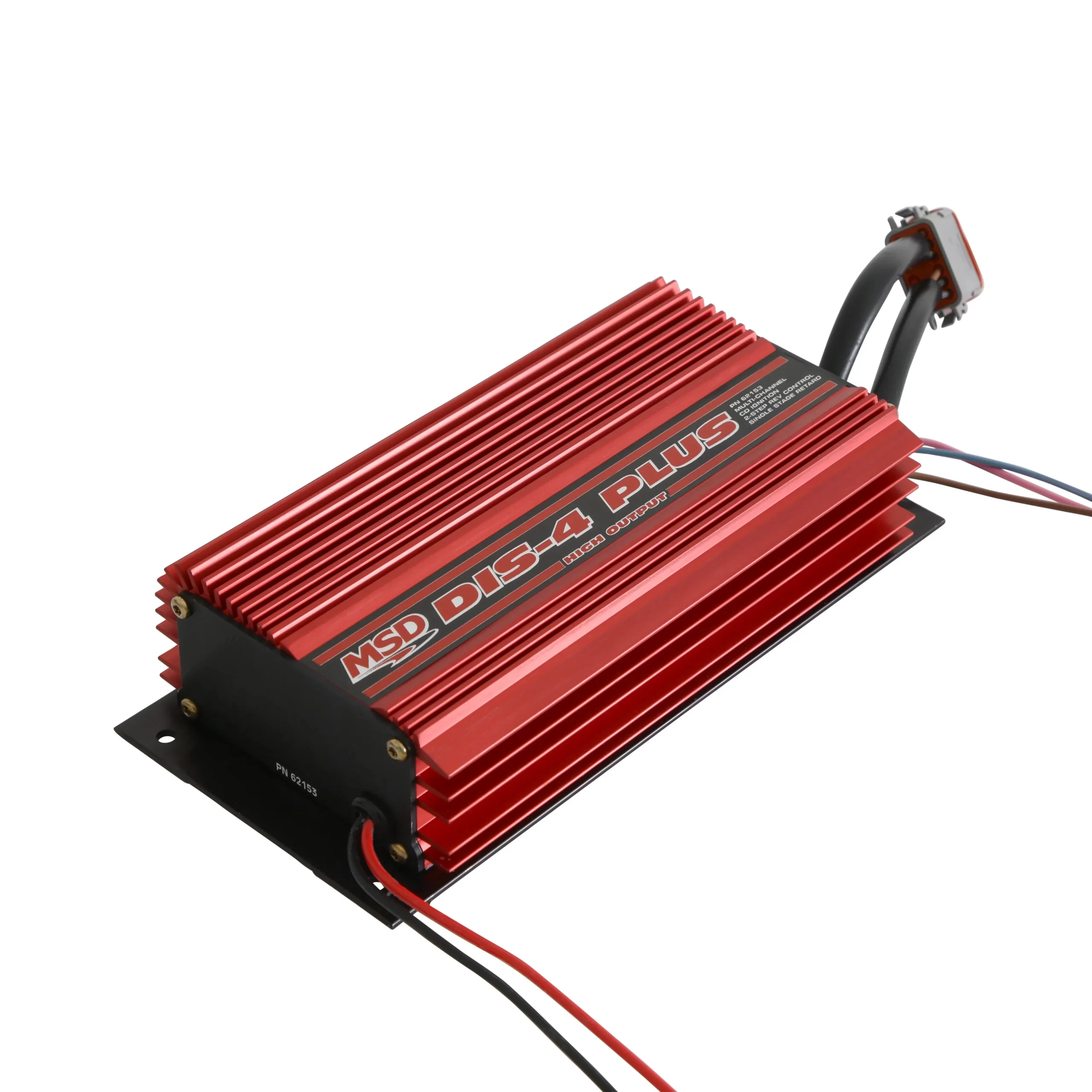

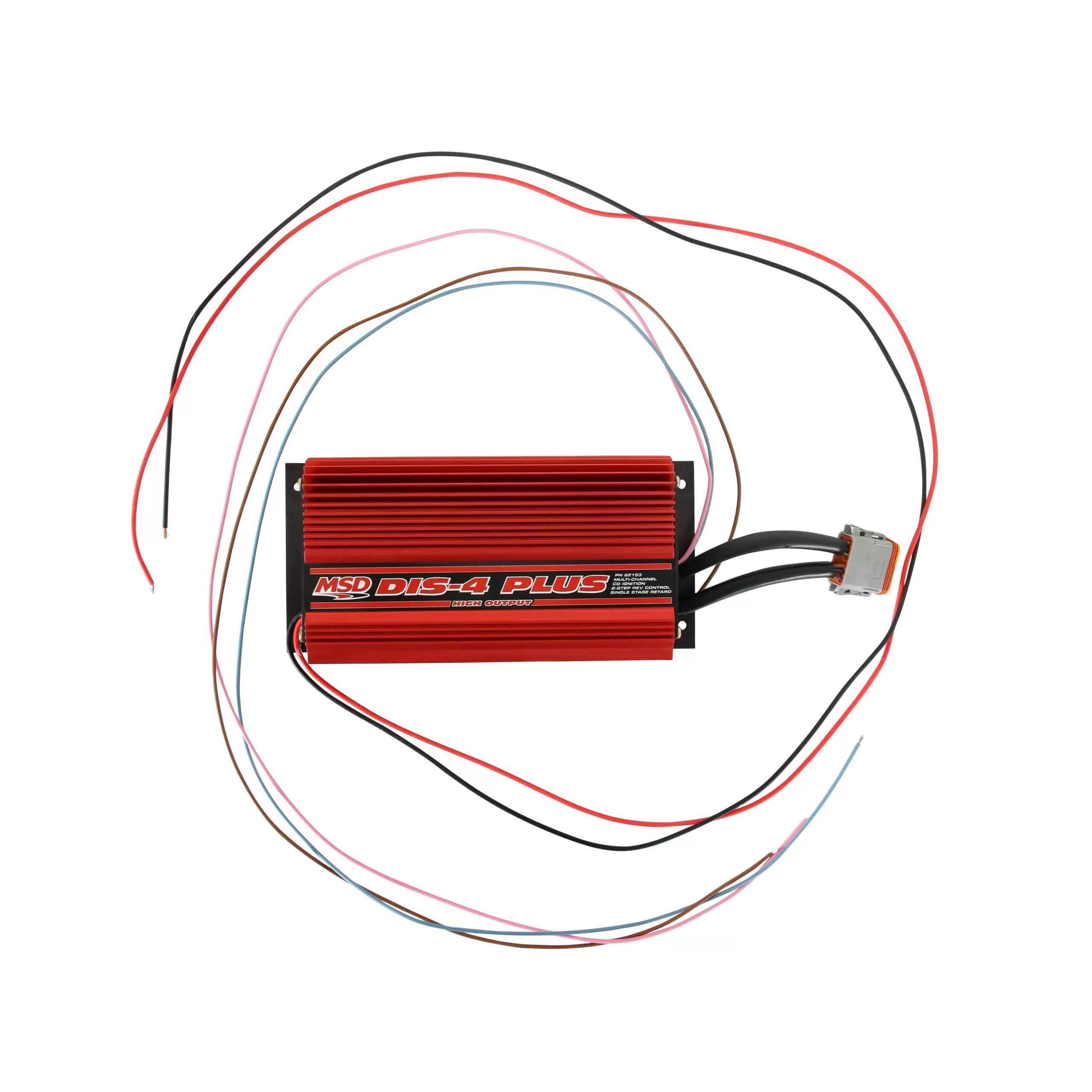

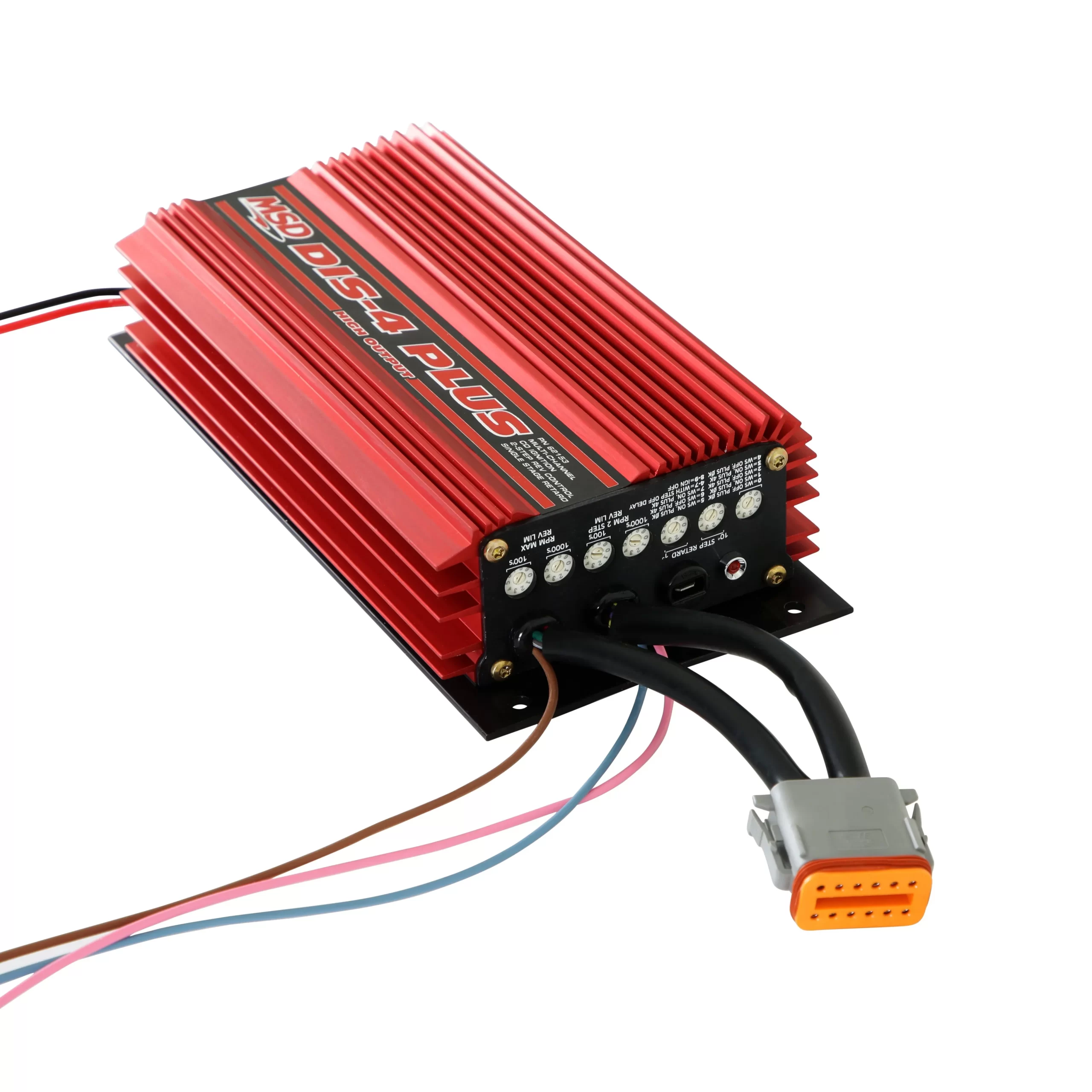

MSD DIS-4 PLUS HIGH OUTPUT
High output distributorless ignition. 2, 3 or 4-coil pack.
Part # 62153
For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.
Features:
- Two adjustable Rev Limits
- Diagnostic LED
- Adjustable retard stage
- Ignition Interrupt Circuit
Brand | MSD |
---|---|
Current Draw | 10 Amps at 10,000 RPM |
Emission Code | 3 |
Primary Voltage | 470 Volts |
Product Type | Ignition |
RPM Range | 14,000 RPM with 14.4 Volts |
Secondary Voltage | 43,000 Volts |
Spark Energy | 170 mJ/spark |
Spark Series Duration | 20 Degree Crankshaft Rotation |
Special Offers | Holley Days |
Voltage Required | 10-18 Volts, Negative Ground |
Warranty | Limited 1 Year Warranty |
Weight and Size | 3 lbs.,9.5″L x 4.5″W x 2.2″H |
UPC | 085132621538 |
Part Number | 62153 |
