MSD

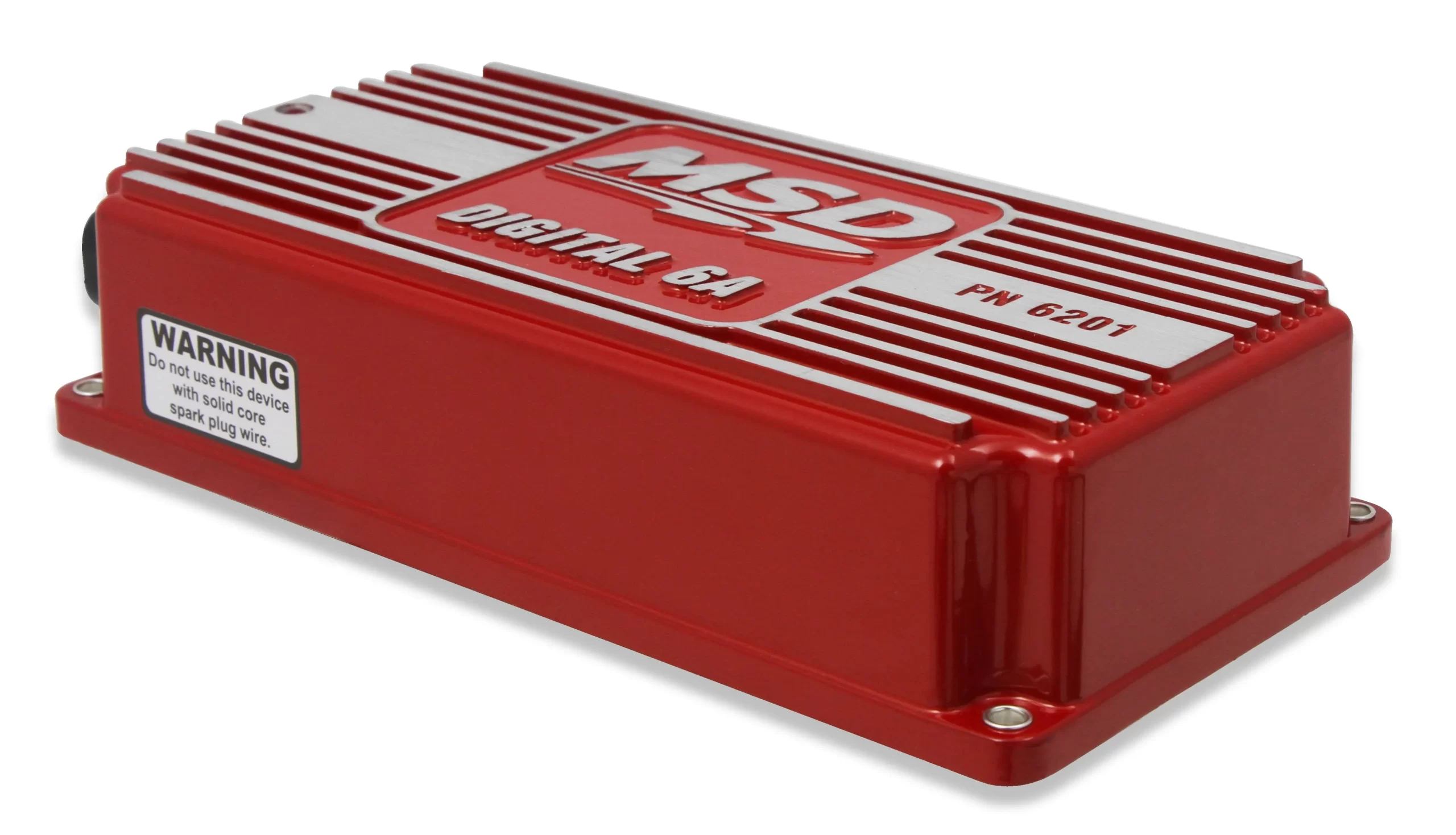

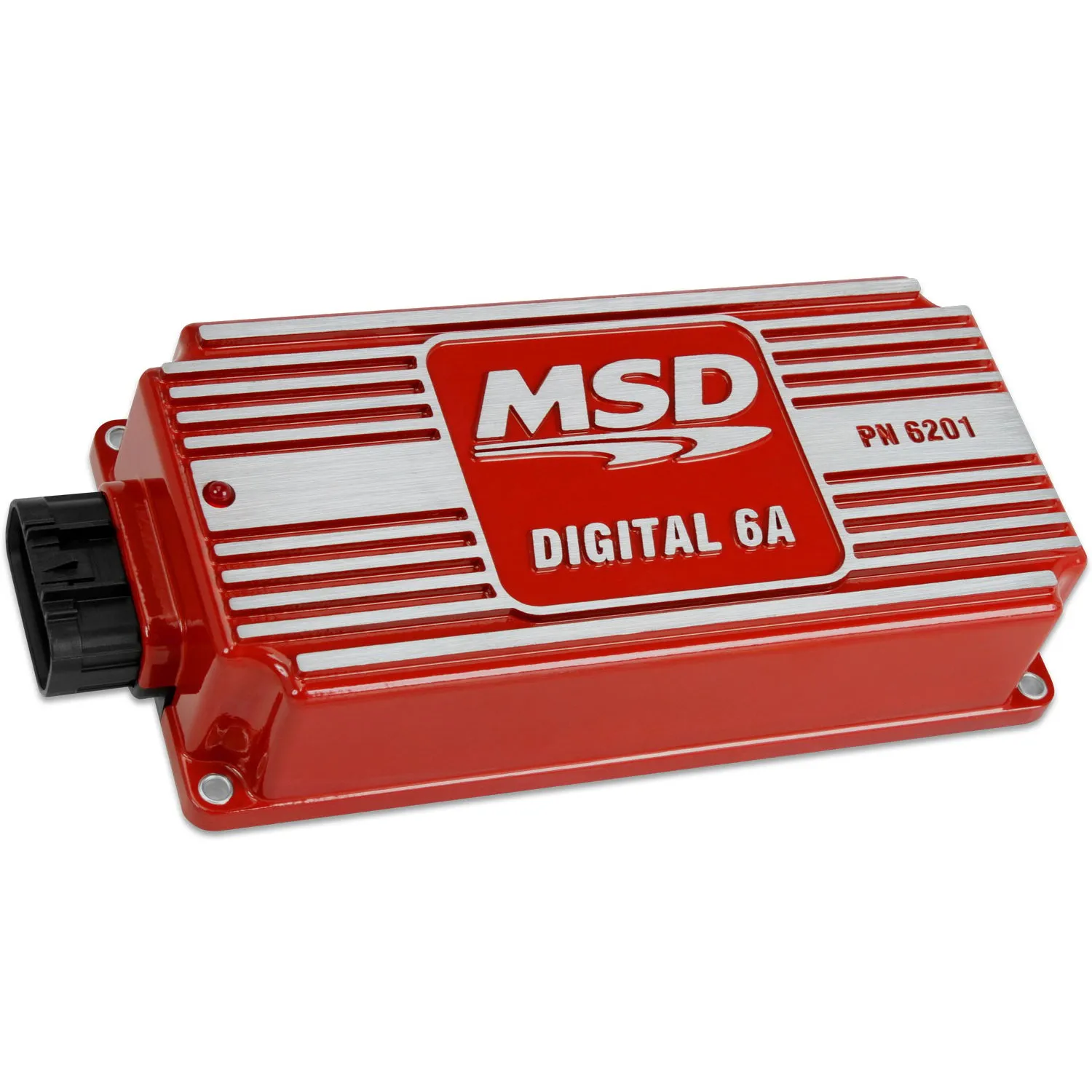

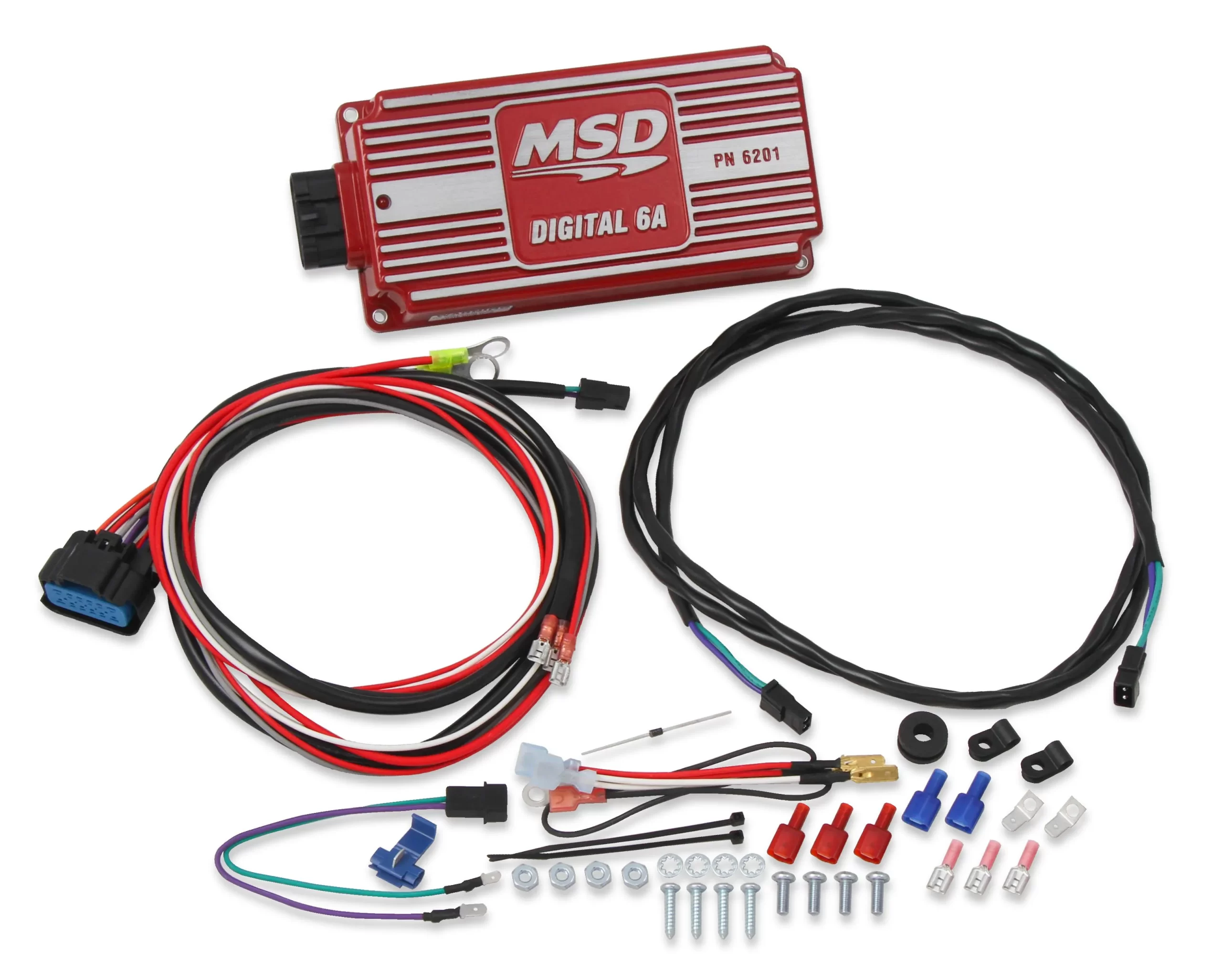

MSD DIGITAL 6A IGNITION CONTROL – RED
Compatible with 4, 6, or 8 Cylinder Engines – Built-in LED for System Checks
Part # 6201
If you’re looking to improve the performance of your modified mill, we have the answer. Whether you’ve done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood. The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder. A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
Features:
- Easy Starts
- Smooth Idle
- Quick throttle response
- Built-in LED for system checks
- Full, capacitive discharge ignition power throughout the RPM range
- Compatible with 4, 6 or 8 – cylinder engines
- Tach output wire

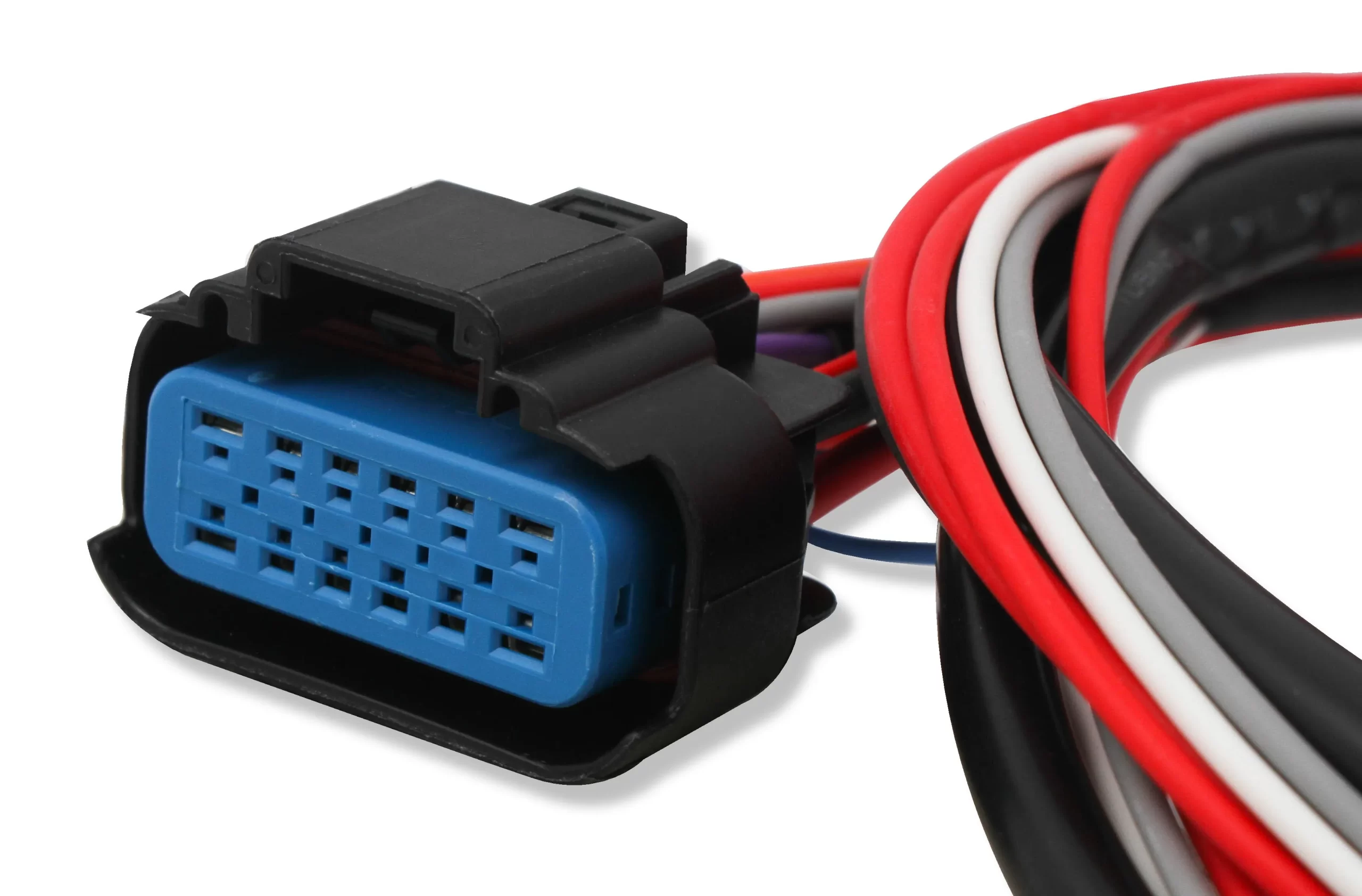

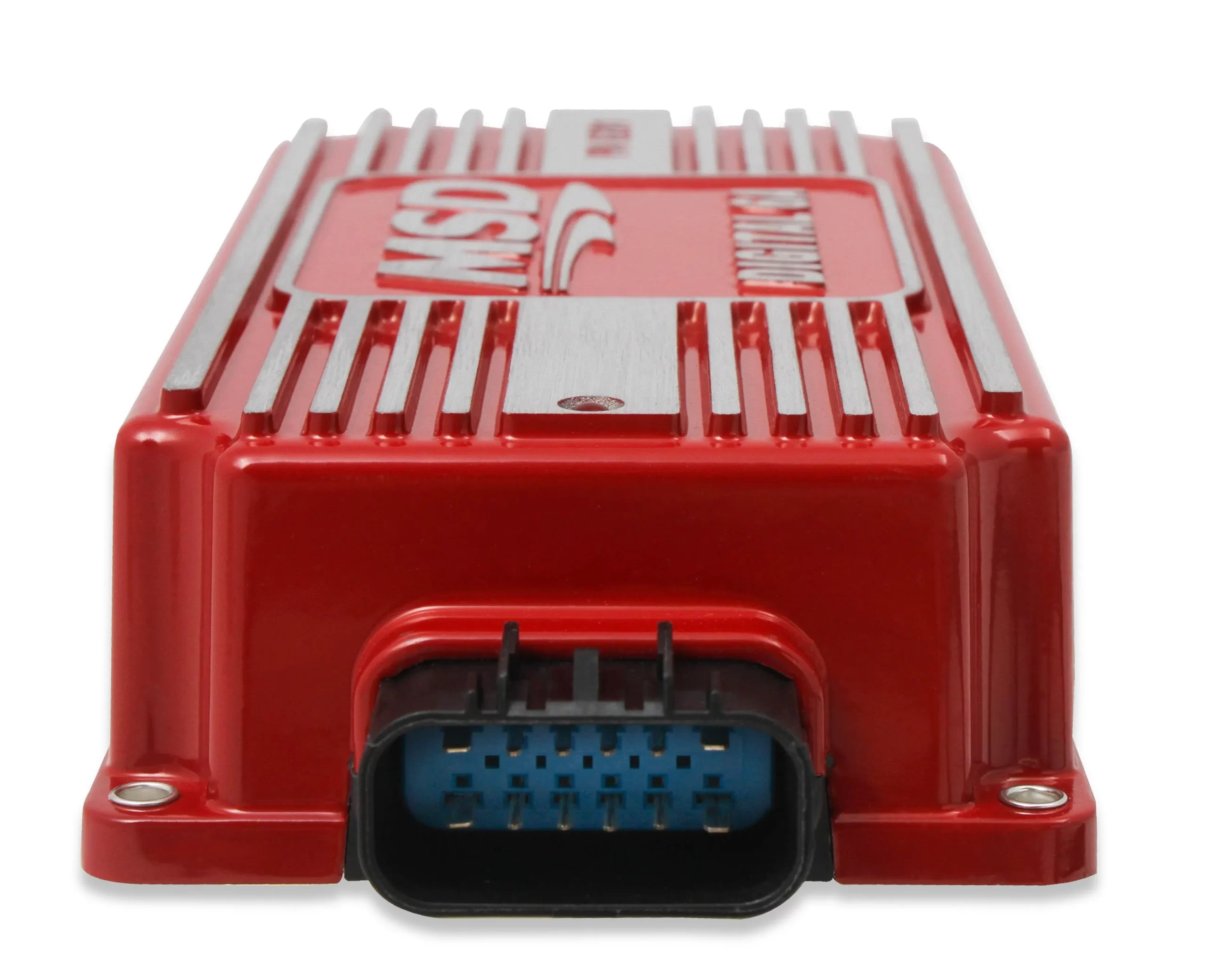

- Sealed, locking connector
Brand | MSD |
---|---|
Color | Red |
Current Draw | .7 Amp per 1,000 RPM |
Emission Code | 1 |
Features | No Rev Limiter |
Primary Voltage | 520-540 Volts |
Product Type | Digital 6A Ignition Control Box |
RPM Range | 15,000 RPM with 14.4 Volts |
Secondary Voltage | 45,000 Volts |
Spark Energy | 135-145 mJ per spark |
Special Offers | Holley Days |
Voltage Required | 12-15 Volts, 7 Volt Start |
Warranty | Limited 1 Year Warranty |
Weight and Size | 1.7 lbs., 8″L x 4″W x 1.825″H |
UPC | 085132062010 |
Part Number | 6201 |
