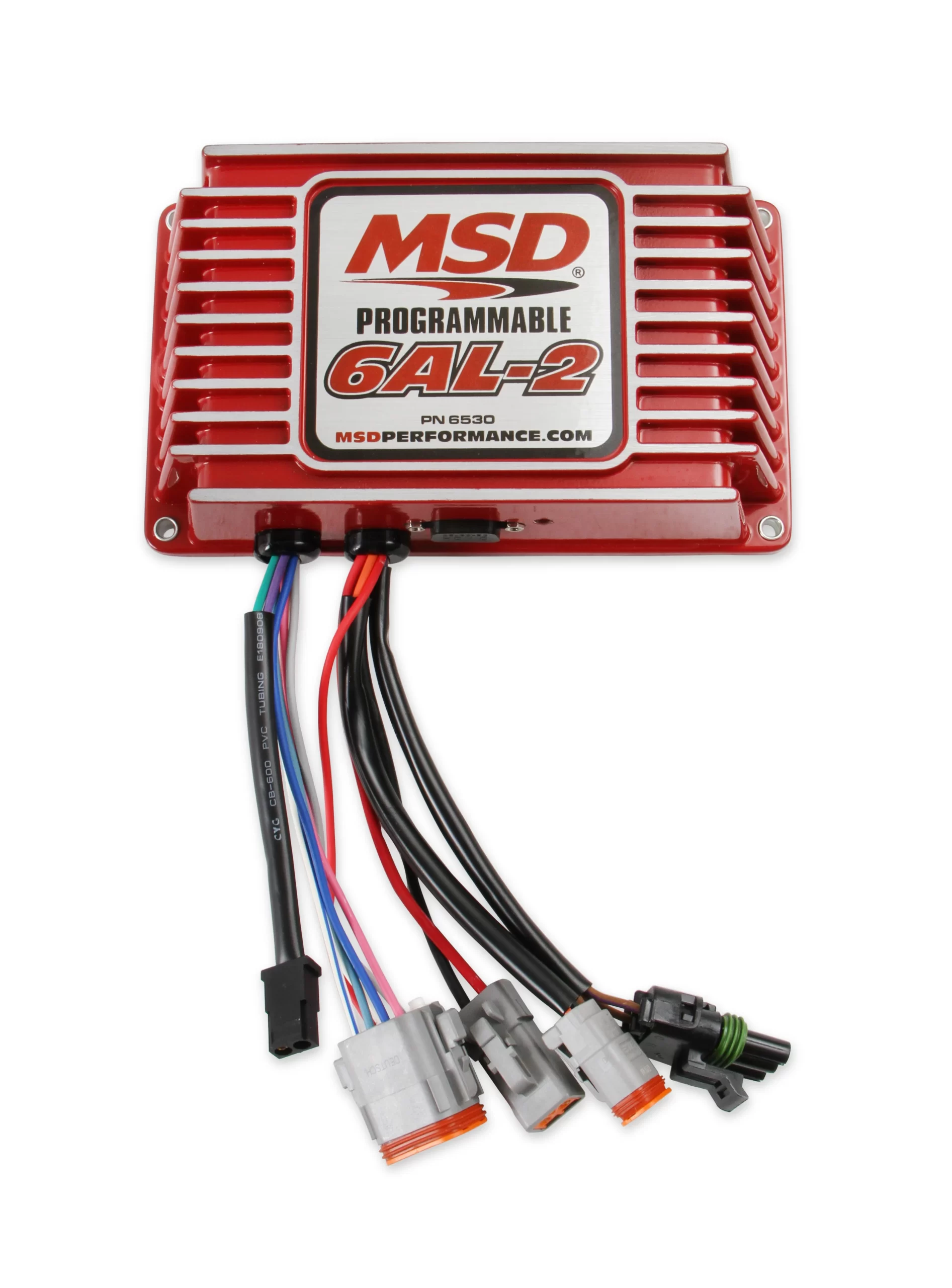

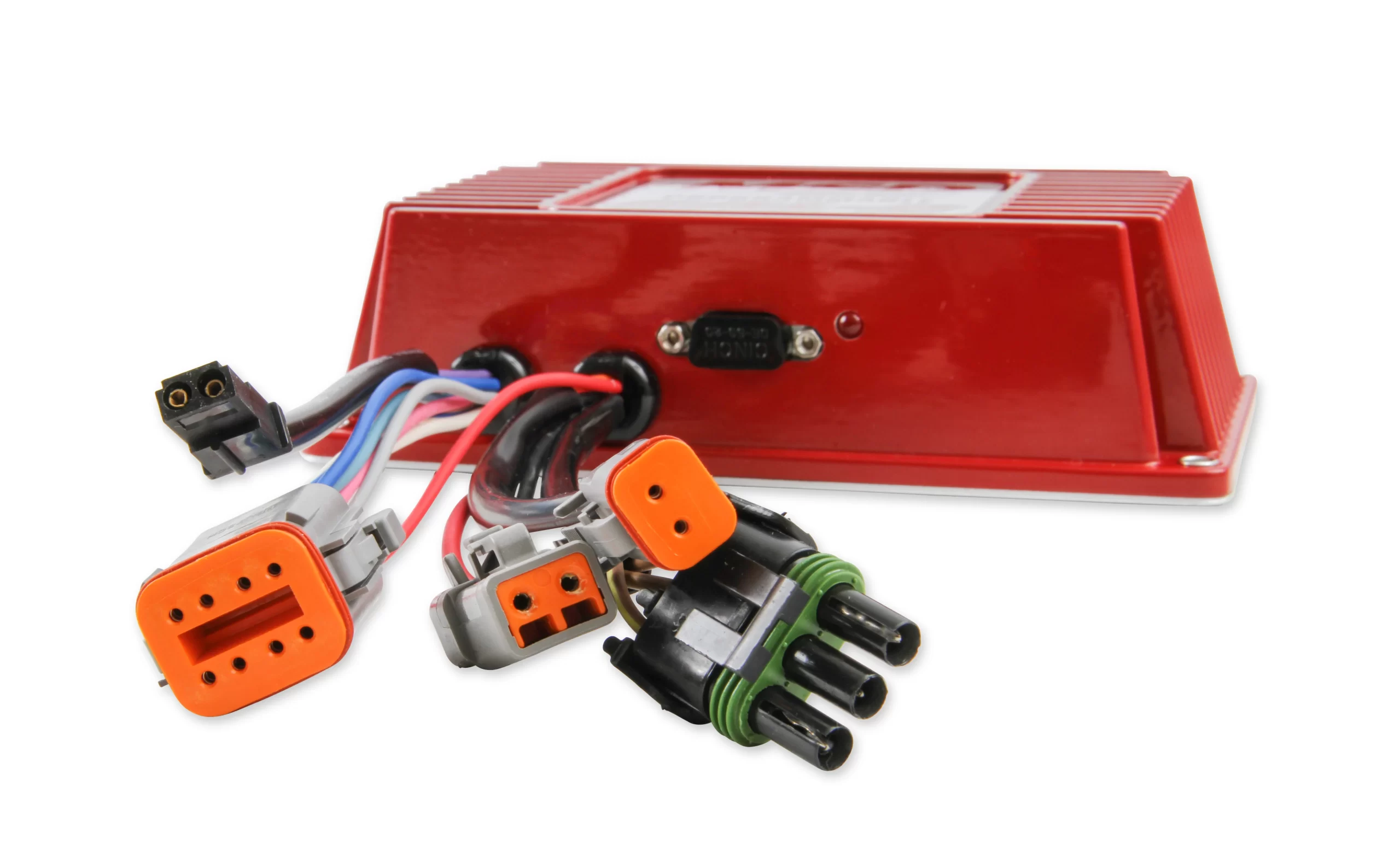

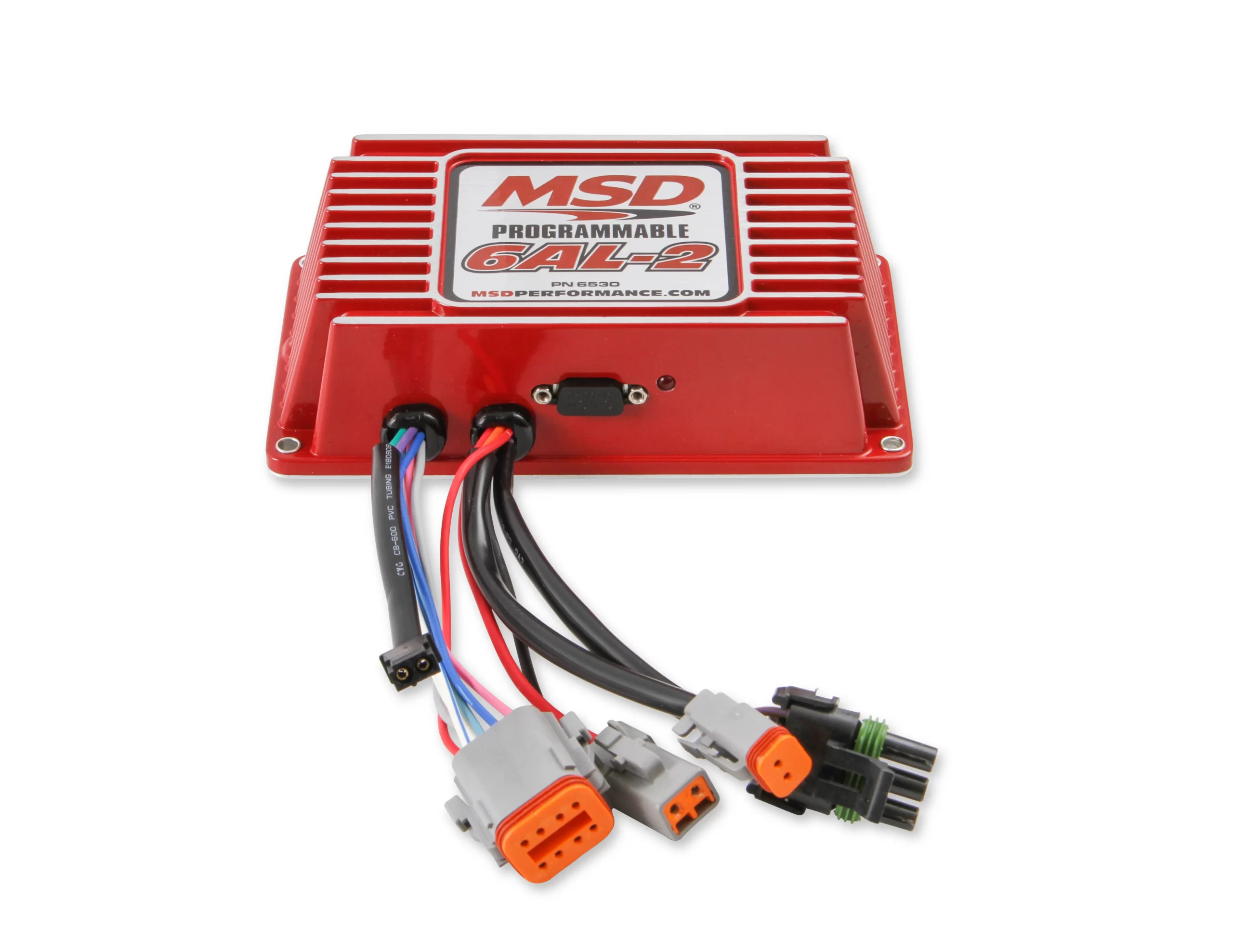

MSD DIGITAL PROGRAMMABLE 6AL-2 – RED
Universal – Tune Ignition Curve or Boost Timing Map from PC
Part # 6530

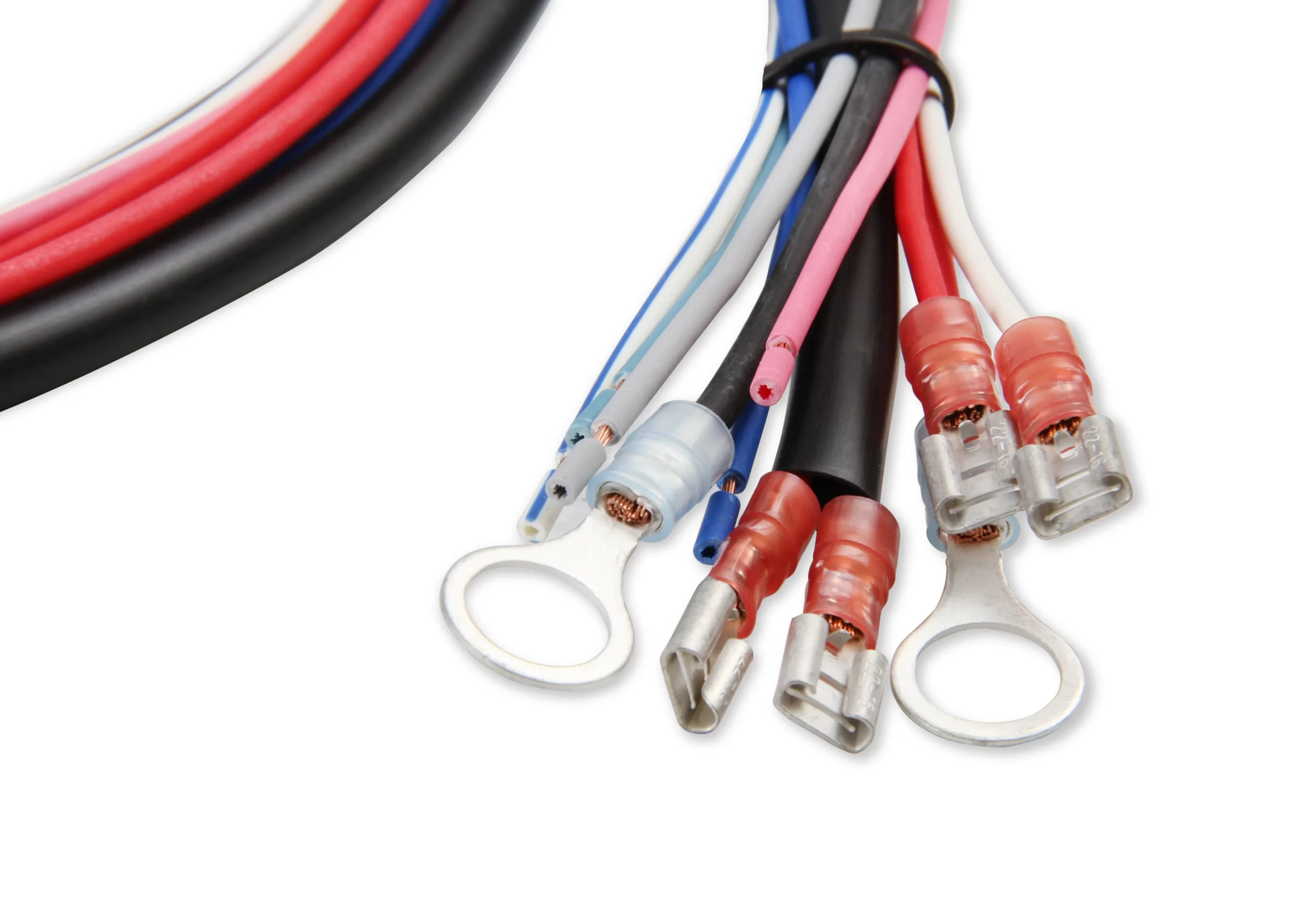

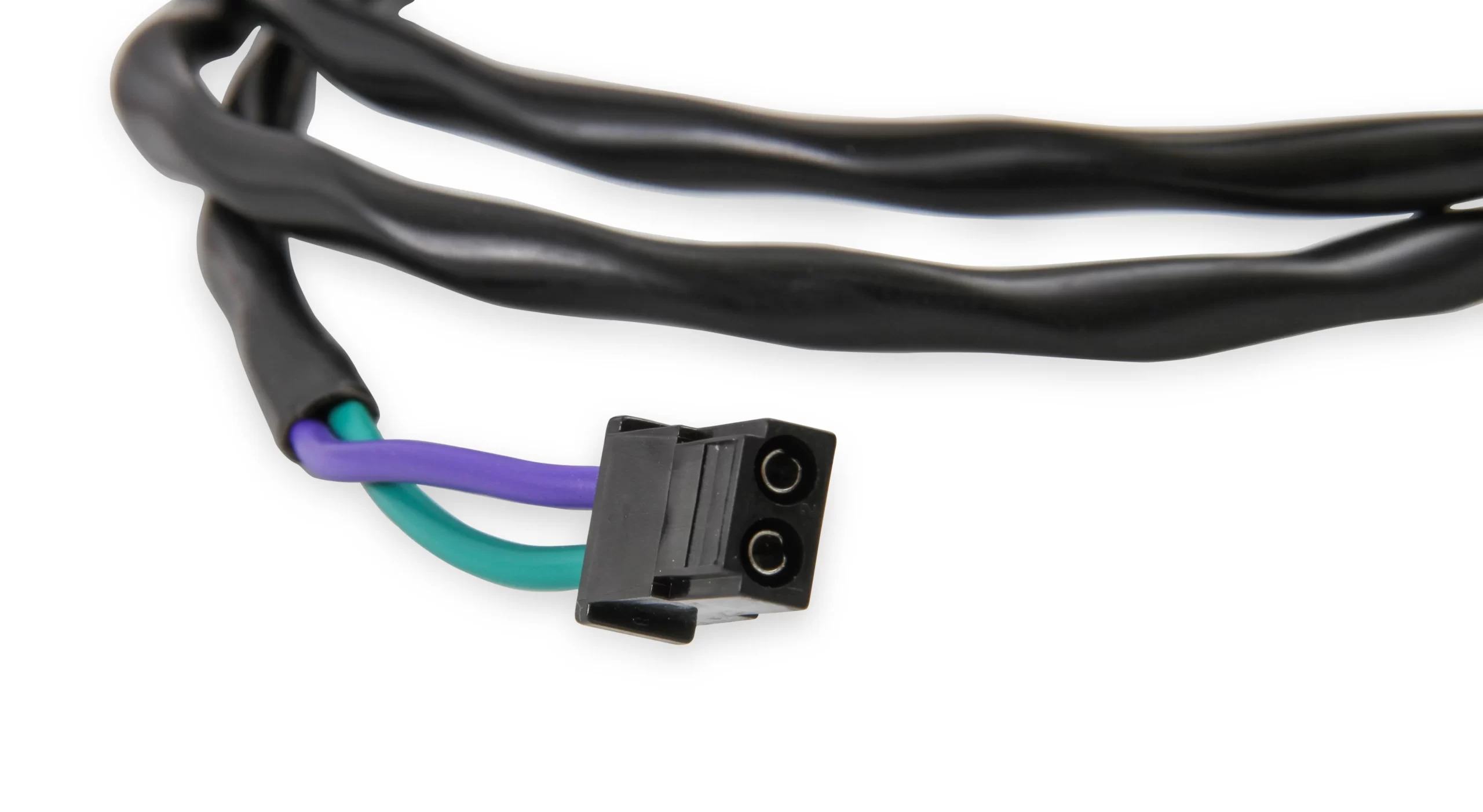

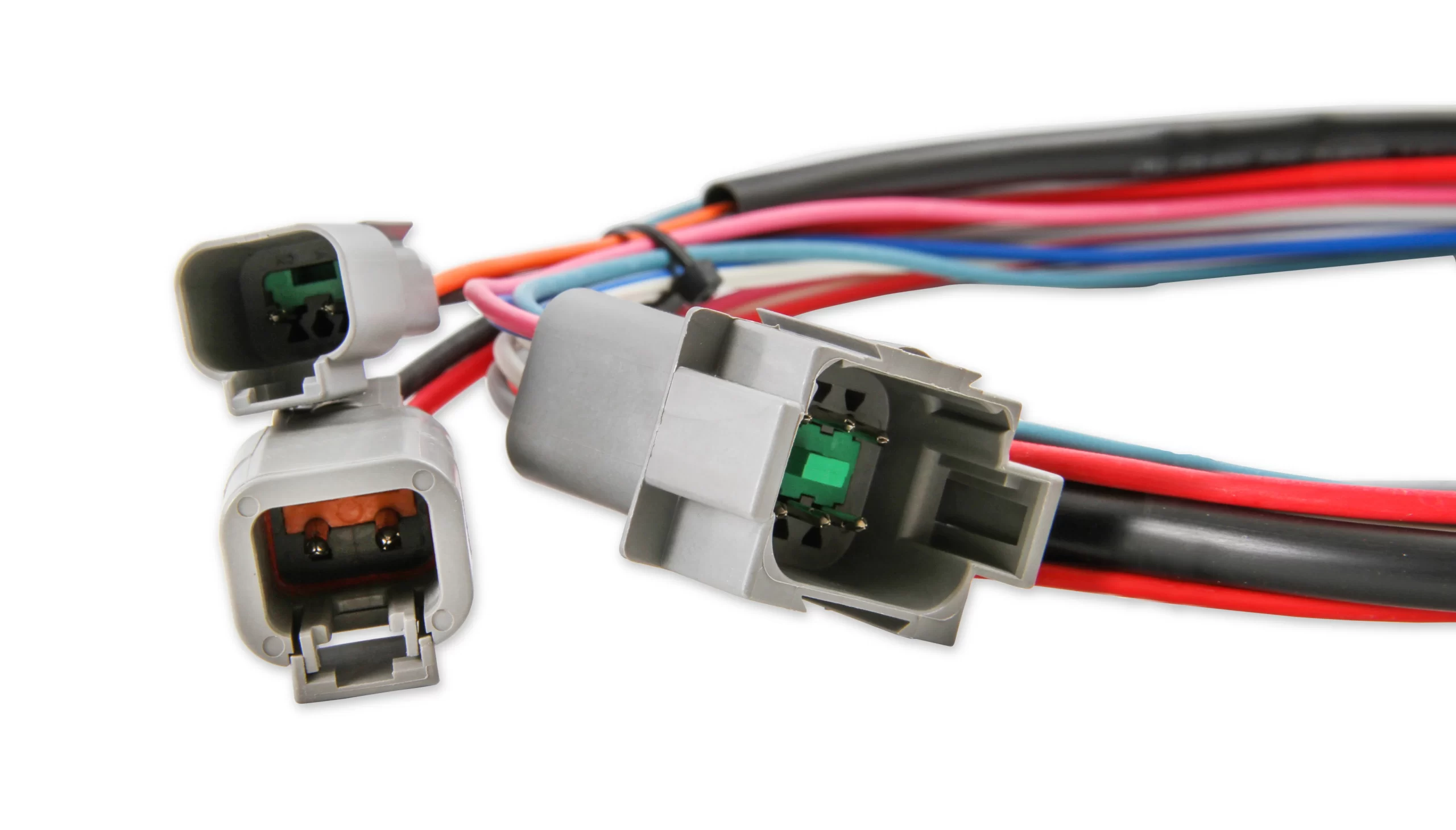

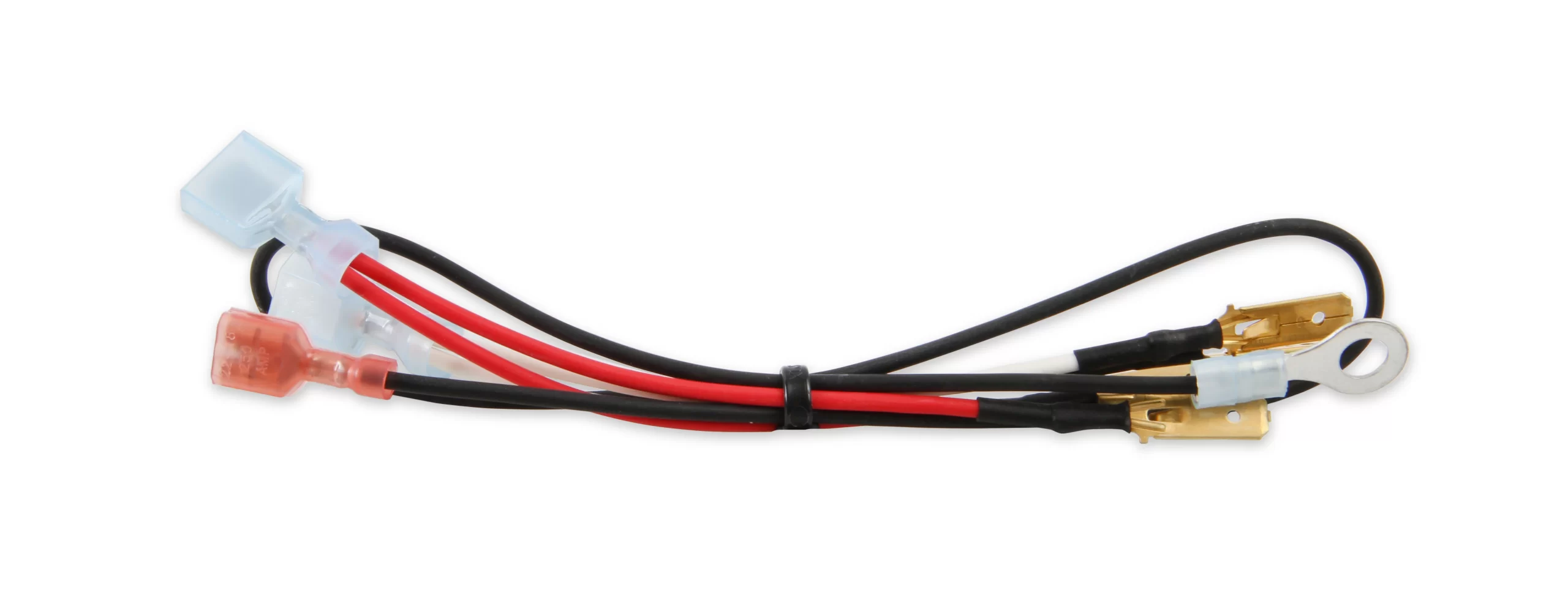

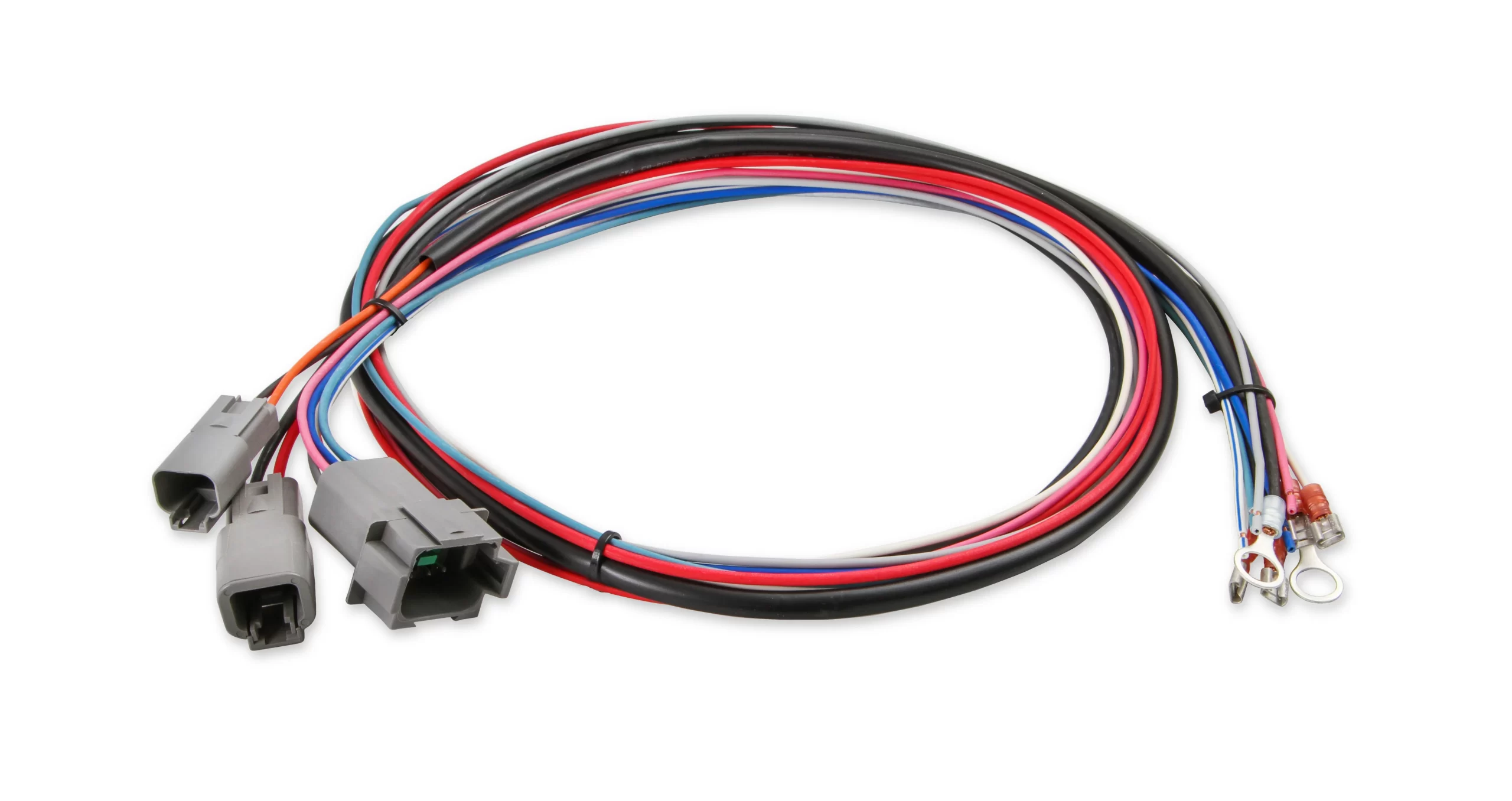

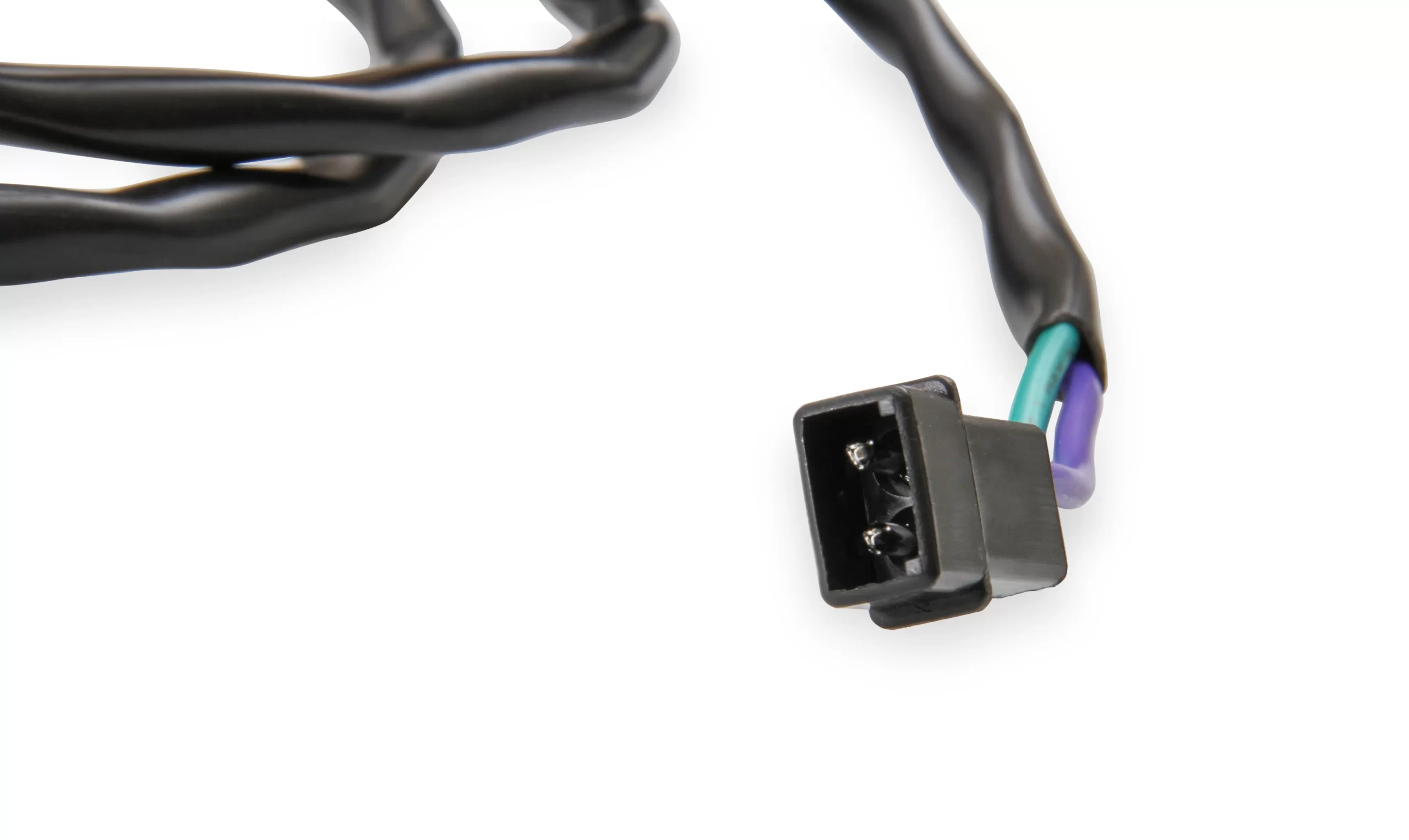

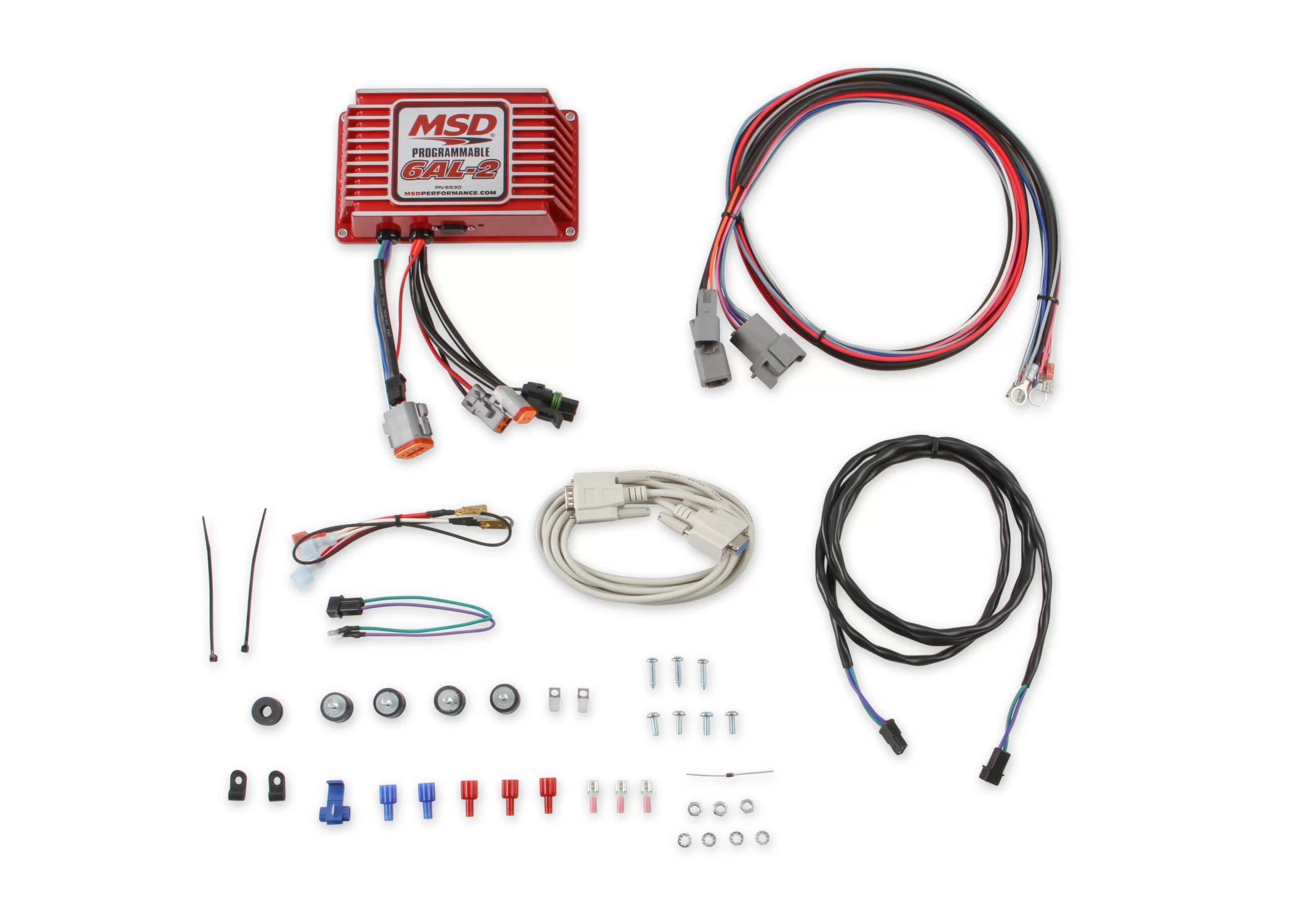

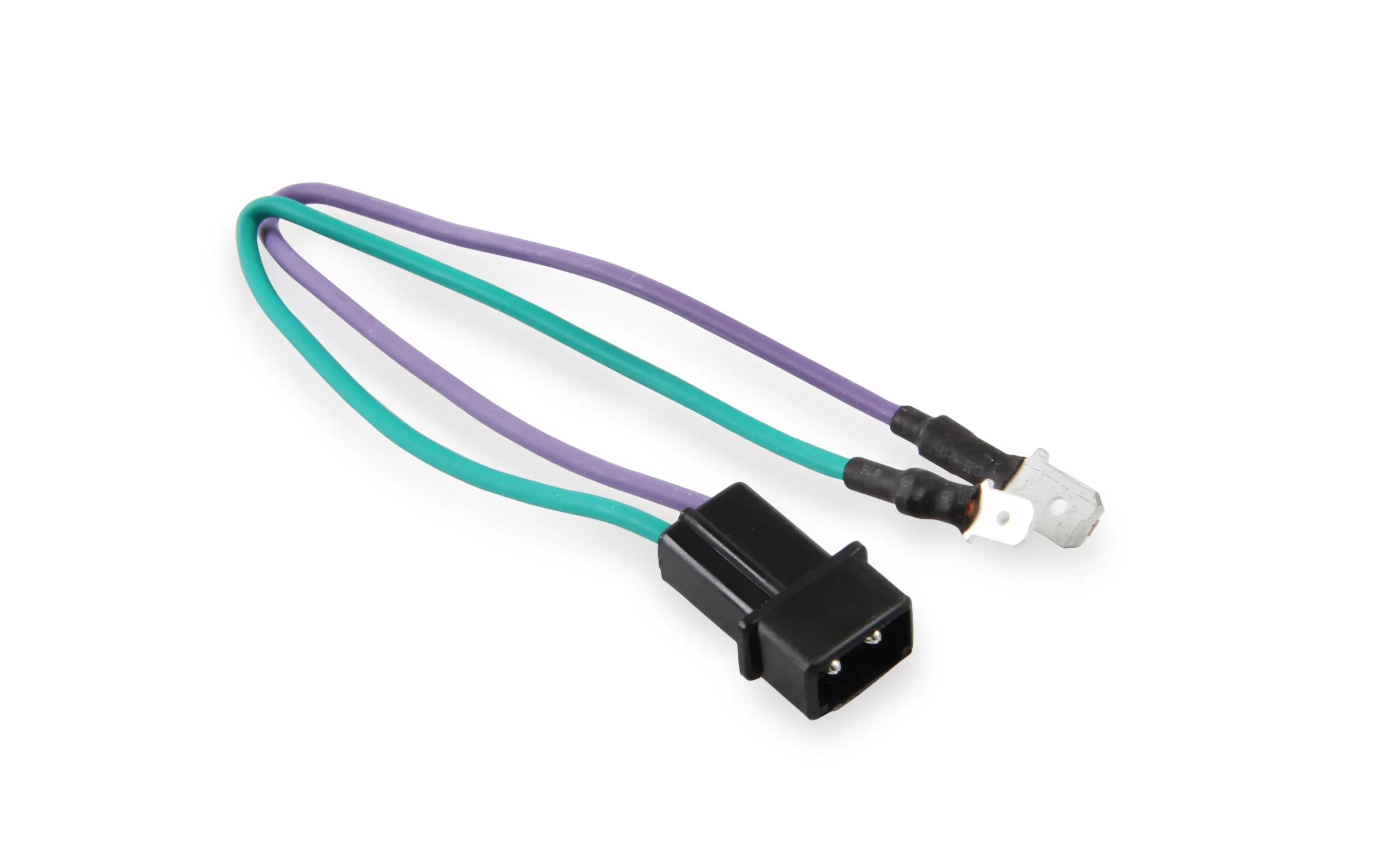

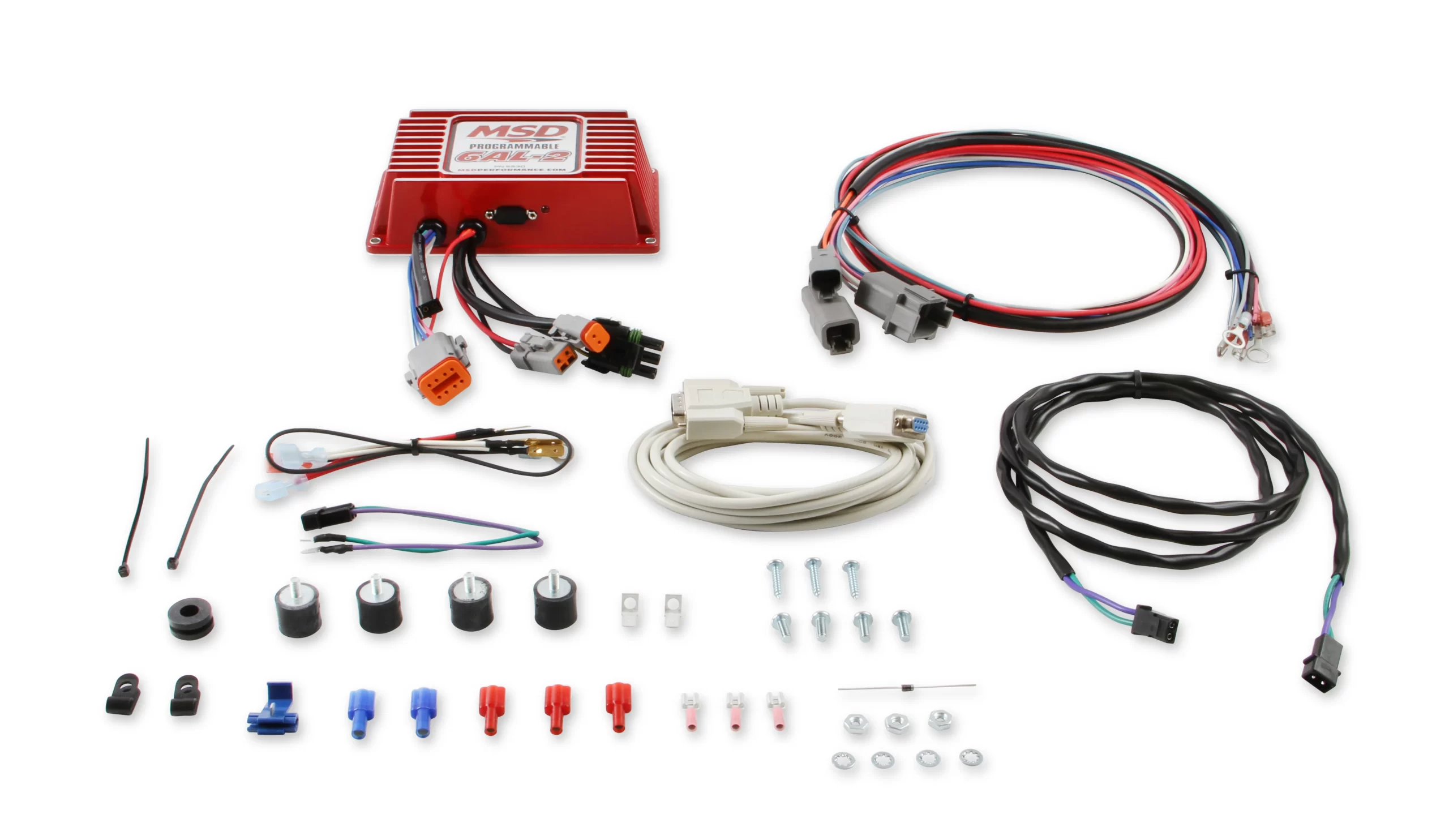

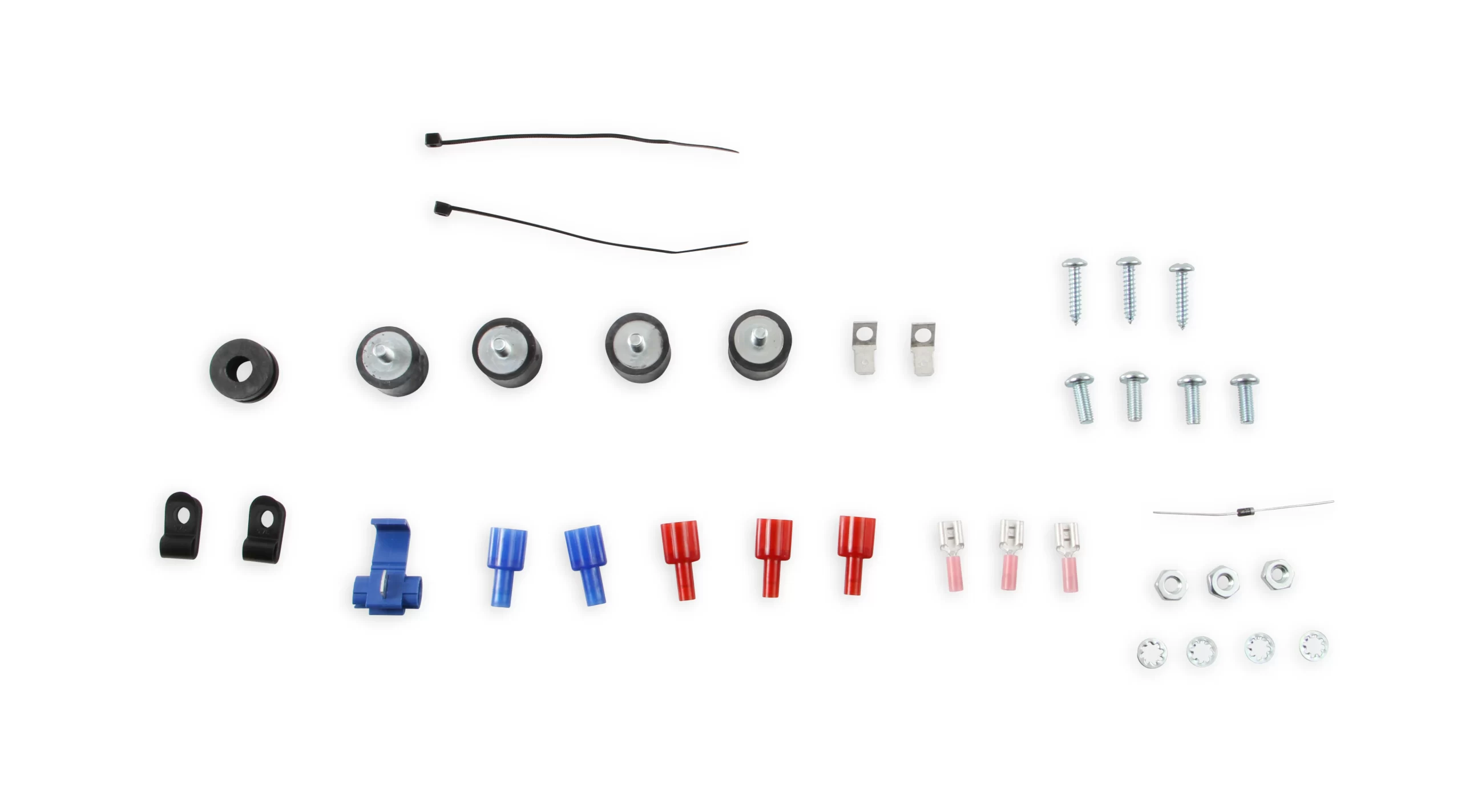

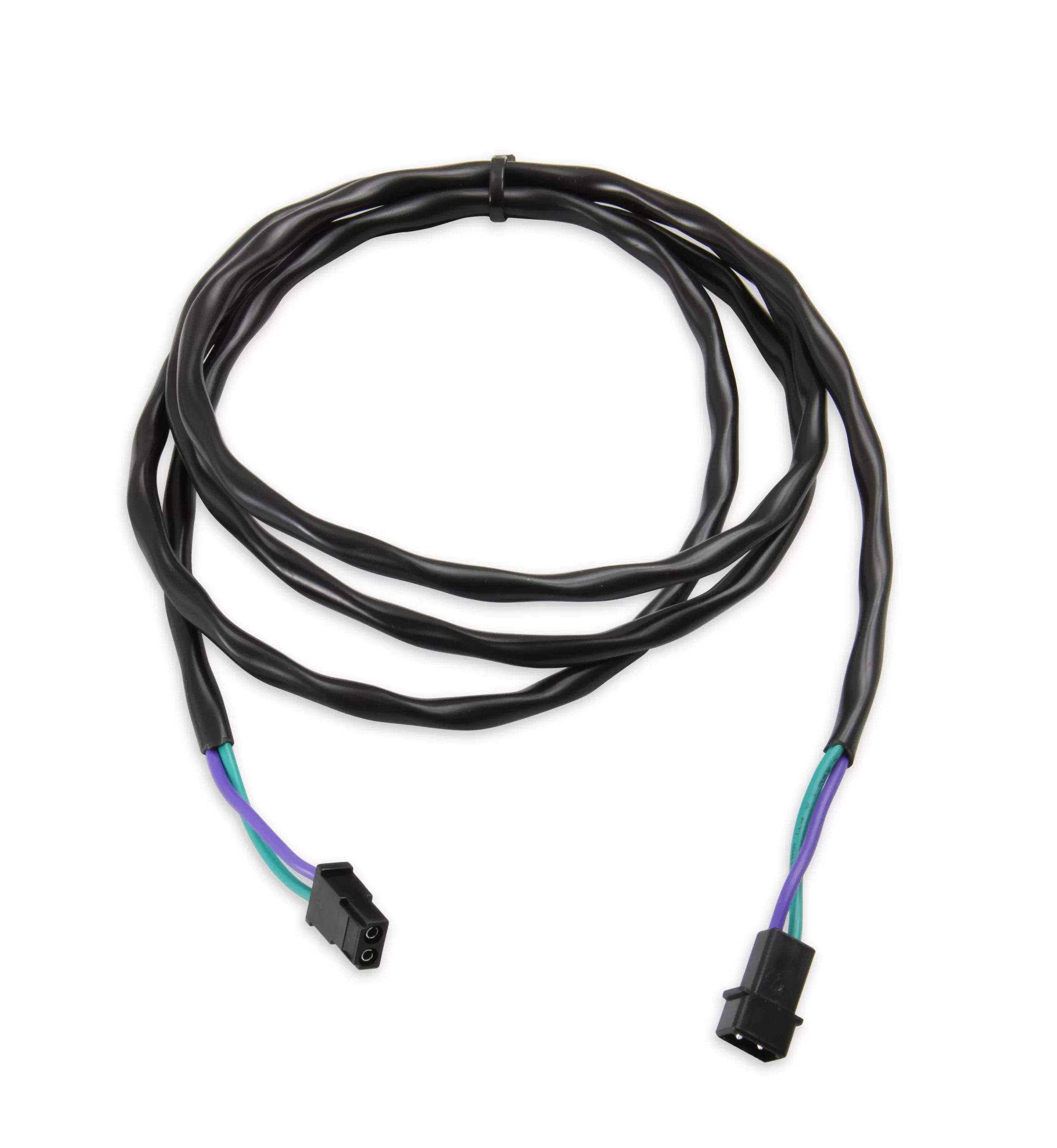

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You’ll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines! The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.
Features:
- Advanced features allow for use in street and racing applications
- PC Programmable with easy-to-use Windows based Pro-Data +Software
- Plot a boost timing map with 0.1° per psi accuracy
- Programmable 3-Step Rev Limiter (100 RPM increments)
- Step retard for nitrous applications plus a boost timing map
- Capacitive Discharge technology for fast rise time and maximum spark energy
- EO # D-115-21
| Brand | MSD |
|---|---|
| Color | Red |
| Current Draw | .7 Amp per 1,000 RPM |
| Emission Code | 1 |
| EO Number | D-115-21 |
| Primary Voltage | 535 Volts |
| Product Type | Digital Programmable 6AL-2 |
| RPM Range | 12,500 RPM with 14.4 Volts |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135 mJ per spark |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 3 lbs.,7″L x 4″W x 2″H |
| UPC | 085132065301 |
| Part Number | 6530 |
