LAKEWOOD BELLHOUSING KIT – CHEVROLET SMALL BLOCK AND BIG BLOCK ENGINES
Fits Tremec TKX and TKO, Muncie, Saginaw, and Borg Warner T10 transmissions
Part # LK4000K

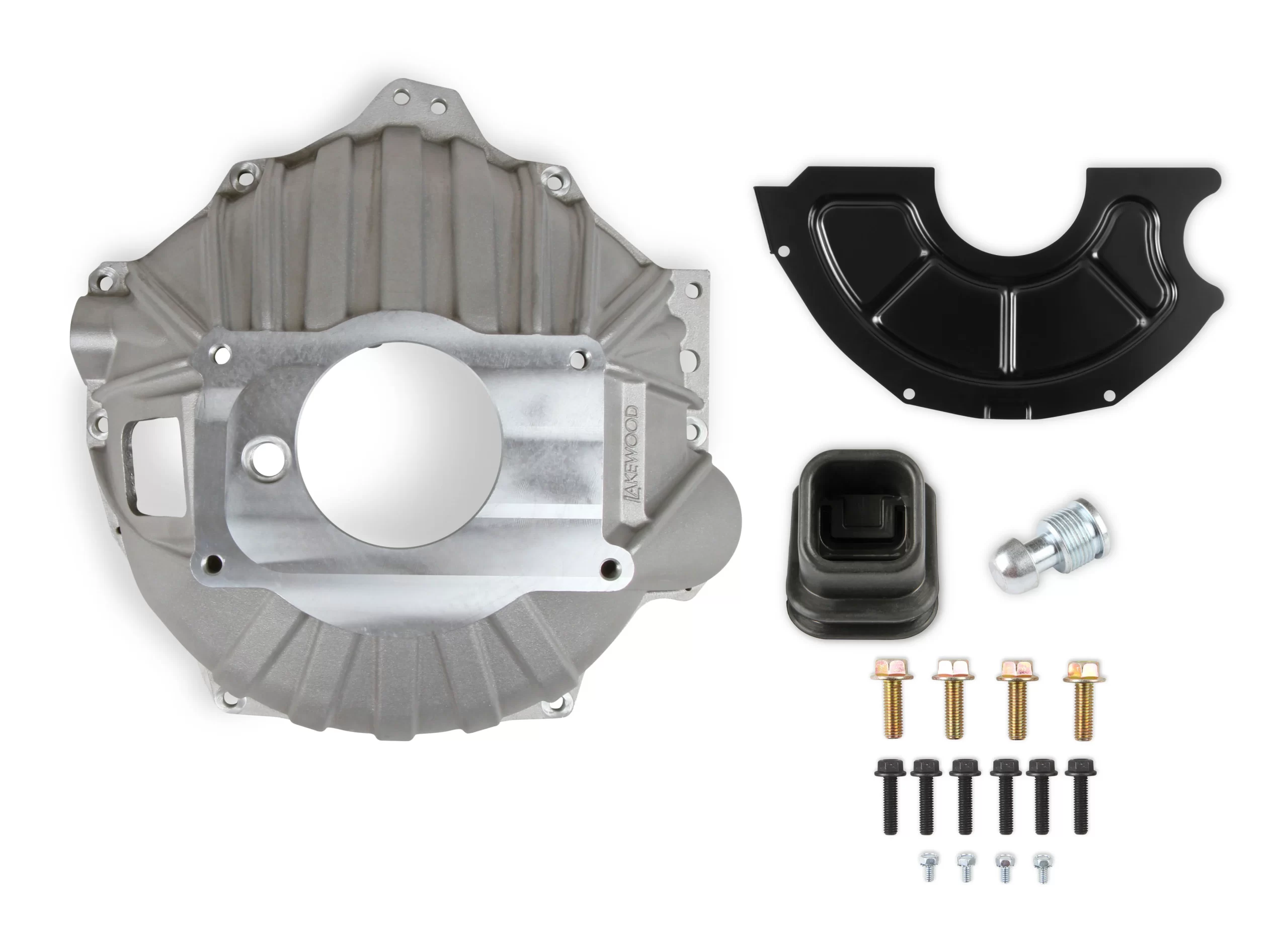

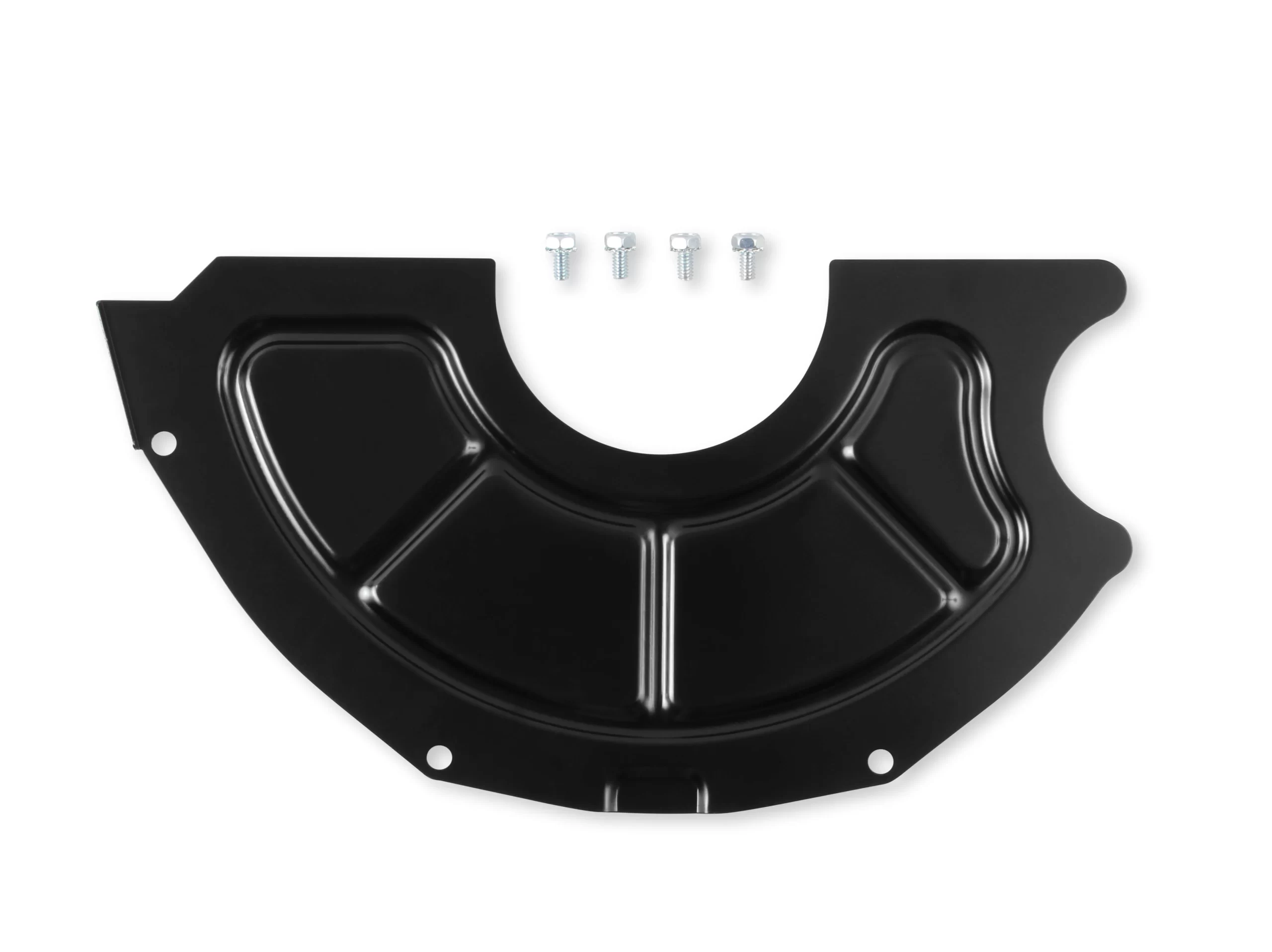

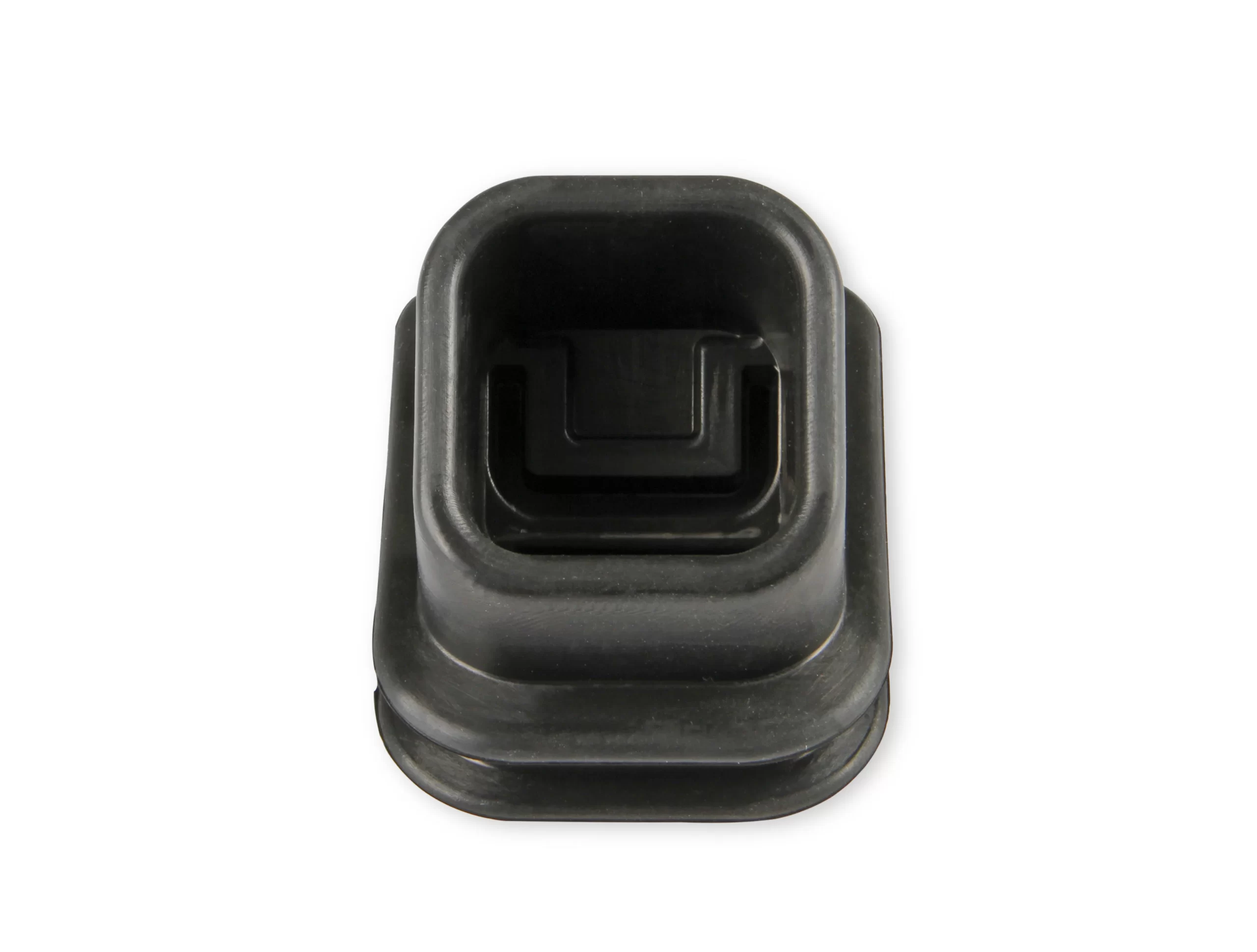

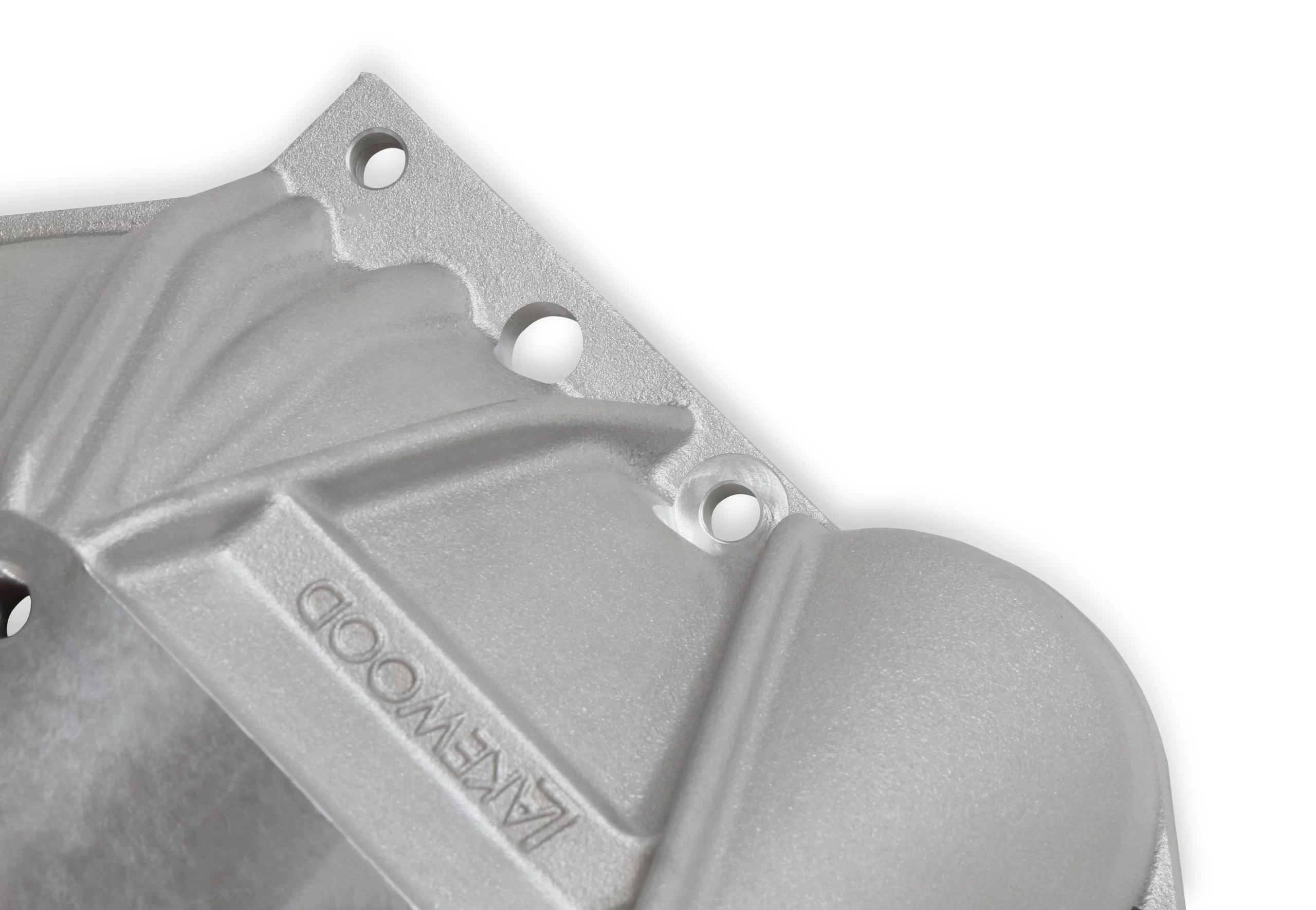

The Lakewood cast aluminum bellhousings connect Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKX or TKO transmissions. The bellhousings are designed for both GM cars and trucks and other manufacturers where swap applications are being installed. These bellhousing kits come complete with clutch fork boot, inspection cover and Grade 8 mounting hardware. The bellhousing, clutch fork boot, inspection covers and mounting hardware kits are also available individually.
Features:

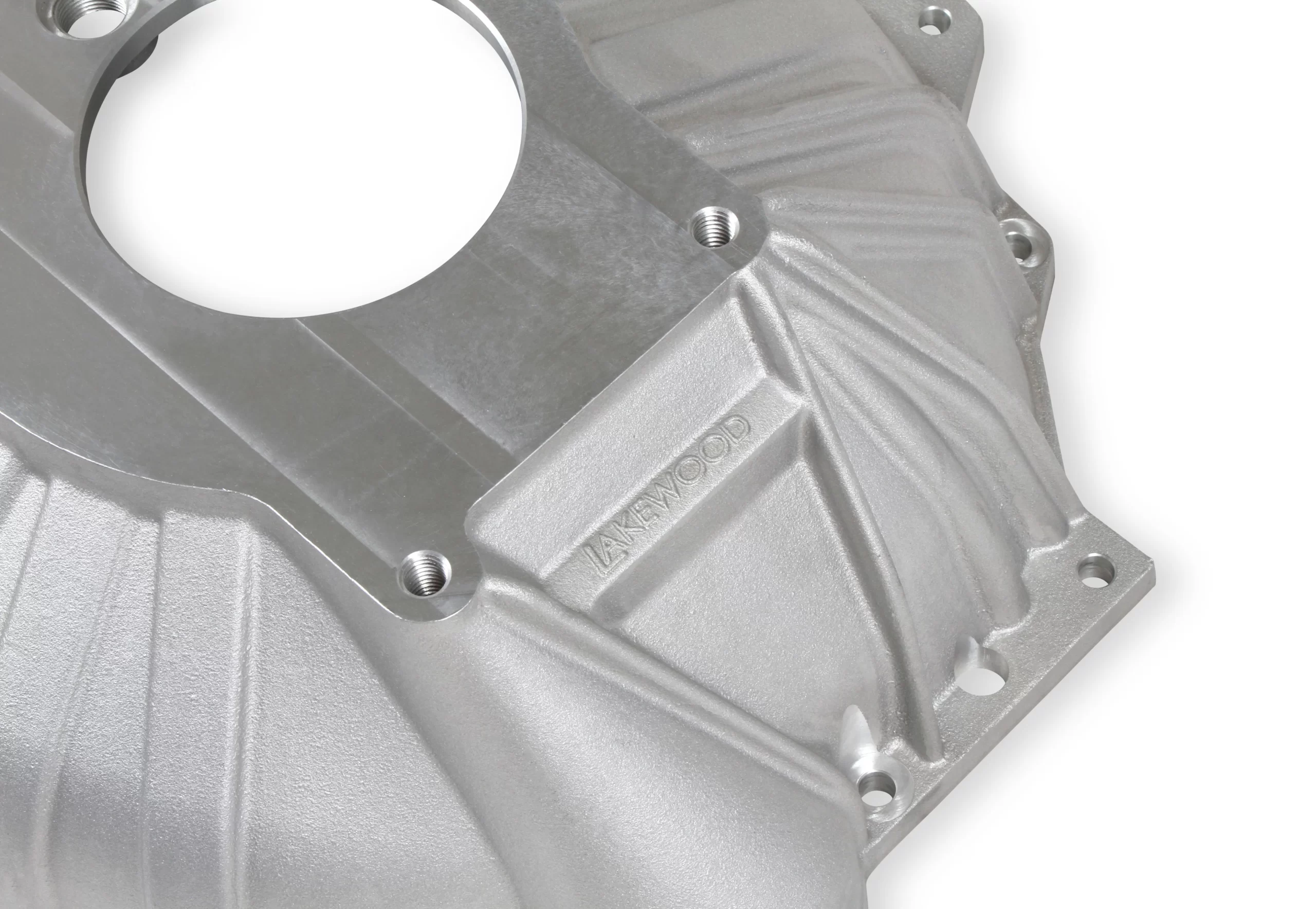

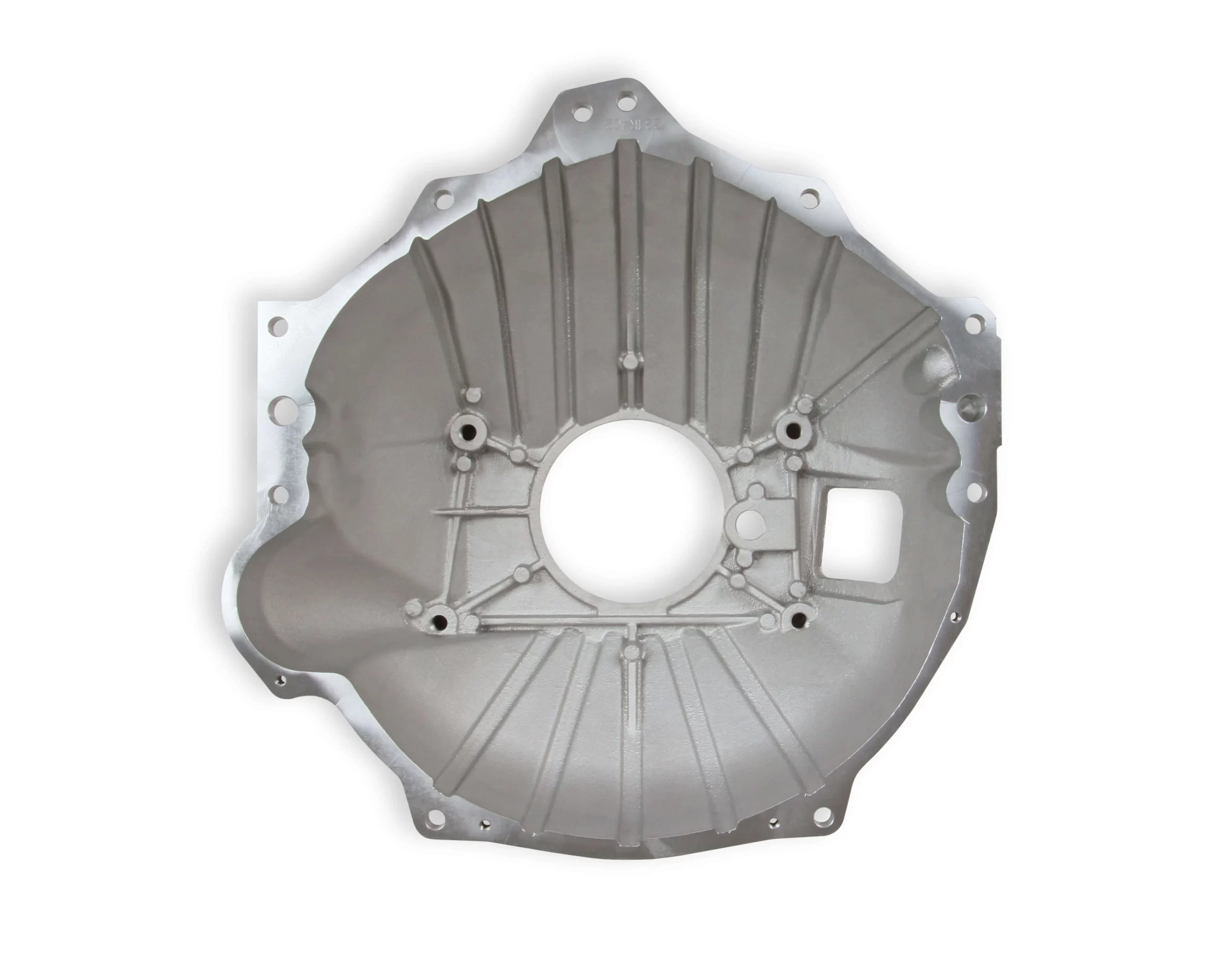

- Lightweight cast aluminum design similar to the original equipment bellhousings
- Lower cost non-SFI rated option if your project does not require the steel SFI rated unit
- Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
- Bellhousing Depth: 6.45 in

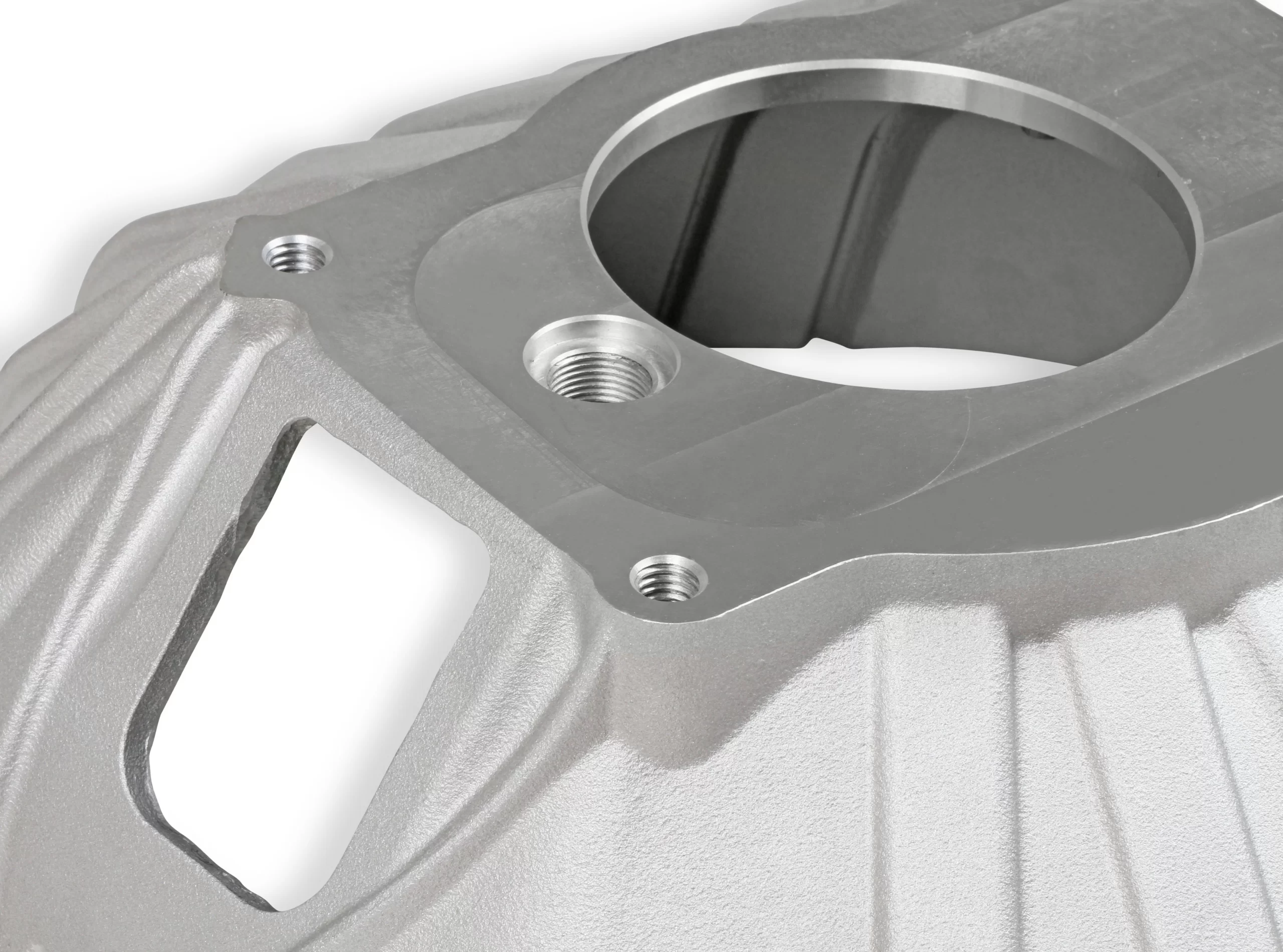

- Clutch Fork Opening: 2.125 In X 3.3 In

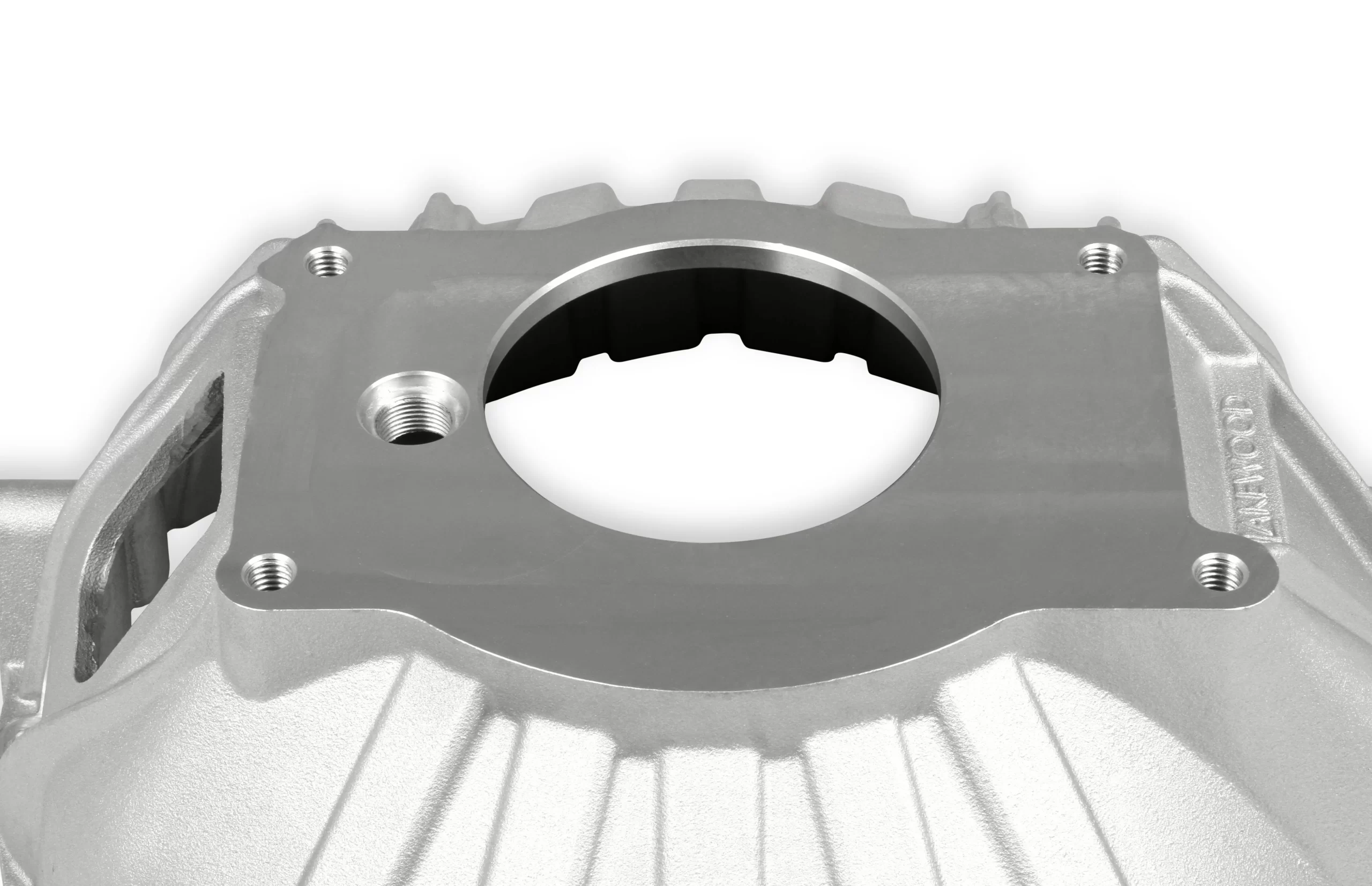

- Transmission Bore Diameter: 4.684 In

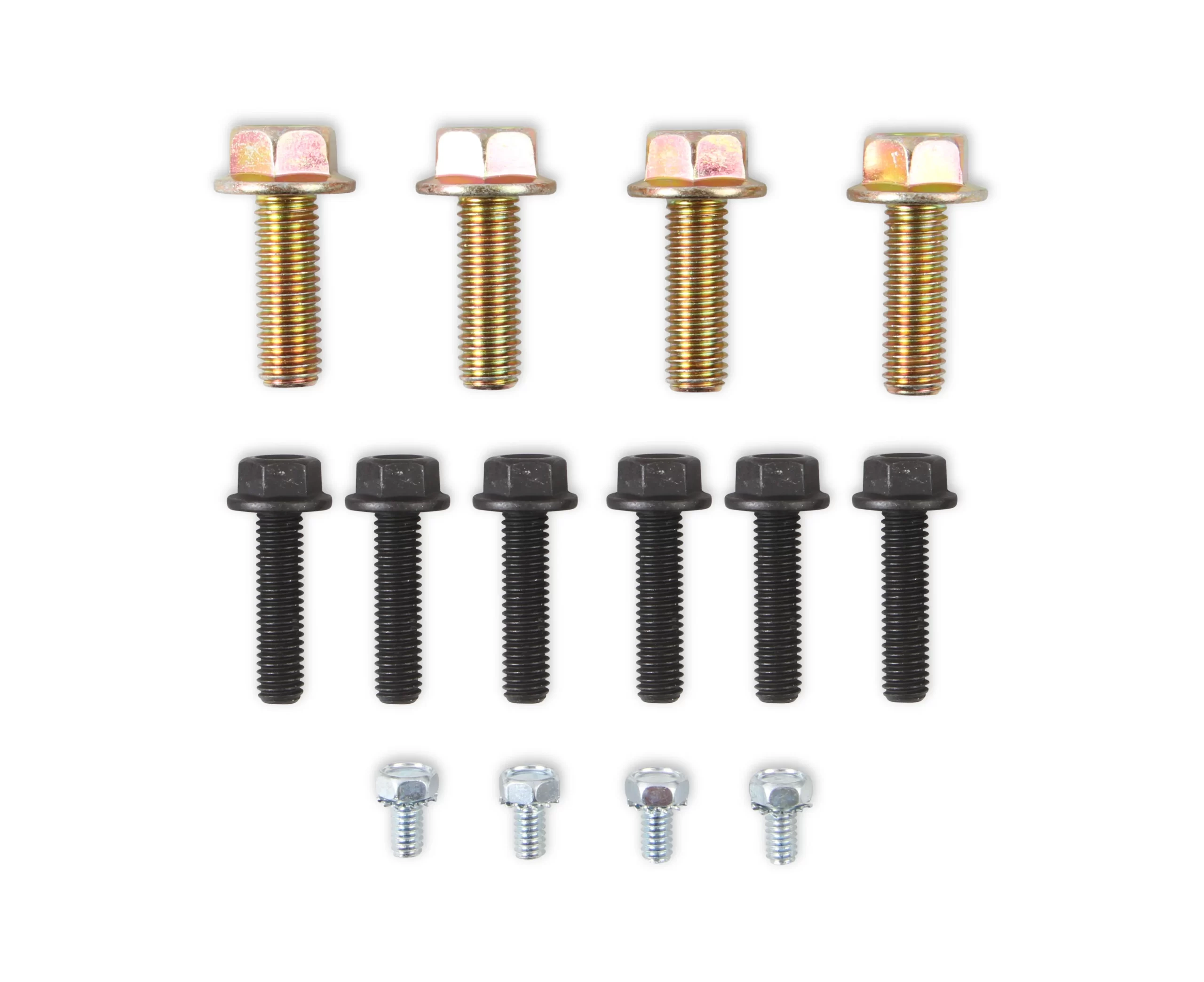

- Includes Grade 8 Hardware
- LK4000 Bellhousing also available separately
| Brand | Lakewood |
|---|---|
| Clutch | 11 inch |
| Color | Cast |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Chevy Big Block V8 | |
| Engine Make | Chevrolet |
| Flywheel | 153 Tooth |
| 168 Tooth | |
| Height | 6.45 |
| Make | Chevrolet |
| Material | Cast Aluminum |
| Product Type | Bellhousing Kit |
| SFI Approved | No |
| Trans. Bore Diameter | 4.685 |
| Transmission | Bert Racing |
| BorgWarner | |
| Brinn Racing | |
| Falcon | |
| Jerico | |
| Muncie | |
| Richmond | |
| Saginaw | |
| T10 | |
| T5 GM | |
| TKO 500/600 GM | |
| TKX GM | |
| Transmission Type | Manual |
| UPC | 090127083055 |
| Part Number | LK4000K |
