LAKEWOOD BELLHOUSING – CHEVY
Perfect fit for Big Block and Small Block Chevrolet with Muncie, BW T-10, and Saginaw transmissions
Part # 77-150

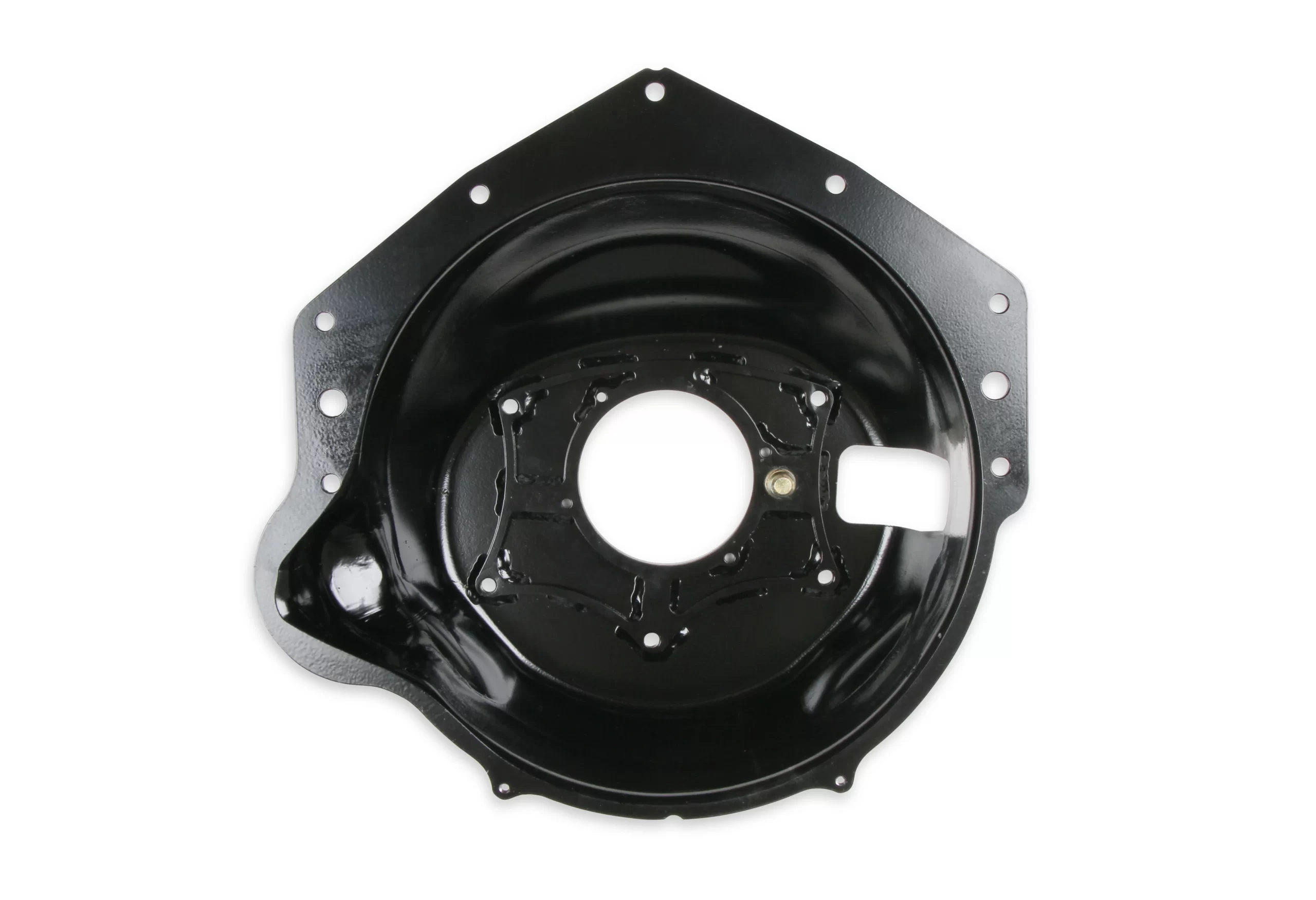

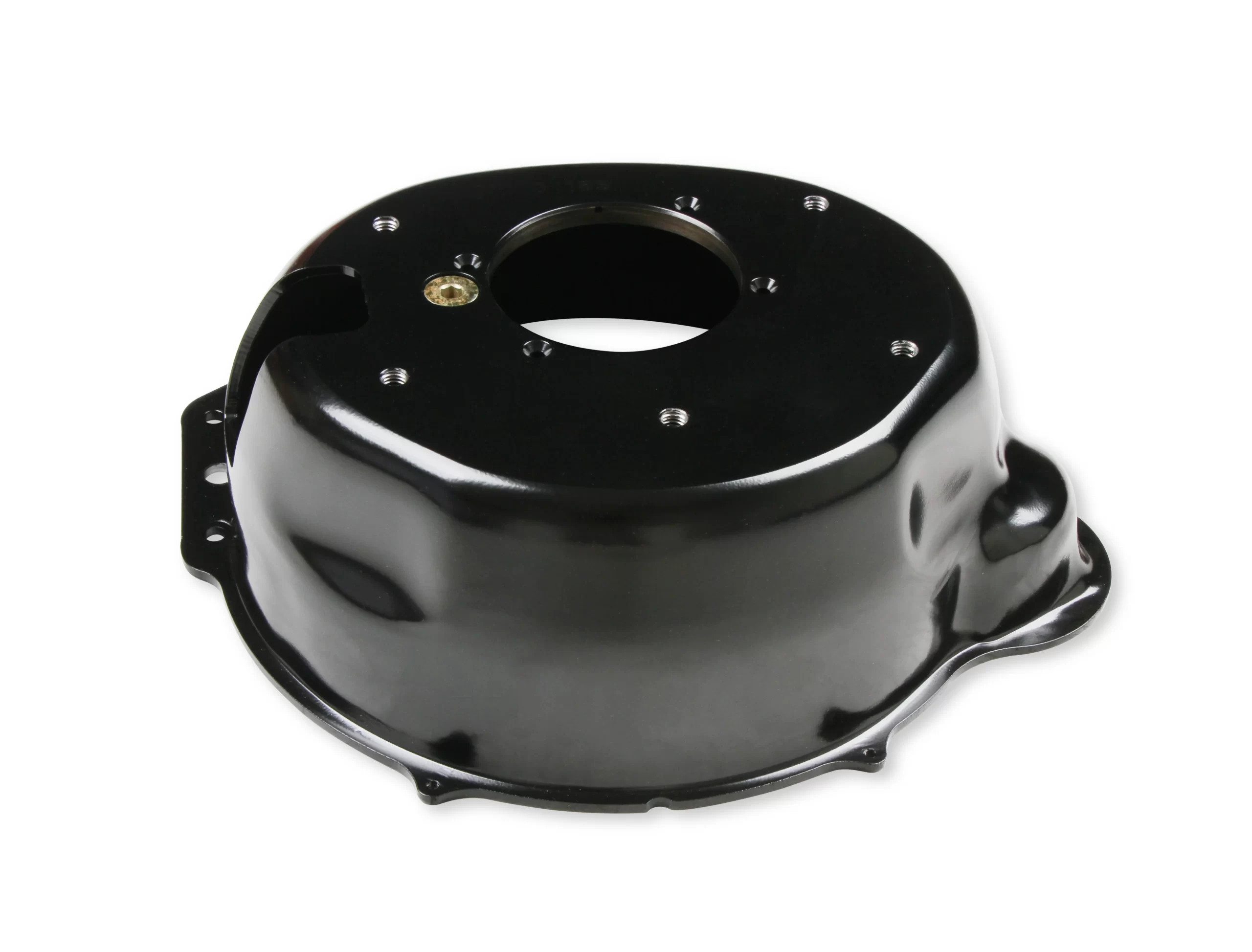

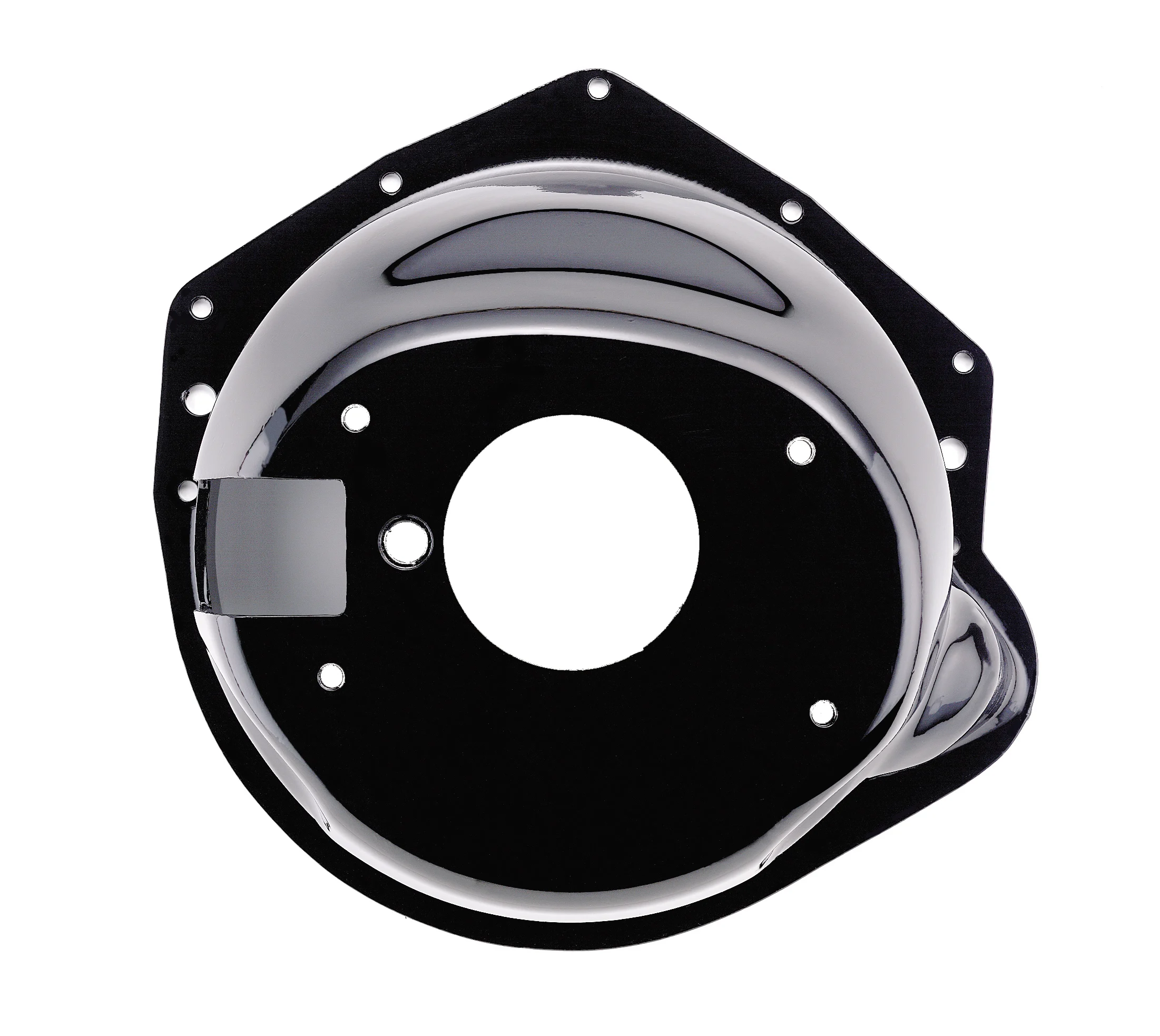

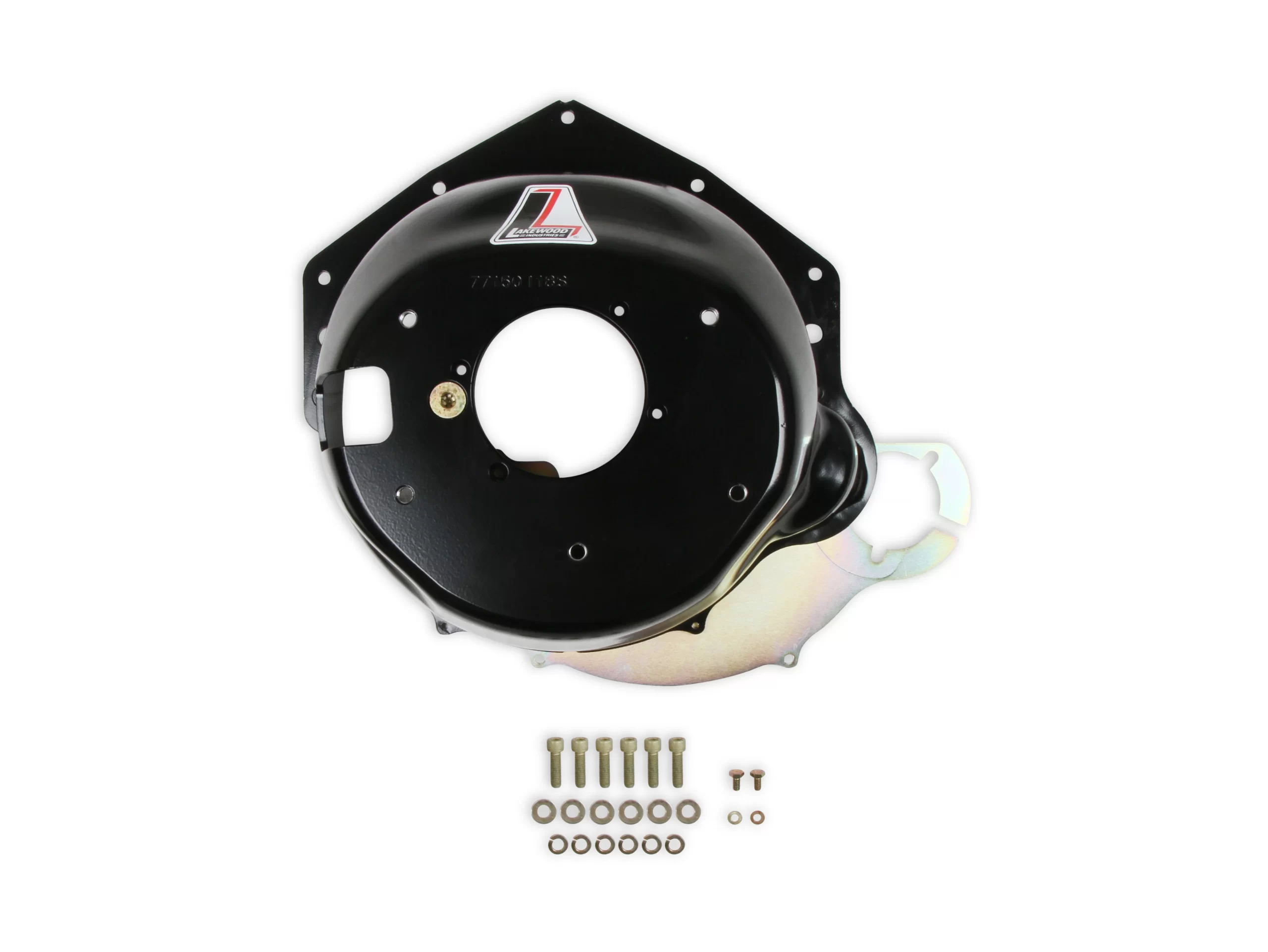

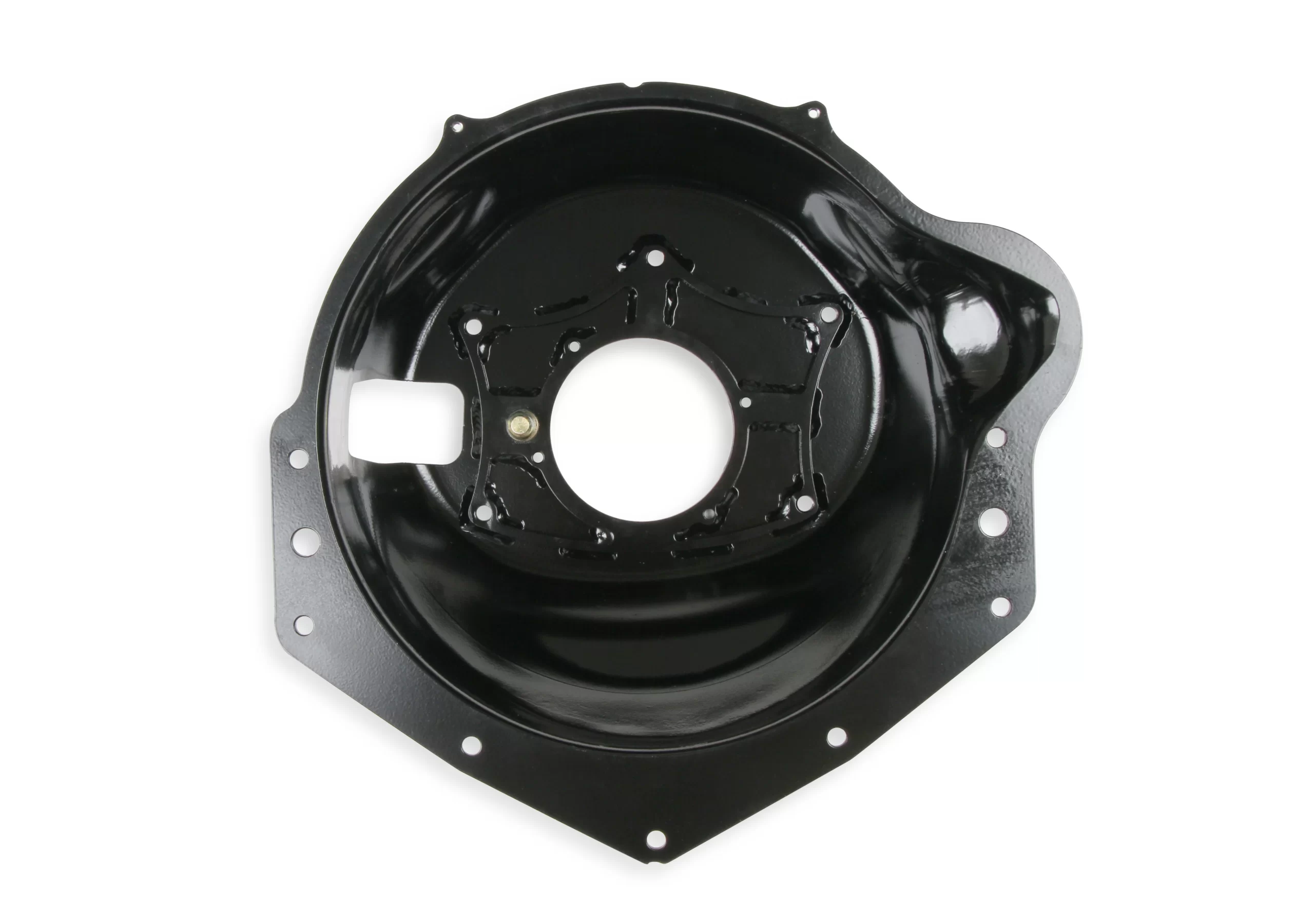

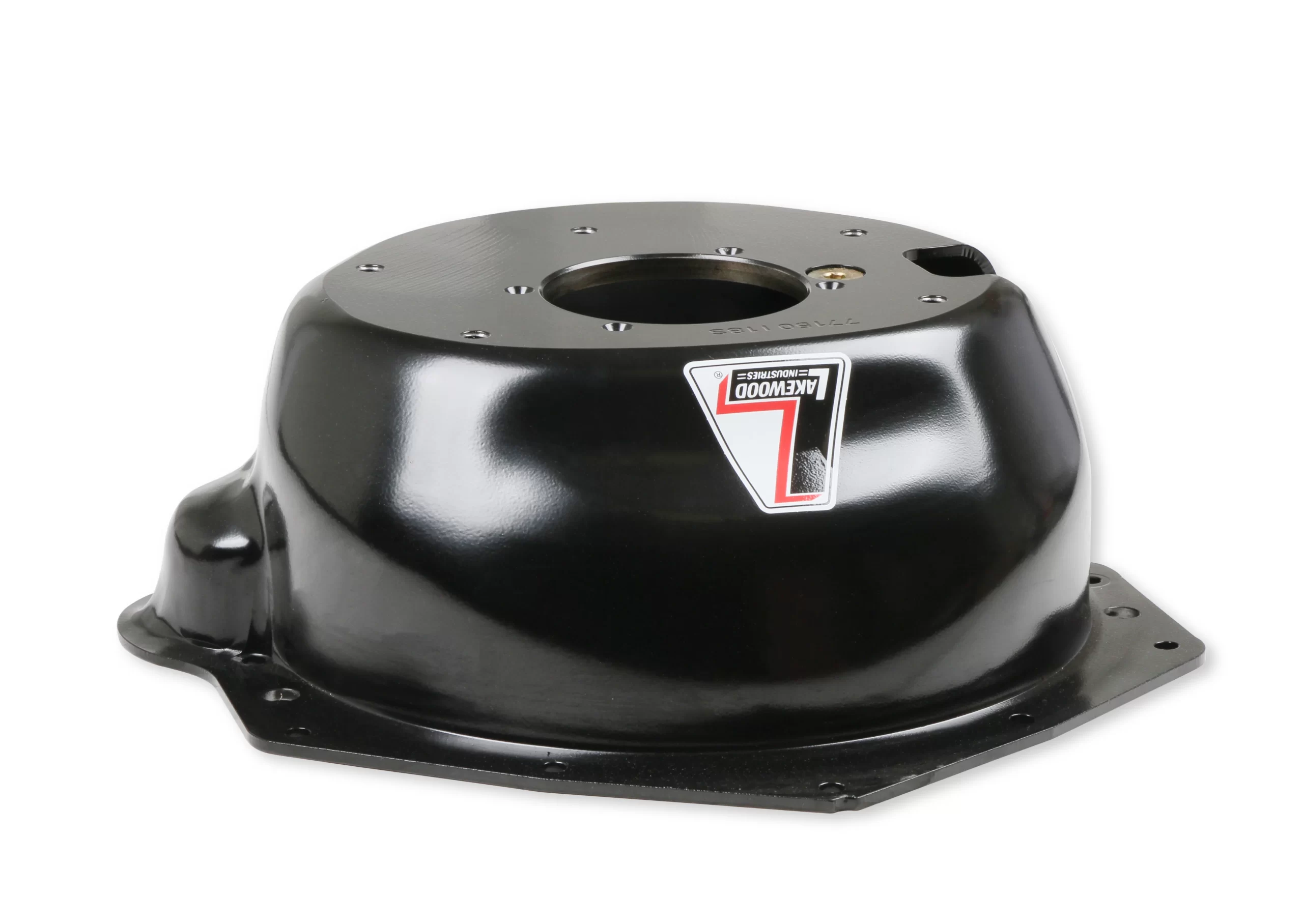

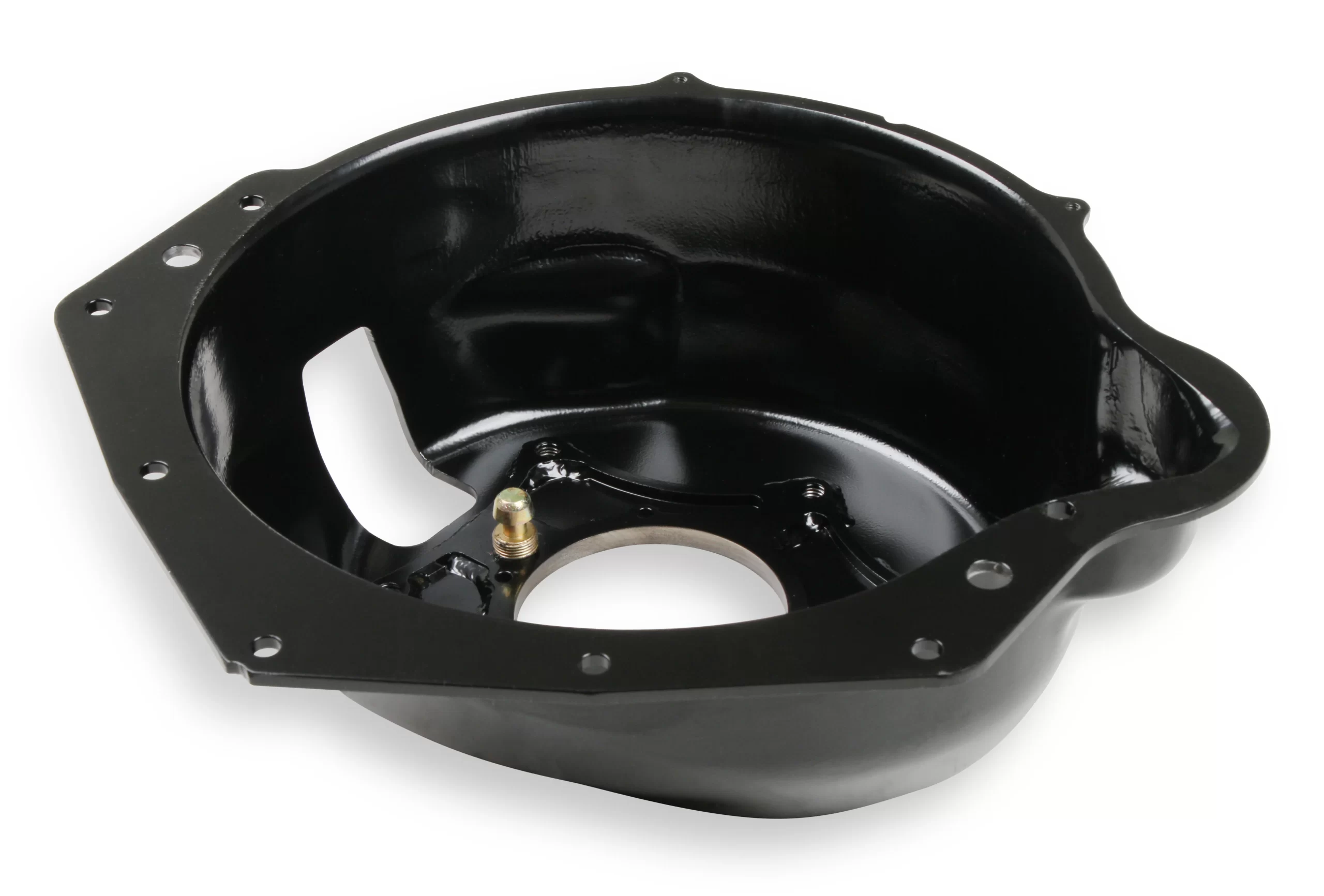

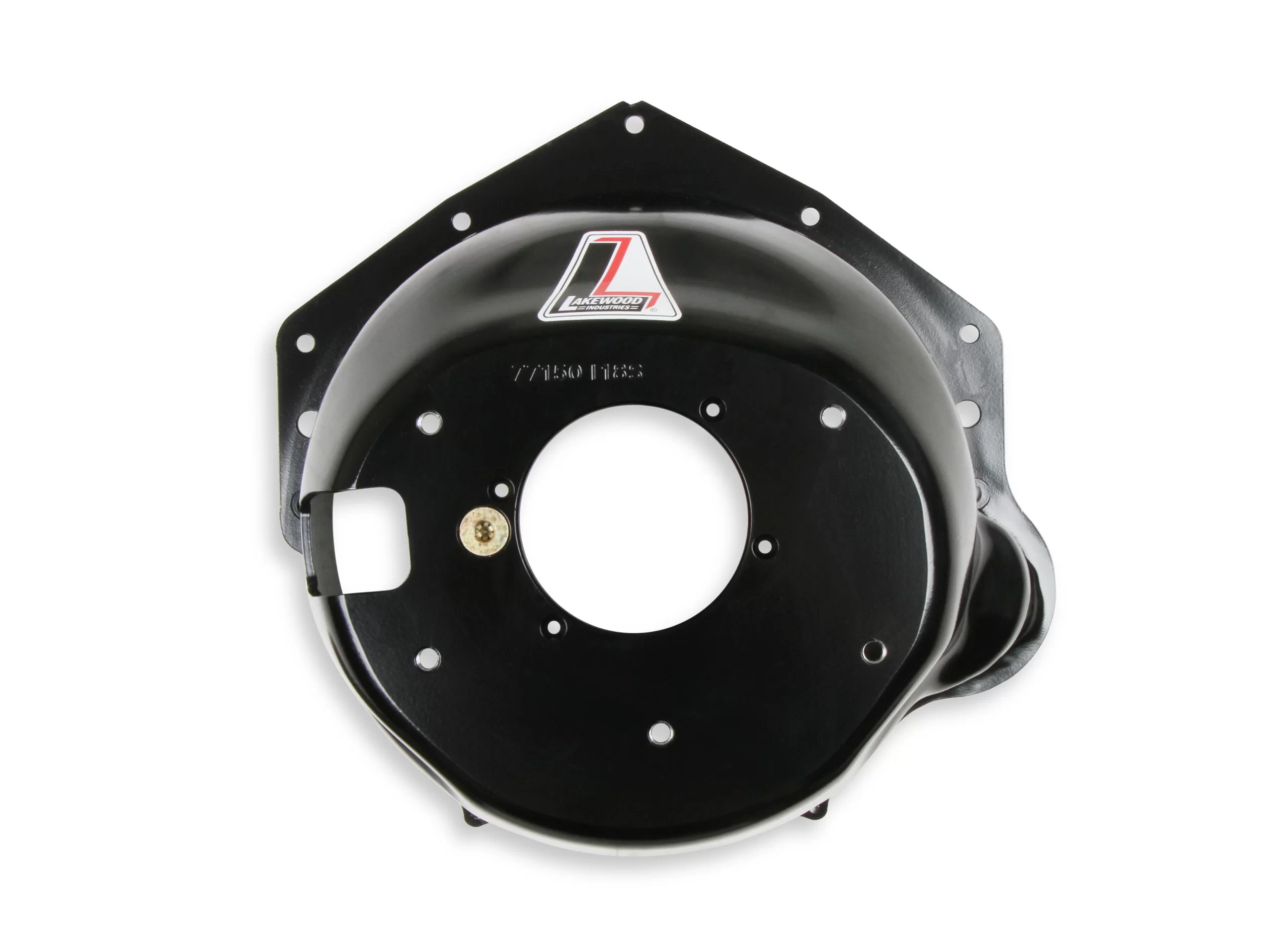

The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is designed to fit GM full and midsized vehicles from ’58 – ’87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.
Features:
- Designed For Mechanical Fork Linkage
- Bellhousing Depth: 6.312 in

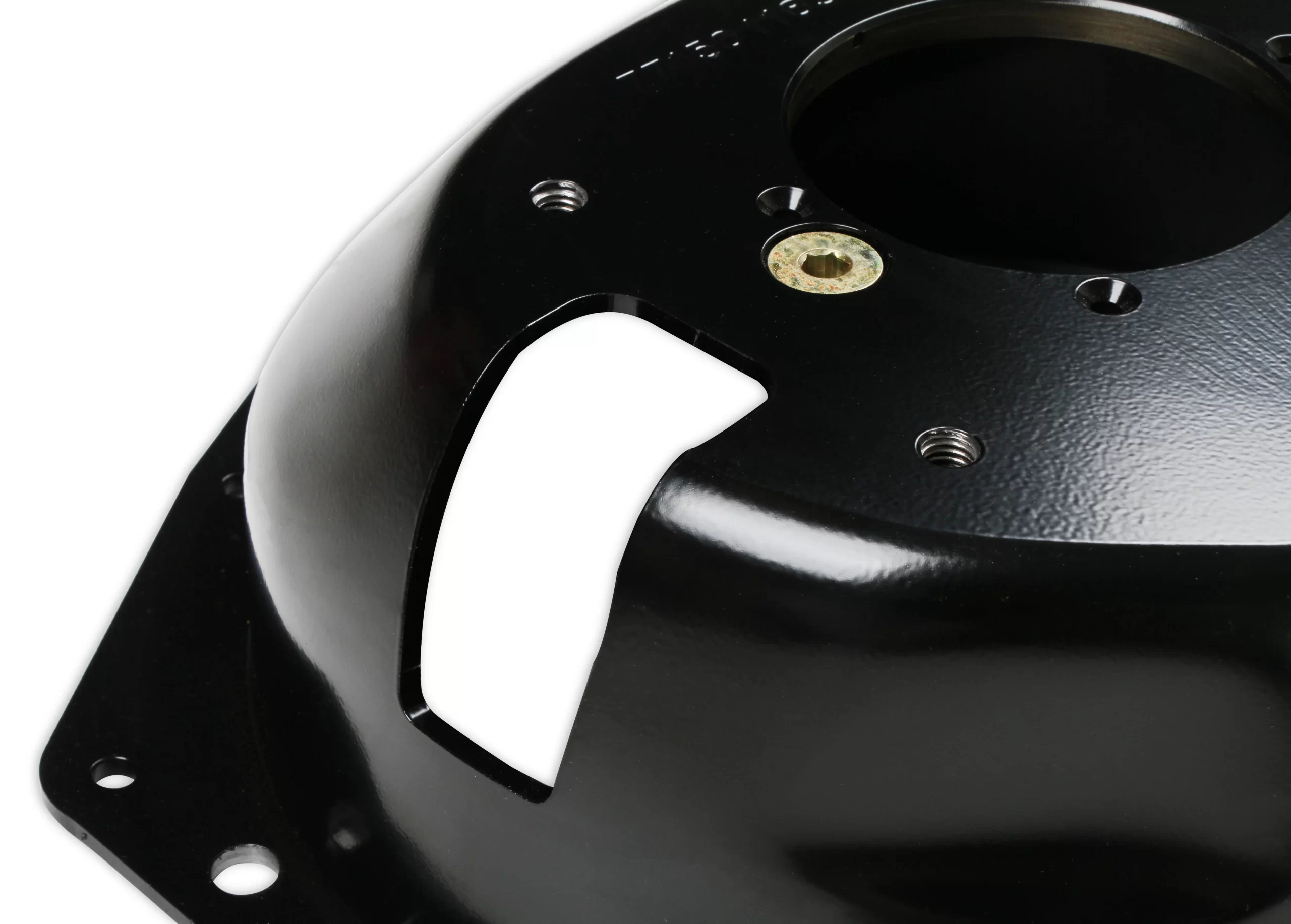

- Clutch Fork Opening: 2.5 In X 3.75 In

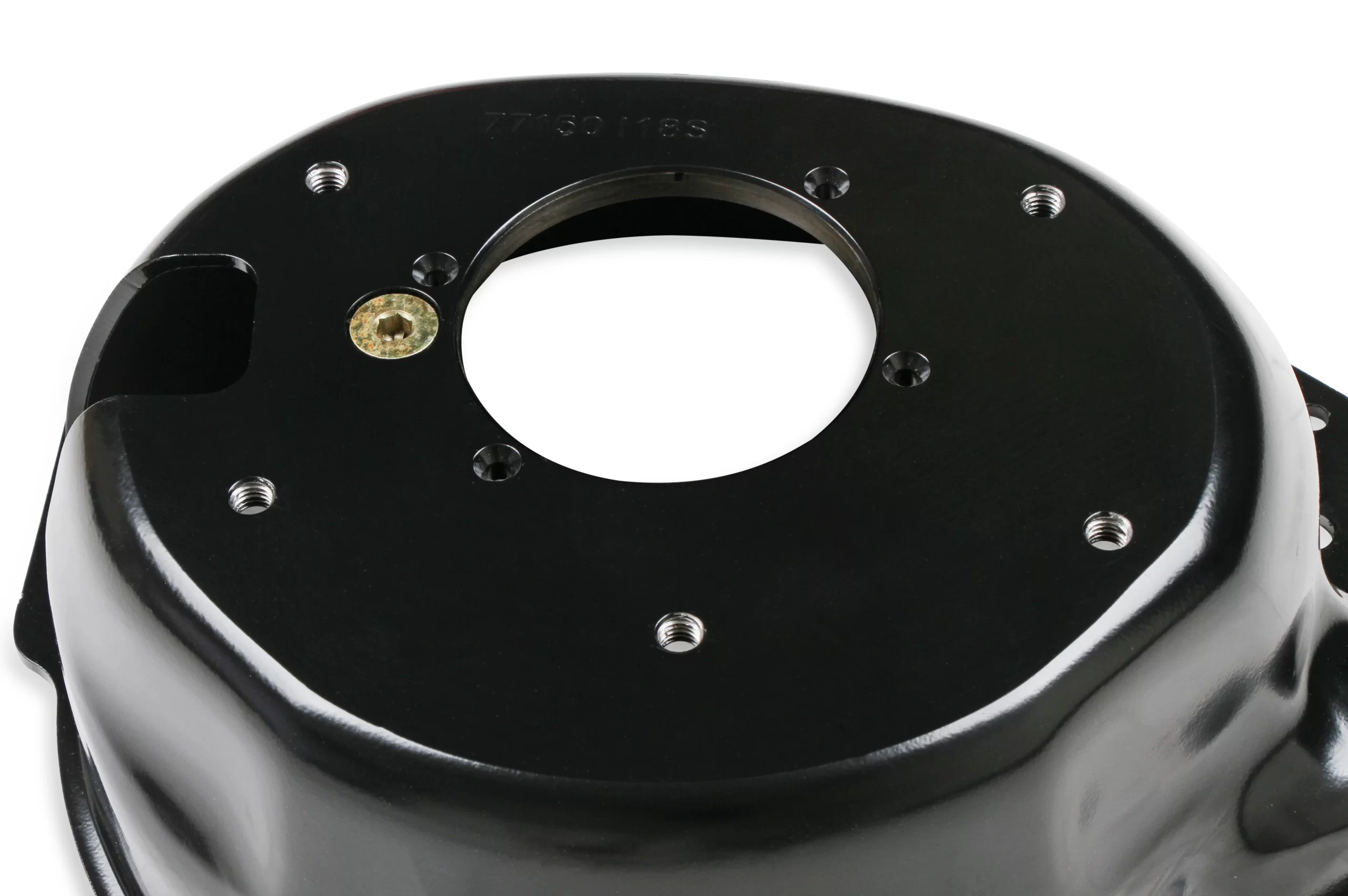

- Transmission Bore Diameter 4.684 In
- Hydro formed Construction
- Made In The USA
- Works with 153 or 168 Flywheel
| Brand | Lakewood |
|---|---|
| Clutch Diameter | 11″ |
| Clutch Operation | Hydraulic or GM Mechanical |
| Color | Black |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Chevy Big Block V8 | |
| Engine Make | Chevrolet |
| Flywheel | 153/168 Tooth |
| Height | 6.3″ |
| Make | Chevrolet |
| Material | Steel |
| Product Type | Bellhousing |
| SFI Approved | No |
| SFI Certification | NONE |
| Trans. Bore Diameter | 4.685 |
| Transmission | BorgWarner |
| Muncie | |
| Saginaw | |
| T10 | |
| TKO 500/600 GM | |
| TKX GM | |
| Transmission Type | Manual |
| Weight | 32Lbs |
| UPC | 084041771501 |
| Part Number | 77-150 |
