LAKEWOOD LAKEWOOD BELLHOUSING – CHEVY Compatible with countless GM manual-transmission applications Part # 15003LKW

Original price was: $866.00.Current price is: $778.95.

Availability: 8 in stock

SKU: 084041150030 Category:

-

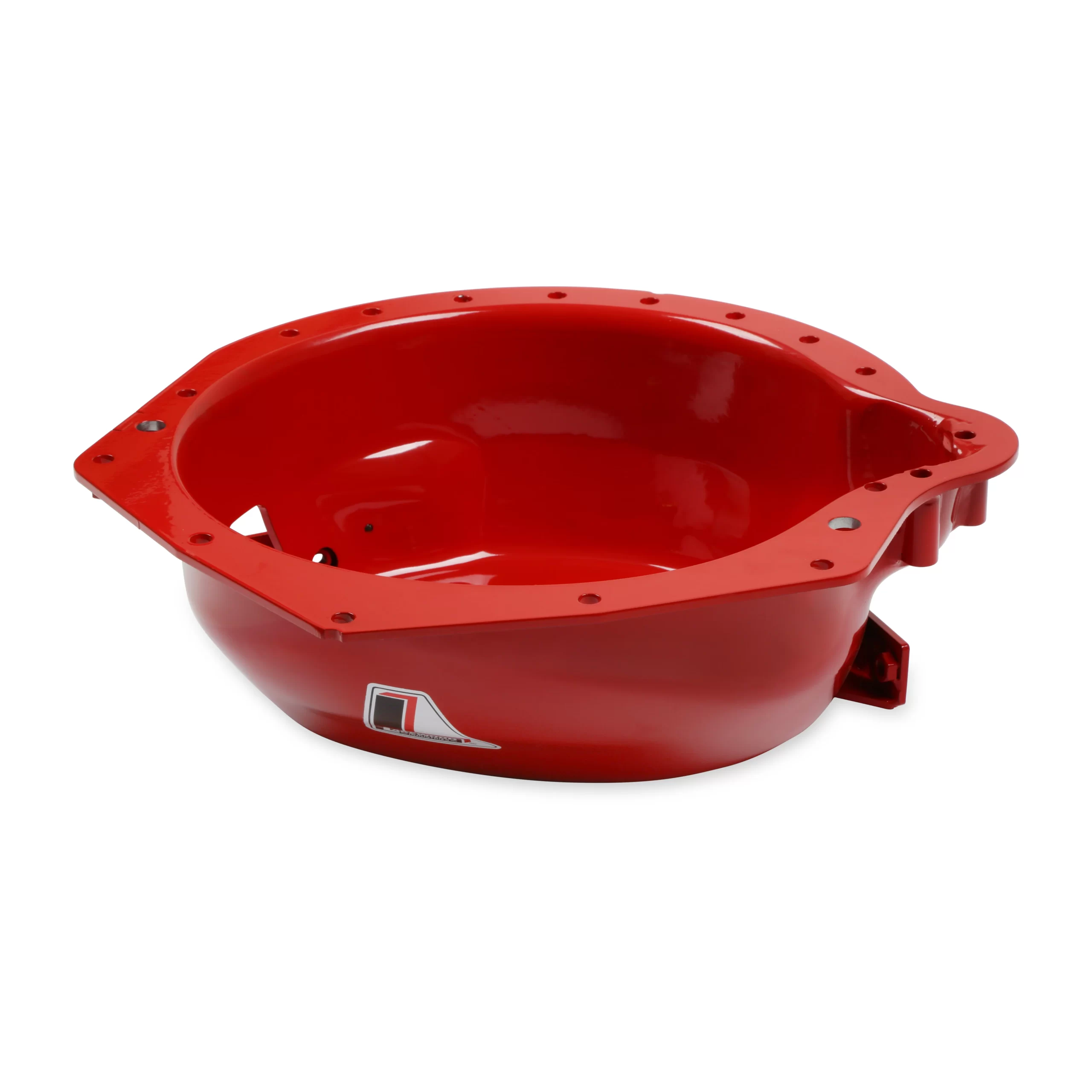

LAKEWOOD BELLHOUSING – CHEVROLET

Fits GM Big Block and Small Block and Most 4-Bolt GM Manual Transmission Applications

Part # 15003LKW

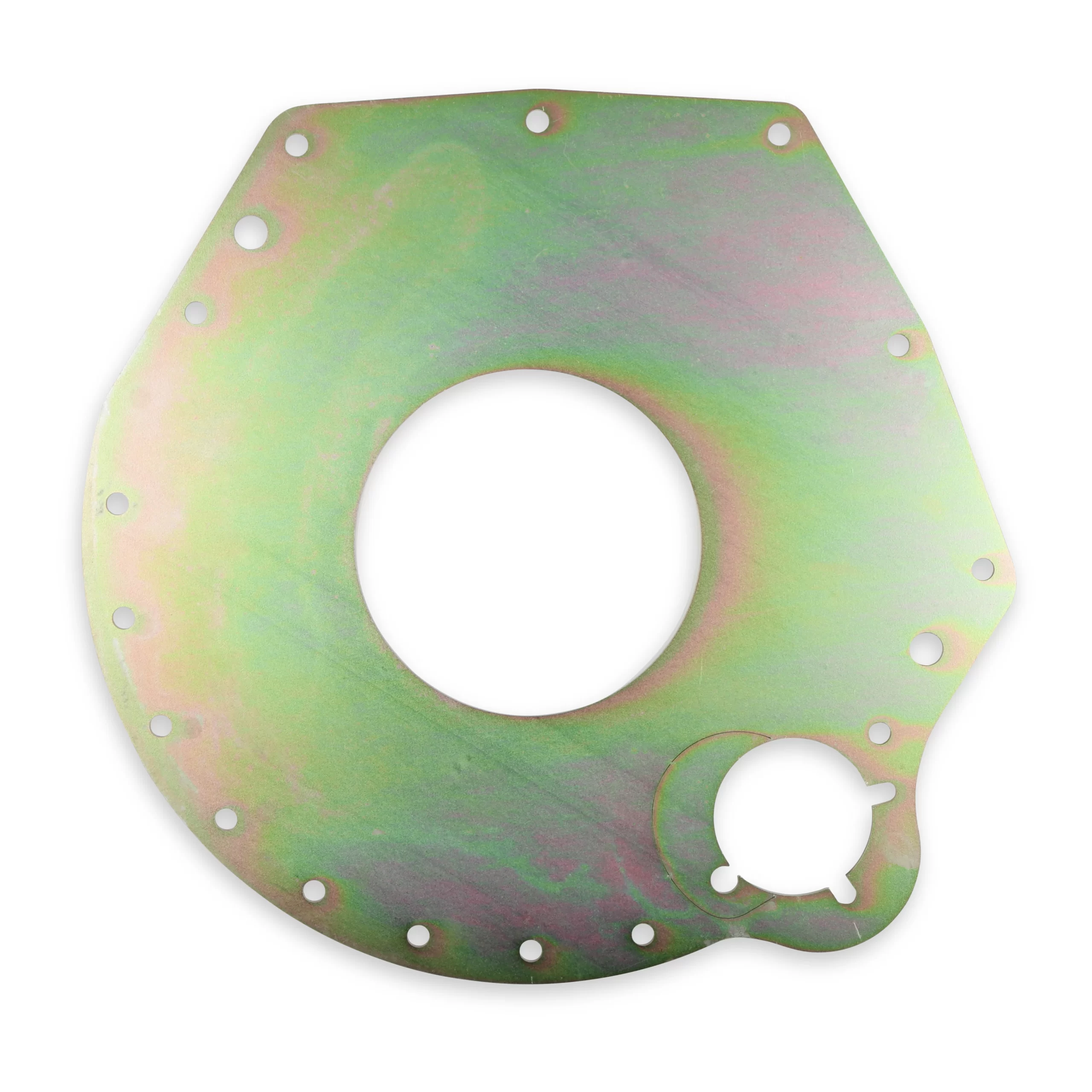

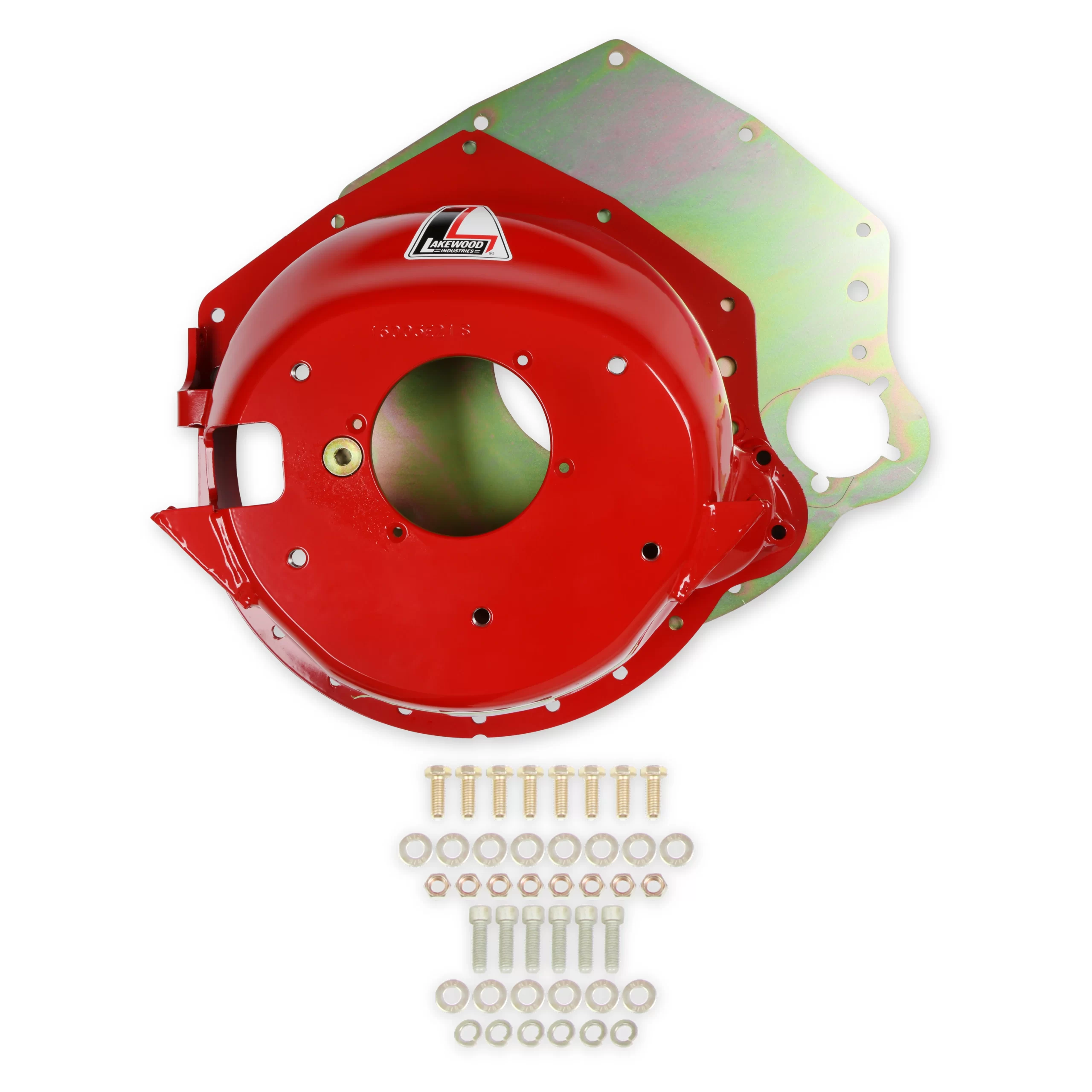

This 6.45-inch deep bell housing is designed to fit the 1955 to 1957 Chevy with a mechanical linkage. Will fit 168-tooth flywheel with 11-inch clutch. Fits Muncie, BWT10, Tremec TKO, and TXK transmissions, and more. Block plate, frame mounts, and Grade 8 hardware included. Other applications are available. Lakewood safety bell housings are designed for maximum performance and durability. They are laser cut to improve the speed and accuracy of manufacturing. They are roto-brated after welding and hydro-formed to relieve any stress created during manufacturing. They are S.F.I. 6.1 certified. Durable powder-coated finish for years of corrosion-free service. OEM starters are recommended for ease of fitment. It is very important that the tooth count (153 or 168) of the starter match the tooth count of the flywheel to ensure proper engagement. Two primary options: a 12 3/4-inch flywheel (153 teeth) where the nose cone will have two attachment bolt holes across from each other (inline) and a 14-inch flywheel (168 teeth) where the attachment bolt holes will be offset (diagonal). This applies mainly to factory GM starters on passenger cars/light trucks and does not apply to later model versions (w/ gear reduction) or aftermarket and mini starters. Be sure to match your clutch to your flywheel as well.

Features:

  • S.F.I. 6.1 Certified
  • 6.45 In Deep
  • Fits 1955 To 1957 Chevy
  • Mechanical Clutch Transmission
  • Fits 168 Tooth Flywheel With 11 In Clutch
  • Fits Muncie BW-T10, Richmond, Saginaw, Jerico, BorgWarner, Bert Racing, Brinn Racing, T5 GM, Tremec TKO and TKX Transmissions
  • Powdercoated
  • Designed for Bell Mounted Starter, but can also be used for Block Mounted Starter.
Brand Lakewood
Clutch 11″
Color Red
Emission Code 5
Engine Chevrolet Big Block
Engine Make Chevrolet
Flywheel 153 or 168 Tooth
Height 6.450 inch
Make Chevrolet
Material Steel
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Transmission Bert Racing
BorgWarner
Brinn Racing
Jerico
Muncie
Richmond
Saginaw
T10
T5 GM
TKO 500/600 GM
TKX GM
Transmission Type Manual
Weight 36
UPC 084041150030
Part Number 15003LKW
Weight 34.85 lbs
Dimensions 19 × 8.3 × 18.9 in
