LAKEWOOD BELLHOUSING – CHEVROLET
SFI Certified Bellhousing for 1958-1987 GM Cars with Small Block or Big Block Chevrolet Engines
Part # 15000LKW

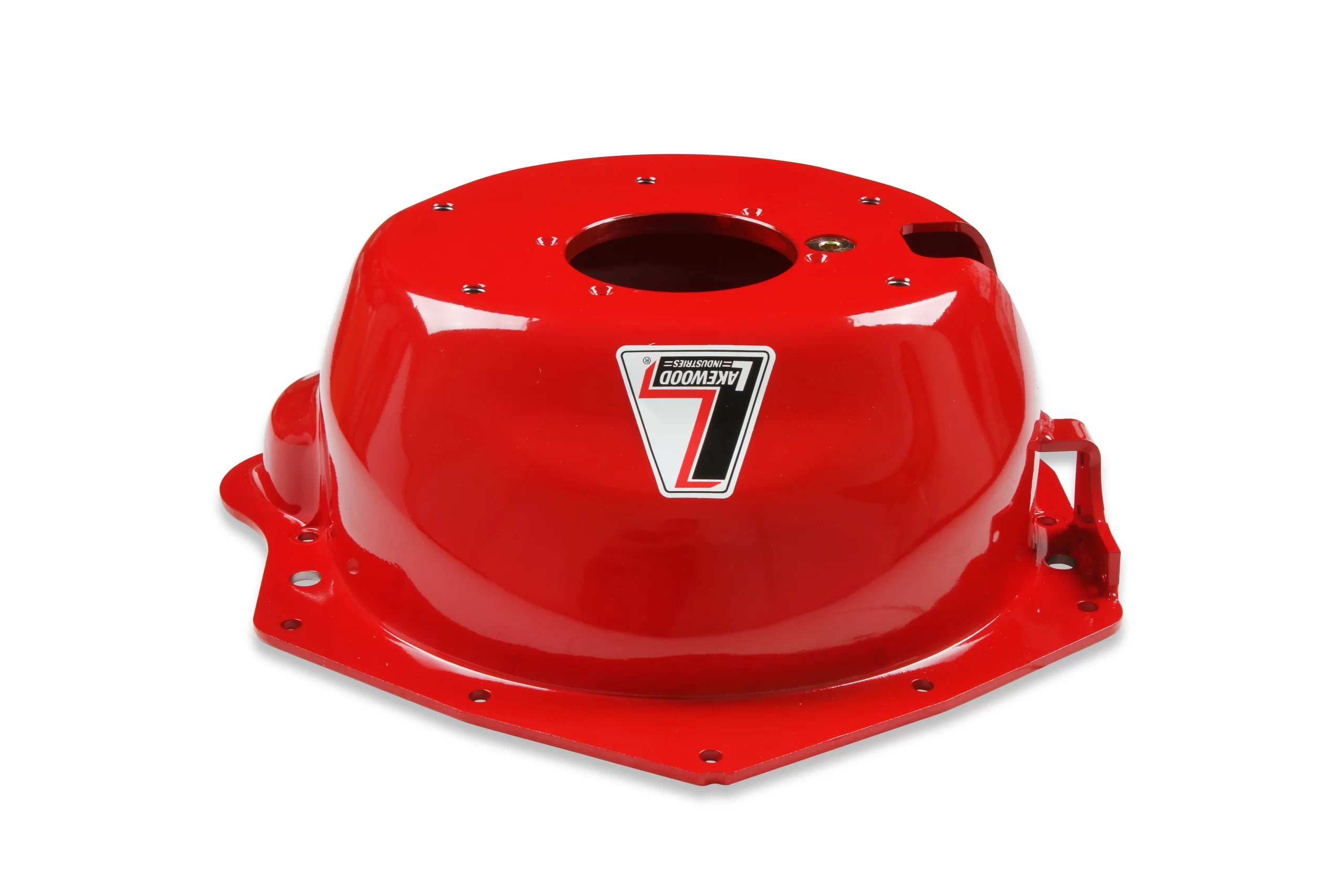

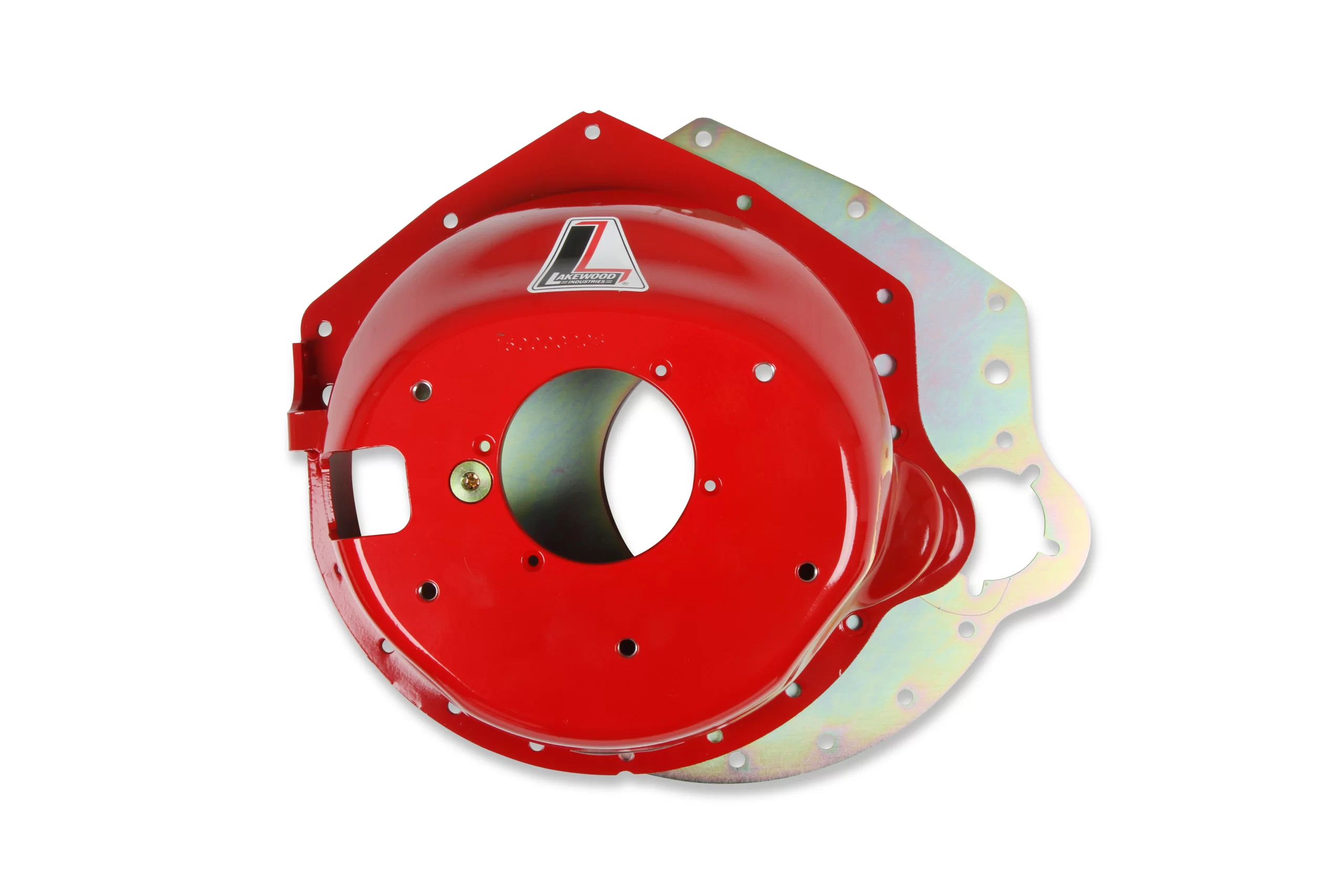

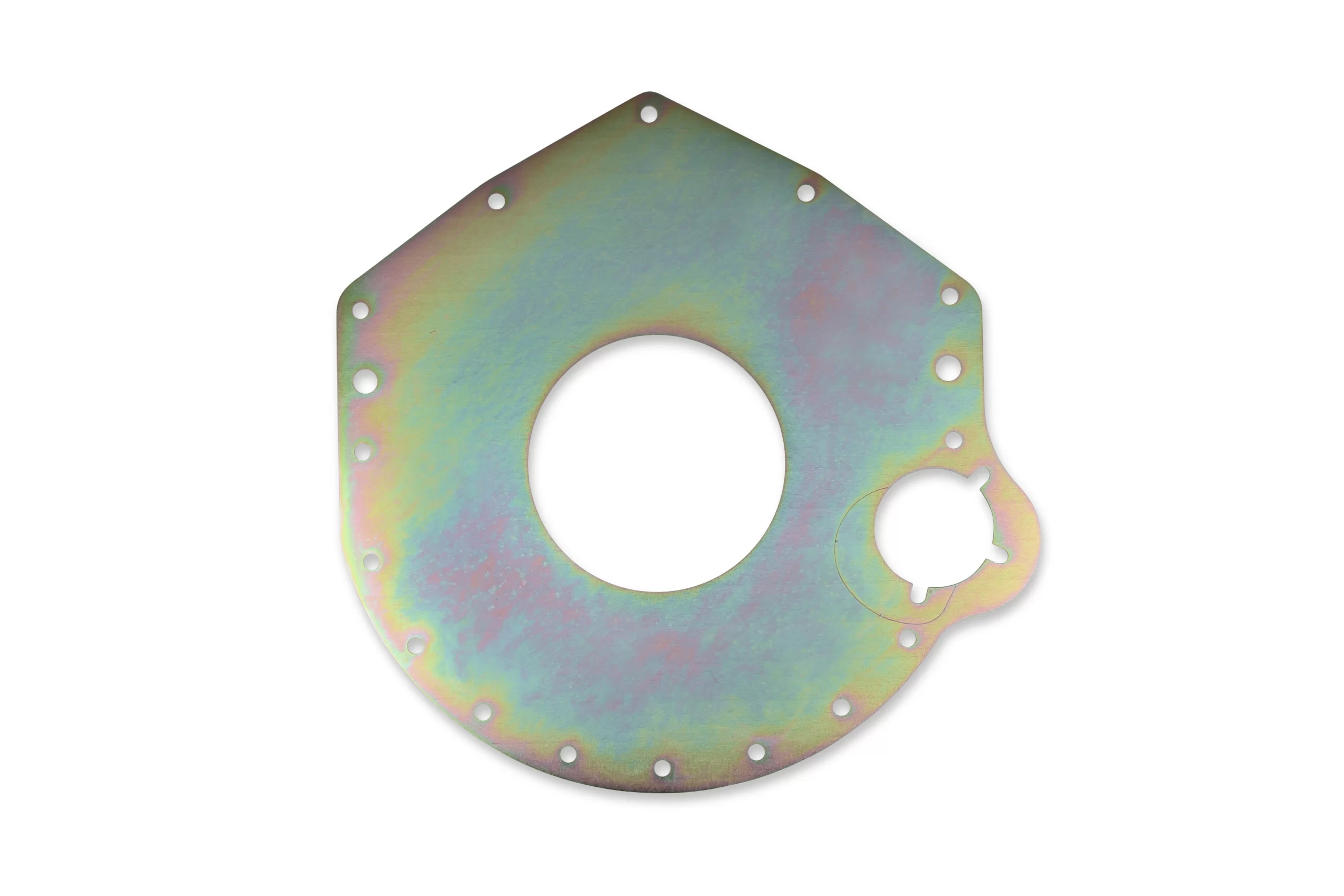

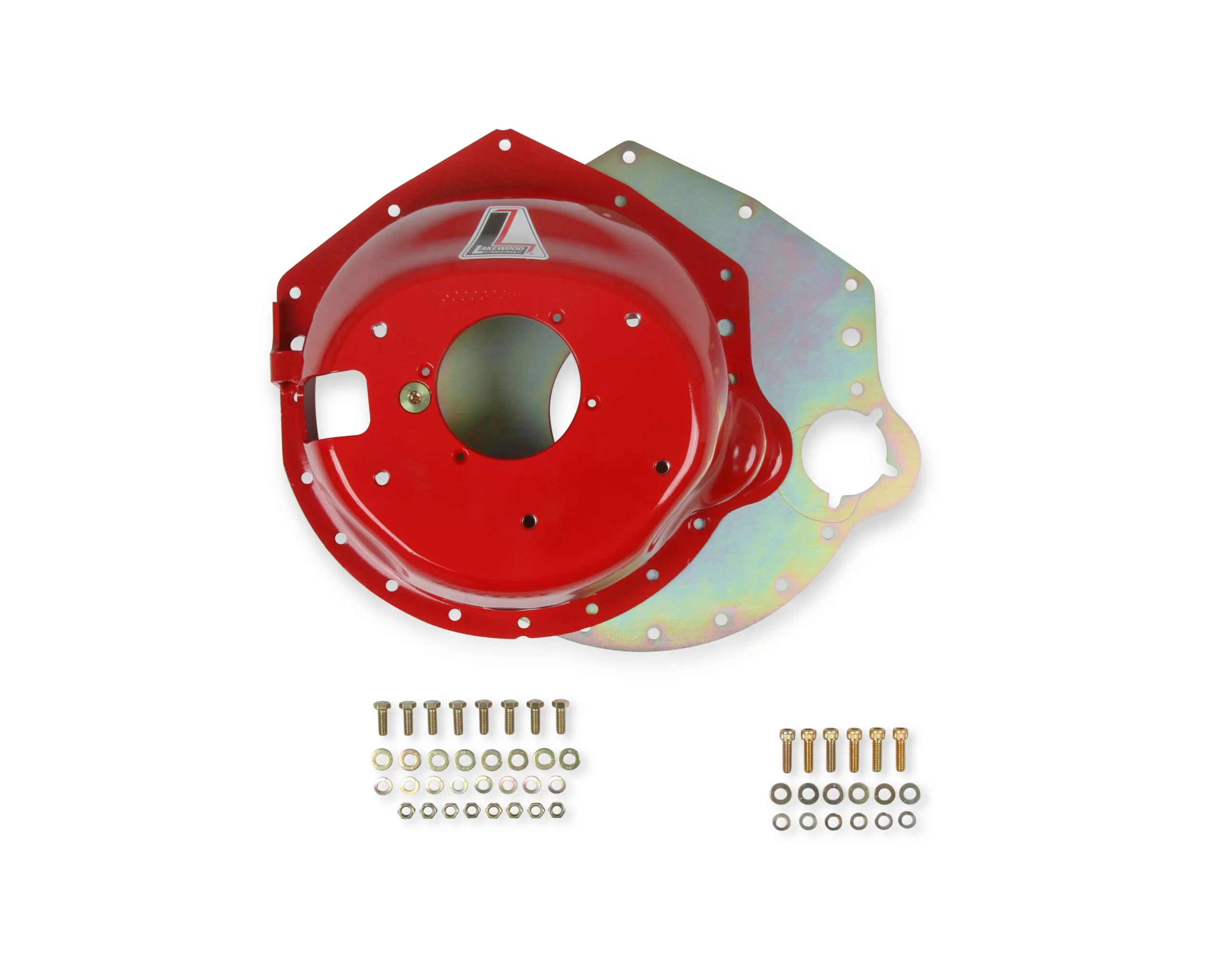

The Lakewood 15000LKW bellhousing connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO, and TKX transmissions. This bellhousing is hydroformed to fit 1958-1987 GM full and midsized cars, 1967-1981 F-body vehicles and 1968-1979 Nova. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. Comes complete with an engine block plate and Grade 8 mounting hardware.
Features:

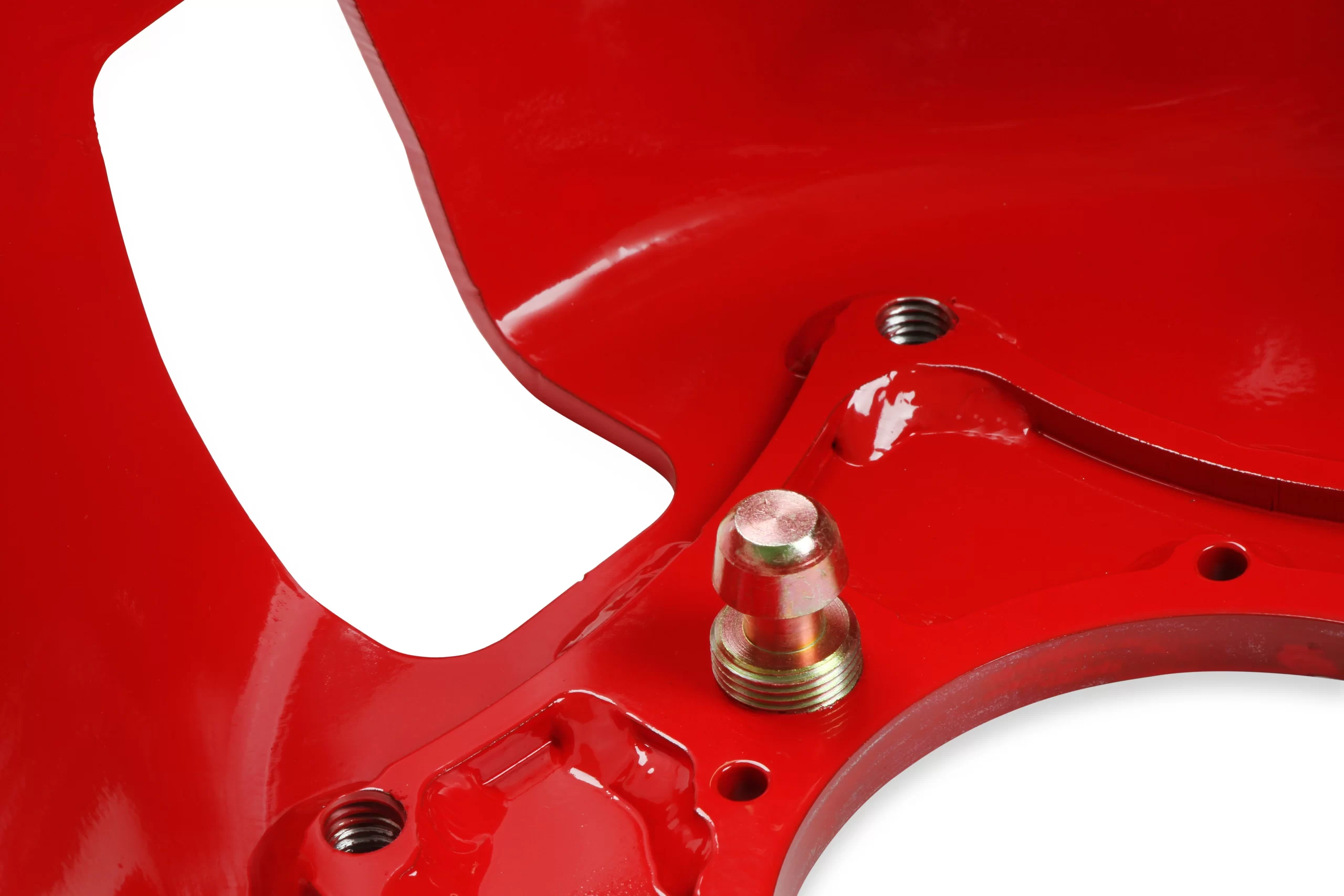

- Designed For Mechanical Fork Linkage
- Bellhousing Depth: 6.45 in

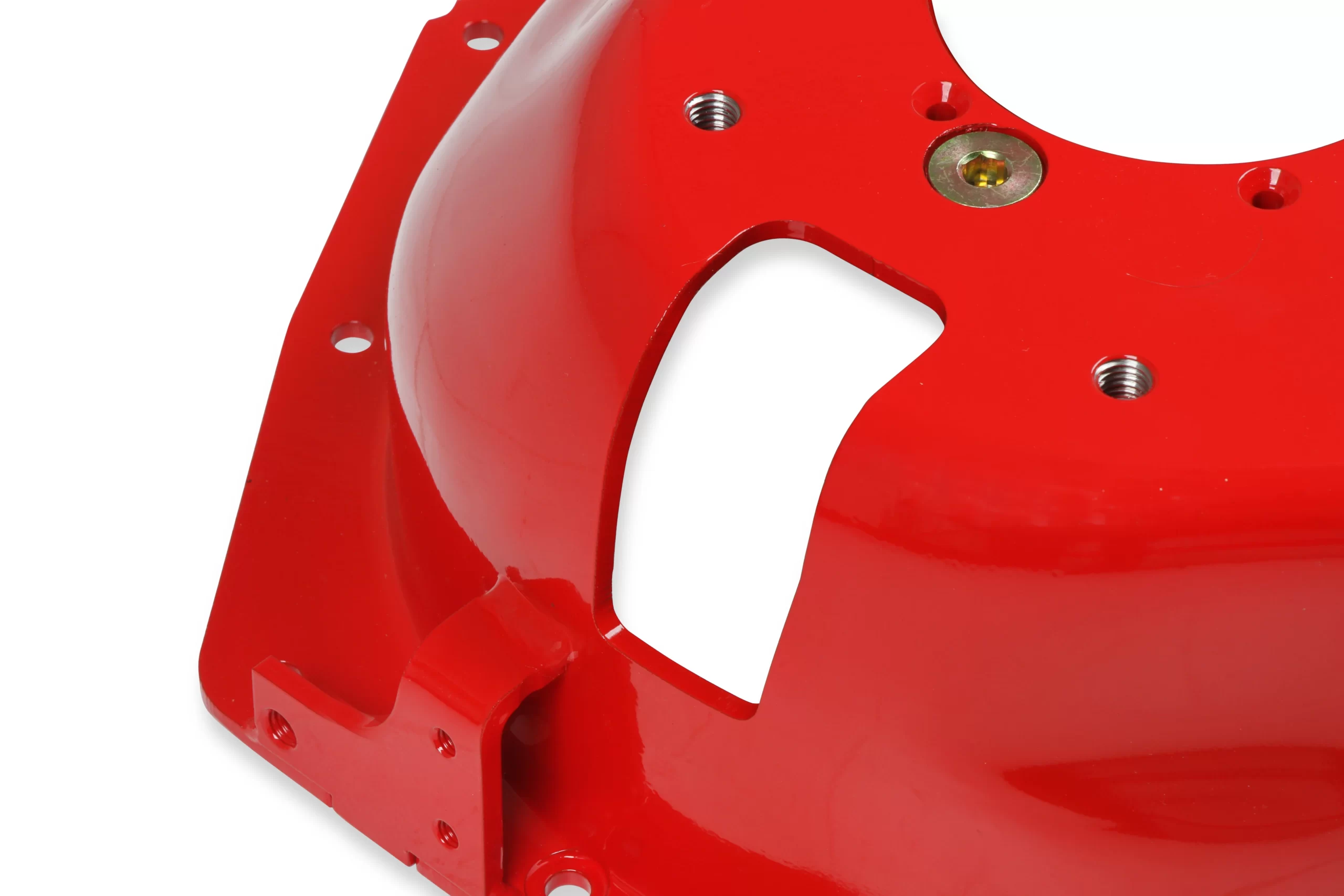

- Clutch Fork Opening: 2.125 In X 3.3 In
- Transmission Bore Diameter: 4.684 In
- Hydro formed Construction

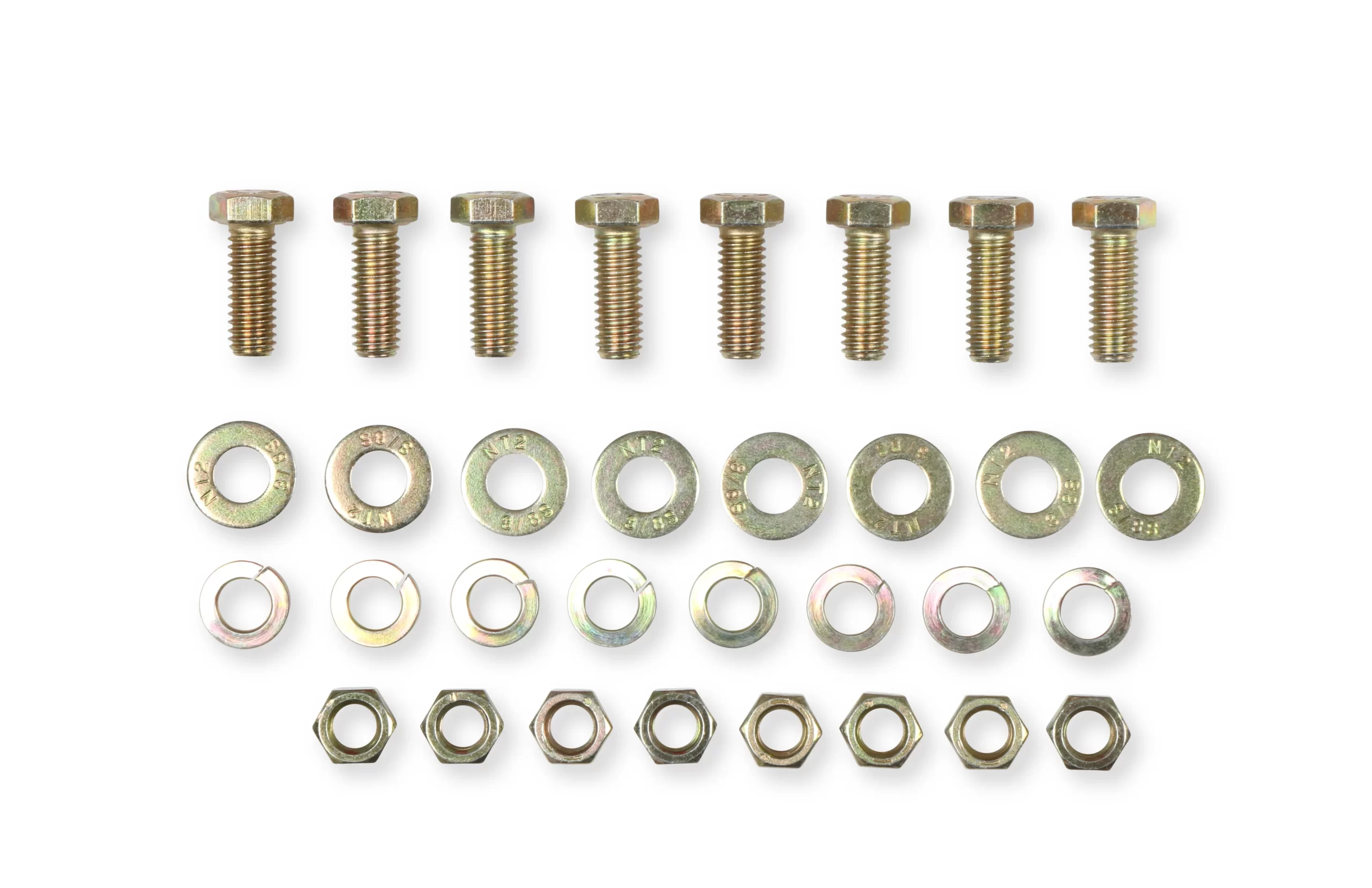

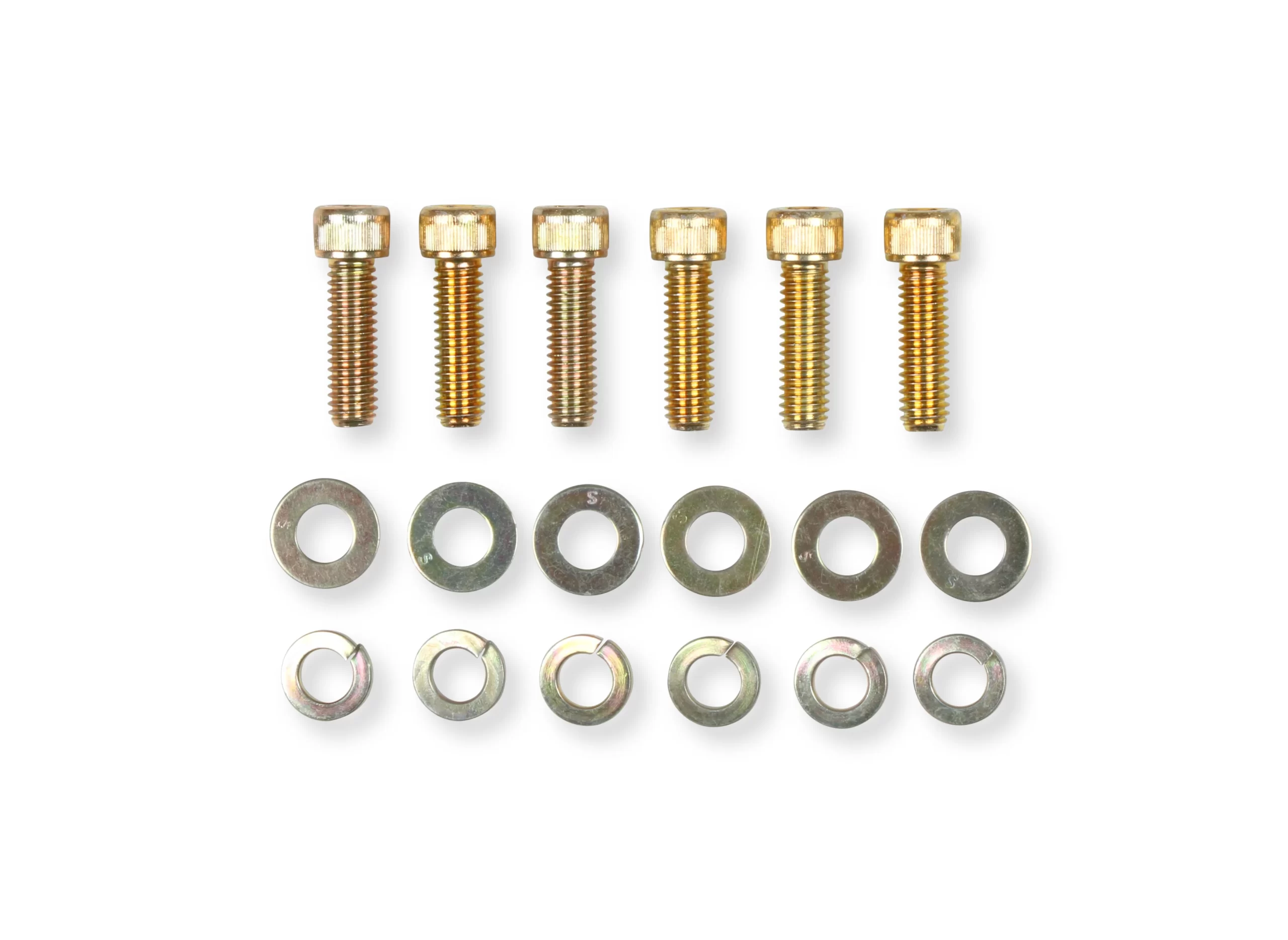

- Includes Grade 8 Hardware

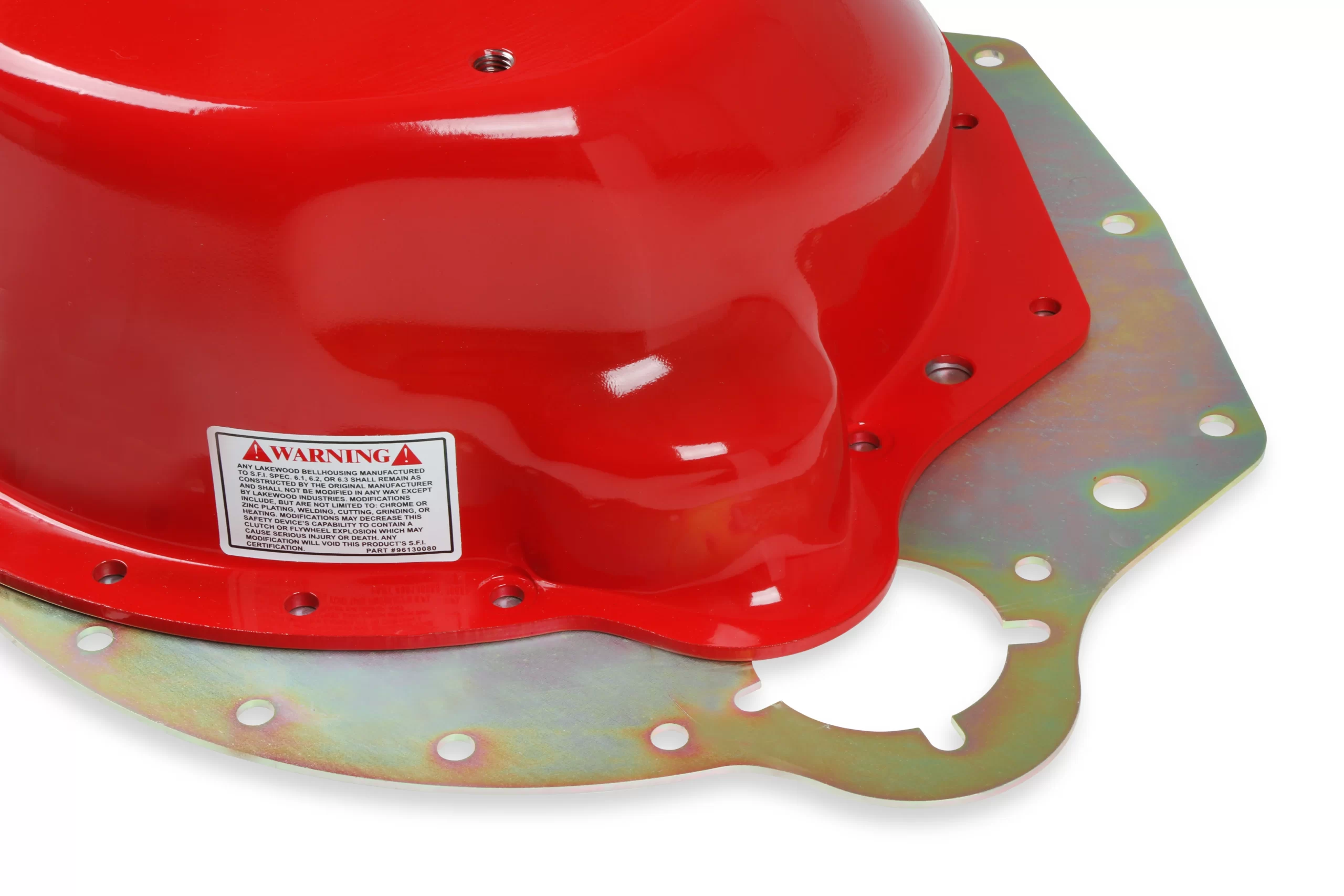

- S.F.I. 6.1 Certification
- Made In The USA
| Brand | Lakewood |
|---|---|
| Clutch | 11″ |
| Color | Red |
| Emission Code | 5 |
| Engine | Chevrolet Big Block |
| Engine Make | Chevrolet |
| Flywheel | 153 or 168 Tooth |
| Height | 6.45 |
| Make | Chevrolet |
| Material | Steel |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans. Bore Diameter | 4.685 |
| Transmission | Bert Racing |
| BorgWarner | |
| Brinn Racing | |
| Falcon | |
| Jerico | |
| Muncie | |
| Richmond | |
| Saginaw | |
| T10 | |
| T5 GM | |
| TKO 500/600 GM | |
| TKX GM | |
| Transmission Type | Manual |
| UPC | 084041150009 |
| Part Number | 15000LKW |
