HOOKER BLACKHEART
HOOKER BLACKHEART LS SWAP EXHAUST MANIFOLDS – TITANIUM CERAMIC FINISH
Multi-fit – 2.25 in. Outlet
Part # 8501-4HKR

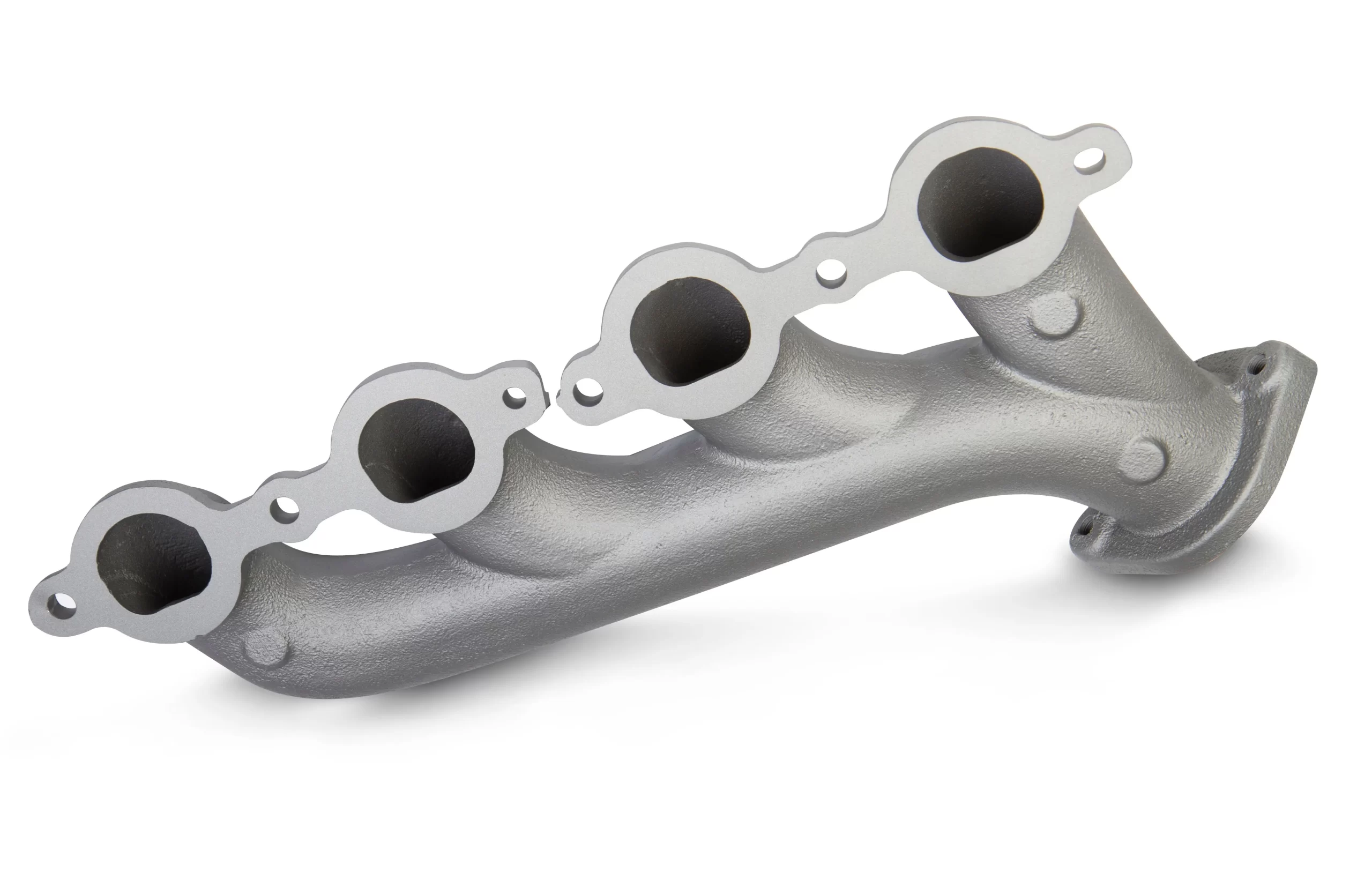

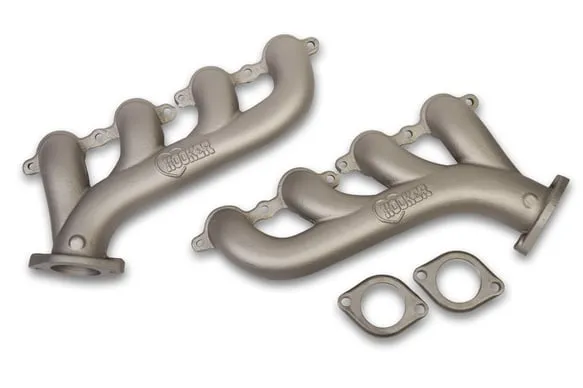

These Hooker BlackHeart cast iron exhaust manifolds have a 2.25 inch outlet, titanium ceramic finish and are designed to hug close to the engine block so they fit into a wide variety of replacement and engine-swap applications. Their contoured design aims the exhaust directly toward the exit port for improved flow. Being cast iron means they will provide years of leak-free performance with less under hood noise than traditional headers. Plus, their shorty design means you can route exhaust tubing close to your frame/floor pan for maximum ground clearance.
Features:
- Intended for GM LS engine swap applications where durability, quiet operation, and leak-free sealing is desired
- Titanium ceramic coating for reduced engine compartment temps and improved corrosion resistance (Titanium Ceramic has no actual Titanium properties)
- Nickel plated steel mating flanges included (mating flange fasteners are not included)
- 2.25 inch outlet diameter offers improved flow for maximum performance from a cast iron exhaust manifold

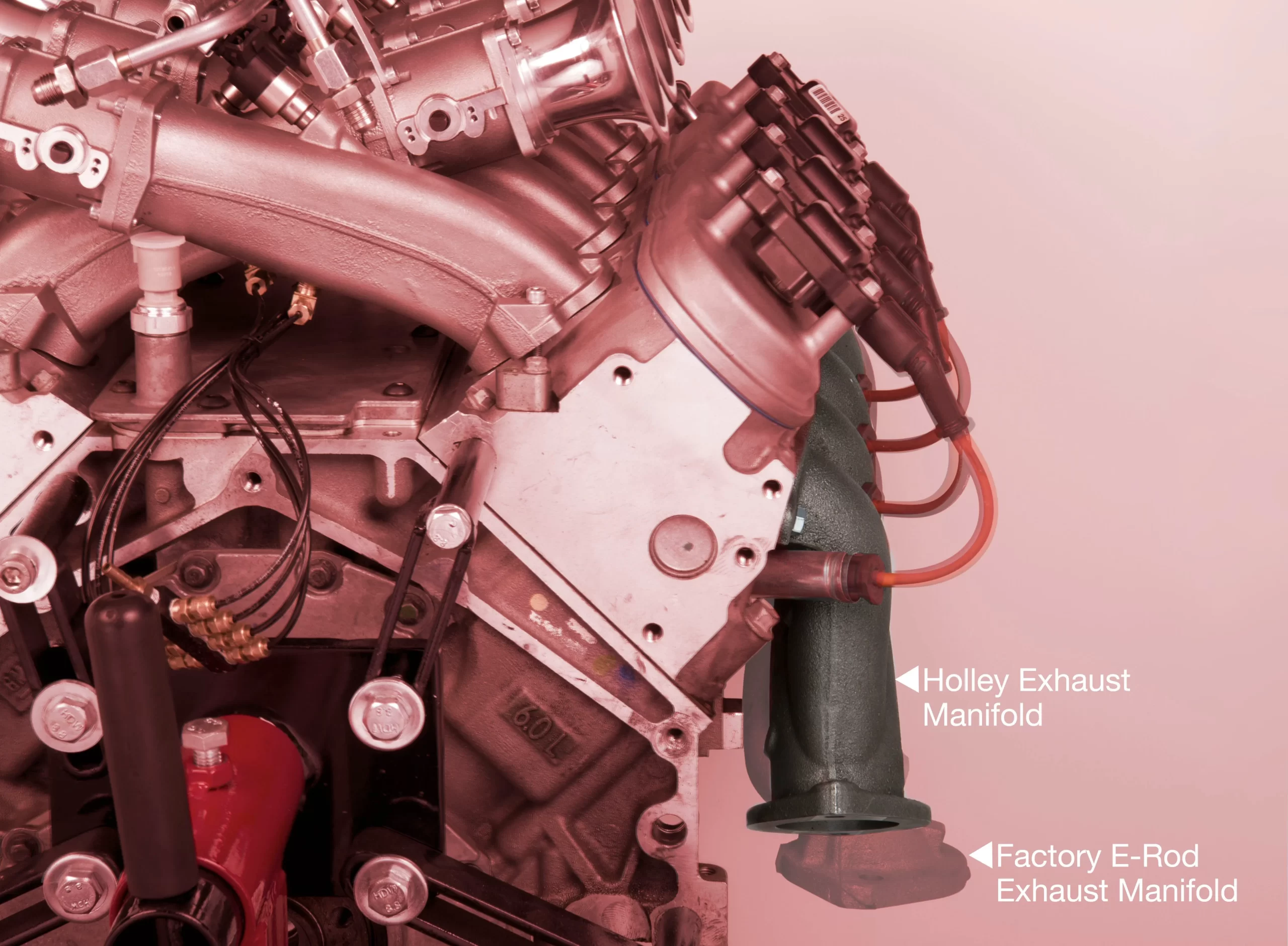

- 2 bolt exit flange configuration matches the E-rod exhaust manifolds for a factory like fitment. This allows the use of factory gaskets and fasteners if desired
- Cast from Hi-Silicon-Moly Ductile Iron to provide durability and corrosion resistance
- Tight tuck design provides universal fit for most popular chassis and a clean traditional muscle car appearance
- Perfect complement to Hooker engine swap mount plates and Holley engine swap oil pans
| Application | Multi-fit |
|---|---|
| Bolt Size | M8 x 1.25 x 25mm |
| Brand | Hooker BlackHeart |
| CARB (California) Compliant | No |
| Choose Your Part | Manifold |
| Collector Diameter | 2.25 inch |
| Emission Code | 8 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Exhaust Series | Hooker |
| Finish | Titanium Ceramic |
| Header Finish | Titanium Ceramic |
| Header Style | Manifold |
| Material | Cast Iron |
| Primary Tube Dia. | 1-3/4 inch |
| Product Type | Manifold |
| Subframe | Stock |
| Tube Material | Cast Iron |
| Type of Component | Manifold |
| UPC | 090127681275 |
| Part Number | 8501-4HKR |
