HOLLEY SNIPER
SNIPER 340 LPH FUEL PUMP MODULE
Fits 1983-1997 Ford Mustang
Part # 12-345

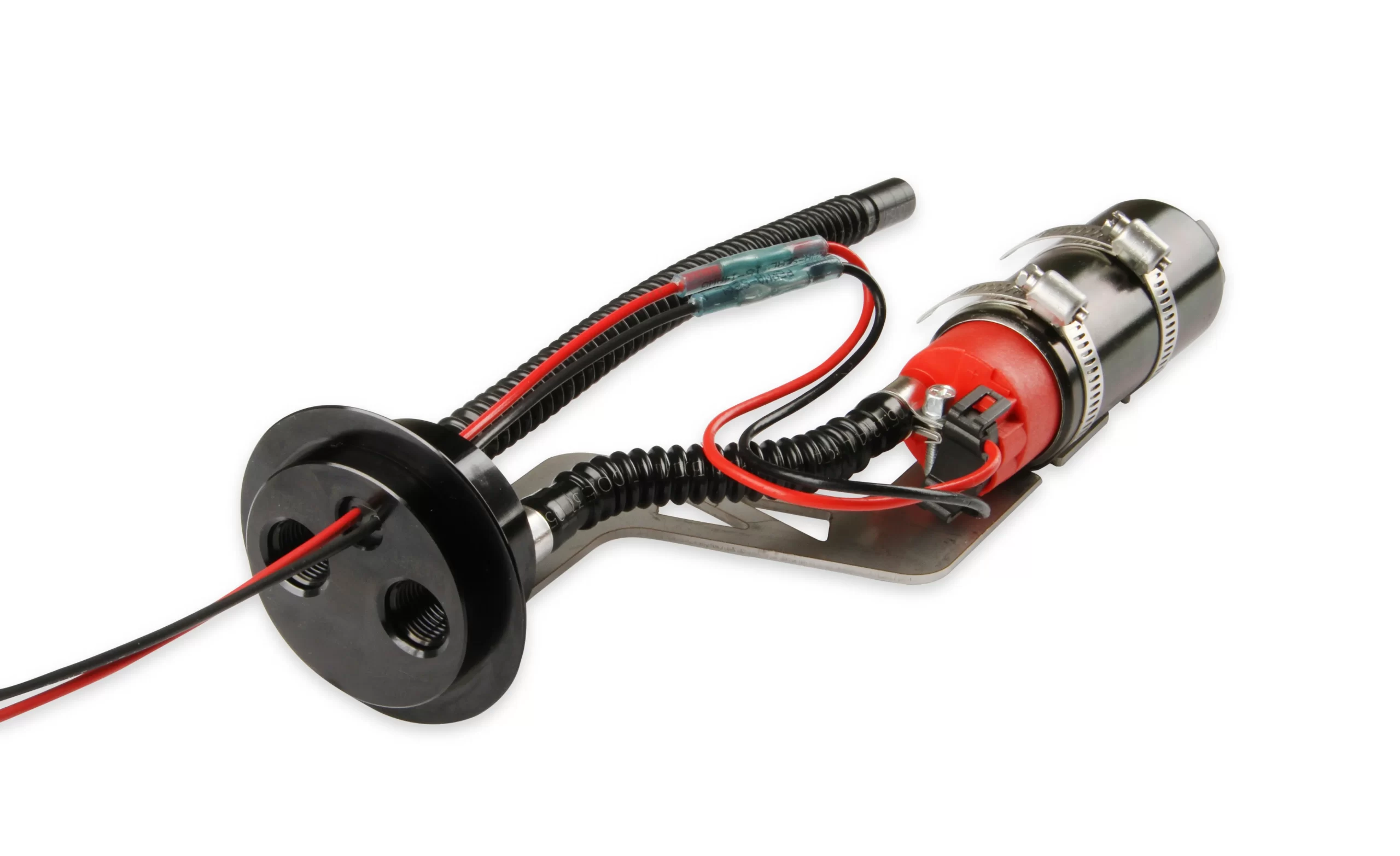

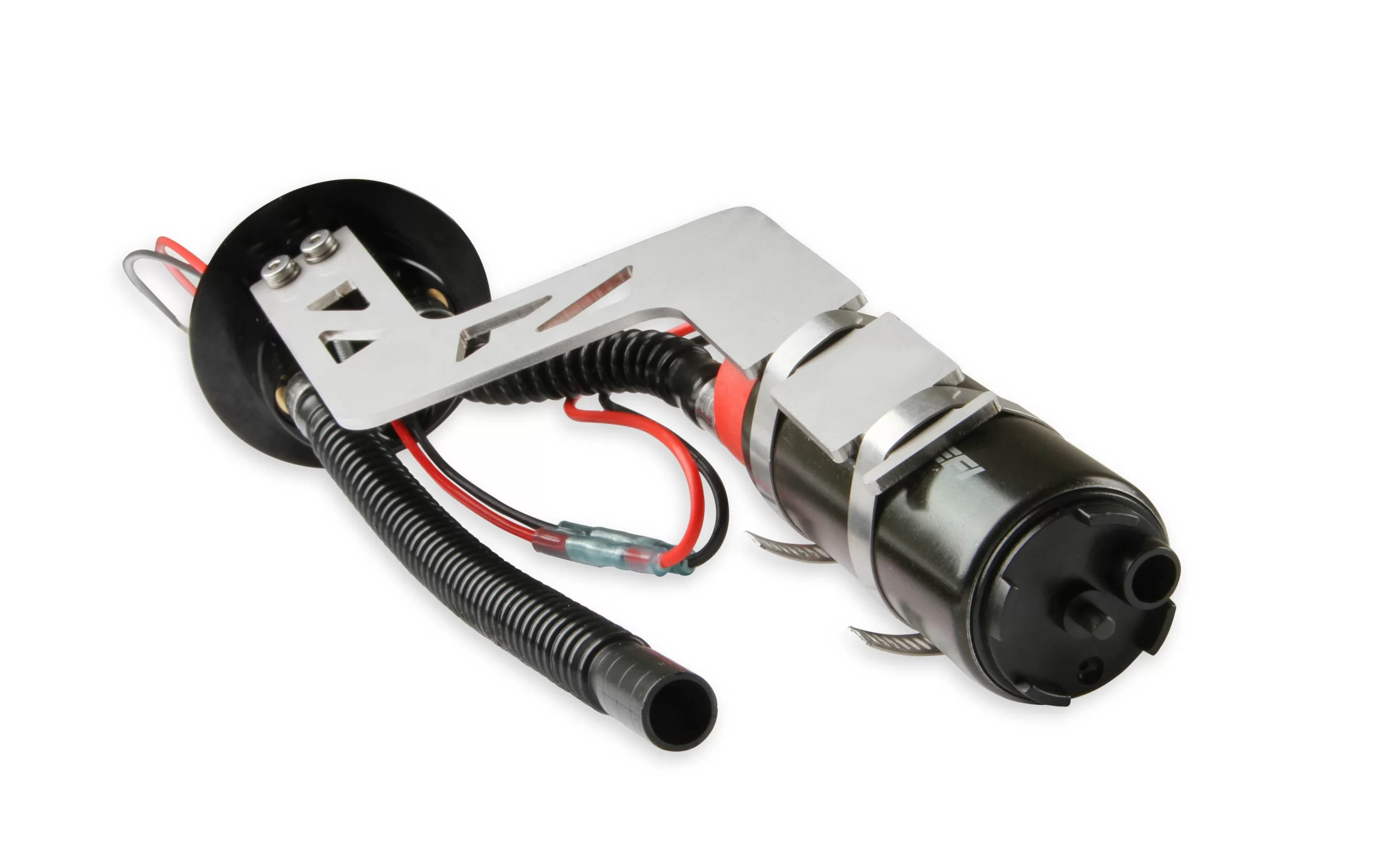

This direct fit fuel pump module will drop directly into any 1983-1997 Ford Mustang EFI fuel tank. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 16.9 AMP Draw) The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.
Features:
- 6061-T6 Aluminum fuel pump module with a 340 LPH (liters per hour) Sniper pump assembly drops into stock 1983-1997 Mustang EFI fuel tanks

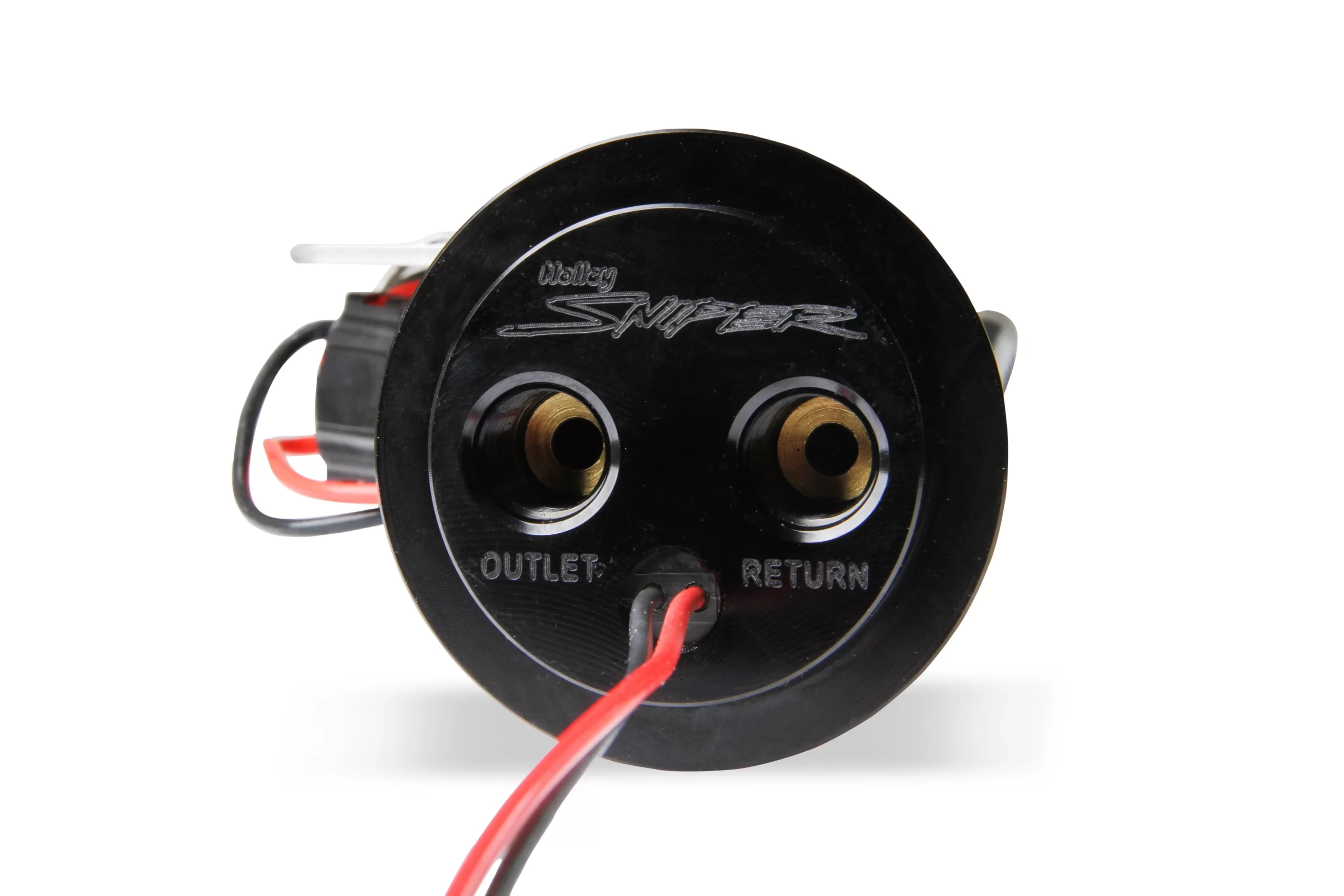

- 6AN o-ring outlet and return ports for easy plumbing connections

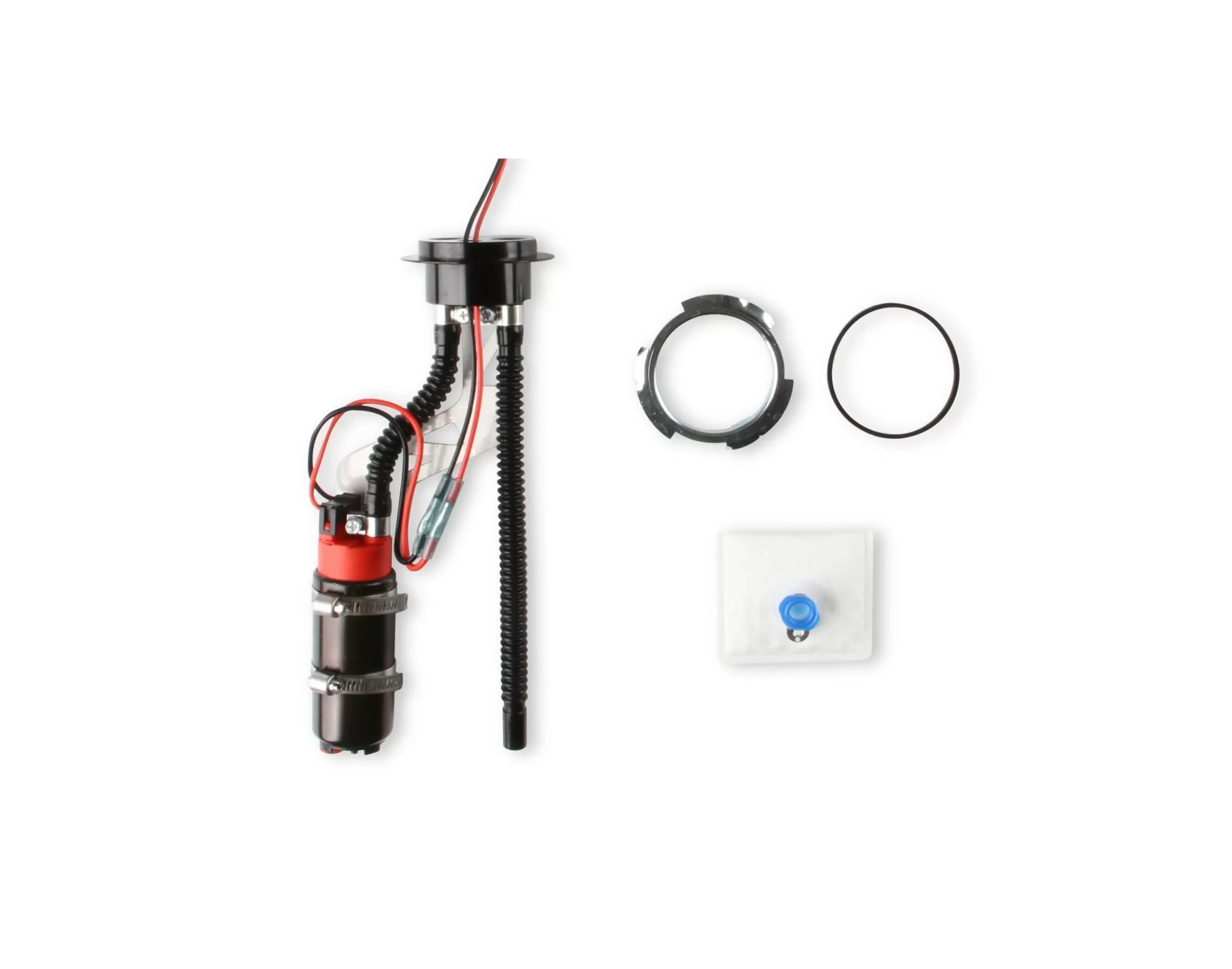

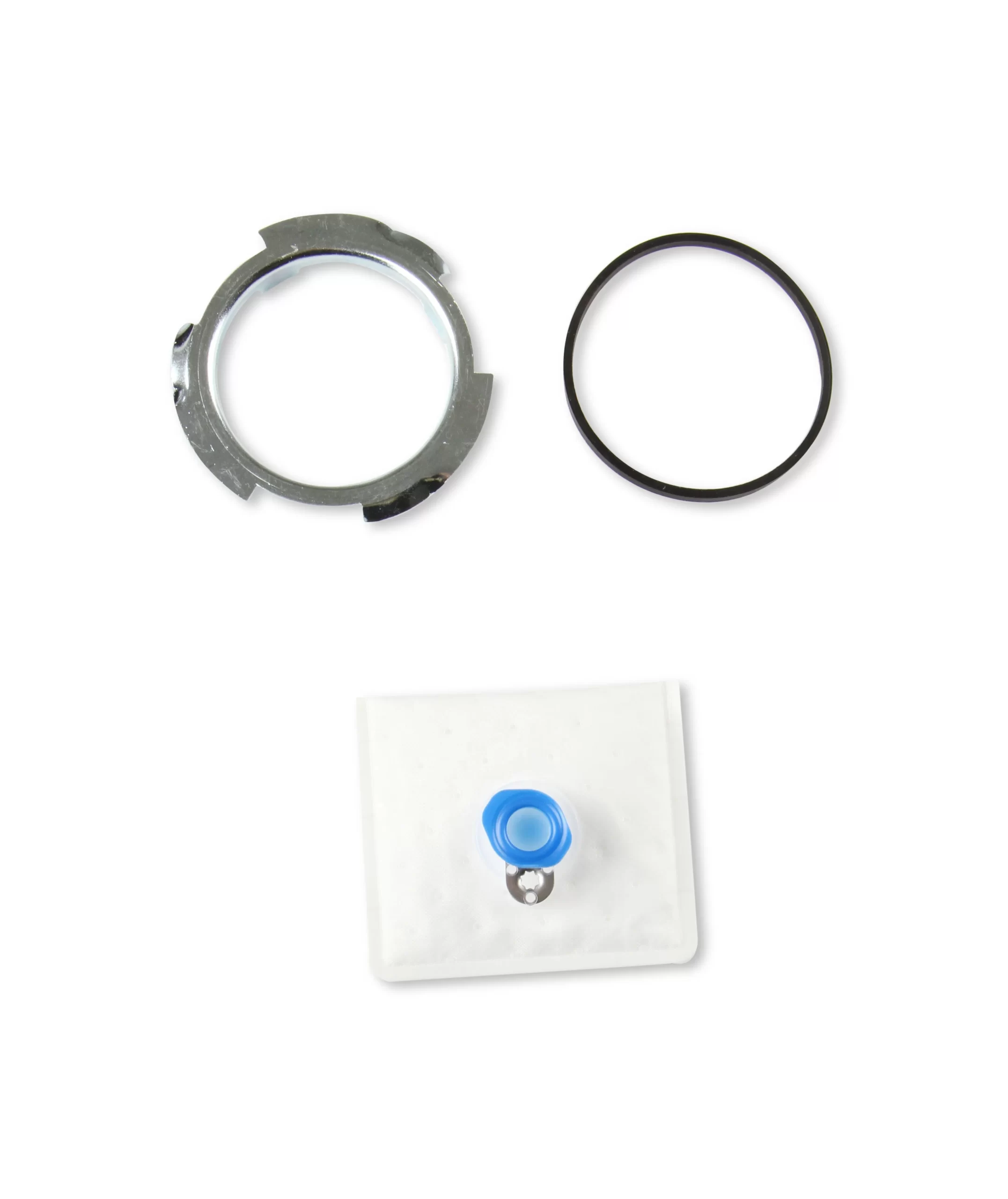

- Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation
- Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your needs
- Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc…
- Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
- The flange is bright dip black anodized for corrosion protection from undercar moisture.
| Application | 1983-1997 Mustang |
|---|---|
| Brand | Holley Sniper |
| Emission Code | 5 |
| Free Flow LPH | 340 |
| Fuel Type | Gasoline/E85 Compatible |
| Material | 6061-T6 Aluminum |
| Product Type | Fuel Pump Module |
| Warranty | Limited 90 Day |
| UPC | 090127085325 |
| Part Number | 12-345 |
