HOLLEY

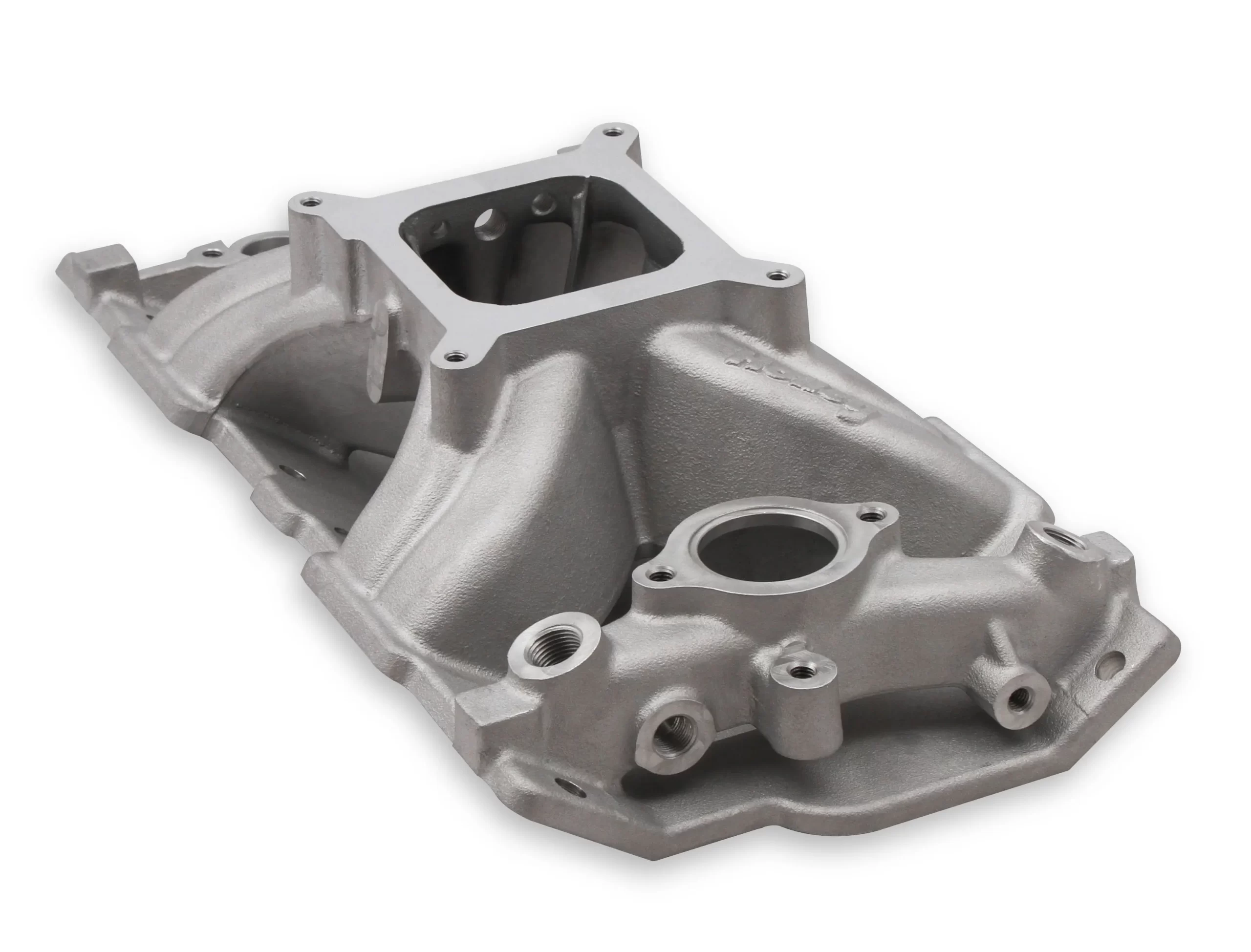

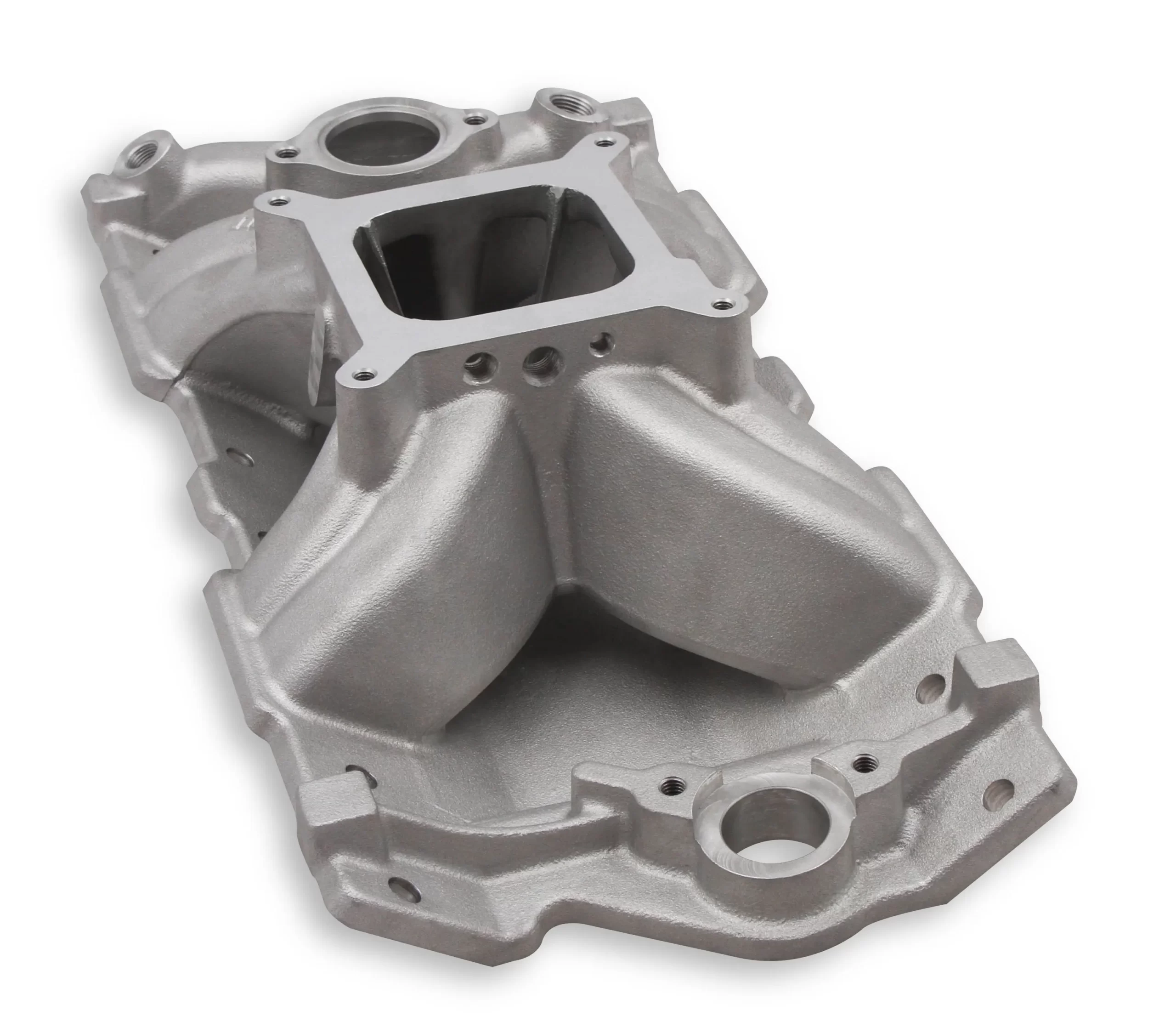

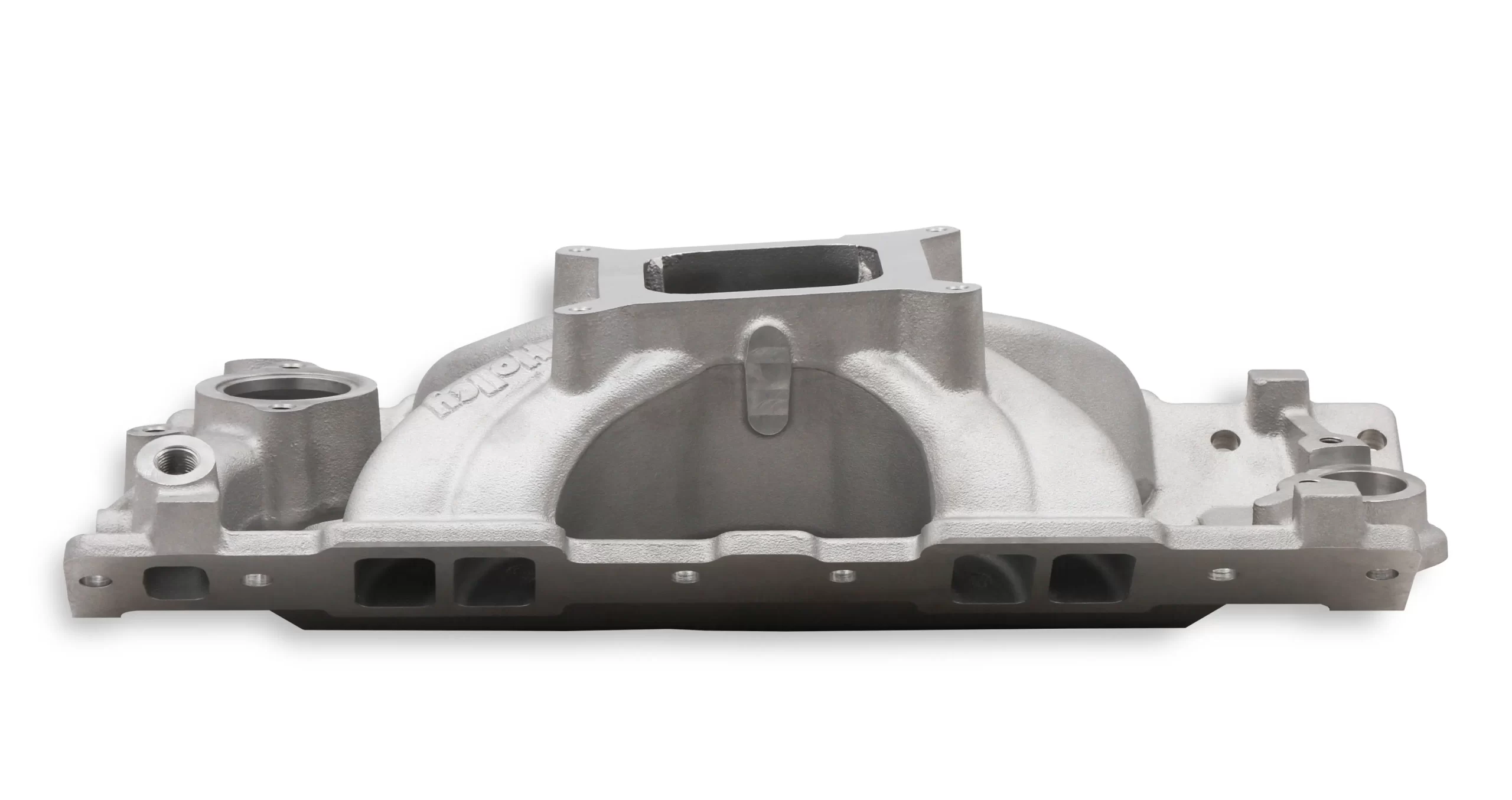

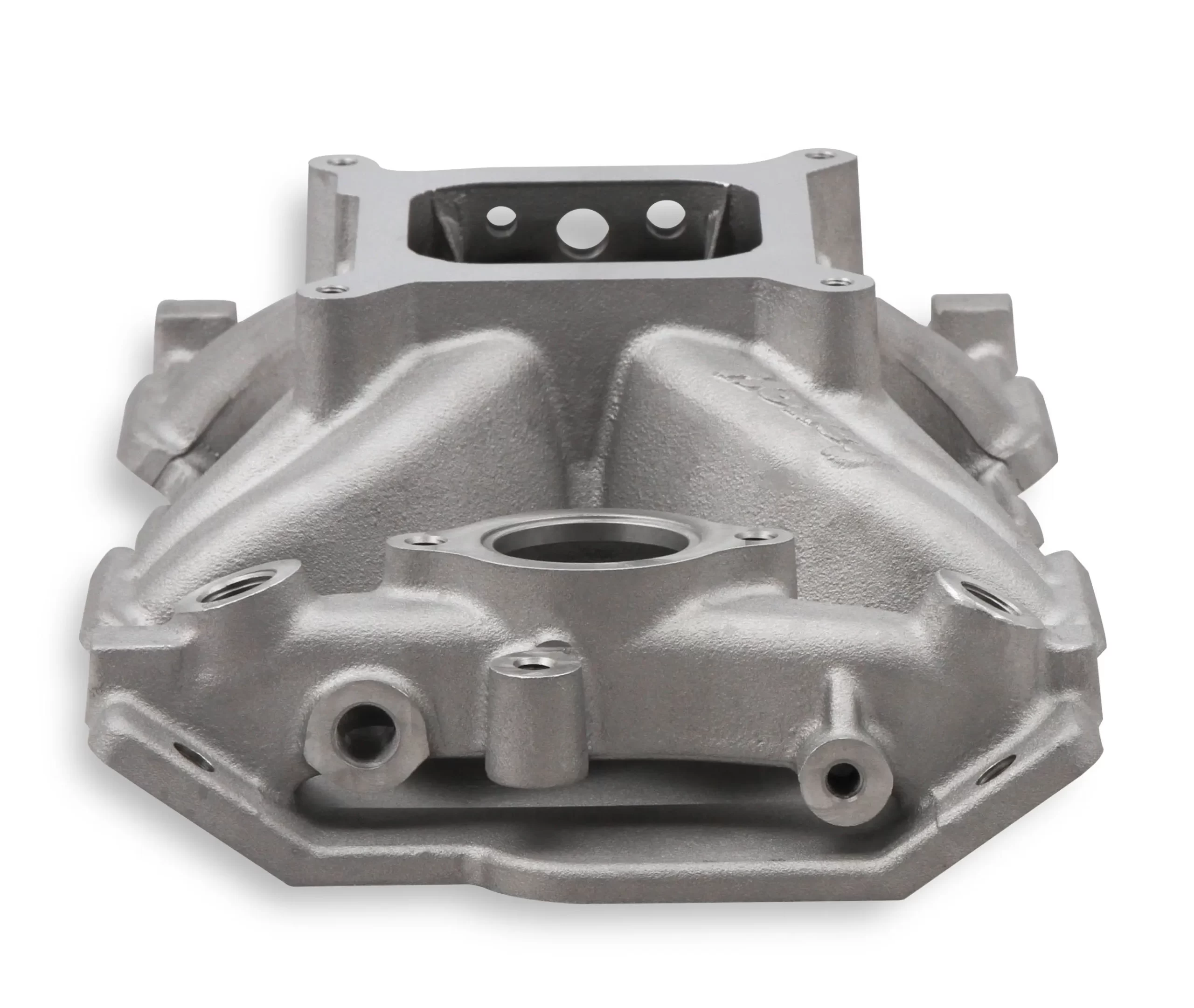

HOLLEY SINGLE PLANE INTAKE MANIFOLD- CHEVY SMALL BLOCK V8
Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads
Part # 300-261

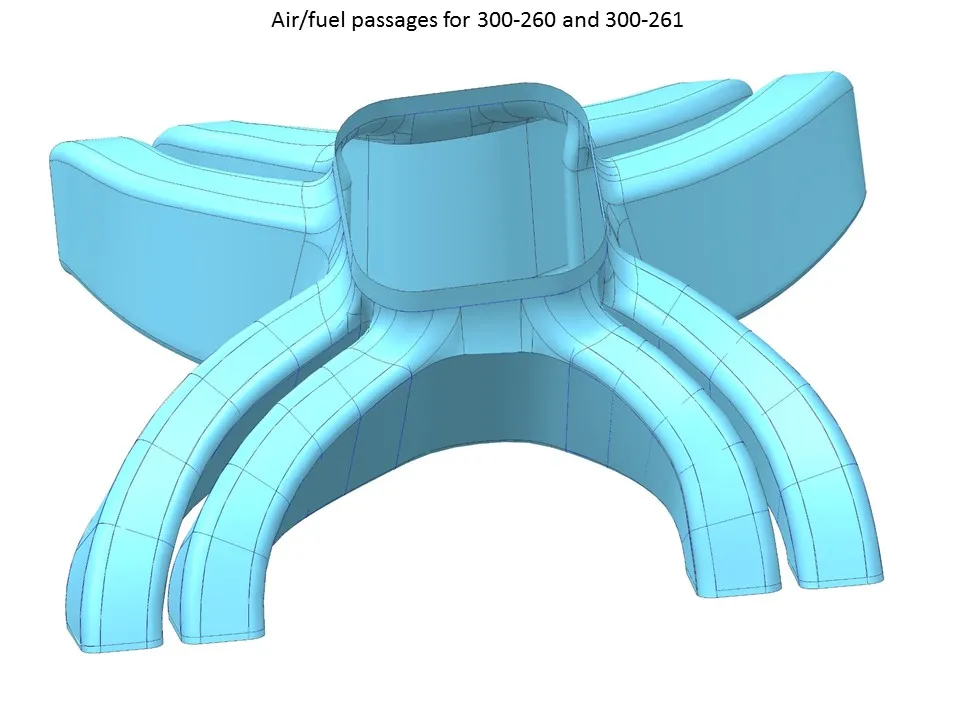

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1″ shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.
Features:

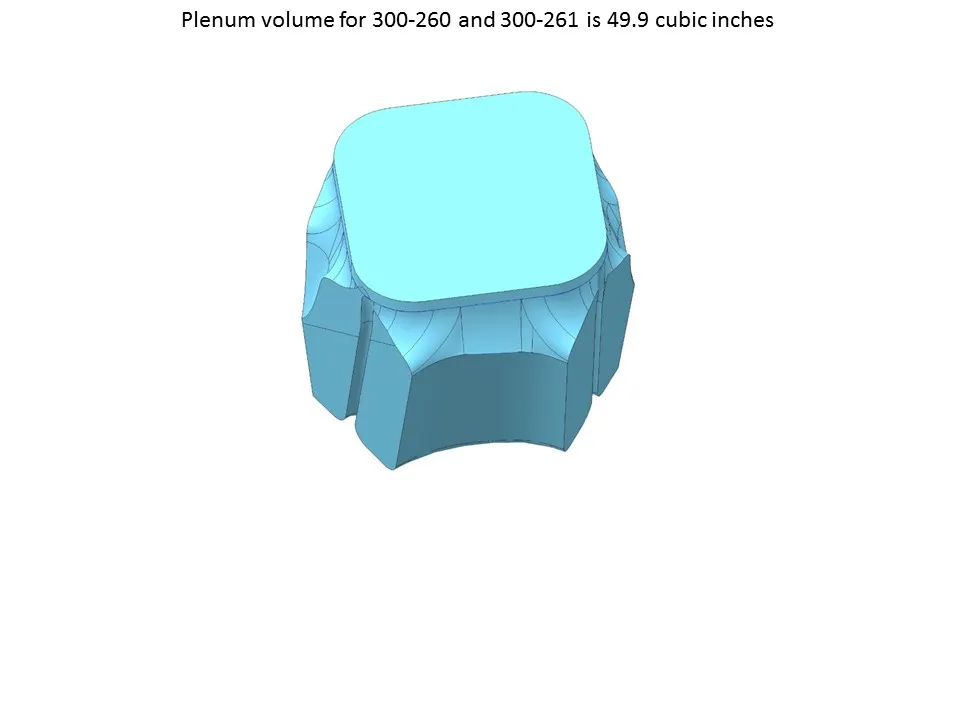

- Single Plane with Isolated Plenum

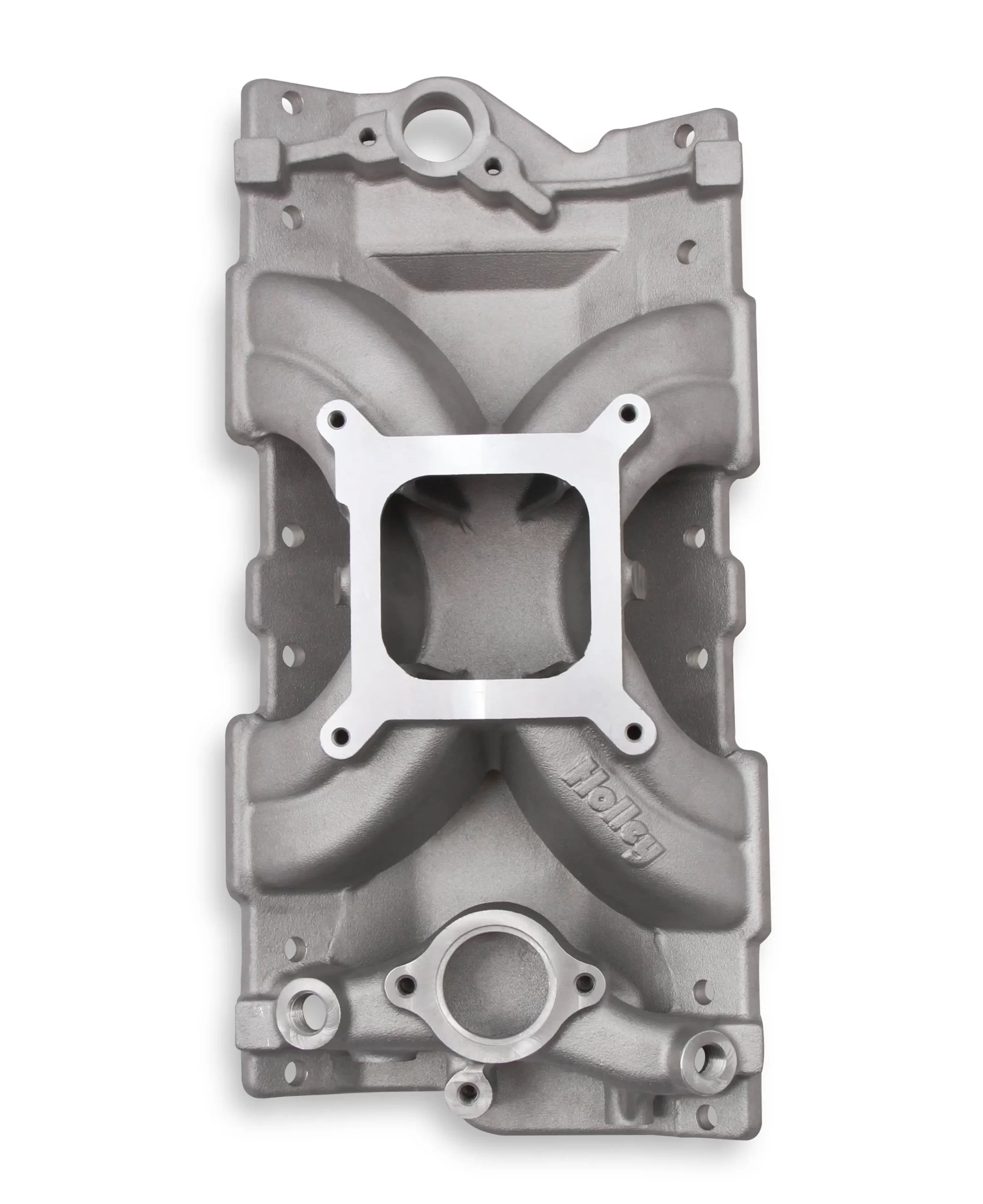

- Square Bore Carburetor Mounting Flange
- Isolated Water cross-over
- Power band: 2500-7500 RPM

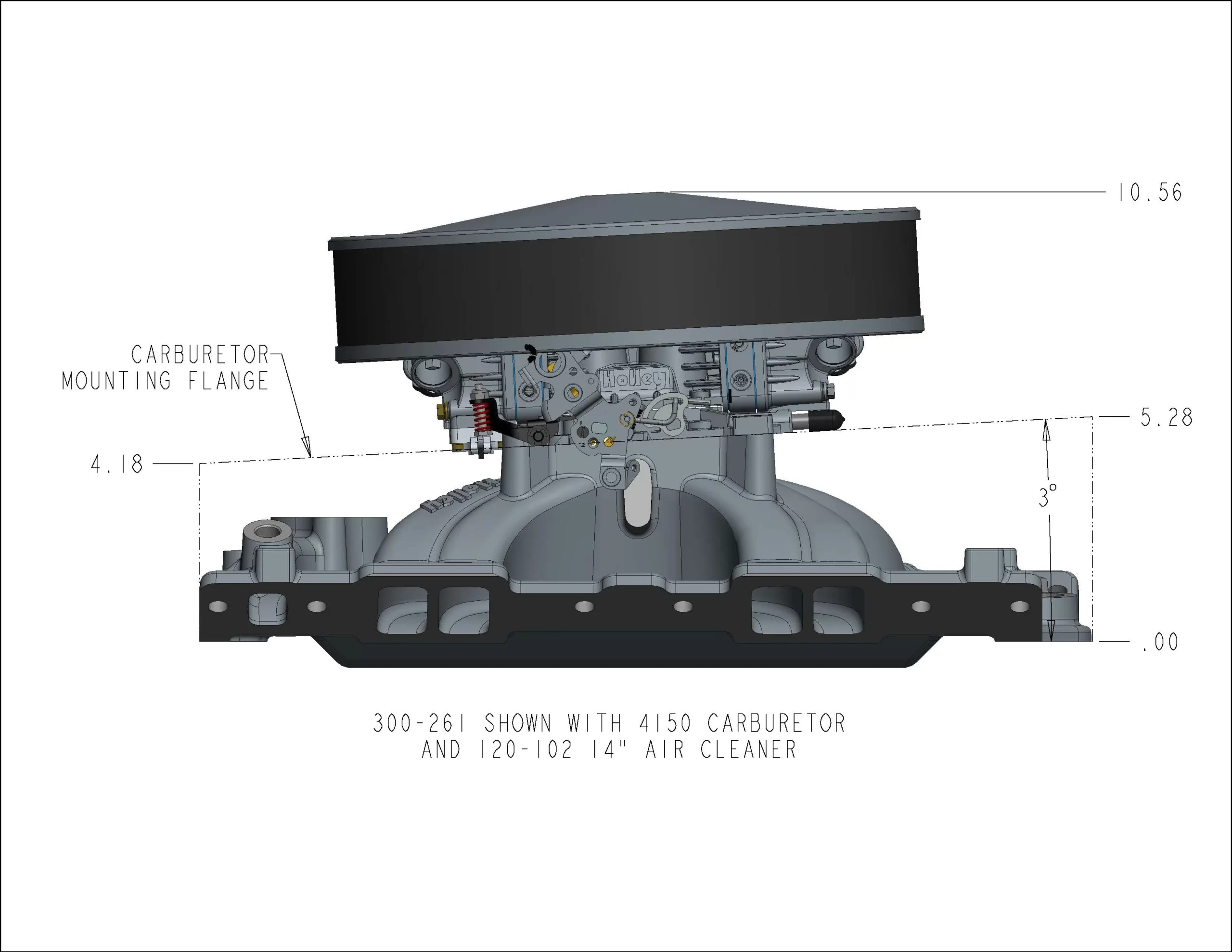

- Height: Front 4.18″, Rear 5.28″

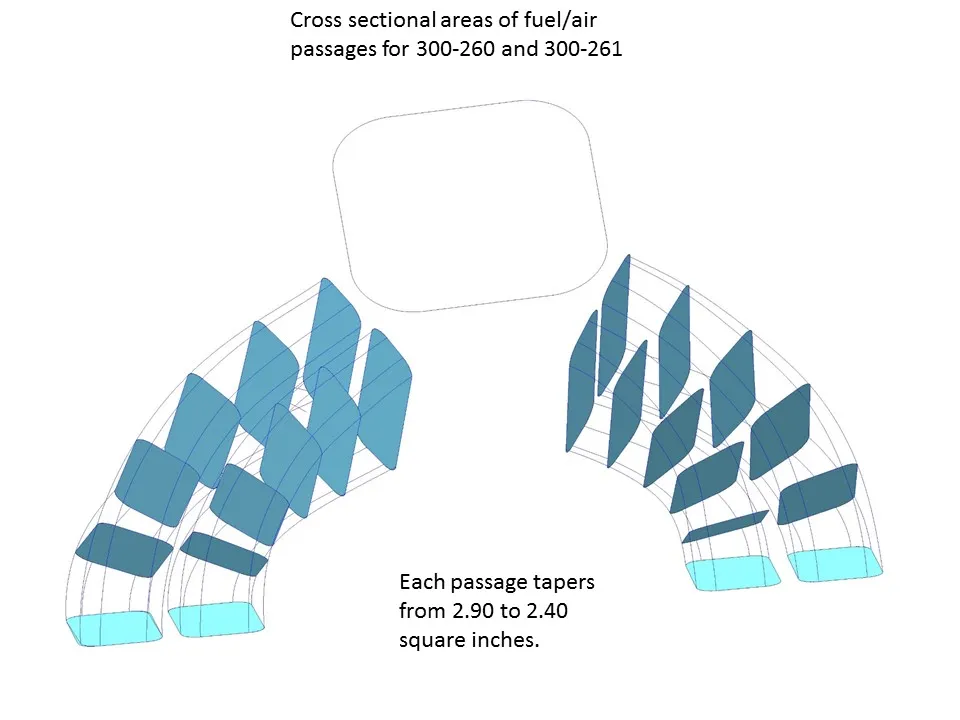

- Port Size: 1.92” height 1.20″ width
| Barrels | 4 |
|---|---|
| Brand | Holley |
| Construction | Cast |
| Emission Code | 3 |
| Engine | Chevrolet Small Block Gen I |
| Finish | Satin |
| Front Height | 4.18″ |
| Fuel System Type | Carb |
| Manifold Type | High Rise |
| Product Type | Manifold |
| Rear Height | 5.28″ |
| RPM Power Band | 2500-7500 RPM |
| Warranty | Limited 90 Day |
| UPC | 090127052136 |
| Part Number | 300-261 |
