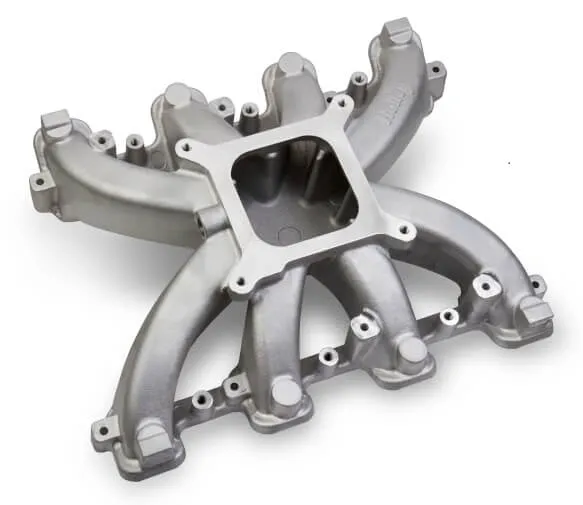

HOLLEY SINGLE PLANE INTAKE – GM LS1/LS2/LS6
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Part # 300-132
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Features:
- 2500-7000 RPM power band
- 4150 Square bore carb mounting flange (accepts up to 1.75″ diameter throttle bores)
- Optimized runner layout and constant cross sectional area – broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height – fits in vehicles with minimum hood modifications
- Cast aluminum construction – great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design – lightweight, consistent wall thicknesses, improved casting quality
- Weight – 11.5 lbs.

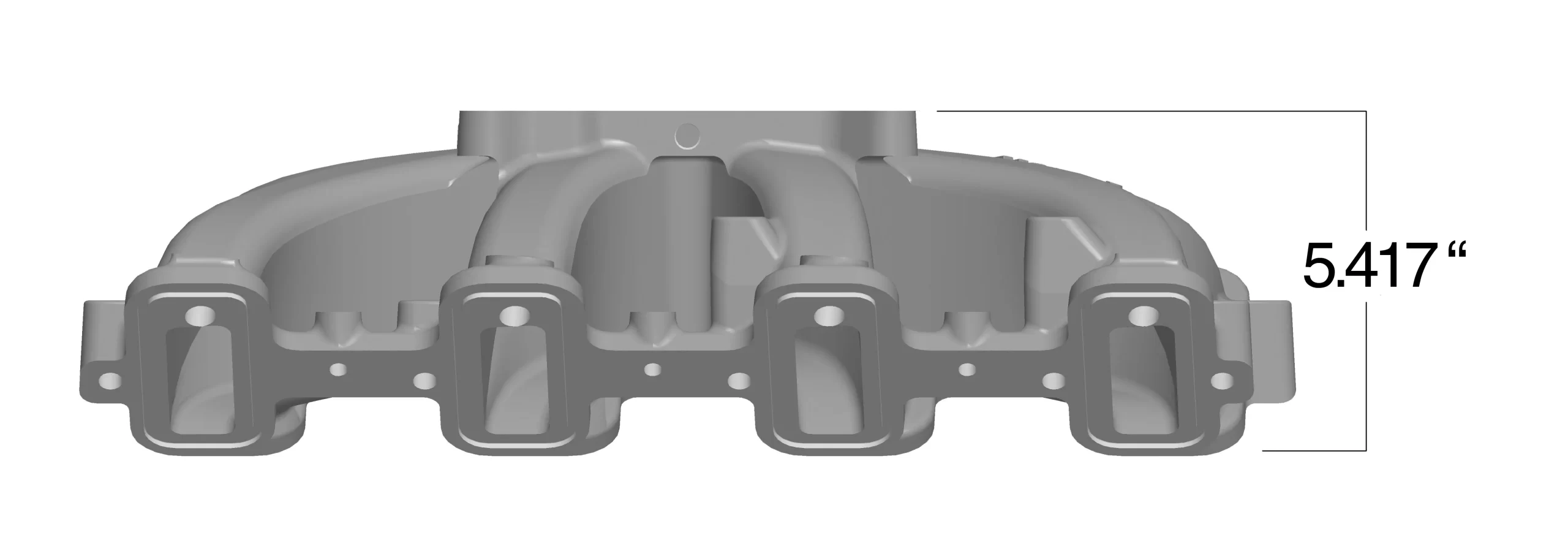

- Height (front) – 4.95″ to the lifter valley cover flange at the engine block front flange
- Port size – 2.659″ height x .918″ wide
- Includes Viton® intake to cylinder head O-ring gaskets – Viton® is a registered trademark of DuPont Performance Elastomers
| Barrels | 4 |
|---|---|
| Brand | Holley |
| Color | Silver |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Silver |
| Flange Style | 4150 Square Bore |
| Front Height | 4.95 inch |
| Fuel System Type | Carb |
| Manifold Type | Single Plane |
| Product Type | Intake Manifold |
| Rear Height | 4.95 inch |
| RPM Power Band | 2500-7000 RPM |
| Warranty | Limited 90 Day |
| UPC | 090127687734 |
| Part Number | 300-132 |
