HOLLEY HOLLEY PUMP MODULE SYSTEM – SINGLE 450 LPH Fits 1998-2002 F-Body Camaro / Firebird – Single 450 LPH Pump Module Part # 12-363

Original price was: $512.00.Current price is: $479.95.

+ FREE SHIPPING

Out of stock

Guaranteed Safe Checkout

-

HOLLEY

HOLLEY PUMP MODULE SYSTEM – SINGLE 450 LPH

Fits 1998-2002 F-Body Camaro / Firebird – Single 450 LPH Pump Module

Part # 12-363

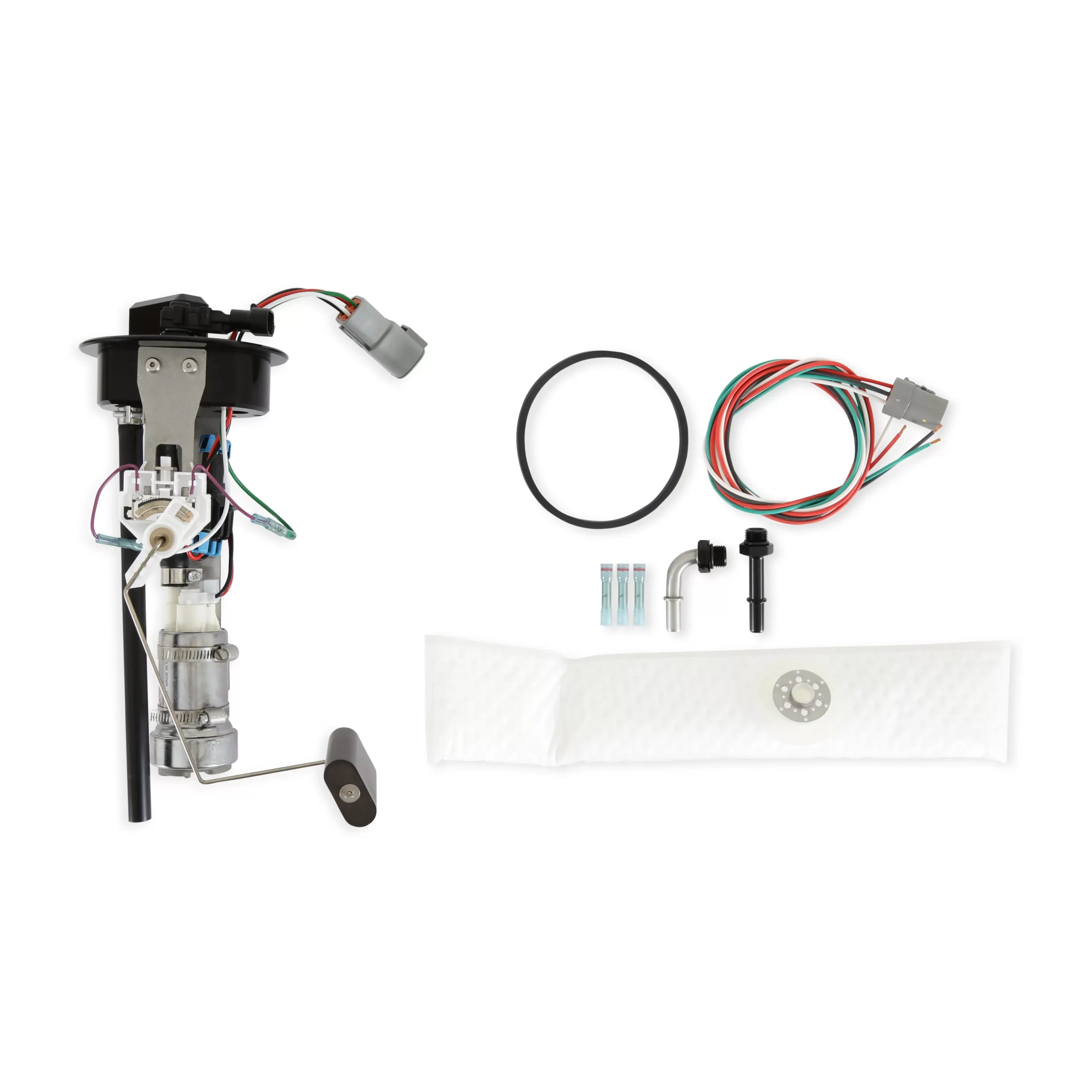

If you are looking to make some serious power with your 1998-2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 LPH pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory EVAP system for EPA compliance. Each module also comes with all the parts and pieces necessary to complete the installation. Included is a 3″ x 11″ Hydramat filter that leverages surface tension to draw from nearly any area that has contact with fuel eliminating starvation under hard acceleration or cornering. Also included is a new fuel pump gasket, wiring pigtails for the level sender and fuel pump, and fittings to connect to the factory quick connect feed and return lines. The modules are all return style, so don’t forget to pick up an EFI pressure regulator (such as the 19-392 or 19-395) to complete your installation. Part numbers in this series: Part #: 12-362 – Single 340LPH Pump Module Part #: 12-363 – Single 450LPH Pump Module Part #: 12-364 – Twin 340LPH Pump Module Part #: 12-365 – Twin 450LPH Pump Module

Features:

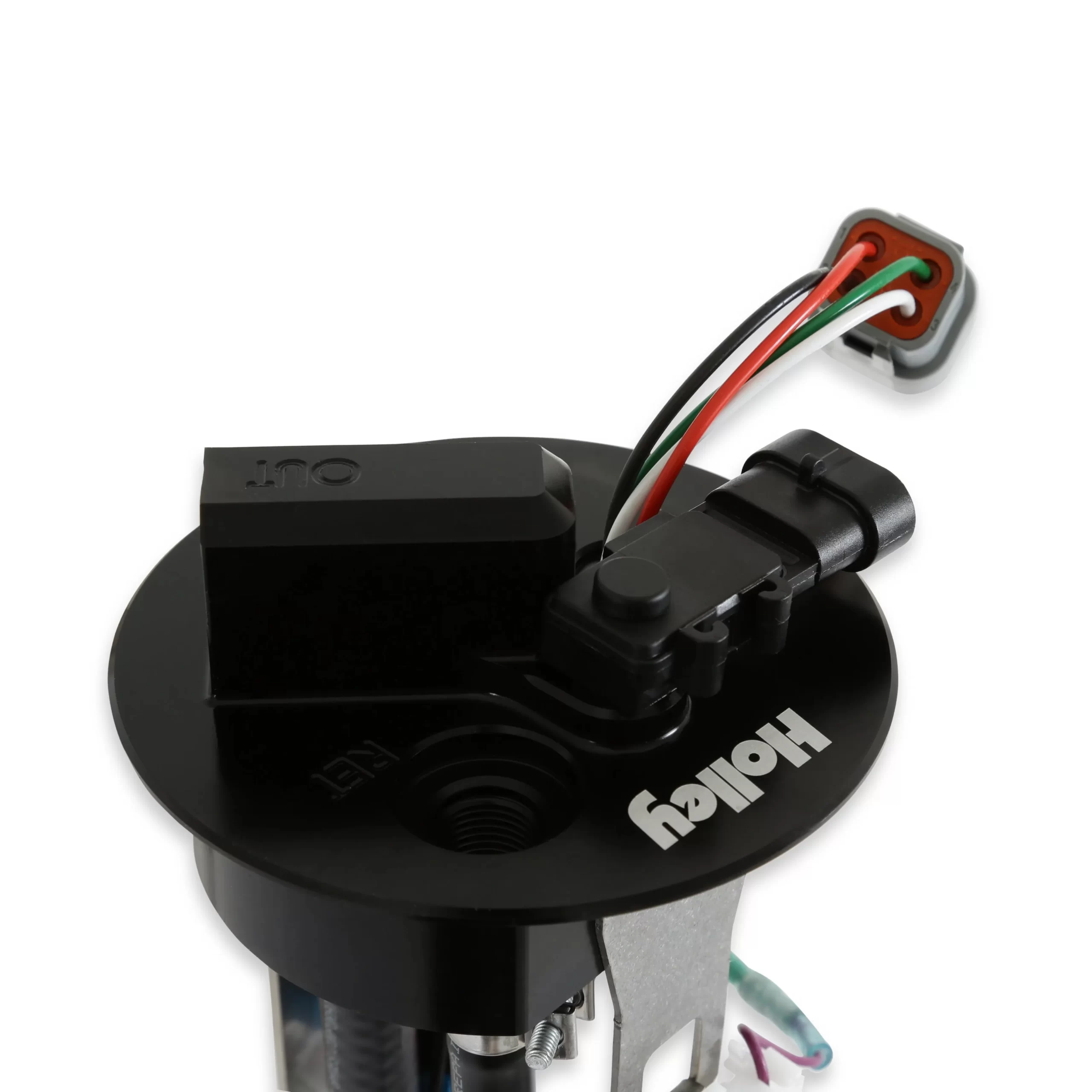

  • Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
  • All SKUs compatible with Gasoline AND E85
  • Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors

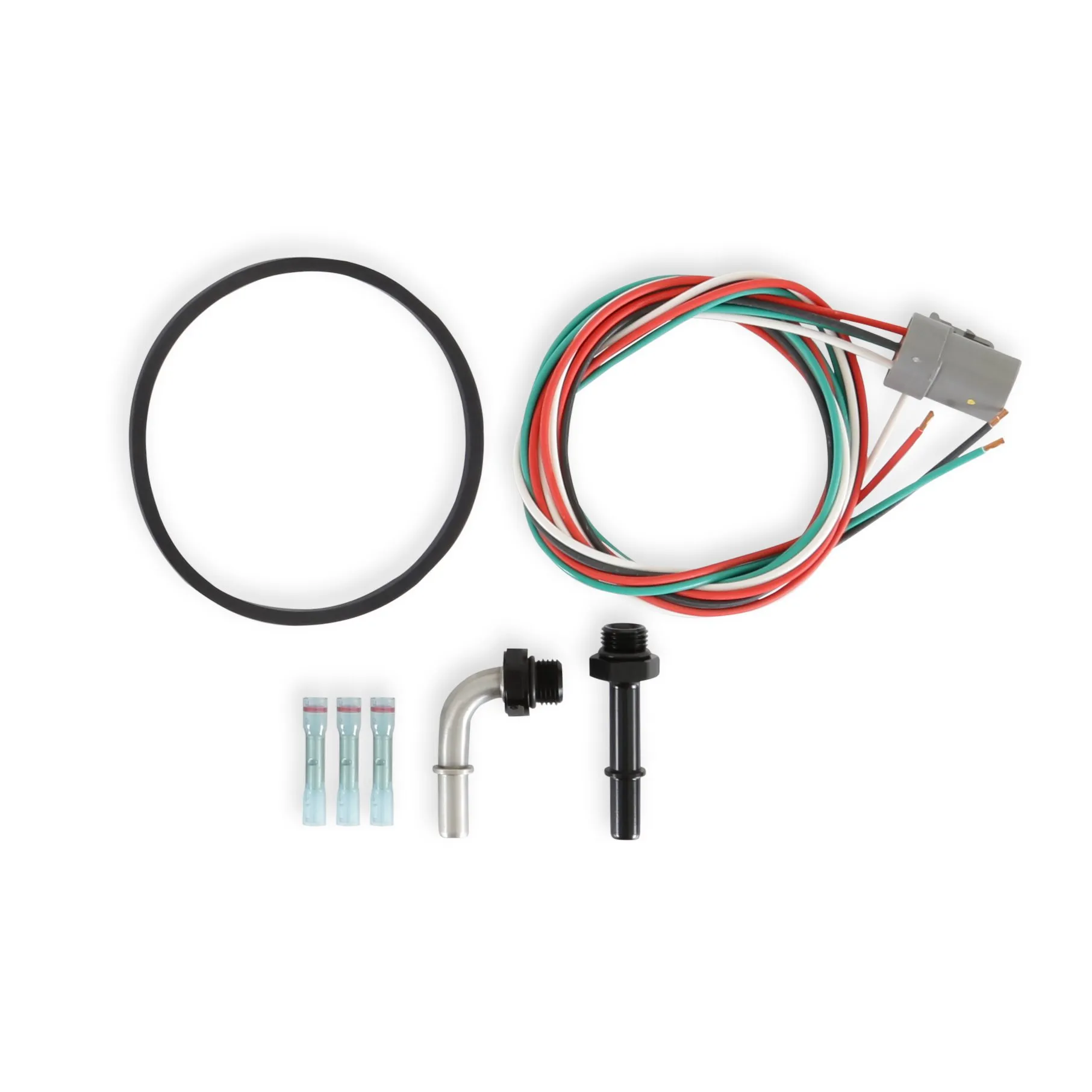

  • Includes new gasket to complete installation
  • 3 x 11-inch HydraMat is included for each pump
  • Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
  • Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
  • Flanges have been designed to be compatible with feed and return line sizes up to -8AN
  • Step-down butt connectors included to wire level sensor
  • Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL – sold separately)
  • Kit includes vehicle pigtail harness – All connectors used are DTM style
Brand Holley
Emission Code 5
Finish Anodized Black
Free Flow GPH 118
Free Flow LPH 450
Fuel System EFI
Fuel Type Gasoline/E85 Compatible
Material Billet Alluminum 6061-T6
Product Type Fuel Pump Module
Single or Dual Pump Single
Warranty Limited 90 Day
UPC 090127142059
Manufacturer Part Number 12-363
Part Number 12-363
Weight 4.6 lbs
Dimensions 12.6 × 6.3 × 9.4 in
