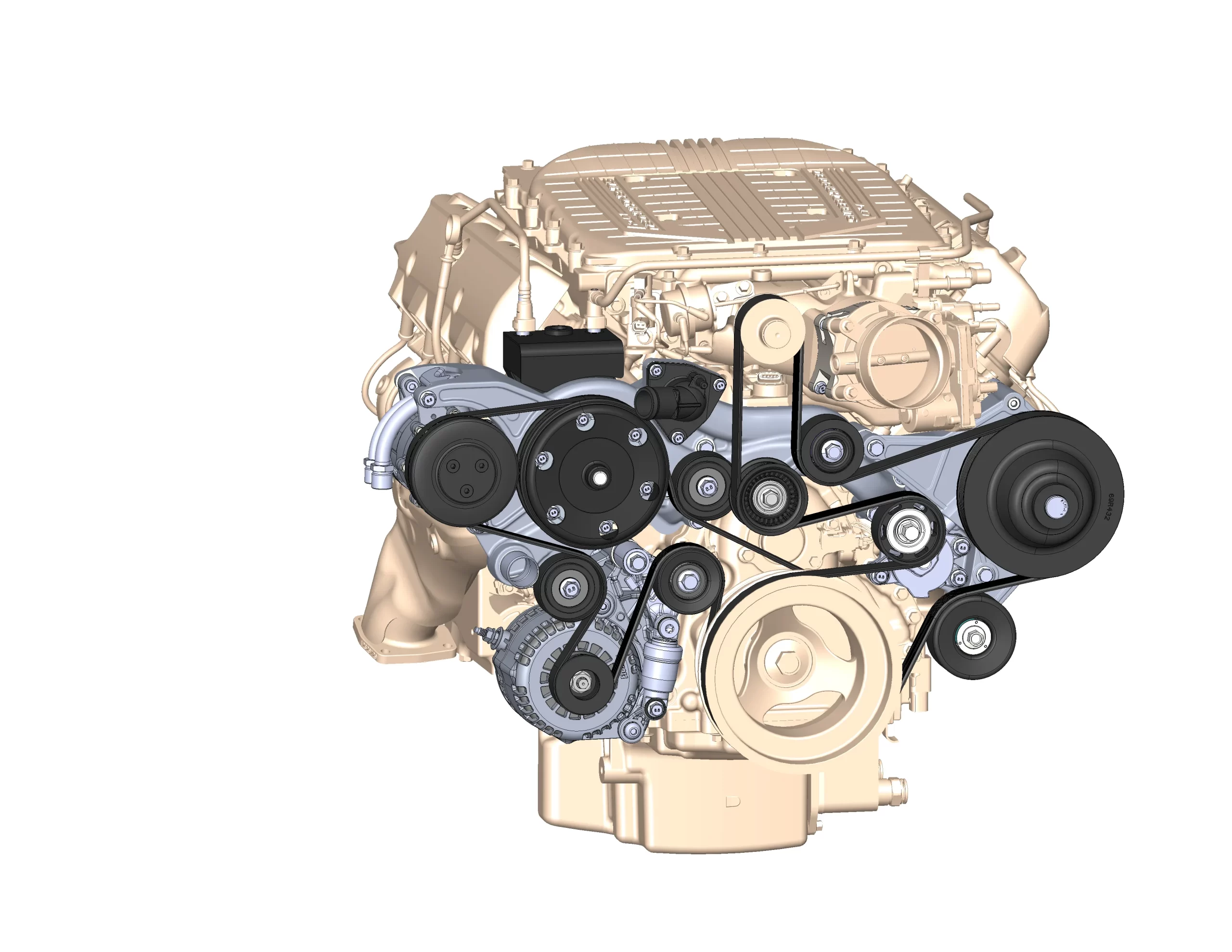

HOLLEY PREMIUM MID-MOUNT COMPLETE ACCESSORY SYSTEM FOR GM GEN V LT4 DRY SUMP ENGINES

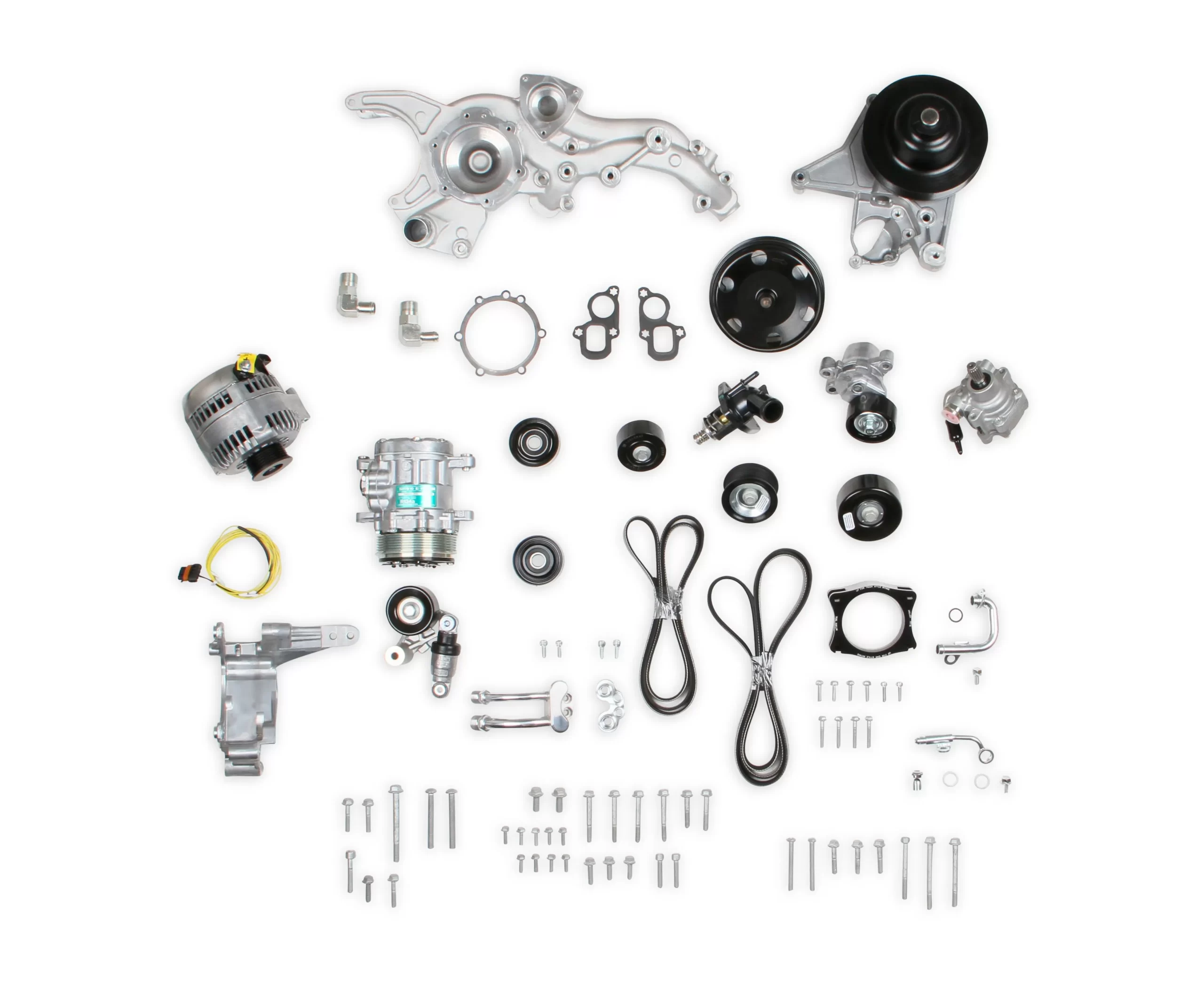

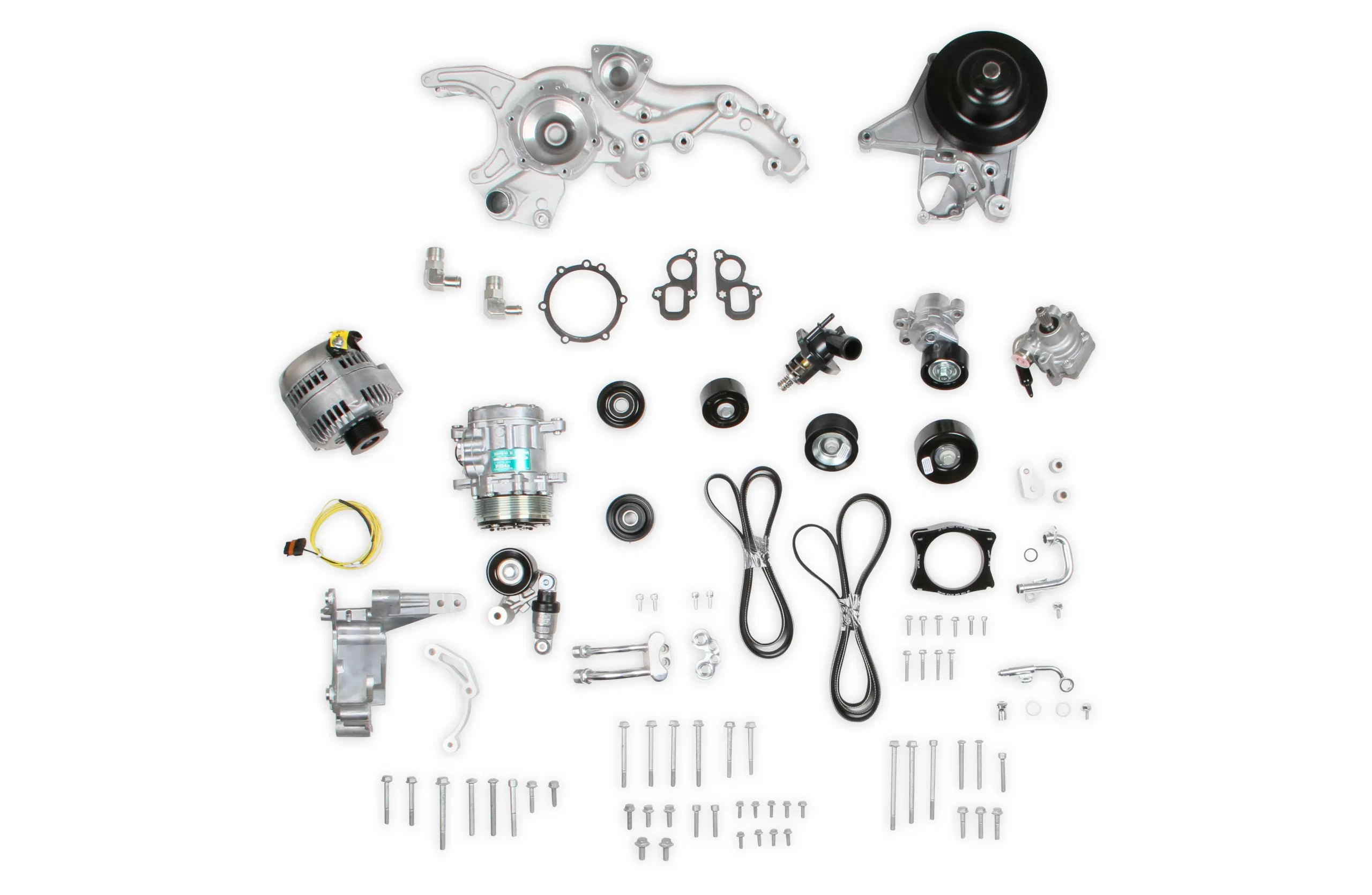

Complete GM Gen V LT4 Accessory Drive System w/ Alt, P/S, A/C, Water Pump, Belts, and hardware.
Part # 20-221

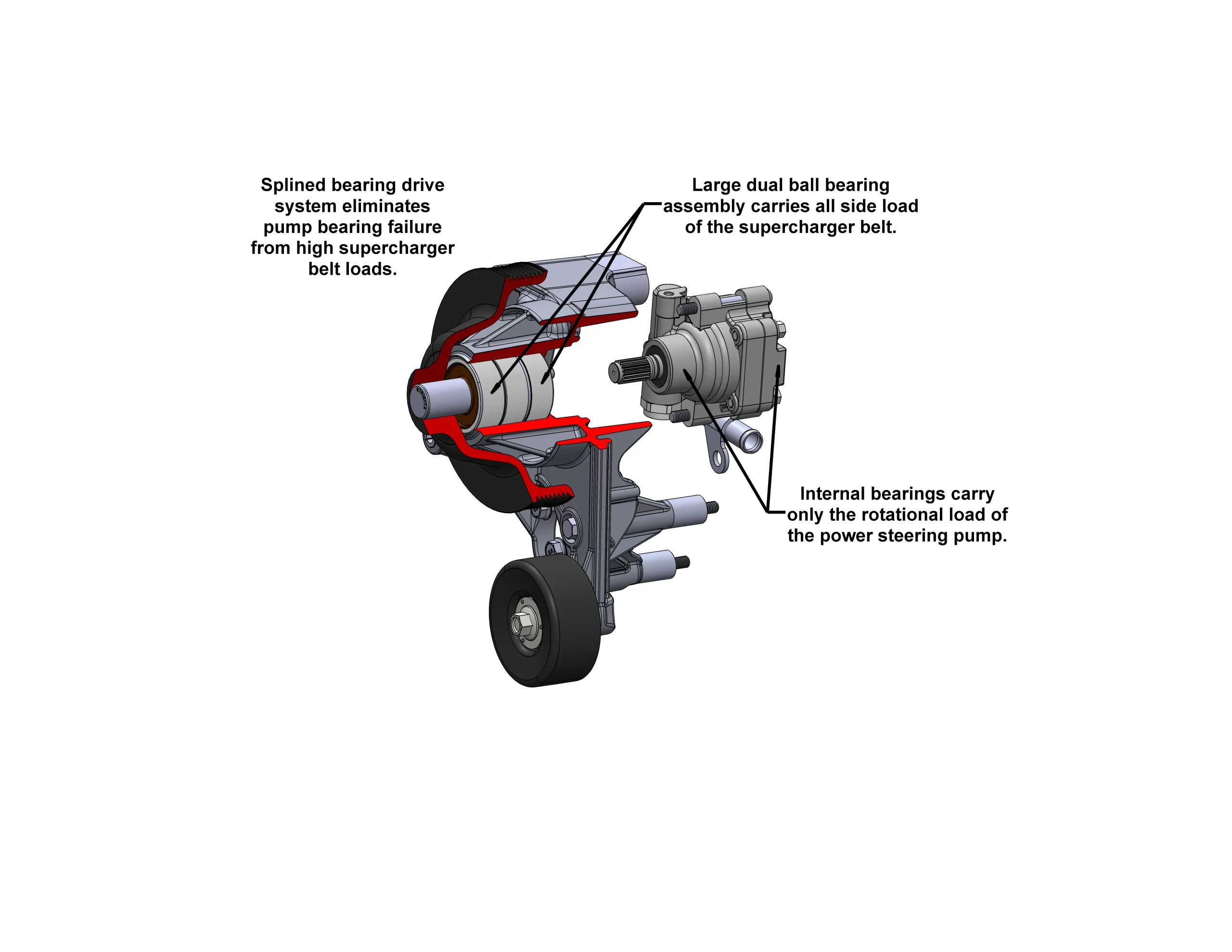

Holley’s complete accessory systems for LT4 and LT5 applications have all accessories pulled up and in tight. Plus, they add the much needed hydraulic power steering solution. There are no shortcuts here. Holley incorporates a splined dual bearing system that eliminates all belt stresses on the P/S pump’s internal bearings, assuring long life. The supercharger drive maintains the original and optimized belt path and tensioner. The accessory layout is as if the original manufacturer had designed it for your swap application. Included with each drive system is a throttle body angle correcting adapter that better positions the TB for swap applications as opposed to the aggressive original application intended angles. Versions of these accessory drives are available for both wet and dry sump applications. Patent – www.holley.com/patents/
Features:
- Adds power steering without any belt load on the P/S pump

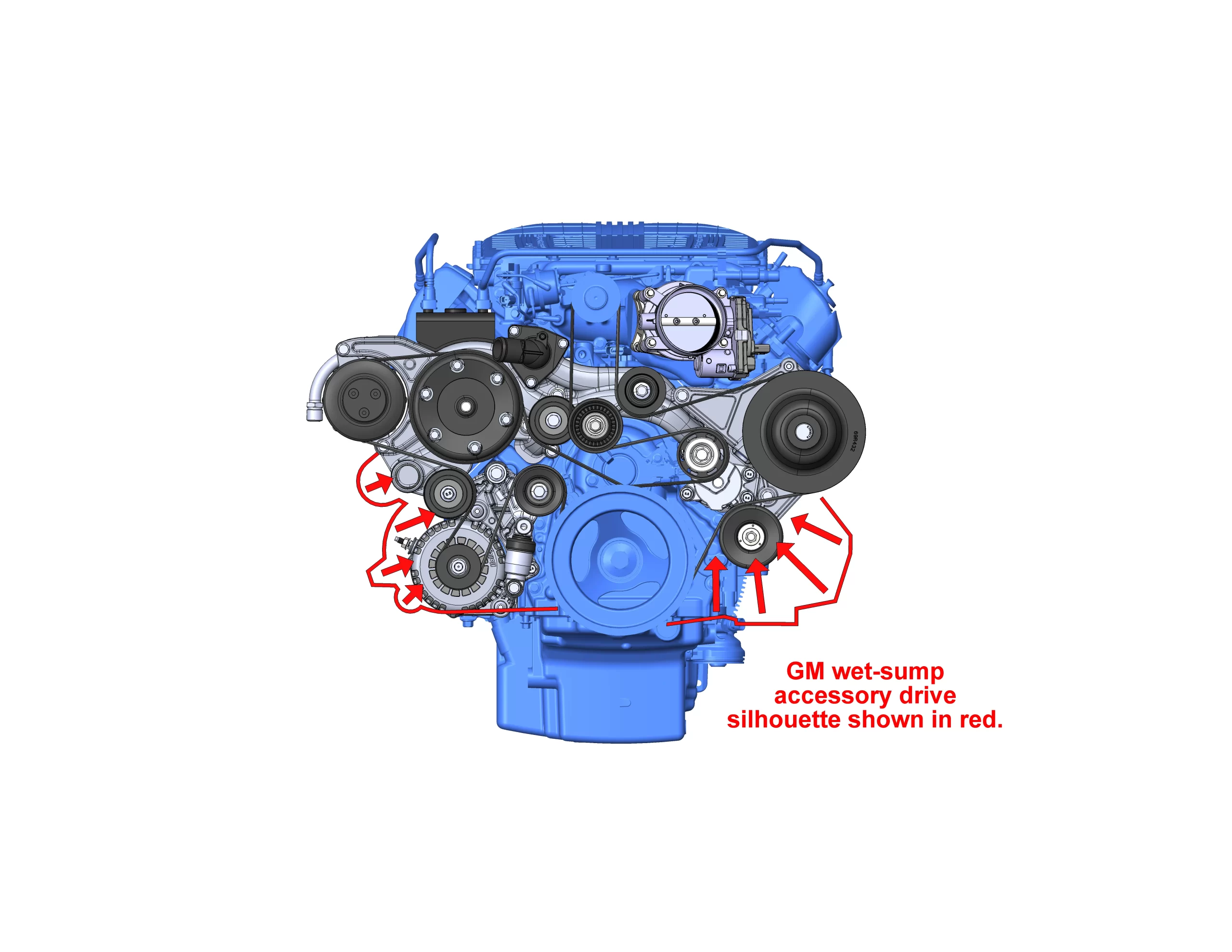

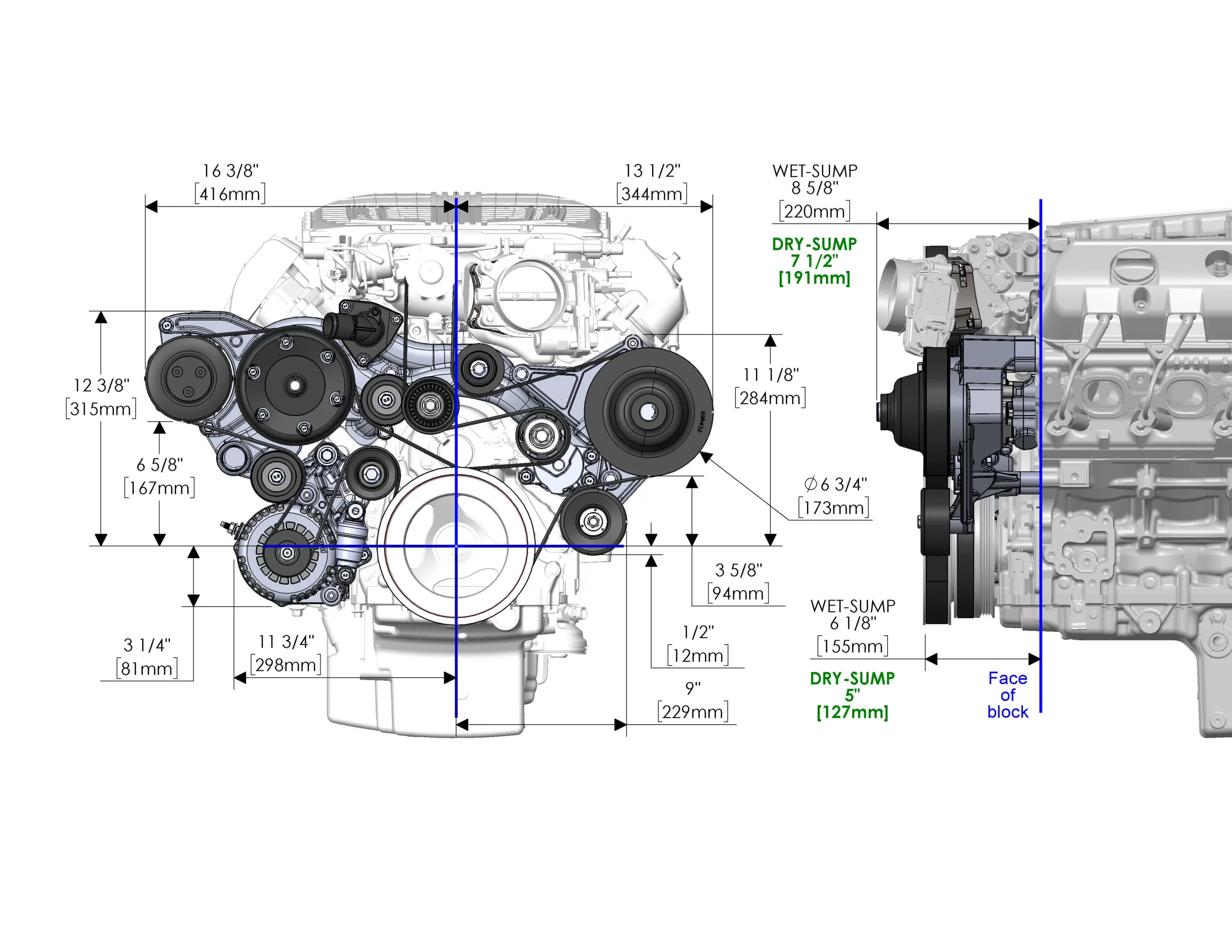

- Notably more clearance to swap applications than other options
- Original equipment look

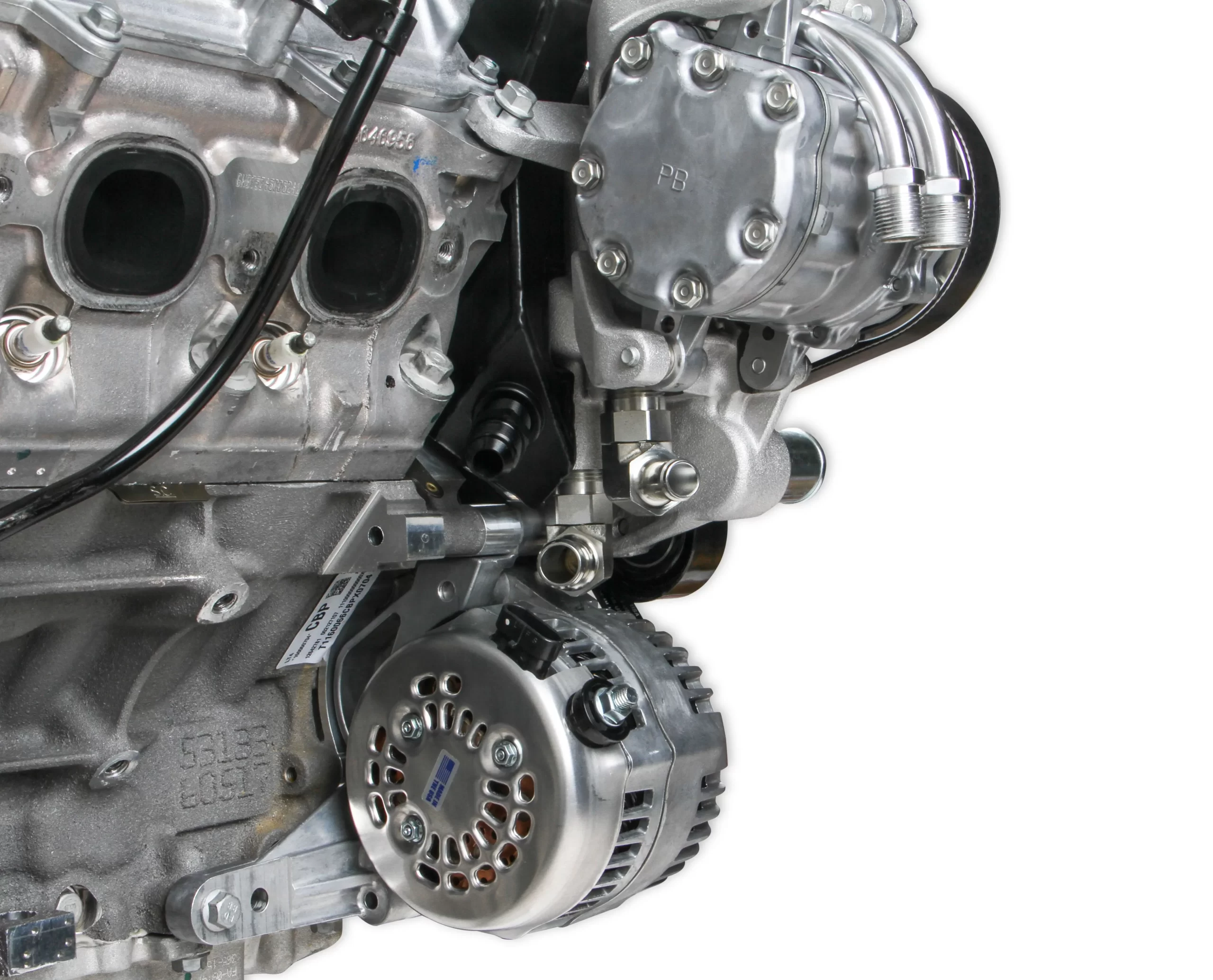

- LT4 style premium alternator
- LT4 style water pump design
- Compact SD7 A/C compressor
- A/C line adapters included
- Type II power steering pump
- P/S hard line adapters included
- Bottom outlet swivel heater hose options for swap application clearance

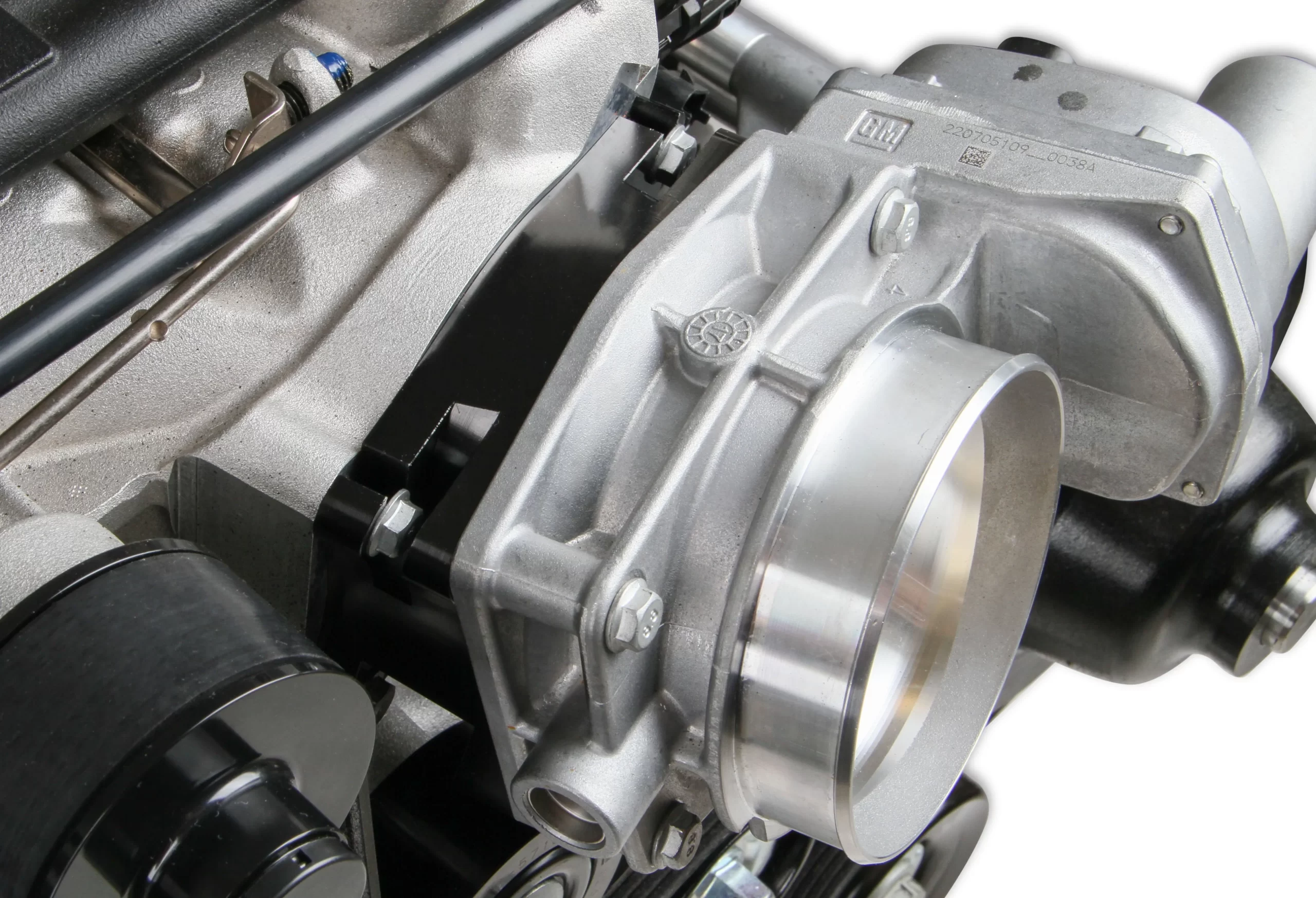

- Throttle body angle correcting adapter for easier intake tube routing on swap applications
- OE pulley ratios for optimal accessory performance, allows for larger SC crank pulley
- Available LT4/5 dry-sump & LT4 wet-sump applications
- LT4/5 specific accessories available for plumbing oil cooler and PCV oil separator OE system
| A/C Compressor Included | Yes |
|---|---|
| A/C Compressor Type | SD7 |
| Accessory Drive Style | Mid Mount |
| Alternator Amperage | 150 |
| Alternator Included | Yes |
| Application | GM Gen V LT4 |
| Belt Included | Yes |
| Brand | Holley |
| Choose Your Part | Accessory Drive Kits |
| Damper Included | No |
| Damper Style | Factory |
| Emission Code | 5 |
| Engine | GM Gen V LT4 |
| Finish | Cast |
| Inlet Size | 35.4mm/1.4″ |
| Material | Cast Aluminum |
| Oil System Type | Dry Sump |
| Output | 150 Amps |
| Power Steering Hardline Included | Yes |
| Power Steering Pulley Included | Yes |
| Power Steering Pump Included | Yes |
| Power Steering Reservoir Included | No |
| Product Type | Accessory Drive Kits |
| Pulley Style | Serpentine |
| Tensioner Included | Yes |
| Thermostat Included | Yes |
| Warranty | Limited 90 Day |
| Water Neck Included | Yes |
| Water Pump Included | Yes |
| Water Pump Pulley Included | Yes |
| UPC | 090127056509 |
| Part Number | 20-221 |
