HOLLEY IN-TANK RETROFIT FUEL MODULE 525 LPH RETURN STYLE
525 LPH Drop-In Retrofit EFI Fuel System w/Hydramat Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Part # 12-134

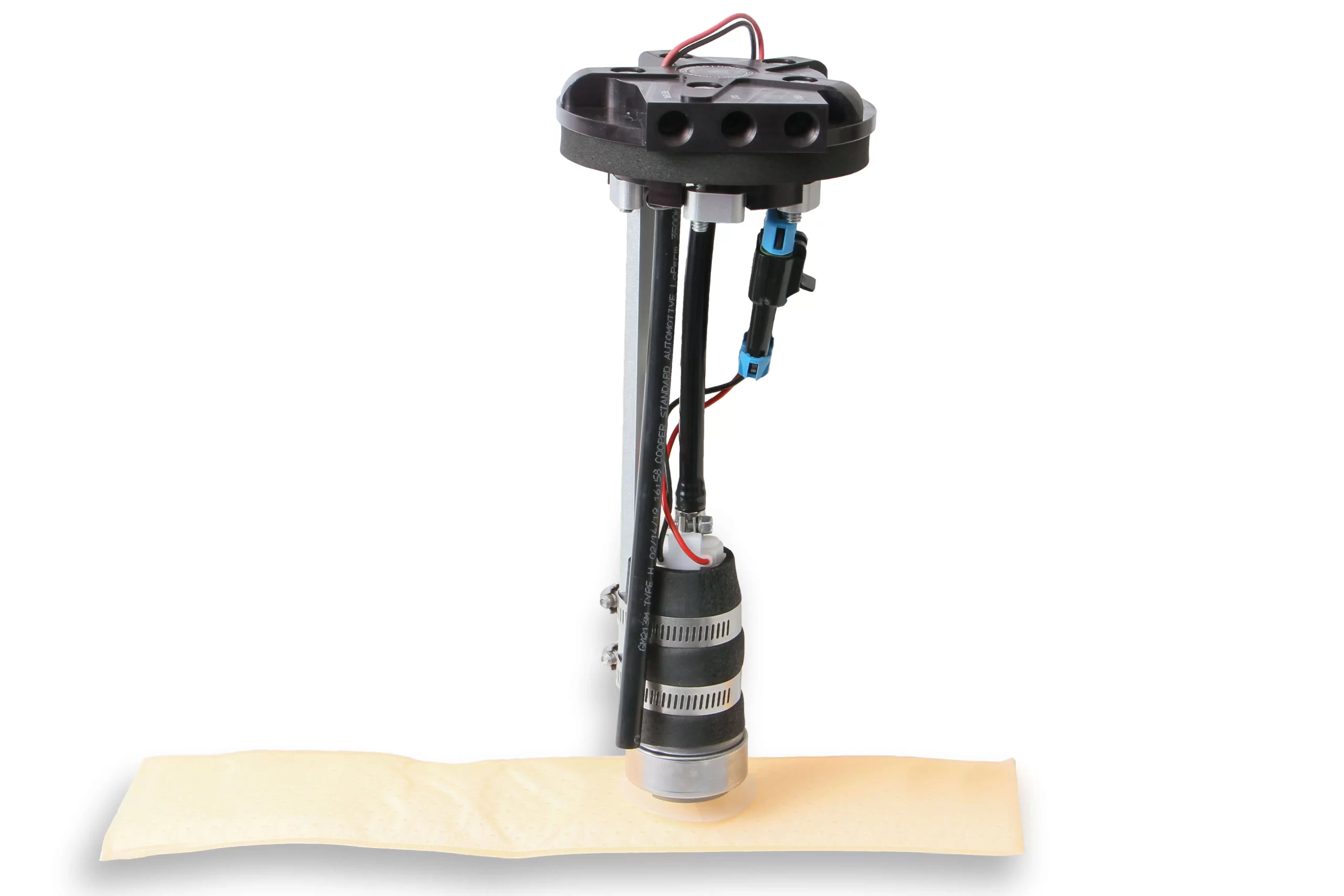

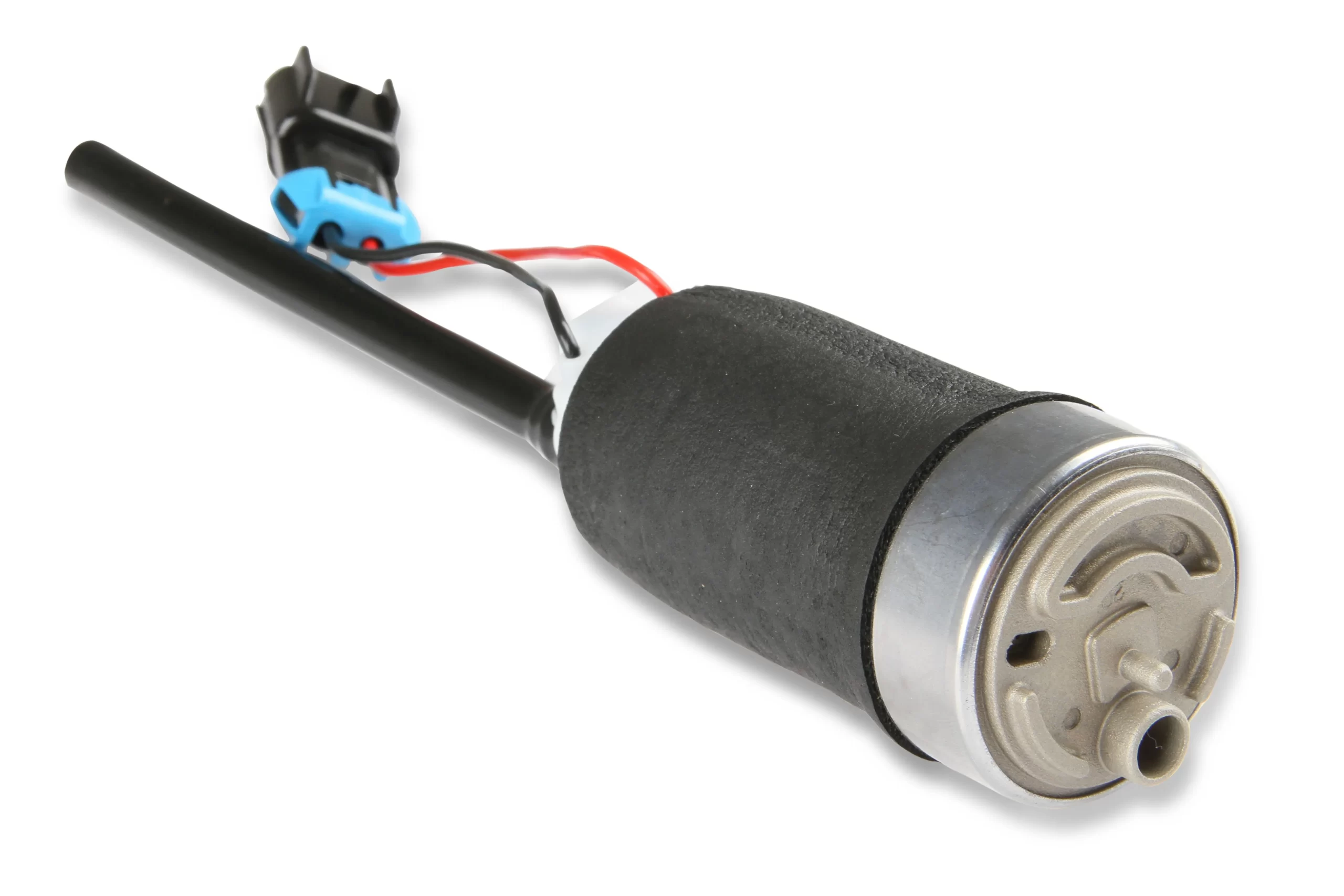

The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump. Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holley’s innovative clamping system and integrated fuel pump makes it easy. Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc…
Features:
- Retrofit Fuel Module 525 LPH- Return Style
- Installs in any fuel tank from 7.5” to 12” deep to fit a wide variety of applications

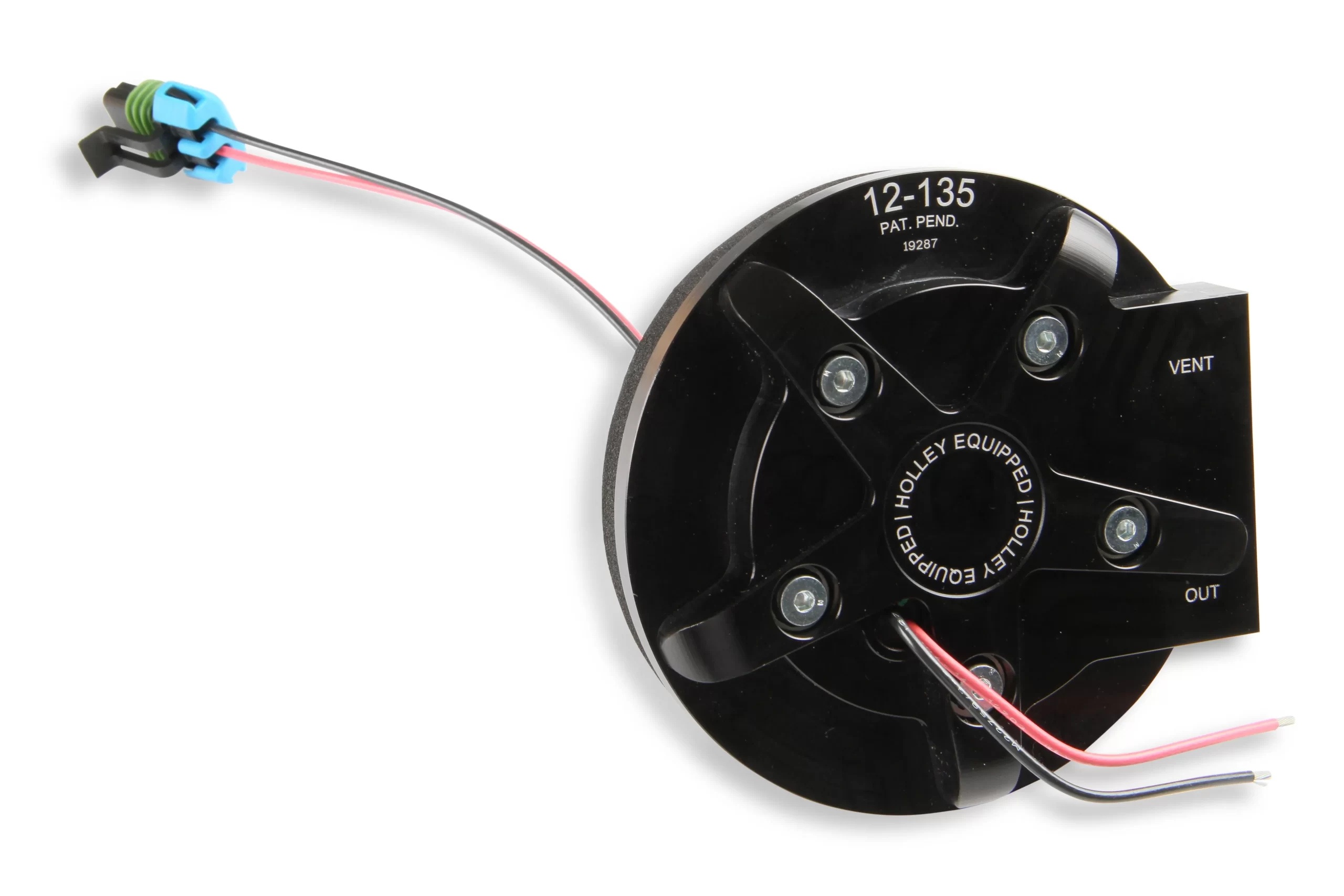

- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

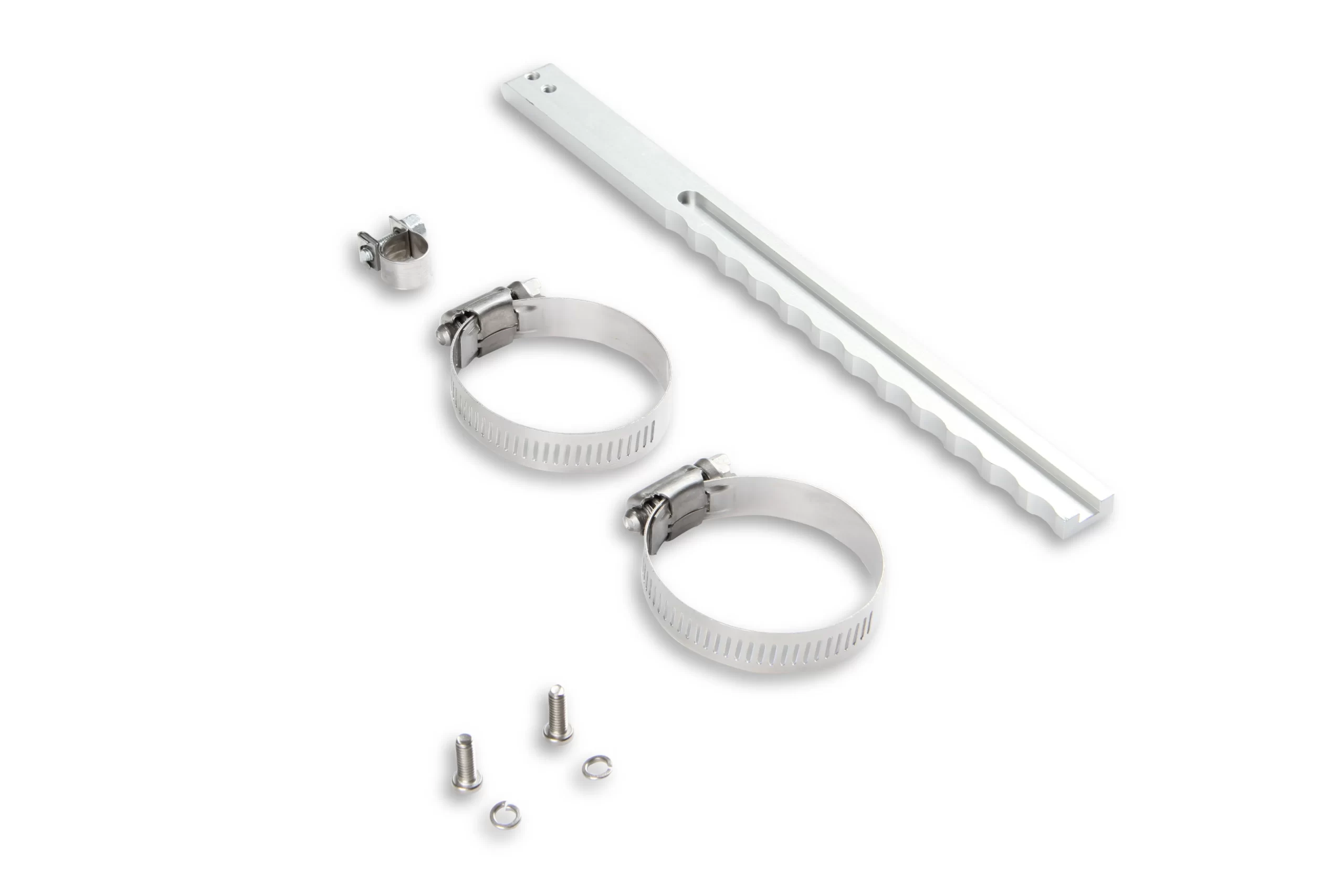

- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

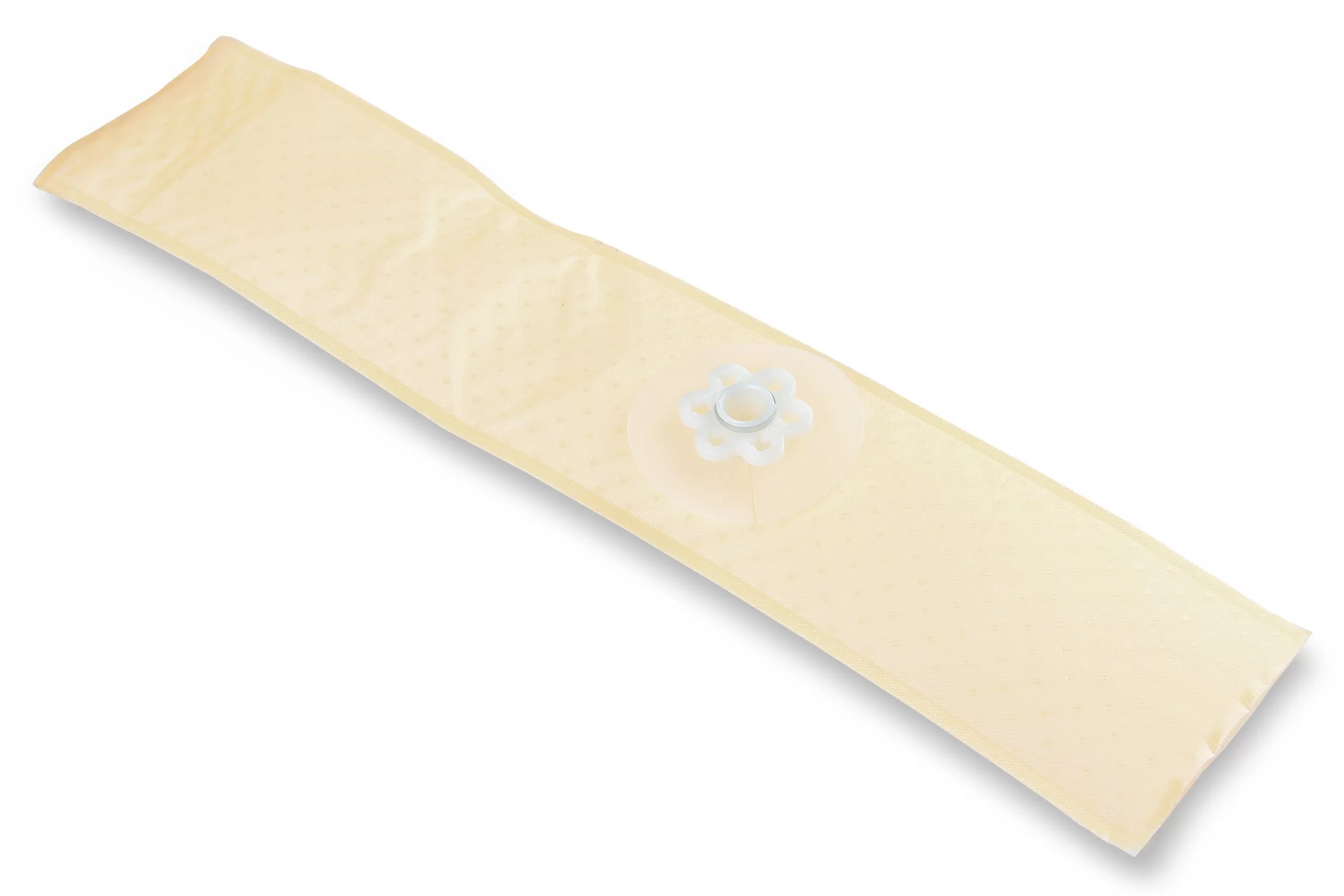

- Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3” x 15” HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions that you might encoun
- Black anodized aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
- Optional roll over valve available
| Application | Universal |
|---|---|
| Brand | Holley |
| Emission Code | 3 |
| 5 | |
| Free Flow LPH | 525 |
| Fuel Type | E85 |
| Gasoline | |
| Material | Billet Aluminum |
| Minimum Fuel Tank Depth | 7.5 Inches |
| NPT Thread | 1/4 NPT |
| Product Type | Fuel Pump Module |
| Warranty | Limited 90 Day |
| UPC | 090127069912 |
| Part Number | 12-134 |
