HOLLEY GEN III HEMI SWAP OIL PAN – MID-SUMP VVT – BLACK
Fits VVT Gen III Hemi Engines
Part # 302-61BK

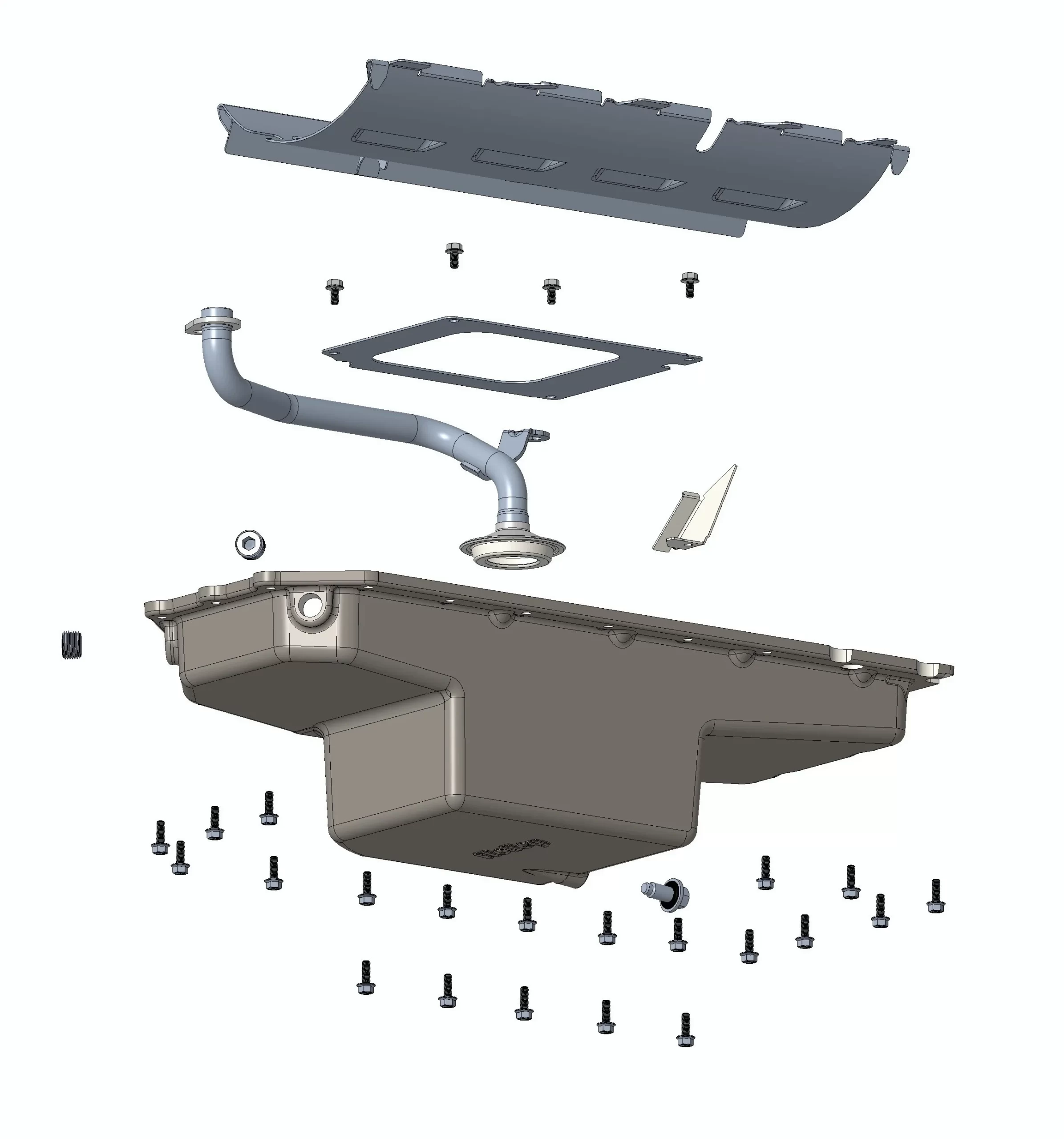

Mopar’s popular Gen III Hemi engines are ideal for swapping into muscle cars since they are durable, reliable and make great power. The factory oil pans that come on these engine usually don’t fit and hang too low for your swap. These new cast aluminum oil pans (Patent Pending) fit 1963-1974 Mopar A-Body, B-Body, C-Body & E-Body vehicles (see the Applications Tab for complete vehicle application data). The cast aluminum construction & integrated windage tray on the oil pans combined with o-ring sealing provide an attractive leak-free solution for your engine swap. Complete oil pan kit that includes all the parts needed for installation (i.e. oil pan, pickup assembly, o-ring seal, windage tray, baffling & mounting bolts).
Features:
- The factory oil pans on Gen III Hemi engines don’t fit or hang too Low for muscle car engine wwaps

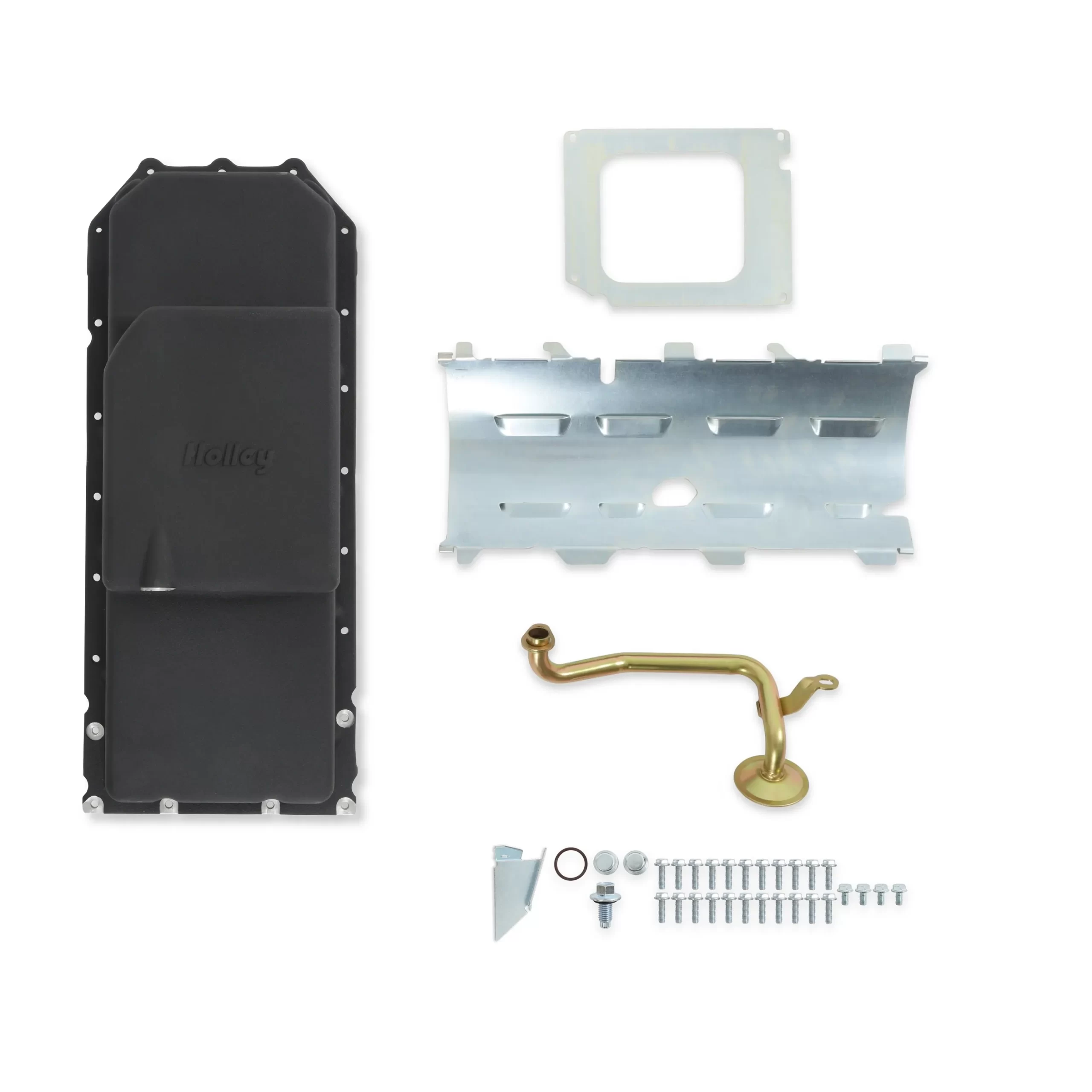

- Complete oil pan kit That includes oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts – no extras that must be purchased separately (i.e. gaskets, pickup, windage tray, bolts)
- Cast aluminum mid-sump engine swap oil pan
- Unique O-ring seal to block and captured windage tray (patent pending)
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers (one port on each front corner)

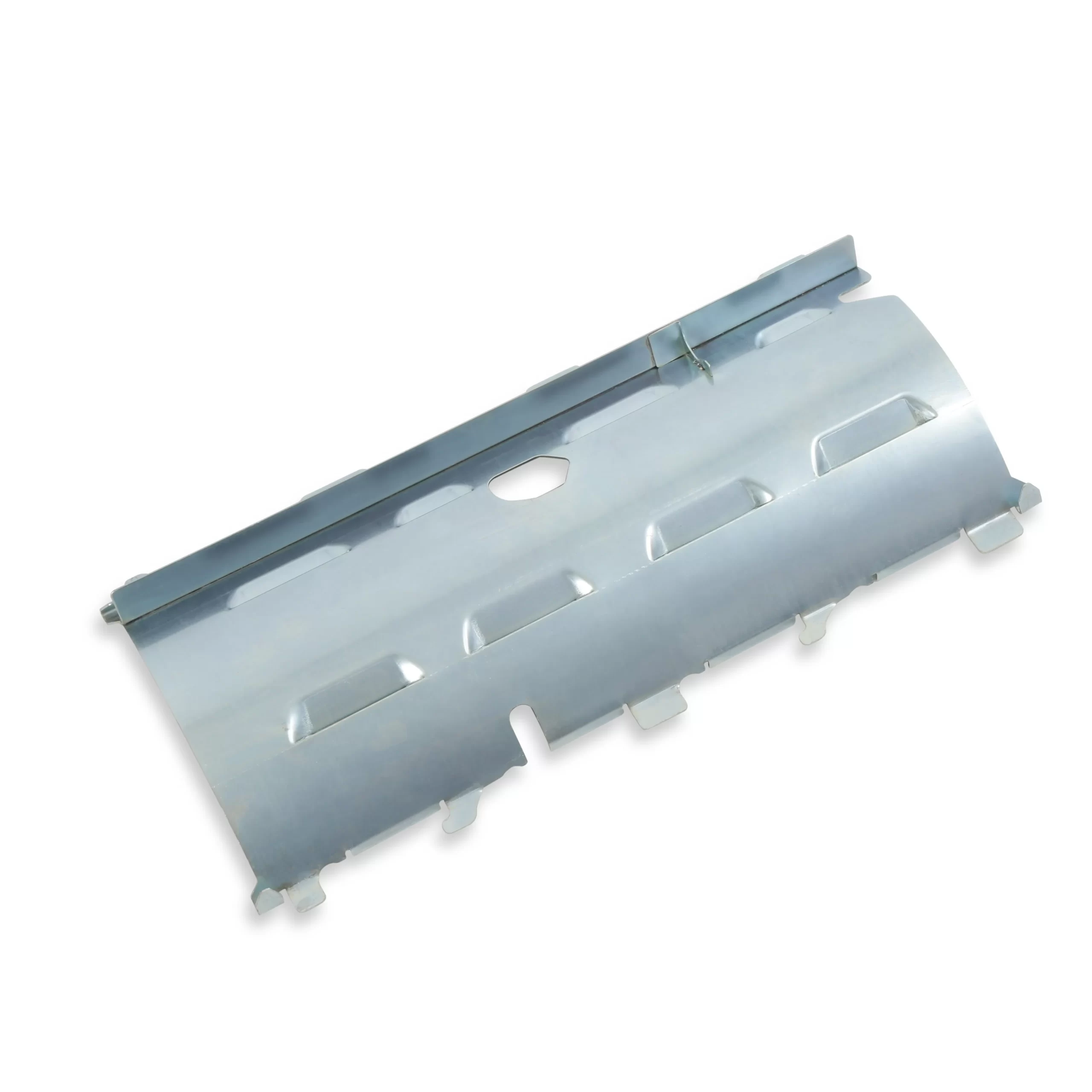

- Integrated windage tray & baffle to control oil (fits up to 4.060” stroke)
- Part # 302-61BK Fits later engines with variable valve timing (VVT) 2009-up 5.7L, 2009-up 6.4L Hemi engines
- Fits 1963-1974 Mopar A-Body, B-Body, C-Body, and E-Body – see the vehicle application tab
- Oil capacity – 6 quarts (6.5 quarts w/ filter)
- Works with most factory & aftermarket dipsticks (302-74 available separately)
- Patent pending
| Application | Gen III Hemi |
|---|---|
| Brand | Holley |
| Cam Style | VVT |
| Emission Code | 6 |
| Finish | Black |
| Material | Aluminum |
| Maximum Stroke | 4.060″ |
| Oil Pan Capacity | 6.0 Quarts |
| Oil Pan Type | Cast |
| Oil Return Size | 1/2″ NPT |
| Product Type | Oil Pan Kit |
| Sump Location | Center |
| Turbo Oil Drainback | Yes |
| Warranty | Limited 90 Day |
| Windage Tray Included | Yes |
| UPC | 090127136782 |
| Part Number | 302-61BK |
