HOLLEY
HOLLEY DIE CAST BYPASS FUEL PRESSURE REGULATOR KIT
4.5-9 Psi – Fittings and Gauge Included
Part # 12-881KIT

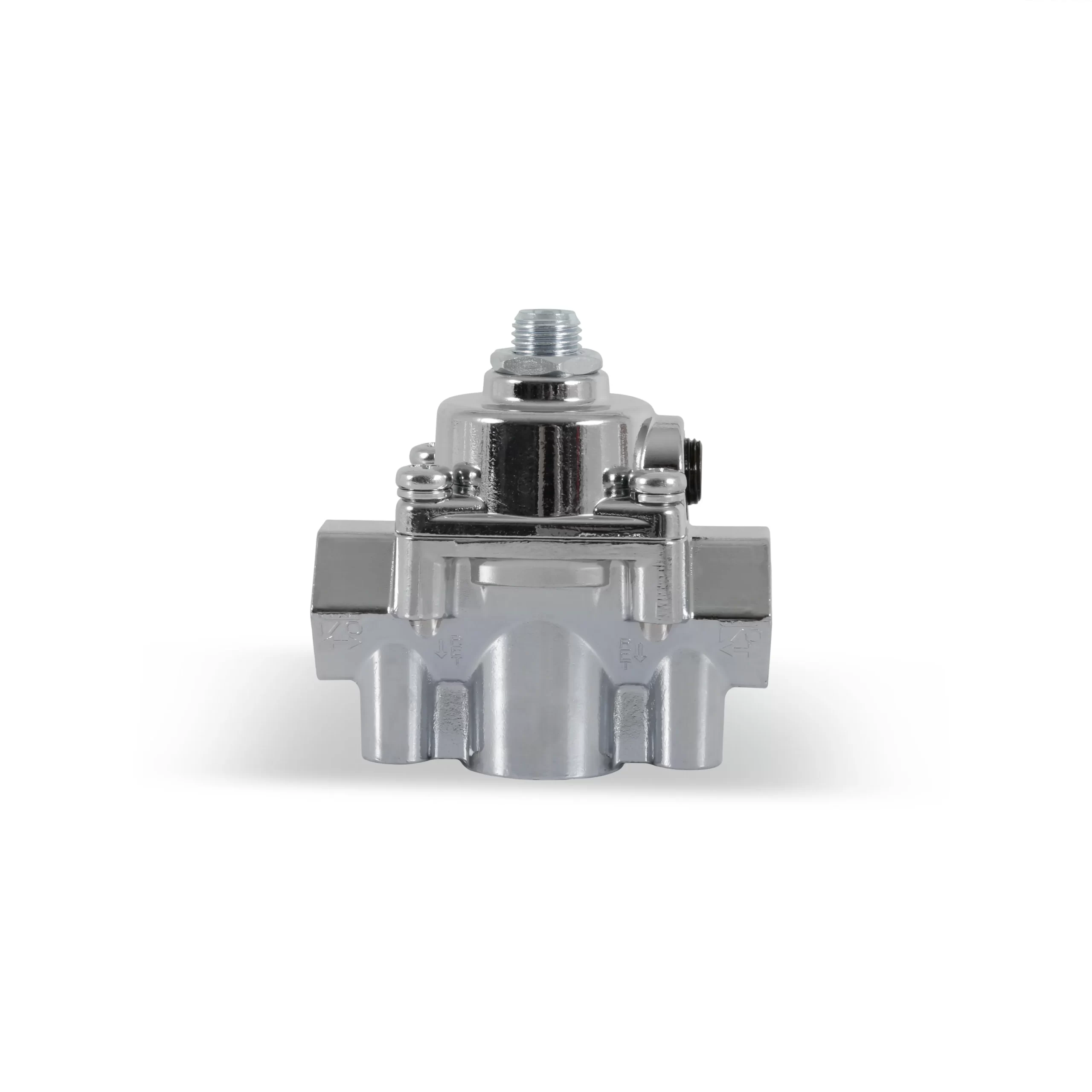

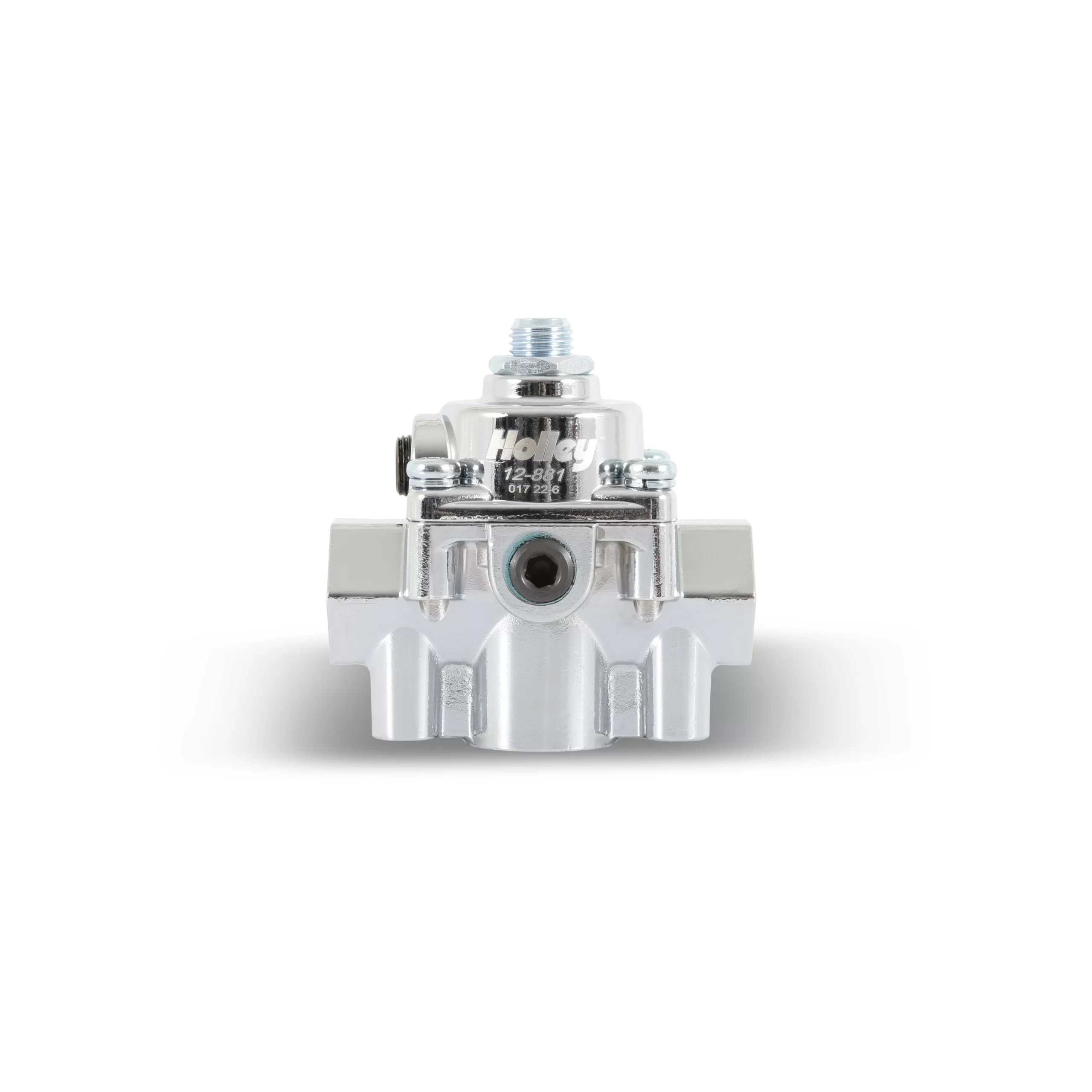

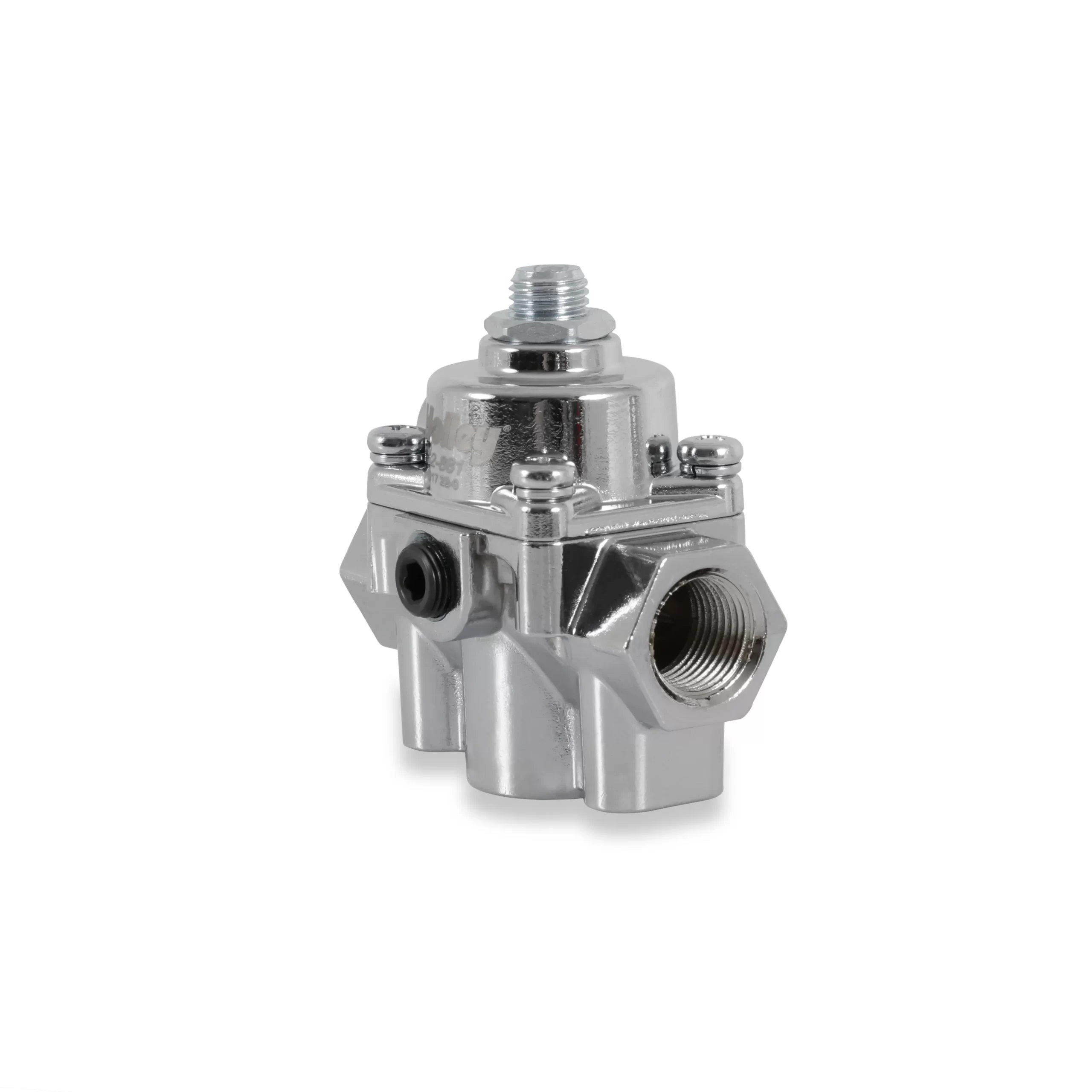

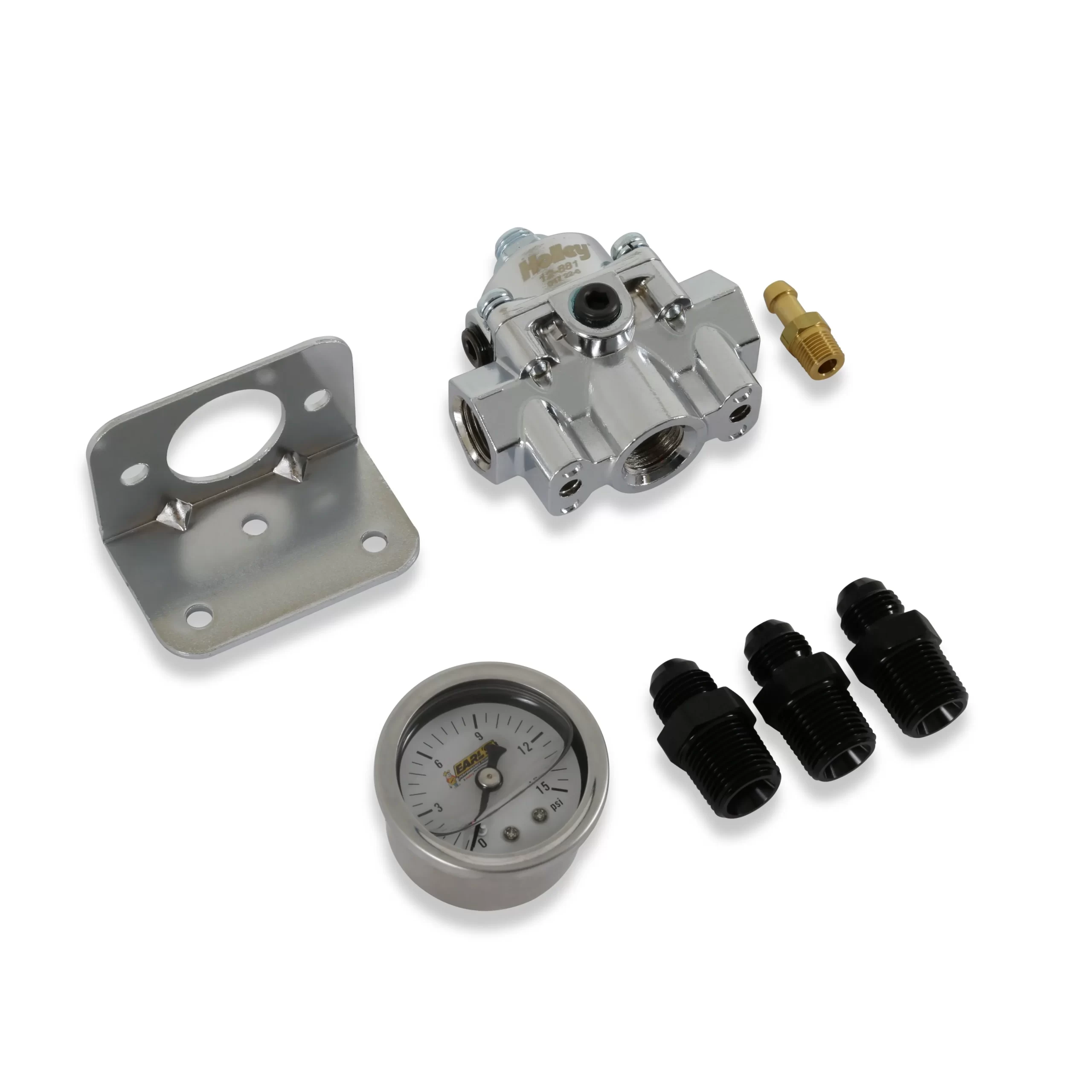

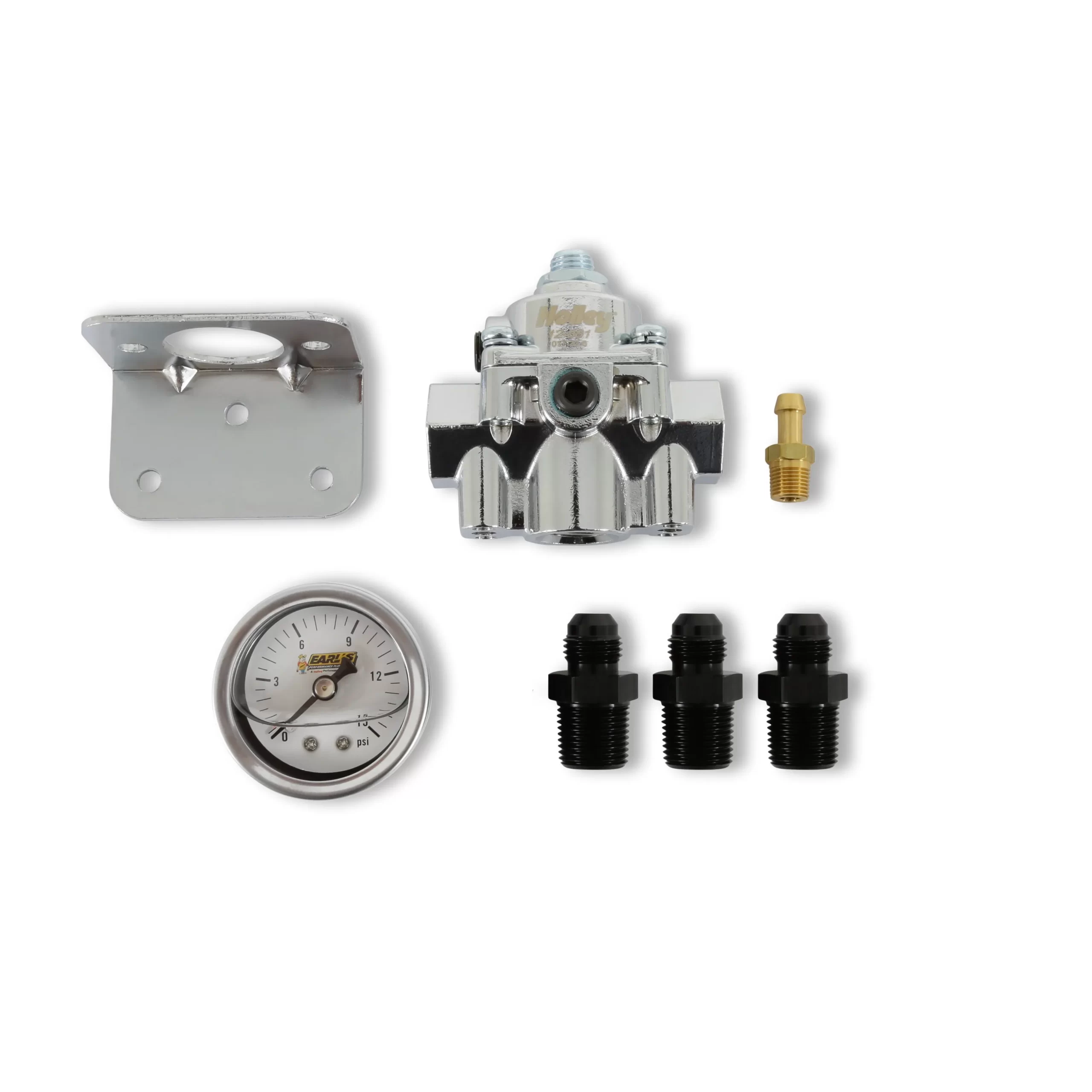

Holley Die Cast Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-881 regulator features a die cast aluminum body and a chrome top for corrosion resistance and good looks. The regulator contains 3/8″ NPT in/out ports, a 3/8″ NPT return port, a 1/8″ NPT gauge port. In addition, 3 Mr. Gasket 3/8″ NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features:
- Die Cast Aluminum Construction
- Adjustable from 4.5-9 psi for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 3/8” NPT Inlet, Outlet, and Return Ports

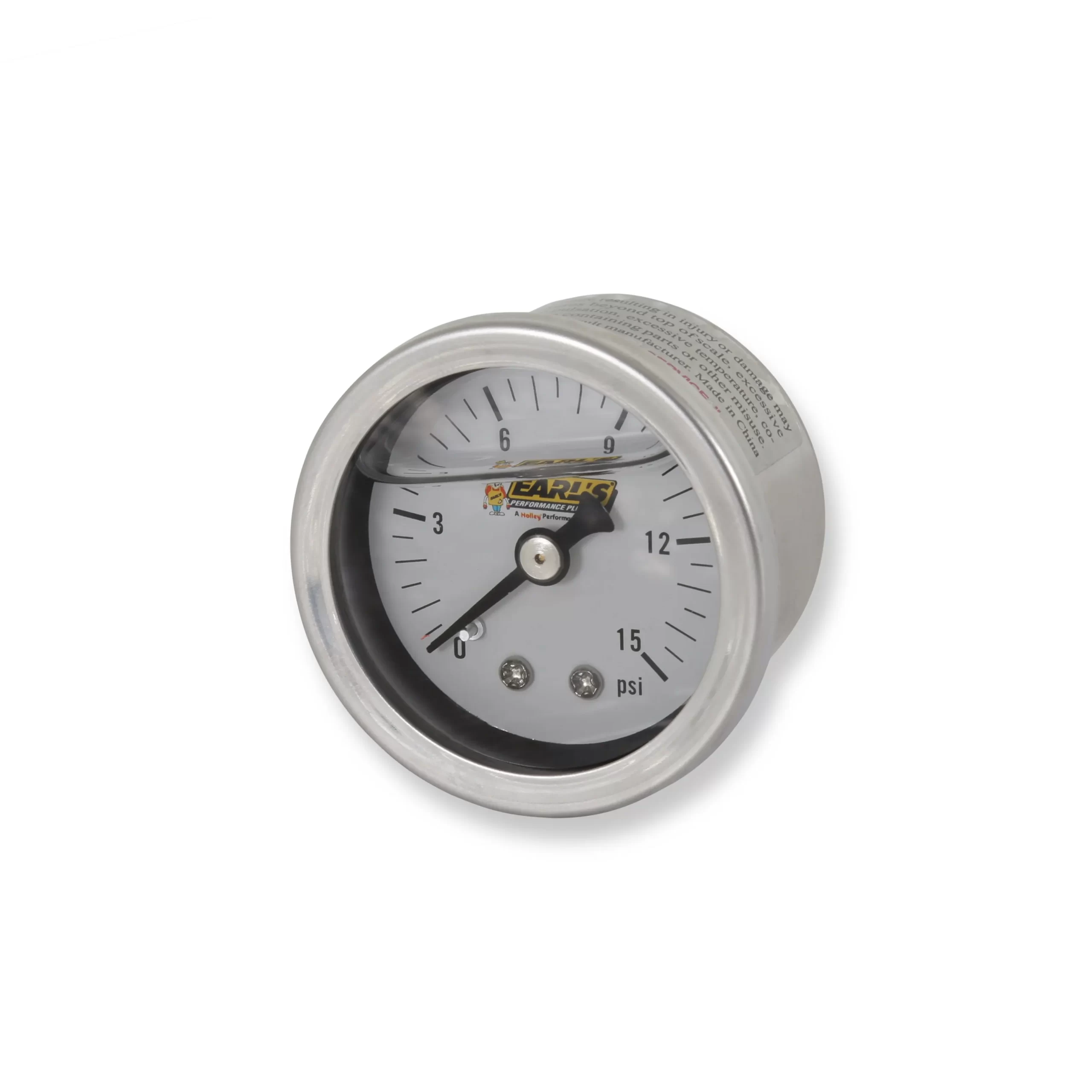

- 1/8” NPT Gauge Port and Earl’s Fuel Pressure Gauge (100187ERL)

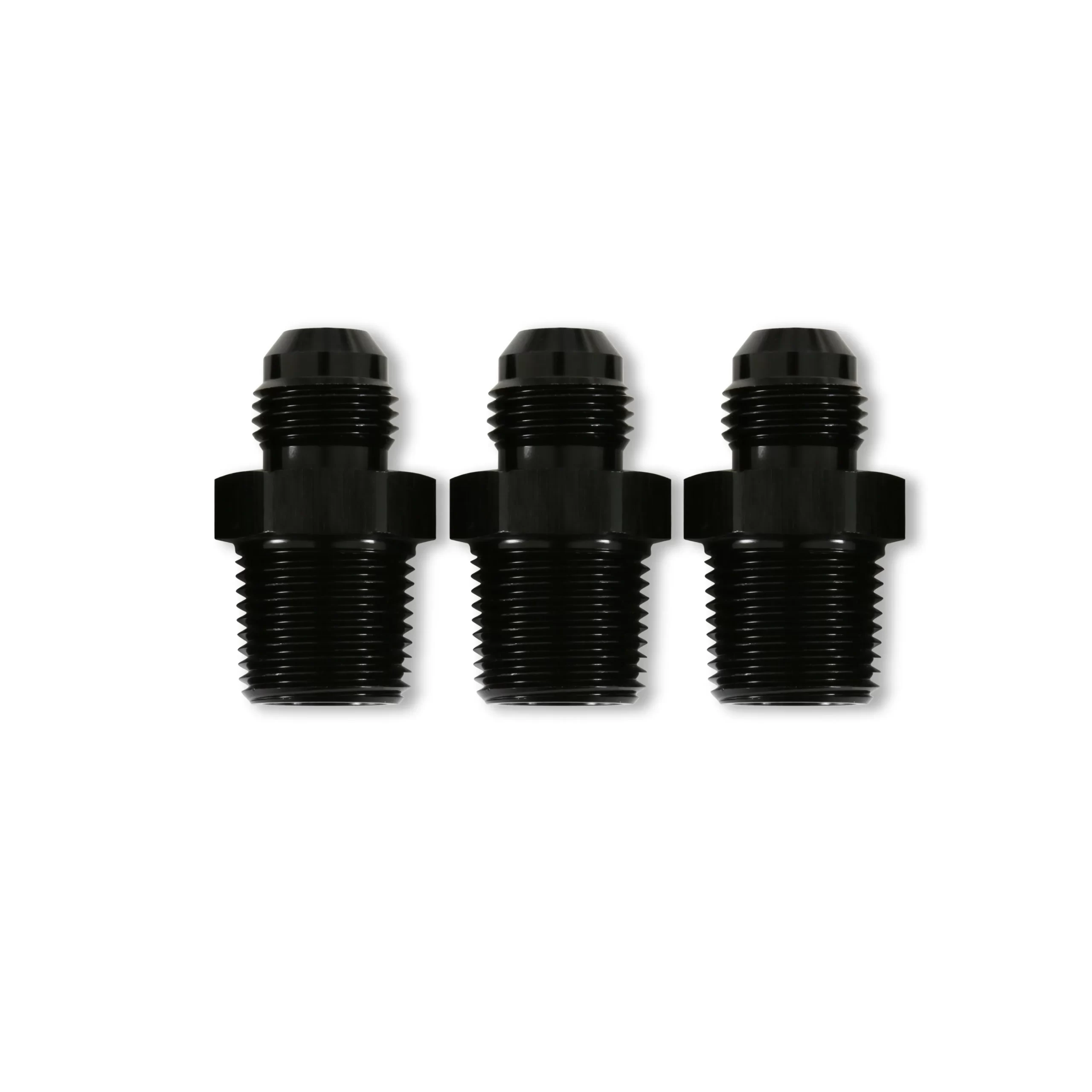

- Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3)

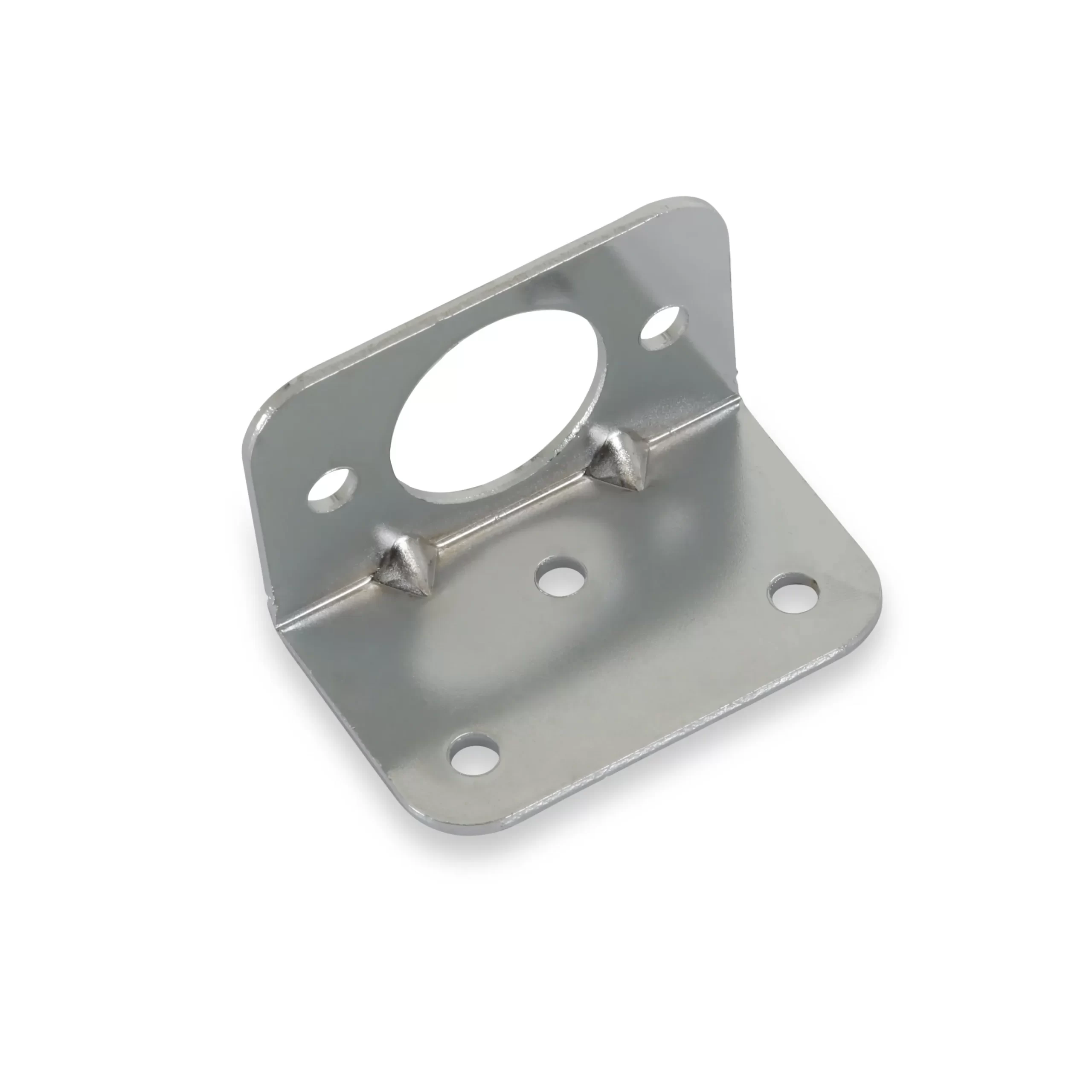

- Mounting Bracket Included
| Brand | Holley |
|---|---|
| Color | Chrome |
| Emission Code | 3 |
| 5 | |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Inlet Size | 3/8 inch NPT |
| Material | Aluminium |
| Outlet Size | 3/8 inch NPT |
| Pressure Range | 4.5-9 PSI |
| Product Type | Fuel Pressure Regulator |
| Return Size | 3/8 inch NPT |
| Style | Bypass |
| Warranty | Limited 90 Day Warranty |
| UPC | 090127122969 |
| Part Number | 12-881KIT |
