HOLLEY HOLLEY BIG BLOCK CHEVY MID-MOUNT COMPLETE ACCESSORY SYSTEM Big Block Chevy Mid-Mount Complete Accessory System- Natural Finish Part # 20-242

Original price was: $2,070.00.Current price is: $1,862.95.

+ FREE SHIPPING

Big Block Chevy Mid-Mount Complete Accessory System- Natural Finish

Out of stock

SKU: 090127072806 Categories: , Tag:
Guaranteed Safe Checkout

-

HOLLEY

HOLLEY BIG BLOCK CHEVY MID-MOUNT COMPLETE ACCESSORY SYSTEM

Big Block Chevy Mid-Mount Complete Accessory System- Natural Finish

Part # 20-242

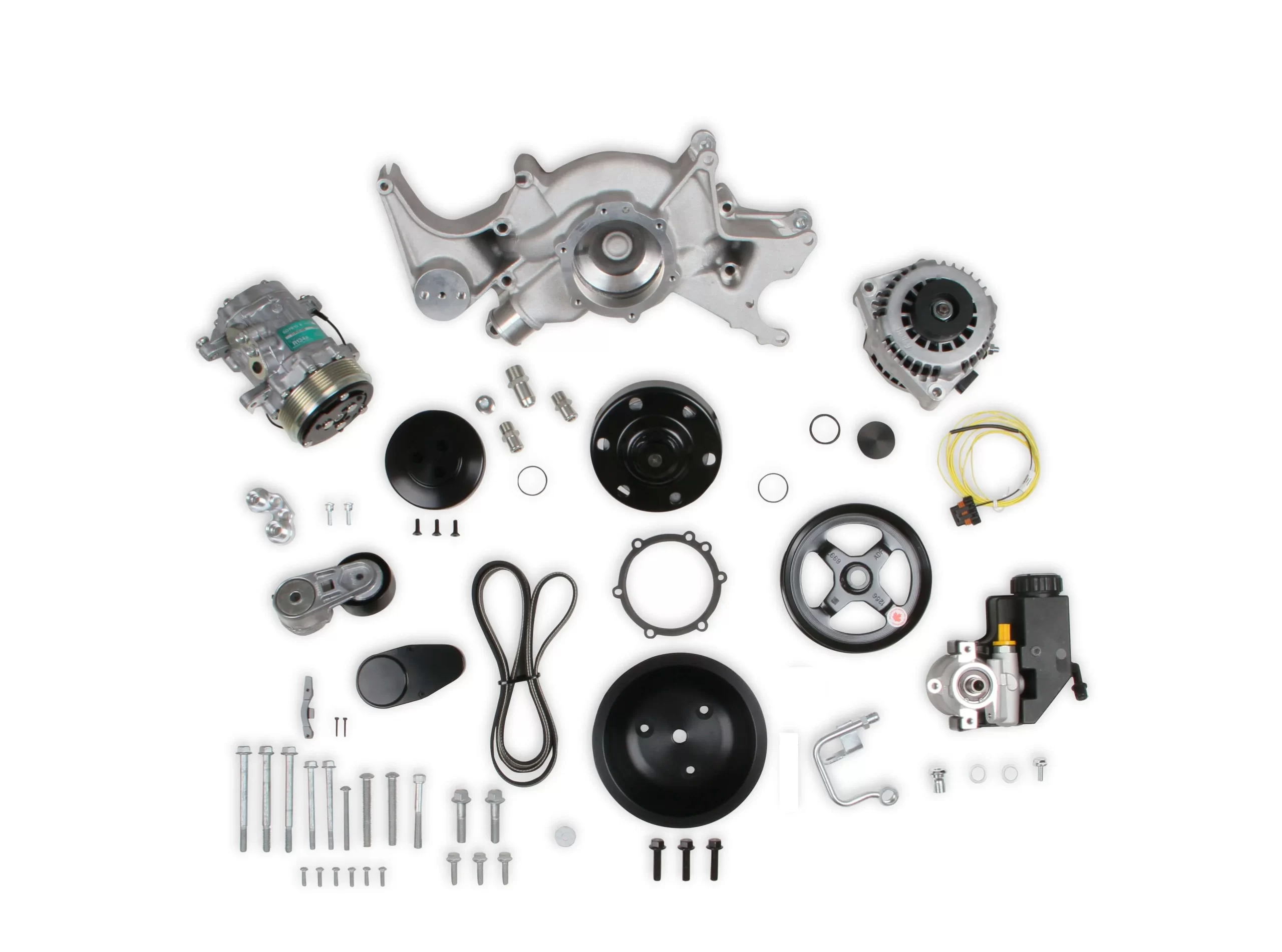

Holley’s Mid-Mount accessory drives are now available for your big block Chevrolet engines! The revolutionary system does what no other accessory bracket system has done… GETS RID OF THE BRACKETS! The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a “bracketless” design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated. The water pump design incorporates optional side or top heater ports. The top thermostat bypass and heater ports are recessed into the manifold. So if you don’t need them, you don’t see them! When we say “complete”, we mean complete. The Mid-mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, and P/S pump with reservoir. All pulleys and the belt are supplied. Even A/C line adapter, heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the ultra-easy installation. Patent – www.holley.com/patents/

Features:

  • The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives.
  • Bracketless accessory mounting with ultra-easy assembly
  • O-ring seal to engine
  • Hidden thermostat bypass and heater hose ports with NPT line adapters included
  • LT1 style premium alternator
  • LT1 style water pump design
  • Compact SD7 A/C compressor with line adapter included
  • Type II power steering pump with baffled reservoir
  • P/S adapter hardline to AN -6 adapter included
  • OE pulley ratios for optimal accessory performance
  • Available in natural and black finishes
  • Billet alternator, tensioner, and compressor pulley covers
A/C Compressor Included Yes
A/C Compressor Type SD7
Accessory Drive Style Mid Mount
Alternator Amperage 150
Alternator Included Yes
Application Chevrolet Big Block
Belt Included Yes
Brand Holley
Choose Your Part Accessory Drive Kits
Damper Included No
Damper Style Factory
Emission Code 3
5
Engine Chevy Big Block V8
Finish Cast
Inlet Size 35.4mm/1.4″
Material Cast Aluminum
Output 150 Amps
Power Steering Hardline Included Yes
Power Steering Pulley Included Yes
Power Steering Pump Included Yes
Power Steering Reservoir Included Yes
Product Type Accessory Drive Kits
Pulley Style Serpentine
Tensioner Included Yes
Thermostat Included No
Warranty Limited 90 Day
Water Neck Included Yes
Water Pump Included Yes
Water Pump Pulley Included Yes
UPC 090127072806
Part Number 20-242
Weight 48.9 lbs
Dimensions 24.2 × 16.9 × 18.8 in

Brand

Holley

For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
