HOLLEY EFI TERMINATOR X – GEN III 4.8/5.3/6.0 GM TRUCK ENGINES
24x Crank – 1x Cam – Multec 2 Injectors – 3.5 in. Touchscreen
Part # 550-904
Take control of your LS engine with Terminator X! Don’t settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5″ touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI’s industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won’t break the bank!
Features:

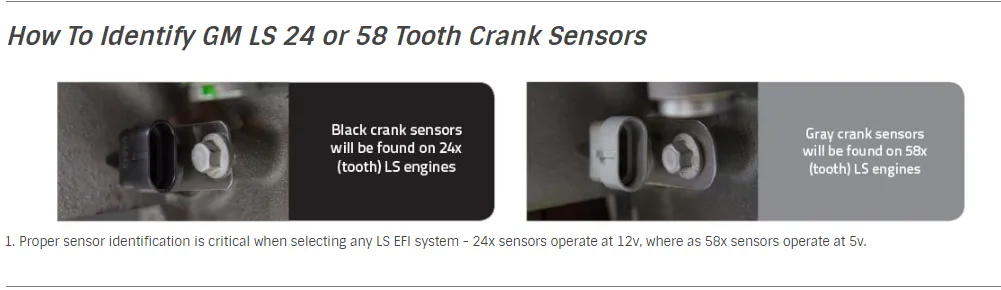

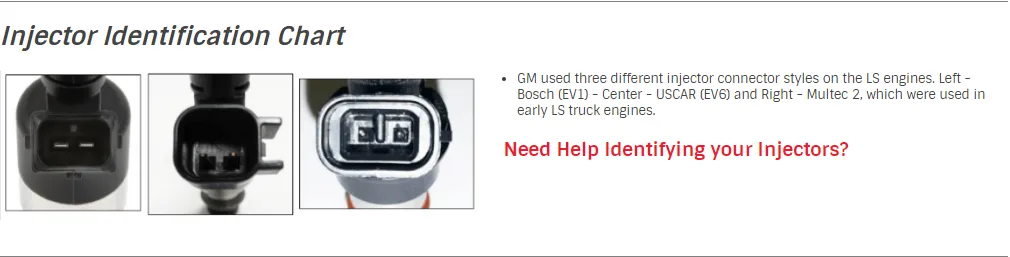

- For GM LS Engines with 24x crank reluctor and Multec 2 Injectors
- Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.
- High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

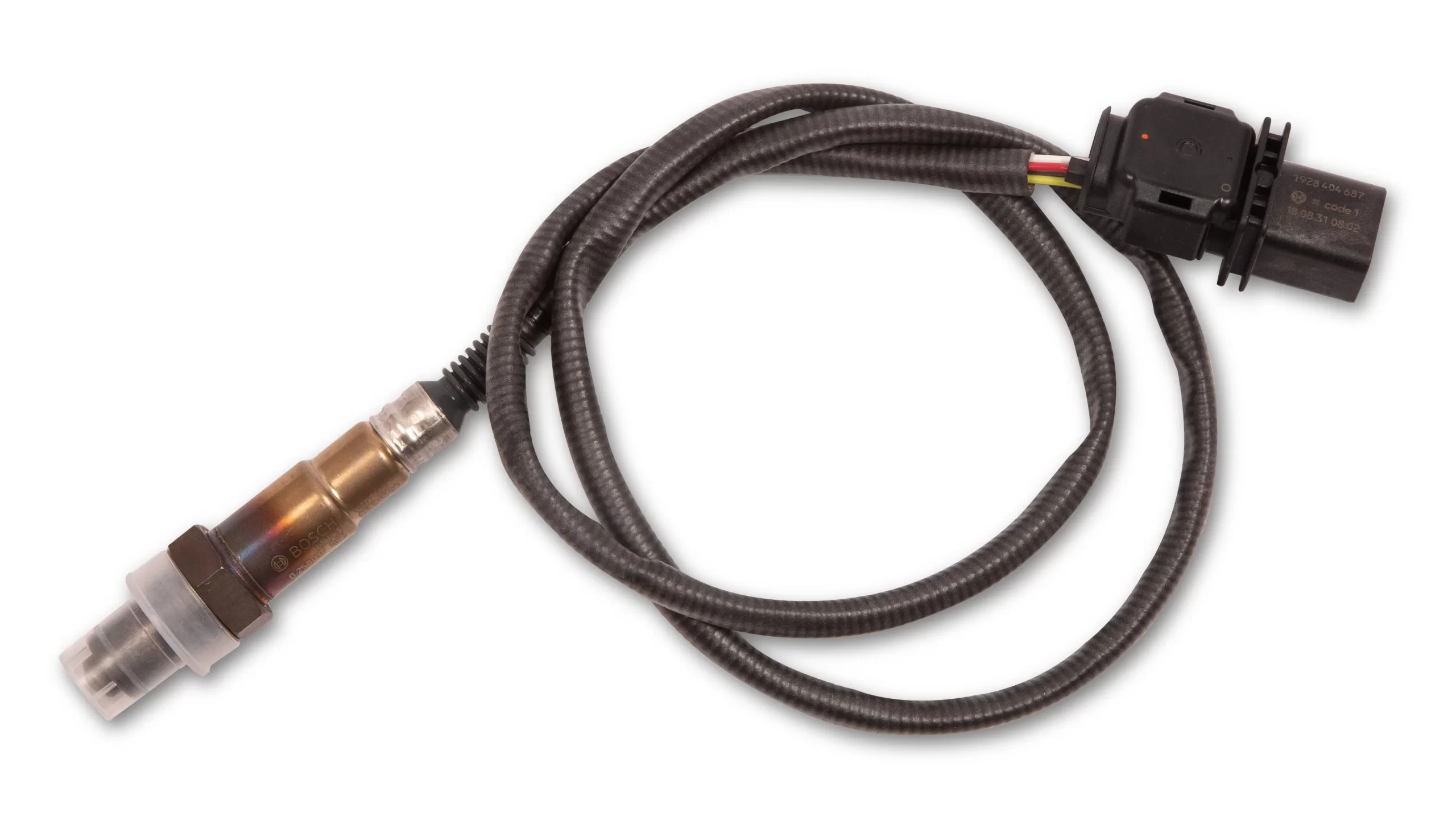

- All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.

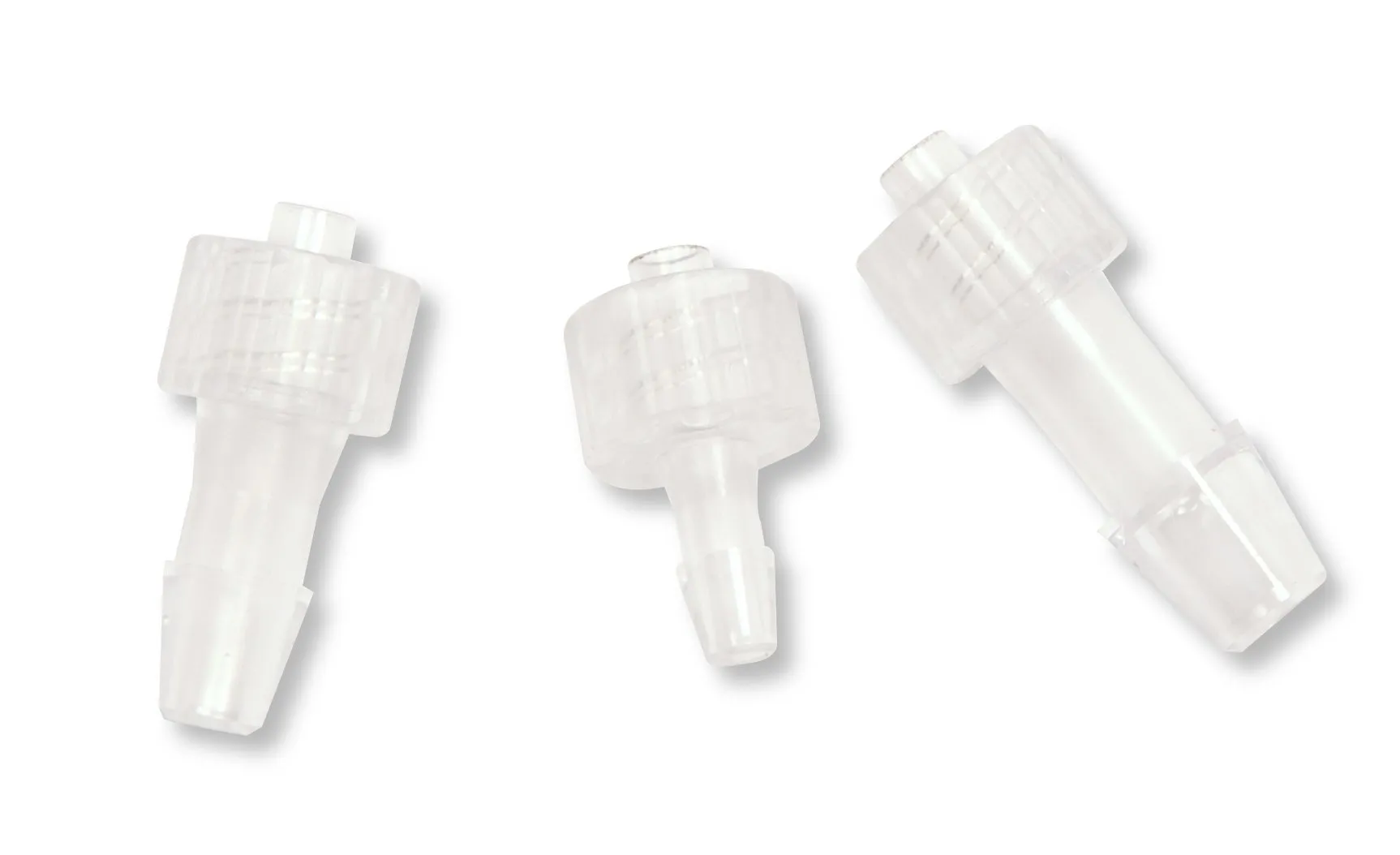

- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Outputs – Ground, PWM – , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!adjustable through included 3.5” f

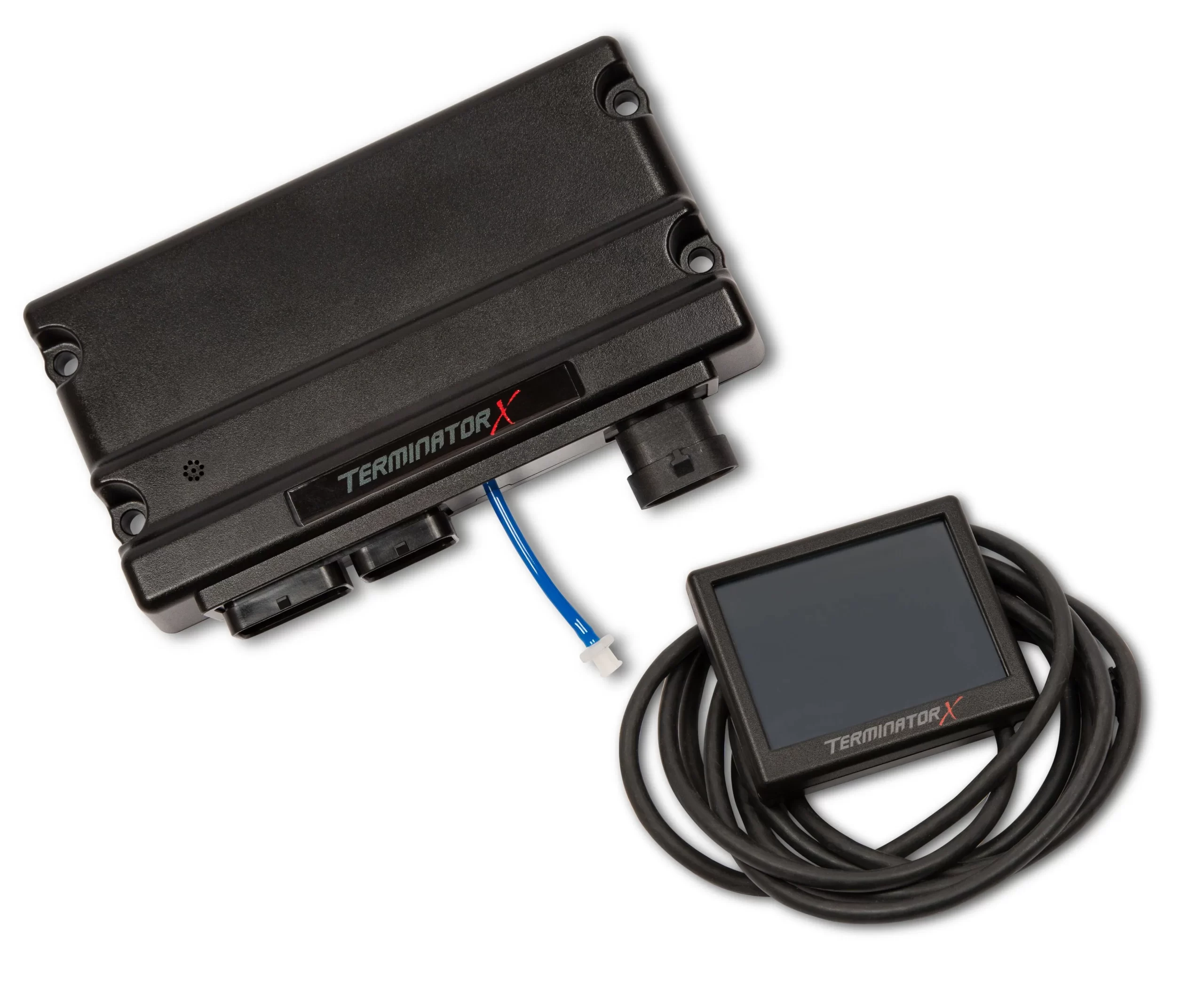

- The included 3.5″ Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.

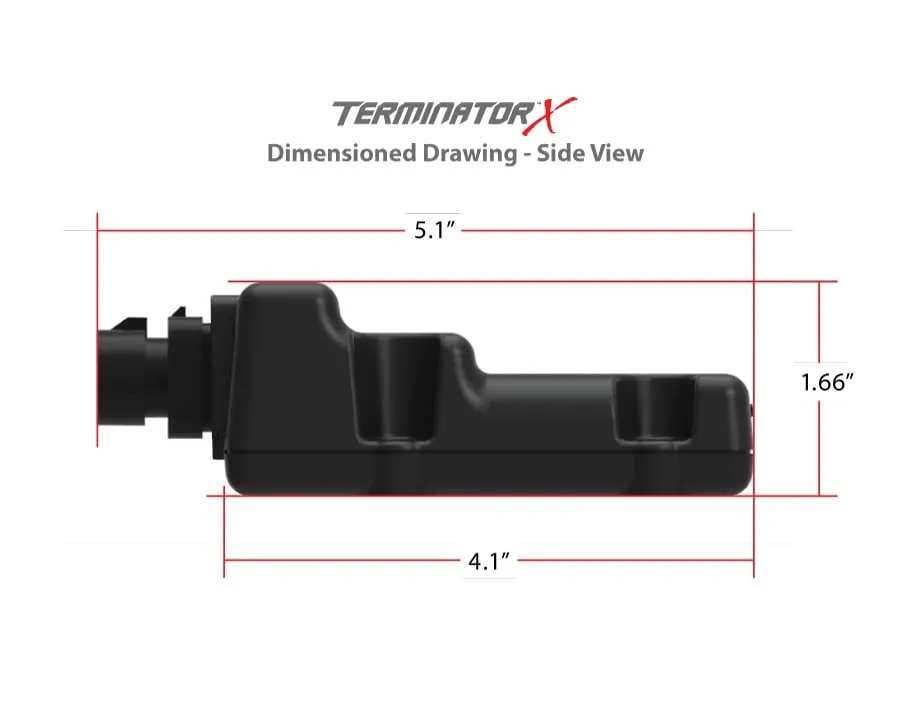

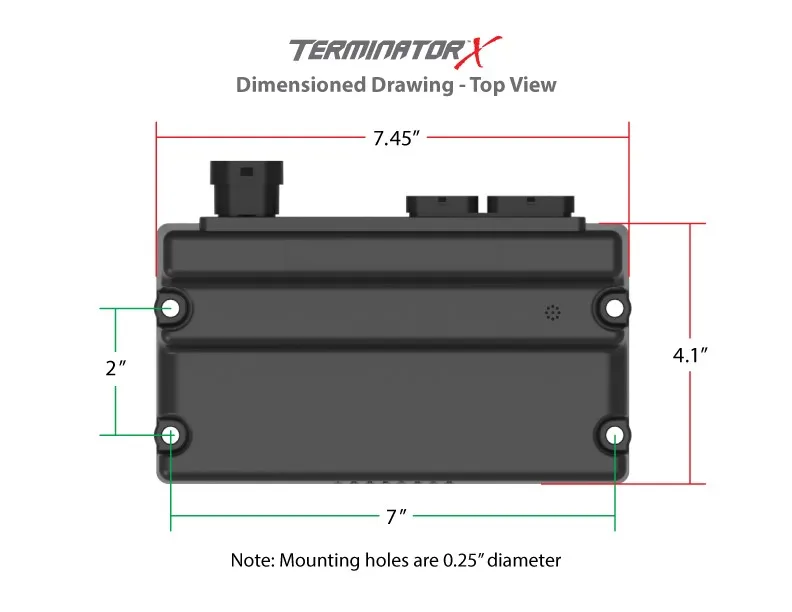

- The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
- Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3″ digital dash support!
- Free EFI Tuning Software for complete control of your Terminator X power plant

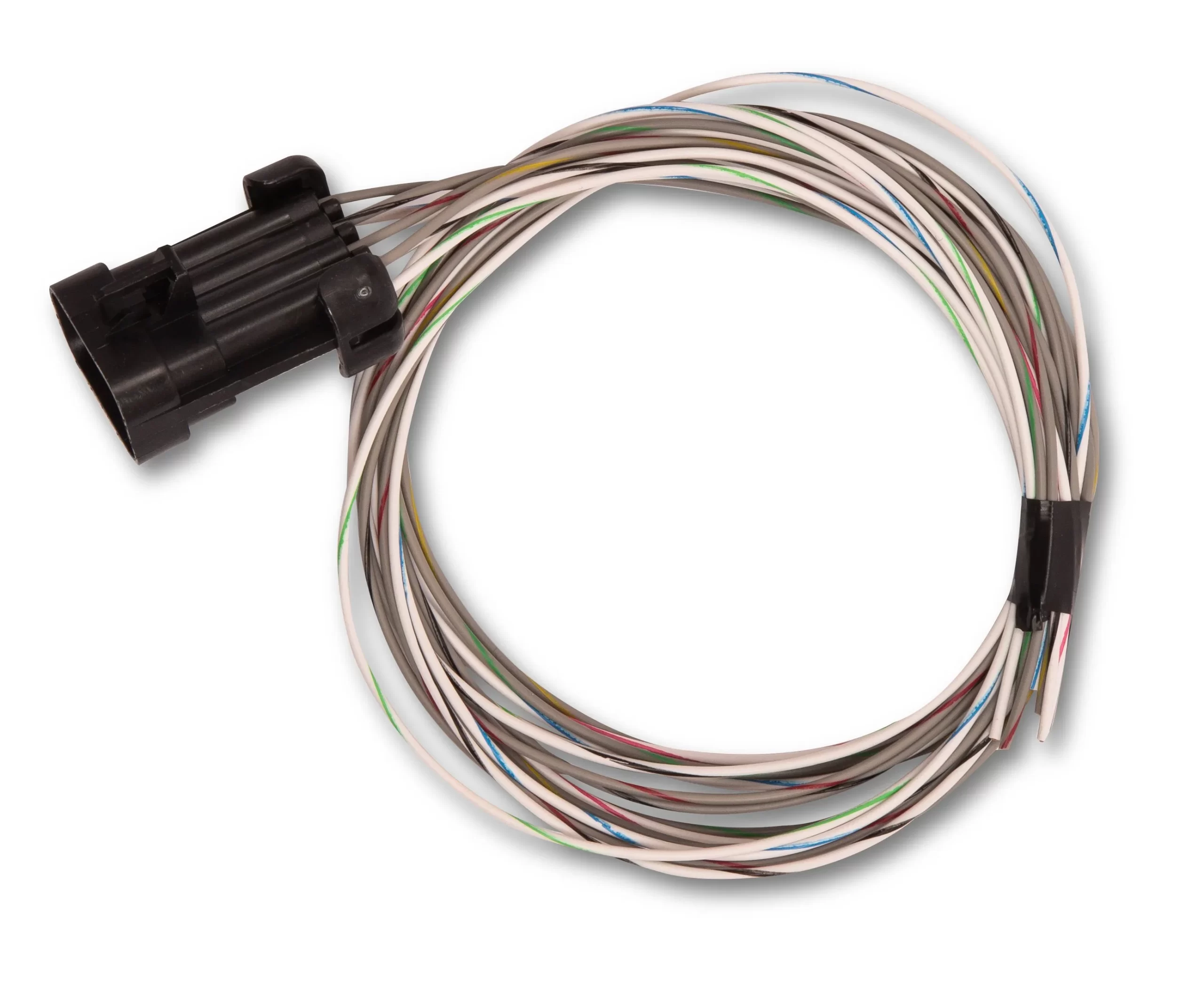

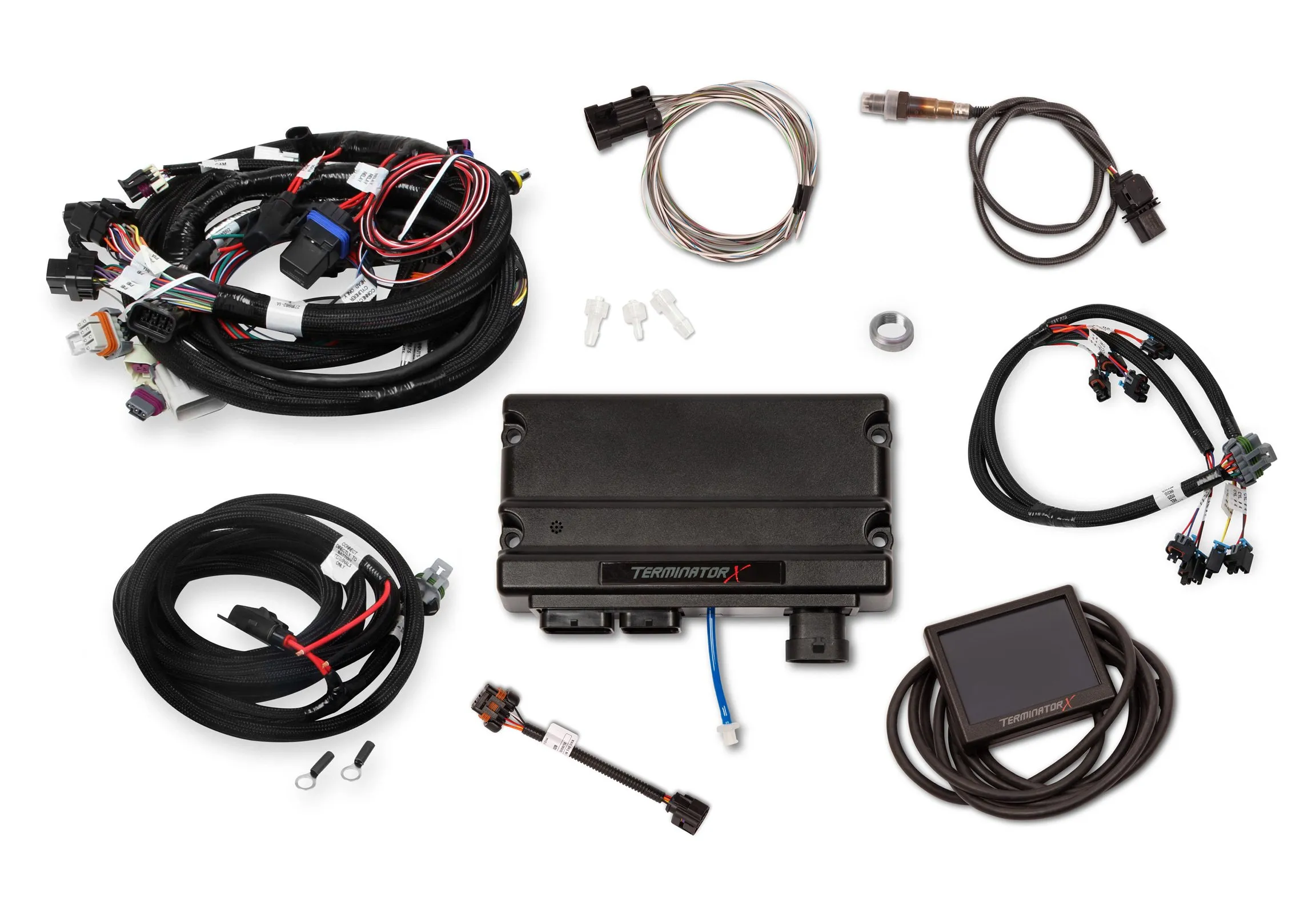

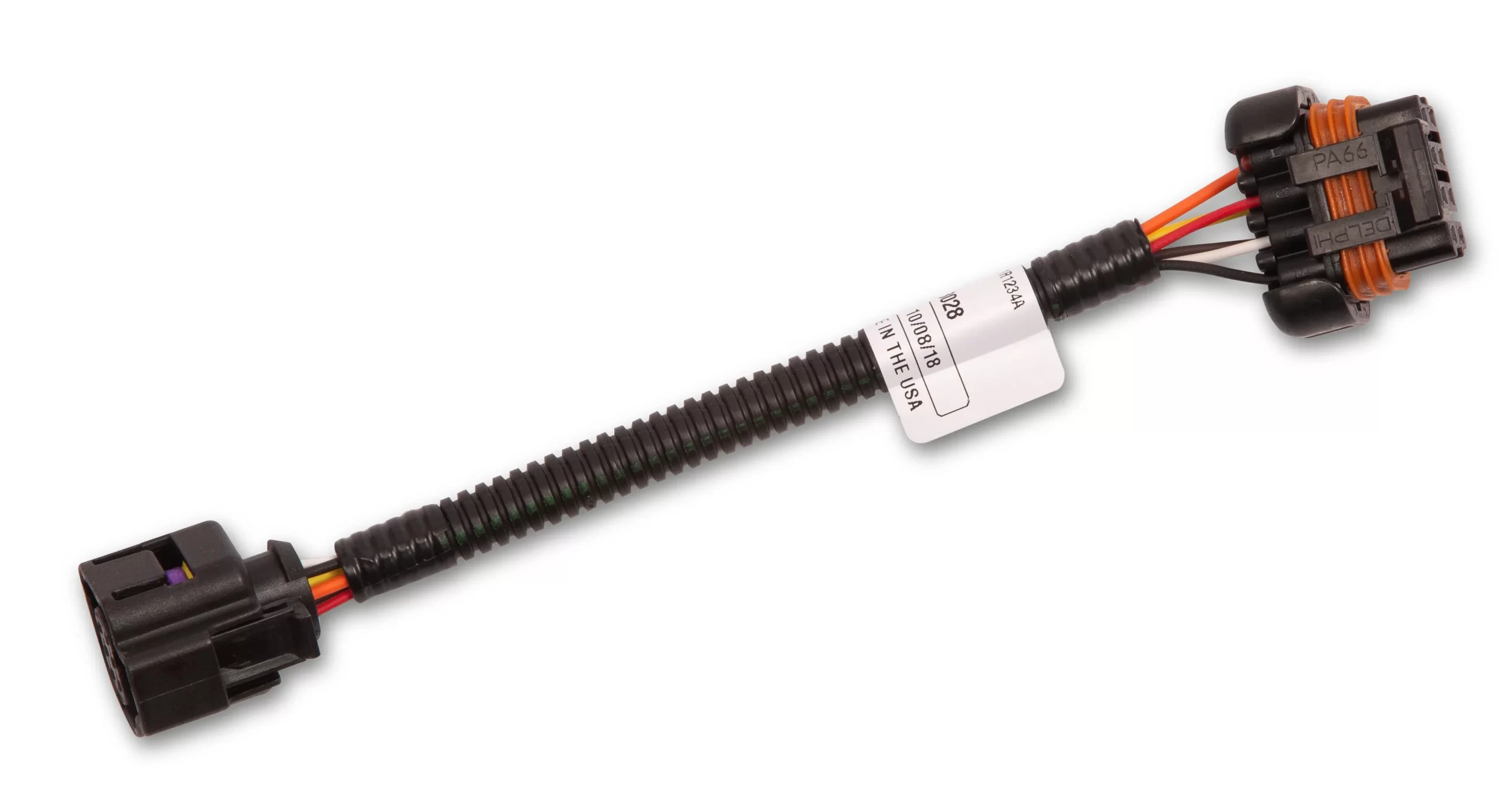

- Includes: 24x LS Engine Main Harness – Multec 2 Injector Harness – Terminator X ECU – ECU Main Power Harness – Bosch LSU 4.9 Wideband Oxygen Sensor – Input/Output Harness – and assorted vacuum adapters.
| Brand | Holley EFI |
|---|---|
| Crank Reluctor | 24x |
| Emission Code | 3 |
| Ignition Type | GM LS 24x |
| Injector Connector | Multec 2 |
| Product Type | Terminator X LS EFI |
| Terminator LS Options | Fuel, Spark |
| UPC | 090127060803 |
| Part Number | 550-904 |
