HOLLEY EFI
HOLLEY EFI BILLET BYPASS FUEL PRESSURE REGULATOR KIT
15-60 Psi – Fittings and Gauge Included
Part # 12-848KIT

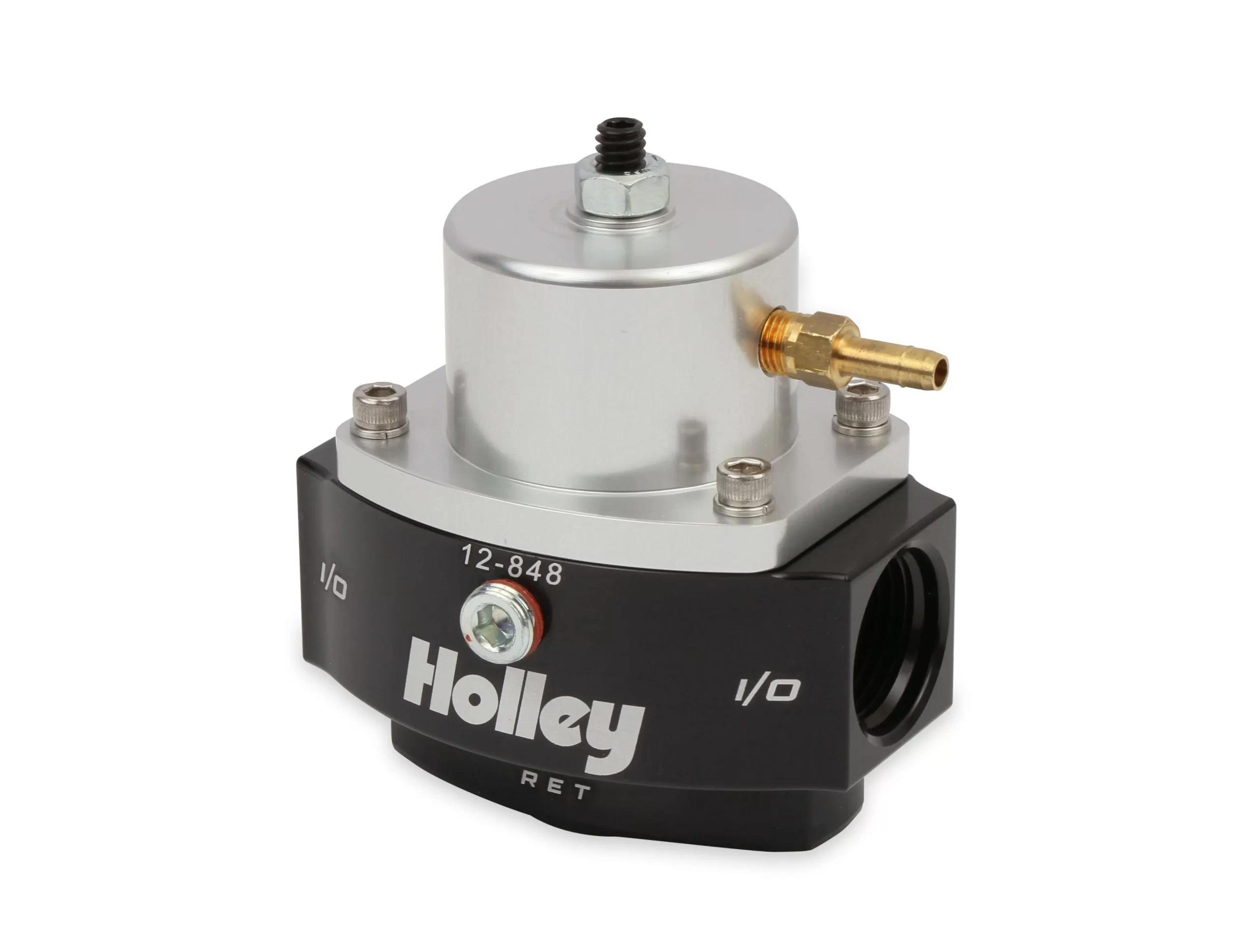

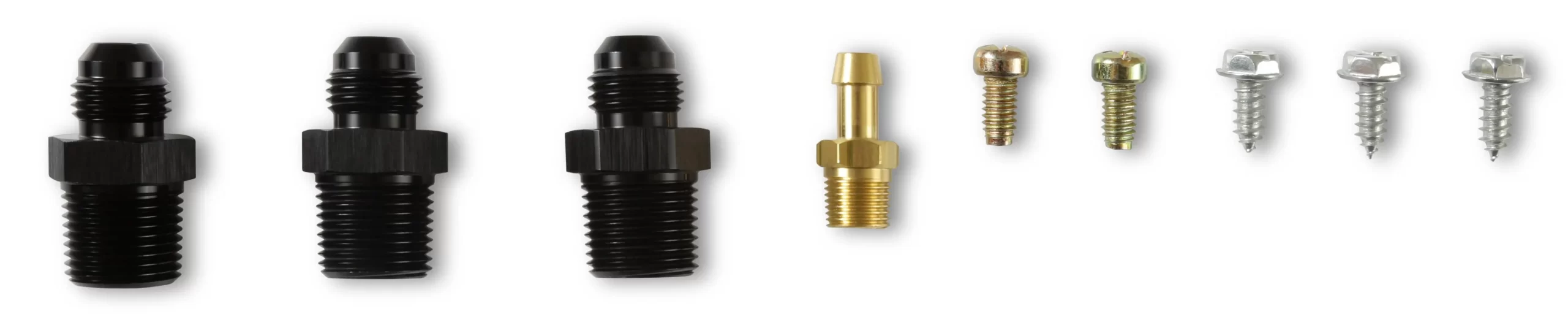

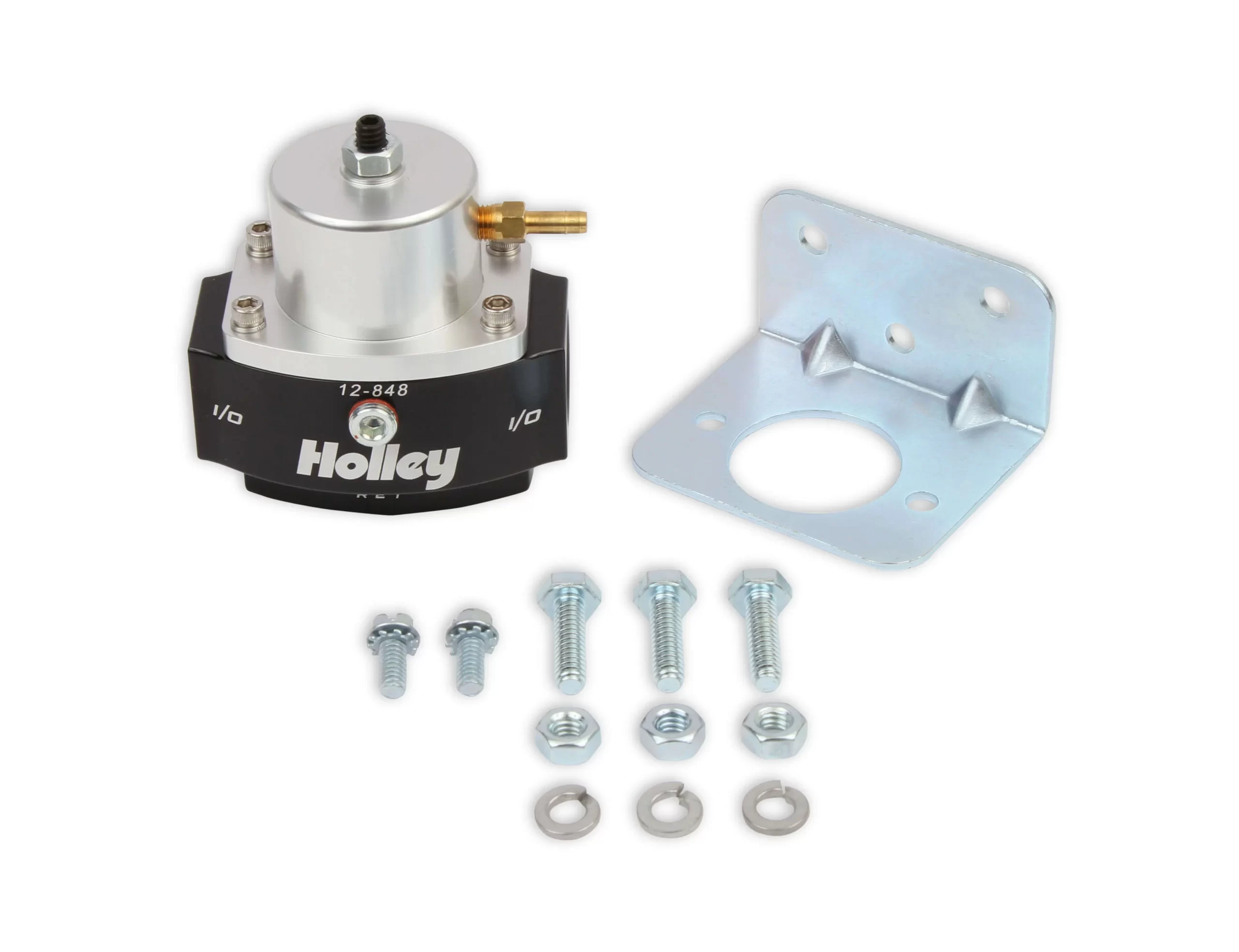

Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8″ NPT gauge port, and a 1/8″ NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features:
- Die Cast Aluminum Construction
- Adjustable from 15-60 psi for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 10 AN O-ring Inlet, Outlet, and 8 AN O-ring Return Port

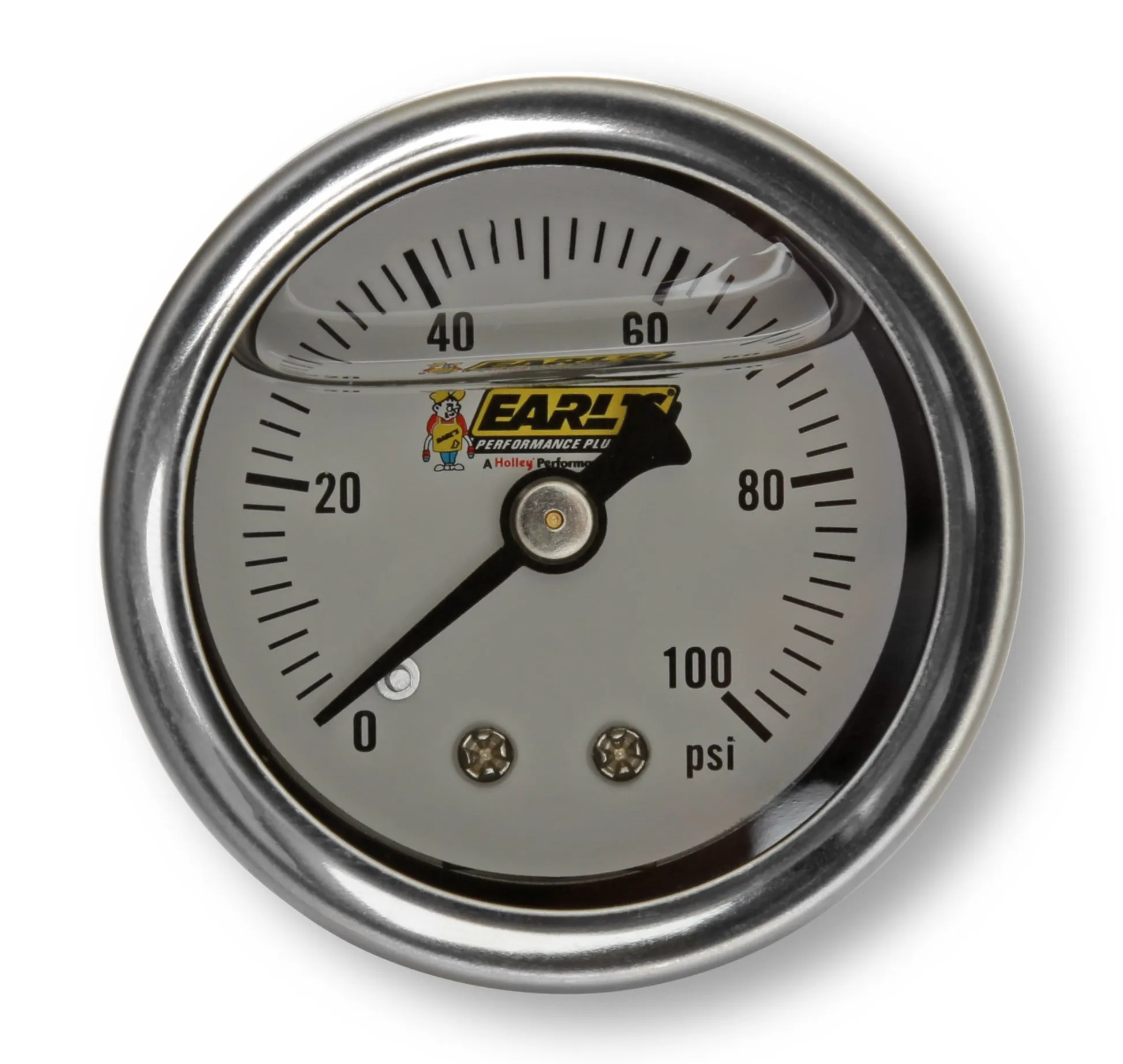

- 1/8” NPT Gauge Port and Earl’s Fuel Pressure Gauge (100187ERL)
- 1/8″ NPT Boost Reference (1:1) and Barbed Fitting
- Mounting Bracket Included
| Brand | Holley EFI |
|---|---|
| Color | Black |
| Emission Code | 3 |
| 5 | |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| Inlet Size | 10 AN O-ring |
| Material | Aluminium |
| Outlet Size | 10 AN O-ring |
| Pressure Range | 15-60 PSI |
| Product Type | Fuel Pressure Regulator |
| Return Size | 8 AN O-Ring |
| Style | Bypass |
| Warranty | Limited 90 Day Warranty |
| UPC | 090127122914 |
| Part Number | 12-848KIT |
