HOLLEY EFI

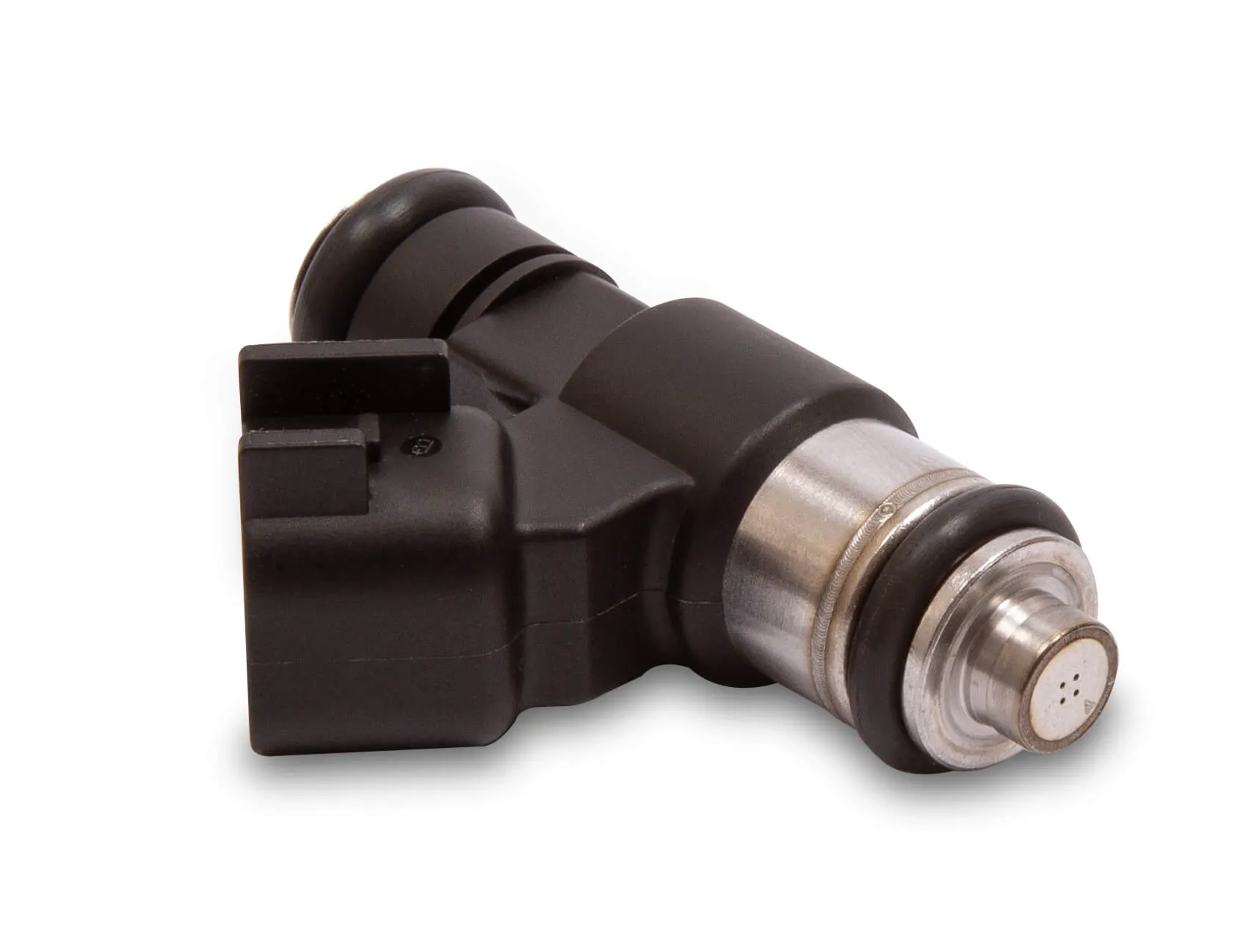

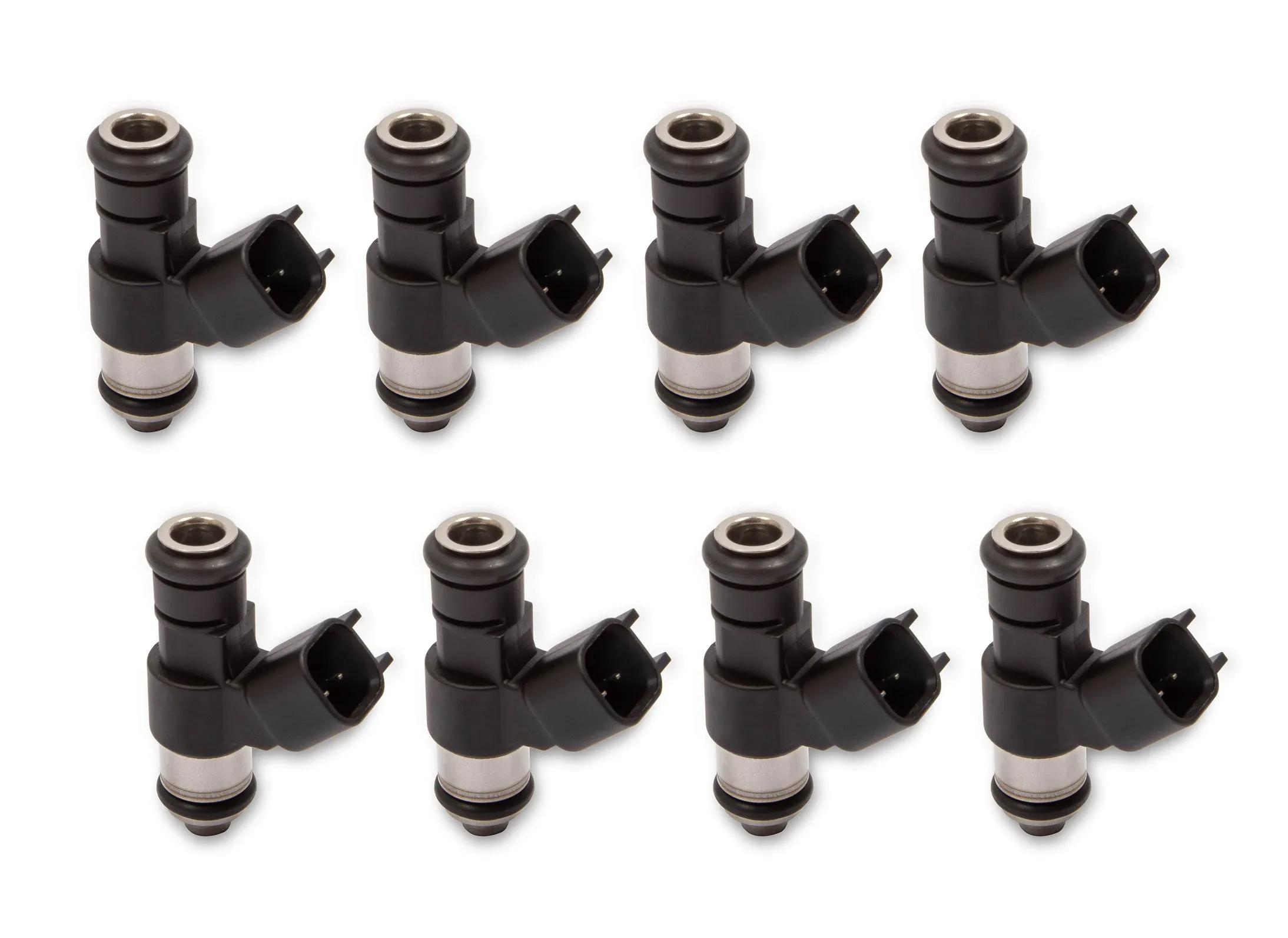

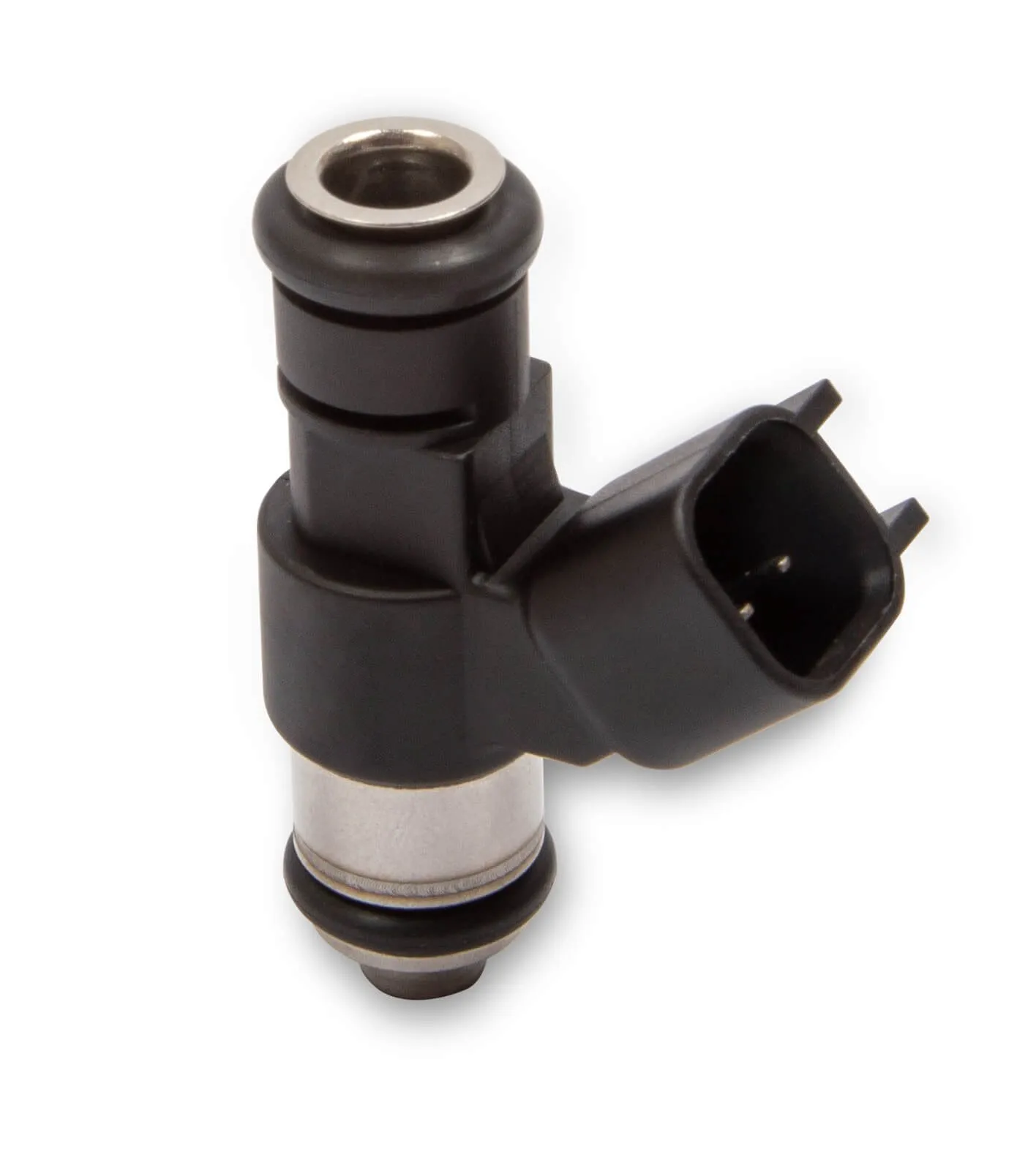

FLOW MATCHED 220PPH FUEL INJECTOR KIT – EIGHT PACK
PICO/EV6 Style – High Impedance – Flow Matched
Part # 522-228XFM
Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible “bounce” at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
- PICO/EV6 style performance injectors – Set of 8
- Dynamic Flow Matched within 1%
- High impedance for use with saturated drivers
- Rated injector flow from 42lb/hr to 120lb/hr for a wide array of applications, at 60psi base pressure, 220lb/hr injectors rated at 43psi base pressure
- 40mm o-ring to o-ring length
- Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
- Easy to install in any Holley EFI Hi-Ram intake, using the 300-230 fuel rail adapter kit
- Injector Off Time provided in the Holley EFI software
| Body Diameter | 0.650 |
|---|---|
| Body Length | 1.85″ |
| Body Style | EV6 |
| Brand | Holley EFI |
| Connector Series | USCAR – EV6 |
| Emission Code | 3 |
| Fuel Type | E-85 |
| Gasoline | |
| Methanol | |
| Impedance | High (12.2 Ohm) |
| O-Ring to O-Ring | 1.421 |
| Product Type | Fuel Injector |
| Rated Injector Flow | 220 lb/hr |
| UPC | 090127137581 |
| Part Number | 522-228XFM |
