8.2″ SBF FORD HI-RAM CARBURETED MANIFOLD BASE

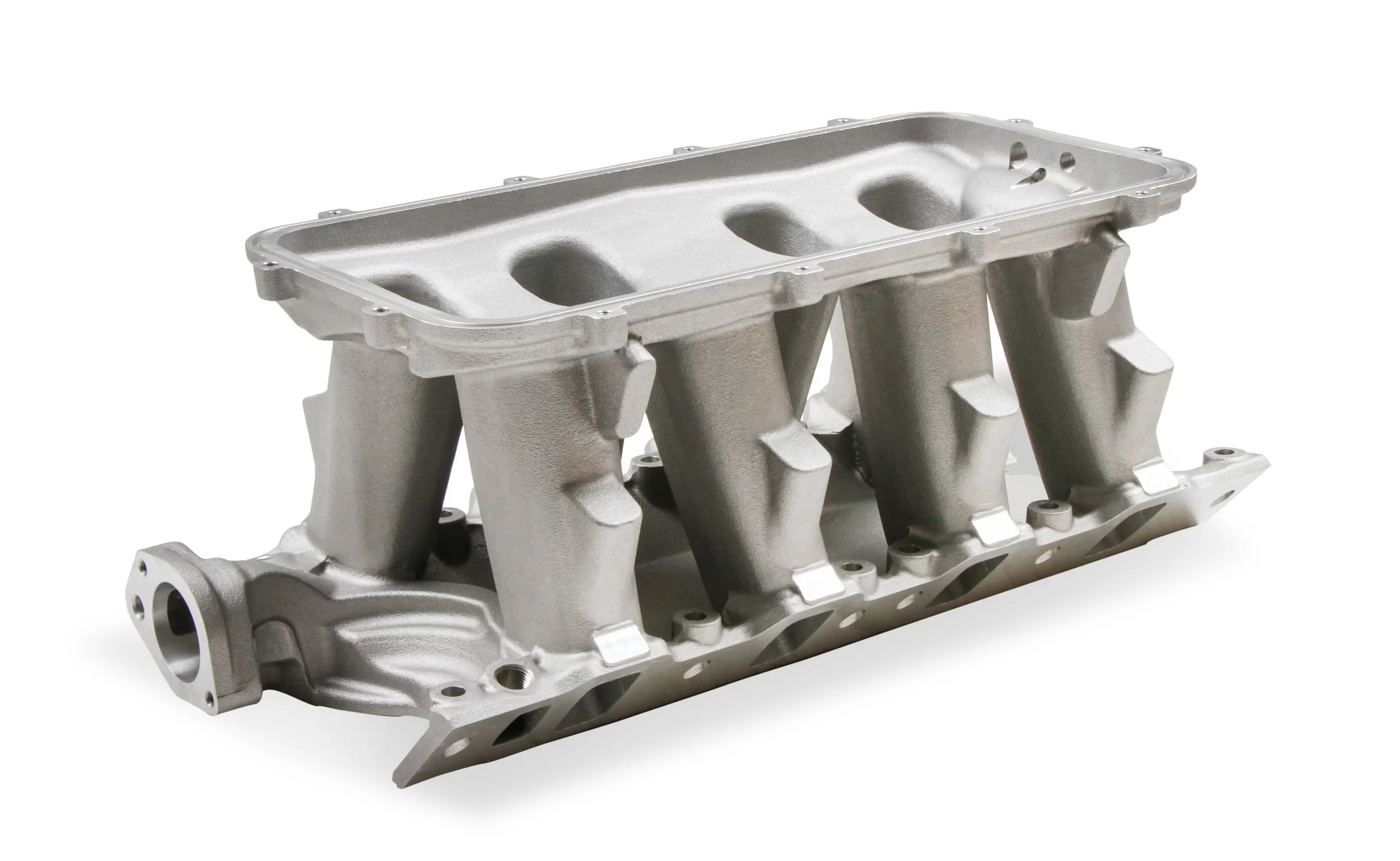

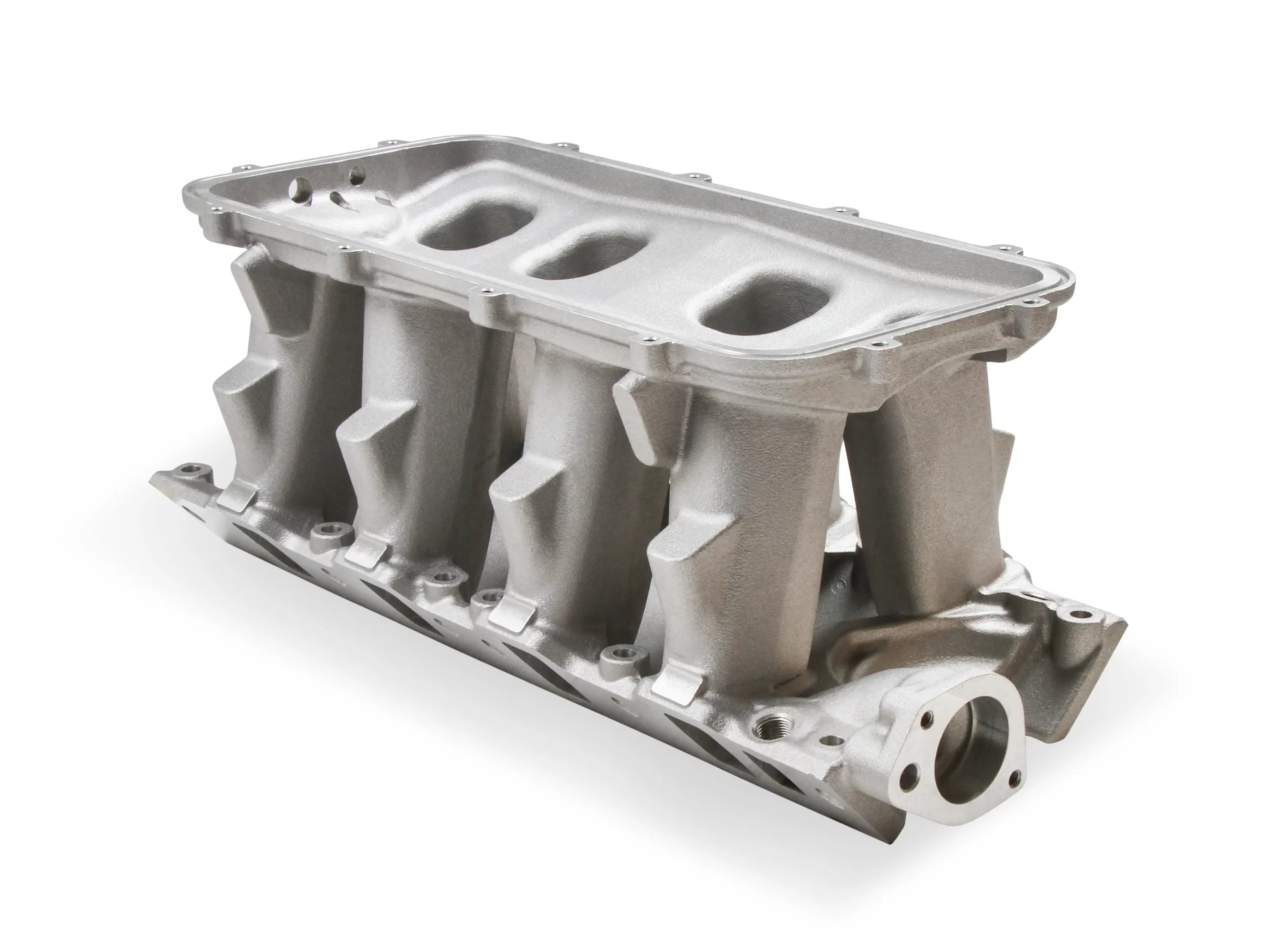

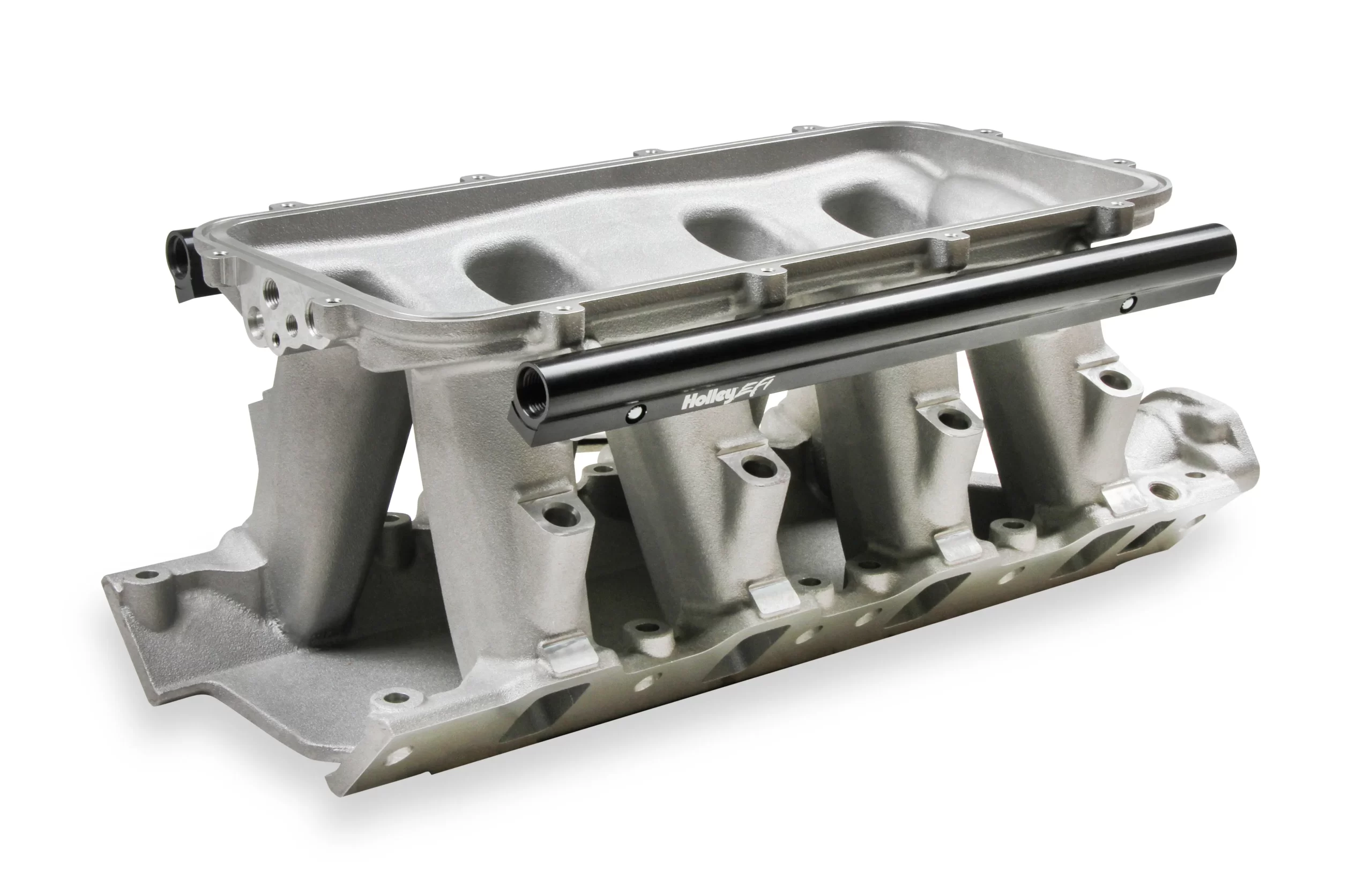

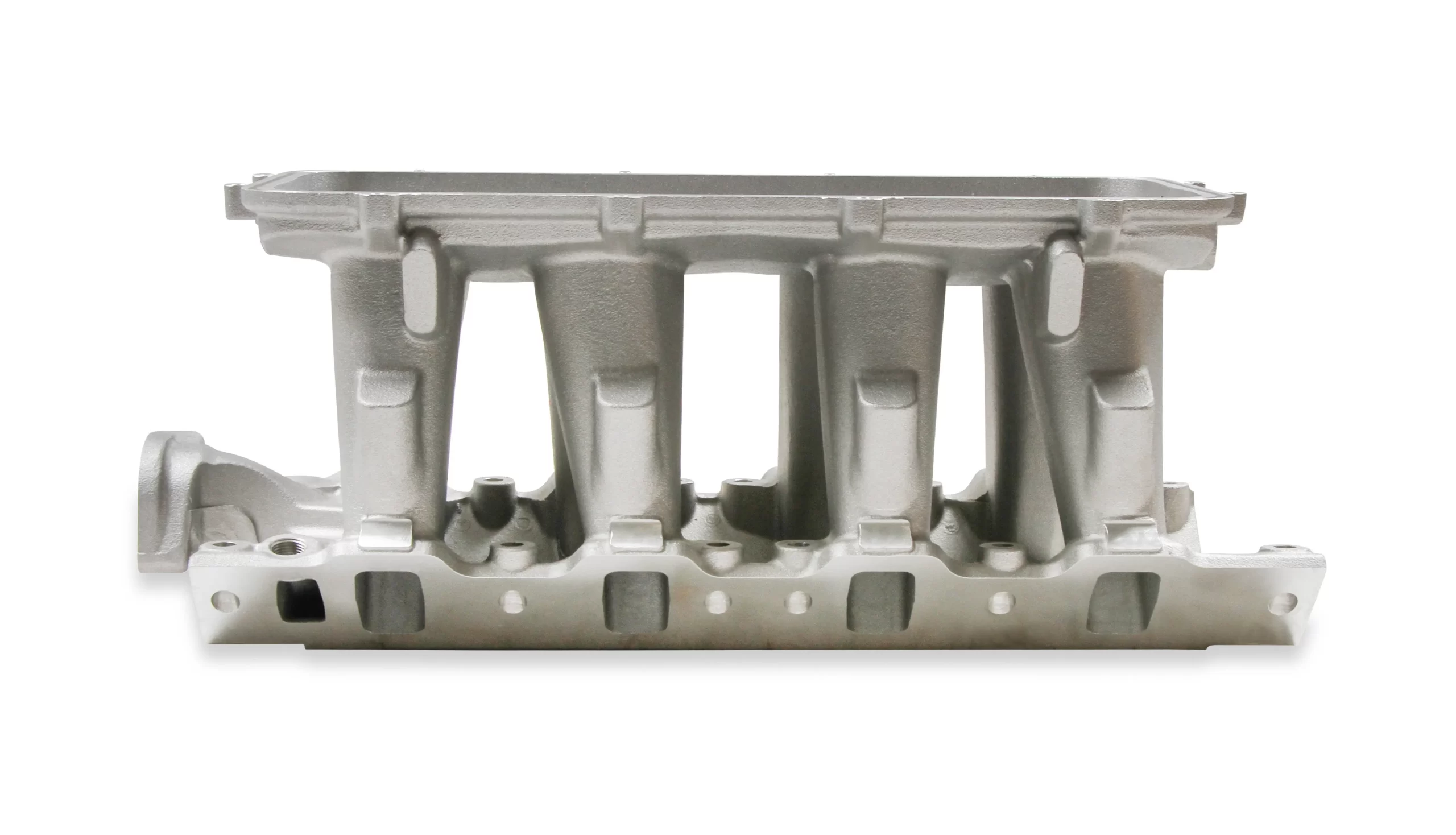

8.2″ SBF Ford Hi-Ram Carbureted Intake Manifold Base
Part # 300-275

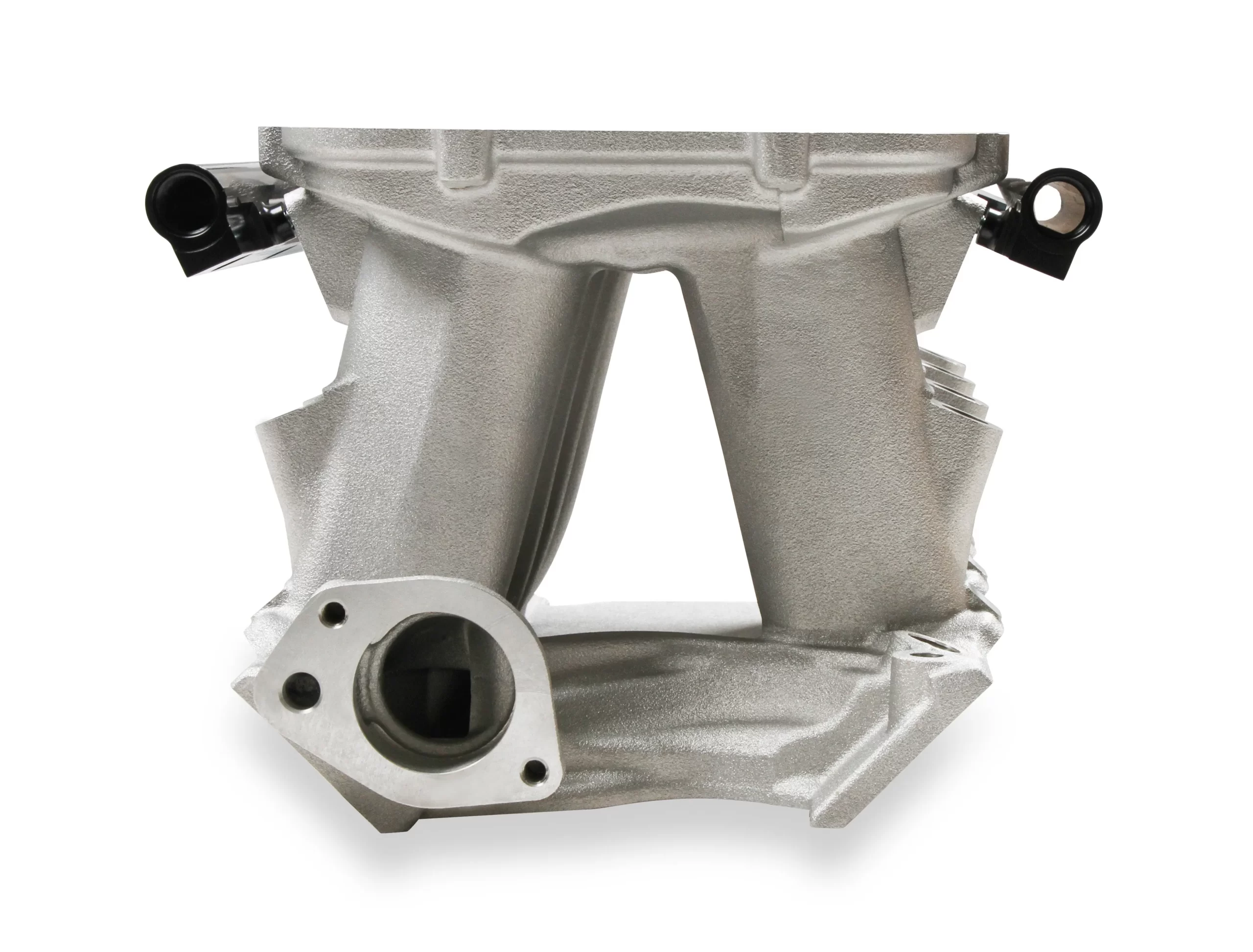

The carbureted Hi-Ram manifold line has a new addition for the 8.2″ SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2″ deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. ***Carbureted Base Manifold only-Manifold tops available seperately. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. *** For carbureted applications you can use MSD PN 85797 Ford 289-302 Distributor with Steel Gear
Features:
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Manifold is designed for a 8.2″ SBF deck height.
- Carbureted Base Manifold only.
| Brand | Holley EFI |
|---|---|
| Construction | Cast |
| Emission Code | 3 |
| Engine | Ford Small Block V8 |
| Finish | Satin |
| Fuel System Type | Carburetor |
| Manifold Type | Hi-Ram |

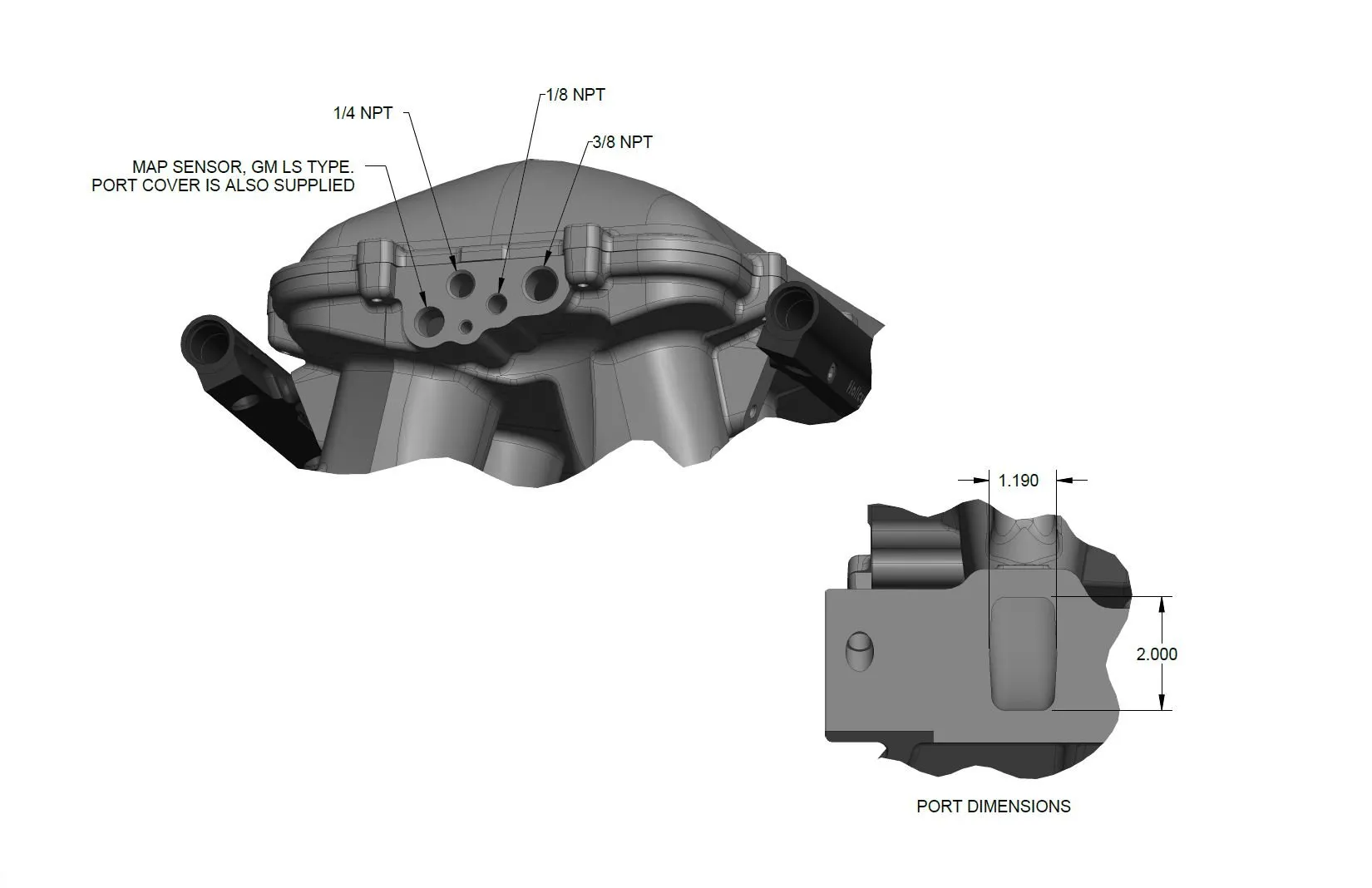

| Port Size | 2.00″ x 1.190″ |
| Product Type | Intake Manifold Base |
| RPM Power Band | 1500-7000 |
| Warranty | Limited 90 Day |
| UPC | 090127062661 |
| Part Number | 300-275 |
