HOLLEY EFI 7″ DIGITAL DASH
Fully customizable, with a huge array of gauge and indicator screens. Compatible with Holley EFI, Sniper EFI, and Terminator X systems.
Part # 553-106

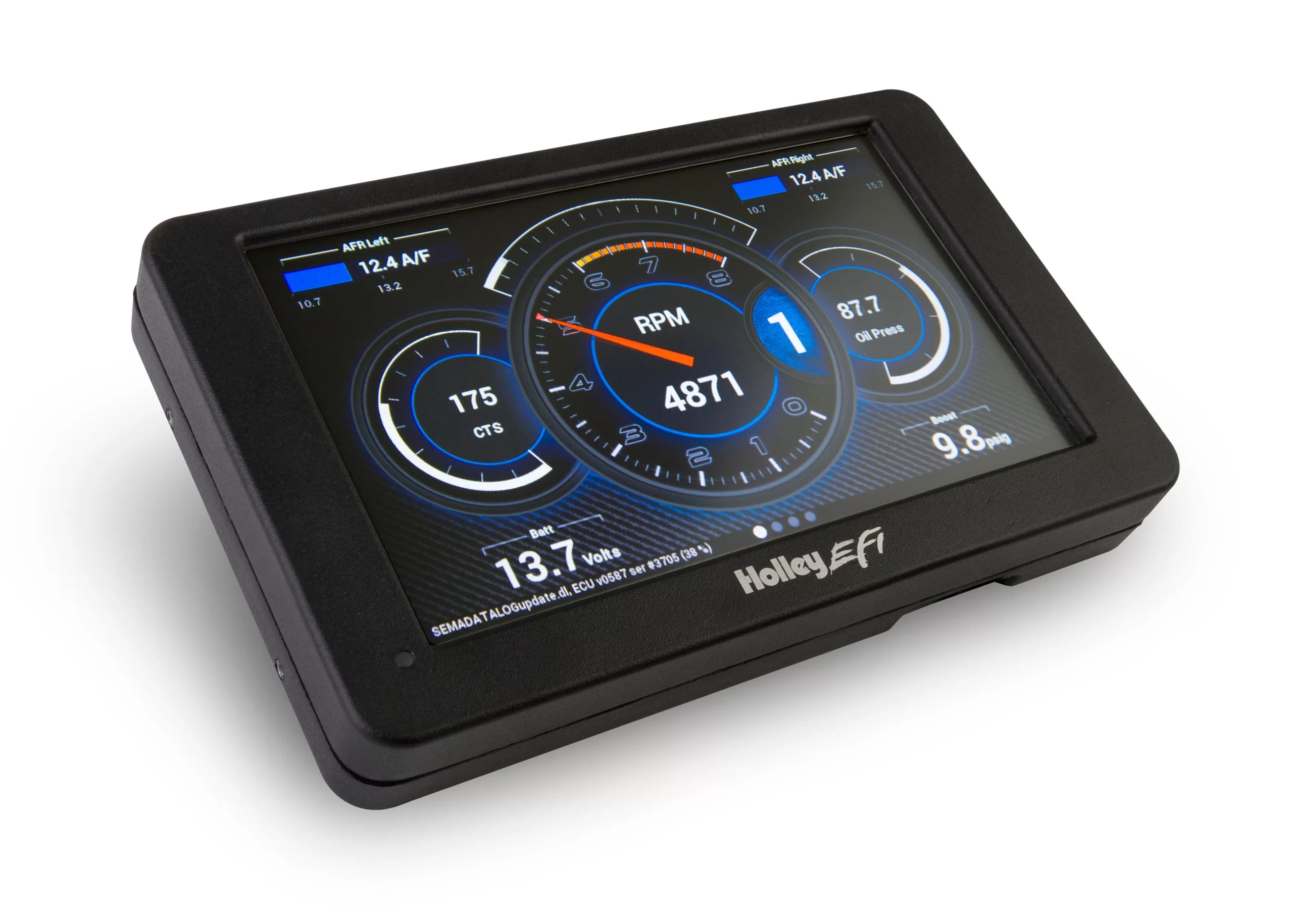

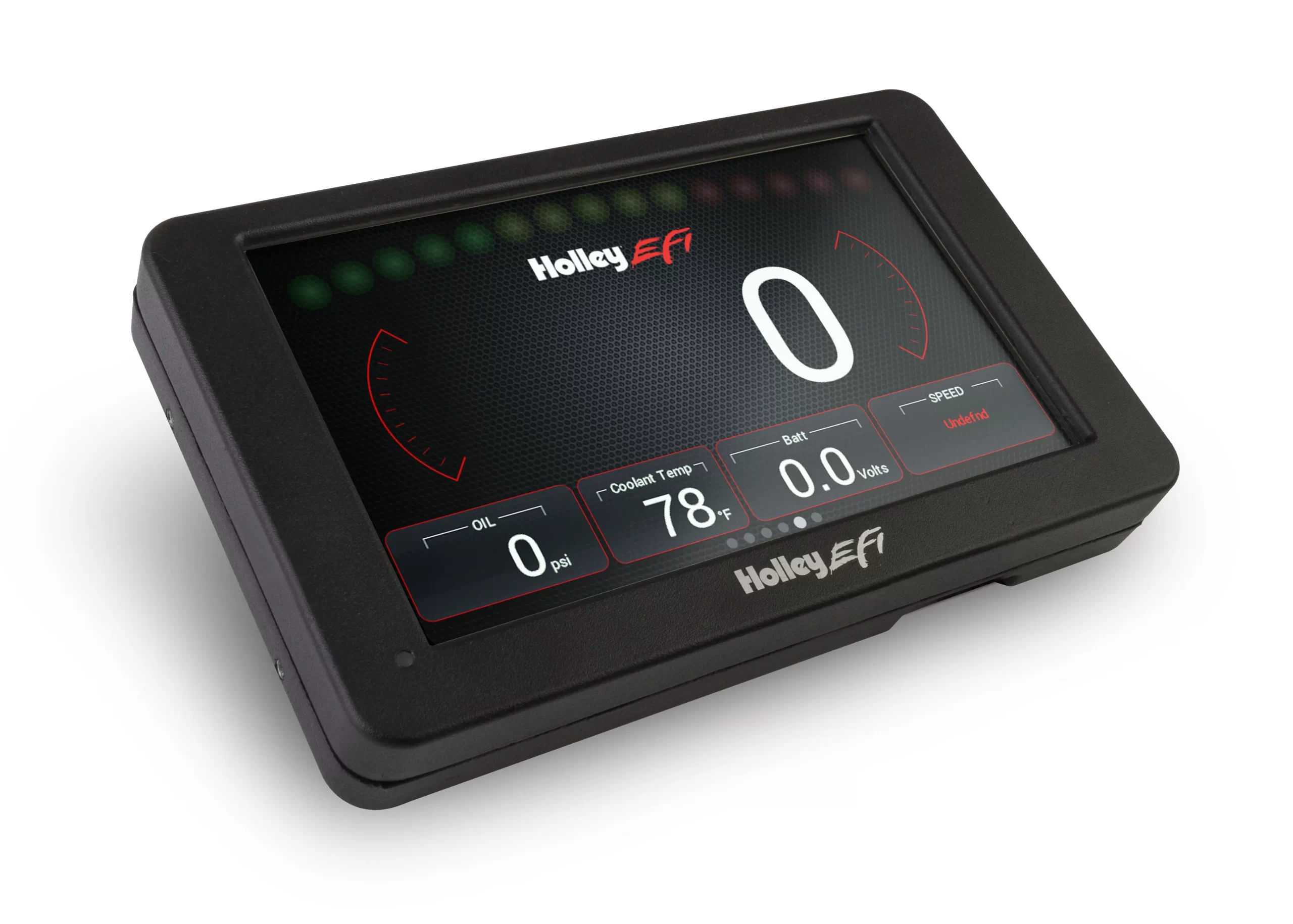

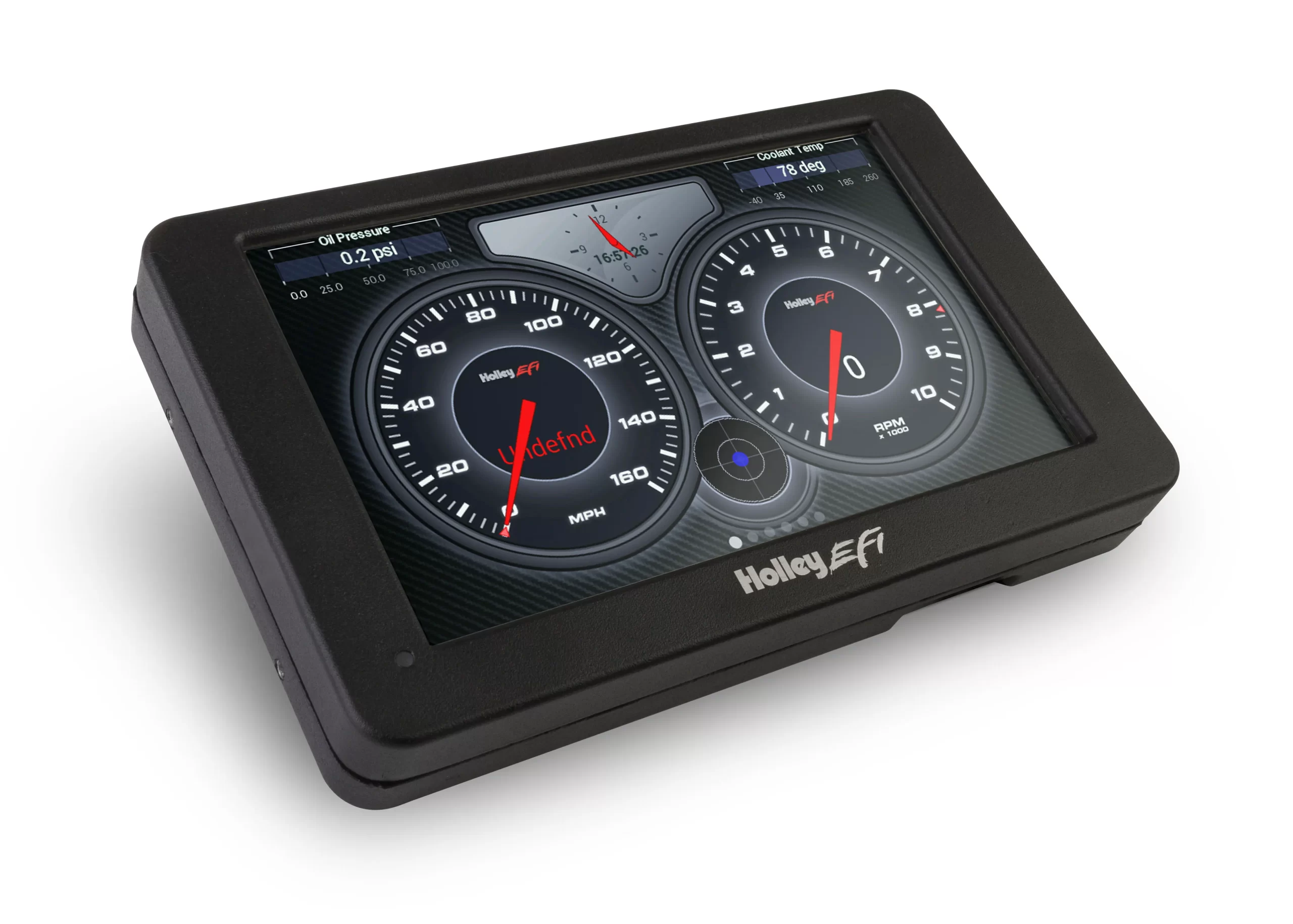

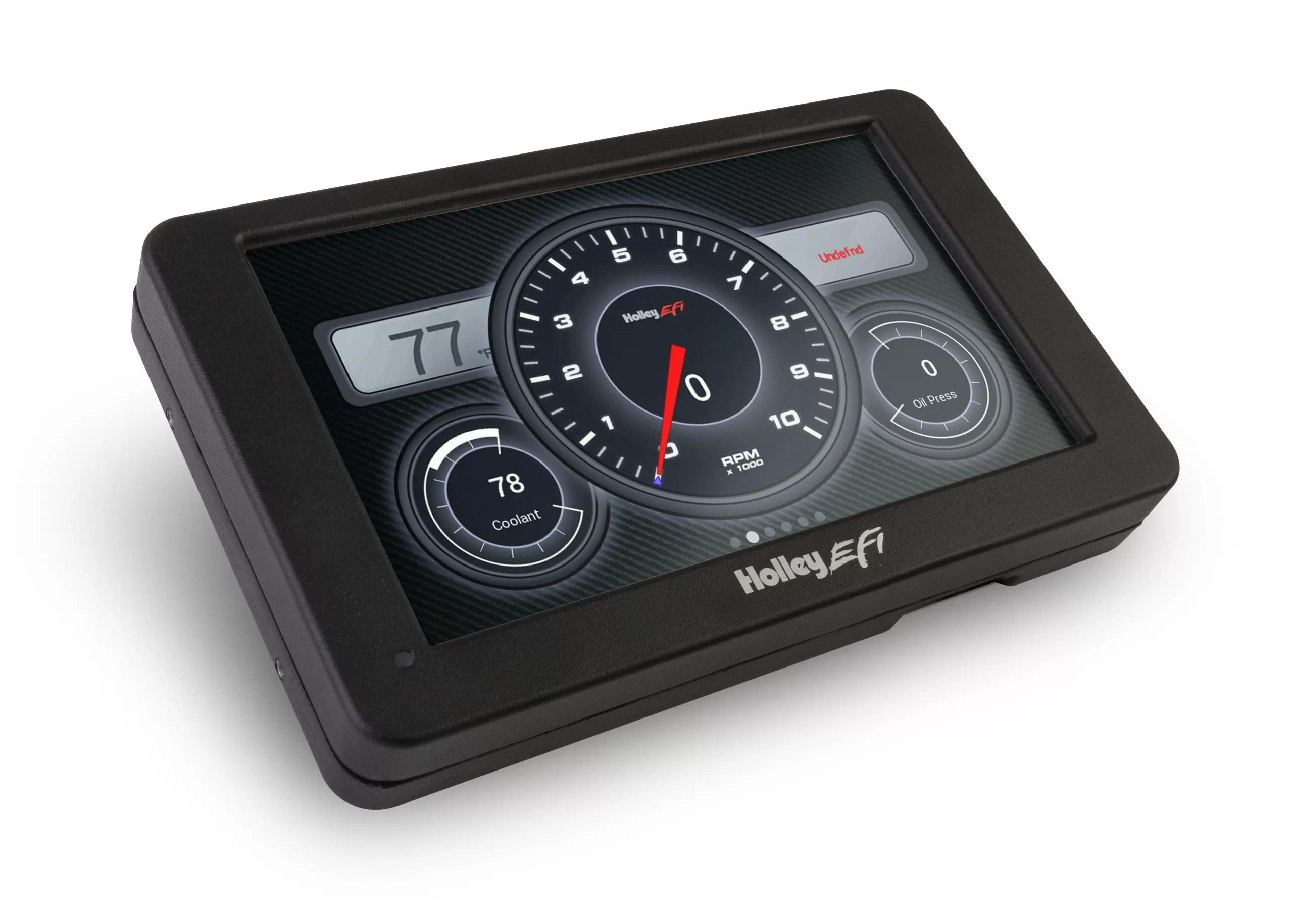

The Holley EFI Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights, and can control on-screen playback of your EFI data logs. The Holley EFI Digital Dash measures 7.5″ wide, 4.625″ tall, and 1″ deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7″ low glare, high brightness, high contrast, full-color touch screen for easy viewing even in full sun, plug and plays connection to all Holley EFI systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!
Features:
- Plug and play connection to all Holley EFI systems via CAN bus
- Compact, customizable dash for use in a variety of motorsports applications
- 7″ low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
- 800×480 resolution with auto brightness
- Operating voltage min 8V – 20V

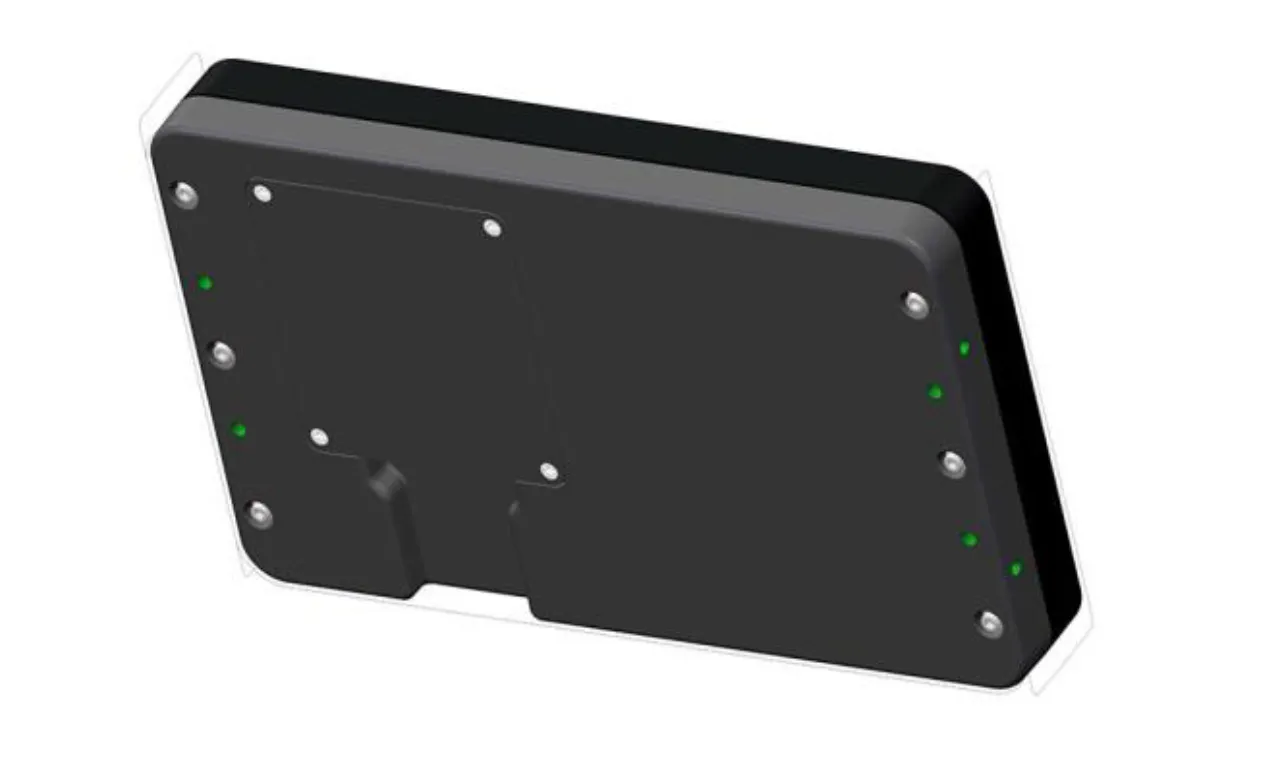

- Weather proof aluminum housing featuring flexible mounting options
- Completely customizable display of all EFI parameters including every user configurable input and output available
- Multiple gauge and indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual Switch Panel (replaces the need for physical switches)
- User defined alarms for any input
- Configurable progressive shift lights and light bar
- Control and on screen playback of EFI data logs
- Download and save Holley EFI data logs to external USB memory stick
- Expandable internal storage on micro SD card
- Support for future USB devices
- Upgradable with future software enhancements

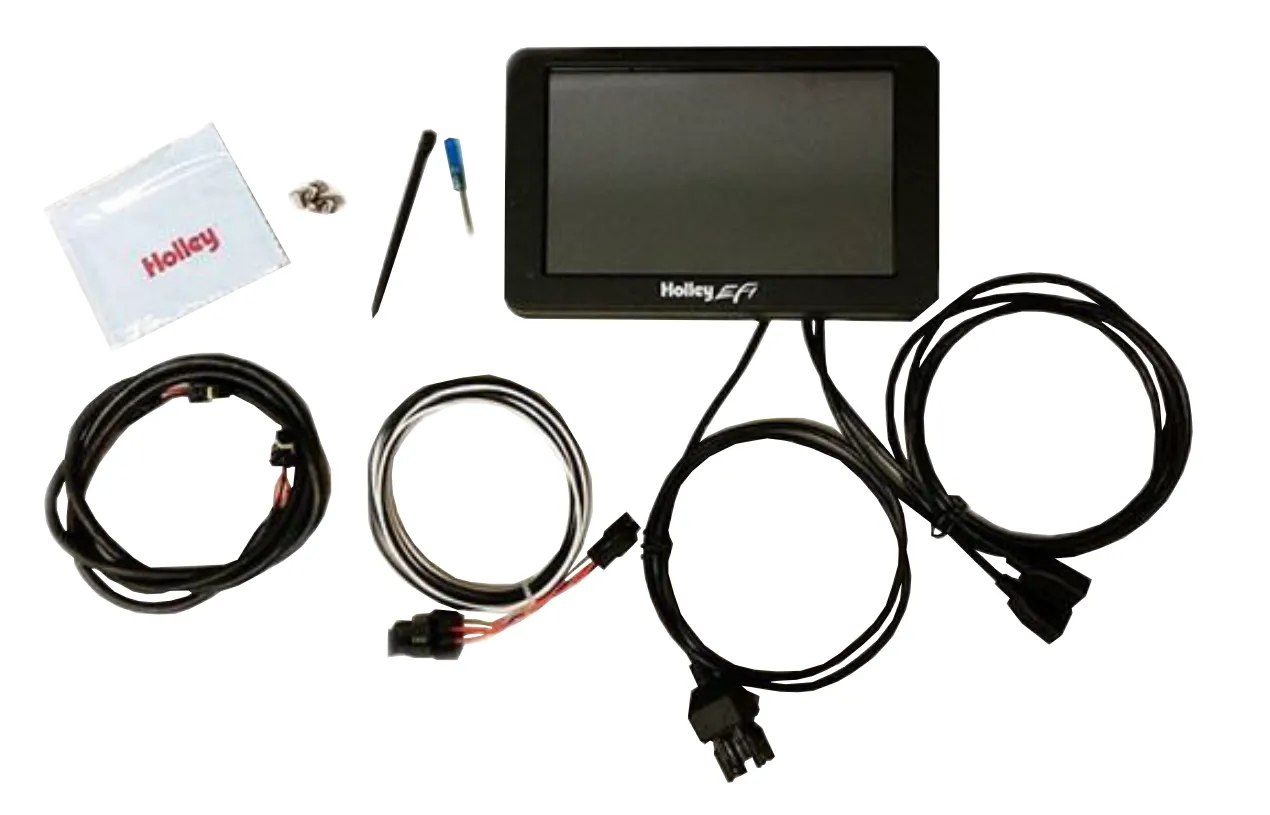

- Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations
- Integrated 3 Axis Accelerometer
| Brand | Holley EFI |
|---|---|
| Depth | 1″ |
| Emission Code | 5 |
| Height | 4.625″ |
| Product Type | Digital Dash |
| Screen Size | 7″ Diagonal |
| Screen Type | Resistive touch screen |
| Width | 7.5″ |
| UPC | 090127714171 |
| Part Number | 553-106 |
