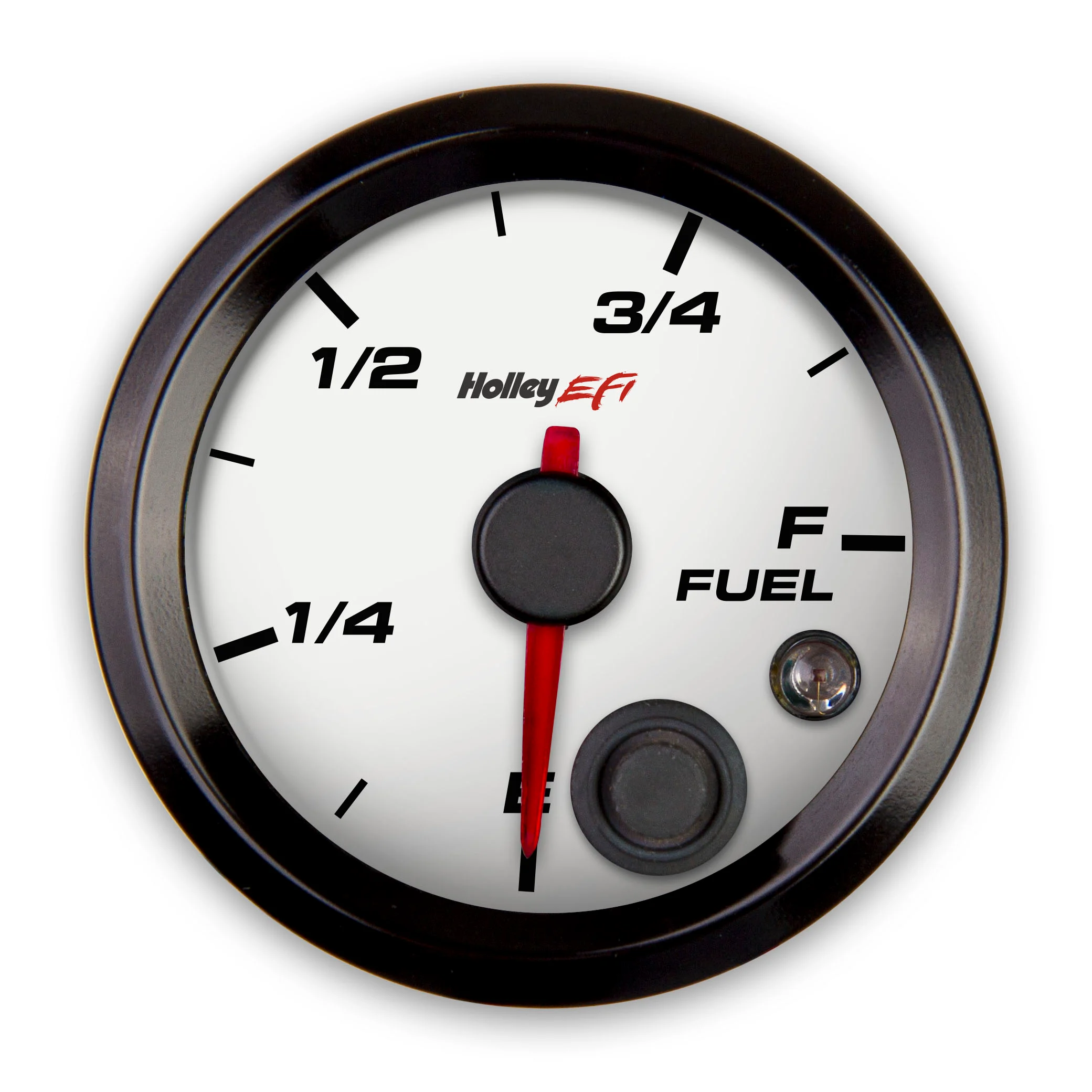

HOLLEY EFI FUEL LEVEL GAUGE
Standard 2-1/16″ size – Programmable – White Face – Black Bezel
Part # 553-133W
Unlike the other Holley EFI gauges which daisy chain together, the fuel level gauge wires directly to the sending unit, eliminating the need for custom ECU configuration.
Features:
- Wires directly to sending unit, programmable for factory and aftermarket sending units with a range anywhere within 0-300ohms

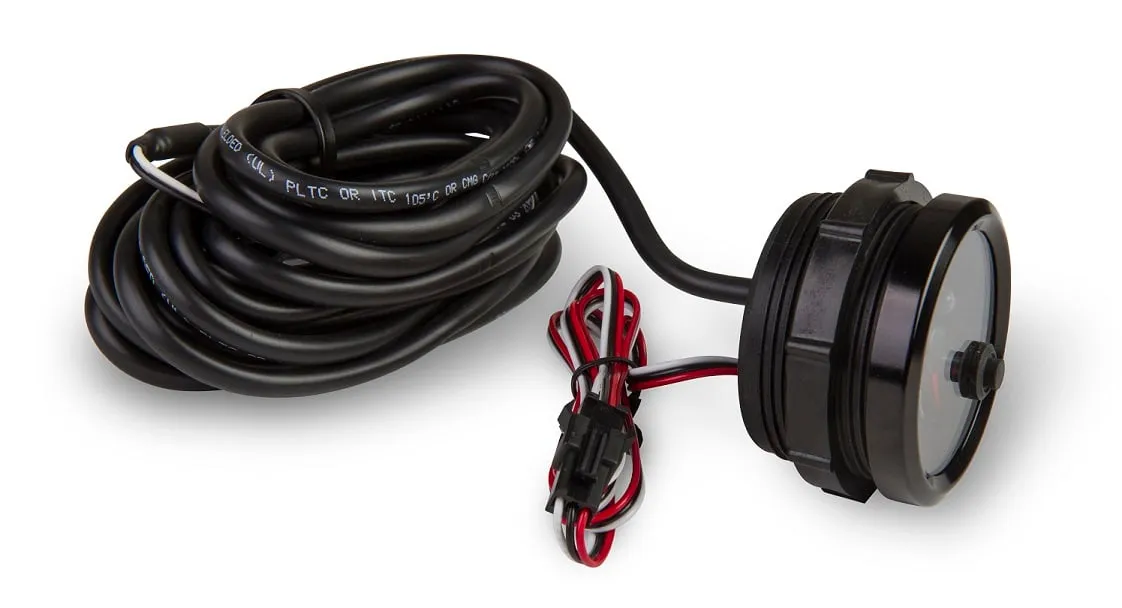

- Includes 12′ shielded cable to connect directly to sending unit
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set low trigger points
- LED warning light brightness can be configured for both day and night
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference
| Brand | Holley EFI |
|---|---|
| Emission Code | 5 |
| Gauge Background Color | White |
| Gauge Type | Fuel Level |
| Product Type | Gauge |
| Size | 2-1/16″ |
| UPC | 090127734308 |
| Part Number | 553-133W |
