HOLLEY EFI

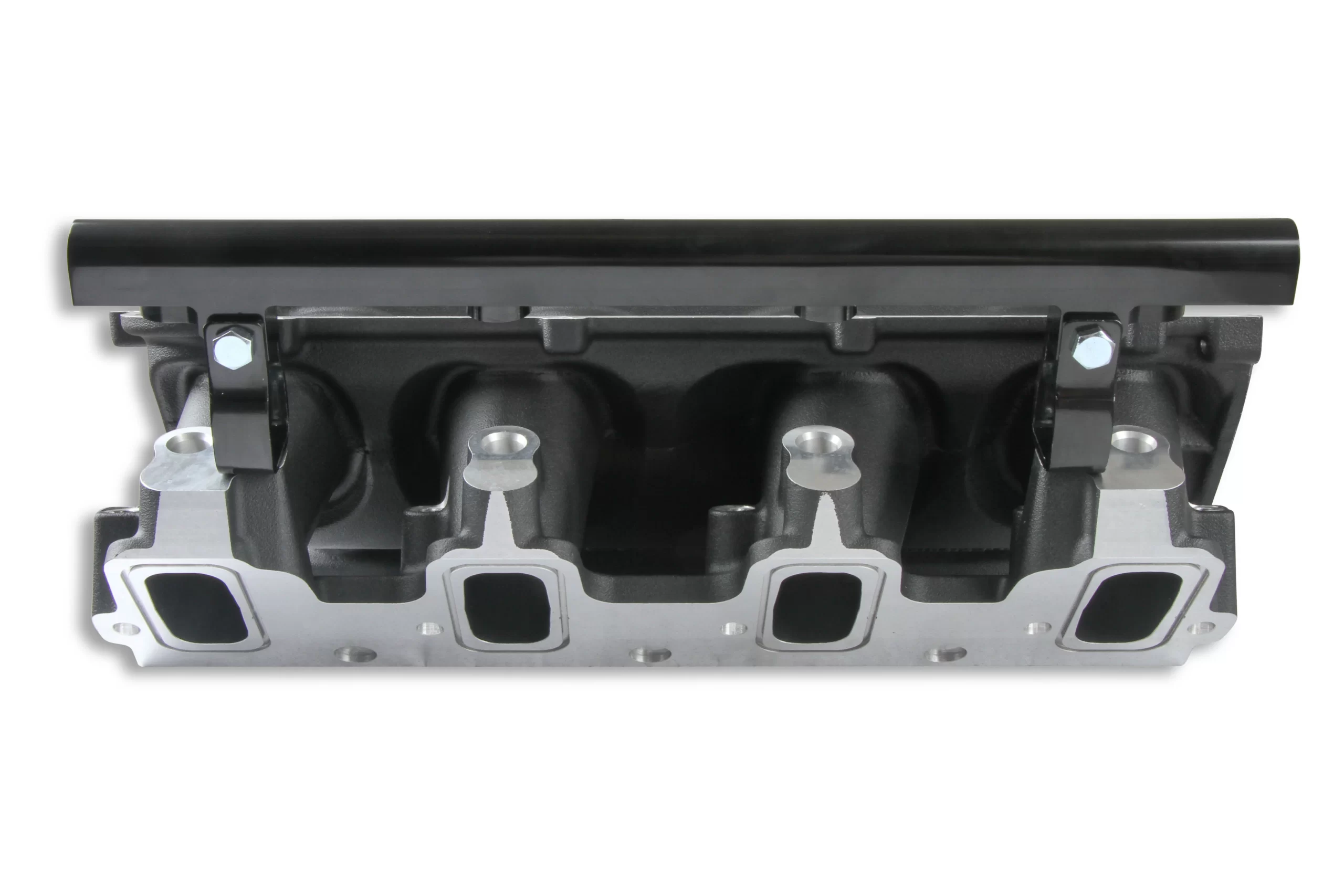

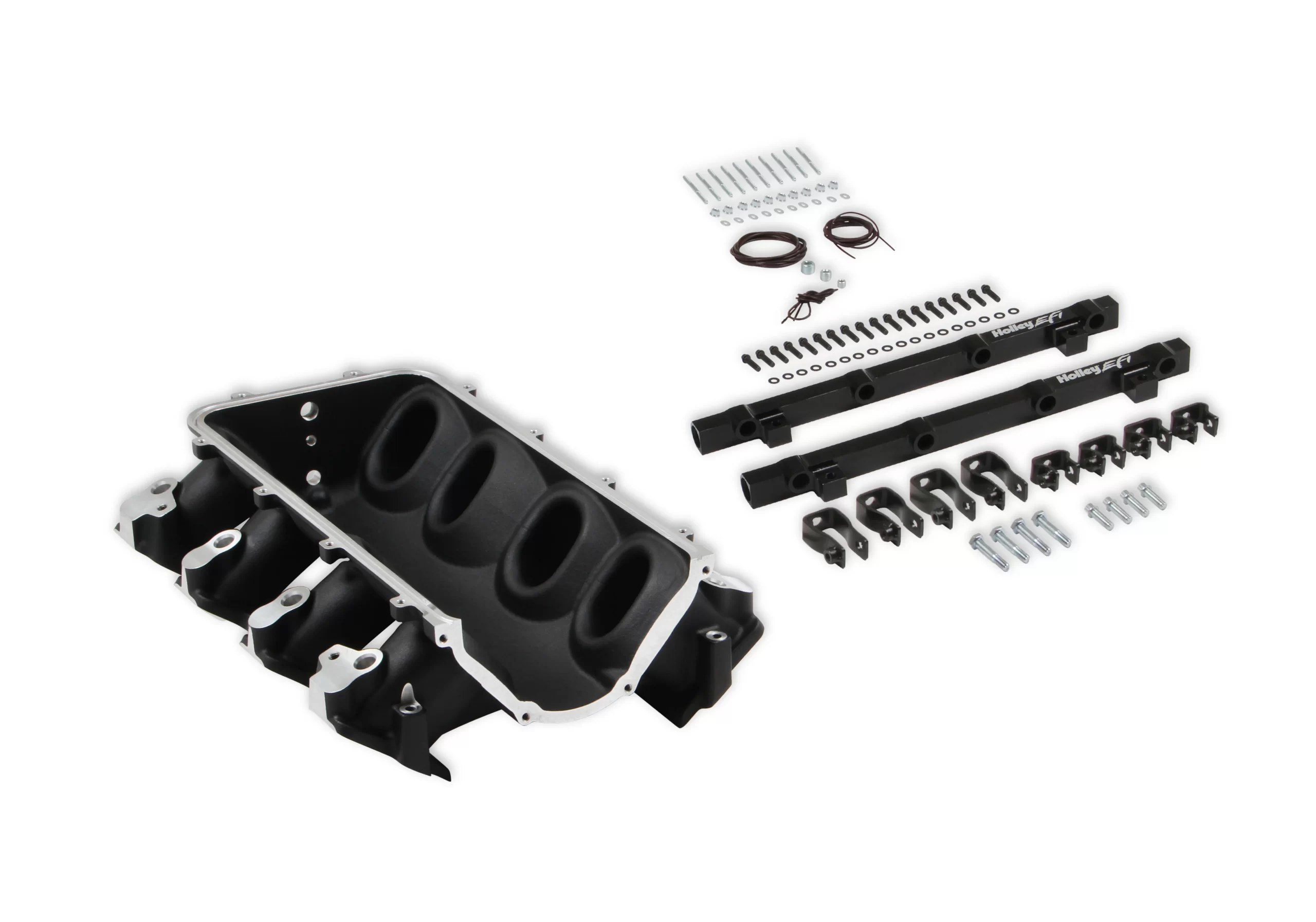

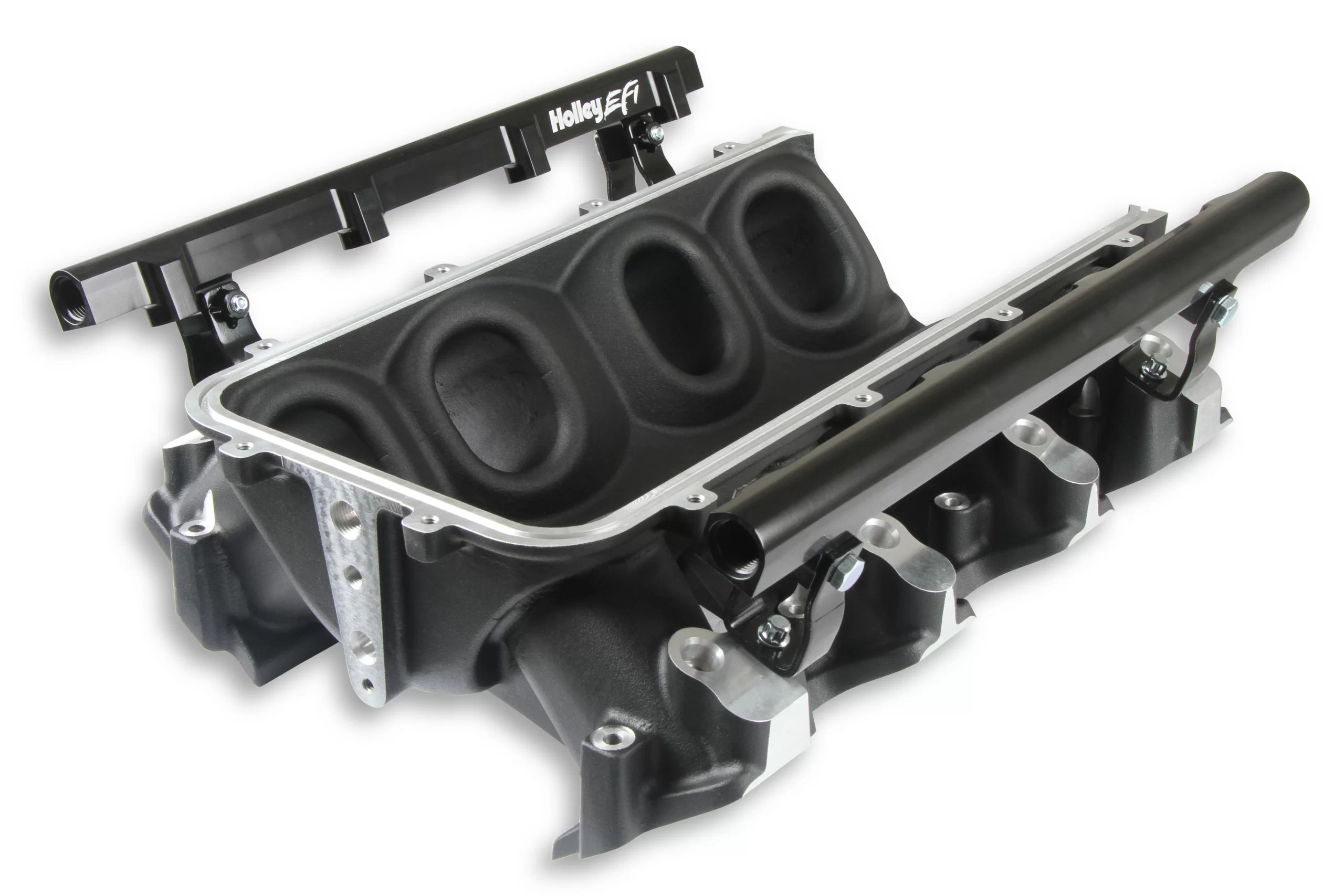

HOLLEY ULTRA LO-RAM MANIFOLD BASE AND FUEL RAILS SINGLE FUEL INJECTOR GM LS3/L93
Front-feed Single Injector manifold and fuel rails only-Black Finish
Part # 300-672BK

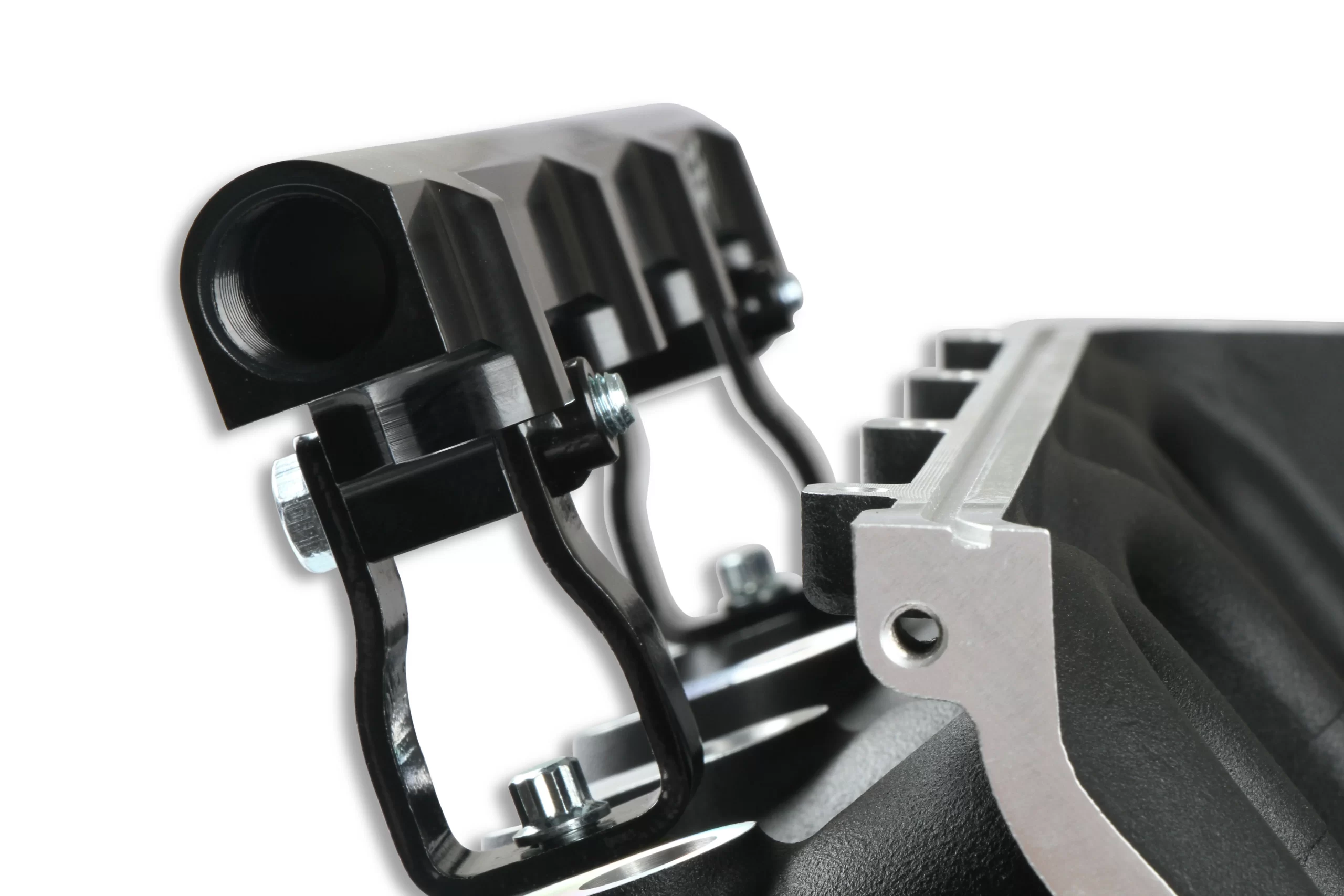

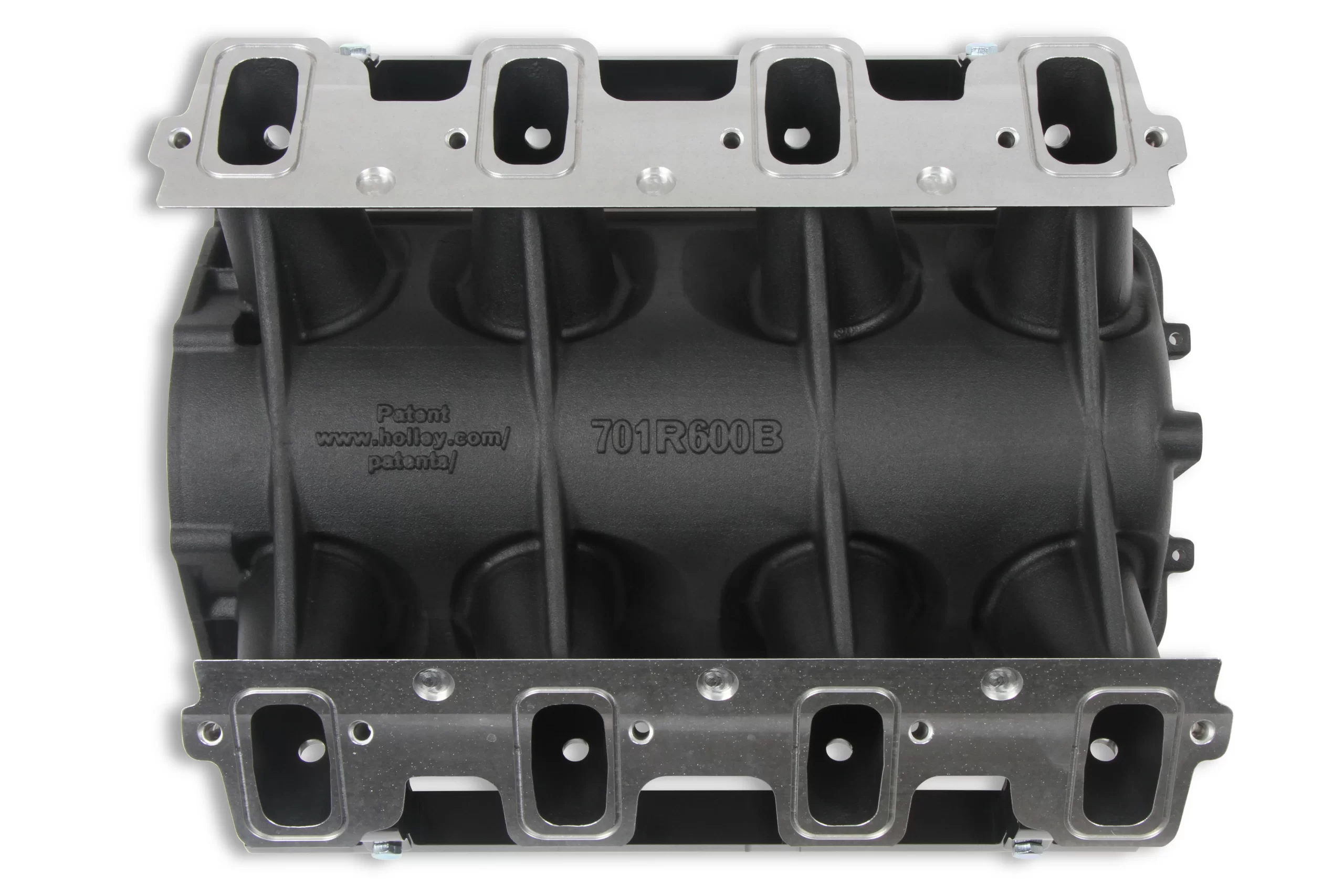

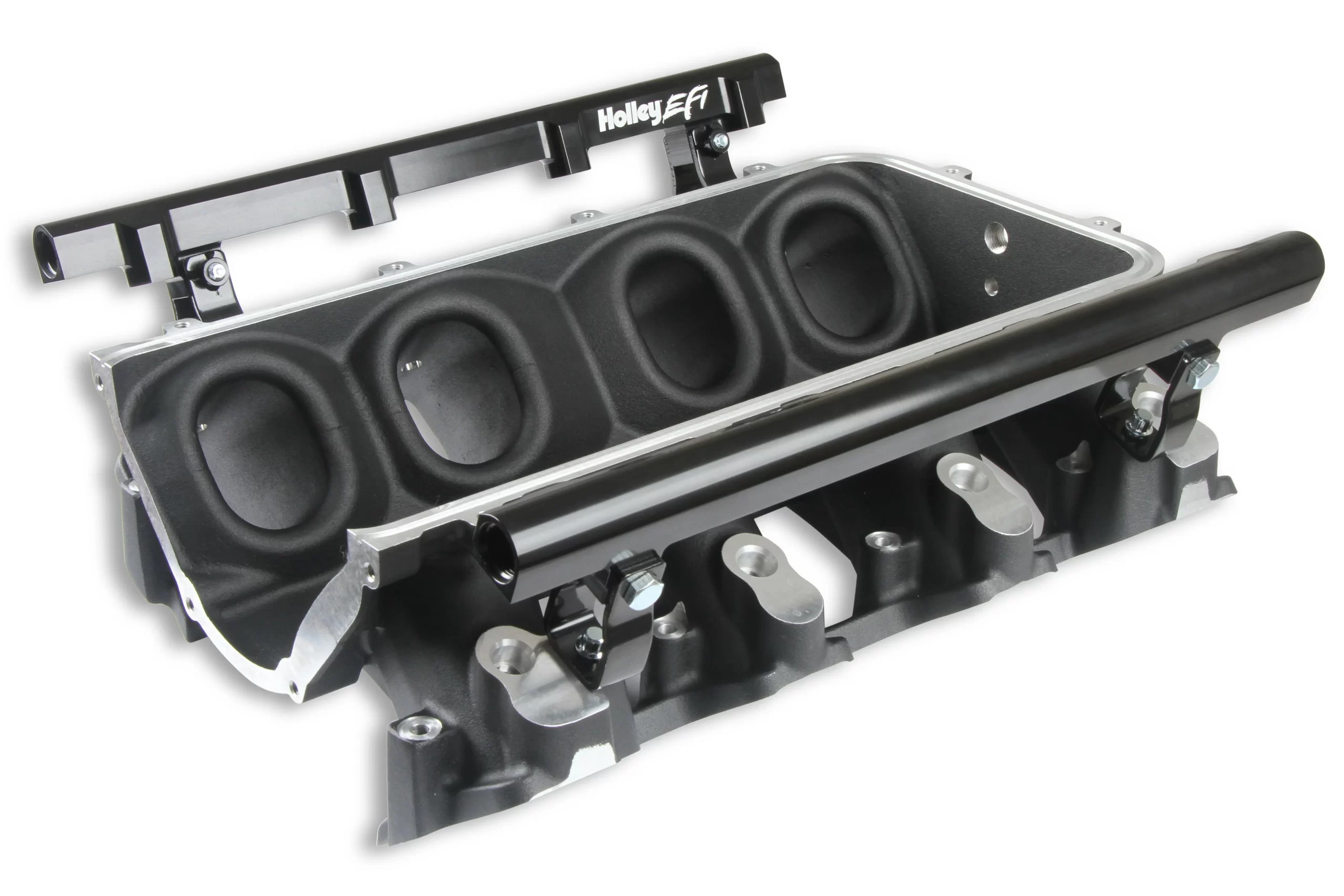

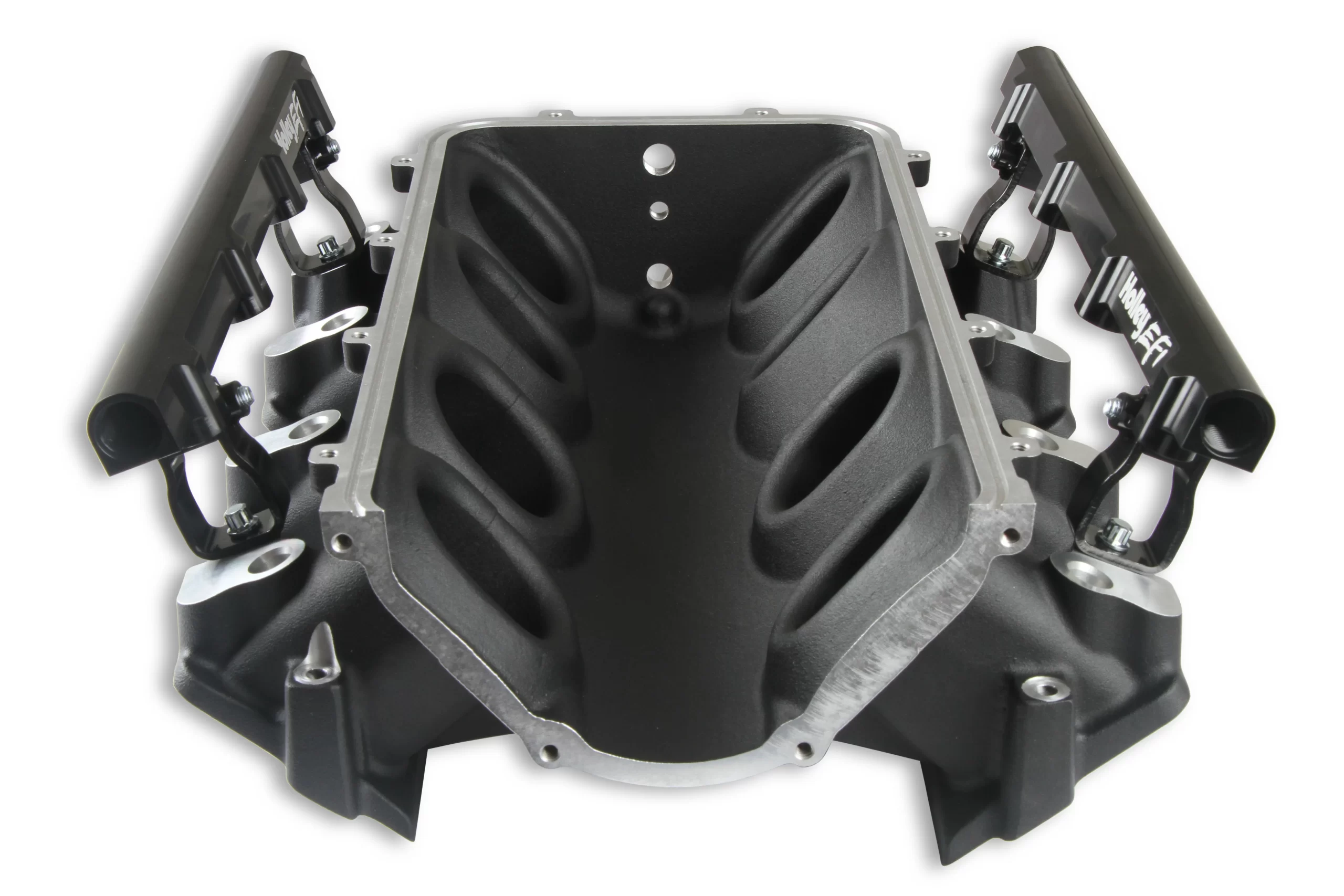

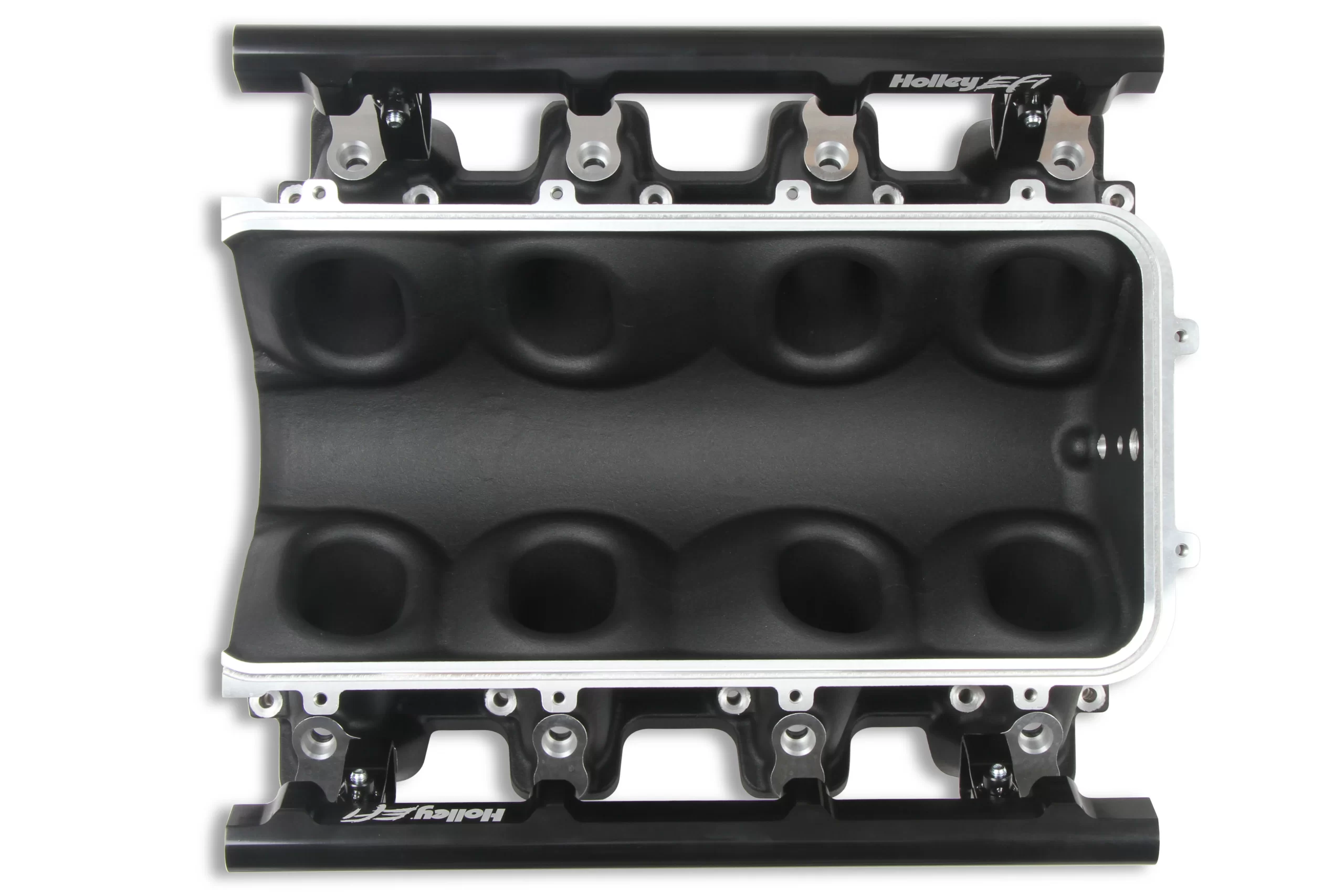

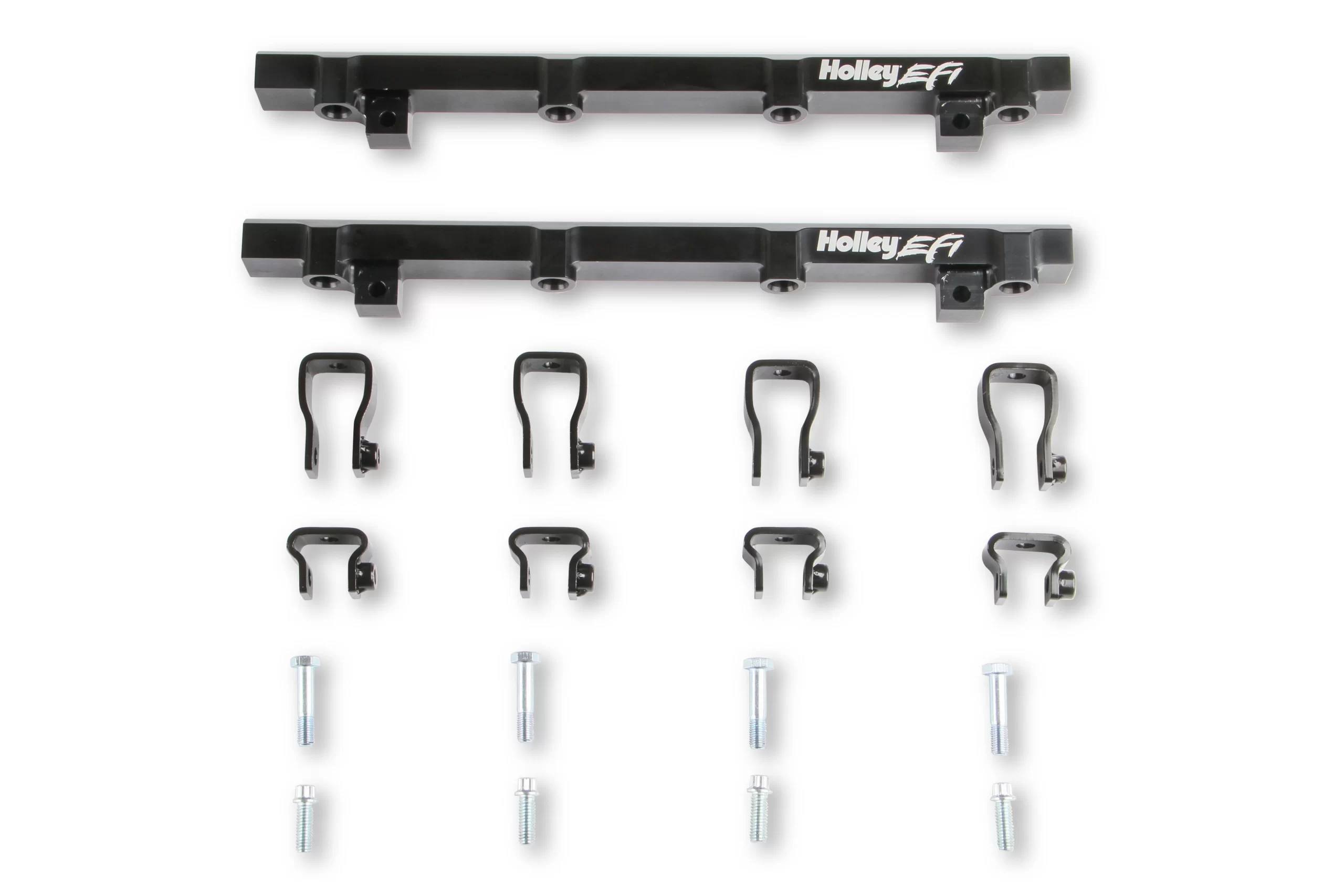

The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front entry plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The LS3 Ultra Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options.The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application

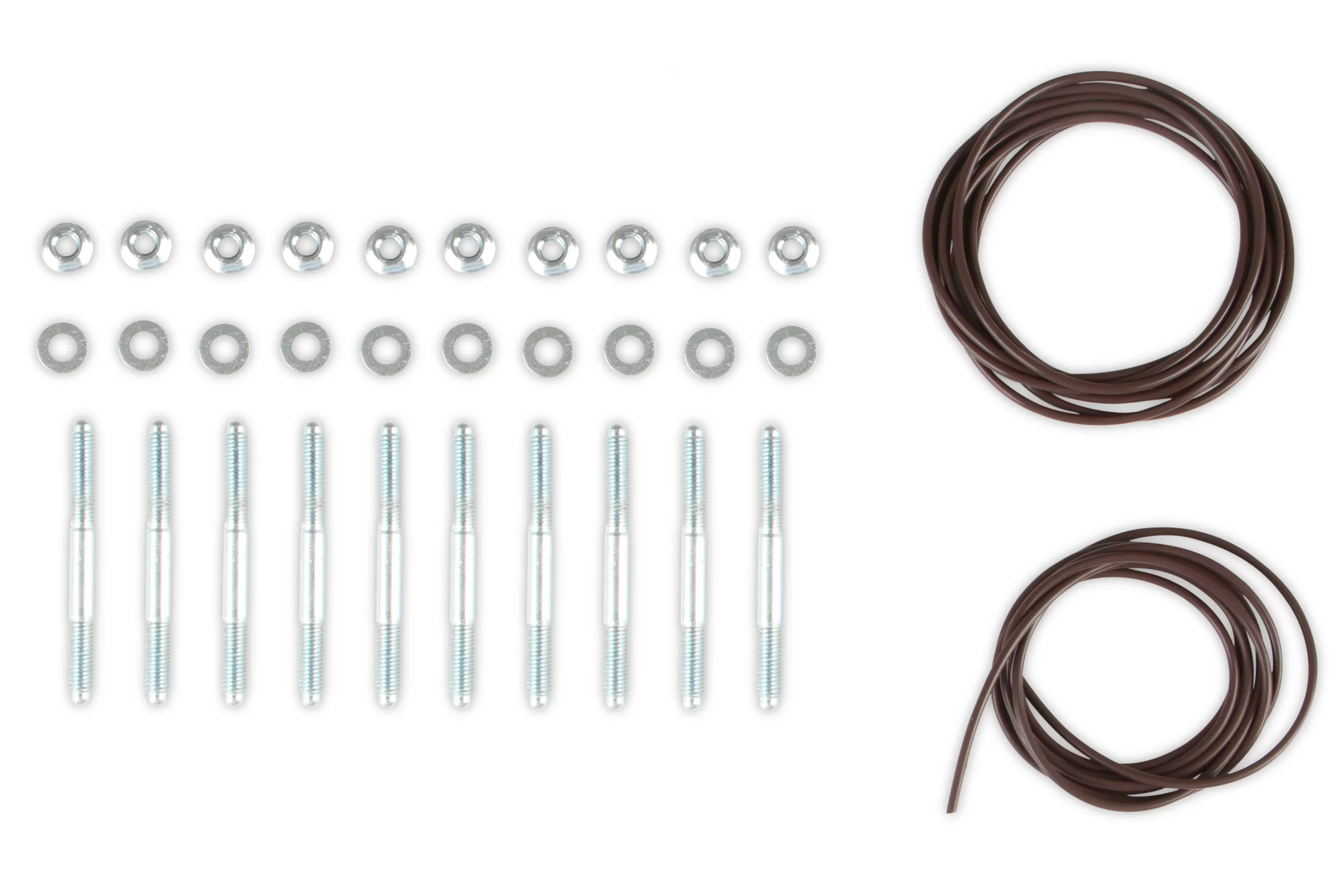

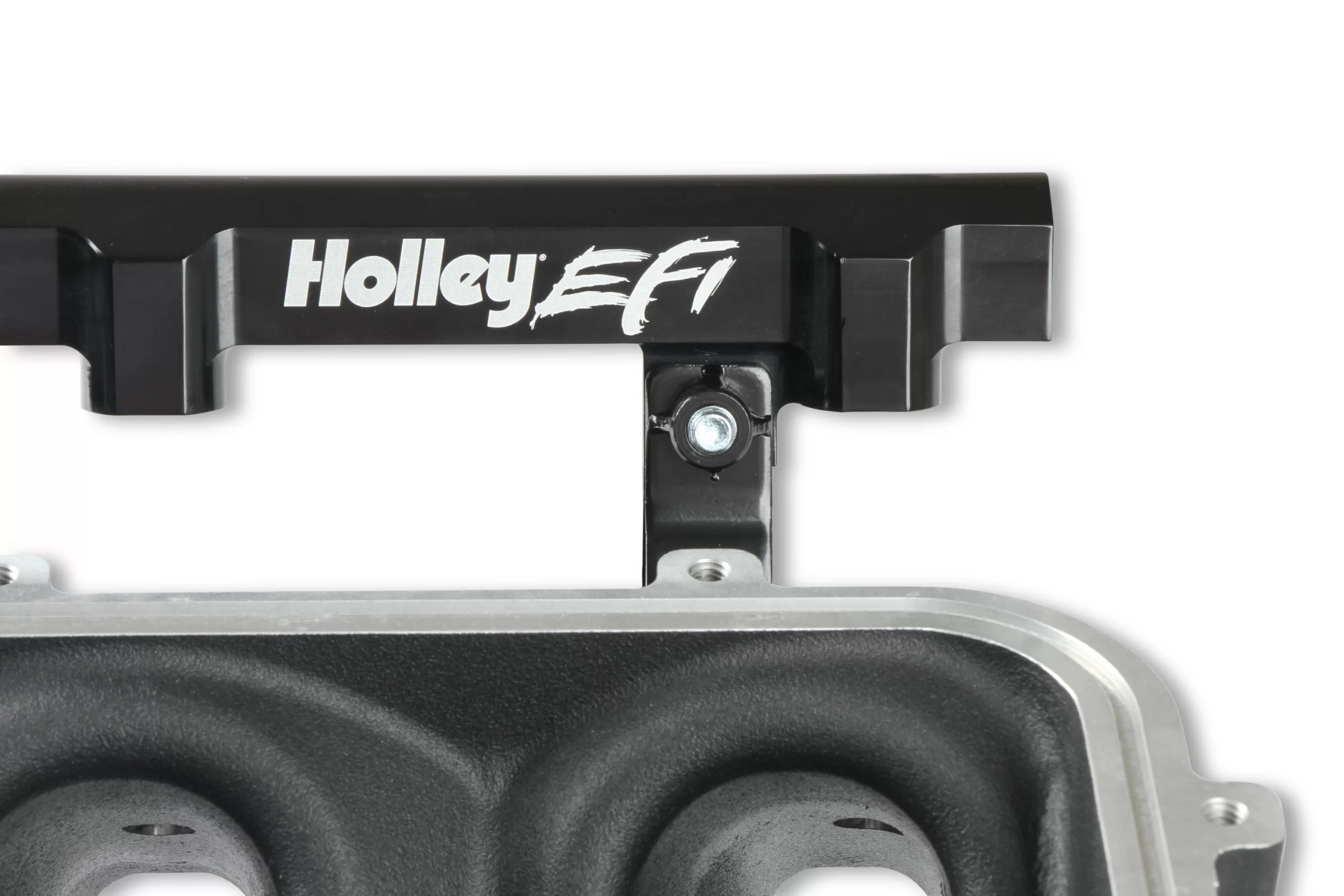

- Single-injector, high-volume fuel rails with mounting hardware, 8 AN o-ring ports
- Modular LS3 Ultra Lo-Ram design allows customization for user desired configurations
- Available with both as-cast satin and black power-coat finishes
Brand | Holley EFI |
---|---|
Clearance Category | Engine |
Color | Black |
Construction | Cast |
Emission Code | 3 |
Engine | GM LS3/L92 |
Finish | Black |
Fuel System Type | EFI |
Injector Quantity | Single |
Inlet Location | Front |
Manifold Type | Ultra Lo-Ram |
Product Type | Intake Manifold Base |
Recommended Use | Forced Induction |
RPM Power Band | 3500-8000 RPM |
Warranty | Limited 90 Day |
UPC | 090127100844 |
Part Number | 300-672BK |
