HOLLEY EFI DUAL FUEL INJECTOR LO-RAM EFI INTAKE MANIFOLD KIT GM LS1/LS2/LS6 Black Finish Part # 300-624BK

Original price was: $1,083.00.Current price is: $973.95.

Black Finish

Availability: 6 in stock

SKU: 090127080085 Categories: , , Tag:

-

HOLLEY EFI

DUAL FUEL INJECTOR LO-RAM EFI INTAKE MANIFOLD KIT GM LS1/LS2/LS6

Black Finish

Part # 300-624BK

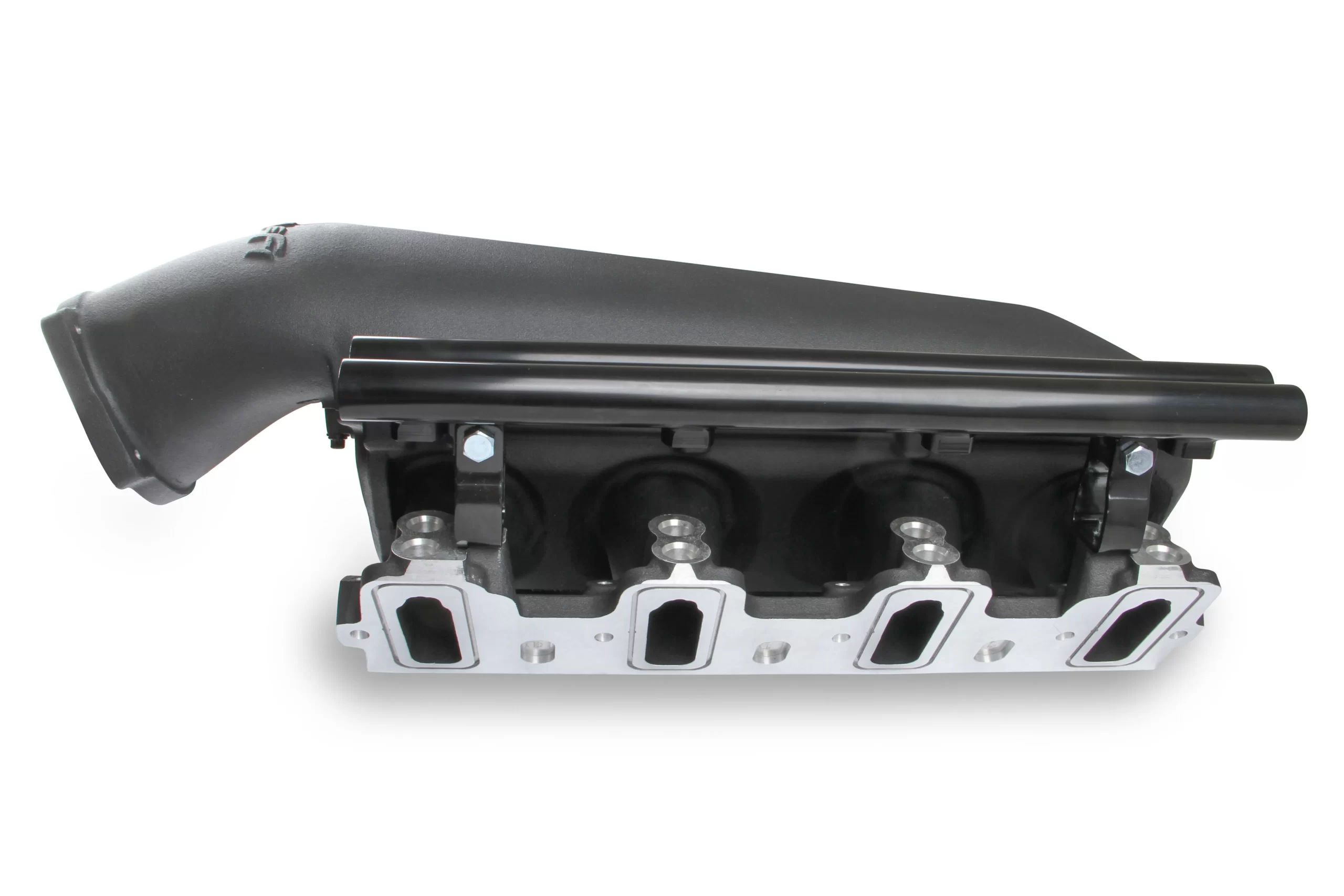

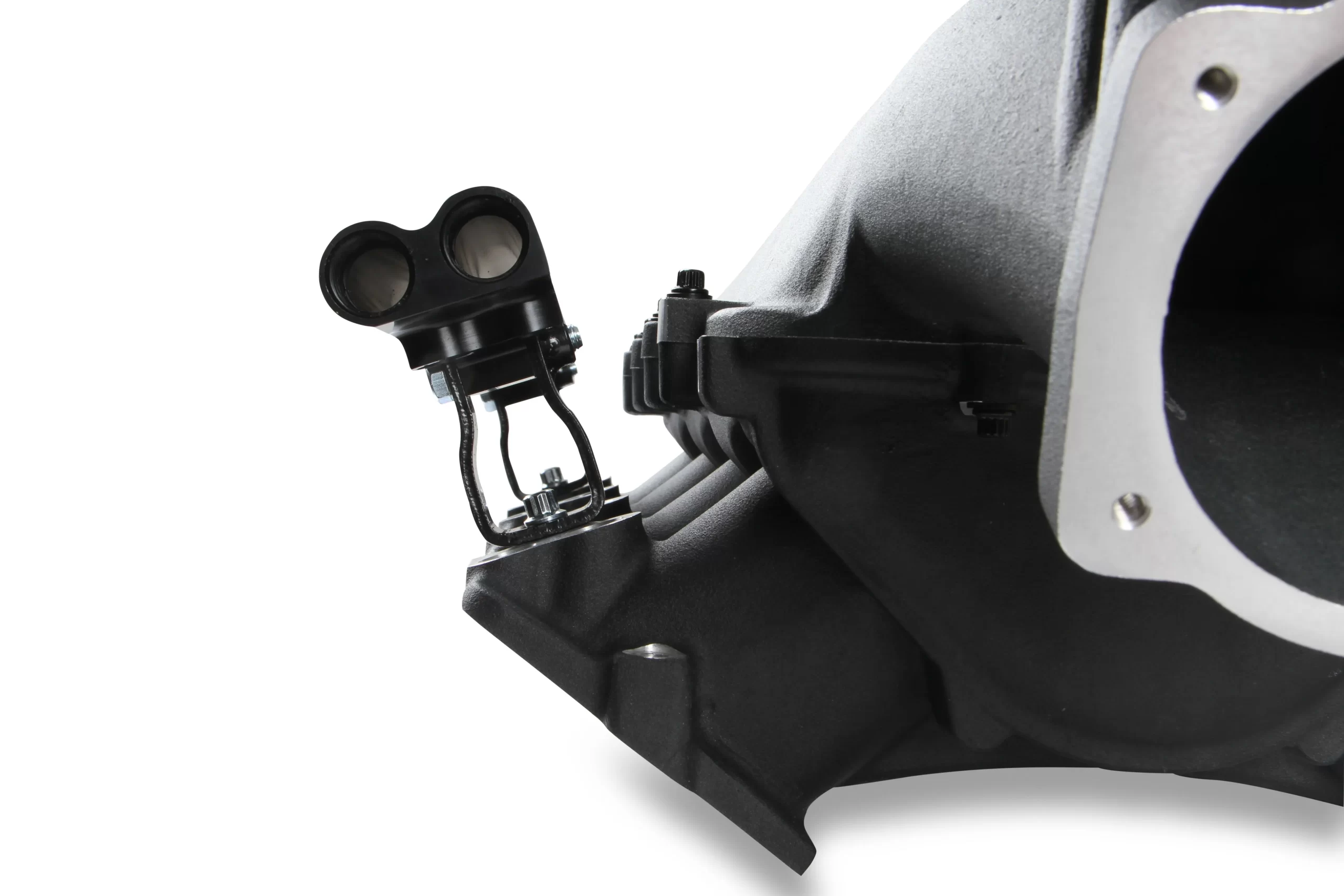

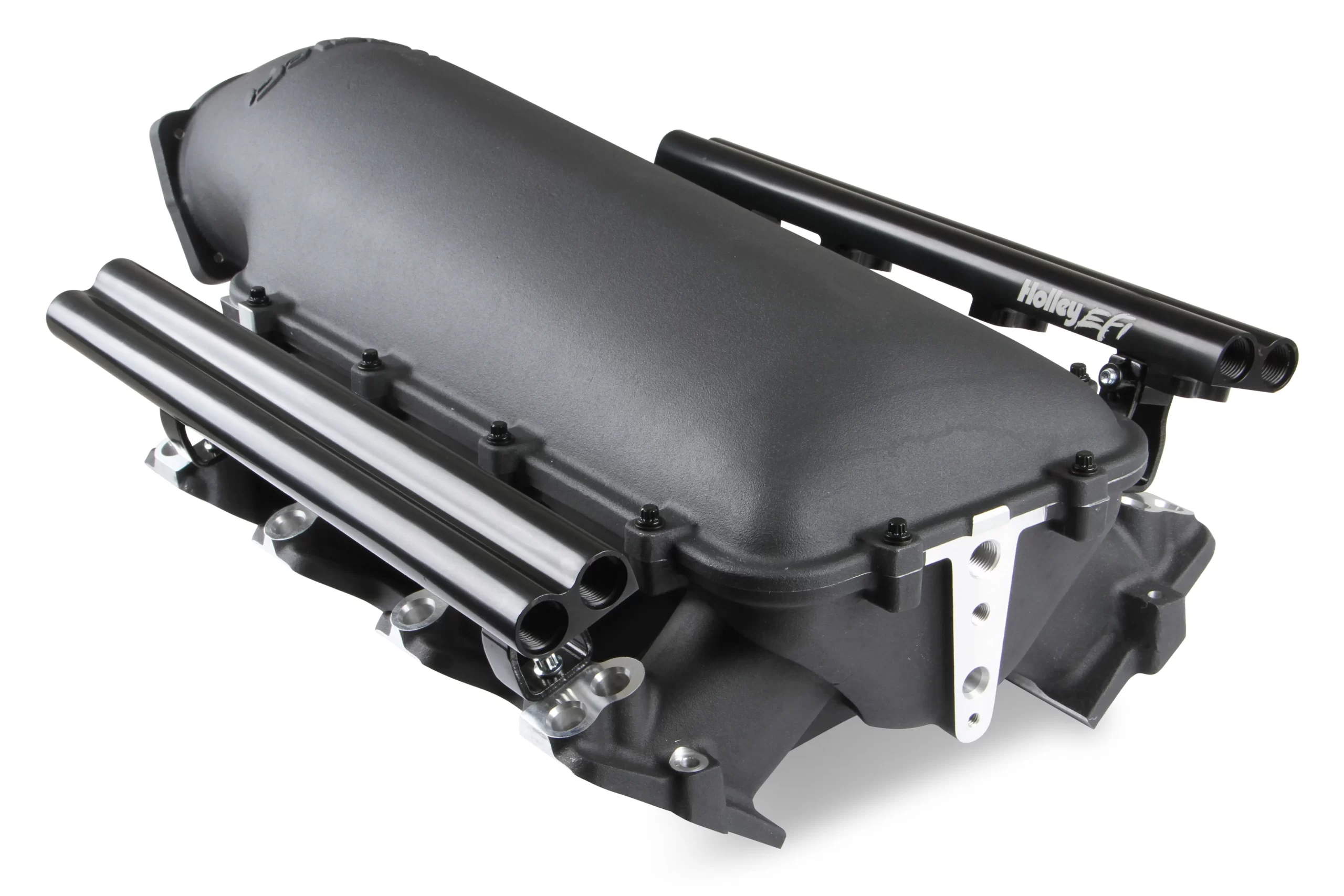

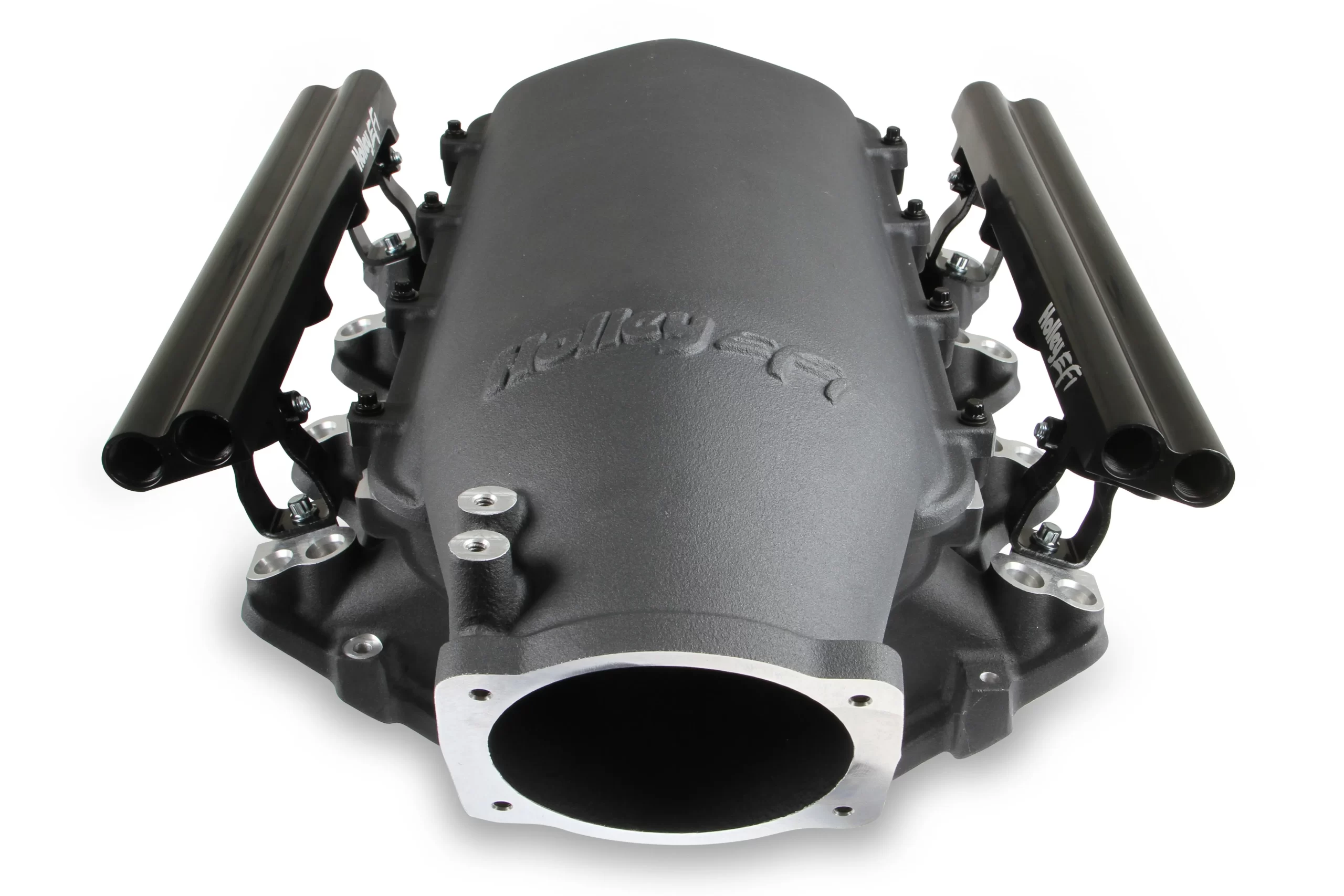

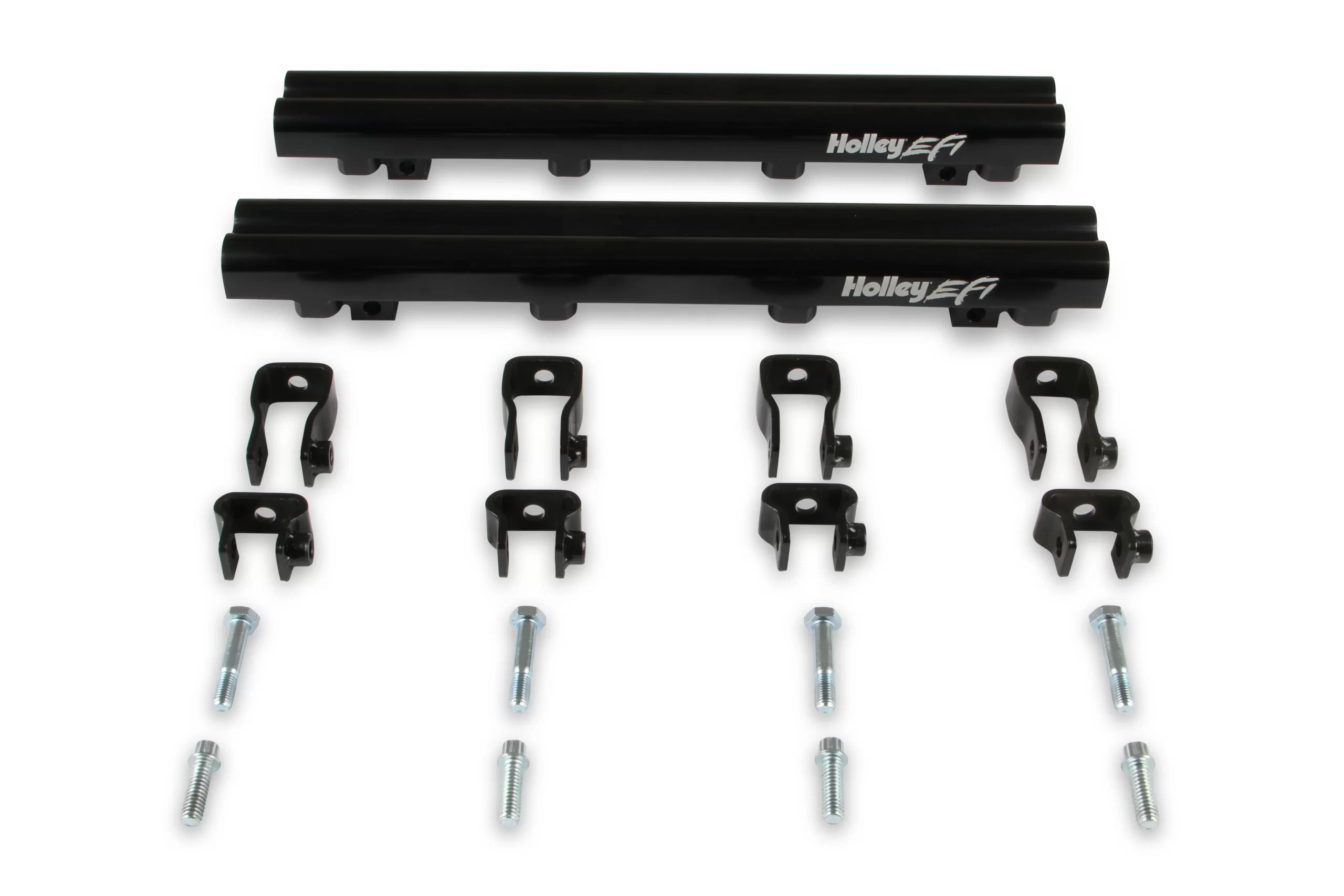

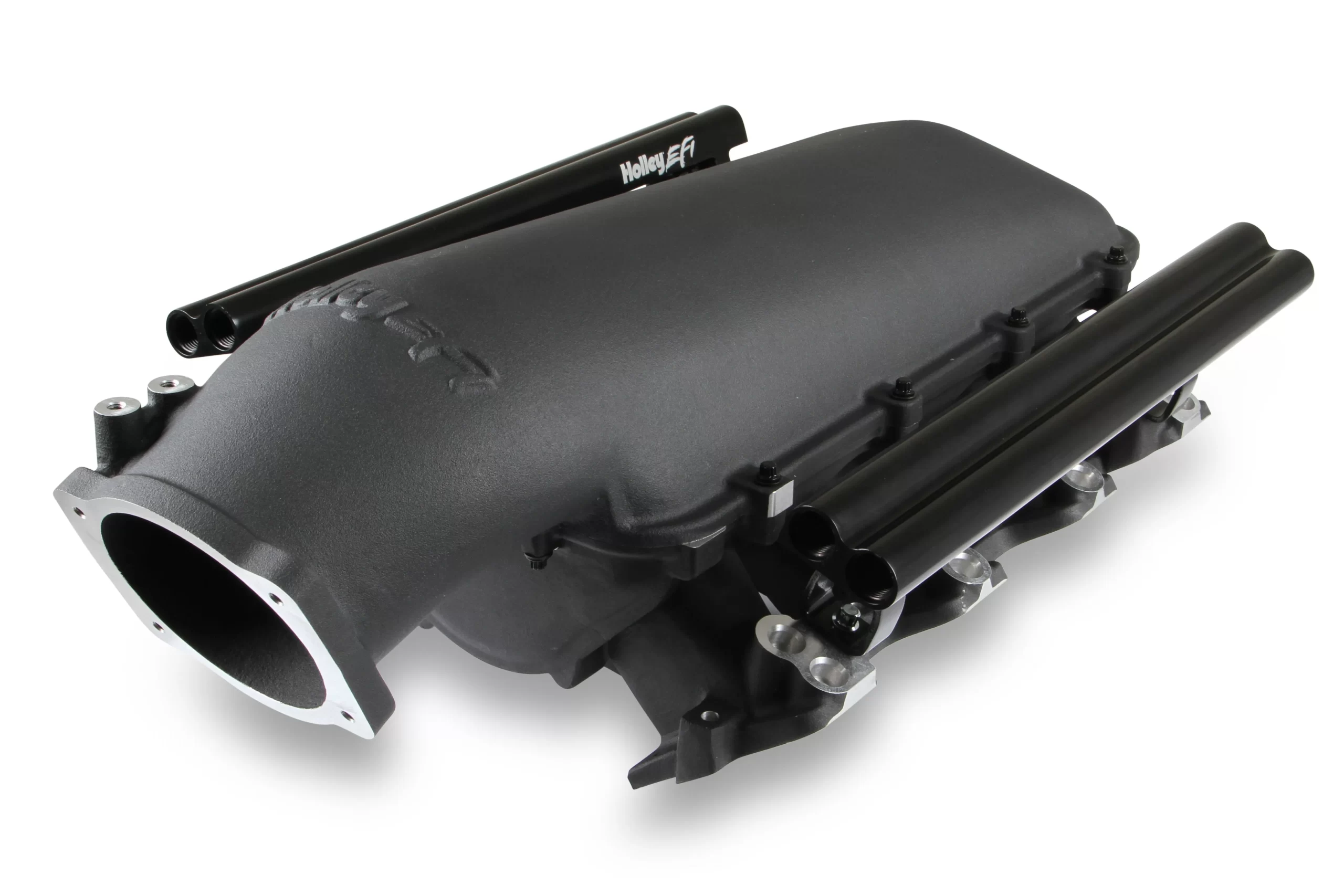

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. The 300-624(satin) & 300-624BK(black) intake manifold kit provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. The short runner, low-profile base intake manifold was conceived to package plenum-mounted intercoolers for high-boost turbocharged or supercharged induction systems with a shorter overall height not possible with other existing intake manifolds. The plenum top is configured to be fitted with 105 mm throttle body part number 112-581 or similar models. The dual fuel injector fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. Available in satin and black finishes. Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit.

Features:

  • Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
  • Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
  • Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
  • Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
  • Available with both as-cast satin and black power-coat finishes
Brand Holley EFI
Color Black
Construction Cast
Emission Code 3
Engine GM LS1/LS2/LS6
Finish Black
Flange Style EFI
Front Height 9.07″ without Intercooler
Fuel System Type EFI
Injector Quantity Dual
Inlet Location Top
Manifold Type Lo-Ram
Product Type Intake Manifold
Recommended Use Forced Induction
RPM Power Band 3500-8000 RPM
Warranty Limited 90 Day
UPC 090127080085
Part Number 300-624BK
Weight 29.3 lbs
Dimensions 24.6 × 15.3 × 15.5 in

Brand

Holley EFI

Holley is quickly becoming The New Standard In EFI! Holley’s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley’s EFI throttle body powers every NASCAR Sprint Cup Series™ team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All-Star race. But that’s not all. The world’s best hot rod builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It’s the easiest, most refined, feature-rich system that money can buy. But, don’t take our word for it, see what the best are saying about Holley EFI!
