HOLLEY EFI

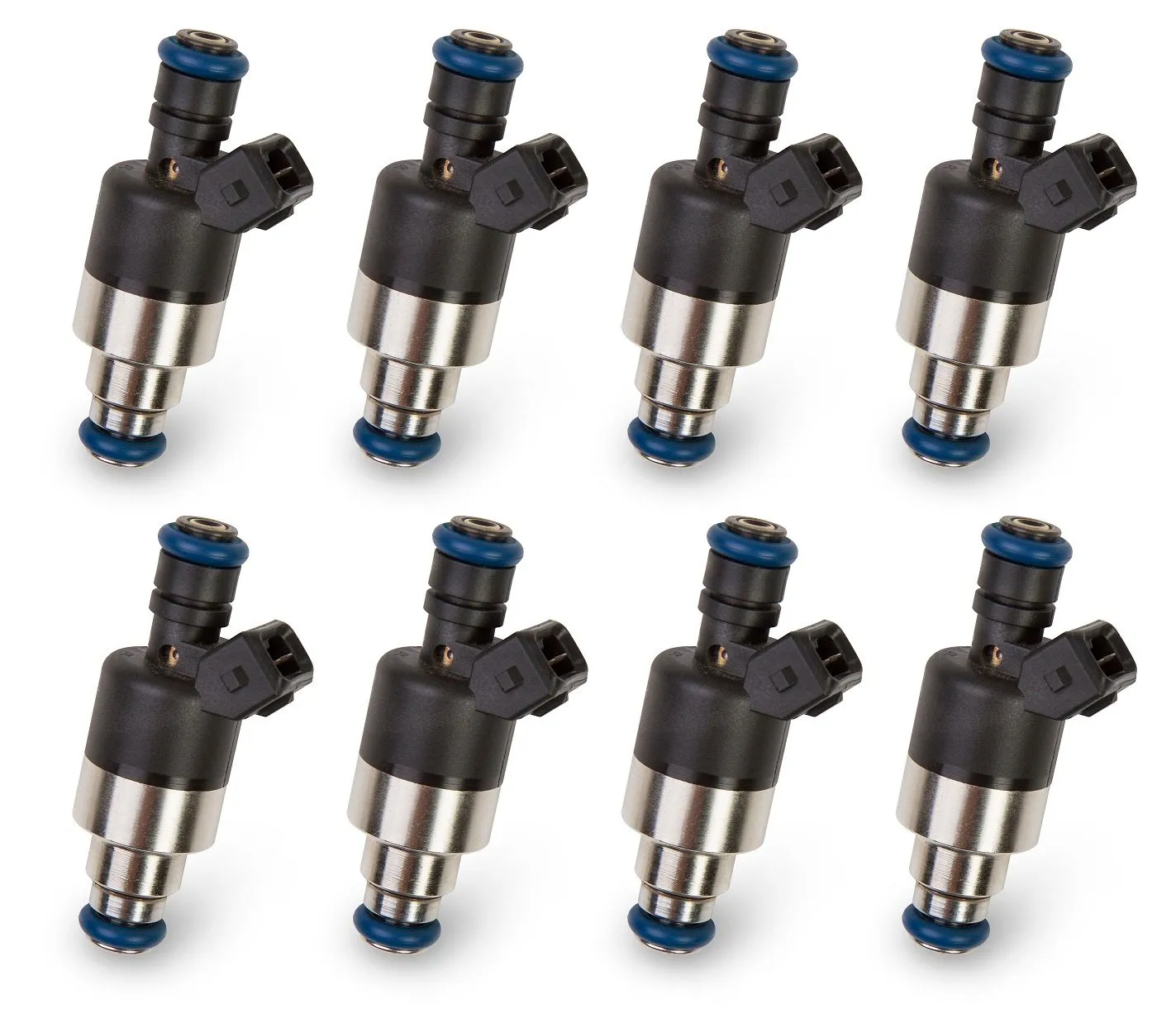

160 LB/HR PERFORMANCE FUEL INJECTORS – SET OF 8

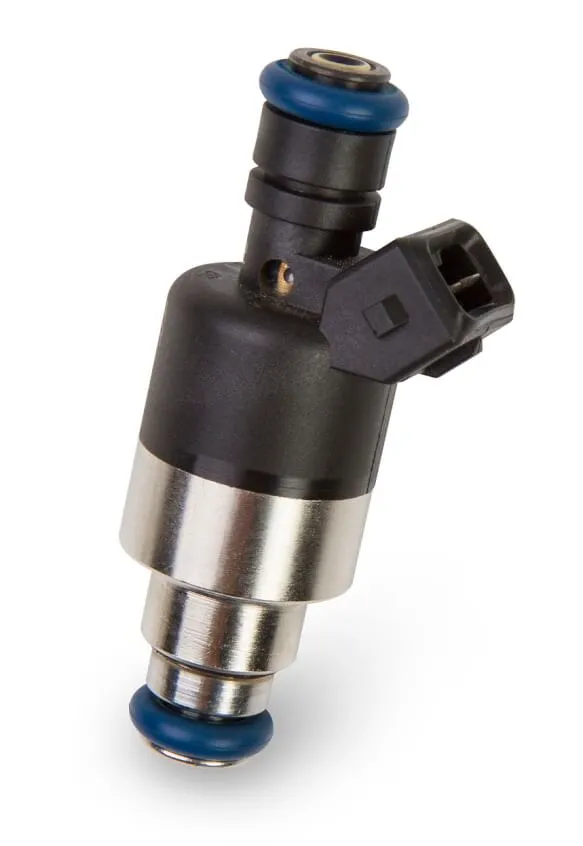

160lb/hr Flow Matched Fuel Injectors
Part # 522-168FM
Holley EFI 160lb/hr Flow Matched Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible “bounce” at low pulse widths as commonly found in other injectors. The Holley EFI Flow Matched Fuel Injectors provide precision fuel delivery you can depend on.
Features:
- Bosch/EV1 style performance injectors – Set of 8
- Low impedance (2.0 Ohms) for use with peak and hold drivers
- Rated injector flow: 160 lb/hr @ 43 PSI
- Supports up to 2525 horsepower
- Tri-cone spray pattern
- Maximum recommended fuel pressure: 75 PSI
- Dynamic Flow Matched within 1%

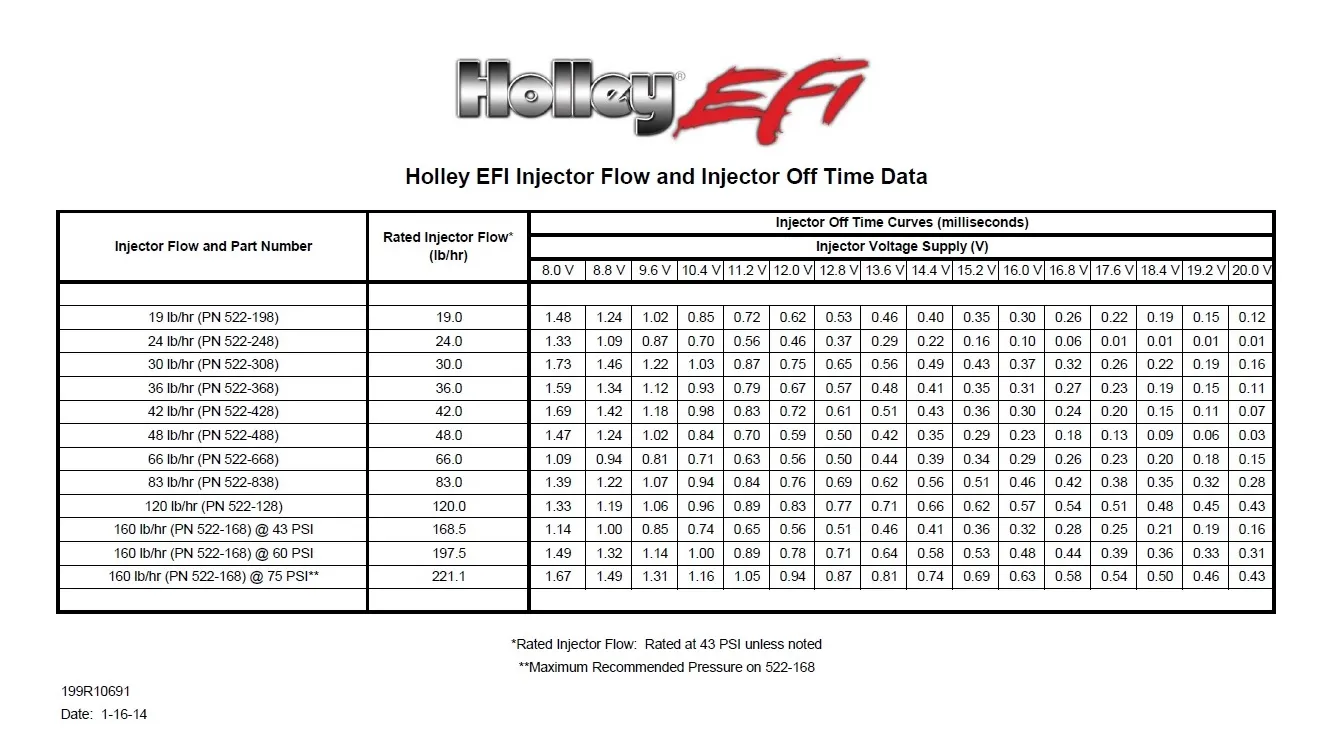

- Injector Dead Times matched within 20 microseconds

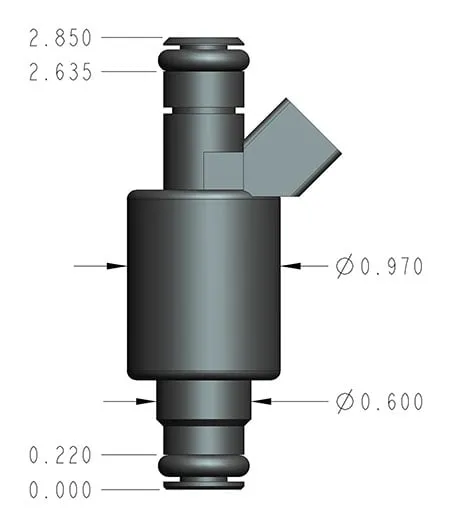

Body Diameter | 0.970 |
---|---|
Body Length | 2.85″ |
Body Style | EV1 |
Brand | Holley EFI |
Connector Series | EV1 – Jetronic – (Bosch Style) |
Emission Code | 3 |
Fuel Type | E-85 |
Gasoline | |
Impedance | Low (2.0 Ohm) |
O-Ring to O-Ring | 2.415″ |
Product Type | Fuel Injector |
Rated Injector Flow | 160 lb/hr |
UPC | 090127006276 |
Part Number | 522-168FM |
