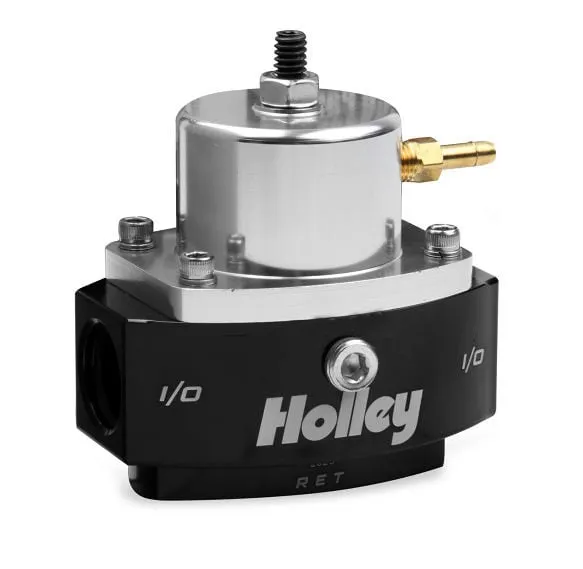

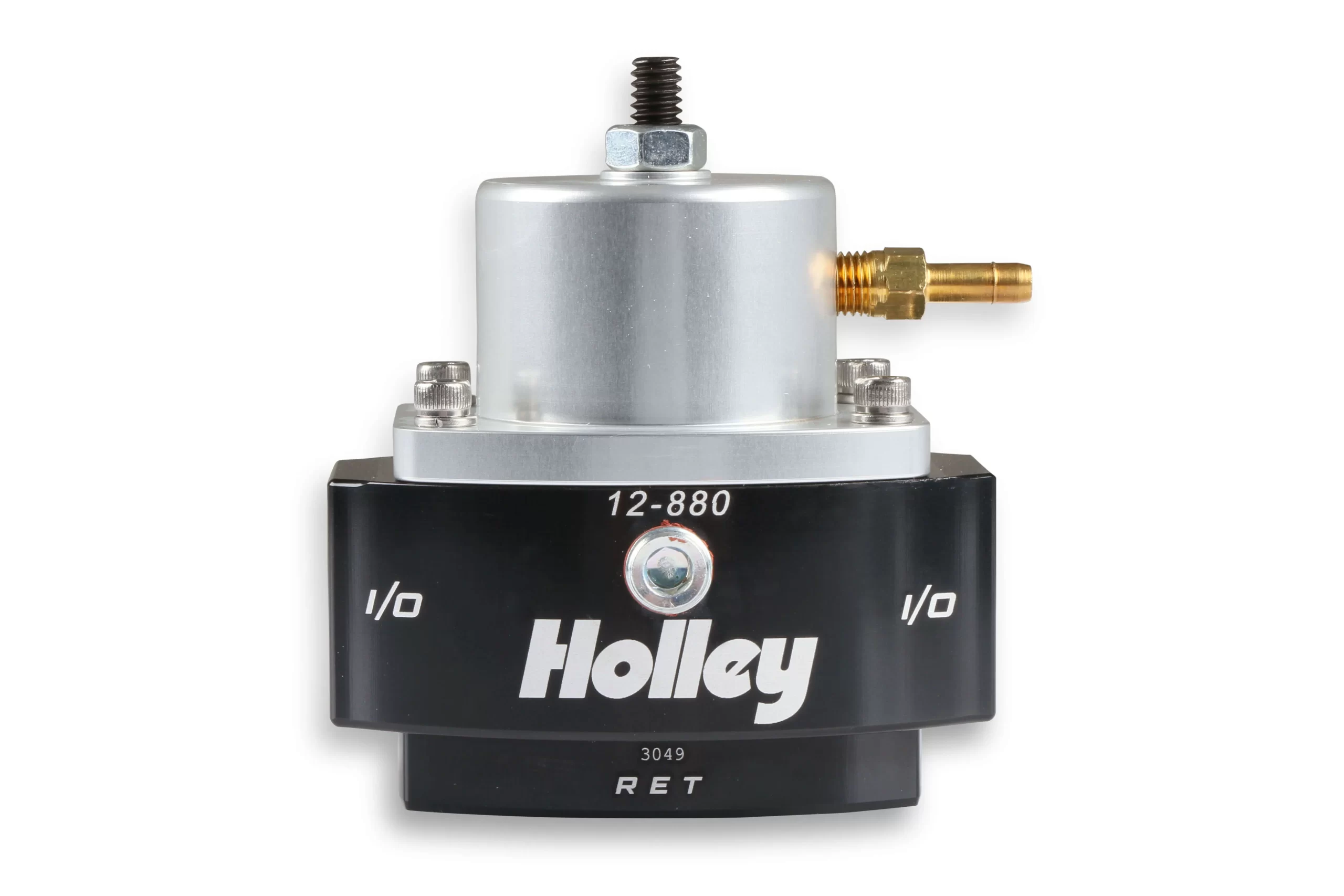

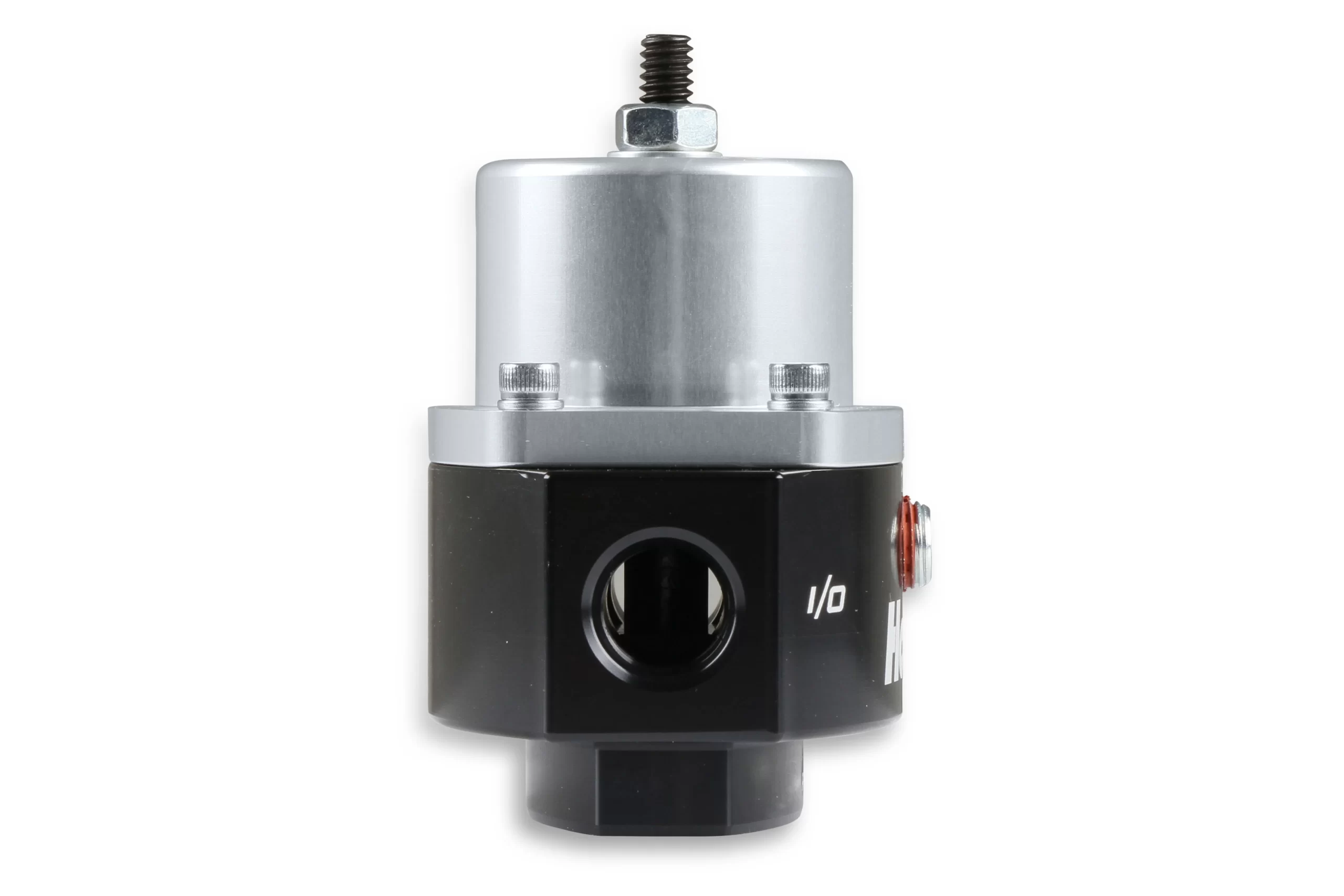

Holley
Carb/EFI Adjustable Billet By-Pass Regulator-6AN
Carb/EFI adjustable billet by-pass return style fuel pressure regulator 6AN Boost Reference – 1:1
Part # 12-880
Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability. These regulators are adjustable from 4-65 psi and will handle both carbureted and EFI applications. A second pressure spring is included allowing you to increase the fuel pressure range up to 65 psi for EFI systems. They are offered with two port sizes, 3/8″ NPT or 6AN to adapt to your new or existing fuel lines. So, if you are currently running a carbureted system but plan to upgrade to EFI in the future, these regulators will have you covered either way.
Features:
- Carb/EFI adjustable from 4-65 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and a clear anodized top for good looks
- Used in systems with a return line back to the tank
- (1) 6AN O-ring Inlet, (1) 6AN O-ring Outlet, and (1) 6AN O-ring return

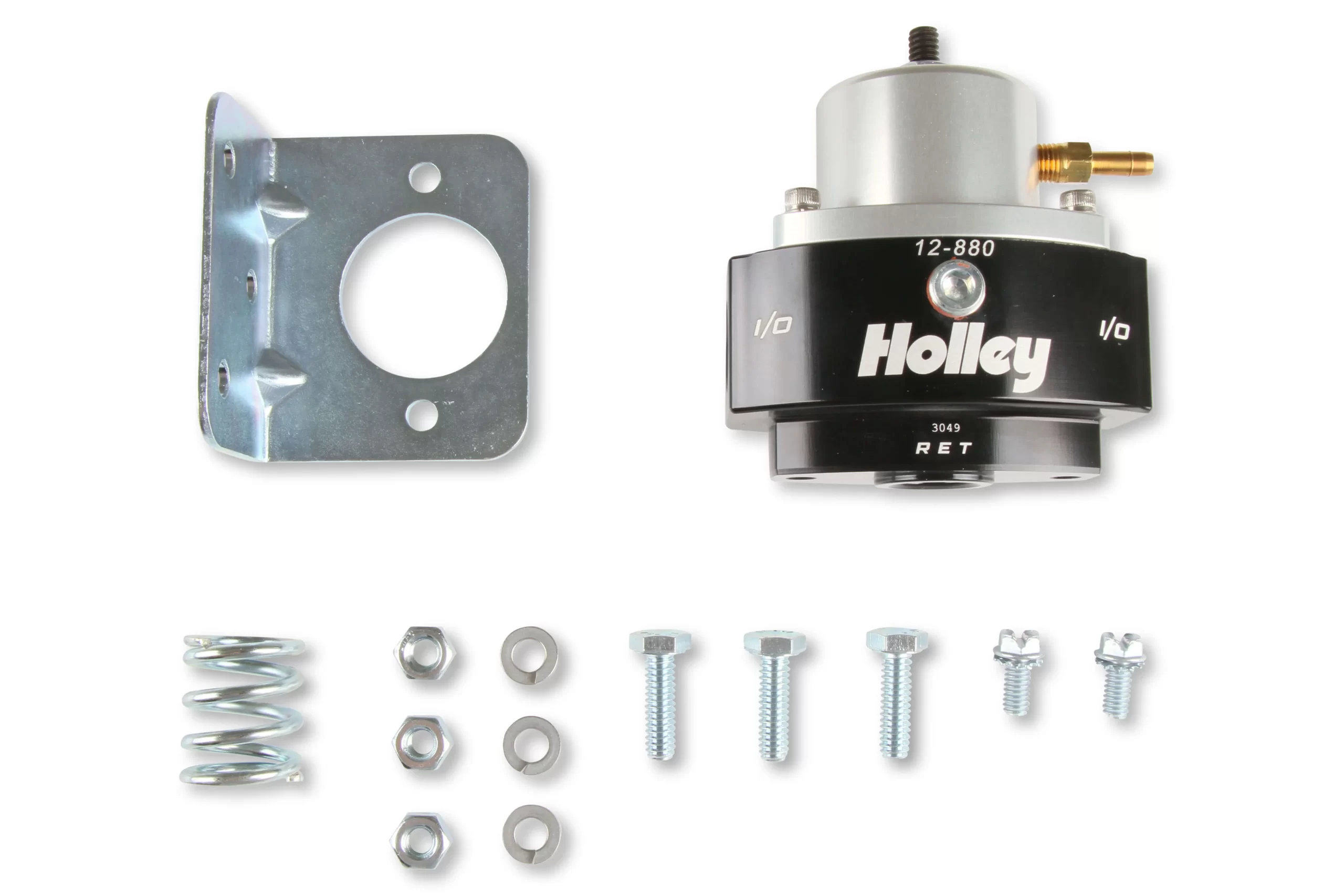

- Includes fitting for manifold reference
- Includes an 1/8 NPT gauge port
- Boost Reference – 1:1

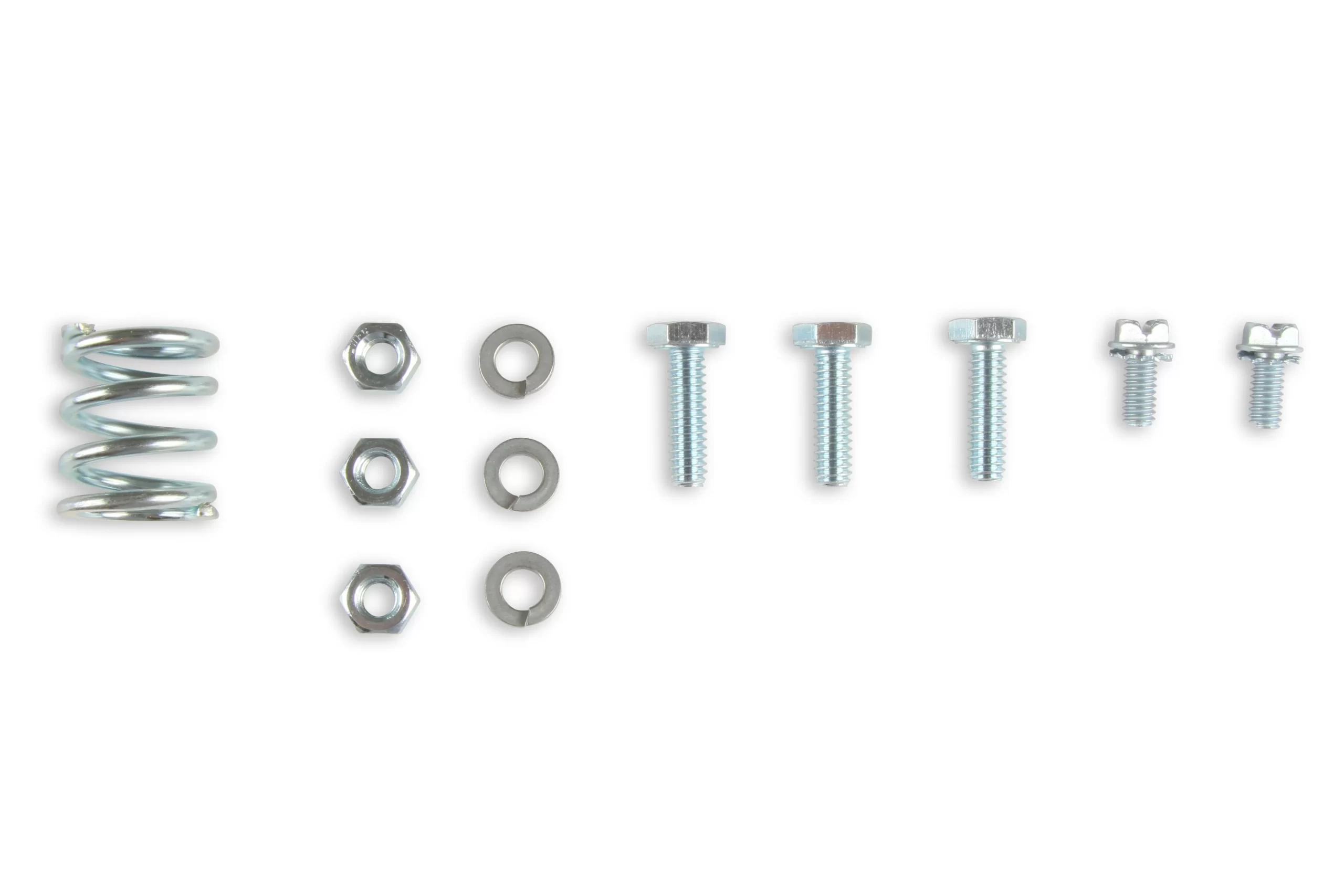

- The 4-15 psi carbureted spring comes installed in the regulator
| Adjustable | Yes |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Black |
| Emission Code | 5 |
| Fuel System | EFI/Carb |
| Fuel Type | Gasoline |
| Gauge Port | Yes |
| Grade Type | Performance |
| Inlet Quantity | 1 |
| Inlet Size | 6 AN O-Ring |
| Inlet Type | 6 AN ORB |
| Material | Aluminum |

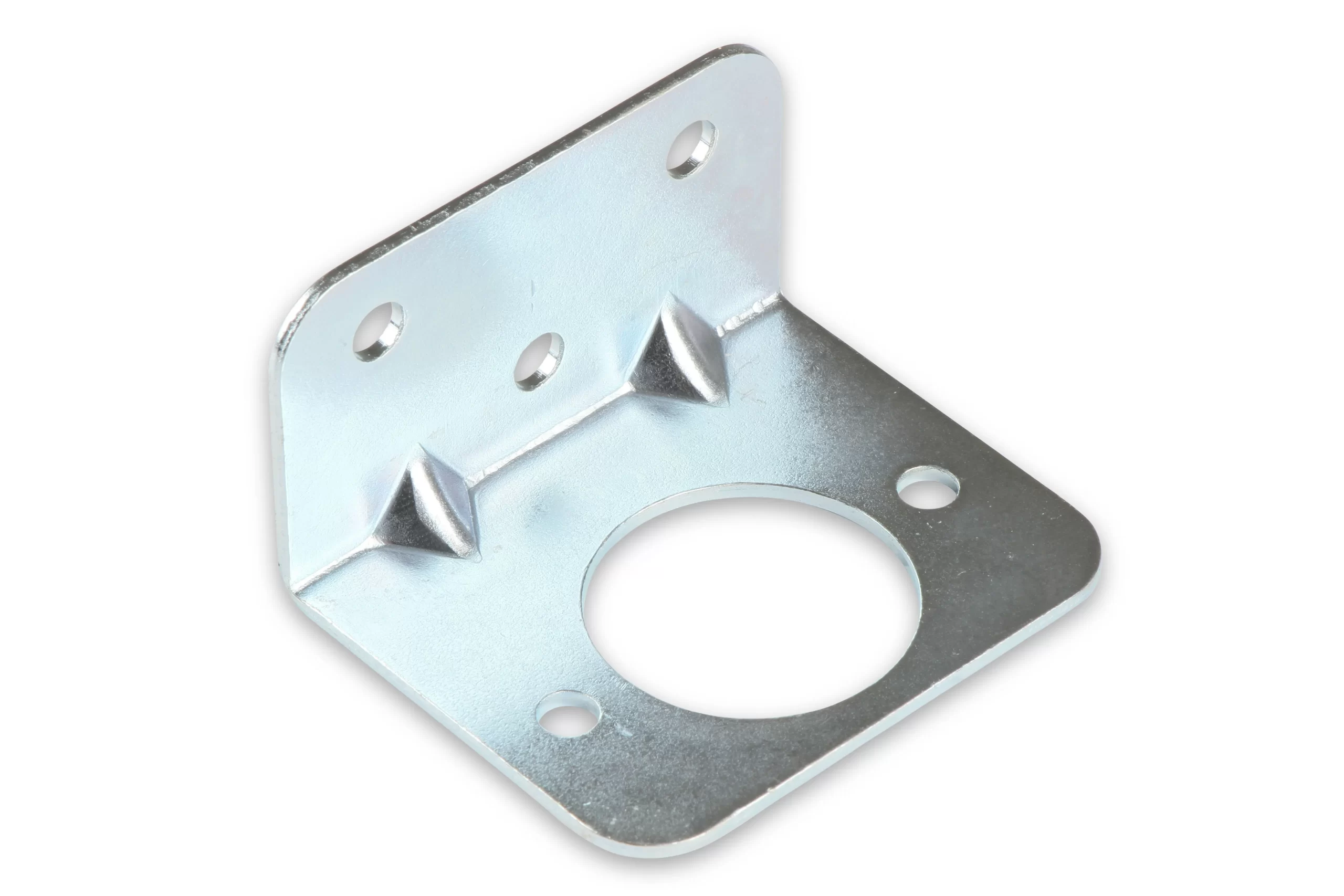

| Mounting Hardware Included | Yes |
| Mounting Type | Inline |
| Outlet Quantity | 1 |
| Outlet Size | 6 AN O-Ring |
| Outlet Type | 6 AN ORB |
| Part Type | Fuel Pressure Regulator |
| Port Quantity | 3 |
| Product Type | Fuel Pressure Regulator |
| Return Size | 6 AN O-Ring |
| Style | Bypass |
| Sub Category | Carburetion |
| Warranty | Limited 90 Day |
| UPC | 090127734988 |
| Part Number | 12-880 |
