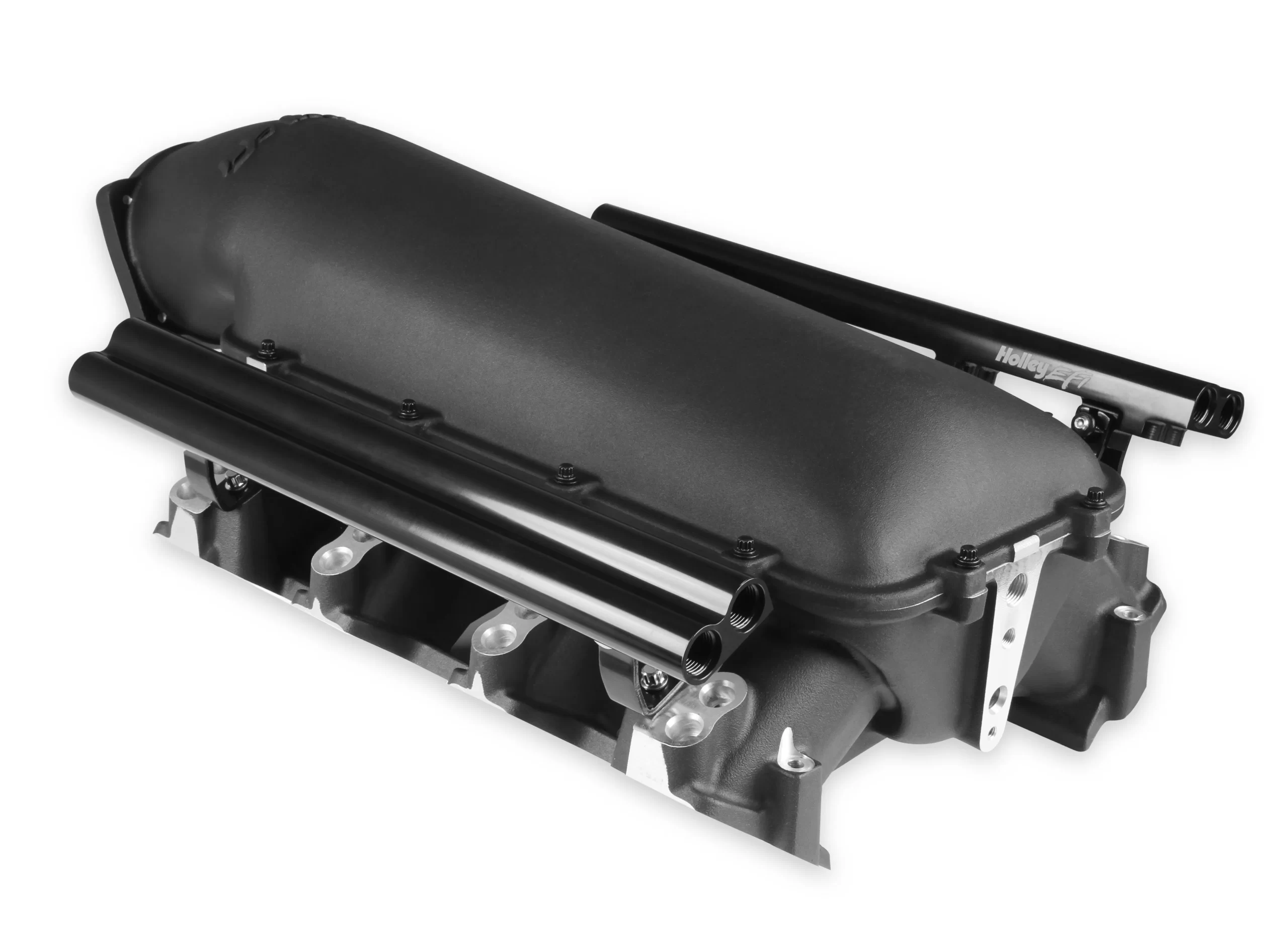

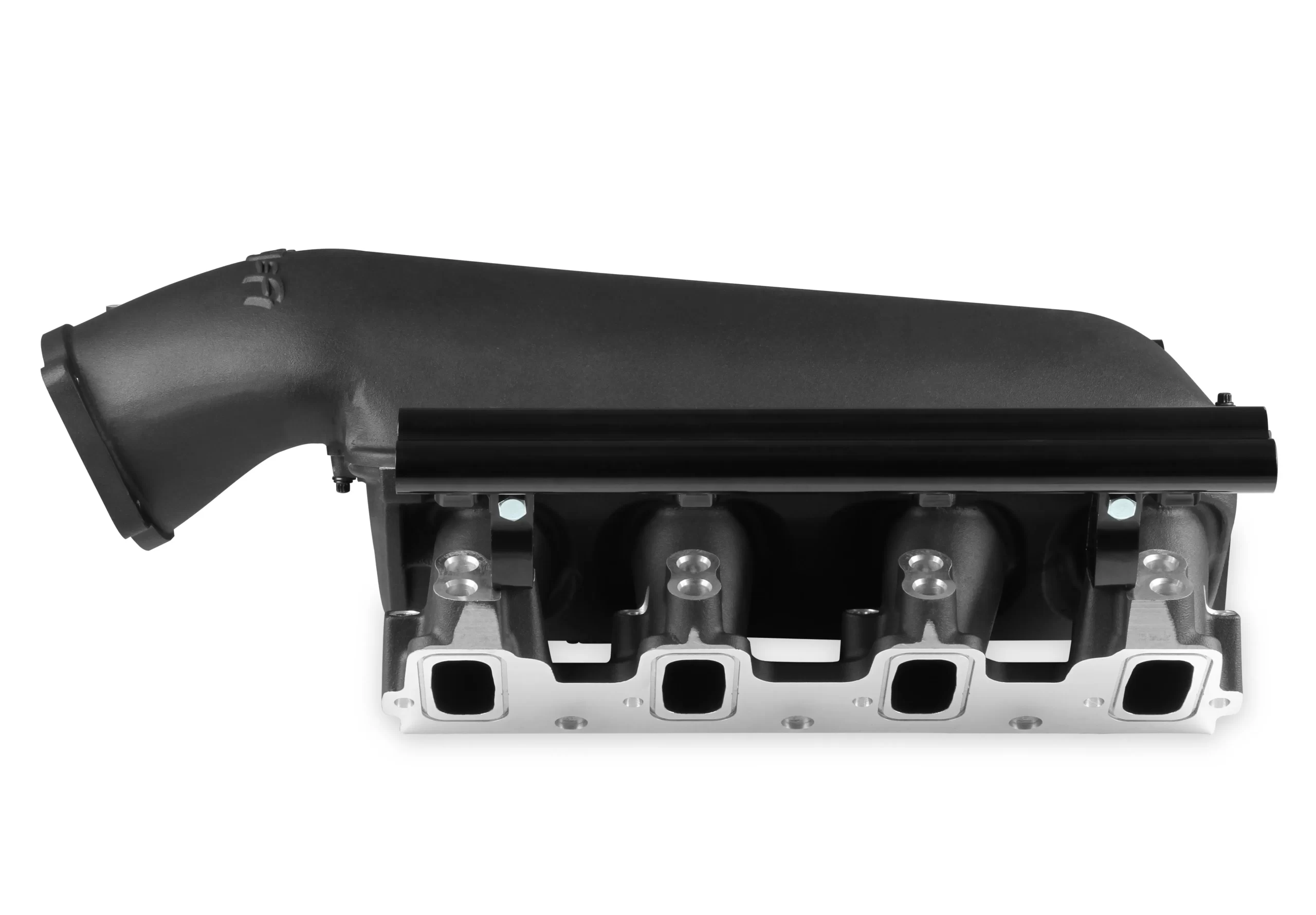

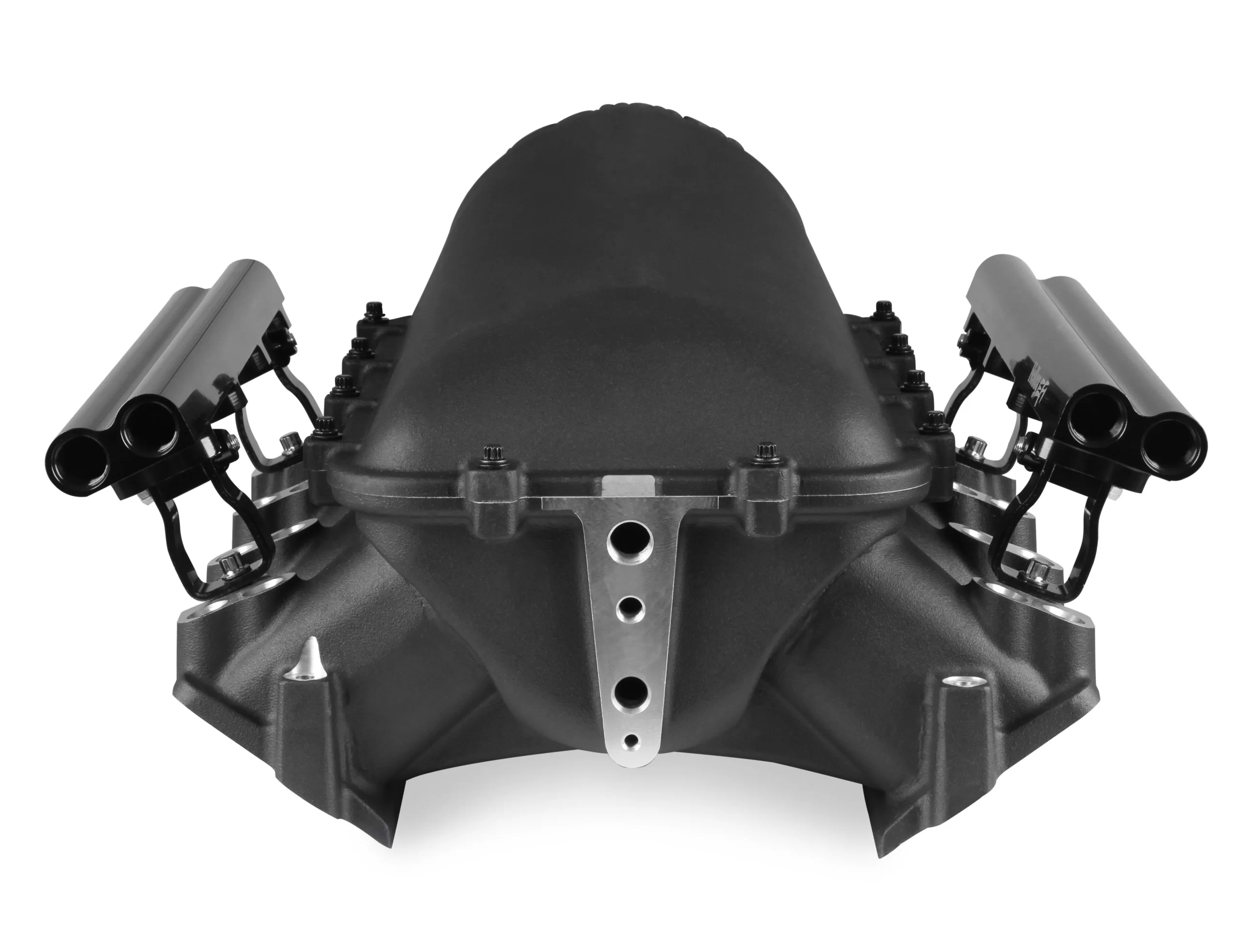

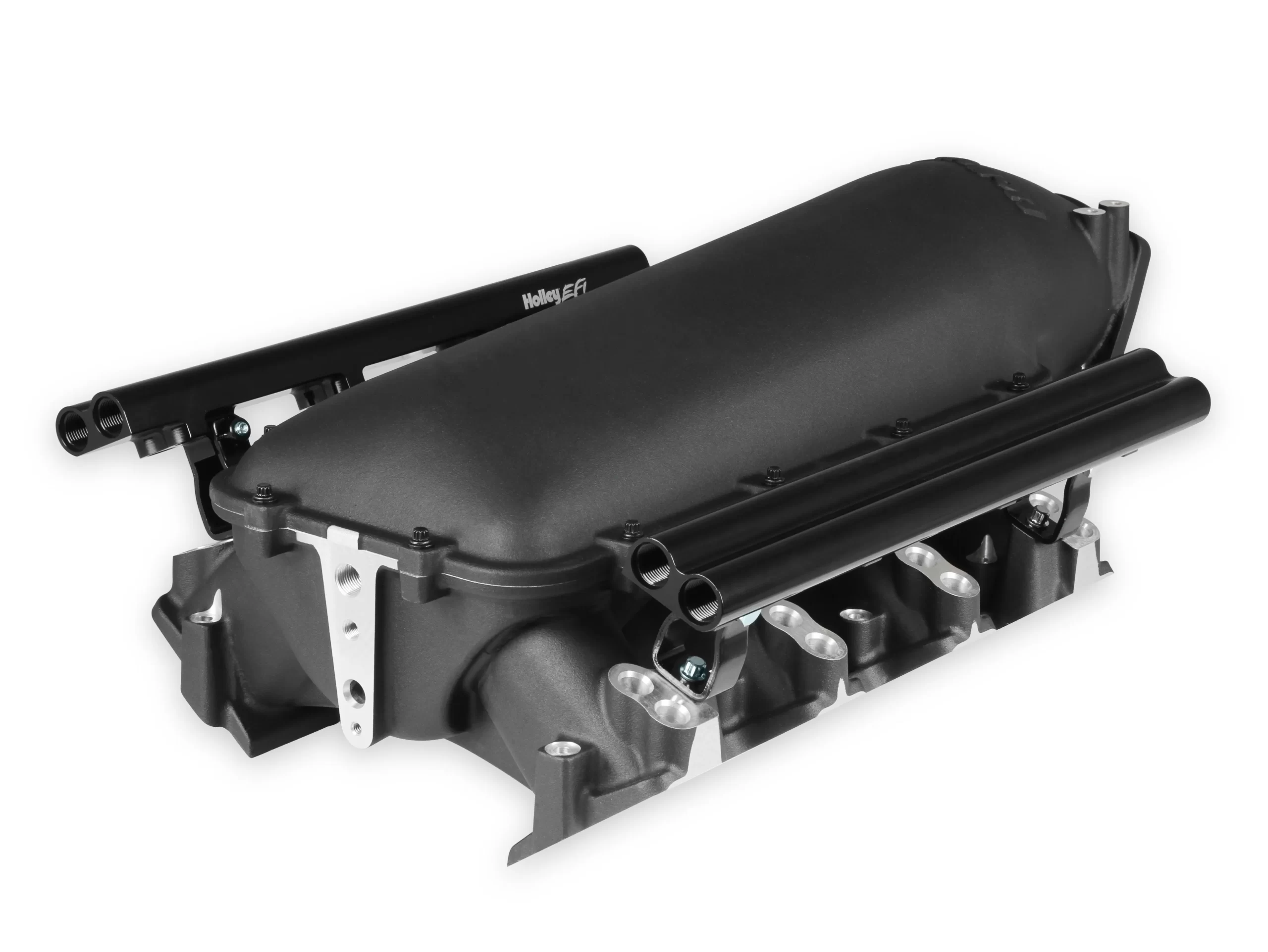

HOLLEY LO-RAM MANIFOLD KIT DUAL INJECTOR- BLACK – GM LS3/L92

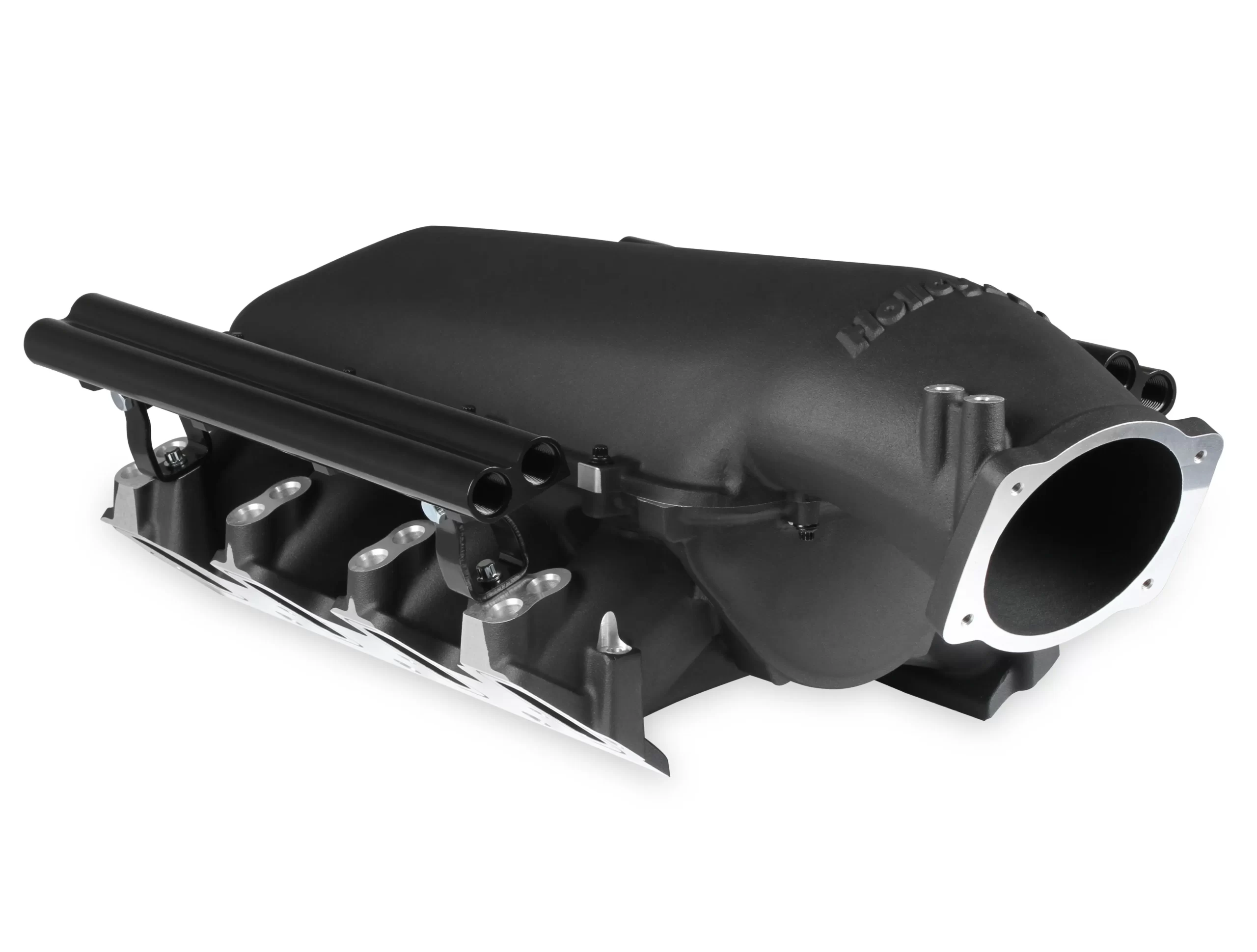

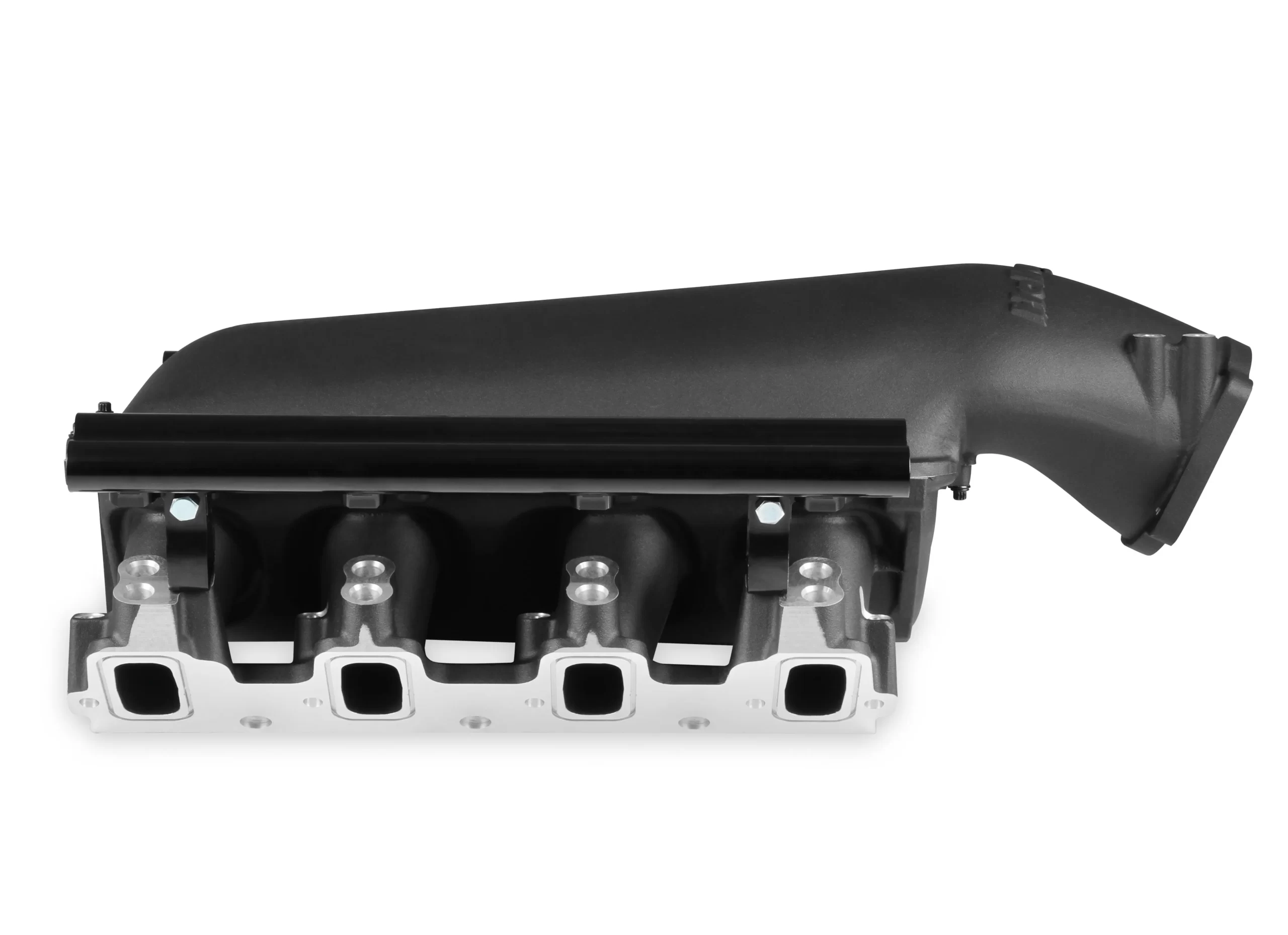

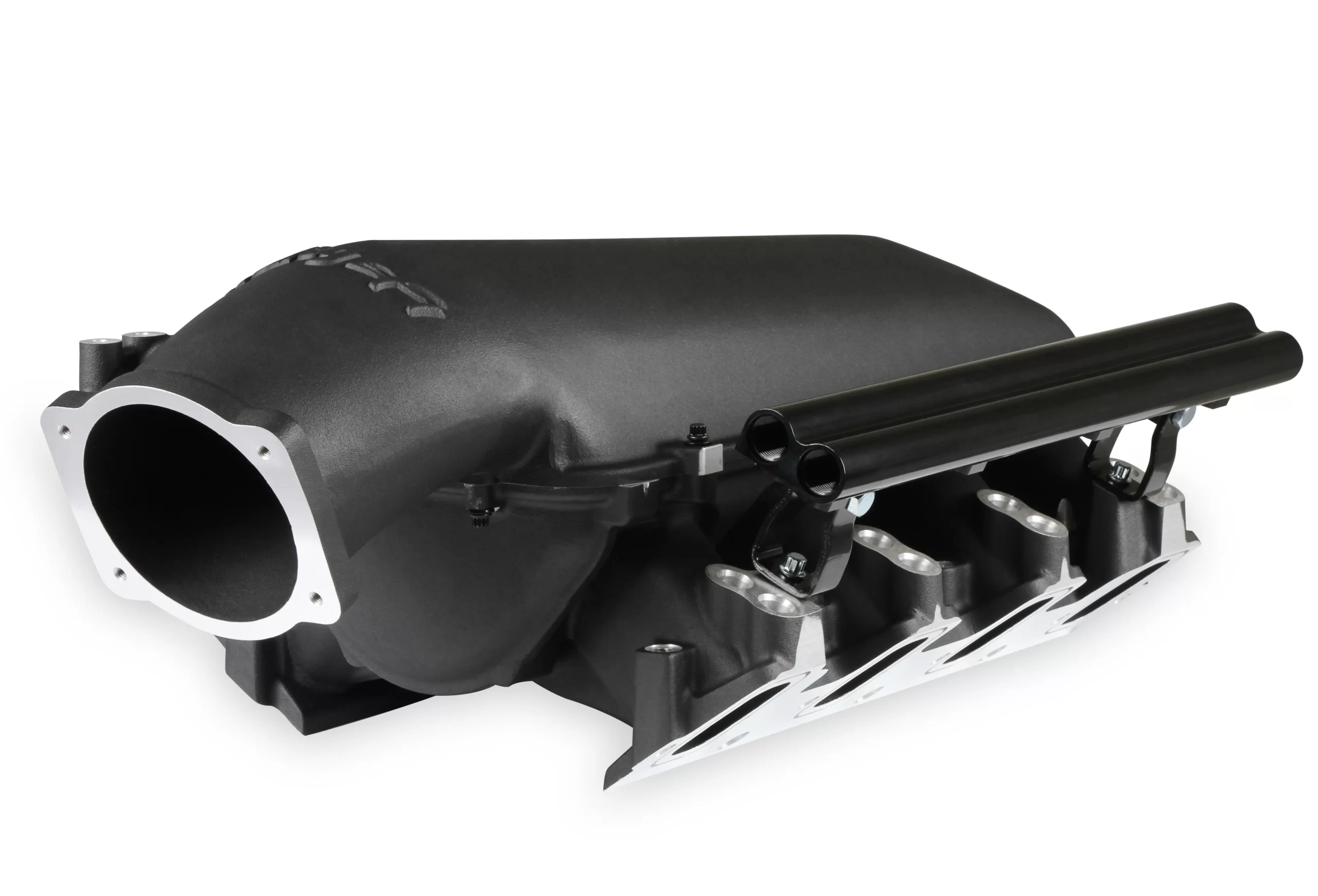

Dual Injector Manifold and Fuel Rails- Black Finish
Part # 300-683BK

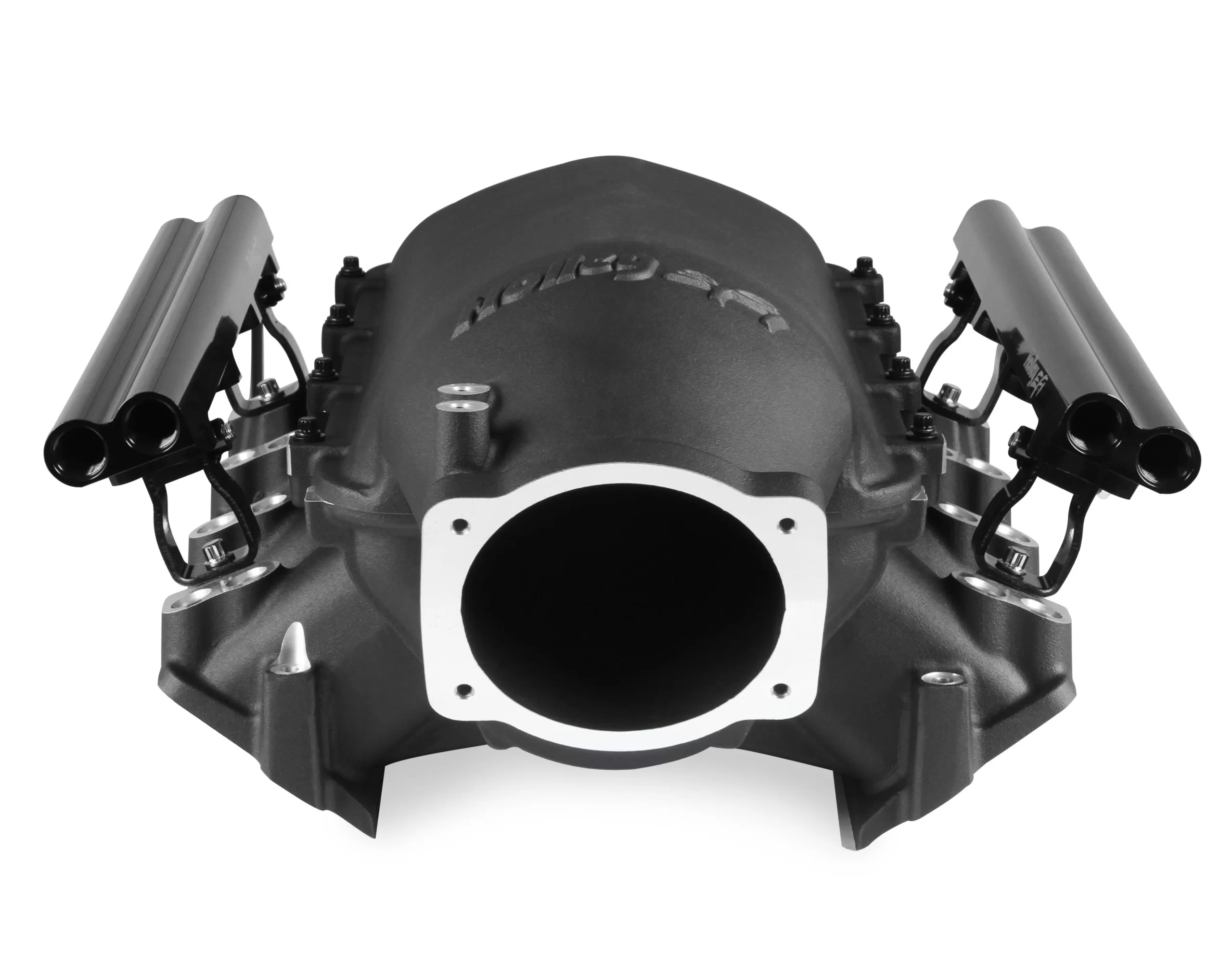

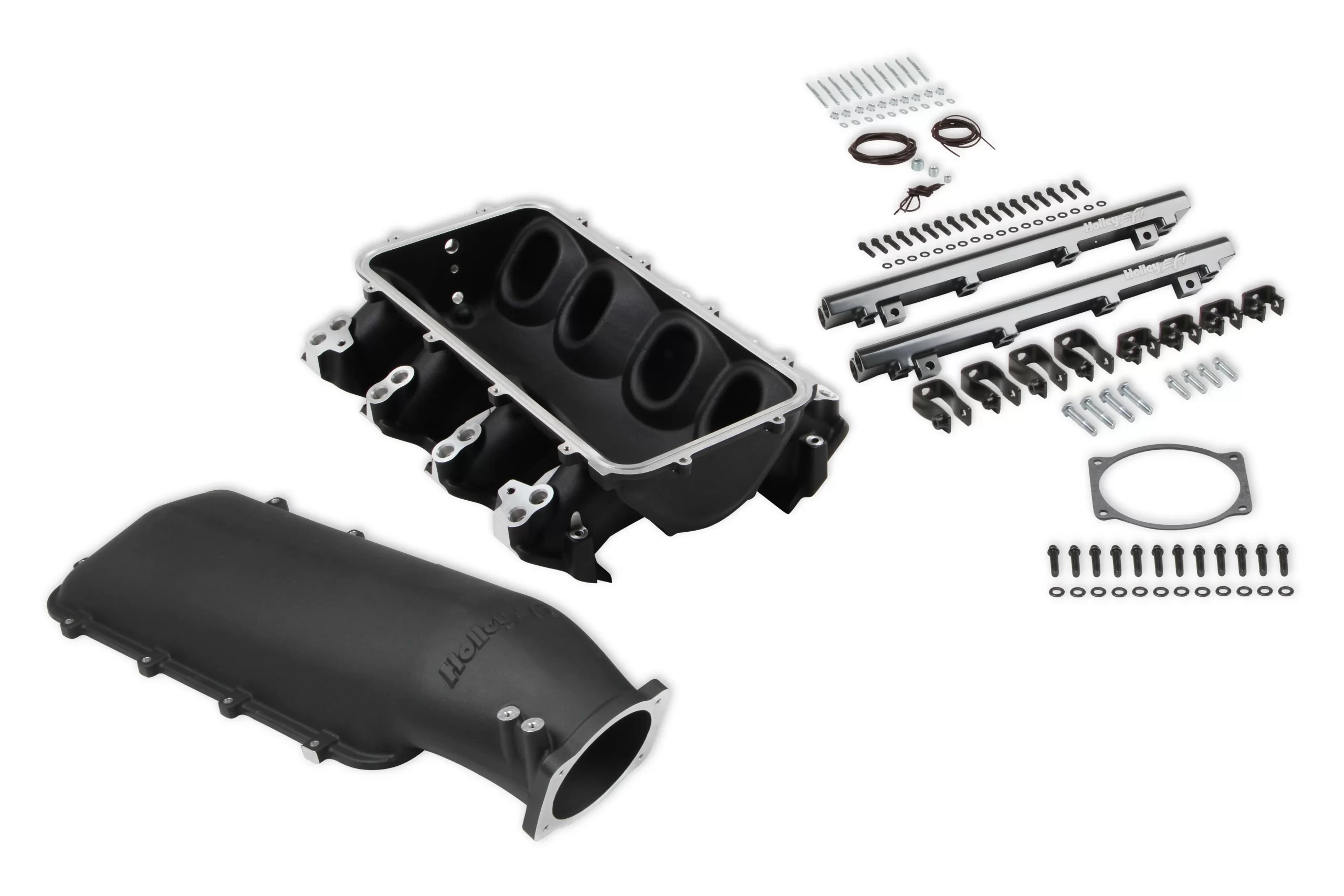

The LS3/L92 Lo-Ram manifolds base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm. The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application

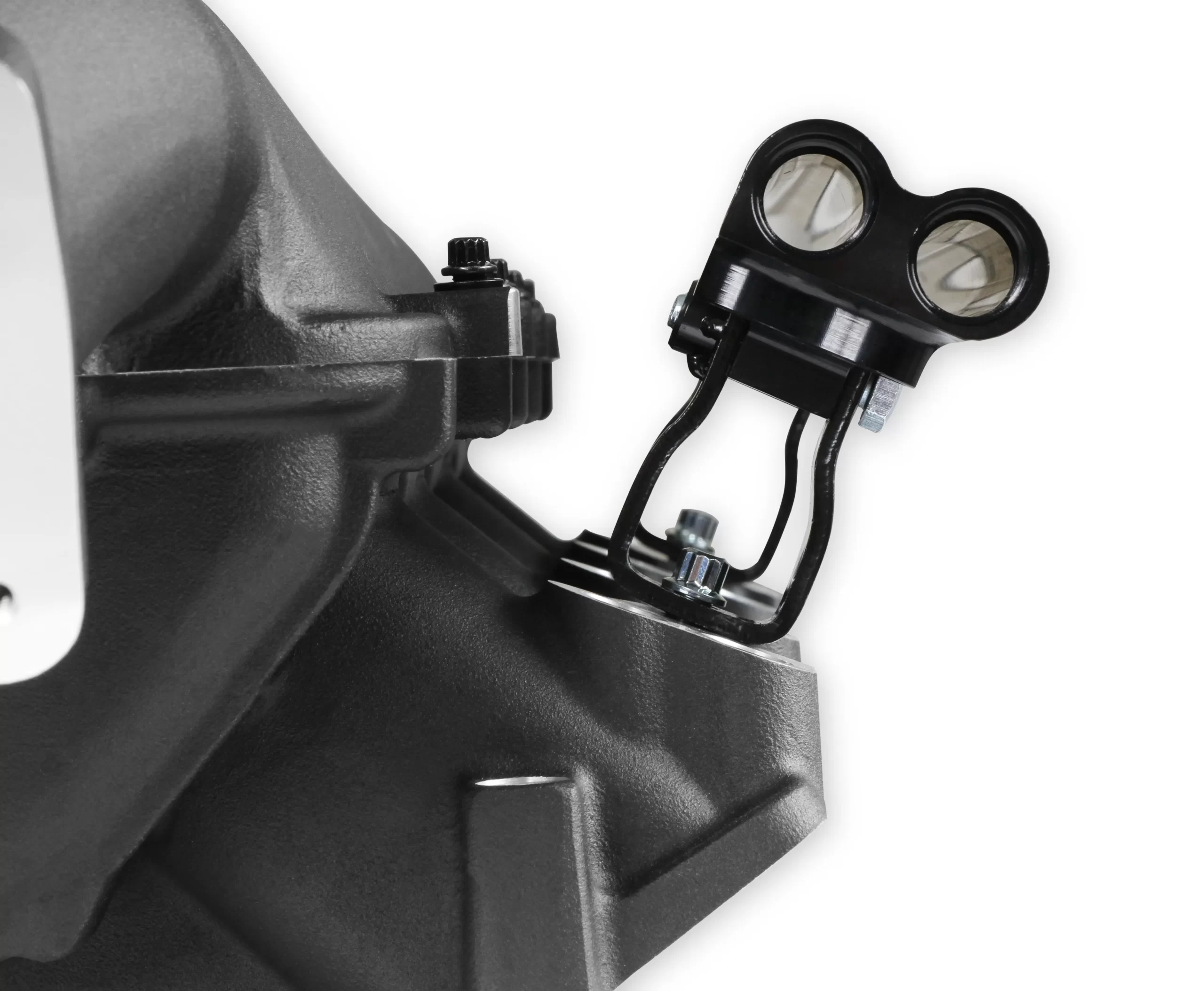

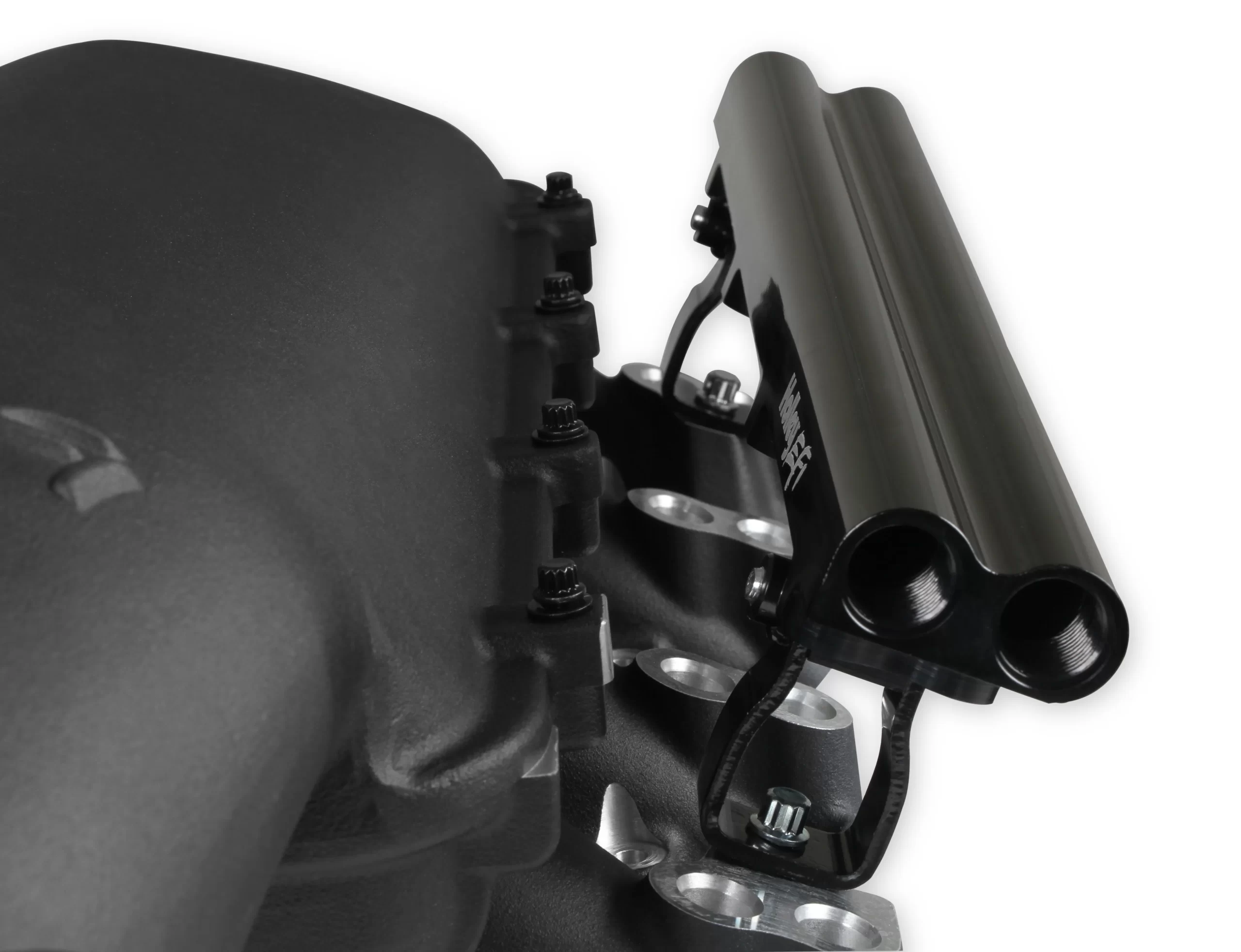

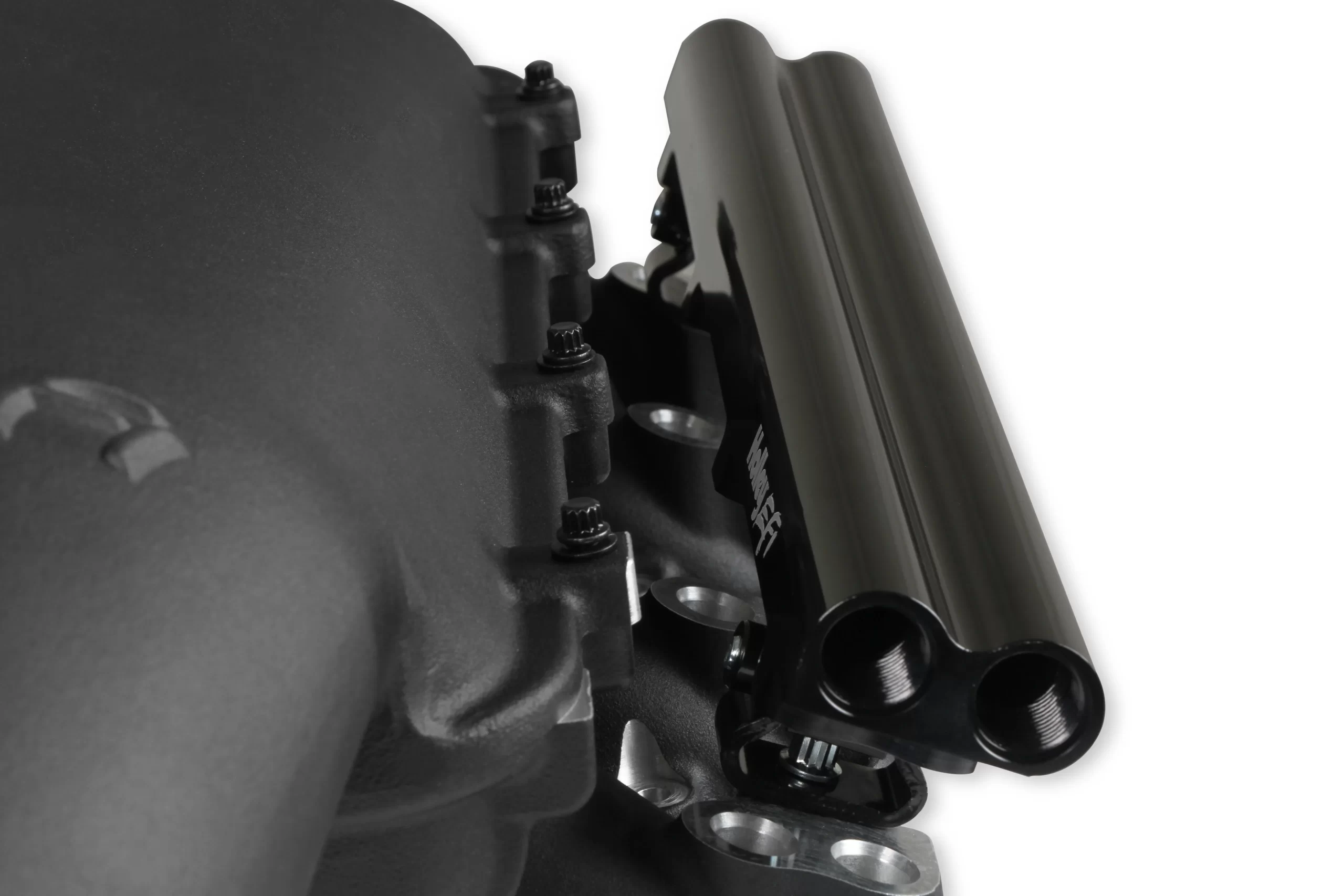

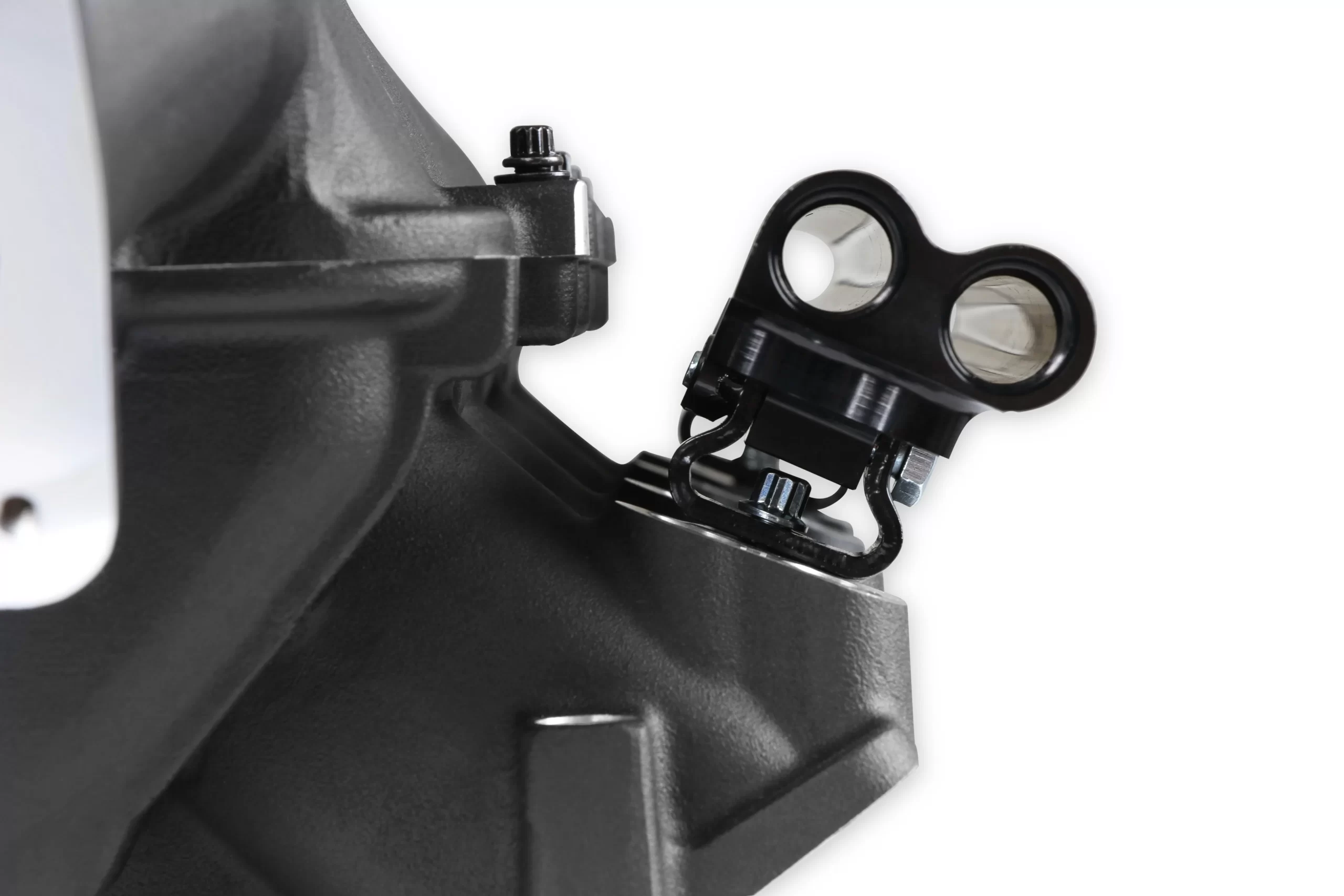

- Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration
- Available with both as-cast satin and black power-coat finishes
- High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
Brand | Holley EFI |
---|---|
Color | Black |
Construction | Cast |
Emission Code | 3 |
Engine | GM LS3/L92 |
Finish | Black |
Fuel System Type | EFI |
Injector Quantity | Dual |
Inlet Location | Top |
Manifold Type | Lo-Ram |
Product Type | Intake Manifold Base |
Recommended Use | Forced Induction |
RPM Power Band | 3500-8000 RPM |
Warranty | Limited 90 Day |
UPC | 090127100967 |
Part Number | 300-683BK |
