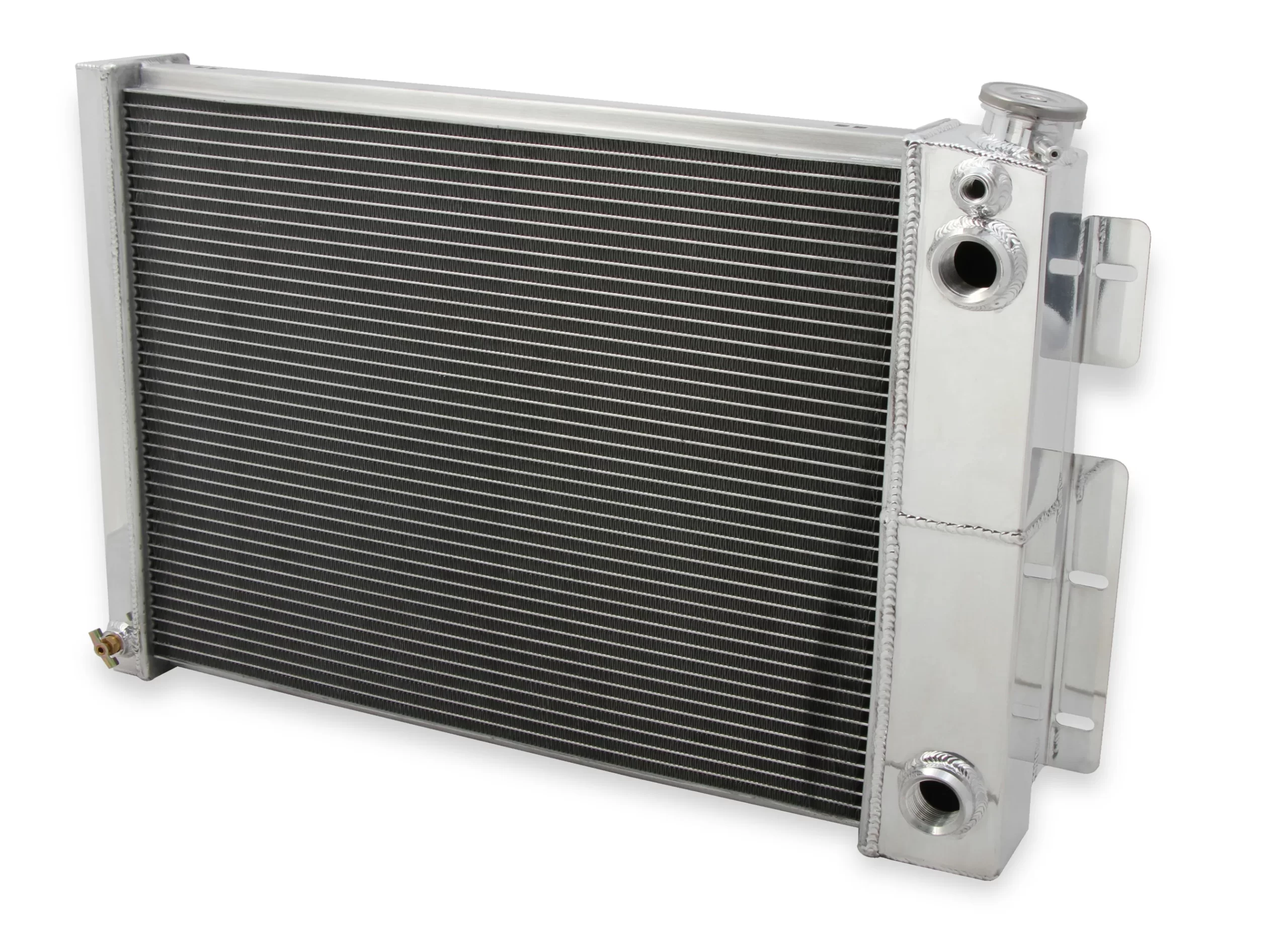

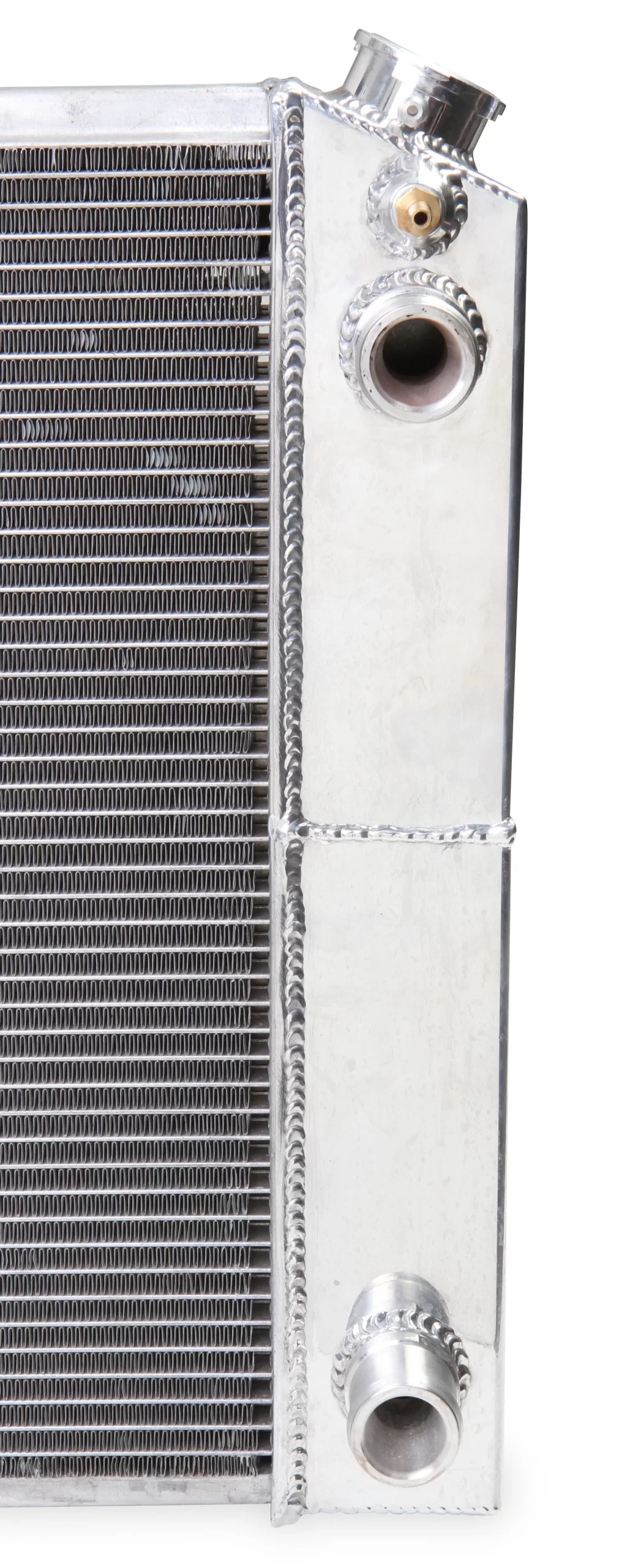

FROSTBITE ALUMINUM RADIATOR, W/ GM LS SWAP- 3 ROW
Direct Fit for 1967-1969 Camaro/Firebird with 20.75″ Wide Crossflow conversion radiator for GM LS Swap – Also fits for 1962-1967 GM “X” Body, and 1964-1967 Chevelle with 20-3/4″ wide core for GM LS Swap 4.7/5.3/6.0/6.2/7.0L (3-Row)
Part # FB300
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. When it comes to keeping your ride cool, Make it Frostbite!

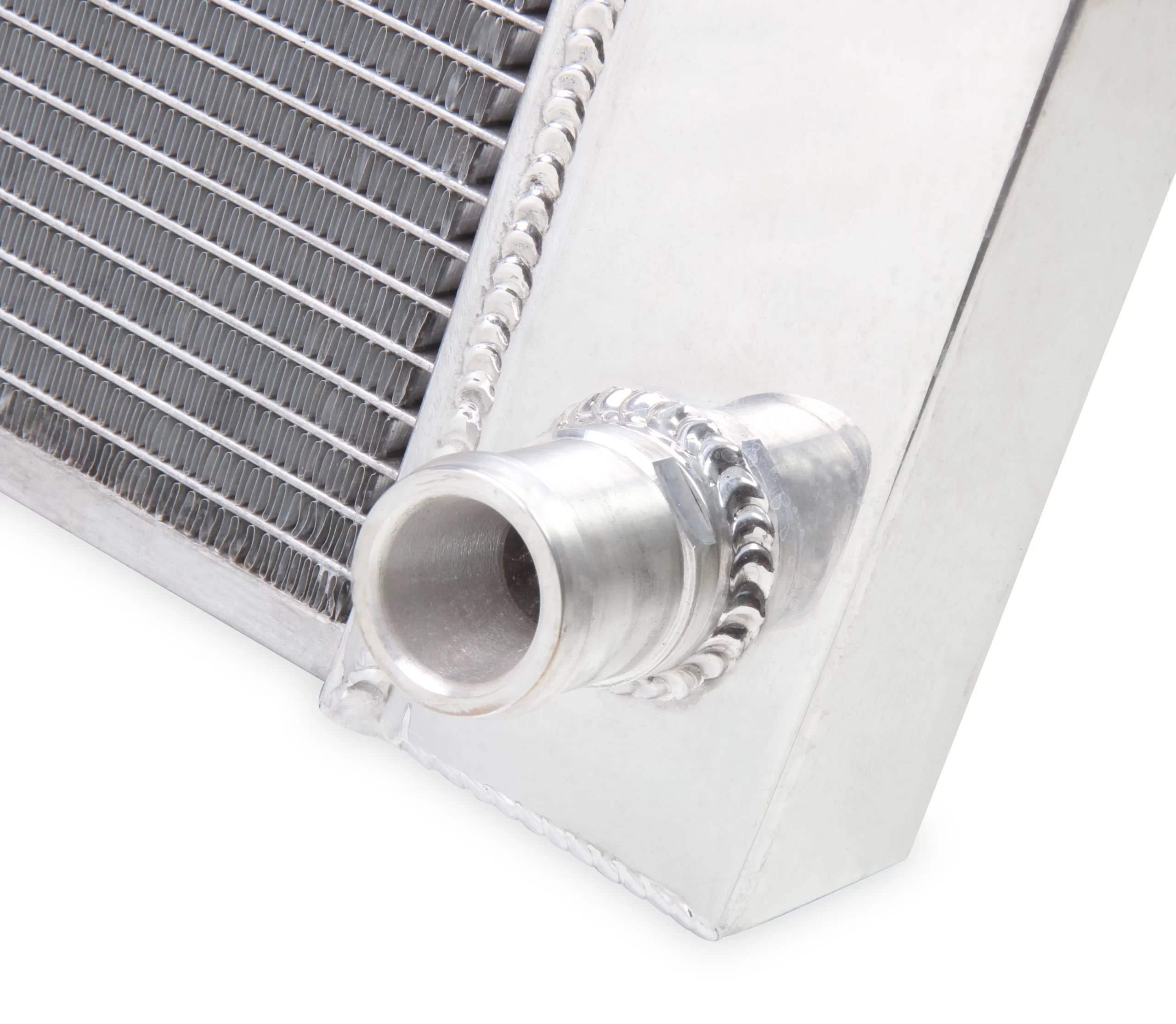

NOTE: Inlet and Outlet fittings are available separately in three different sizes listed under the Service Parts Tab based on your hose size needs.
NOTE: Inlet and Outlet fittings are available separately in three different sizes listed under the Service Parts Tab based on your hose size needs.
Features:
- 100% TIG welded (brazed) seams
- Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
- Dual Pass, Cross Flow design to maximize cooling efficiency

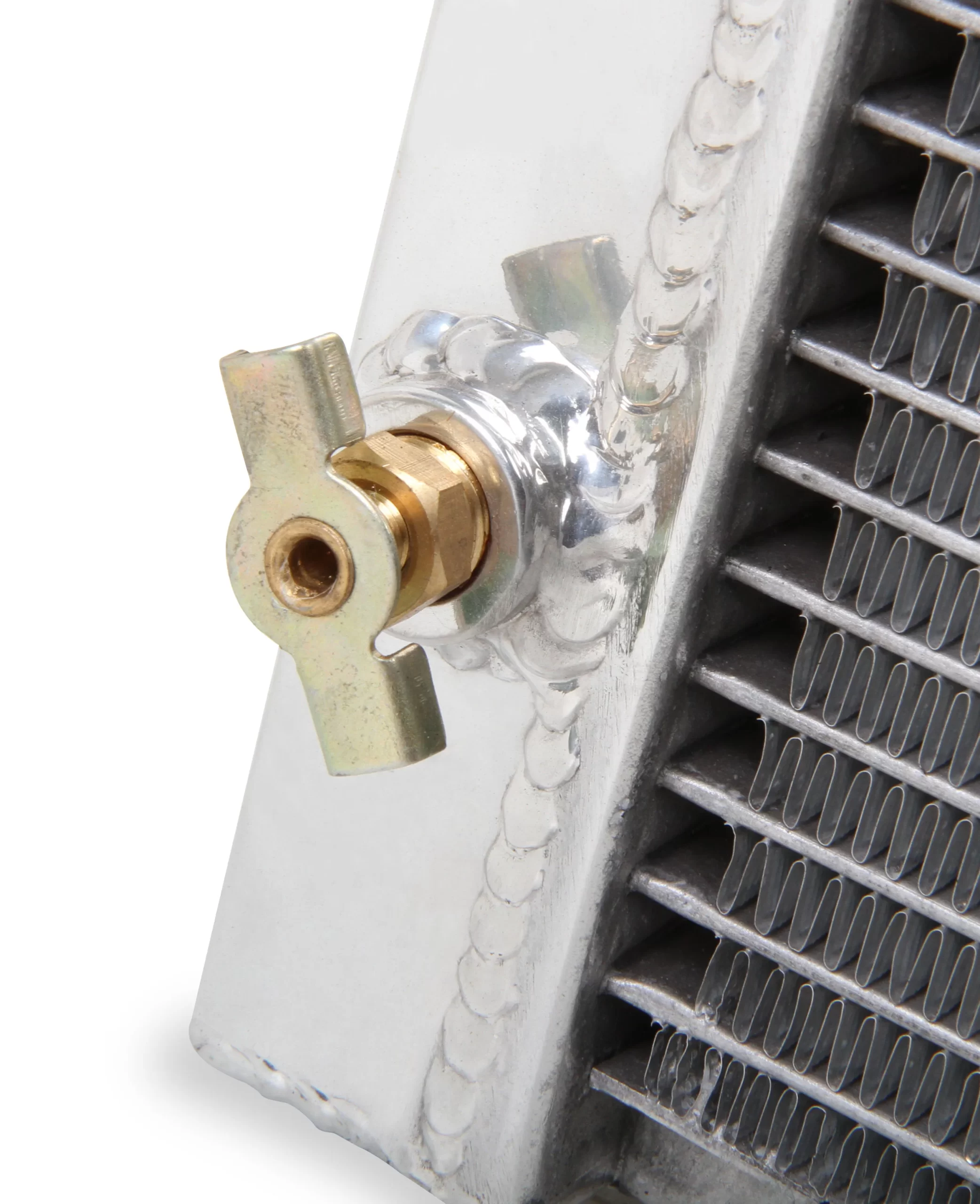

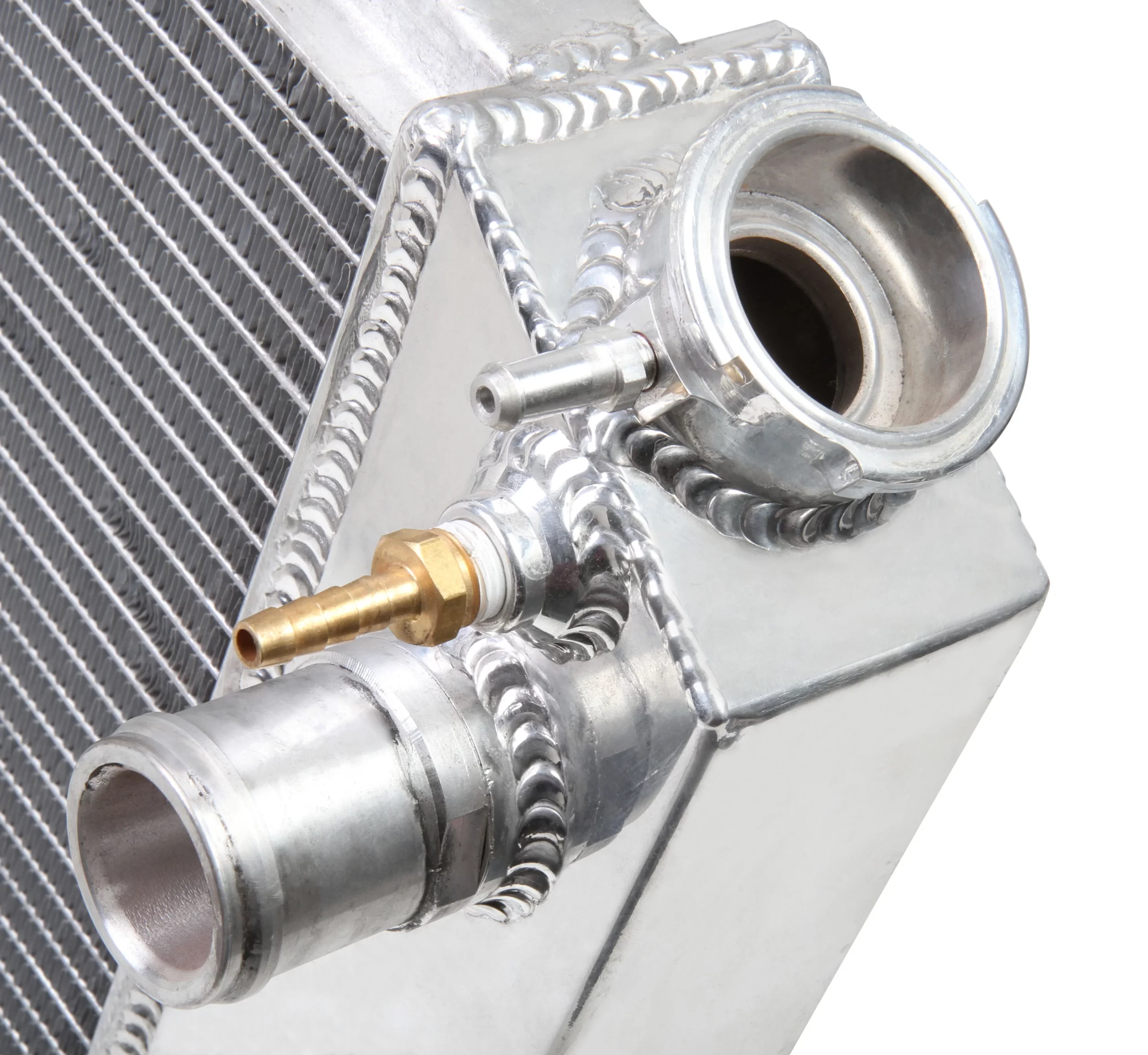

- Billet Aluminum Filler Neck and Factory Style Brass Petcock
- More cooling fins per inch for more efficient cooling
- Custom Frostbite High Performance 16lb. radiator cap
- Polished top and tanks for custom show appearance
- 3-Row Radiators supporting applications with 600+ horsepower
- Specific Application fitments for GM, Ford, Dodge/Chrysler/Jeep are also available
- Manufacturer’s 1-year Limited Warranty
| # of Passes | Dual |
|---|---|
| Brand | Frostbite |
| Cooling Row Diameter | 11/16″ |
| Core Dimension | 17 x 20-3/4 |
| Core Thickness | 2.20″ |
| Emission Code | 5 |
| Flow Style | Dual Pass |
| Hose Location Inlet | Passenger |
| Hose Location Outlet | Passenger |
| Inlet / Outlet Size | AN Bungs |
| Inlet Diameter | AN Bungs |
| Inlet Location | Passenger |
| Inlet Size | AN Bungs |
| Mounting Type | Flanges |
| Outlet Diameter | AN Bungs |
| Outlet Location | Passenger |
| Outlet Size | AN Bungs |
| Overall Dimension | 18-1/2 x 26 |
| Product Type | Radiator |
| Row Quantity | 3 |
| Rows | 3 |
| Steam Port Fitting Size | 1/4″ NPT |
| Transcooler Provision | No |
| Transmission Oil Cooler Included | No |
| UPC | 090127731680 |
| Part Number | FB300 |
