FLOWTECH
FLOWTECH SMALL BLOCK CHEVY TURBO HEADERS – NATURAL FINISH

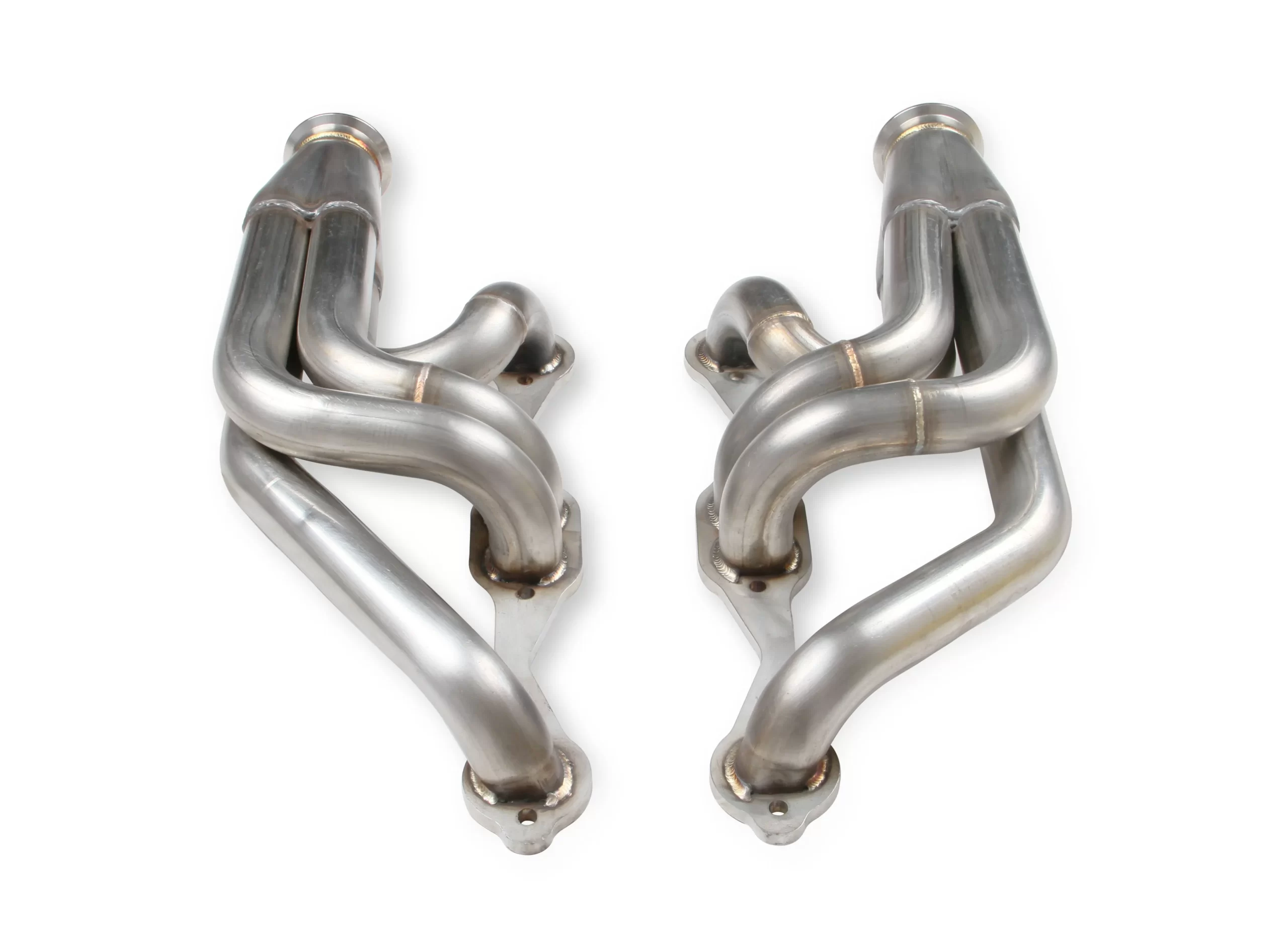

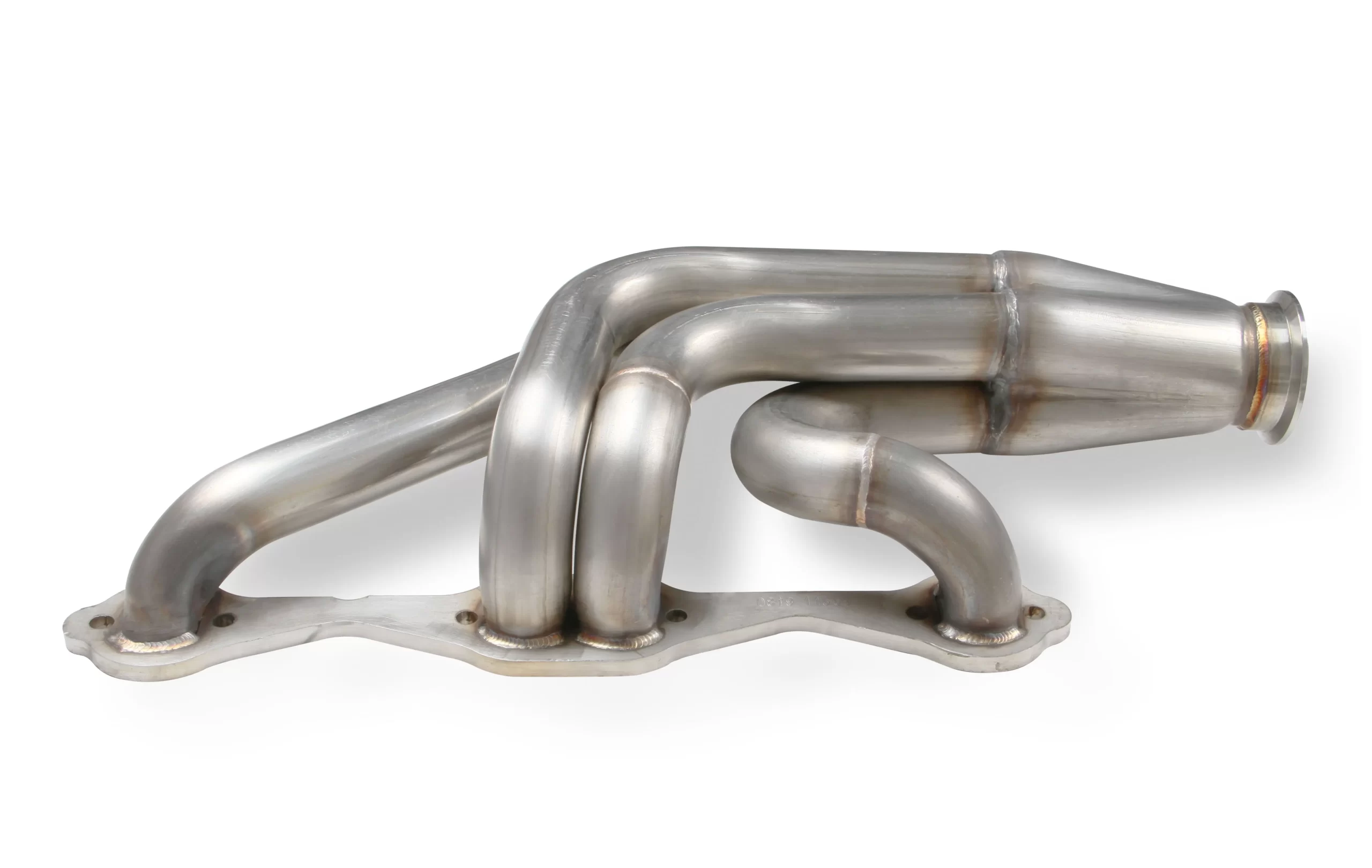

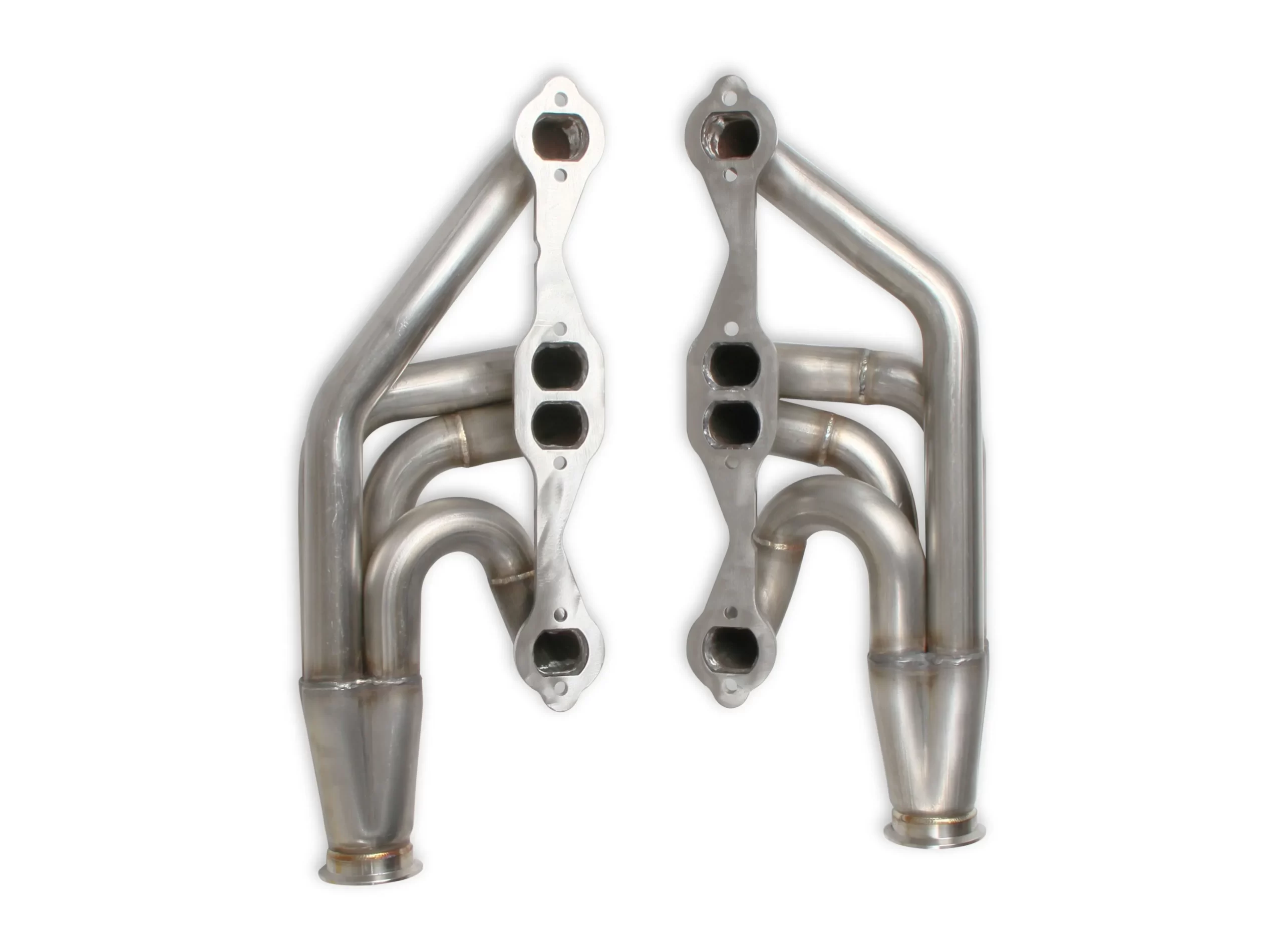

Small Block Chevy Turbo Header (UP and Forward) 304SS 1-3/4″, 2-1/2″ Collector – Natural Finish
Part # 11569FLT
Flowtech Turbo headers are the perfect combination of quality and value. These SBC (Small Block Chevy) Turbo headers are available in 1-3/4″ and 1-7/8″ mandrel bent tube diameters and a 2.50″ collectors with merge spears for increased exhaust velocity. The Flowtech SBC Turbo headers are an ideal design creating a compact package within your engine bay allowing a variety of configurations (Up and Forward, Down and Forward, or Down and Back) when planning turbo placement in your engine bay. These headers use a 3/8″ thick flange for a leak free seal and 2.50″ V-band flanges and clamps for a superior seal and even pressure at the collector flange. Premium header gaskets and hardware are all included.
Features:
- Universal turbo headers for Small Block Chevy engines
- Available with 1-3/4” or 1-7/8” mandrel bent primary tubes and 2.50” collectors with merge spears for increased exhaust velocity

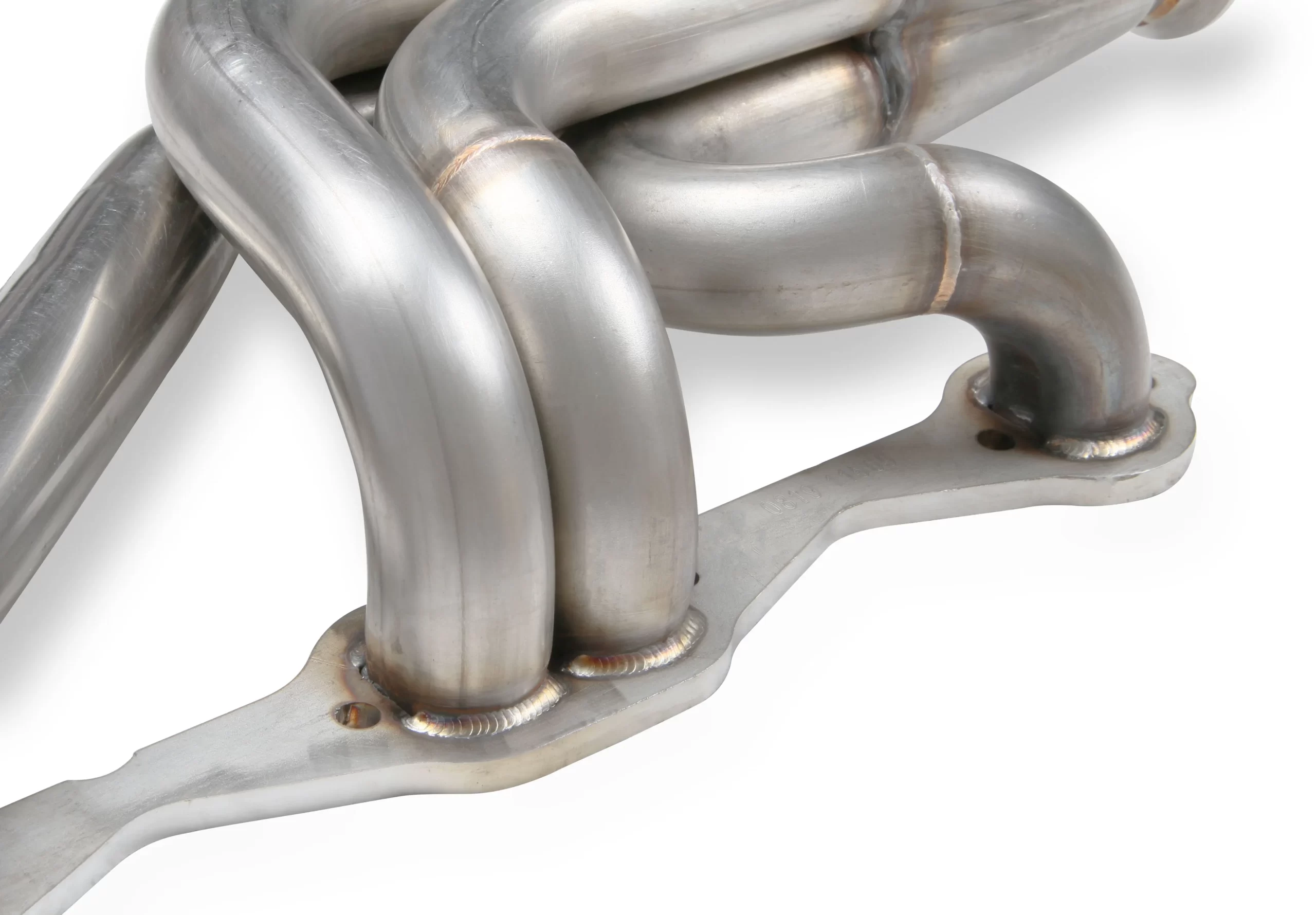

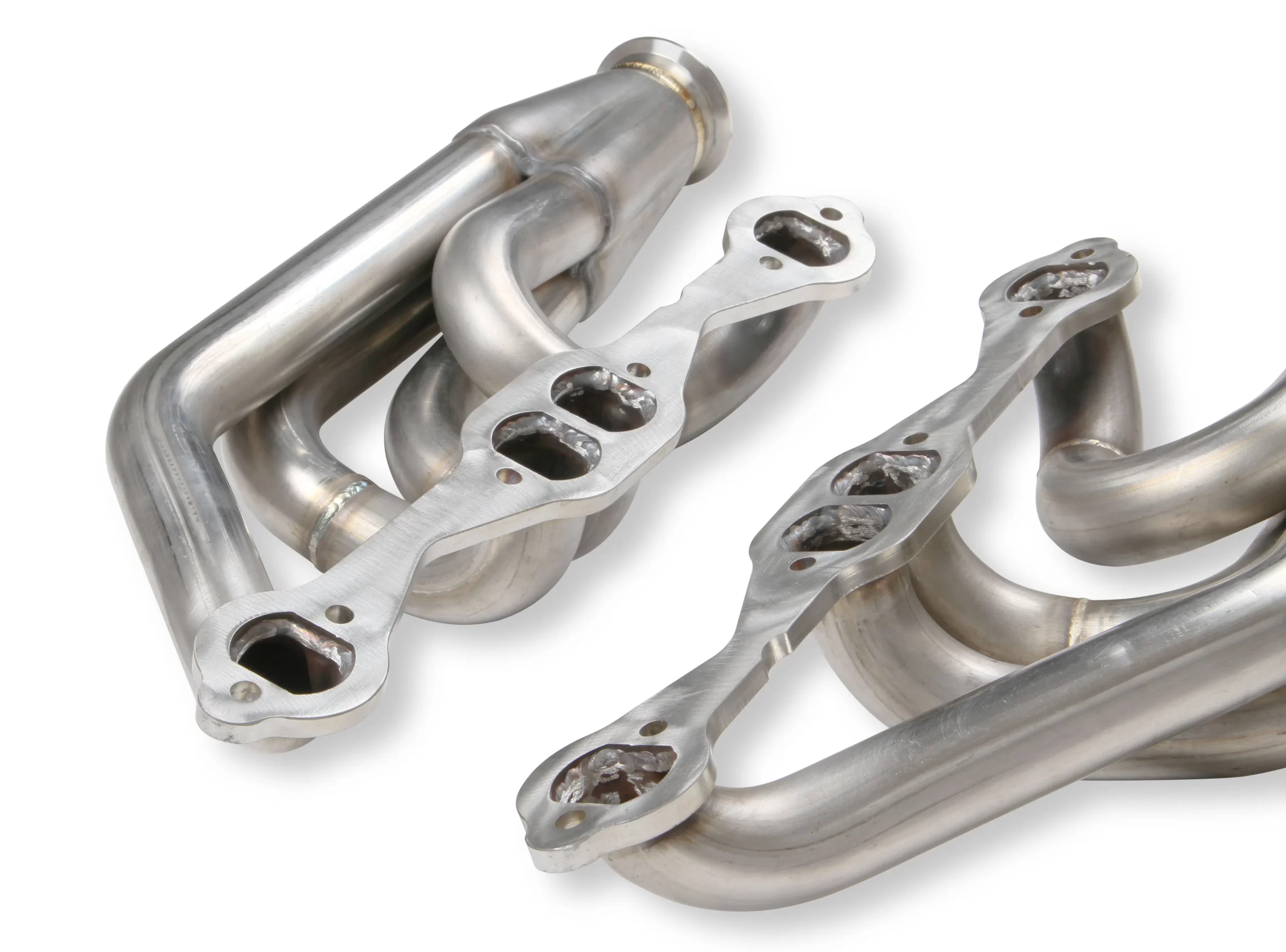

- 3/8” thick header flanges for a leak-free seal

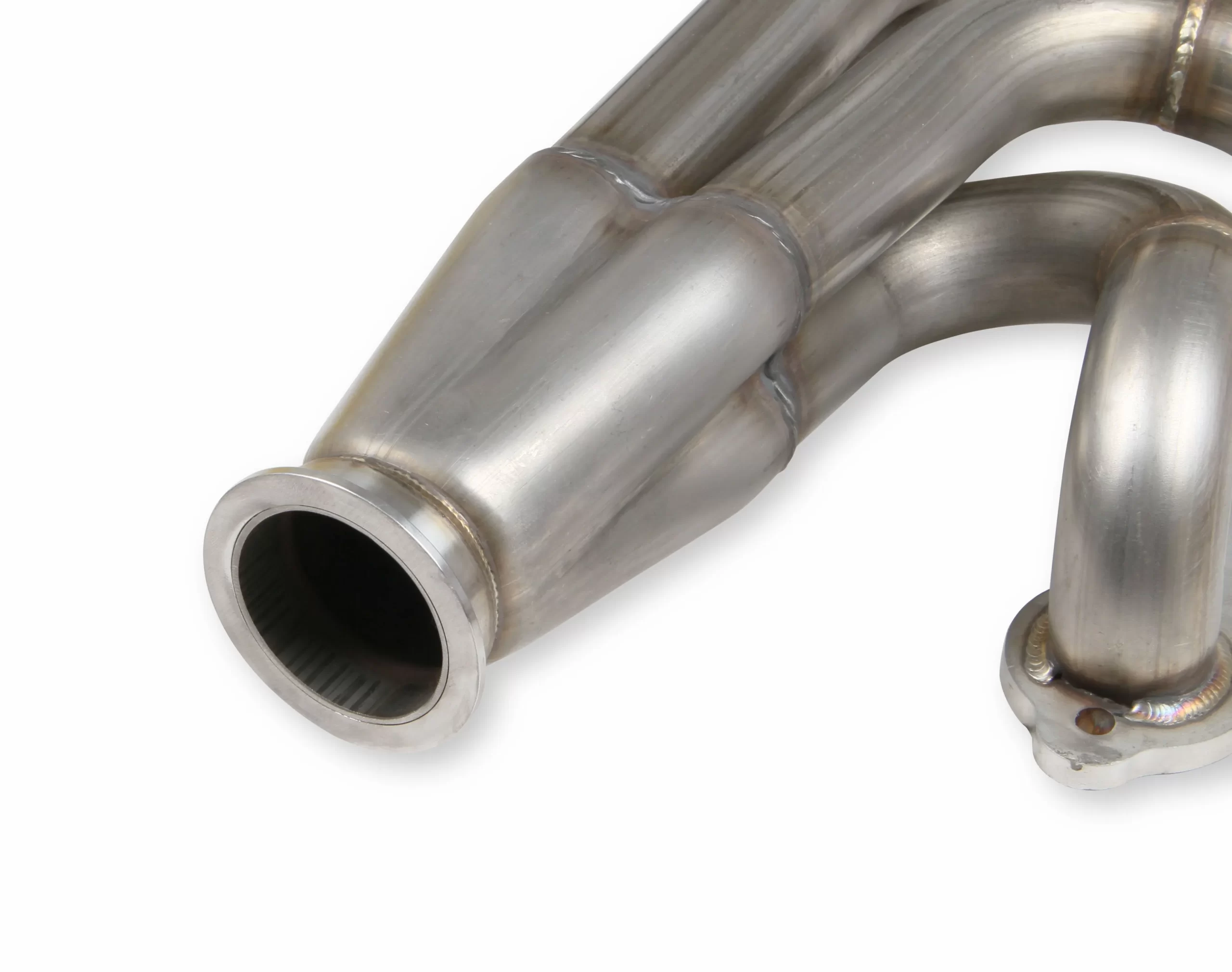

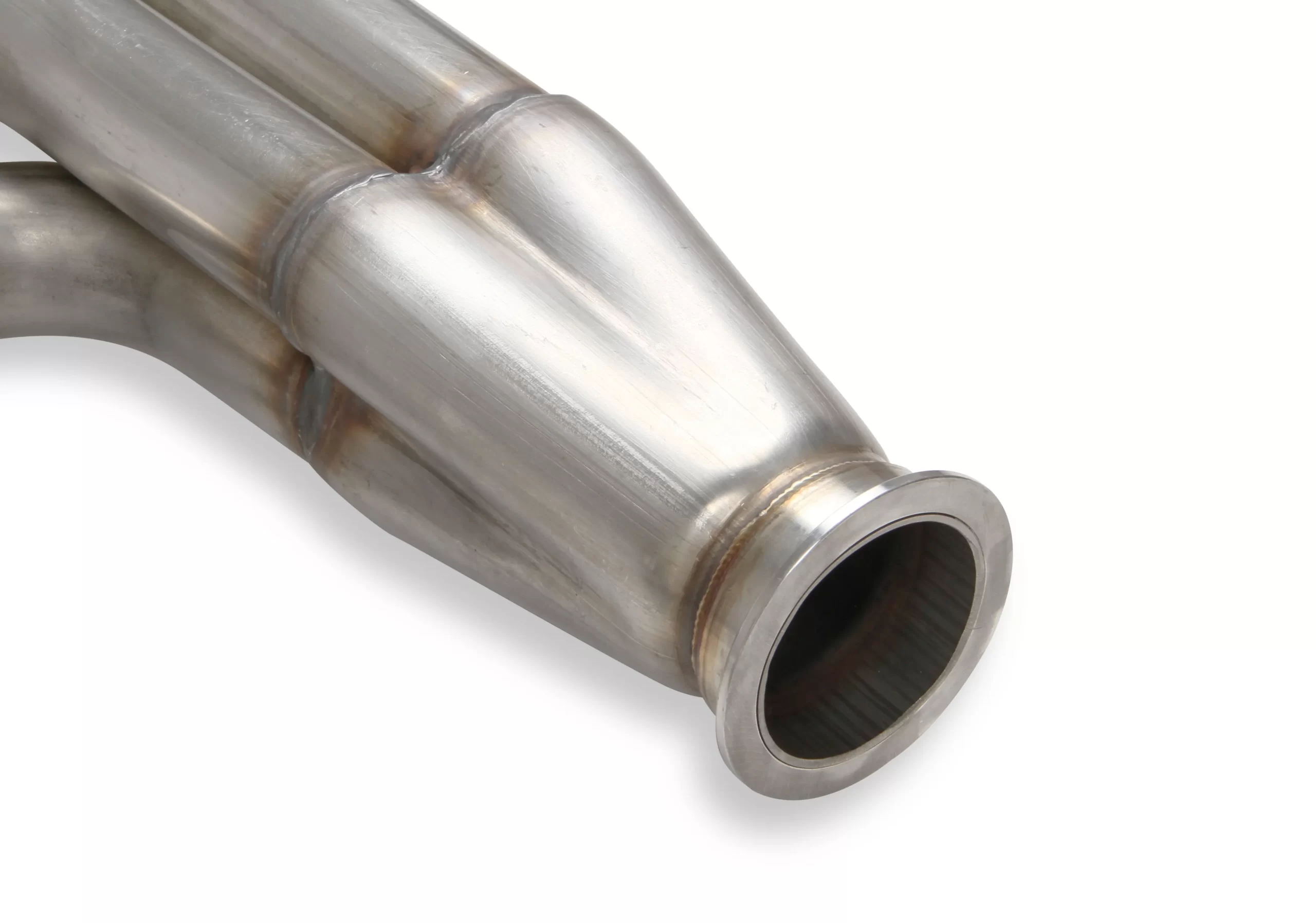

- 2.50” V-band flanges and clamps for superior seal and even pressure at the flange

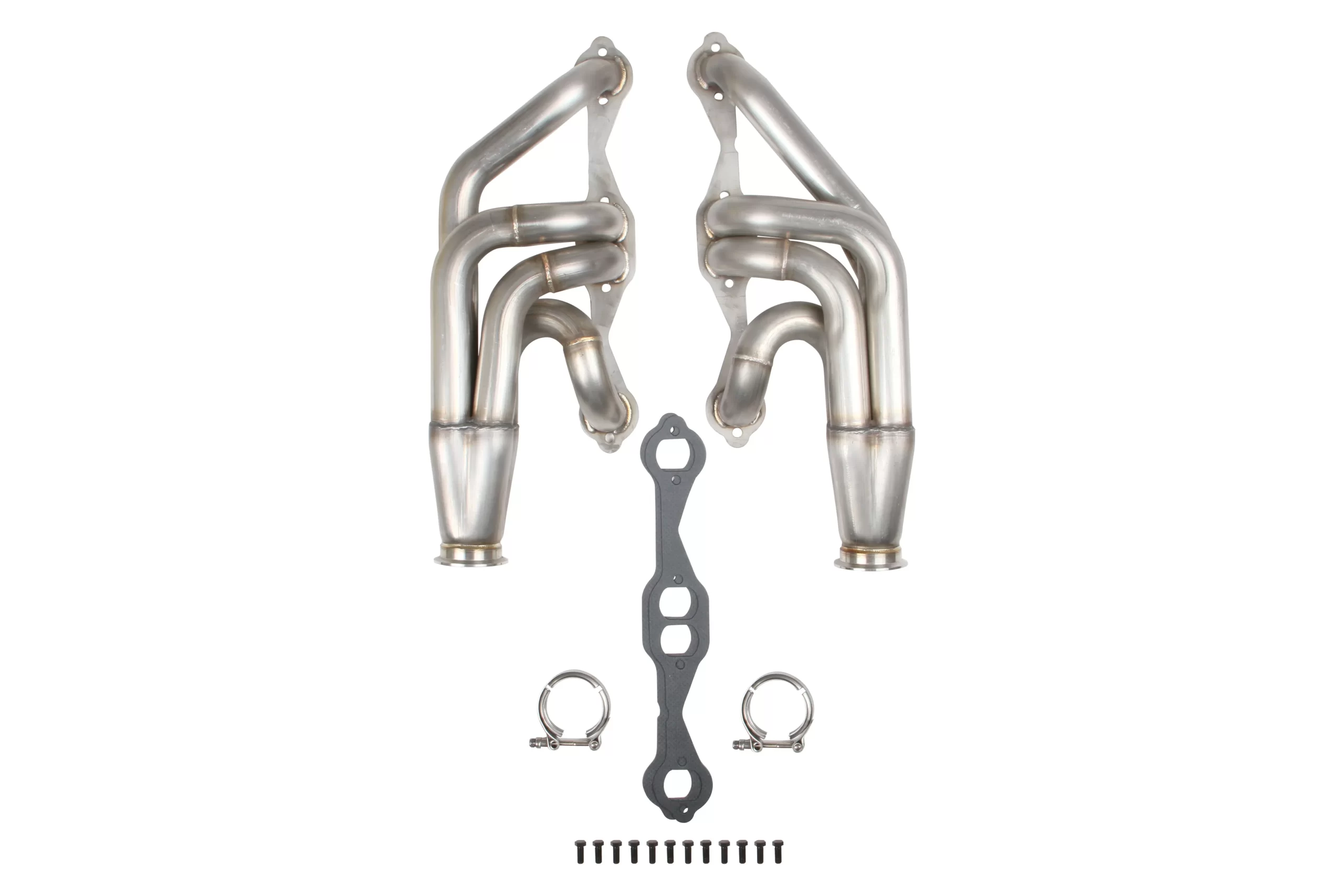

- Premium header gaskets and bolts included
- Available in ceramic coated mild steel, natural 304 stainless steel, and polished 304 stainless steel
- Designed for a variety of configurations (Up and Forward, Down and Forward, or Down and Back)
| Bolt Size | 3/8-16 x 3/4 |
|---|---|
| Brand | Flowtech |
| CARB (California) Compliant | No |
| Collector Attachment | V-band |
| Collector Diameter | 2.50 inch |
| Emission Code | 4 |
| Engine | Chevrolet Small Block Gen I |
| Flange Size | 3/8 Inch |
| Header Finish | Natural |
| Header Style | Turbo |
| Primary Tube Dia. | 1-3/4 inch |
| Product Type | Headers |
| Tube Material | 304 Stainless Steel |
| UPC | 090127042069 |
| Part Number | 11569FLT |
