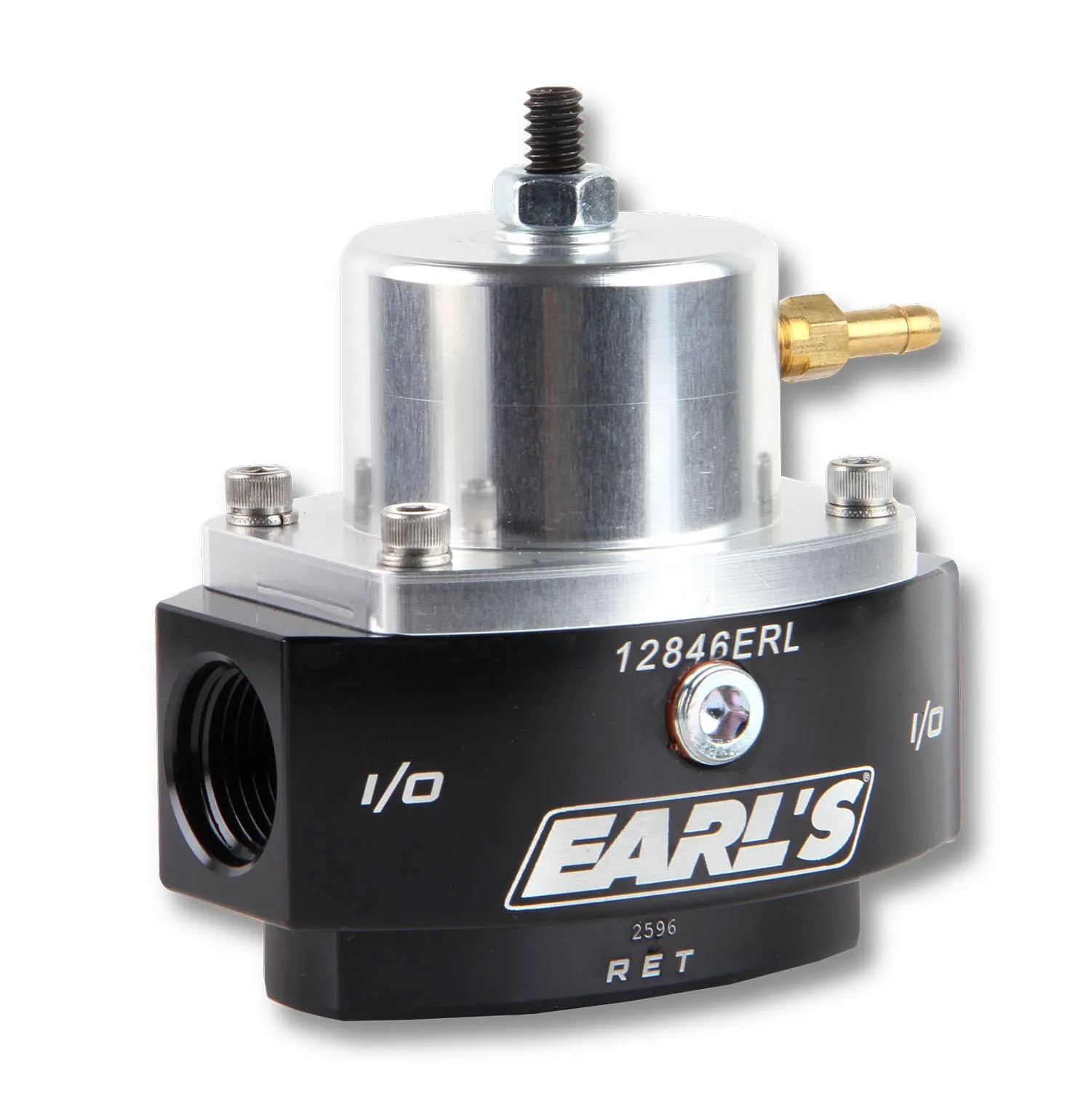

EARL’S HP BILLET EFI BY-PASS FUEL PRESSURE REGULATOR
Street/Strip EFI Applications Two Port Adjustable from 15 to 65 PSI Boost Reference – 1:1
Part # 12846ERL
Earl’s® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Earl’s 12846ERL fuel pressure regulator features (1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.
Features:
- Adjustable from 15-65 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems with a return line back to tank
- Includes fitting for manifold reference
- Use with electric pumps only
- (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
- 1/8″ NPT gauge port
- Designed for use with the Earl’s® in-line fuel pumps or other high pressure electric pumps where return line is needed

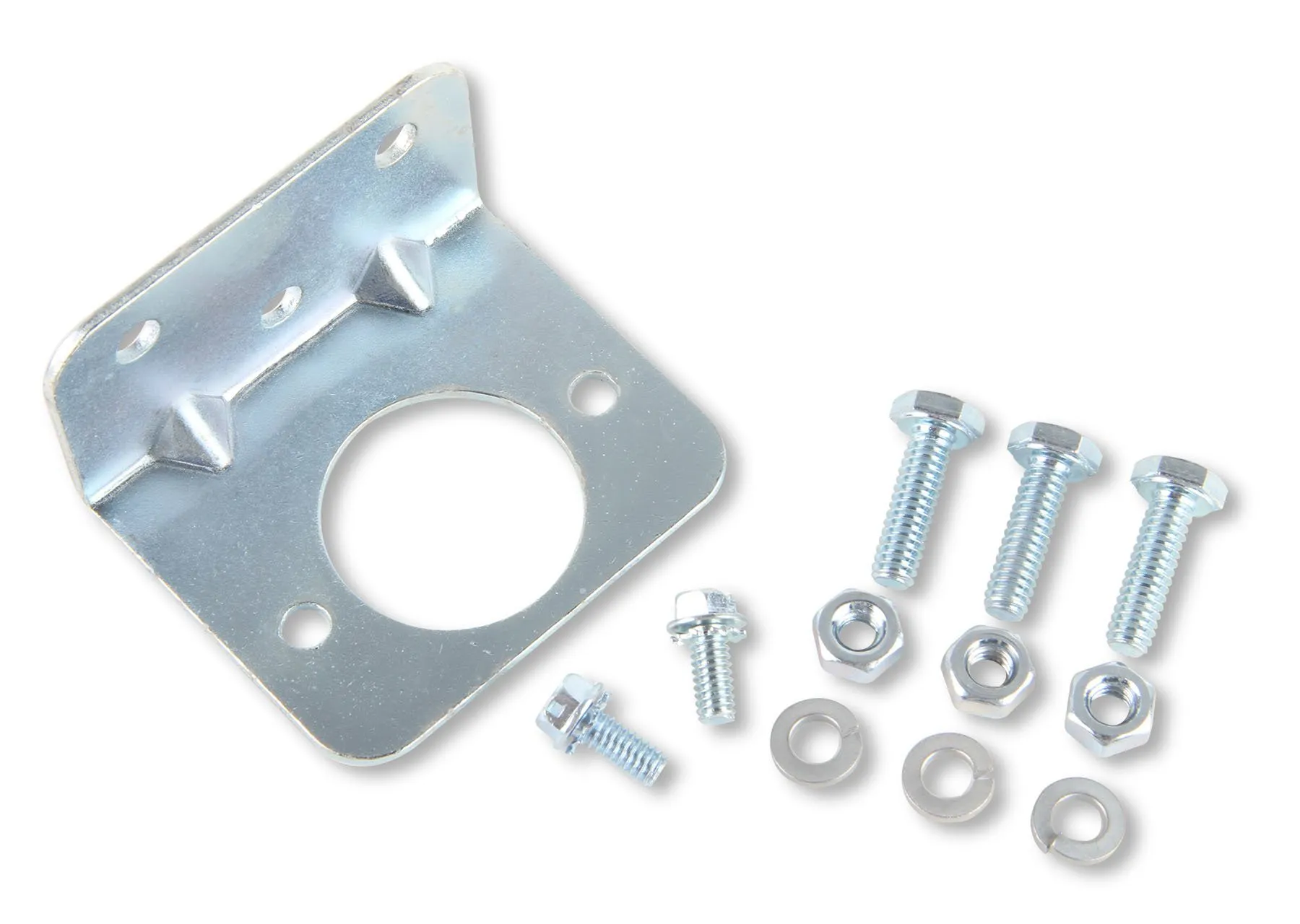

- Mounting bracket included
| Brand | Earl’s |
|---|---|
| Color | Black Anodized |
| Emission Code | 5 |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| Inlet Size | 8 AN O-Ring |
| Material | Aluminum |
| Outlet Size | 8 AN O-Ring |
| Pressure Range | 15-65 PSI |
| Product Type | Fuel Pressure Regulator |
| Return Size | 6 AN O-Ring |
| Style | Bypass |
| Warranty | Limited 90 Day |
| UPC | 090127744345 |
| Part Number | 12846ERL |
