EARLS BILLET FUEL FILTER

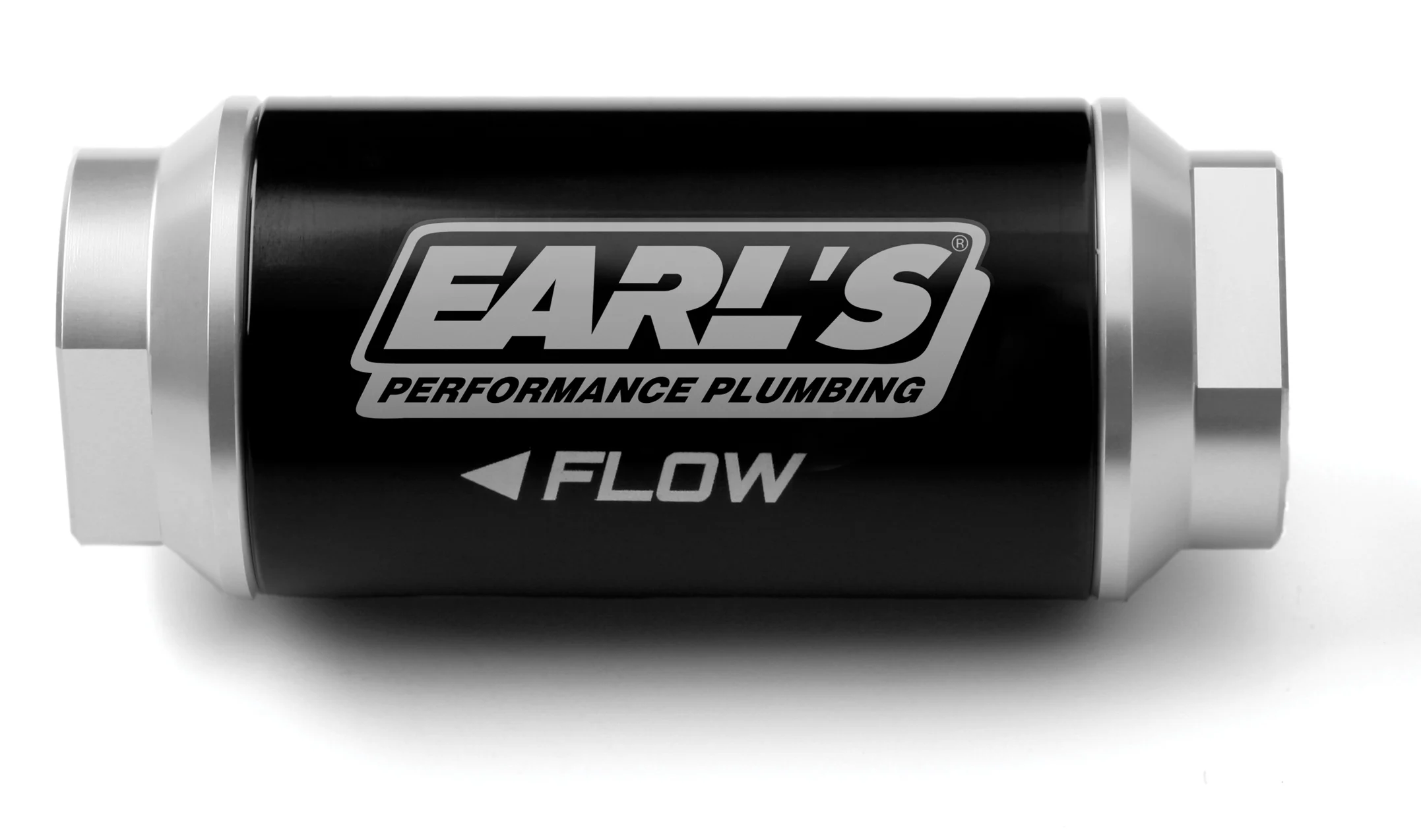

100 GPH Billet Aluminum Fuel Filer – 10 Micron – 6 AN O-Ring Female Inlet & Outlet, Black Body w/ Clear Anodized Ends
Part # 230606ERL
Earl’s new billet in-line fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. The body is black class 2 brite dip anodized and the end caps are class 2 clear anodized for corrosion resistance and a clean, modern look. Earl’s billet fuel filters are available in 10, 40 &100 micron ratings and in 100 & 175 GPH flow ratings. Replacement elements are available.
Features:

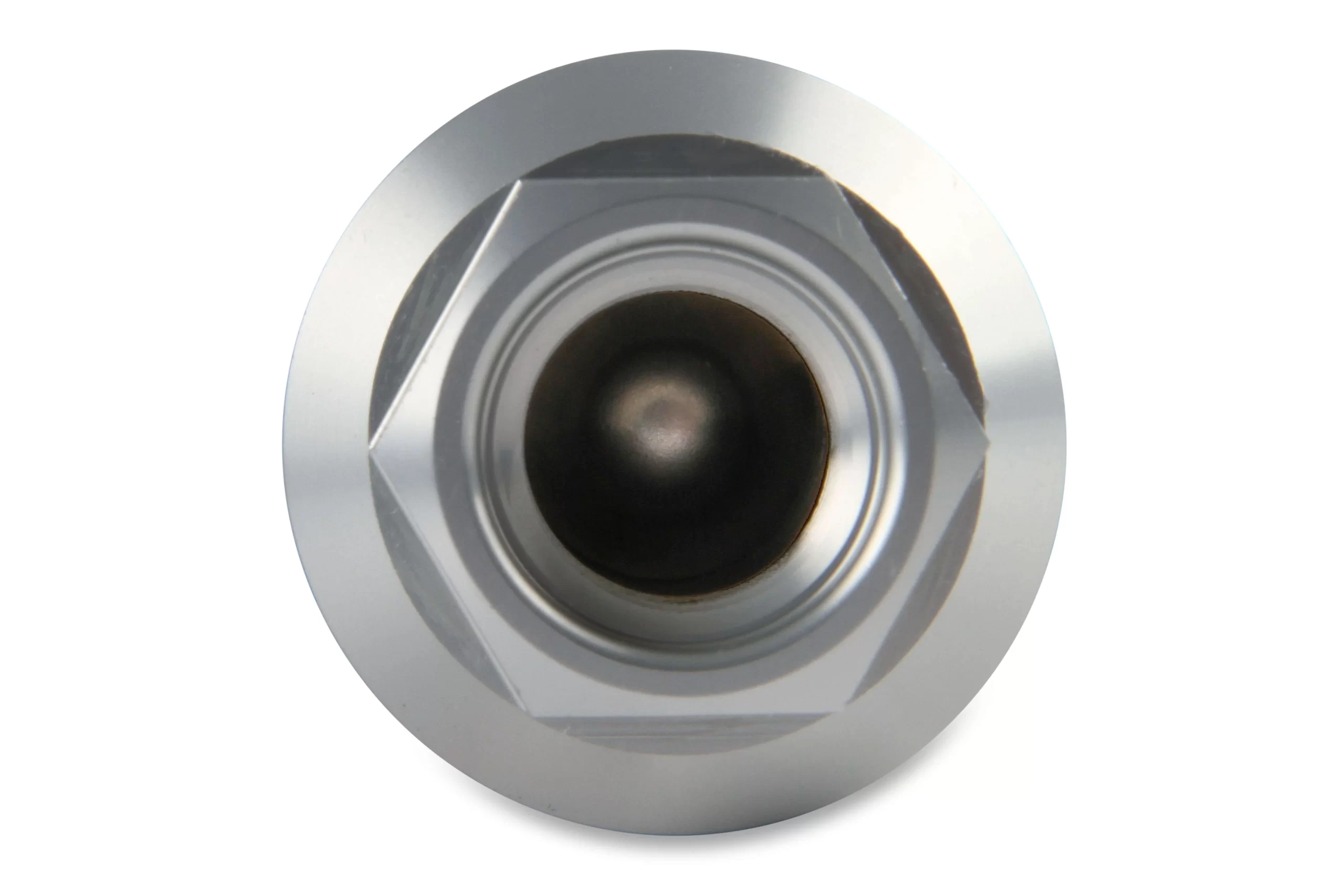

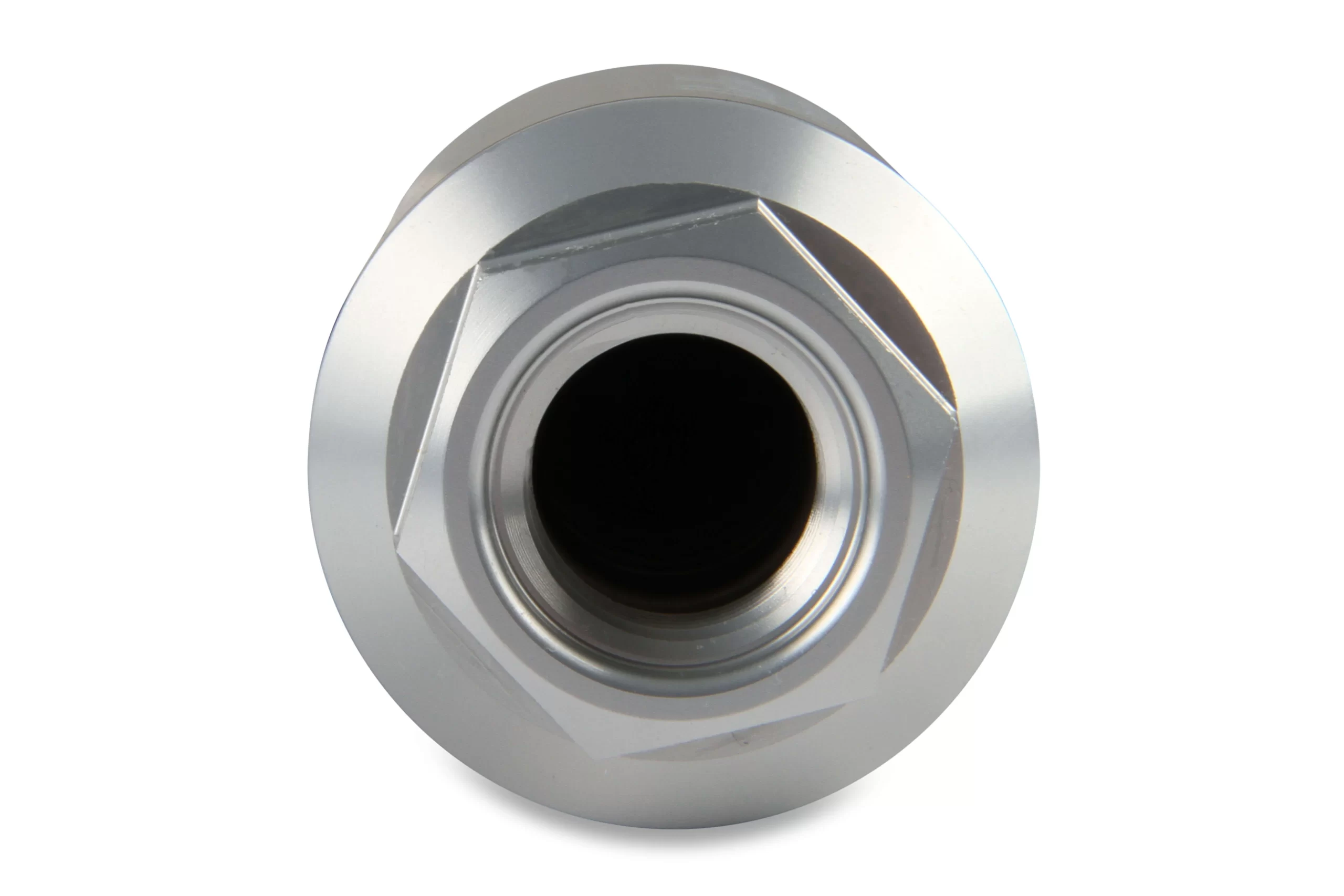

- 100 GPH filters feature female -6AN O-ring inlet and outlet
- 175 GPH filters feature female -8AN O-ring inlet and outlet
- 10 micron filters are recommended for use as a post filter in EFI systems
- 40 micron filters are recommended for use as a post filter in carbureted systems
- 100 micron filters are recommended for use as a pre filter in carbureted and EFI systems
- 100 & 40 micron filters feature a stainless steel woven mesh element
- 10 micron filters feature a depth media element
- 3.5″ Long x 1.5″ diameter
- Gasoline/E85 compatible
| Body Diameter | 1.5″ |
|---|---|
| Body Length | 3.500 Inch |
| Brand | Earls |
| Color | Black and Silver |
| Diameter | 1.5 inch |
| Element Material | Depth Media |
| Emission Code | 5 |
| Filter Type | Post Filter |
| Finish | Black and Clear Anodized |
| Fuel Type | Gasoline / Diesel / E85 |
| GPH | 100 |
| Inlet / Outlet Size | 9/16-18 Female O-Ring (AN 6) |
| Inlet Size | 6 AN O-Ring |
| Length | 3.5 inch |
| Material | Aluminum |
| Max PSI | 100 |
| Micron | 10 Micron |
| Outlet Size | 6 AN O-Ring |
| Product Type | Fuel Filter |
| Replacement Element P/N | 230605ERL |
| Warranty | Limited 90 Day |
| UPC | 090127668948 |
| Part Number | 230606ERL |
