EARL’S

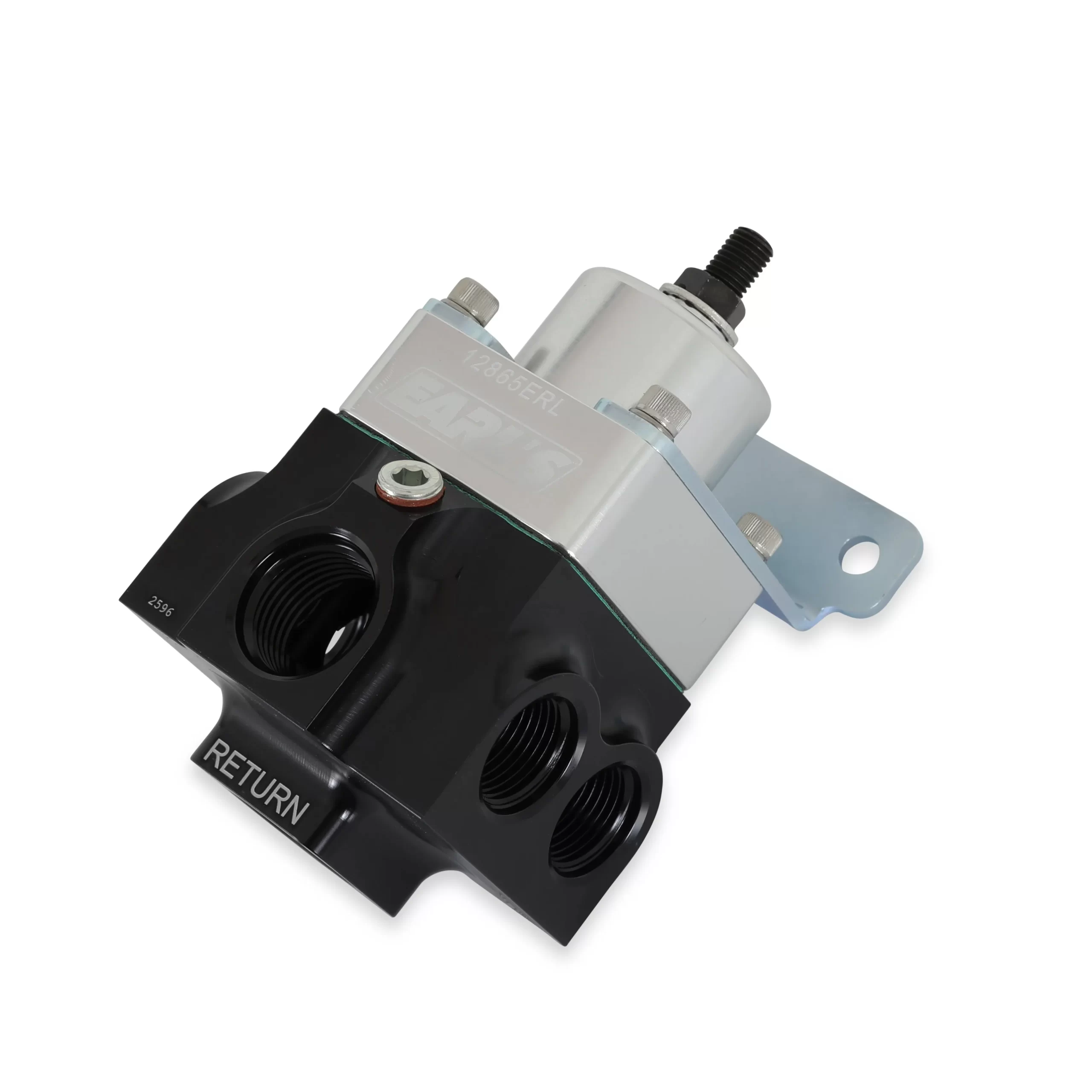

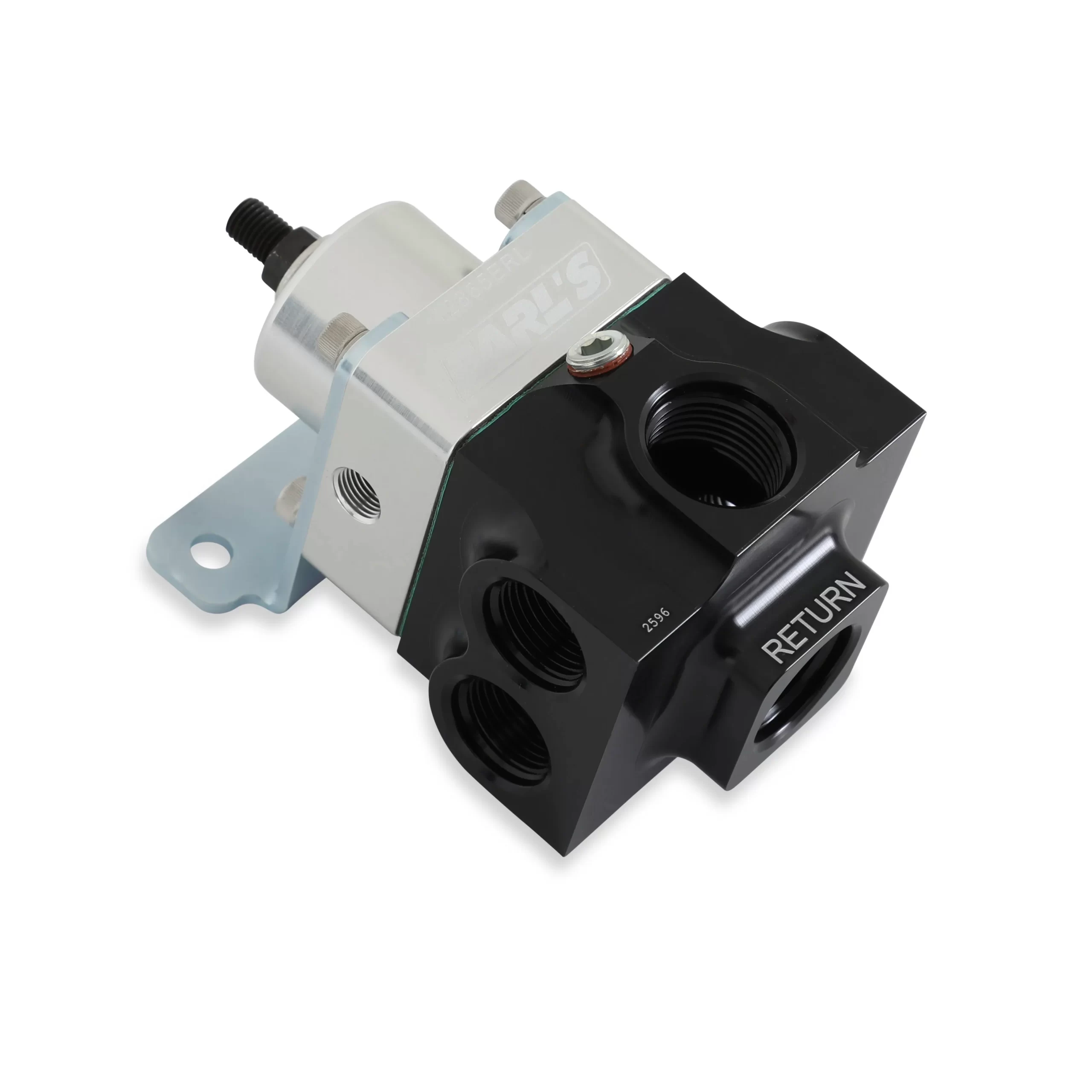

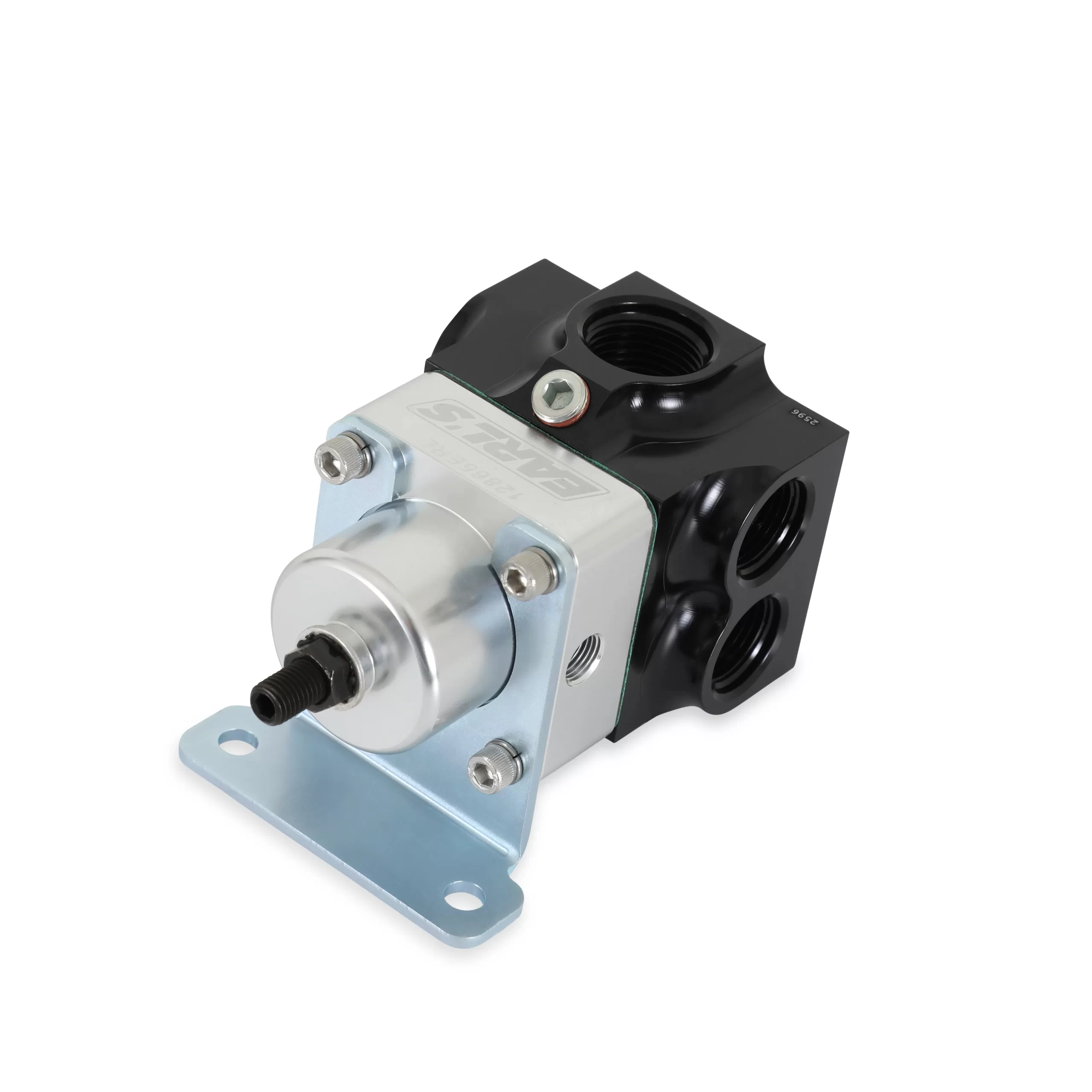

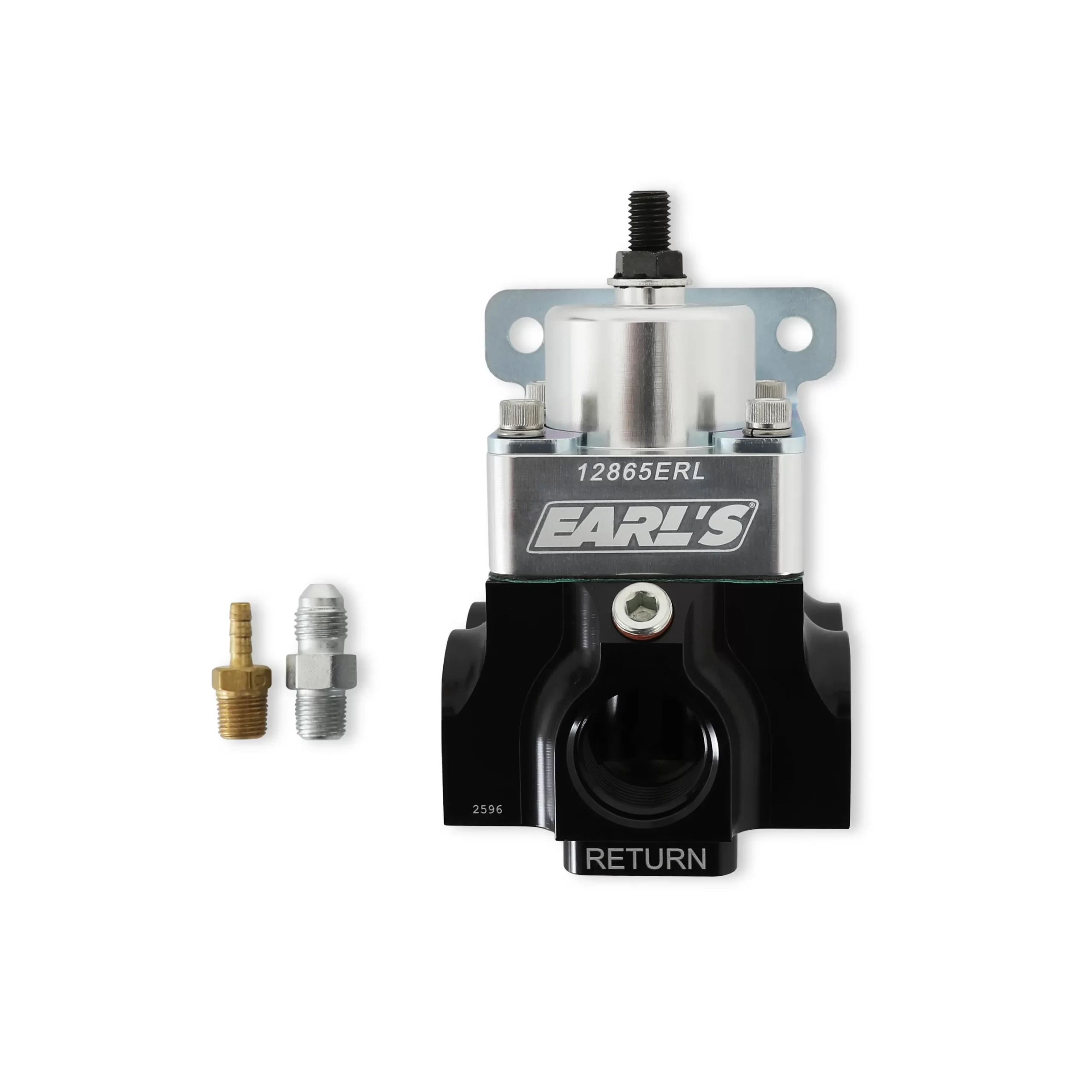

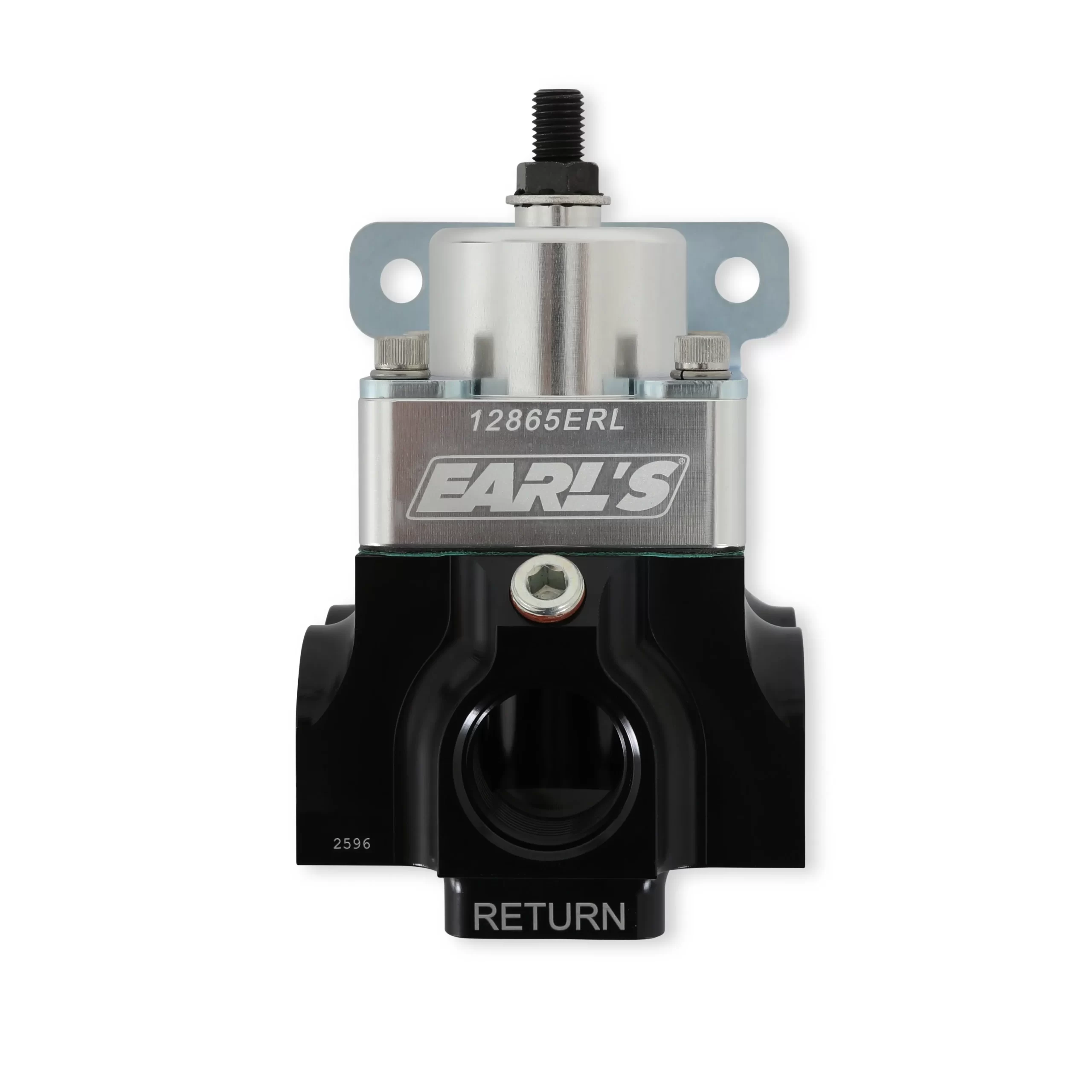

EARL’S 4 PORT VR SERIES FUEL PRESSURE REGULATOR
Four Port Adjustable 4 to 9 PSI Boost Reference 1:1
Part # 12865ERL
The Earl’s VR Series billet fuel pressure regulators are part of the VR1 and VR2 Series brushless fuel systems product line. These regulators can support 3000+ horsepower engines that require high volumes of fuel flow. Both EFI and carbureted versions can be referenced on a 1:1 ratio. They are precision machined from 6061-T6 billet aluminum for strength and durability and feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Offered in 2 port and 4 port versions for carbureted or EFI pressures, Earl’s has the regulator to cover your needs!
Features:
- Carbureted regulators are adjustable from 4 to 9 PSI base pressure
- Compatible with gasoline, methanol, and E85* (Compatible with
- 1/8” NPT gauge port
- Designed for use with the Holley VR1 and VR2 Series Brushless in-line fuel pumps

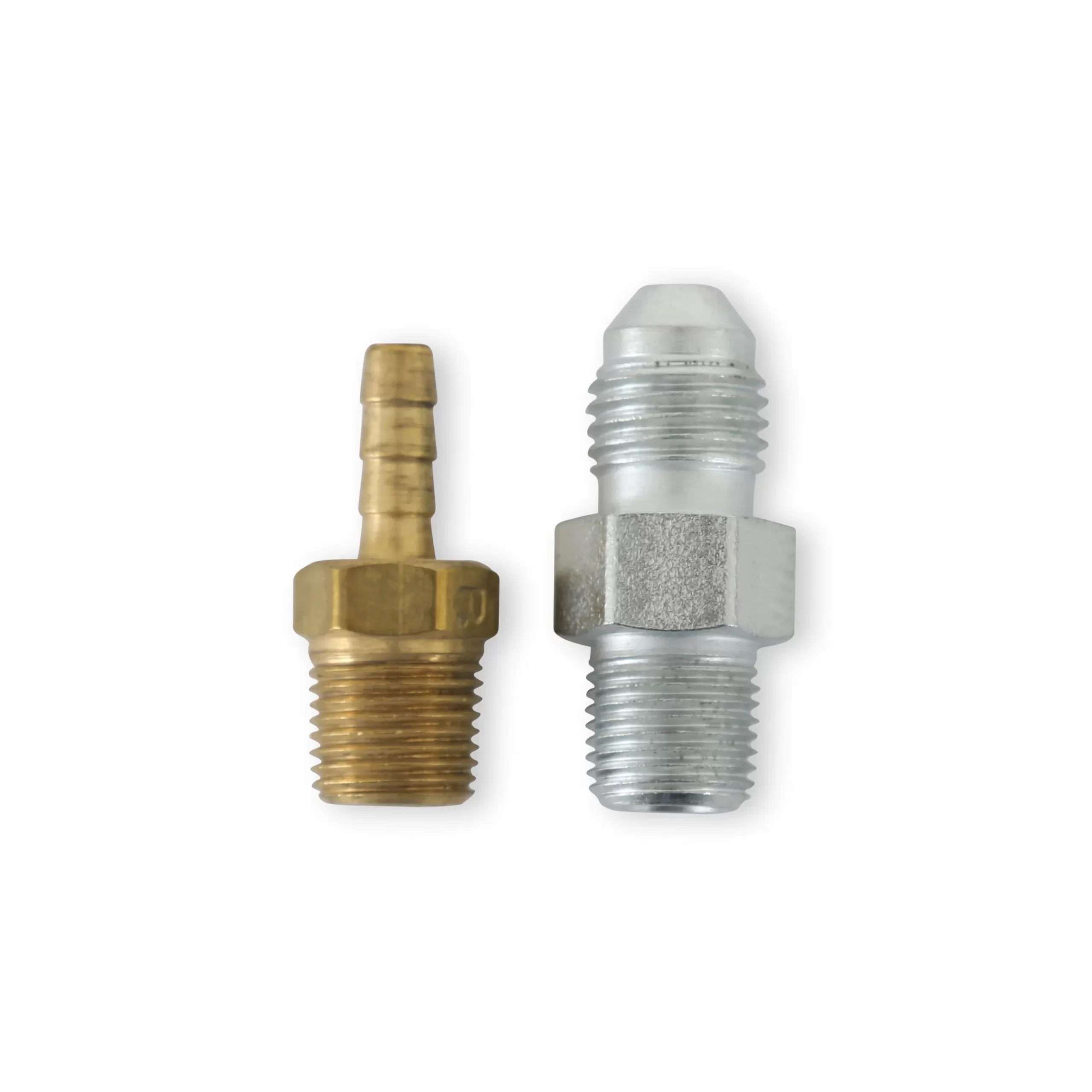

- Can be referenced on a 1:1 ratio – includes a barb fitting and a -4 AN fitting for reference connection
- 4 port regulators feature a 10 AN O-ring inlet and return with (4) 8 AN O-ring outlets
| Brand | Earl’s |
|---|---|
| Color | Black Anodized |
| Emission Code | 5 |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Inlet Size | 10 AN O-ring |
| Material | Aluminum |
| Outlet Size | 8 AN O-Ring |
| Pressure Range | 4-9 PSI |
| Product Type | Fuel Pressure Regulator |
| Return Size | 10 AN O-Ring |
| Warranty | Limited 90 Day |
| UPC | 090127744376 |
| Part Number | 12865ERL |
