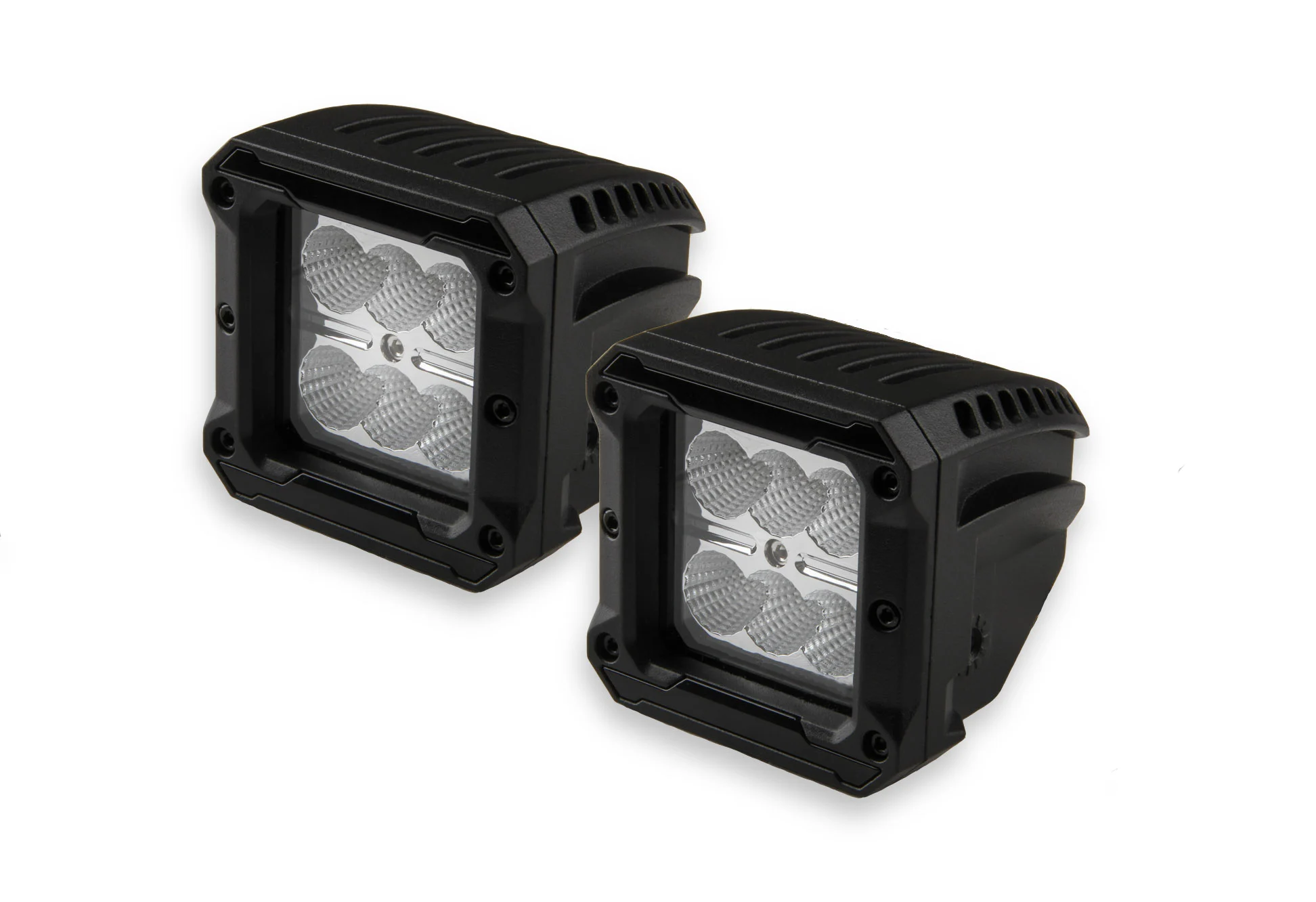

High Output Cube Lights – Beam Pattern 90° Flood Light w/ Pigtail Harness & Mounting Hardware – Set of Two Cube Lights w/ Wiring Harness
Bright Earth high output cube lights provide plenty of light for all your Off-Road Adventures. Each cube light provides 1,440 Lumens of light from the 6 LED’s and uses only 1.1 amps at 13.8 volts. The heavy duty die-cast housing is dust and waterproof & includes stainless steel mounting bracket & hardware. Cube lights are available individually including waterproof connector & pigtail, or in Sets of (2) lights w/ easy plug in wiring harness (two light sets include harness w/ relay, fuse, waterproof connectors & switch). Choose from Spot or Flood light beam pattern. Ideal for use on Jeeps, Trucks, UTV’s, and more.
Features:
- LED Cube Lights are Ideal for All Off-Road Lighting Applications
- Overall Dimensions: 3.190” Wide x 3.346” Tall x 3.000” Depth
- Light Output: 1,440 Lumens – Per Cube Light
- 18.0 Watts – Per Cube Light
- 6 LED’s – Osram® 3.0 Watt Each
- Dust & Waterproof: IP68 Rated
- Die Cast Aluminum Housing w/ Stainless Steel Mounting Bracket on Bottom
- Input Voltage: 10-30 Volts DC
- Uses Only 1.1 Amps @ 13.8 Volts DC – Per Cube Light
- Color Temperature: 6000K (White)
- Black Finish on Housing
- Stainless Steel Mounting Bracket & Hardware

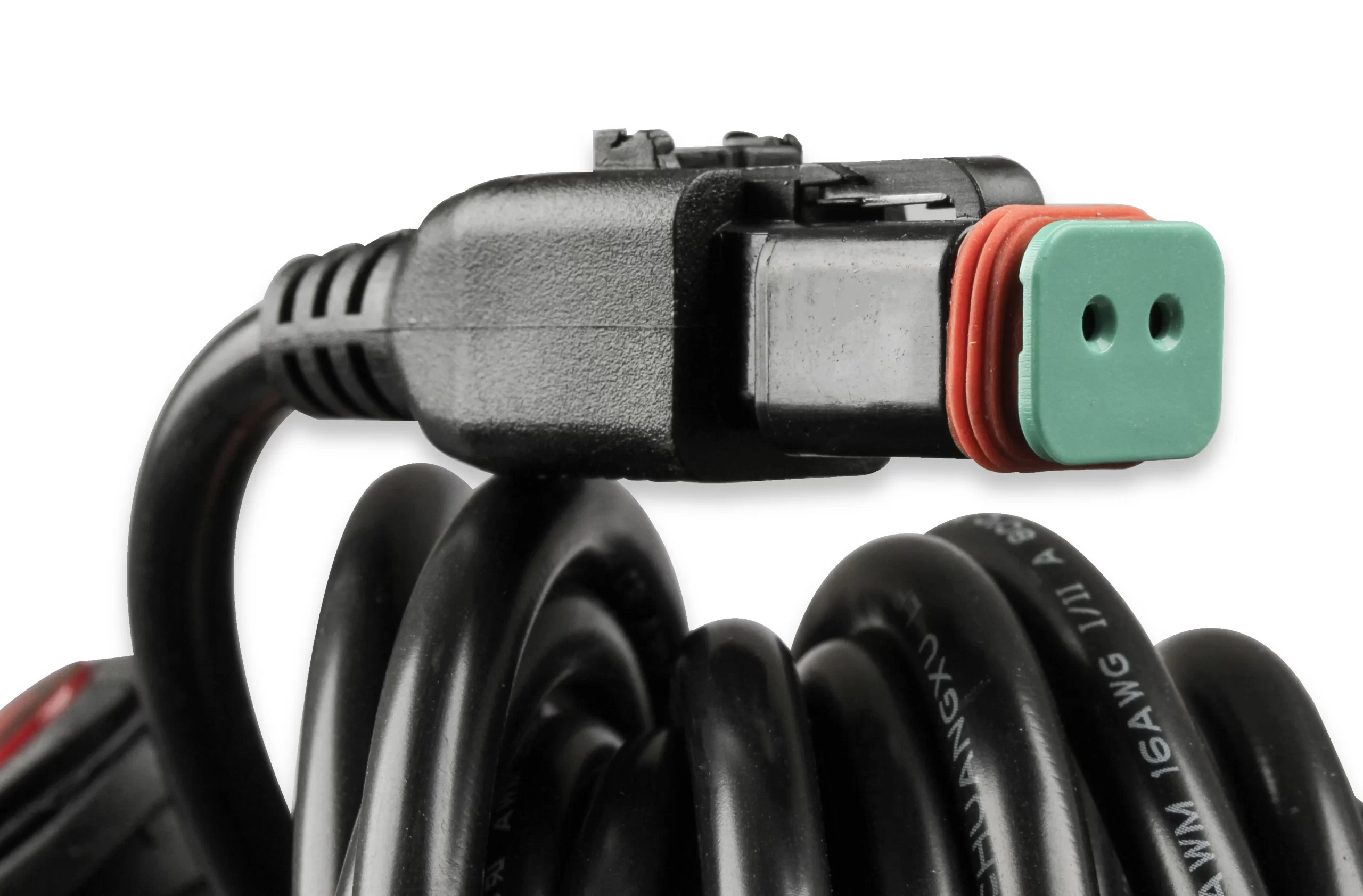

- Individual Lights Include Waterproof Connector & Pigtail

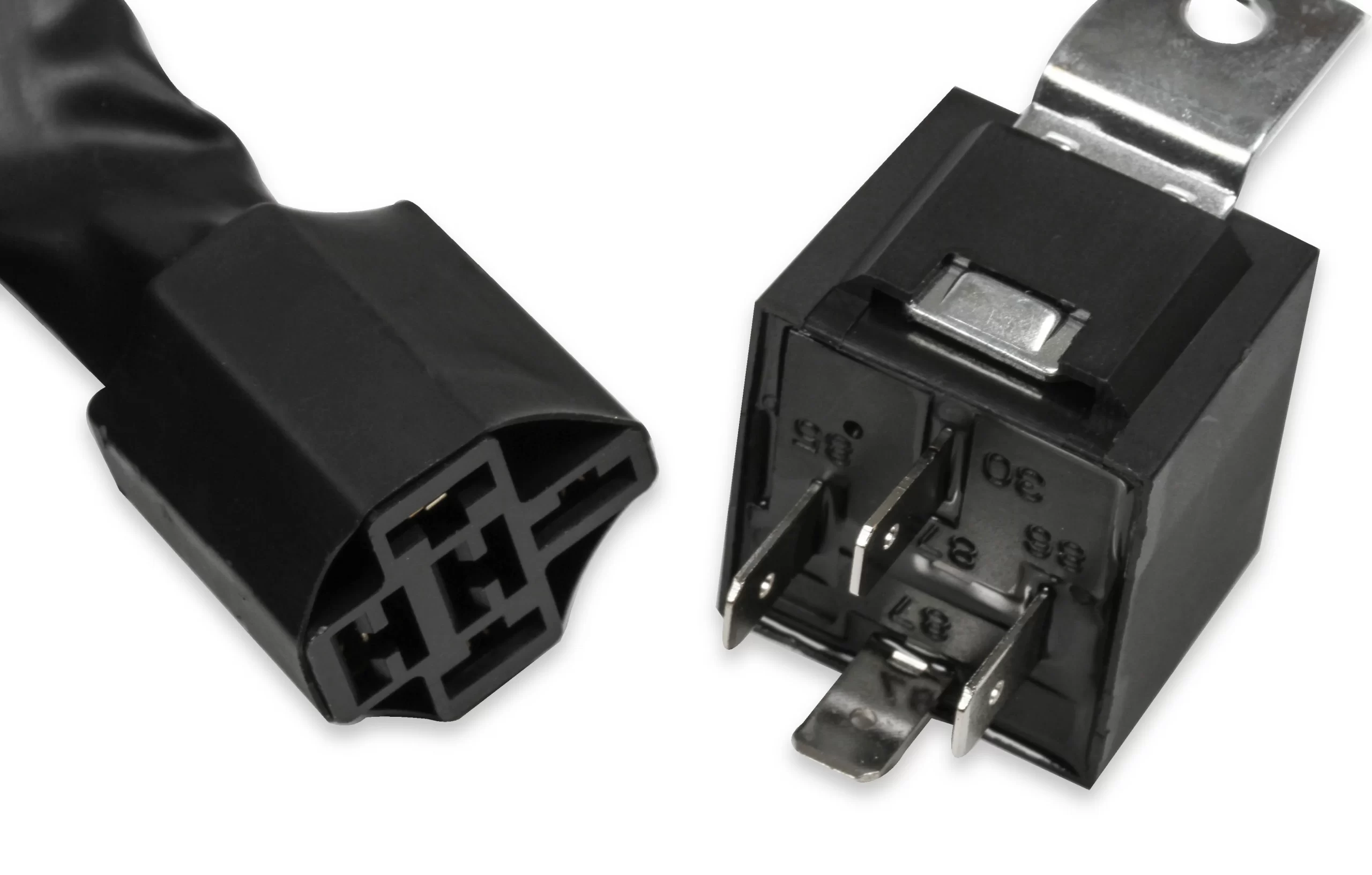

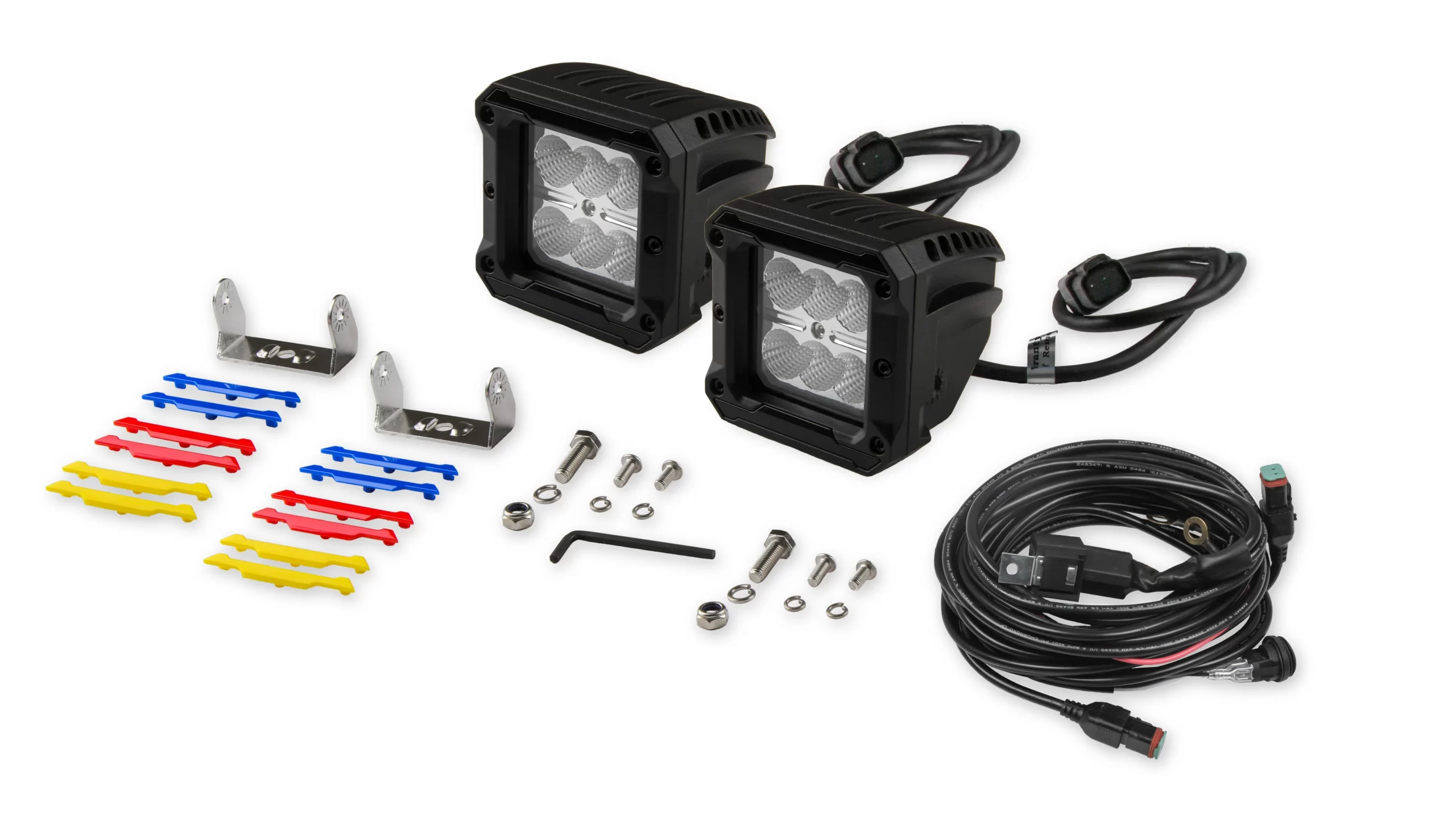

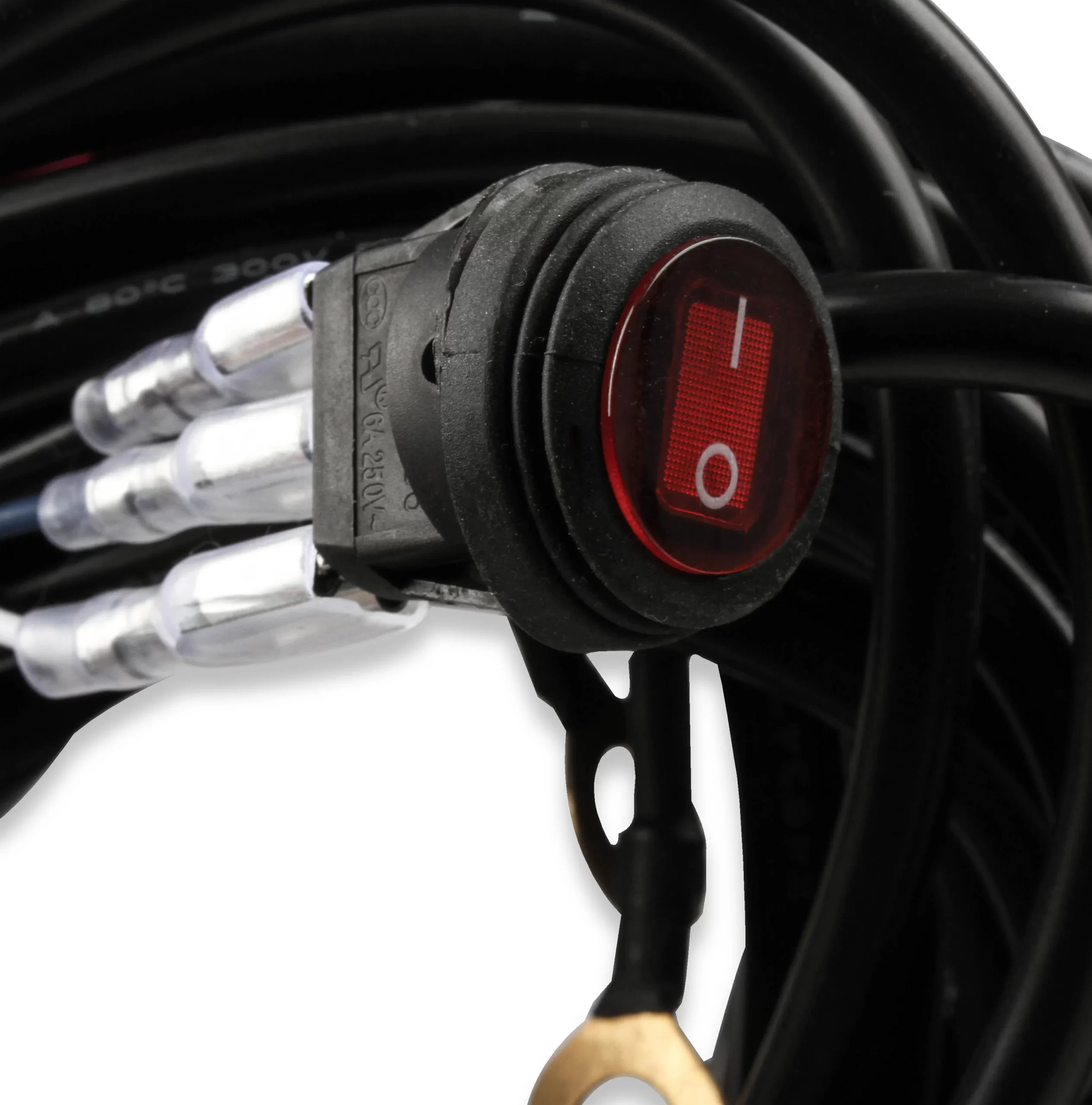

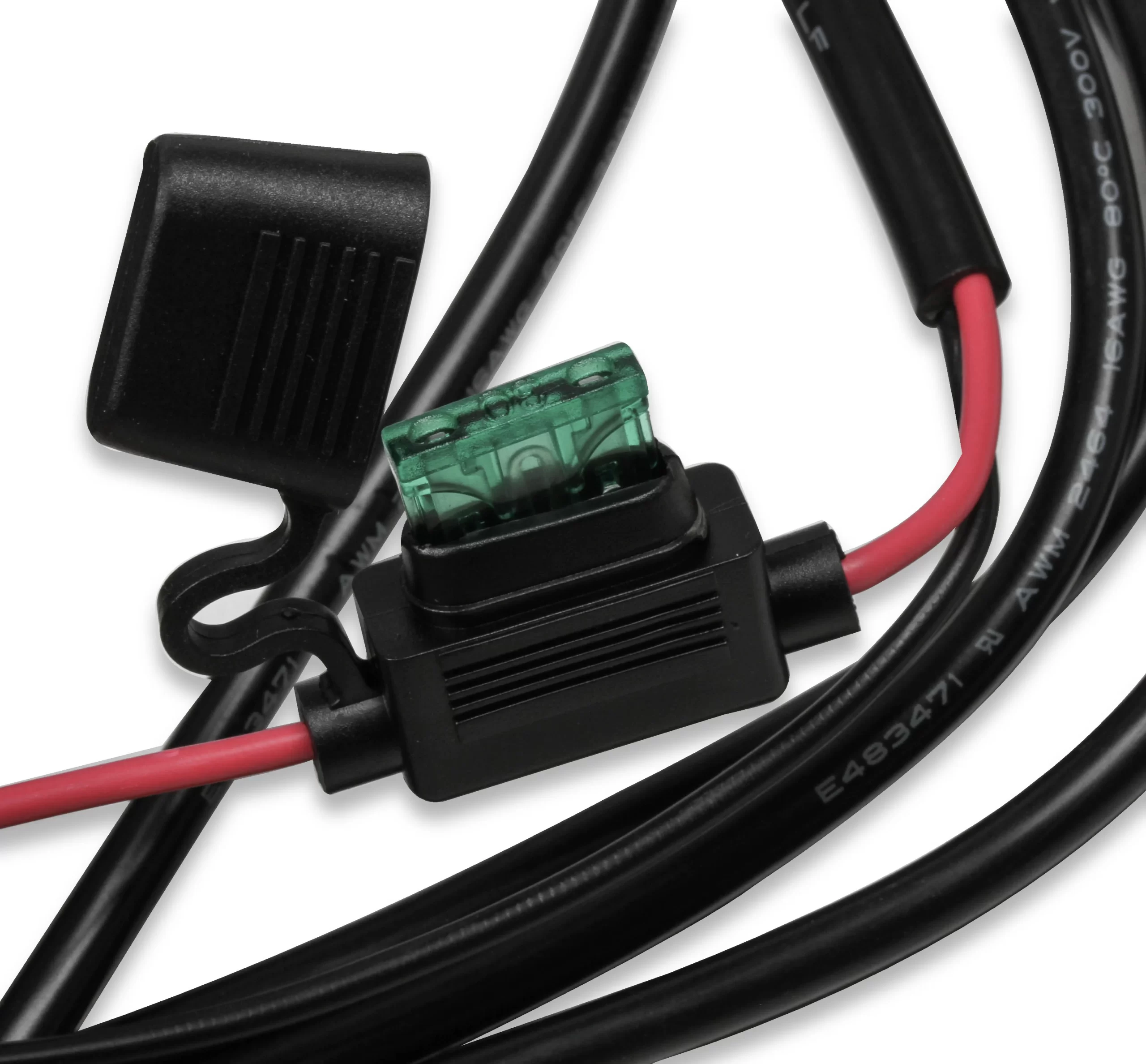

- (2) Light Sets Include Wiring Harness w/ Relay, Fuse, Switch & Waterproof Connectors
- For Off-Road Use
- Reverse Polarity Protection
- Color Accent Trim Pieces Included (Blue, Red & Yellow)
- Operating Temperature: -40°F to 140°F
- Beam Patterns: 8° Spot or 90° Flood
| Amp Draw | 1.1 Amps @ 13.8 Volts |
|---|---|
| Beam Pattern | 90° Flood |
| Brand | Bright Earth |
| Color Temperature | 6000K |
| Depth | 3.00″ |
| Emission Code | 5 |
| Finish | Black |
| Height | 3.346″ |
| LED Qty | 6 |
| Lumens | 1,440 |
| Material | Die Cast Aluminum |
| Mount Hole Diameter | 5/16″ |
| Mounting Hardware Included | Yes |
| Product Type | Cube Lights |
| Quantity Per Pkg. | 2 |
| Watt Rating | 18 |
| Width | 3.190″ |
| UPC | 090127050705 |
| Part Number | CL6F2PK-BEL |
