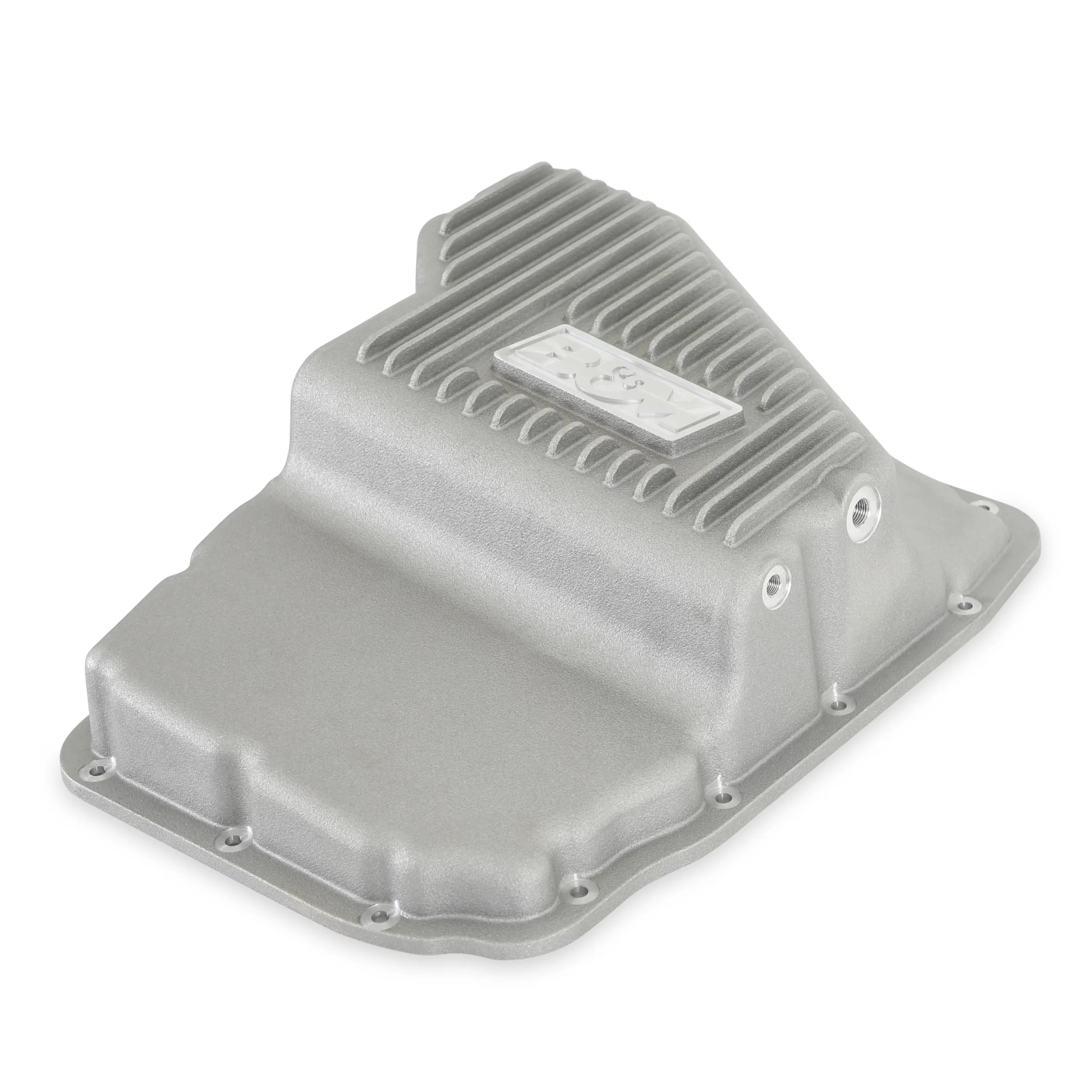

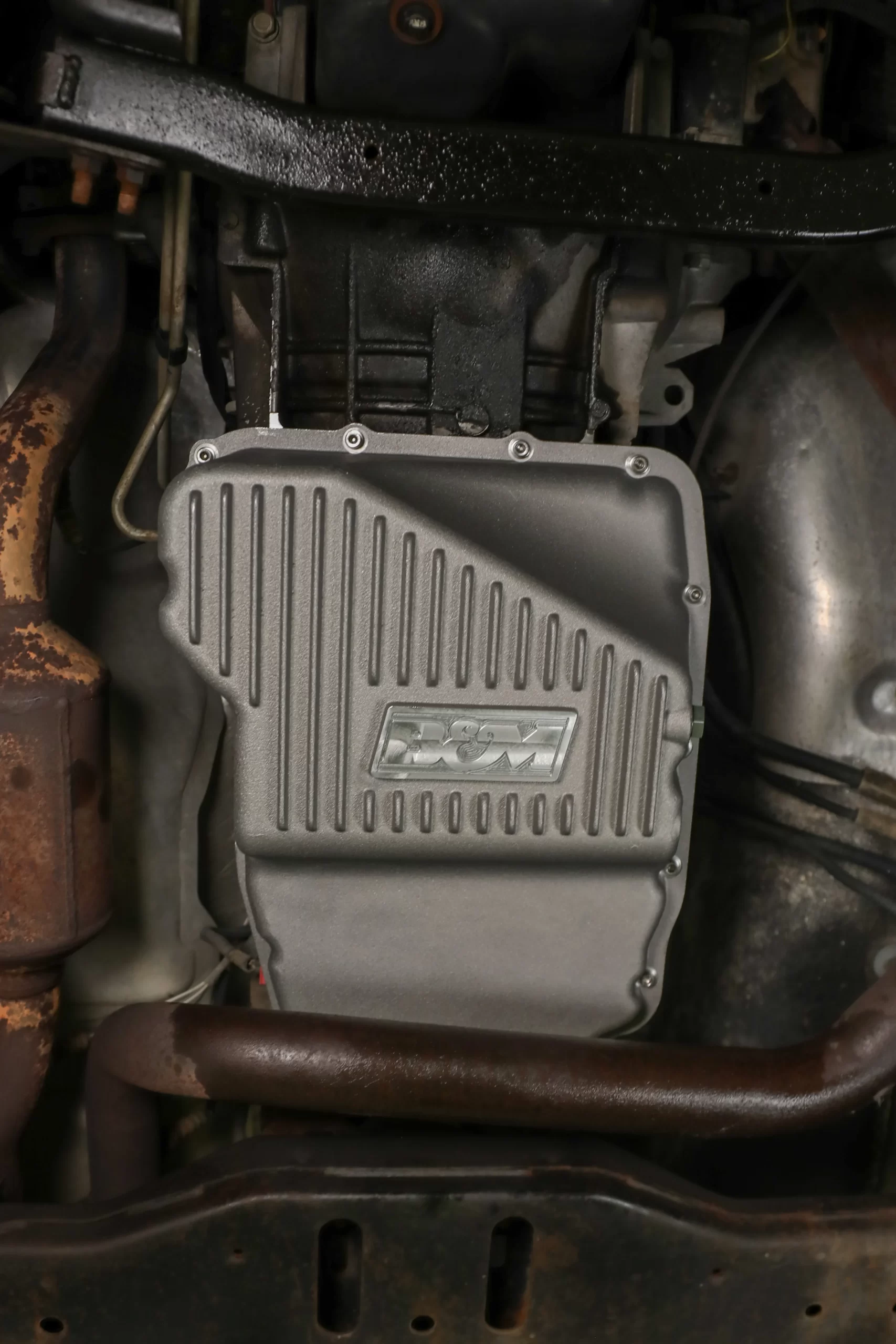

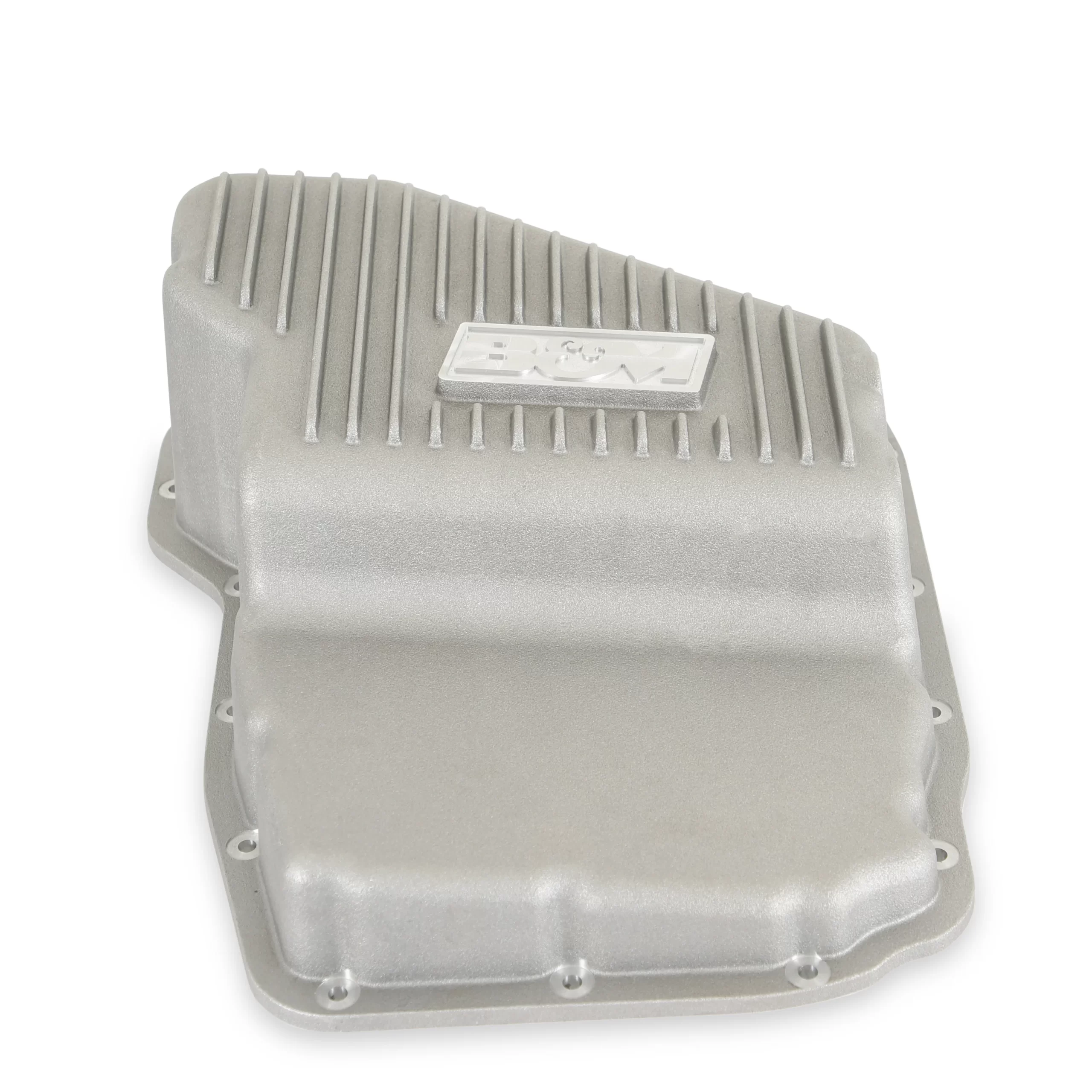

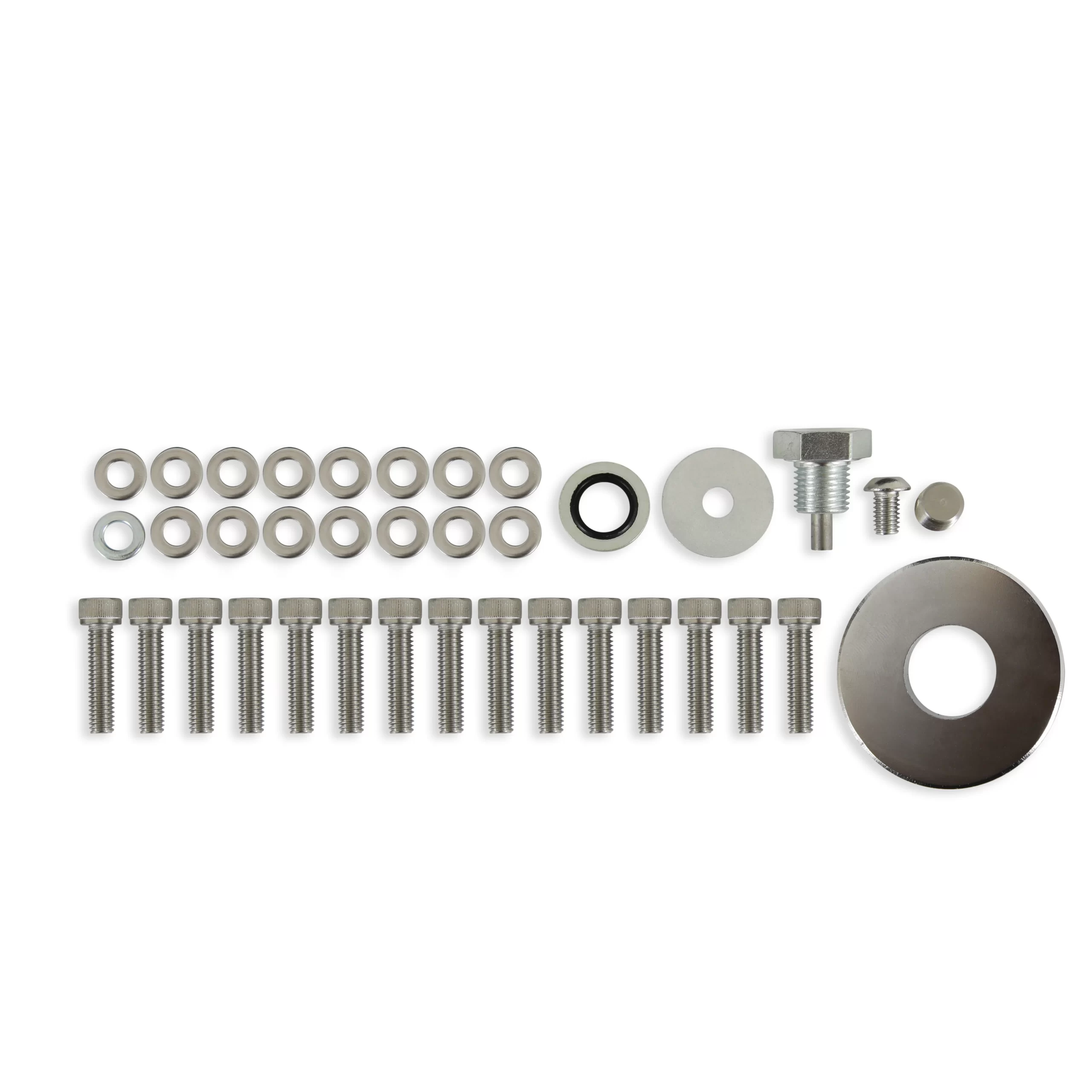

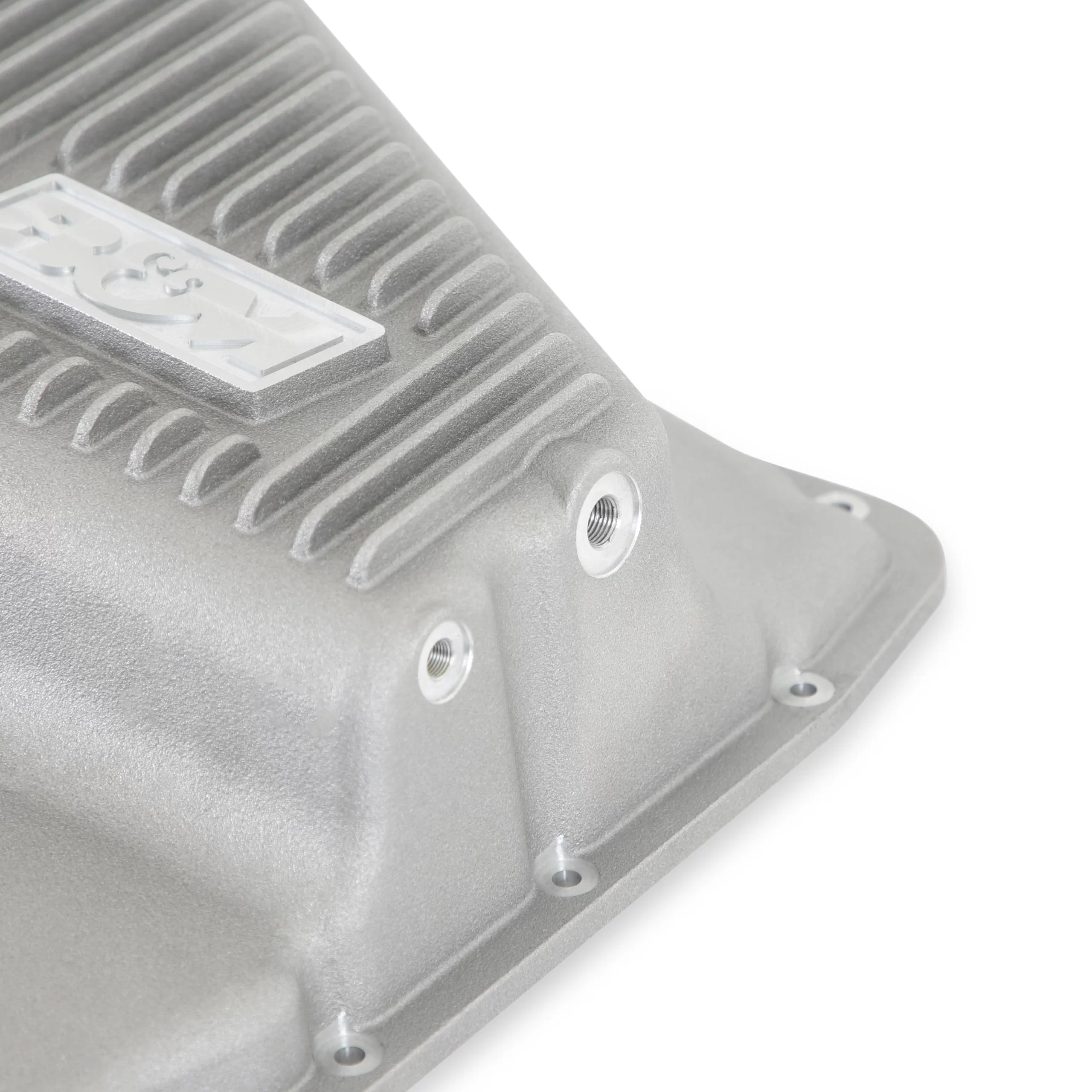

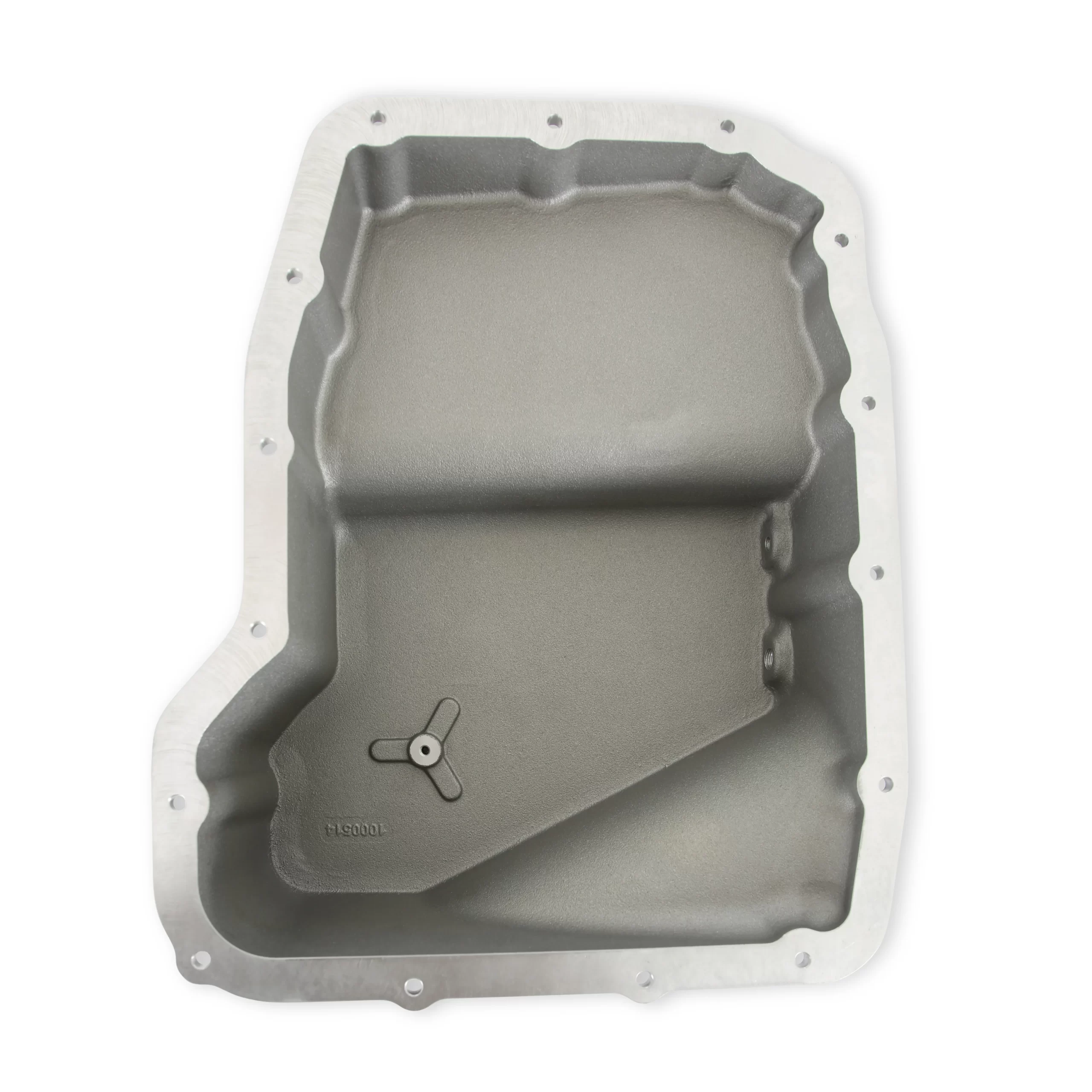

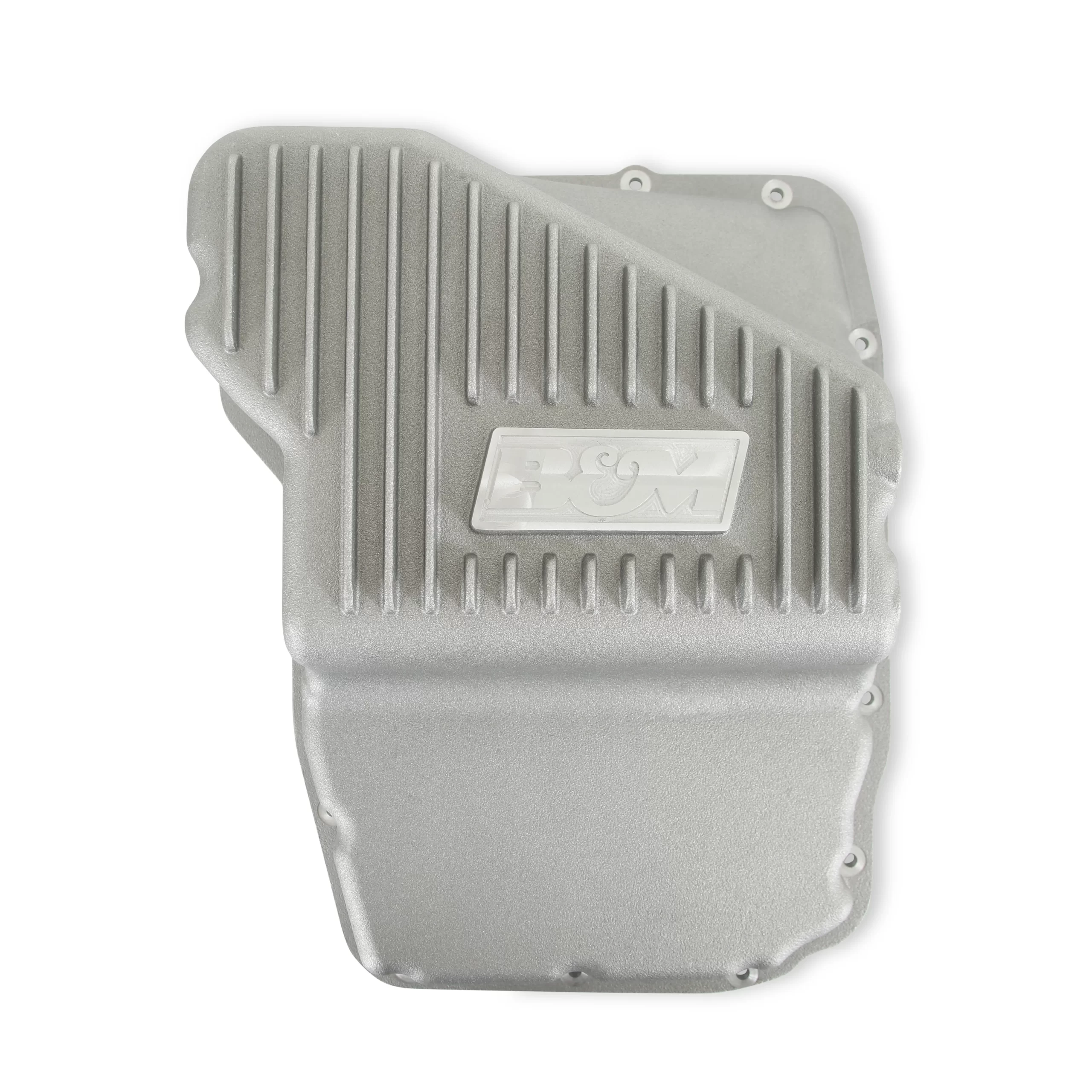

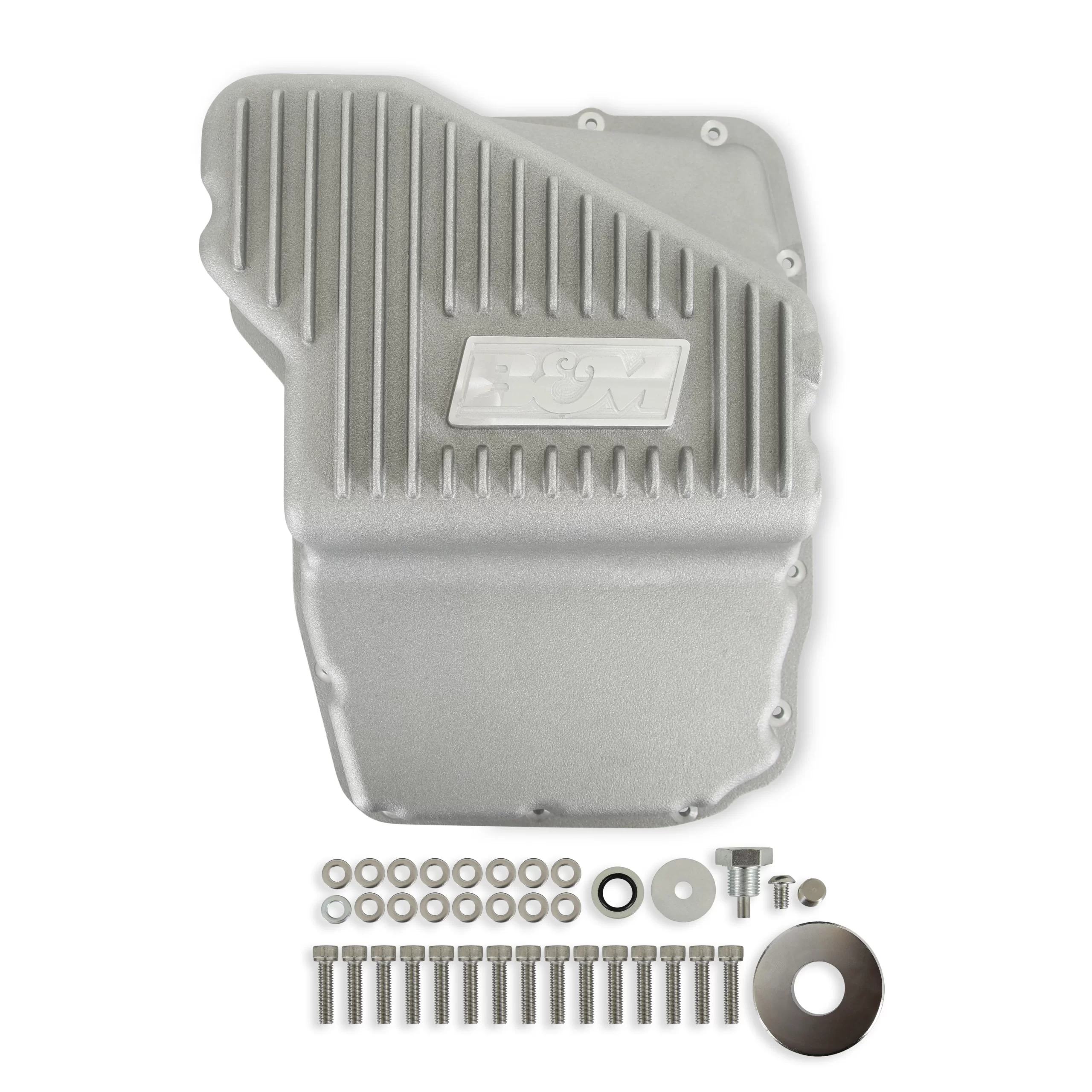

Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware required for a DIY installation.

Additional Fluid Capacity (qts)	2
Bolt Count	15
Bolt/Studs Included	Yes
Brand	B&M
Color	Aluminum
Color/Finish	Natural
Drain Plug Included	Yes
Drain Plug Kit	Yes
Drain Plug Type	Magnetic
Emission Code	5
Gasket Included	No
Gasket Or Seal Included	No
Grade Type	Performance
Instructions Included	Yes
Material	Cast Aluminum
Mounting Hardware Included	Yes
Oil Pan Gaskets Included	No
Product Type	Automatic Transmission Pans
Temp Sensor Port	Yes
Temperature Sensor Bung	Yes
Transmission	66RFE
	MOPAR 545RFE
Transmission Filter Included	No
Transmission Type	Automatic
UPC	090127846995
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
California Proposition 65 Required	Yes
Part Number	70402
