12-VOLT WINCH 4500 LBS – CABLE

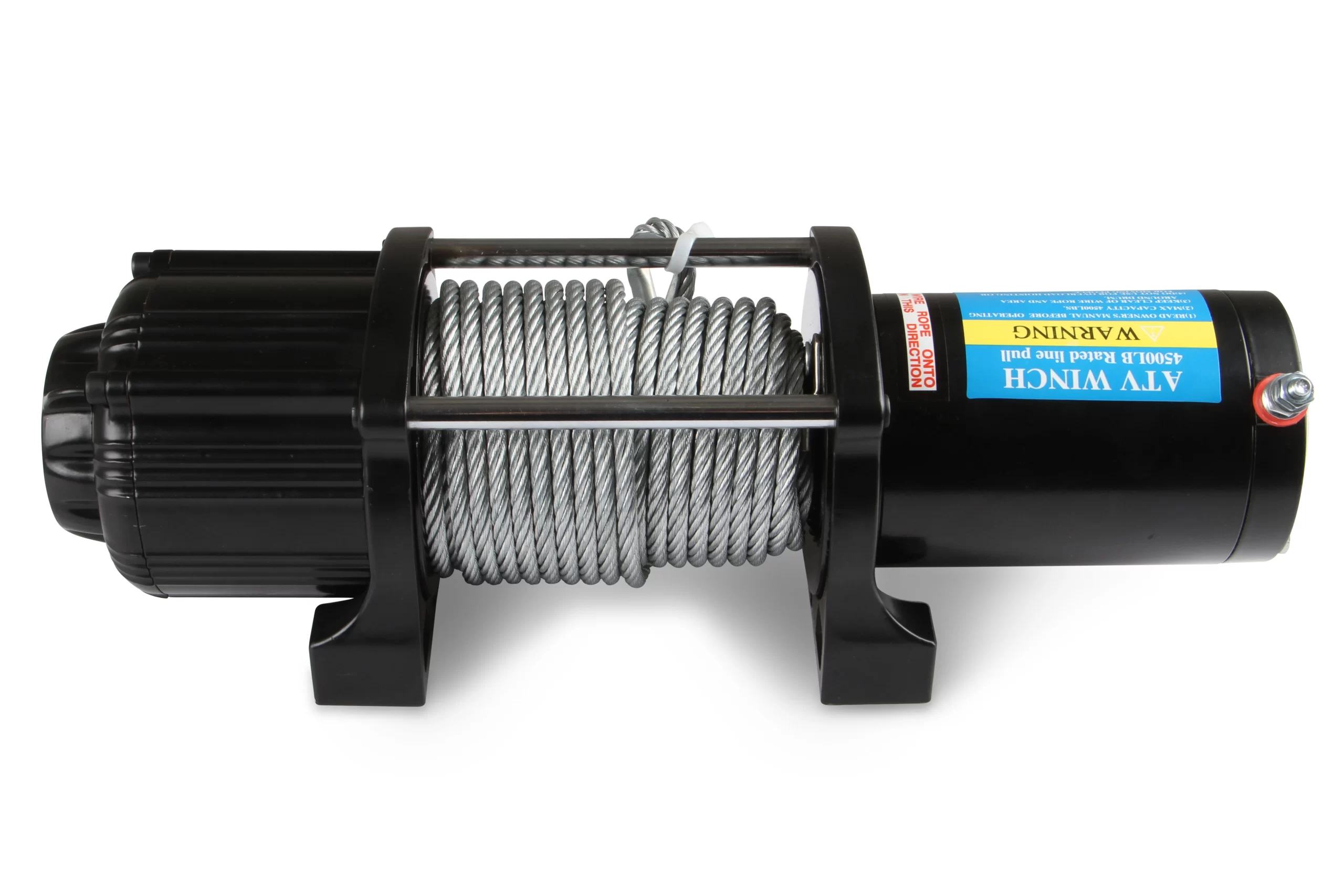

Anvil – 4,500 Lbs. Winch w/ Metal Cable & Roller Fairlead.
Part # 4501AOR
Anvil 12-volt 4,500 lb. winch is ideal for use on trailers and larger UTV’s. This winch is powered by an efficient 1.6 HP 12-volt permanent magnet motor. Winch features a metal cable & roller fairlead. The wireless remote control is really handy when loading a vehicle on a trailer, since you can steer the vehicle while controlling the winch. Includes: winch, fairlead, mounting plate, solenoid, handlebar switch, wireless remote, wire & hardware.
Features:
- 4,500 lbs. of pulling power with a 6mm x 32 feet long steel cable
- Motor: Permanent magnet DC 12-volt motor with 1.6 HP output
- Gear Reduction Ratio: 180:1 of pulling force

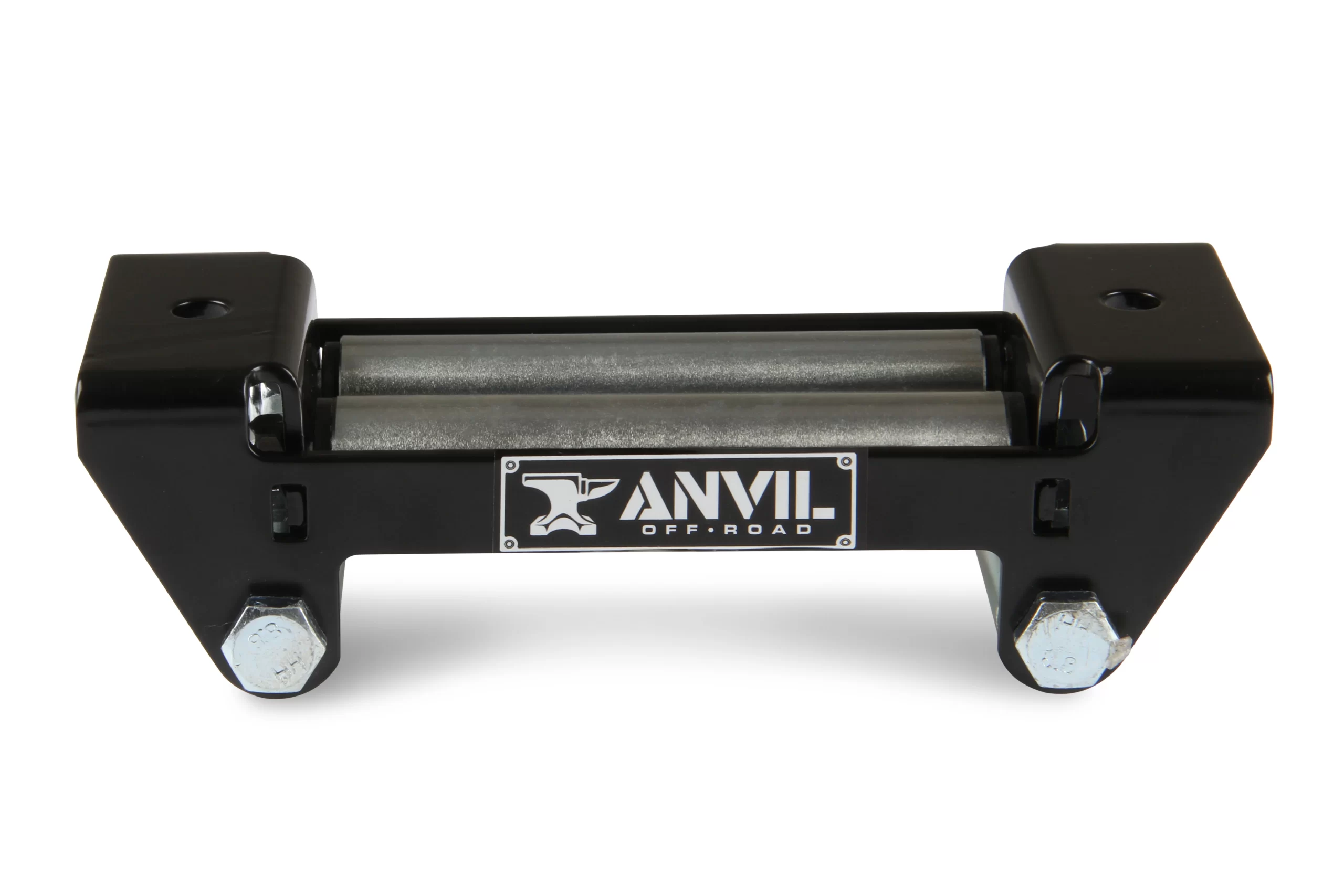

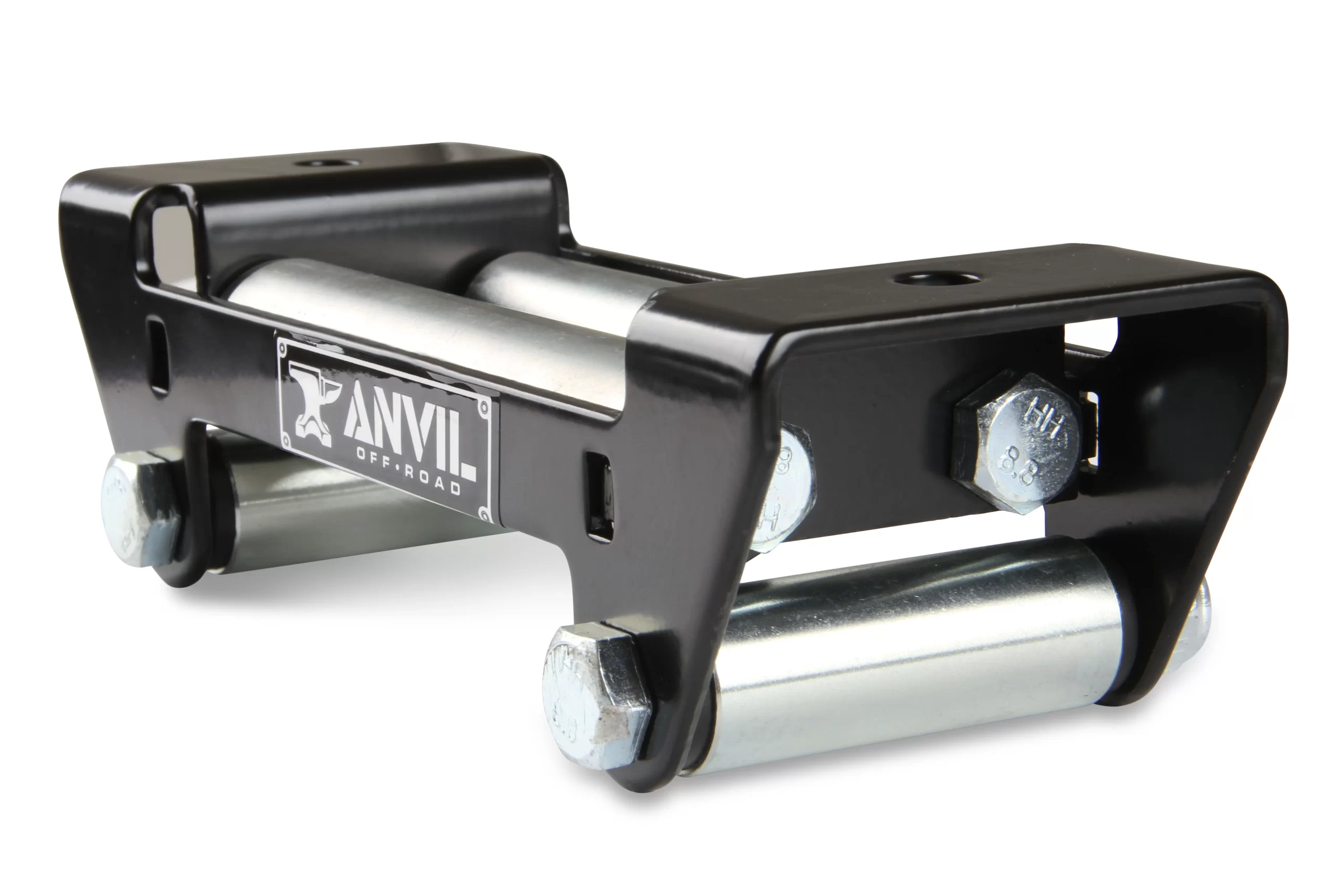

- Fairlead: 4-Way Roller minimizes damage to wire when pulling at different angles

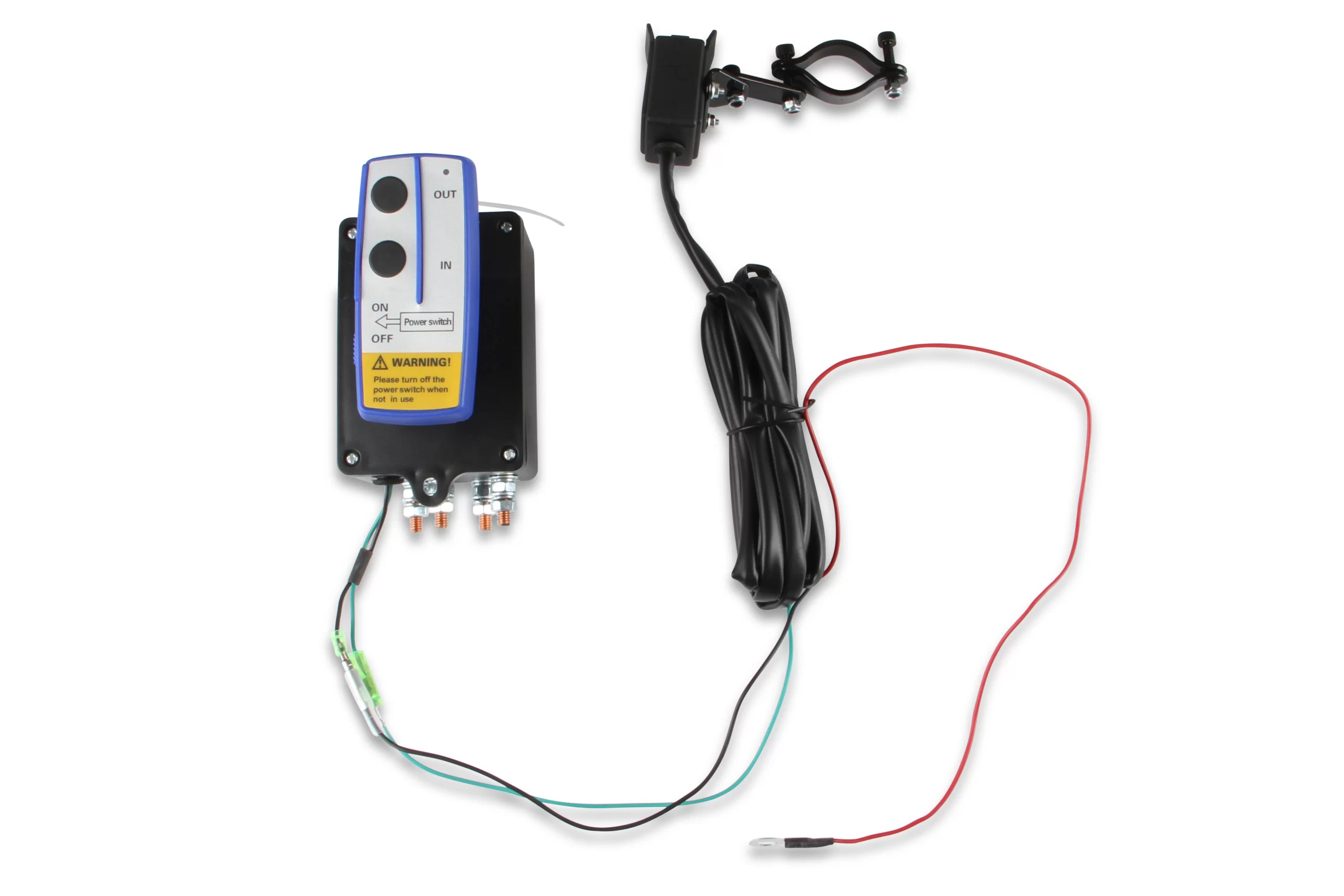

- Wireless Remote Control & Wired Handlebar Switch allows for different options to control the motor
- Free-Spooling with Clutch & Brake switch for disengaging the drum to manually pull the line or engage for the clutch & brake function
- Overall Dimensions: 16.6” Long x 5.3” Wide x 5.1” Tall
- Mounting Bolt Pattern: 4.88” x 2.99” 4-Bolt
- Weight: 25.3 lbs.

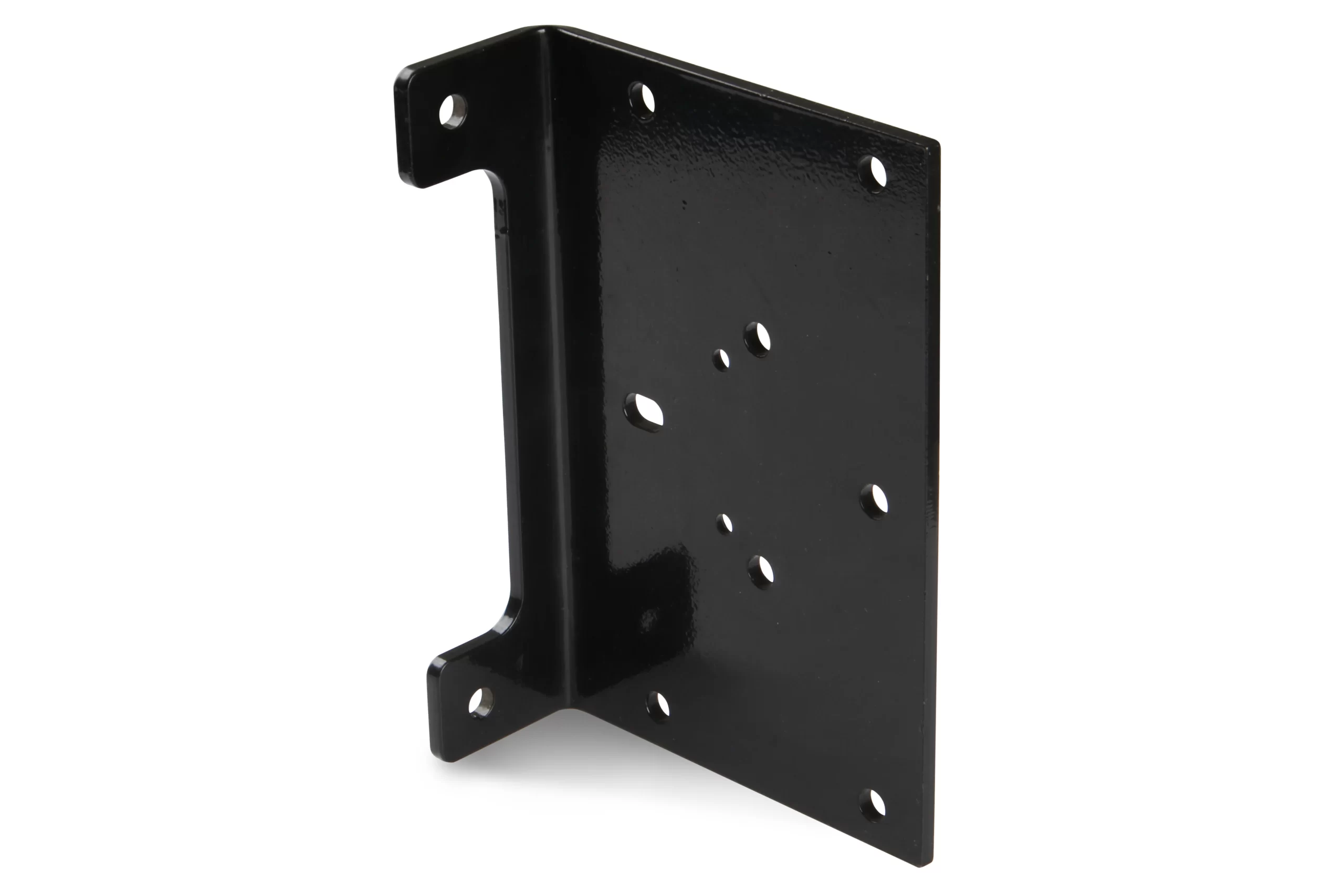

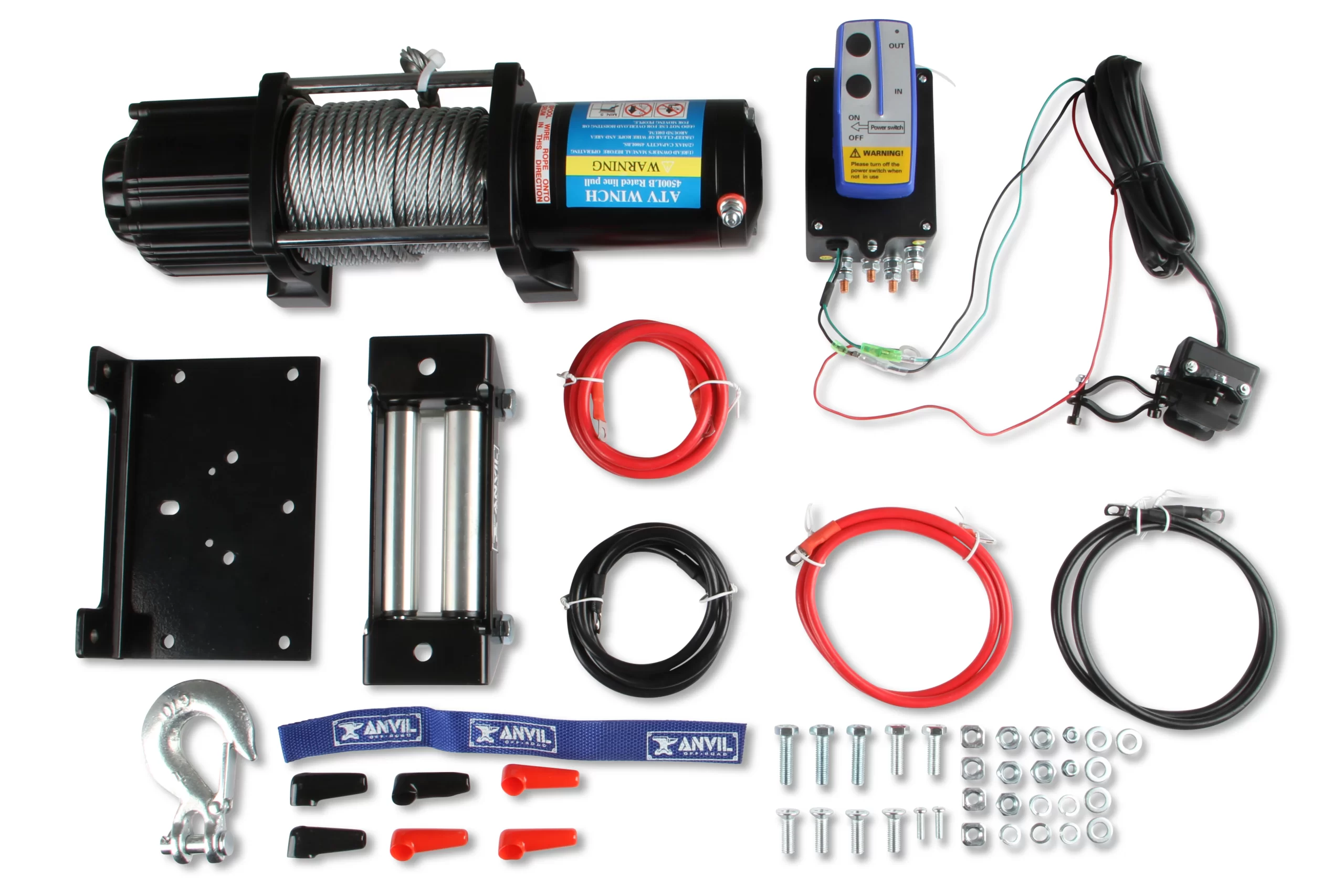

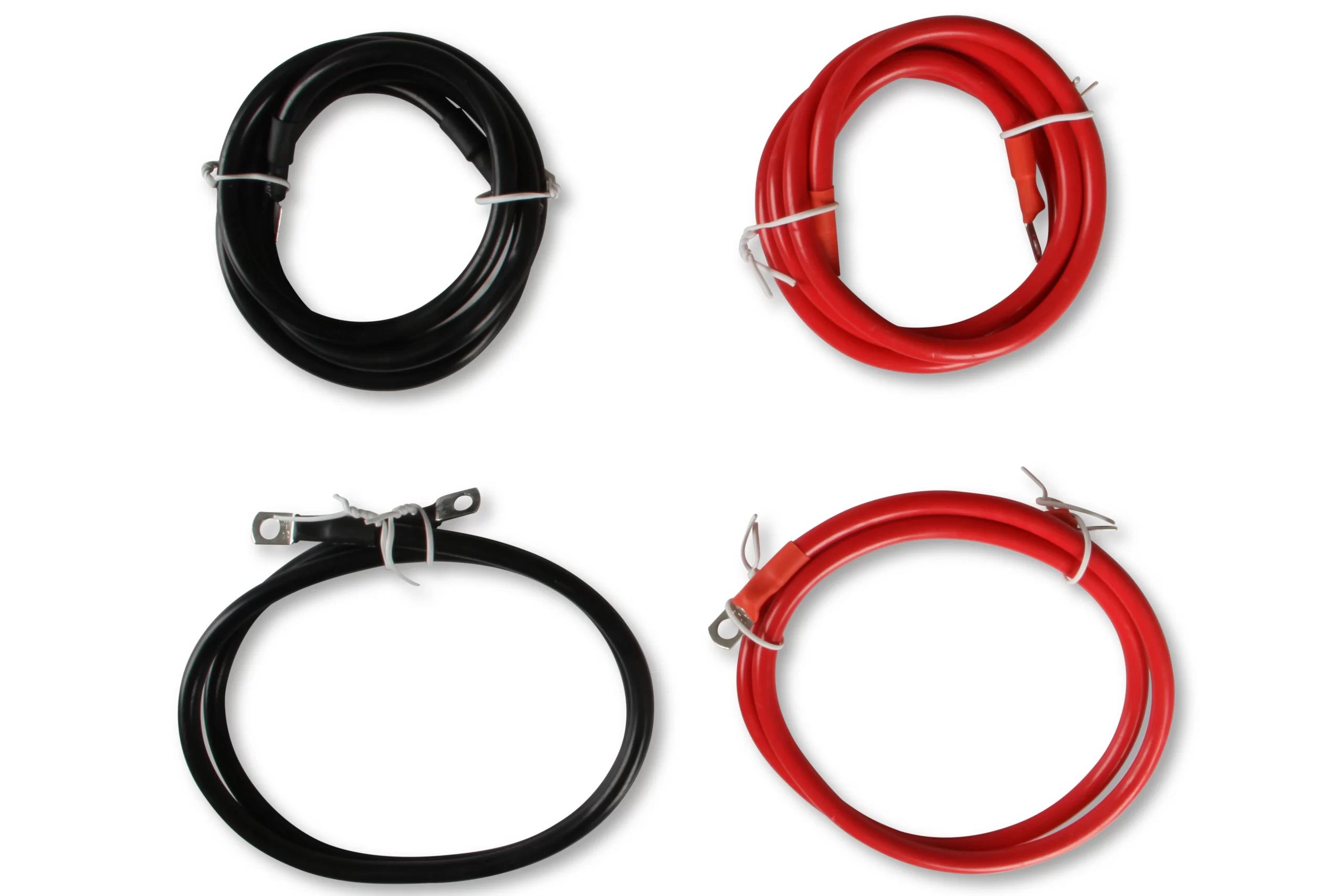

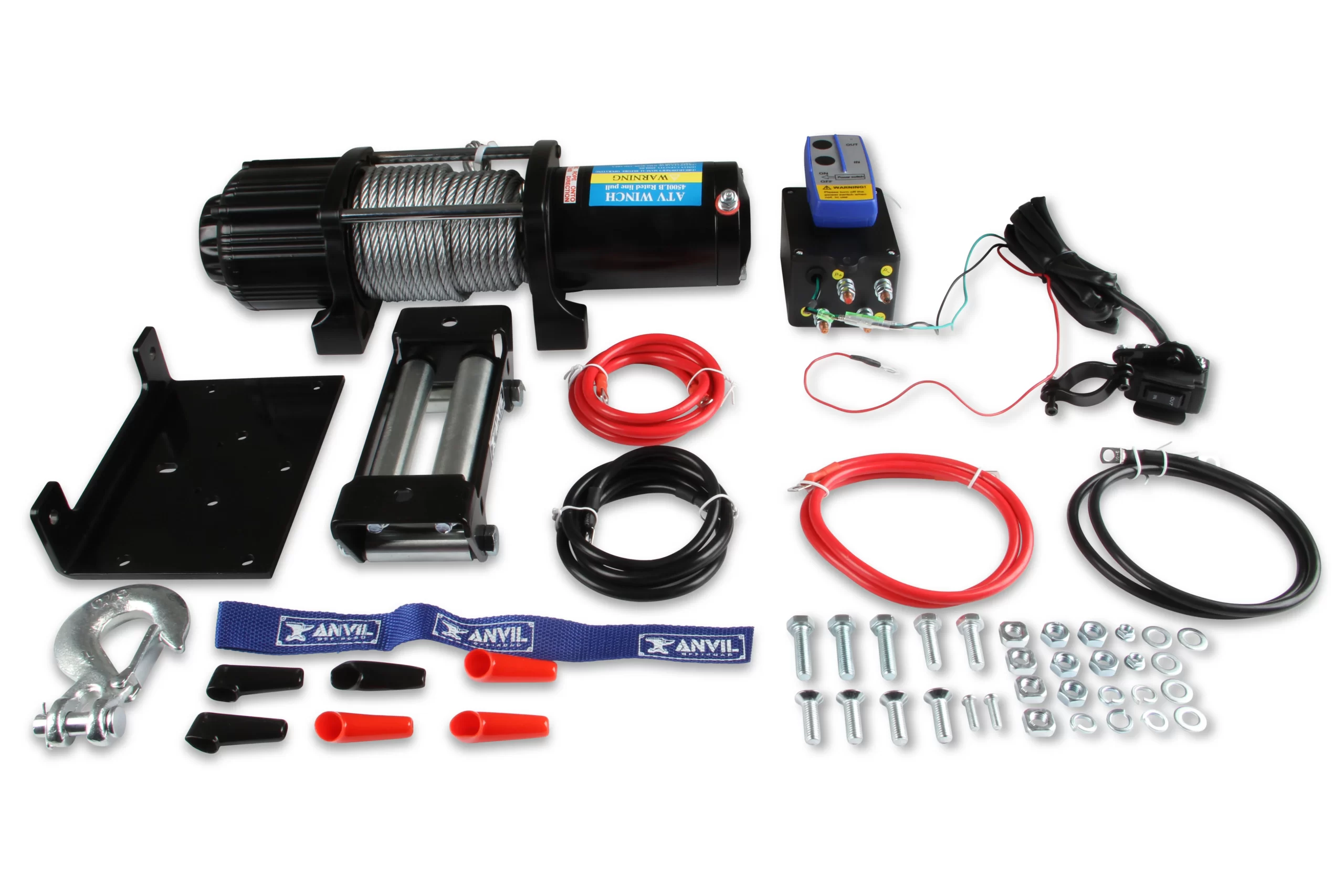

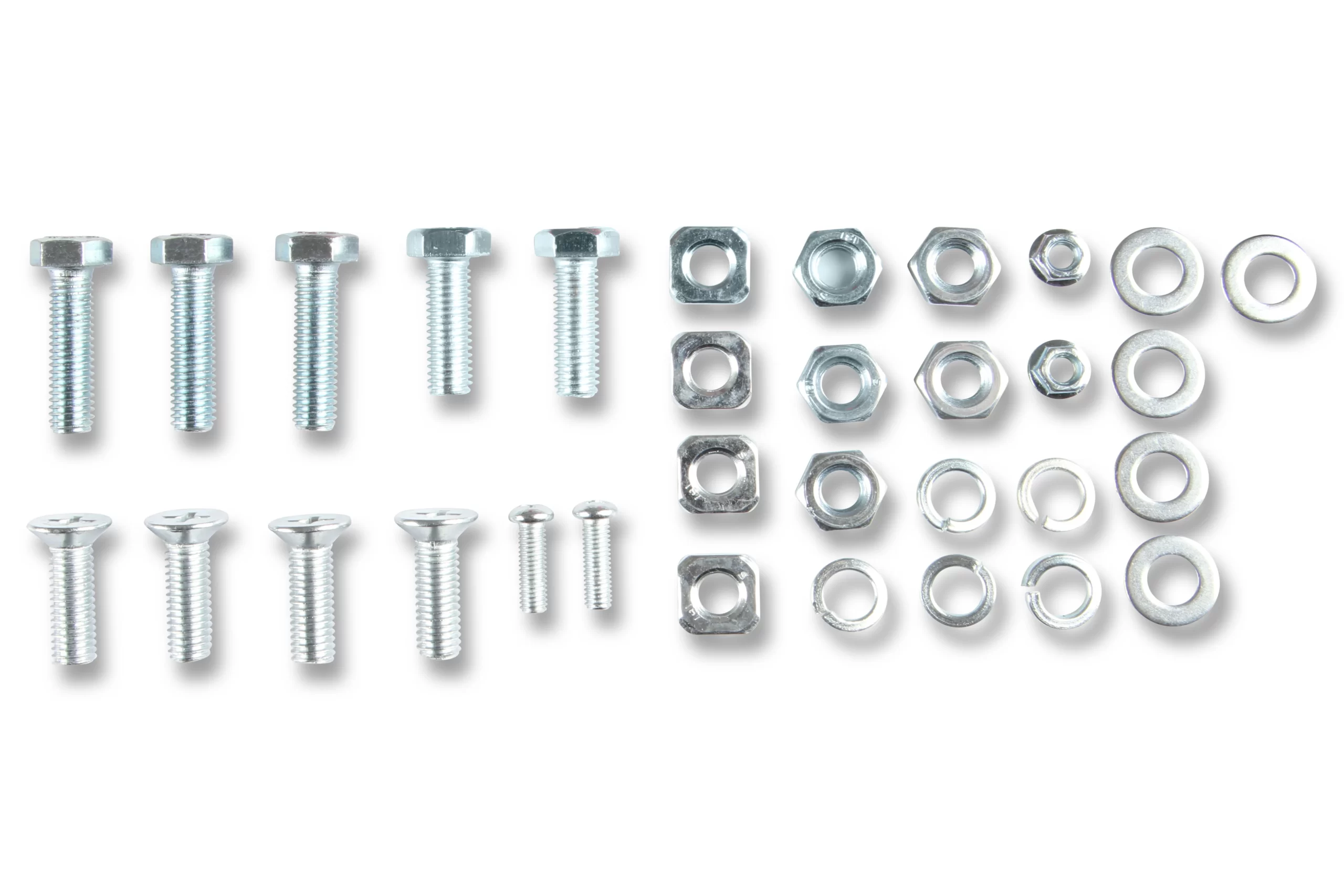

- Includes: Winch, Roller Fairlead, Mounting Plate, Handlebar Switch, Wireless Remote, Wiring & Hardware
| Brand | Anvil Off Road |
|---|---|
| Cable Diameter | 6 mm |
| Cable Length | 32 Feet |
| Cable Type | Metal |
| Capacity | 4,500 lbs. Single Line |
| Emission Code | 5 |
| Fairlead | 4-Way Roller |
| Finish | Black |
| Gear Reduction Ratio | 180:1 |
| Height | 5.1″ |
| HP | 1.6 HP |
| Length | 16.6″ |
| Mounting Bolt Pattern | 4.88″ x 2.99″ |
| Mounting Plate Included | Yes |
| Planetary Gear | 1-Stage |
| Product Type | Winch |
| Remote Control | Wireless |
| Voltage | 12-Volt |
| Warranty | 90 Day |
| Weight | 25.3 |
| Width | 5.3″ |
| UPC | 090127105269 |
| Part Number | 4501AOR |
