HOLLEY EFI HOLLEY LS HI-RAM EFI MANIFOLD-BLACK GM LS7 LS7 EFI w/ 92MM Throttle Body Part # 300-124BK

Original price was: $1,283.95.Current price is: $1,140.95.

+ FREE SHIPPING

LS7 EFI w/ 92MM Throttle Body

Availability: 1 in stock

Guaranteed Safe Checkout

-

Holley EFI

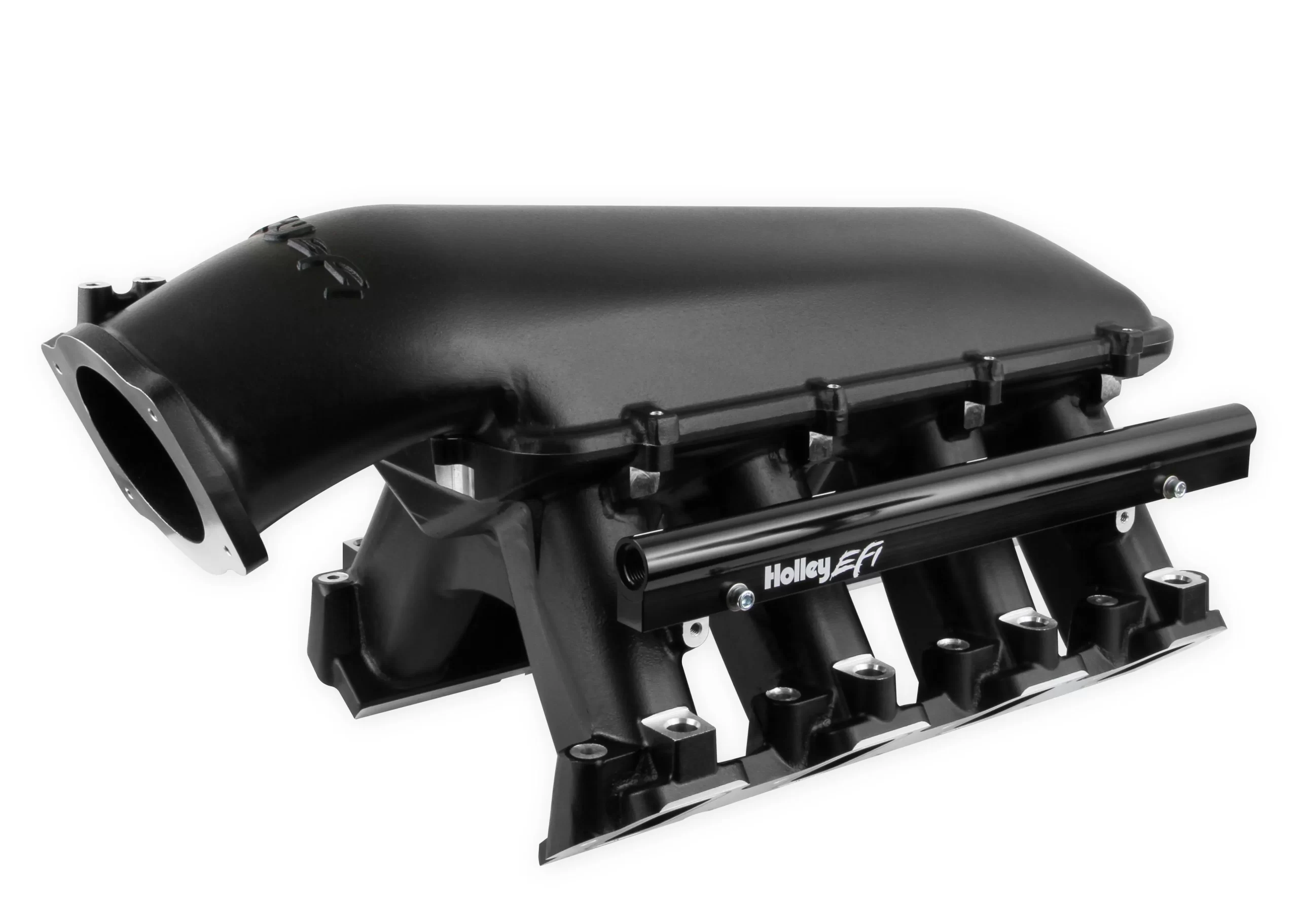

Holley LS Hi-Ram EFI Manifold-Black GM LS7

LS7 EFI w/ 92MM Throttle Body

Part # 300-124BK
The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

  • Runner Length – 6.29”, As-Cast Runner Cross-Sectional Area – Tapered 4.67in² to 2.84 in²

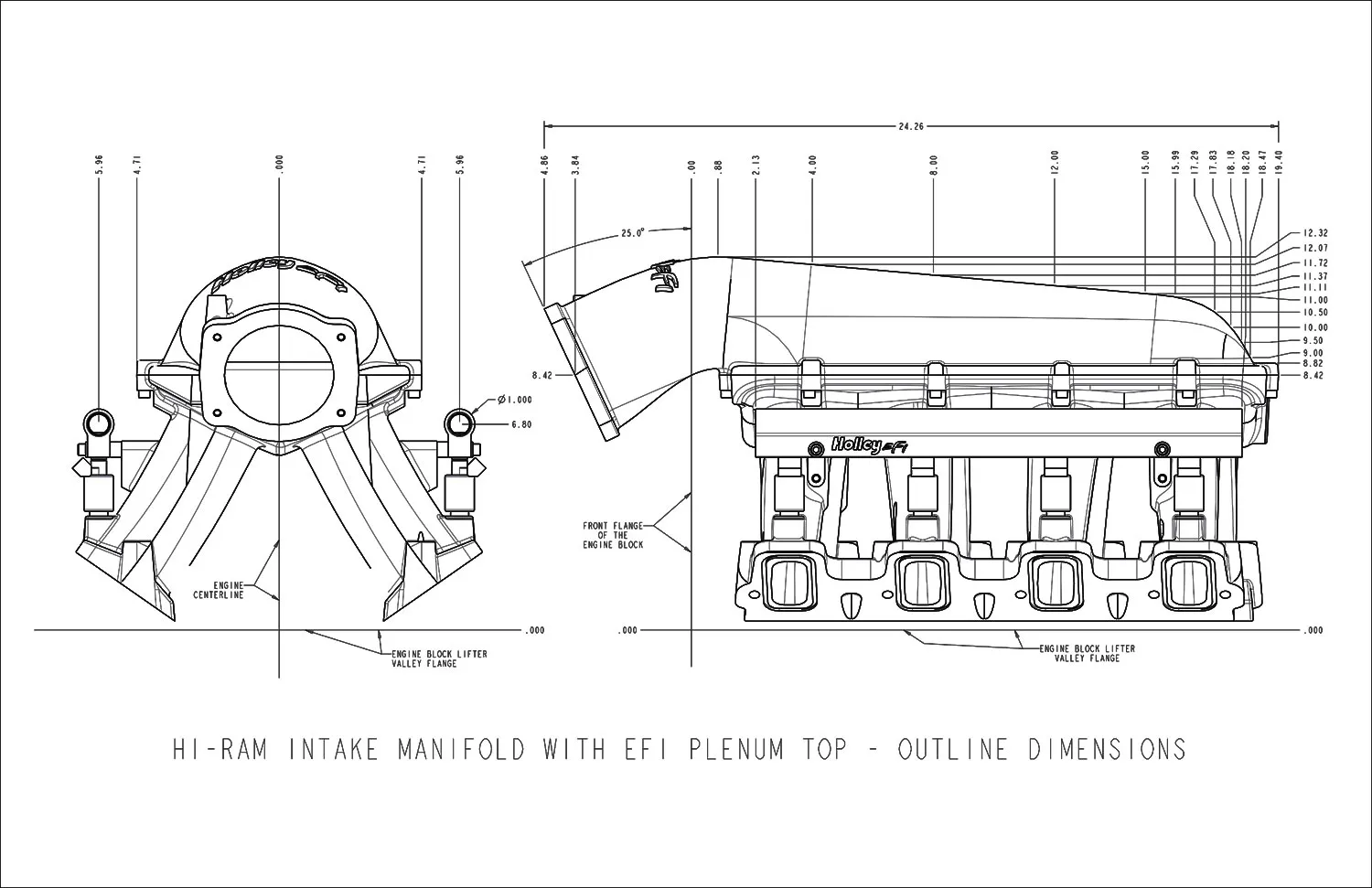

  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Port Size – 2.49” Height x 1.21” Wide
  • Total Height with 92/102mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
  • Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
Basic Operating RPM Range 3500-8000 RPM
Brand Holley EFI
Category Engine
Color Black
Construction Cast
EGR Port No
Emission Code 4
Engine GM LS7
Finish Black
Flange Style EFI
Front Height 12.32 inch
Front Maximum Height 12.32 IN
Fuel Injectors Included No
Fuel Rail(s) Included Yes
Fuel System Type EFI
Gasket Or Seal Included Yes
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type Hi-Ram
Material Aluminum
Nitrous Bung(s) Included No
Part Type Engine Intake Manifold
Plenum Finish Black
Product Type Intake Manifold
Rear Height 11.00 inch
Rear Maximum Height 11 IN
Recommended Use Forced Induction
Removable Runners No
RPM Power Band 3500-8000 RPM
Single Or Dual Plane Type Single Plane
Sub Category Cylinder Block Components
Throttle Body Bore Diameter 92 MM
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127059913
Part Number 300-124BK
Weight 37.505 lbs
Dimensions 30.6 × 15.6 × 16.1 in

Brand

Holley EFI

Holley is quickly becoming The New Standard In EFI! Holley’s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley’s EFI throttle body powers every NASCAR Sprint Cup Series™ team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All-Star race. But that’s not all. The world’s best hot rod builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It’s the easiest, most refined, feature-rich system that money can buy. But, don’t take our word for it, see what the best are saying about Holley EFI!
